Rointe ecodesign BELIZE User manual

MANUAL DE INSTALACIÓN Y USO
Página 26
MANUAL DE INSTALAÇÃO E DE UTILIZAÇÃO
Página 48
INSTALLATION AND USER MANUAL
Page 03
INSTALLATIE- EN GEBRUIKERSHANDLEIDING
Page 70
ES
EN
PT
NL
BELIZE Digital radiator with Wi-Fi / Radiador digital con Wi-Fi /
Radiador digital com Wi-Fi / Digitale radiator met Wi-Fi
GUARANTEE / GARANTÍA
/ GARANTÍA / GARANTIE
ON THE BODY
EN EL CUERPO
NO CORPO
IN HET LICHAAM
YEARS / AÑOS
/ ANOS / JAAR
YEARS / AÑOS
/ ANOS / JAAR
ON ELECTRONICS
EN ELECTRÓNICA
NA ELECTRÓNICA
IN ELEKTRONICA

2
SYMBOLS
DANGER. This symbol indicates a medium-high risk hazard which can result in
serious injury or even death.
DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not
leave or place magazines, spray cans, volatile substances, or similar objects
within 250 mm of the radiator.
HOT SURFACE. This symbol indicates that your surfaces are hot during and
immediately after use. These must not be touched: danger of burns.
OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual
carefully before installing and using the product. Keep it for later use. Read all
instructions and safety warnings. Failure to follow these can result in electric
shock, re or serious injuries.

EN
BELIZE DIGITAL RADIATOR WITH WI-FI
3
INDEX
1. General Warnings ............................................................................................................ 5
2. Technical information .................................................................................................... 8
3. Installation........................................................................................................................ 9
4. Screen & Keypad ............................................................................................................ 12
5. Functionality and programming ................................................................................. 13
5.1. ON & OFF ................................................................................................................ 13
5.2. Select the temperature.......................................................................................... 13
5.3. Temperature control ............................................................................................ 14
5.4. Lock / unlock button pad ...................................................................................... 14
5.5. Settings menu ....................................................................................................... 14
5.5.1. Settings submenu............................................................................................ 15
5.5.2. Energy submenu.............................................................................................. 16
5.5.3. Wi-Fi submenu................................................................................................. 17
5.5.4.Prog. mode ....................................................................................................... 18
6. Wi-Fi pairing....................................................................................................................22
7. Maintenance and cleaning ...........................................................................................22
8. European Regulation (WEEE) 2012/19/EU ................................................................22
9. Guarantee ......................................................................................................................23
10. How to register your product guarantee ..................................................................25
Directive ERP Commission Regulation ..........................................................................92
Declaration of conformity .................................................................................................93

4
1. GENERAL WARNINGS
WARNINGS
This product may be used by children over 8 years of age
and by persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge under strict
supervision or instruction in the safe use of the product and
if they understand the hazards involved. Children should not
plug, adjust, clean, play with, or perform maintenance on this
product. Children under 3 years of age should be kept away
from this product unless supervised.
DO NOT use the product in enclosed spaces if the persons
present cannot leave the room independently and are not
under constant supervision.
DO NOT COVER. To avoid overheating, do not cover the
radiator.
DO NOT place spray cans, volatile substances, or similar
objects within 250mm of the product.
DO NOT use insecticides, paints, or chemicals on or near the
product.
Some parts of this product could reach high temperatures
and cause burns. DO NOT touch the external parts of the
product when in operation.
DO NOT install near curtains or other ammable materials.
Particular attention should be paid when children and
vulnerable people are present.

EN
BELIZE DIGITAL RADIATOR WITH WI-FI
5
When using electrical appliances, precautions should be
taken to reduce the risk of re, electric shock and injury.
Never insert ngers, body parts or objects inside the product.
Make sure that the voltage indicated on the product’s
technical information corresponds to the voltage output you
have at your socket.
Any repair or maintenance that requires the product to
be opened the product must be carried out by personnel
authorised by ROINTE, who must also be notied if a leak
is observed. Only ocial spare parts approved by ROINTE
should be used. Please observe the current and relevant
regulations when disposing of this product and its thermal
uid.
If the power cable is damaged, it must be replaced by
personnel authorised by ROINTE to prevent any damage.
To avoid the risk of suffocation, do not leave the packaging
including bags and other items within reach of babies or
children.
The product has an IP24 degree of protection and can be
used in bathrooms, but not in the vicinity of bathtubs, taps,
showers, water connections, toilets, swimming pools or other
masses of water. The product must never be installed where
it, the switches or the control panel are within the reach of
people in the water. Never use the product with wet hands.
Do not place any water containers (glasses, vases, etc.) on or
near the product.

6
IMPORTANT
Disconnect the product from the power supply and make
sure the product is at room temperature before any cleaning
or maintenance. Do not use any abrasive substances on
the product, such as (but not limited to) chemicals, coarse
cloths, brushes, hard bristle, or wire/steel wool.
To disconnect the product from the power source, remove
the mains plug from the socket. Do not pull on the cable.
ROINTE cannot be held responsible for incorrect sizing of
the product unless it has been followed by an ocial ROINTE
technical study.
Before the rst start-up, or before the start of winter, or when
the product has not been used for many days, the appliance
should be cleaned (follow the steps in the “maintenance”
section of this manual).
Do not sit or lean on the product.
Temperature contrasts can generate “clicks” or noises in
the device. This is not a fault of the product, but due to the
expansion/contraction of the materials.
When disposing of the product, the requirements set out in
the legislation for the waste treatment and recycling must be
followed. See WEEE in section 8.
!

EN
BELIZE DIGITAL RADIATOR WITH WI-FI
7
2. TECHNICAL INFORMATION
MODEL BRI0330RAD BRI0550RAD BRI0770RAD BRI0990RAD BRI1210RAD BRI1430RAD BRI1600RAD
Number of elements 3 5 7 9 11 13 15
DIMENSIONS, WEIGHTS & FINISHES Width (mm) 340 500 660 820 980 1,140 1,300
Height (mm) 575 575 575 575 575 575 575
Depth (mm) 95 95 95 95 95 95 95
Installed depth (mm) 118 118 118 118 118 118 118
Weight (kg) 8.0 12.0 16.0 20.0 24.0 28.0 32.0 Finish White RAL 9010 ELECTRICAL CHARACTERISTICS Nominal power (W) 330 550 770 990 1,210 1,430 1,600
Effective power (W) 132 220 308 396 484 572 640
Voltage (V) 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V 230 ~V
Current (A) 1.4 2.3 3.3 4.3 5.2 6.2 6.9 SAFETY & INSTALLATION Safety thermostat
Template & Installation Kit Grade of protection IP 24 IP 24 IP 24 IP 24 IP 24 IP 24 IP 24
EAN Code 8435556138723 8435556138730 8435556138747 8435556138754 8435556138761 8435556138778 8435556138785

8
3. INSTALLATION
We recommend using a trusted Rointe supplier for installation of the product. Find the
nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk.
IMPORTANT: Prior to installation, please locate the metal tag located at the back of the
product and note the product reference and serial number. You will need this information
to register your guarantee. See section 10 for help on how to register the guarantee.
WARNING: Do not install the product directly over an electrical outlet or junction box.
Do not install the product or use it outdoors. Do not install directly under a shelf. This
product is designed to be installed on an interior wall using the ROINTE template, the
installation kit and the xings supplied. Do not install the product in such a way that it
encounters the power cable.

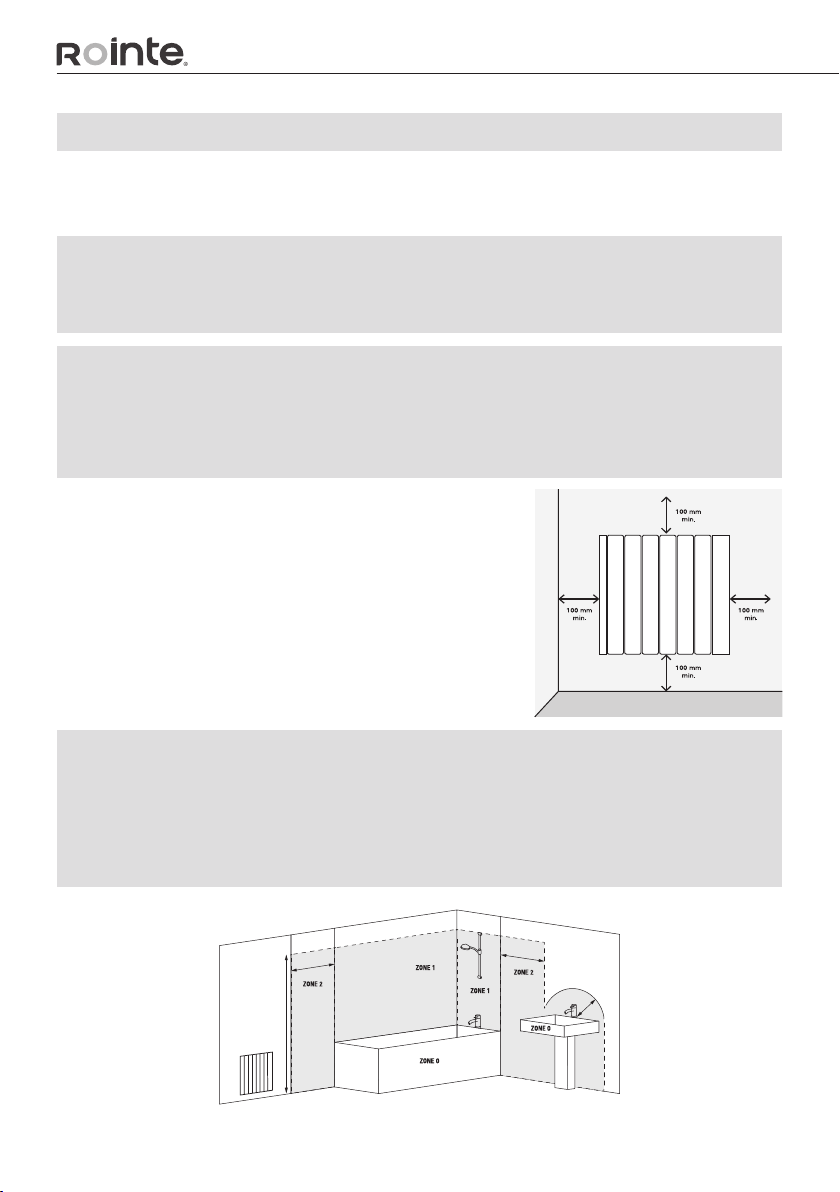

The product must be mounted on the wall in the position
shown in the accompanying image using the brackets
and with the xings supplied.
Our products transfer heat through the natural air
convection. If the product is covered, this will disrupt
the airow and could cause overheating. It must be
positioned in accordance with the minimum distances
shown in the accompanying picture.
WARNING: The product has an IP24 degree of protection and can be used in bathrooms,
but not in the vicinity of bathtubs, taps, showers, water connections, toilets, swimming
pools or other masses of water. The product can only be installed in zone 3 of the
accompanying picture. The product must never be installed where it, the switches or the
control panel are within the reach of people in the water. Never use the product with wet
hands. Do not place any water containers (glasses, vases, etc.) on or near the product.
ZONA EXTERIOR ZONA EXTERIOR
2.25 m
0.6 m 0.6 m
0.6 m

EN
BELIZE DIGITAL RADIATOR WITH WI-FI
9
An installation kit is included in the product packaging. You will need a drill, a rubber mallet,
a spirit level and a pencil to complete the installation.
WARNING: The weight of some of the products may be heavy. The installation
may require two people.
IMPORTANT: Please follow these instructions carefully.
1. Remove the packaging and check that the installation
contains brackets, screws, rawl plugs and a cardboard
template.
2. Select a suitable location on the wall. Place the
template on the wall and mark the holes for the
brackets and screws. Observe the minimum distance
requirements from the previous page.
Use the oor as a base for the template, not the
skirting board.
3. Remove the template and carefully drill out the
marked holes.
4. Secure the upper brackets with the rawl plugs
and screws provided. Then x the lower bracket. To
distinguish it, the lower bracket has a different design
from the top ones.
Top bracket
5. Slide the product up and down over the xed
brackets.
6. Check the straightness with a spirit level and adjust
the supports accordingly if necessary.
Bottom bracket

10
7. Connect your product to the power supply and
switch it on.
8. See section 5 for operating instructions.

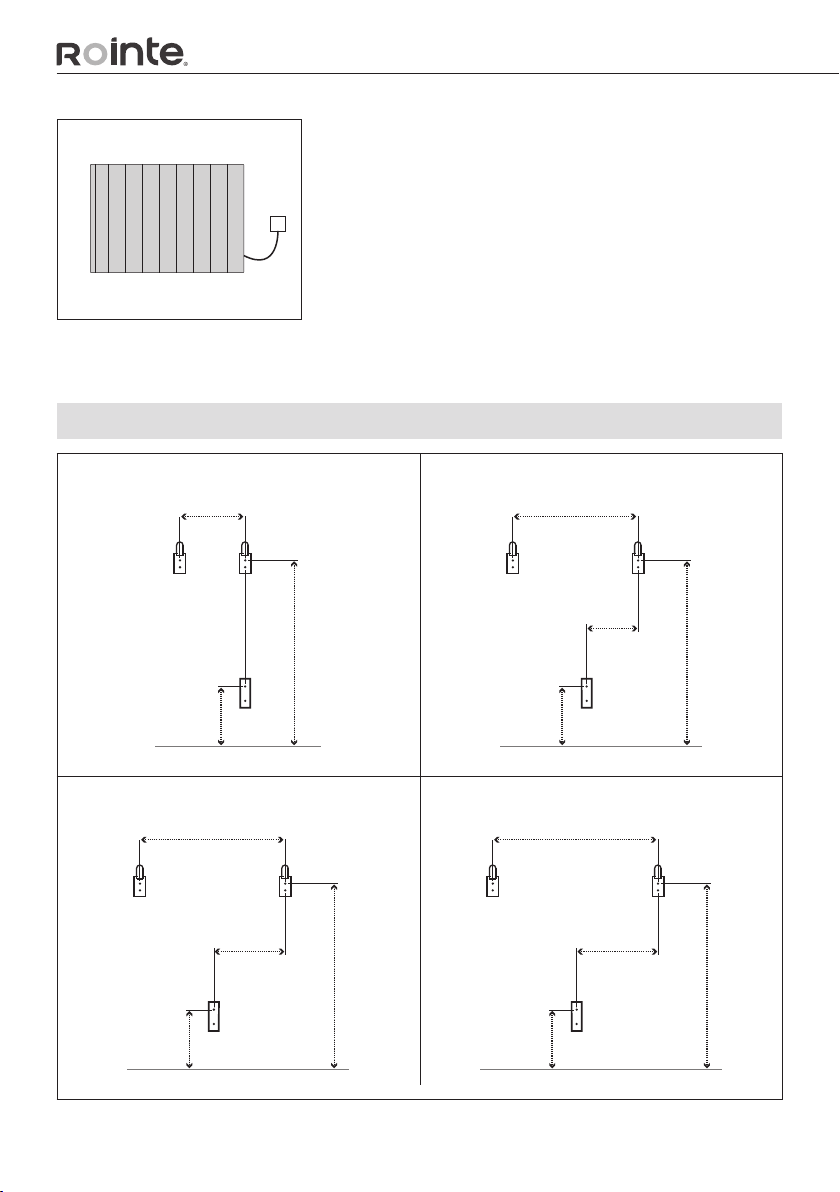

IMPORTANT: Template measurements per model
0330RAD - 3 elements 0550RAD - 5 elements
80 mm
661 mm
218 mm
240 mm
80 mm
661 mm
218 mm
0770RAD - 7 elements 0990RAD - 9 elements
400 mm
160 mm
661 mm
218 mm
560 mm
240 mm
661 mm
218 mm
Floor
Floor
Floor
Floor

EN
BELIZE DIGITAL RADIATOR WITH WI-FI
11

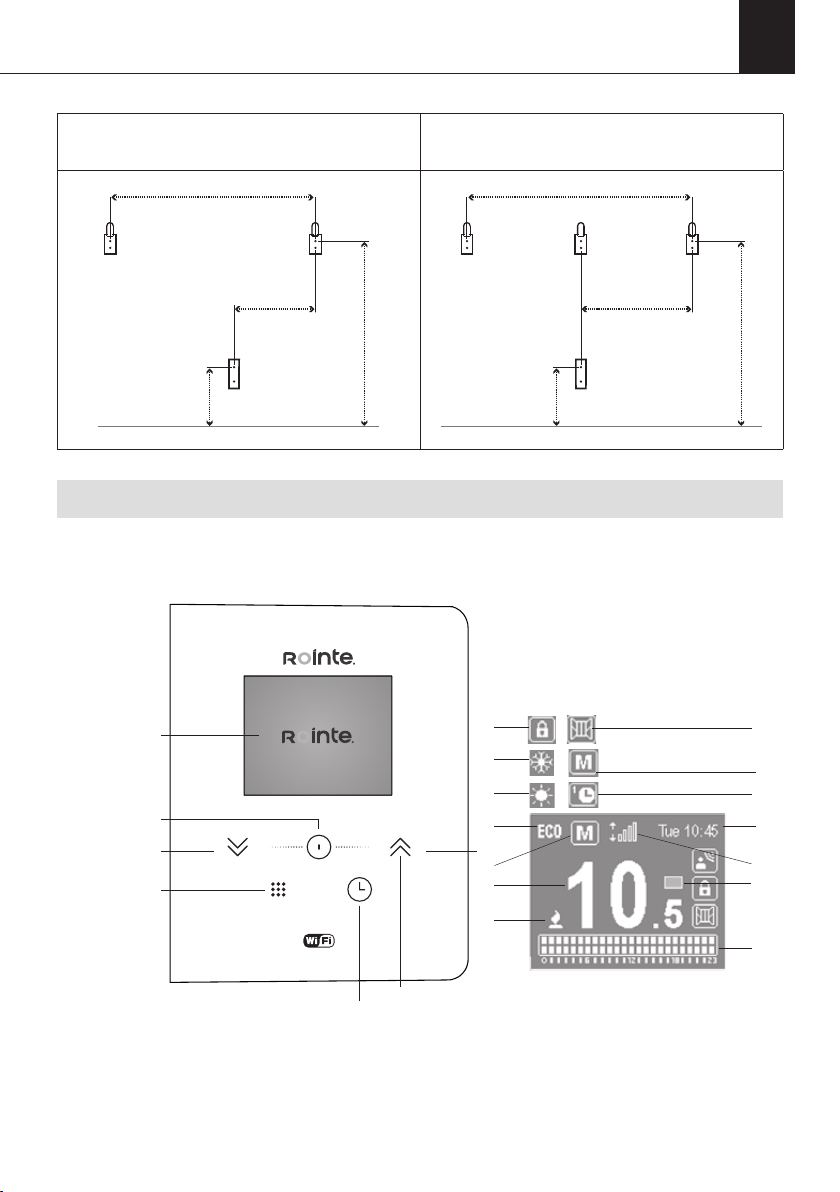

1210RAD - 11 elements 1430RAD - 13 elements &
1600RAD - 15 elements
720 mm
320 mm
661 mm
218 mm
880 mm
400 mm
661 mm
218 mm
4. SCREEN & KEYPAD
On / Off button
Decrease temperature /
Go down button
Increase temperature
/ Go up button
Main menu button
TFT screen
Programming button
1
9
3
4
5
6
713
2
10
11
12
14
8
Floor Floor

12

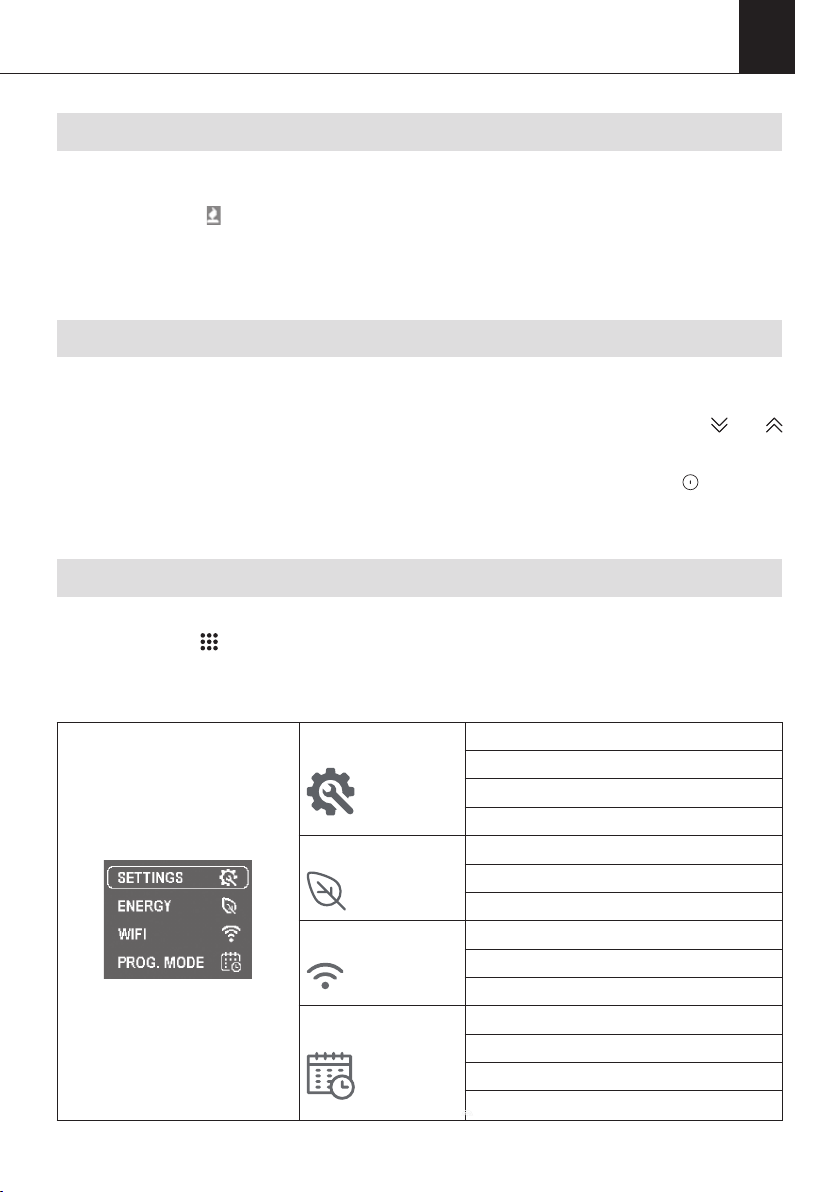

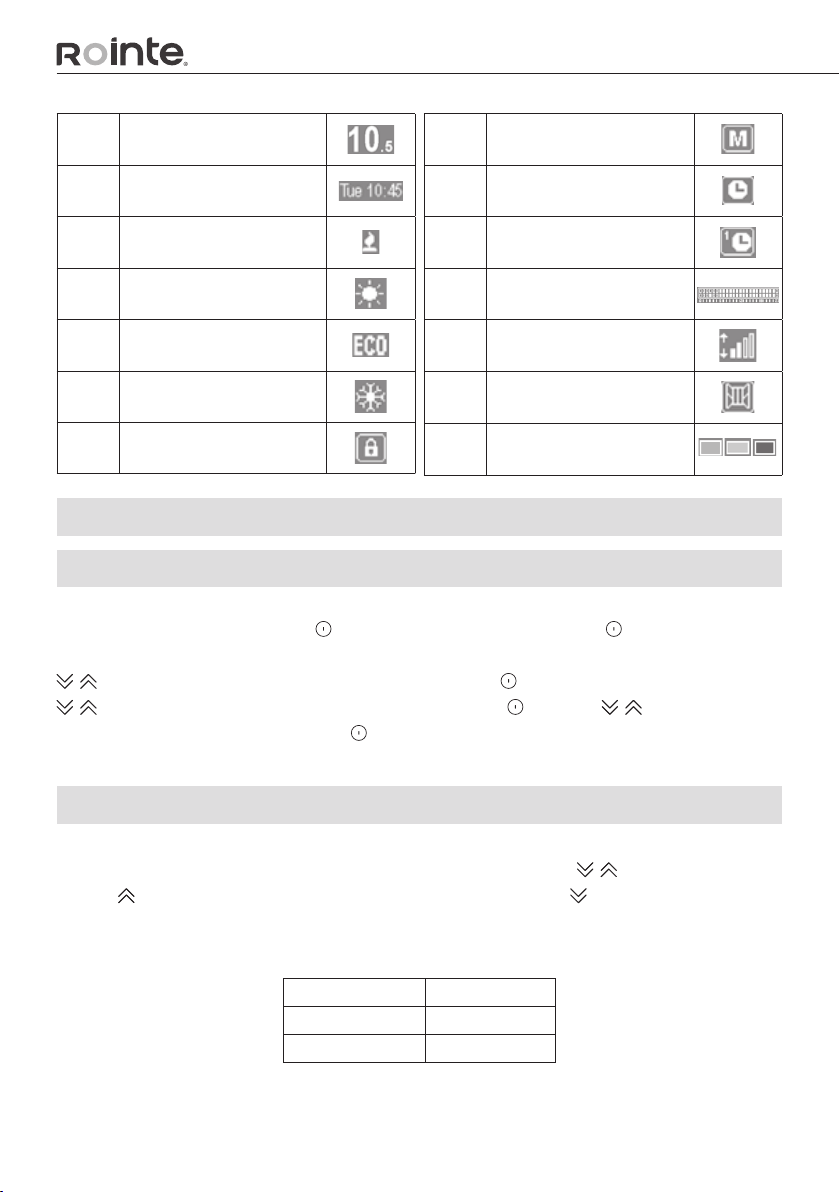

5. FUNCTIONALITY & PROGRAMMING
5.1. ON & OFF
To turn the product on press the button once. To turn off press the button again. When
you turn the product on for the rst time, it will ask you to set the date and time. Use the
buttons to select the correct time and press the button to conrm. Then use the
buttons to select the correct minutes and press . Use the buttons again to
select the correct day and press the button to conrm.
5.2. SELECT THE SET TEMPERATURE
You can regulate the set temperature of the radiator by using the buttons. Press the
button to increase the product temperature by 0.5 ºC or the button to decrease the
temperature by 0.5 ºC. The temperature ranges for each mode are as follows:
COMFORT 19 - 30 oC
ECO 7.5 – 18.5 oC
ANTI-FROST 7 oC
1Selected temperature
2Current time and day
3Heating element on
4Comfort mode
5Eco mode
6Anti-Frost mode
7Locked buttonpad
8Manual mode
9Automatic mode
10 Preset programs mode
11 Hourly programming
12 WiFi connection
indicator
13 Open Windows indicator
14 Energy consumption
indicator

EN
BELIZE DIGITAL RADIATOR WITH WI-FI
13
5.3. TEMPERATURE CONTROL
When the temperature in the room is lower than the selected one, the heating element is
activated and the symbol appears. The temperature control will perform an intelligently
to activate and deactivate the electric current through the heating element to heat the uid
in the radiator.
5.4. LOCK / UNLOCK BUTTON PAD
The buttonpad can be locked using the control panel or the Rointe Lite App.
To lock / unlock the buttonpad using the product control panel, press and hold the and
buttons together for 3 seconds.
The On/Off button will still work, even if the control panel is locked. Press the button for
3 seconds to switch the product on or off.
5.5. SETTINGS MENU
Presione el botón para acceder al menú de conguración. Las opciones disponibles son:
Ajustes, Energía, Wi-Fi y modo de programación.
Settings Set time
Backlight
Language
Firmware
Energy Open windows function
Balance mode
Adaptative mode
Wi-Fi On/off
Link device
Wi info
Prog. mode On/off
Preset programs
User mode
Pilot wire (only available on request)

14
Use the buttons to move between the menu options. A box will appear around the
option you have selected. Press the button to enter the submenu.

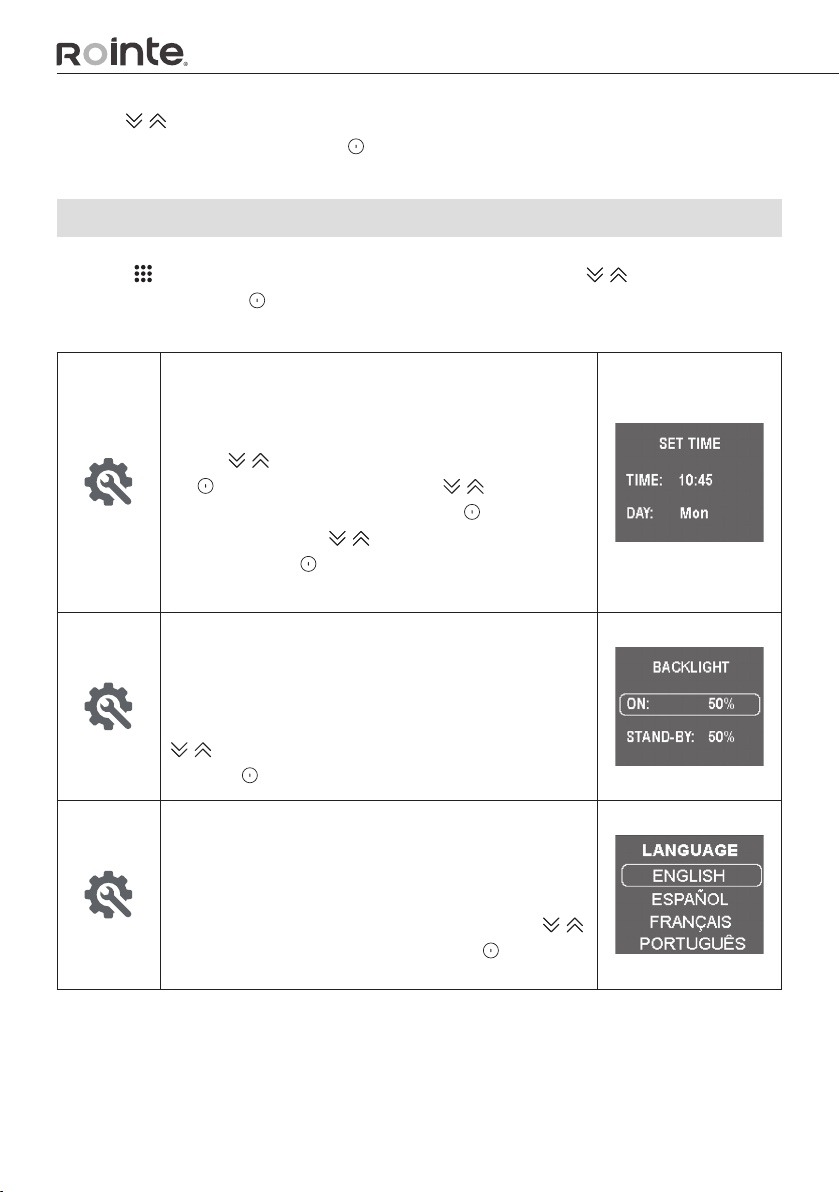

5.5.1. SETTINGS SUBMENU
Press the button to access the conguration menu. Then use the buttons to navigate
to SETTINGS. Press the button to access.
• Set the day and time
To set the day or time select the CLOCK option.
Use the buttons to select the correct time and press
the button to conrm. Then use the buttons to
select the correct minutes and press the button to
conrm. Then use the buttons to select the correct
day and press the button to conrm.
• Adjust brightness
This function allows you to adjust the brightness when the
product is on or in standby.
To adjust the brightness, select BACKLIGHT. With the
buttons you can turn the brightness up or down.
Press the button to conrm.
• Language
This function allows you to change the language of the
product.
To change the language, select LANGUAGE. Use the
buttons to select the correct one and press .

EN
BELIZE DIGITAL RADIATOR WITH WI-FI
15
• Firmware
Press the FIRMWARE option to see the current software
version and the release date.
5.5.2. ENERGY SUBMENU
Press the button to access the conguration menu. Then use the buttons to navigate
to ENERGY. Press the button to access.
• Open Windows
Use the buttons to select whether you want this
function On / Off and press to save.
See section 2 for more information on this function.
When activated, the logo appears on the home screen, to
the right of temperature, indicating that it is active.
• Balance
This function resets your product to a temperature of 19ºC
in Manual mode.
Use the buttons to select this option and press to
conrm. The screen will show 19ºC in Manual mode.

16
• Adaptive mode
This function anticipates the product start-up, so that the
room temperature at the start of the
selected time is equal to the set temperature at the exact
time that we have established during programming. This
means your product will begin heating before the time set.
This ensures the
temperature is at the set temperature for the start of the
time selected.
To indicate that the algorithm is working, the icon will
ash.
Use the buttons to select whether you want this
function On / Off and press to save.
5.5.3. WI-FI SUBMENU
Press the button to access the conguration menu. Then use the buttons to navigate
to WIFI. Press the button to access.
• WiFi status
The WIFI STATUS option allows you to activate or
deactivate the product WiFi module.
Use the buttons to select On / Off and press to
save.

EN
BELIZE DIGITAL RADIATOR WITH WI-FI
17

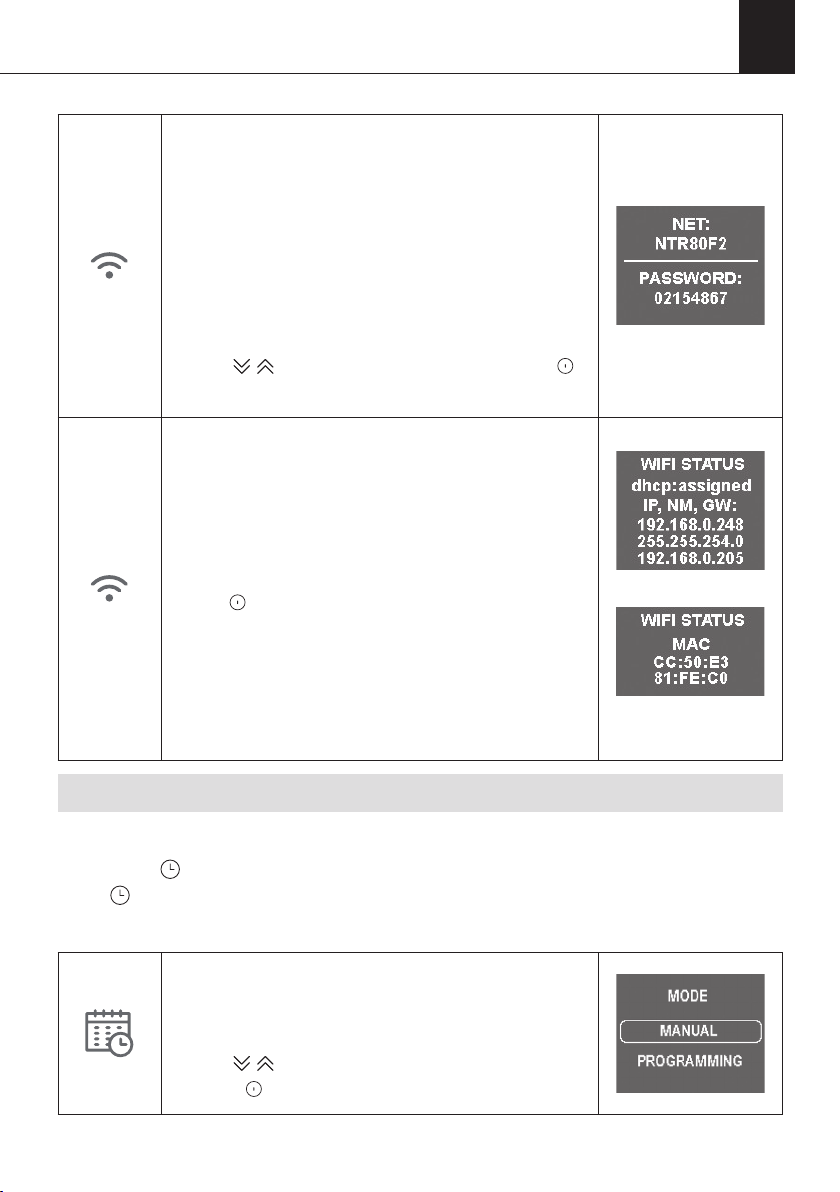

• Link device
The LINK DEVICE option generates a WiFi network to
connect your product.
When you select LINK DEVICE, the following screen will
appear where you will be given the name of the network
and the password.
For more information on the pairing process, see section
6.
Use the buttons to select this option and press
to conrm.
• WiFi info
The WIFI INFO option allows you to view information on
the network status.
When you select WIFI INFO, the following screen appears
where you can see the IP, NM and GW.
Use the button to see more information.
If you keep pressing the On/Off button, two more windows
will appear: “Check Firmware Update” (YES/NO) and “Wi-Fi
Status” (Enabled/Disabled).
5.5.4. PROG. MODE
To change the status of your product from MANUAL to AUTO or vice versa, make a quick
press of the button. If you want to start programming your product, make a long press
of the button. To see all the options available for programming your radiator, select the
option PROG. MODE in the main menu. The screen will show the following options:
• Mode
From the MODE menu, select the operating mode you
require: MANUAL or PROGRAMMING.
Use the buttons to select manual or programming
and press to conrm.

18
• Preset heating programs
From the PRE-PROGRAMS menu you can select a preset
heating program to use. There are 4 available. Use
to select between the different programs and press to
conrm.
Available pre-programs
PRE-PROGRAM 1
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
Mon-
Fri
Sat-
Sun
PRE-PROGRAM 2
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
Mon-
Fri
Sat-
Sun
PRE-PROGRAM 3
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
Mon-
Sun
PRE-PROGRAM 4
012345678910 11 12 13 14 15 16 17 18 19 20 21 22 23
Mon-
Fri
Sat-
Sun
COMFORT ECO OFF

EN
BELIZE DIGITAL RADIATOR WITH WI-FI
19
• User program
This mode allows the user to make their own
programming. There are 2 ways to start editing the
programming:
1. Do a long press on the button.
2. Enter the submenu USER PROGRAM from the main
menu.
Then follow the steps below.
STEP 1
1. Select the COMFORT temperature:
Temperature range 19 – 30 °C
Use the buttons to select the desired
Comfort temperature.
Press to conrm.
2. Select the ECO temperature:
Temperature range: 7.5 – 18.5 °C
Use the buttons to select the desired
Eco temperature.
Press to conrm.
3. Select between ANTI-FROST or OFF:
Temperature range: 7 °C / OFF
Use the buttons to select the ANTI-
FROST or OFF.
Press to conrm.

20

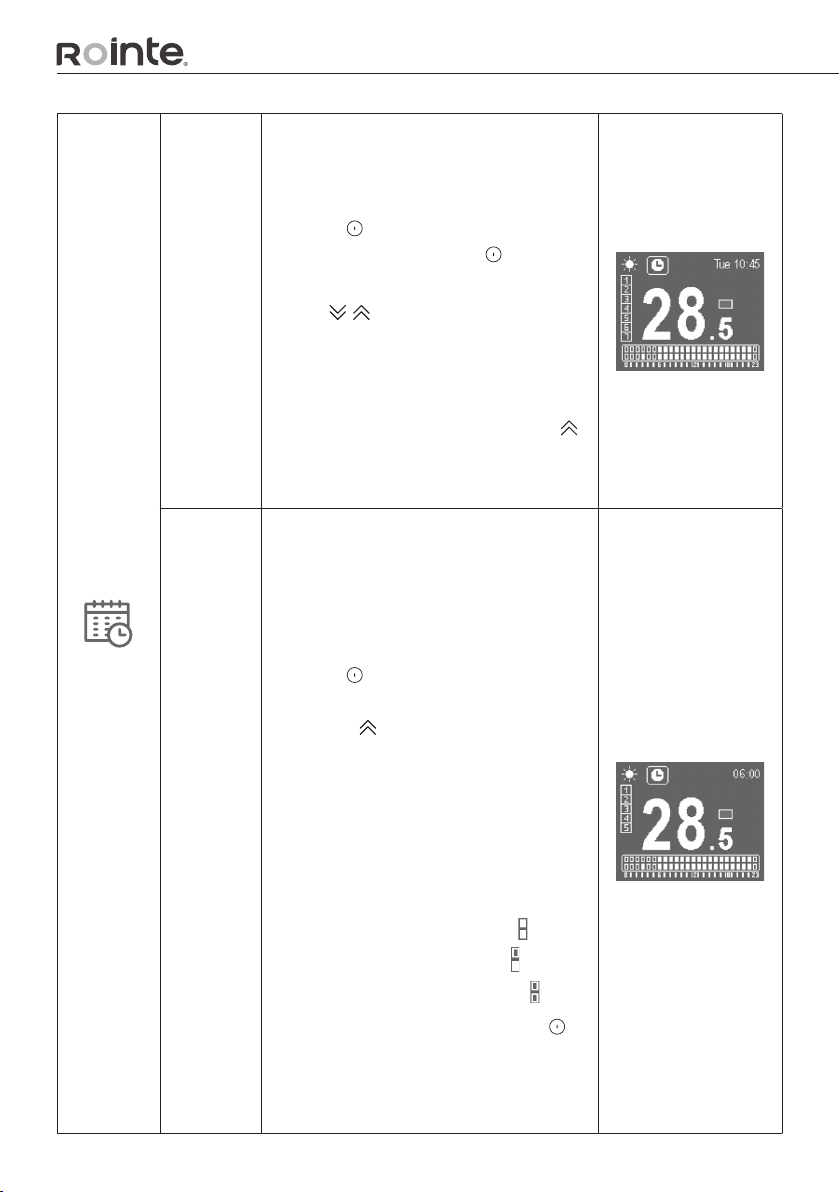

STEP 2
Select the days to be programmed
Start on Day 1 (Monday).
Press the button to include this day in
your programming. Press the button
again to exclude.
Use the buttons to move to the next
day and repeat for all days of the week.
The selected days will be highlighted by a
box on the screen.
Once you have reached Day 7, press the
button to advance to the next step.
STEP 3
Select the hour and mode to be
programmed
Start on 0h (midnight).
Press the button to select ECO,
COMFORT or ANTI-FROST/OFF for that
hour. Press to move to the next hour
and repeat.
• The upper right of the screen shows
the hour you are programming.
• The left side shows the selected days.
• The bottom programming bar
indicates:
-Comfort mode: 2 shaded squares
-ECO mode: lower shaded square
-ANTI-FROST/OFF: 2 empty squares
Once you reach 23:00 hours, press to
complete the programming.
