Roller Pro RP-Trotter User manual

RP·TROTTER
E·SCOOTER
TROTTER
USER
MANUAL

IMPORTANT
NON-COMPLIANCE WITH SAFETY INSTRUCTIONS COULD
CAUSE SERIOUS BODY DAMAGE AND IN EXTREME CASES,
DEATH.
WELCOME
Thank you for your purchase of the Roller-Pro Trotter E-Scooter!
The Roller-Pro Trotter E-Scooter takes the power of electricity, the style of
a traditional scooter, adds them together, and tops it off with a bit of swag.
To ensure your safety and the safety of others, please read and follow the
guidelines in this user manual carefully and thoroughly before and during
riding.
If you have any questions regarding the Roller-Pro Trotter E-Scooter,
contact us on atencionalcl[email protected]
Contents
IMPORTANT ....................................................................................................................... 2
WELCOME.......................................................................................................................... 2
GENERAL INFORMATION ................................................................................................. 3
MAIN SPECIFICATIONS .................................................................................................... 8
PARTS & FEATURES ....................................................................................................... 10

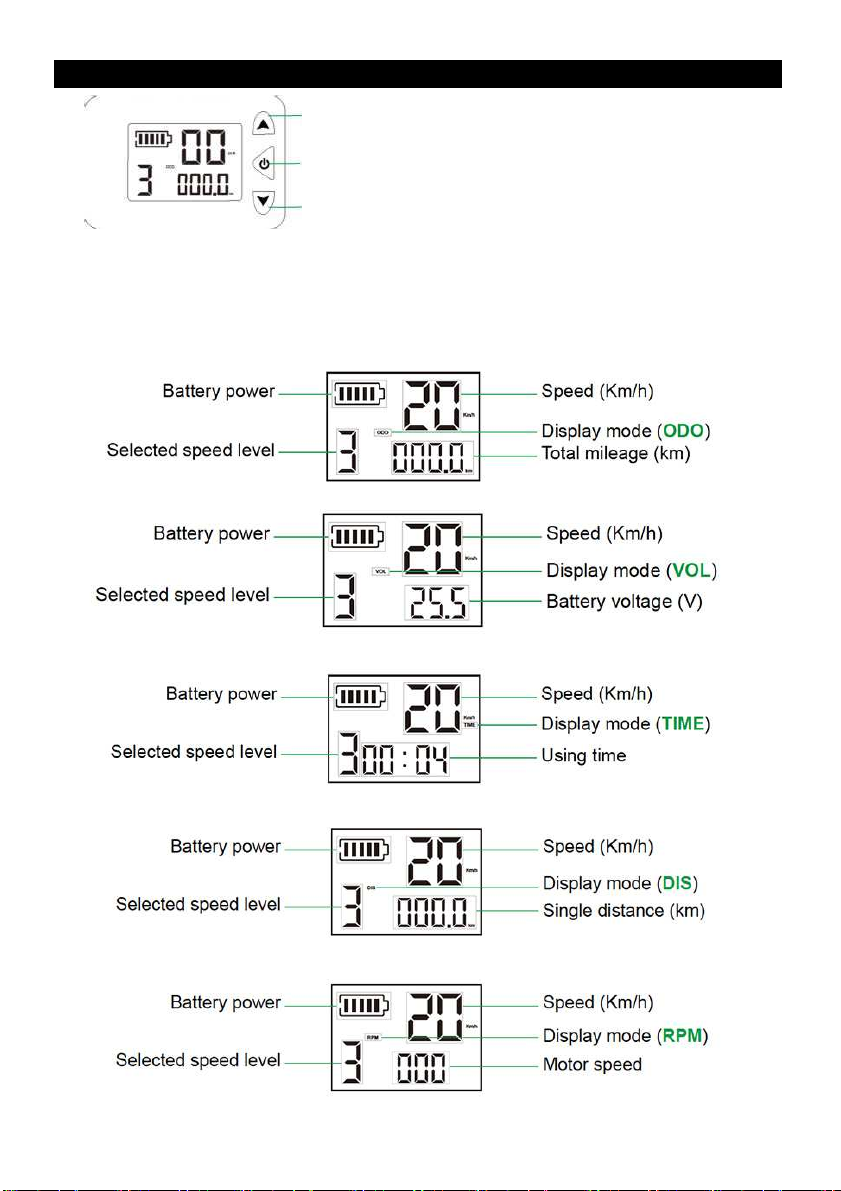

CONTROL PANEL............................................................................................................ 11
FOLDING & ASSEMBLY .................................................................................................. 12
CHARGING THE BATTERY ............................................................................................. 14
USAGE.............................................................................................................................. 15
MAINTENANCE................................................................................................................ 17
DECLARATION OF CONFORMITY.................................................................................. 19

GENERAL INFORMATION
Before operating this vehicle, please read all instructions. This
manual will guide you through the functions, usage, and proper care
of your Roller-Pro Trotter E-Scooter. If you have any questions or
cannot find the information you need in the manual, please contact
your place of purchase or our customer service center. Before
contacting customer service, please have your purchase information
ready as this may be needed during the call. This information may be
recorded below.
It is important that you fo
llow all safety warnings that
appear throughout this manual and exercise good
judgment when using your Roller-Pro Trotter E-
scooter.
Consult this manual before attempting to ride.
1.1 Important Information
Within this manual, “the Roller-Pro Trotter E-Scooter”, “your Roller-
Pro Trotter E-Scooter”, “your scooter” and “the Trotter” refer to the
Roller-Pro Trotter E-Scooter. The Roller-Pro Trotter E-Scooter is a
personal scooter that uses electrical power. By riding the Roller-Pro
Trotter E-Scooter, the user acknowledges and accepts responsibility
for all risks associated with the use of the scooter which may include,
but are not limited to, muscle injuries, broken bones, lacerations,
serious injury, and possible death, which may be sustained while
using the Roller-Pro Trotter E-Scooter.
To better ensure your safety, ALWAYS USE APPROPRIATE
PROTECTIVE GEAR, read and follow all instructions and warnings
in the User Manual.
Appropriate protective gear should always be worn at all times.
Use the Roller-Pro Trotter E-
Scooter at your own risk.
ROLLER-
PRO shall not be held responsible for accidents due
to poor judgment.

1.2 Safety Warnings
When reading this manual, note these icons:
Notes with this icon MUST be read, understood, and obeyed to
Prevent injury or
damage, etc. Notes with this icon include
relevant information.
Properly dispose of all packaging material. Some items may be
packed in plastic bags or other material and may cause
suffocation or injury to pets or children.
Keep the
packaging in a safe place in case it needs to be used
later for transportation.
Verify that all parts of the product are available. If any part is
missing, contact Roller Pro customer service center. If any
ports or cables or surrounding parts are dama
ged, do not use
the product.
Always use the original accessories supplied. Charge your
Trotter E-
Scooter using the included charger. The use of a
different one could cause failures in the product and invalidate
its warranty.
Always use appropriate clothing when riding the Trotter
E-
Scooter. In order to avoid any injury, it is always
recommendable to use knee pads, elbow pads, gloves.
Do not use the product if your weight less than 15
Kg or exceed
90 Kg.

Do not attempt to open or modify your Trotter E-
scooter as
doing so will void the manufacturer´s warranty and could lead
to serious injuries or death.
Do not use your Trotter E-
scooter in situations or places where
you can cause danger or an accident to people around you.
Never ride your Trotter E-
scooter under the influence of drugs
or alcohol. Do not ride in case you are tired.
Do not ride your Trotter E-
Scooter in ramps, curbs, slopes,
slippery surfaces or try to perform acrobatics or tricks. This can
cause serious injuries.
Always use your Trotter E-
scooter in a smooth way. Do not be
aggressive as this can cause failure or an accident.
Do not use your Trotter E-
scooter in wet areas where water is
present, muddy places, sandy places or stony roads.
Do not ride your Trotter E-
scooter during bad or stormy
weather. Example: Rain, snow, hail, frost, fog, extreme heat.
Never insert
objects into the product other than the cables etc.
as described in this manual.
Be very careful when allowing children or elderly people use
the product. These people may not have the physical abilities
necessary to drive safely.
Respect always all the traffic signals and make sure you
observe the direction in which you are riding your Trotter E-
scooter. Always be careful of pedestrians or nearby people and
objects.

Do not ride your Trotter E-scooter while talking on the phone
,
writing a message or conversing with someone. This could
cause an accident.
Do not ride your Trotter E-
scooter on highways, bicycle lane,
bus lane, near cars. It is important you check the local laws
before starting to use your E-scooter.
If
the product is to be used by children, the caregiver should
explain the contents of the user manual to the children. The
caregiver should provide adequate supervision to ensure that
the device is being used as explained in the user manual.
Risk of
shock! Do not allow water and/or liquids to come in
contact with any part of the product. Use dry, non-
abrasive
cloth to remove debris or dust. Do not spray liquids onto the
product.
Never submerge the product or any of the product’
s
components and/or
accessories into water. Do not ride over
stairs.
Do not allow more than one person on the scooter at a time.
Do not jump on the E-scooter.
People with a lack of balance or pregnant should not use this
product.
Be very careful when allowing children or elderly people use
the product. These people may not have the necessary
Physical abilities to drive safely.

Always calculate the distance required for braking. The Trotter
E-
scooter employs an electronic brake which reacts gradually.
Therefore, it is extremely important to apply the brakes on time
in order to avoid any collision.
Do not ride your Trotter E-
scooter in dark areas where there is
no light.
Do not place your feet in any other area besides the inferior
base where you are supposed to have them.
Always avoid riding through potholes or stony roads as this will
deteriorate the E-scooter parts and will cause failures.
The product shall only be used as described in this manual.
When not in use, cover the E-
scooter to protect it from dust. Do
not store it in a dusty environment, humid, as this may cause
damage over time.
WARNING- RISK OF FIRE - No user serviceable parts
IMPORTANT:
YOU MUST COMPLY WITH ALL LOCAL LAWS AND/OR STATES OF YOUR
REGION/COUNTRY ON THE USE OF THIS TYPE OF DEVICE
1.3 Disposal at End-of-Life
This product must not be disposed of by incineration, landfilling, or mixing
with household trash. Improper disposal of the battery contained within this
product may result in the battery heating up, rupturing, or igniting which
may cause serious injuries. The substances contained inside the battery
present chemical risks to the environment. The recommended disposal for
ROLLER-PRO
®
Roller-Pro Trotter E-Scooter at its end-of-life is to dispose

of the entire unit at or through an e-waste recycling center, program, or
facility. Local regulations and laws pertaining to the recycling and disposal
of lithium-ion batteries and/or products containing them will vary according
to country, state, and local governments. You must check laws and
regulations corresponding to where you live in order to dispose of the
battery and/or unit properly. It is the user’s responsibility to dispose of their
waste equipment properly in accordance with local regulations and laws.
For additional information about where you should drop off your batteries
and electrical or electronic waste, please contact your local or regional
waste management office, your household waste disposal service, or your
point-of-sale.
MAIN SPECIFICATIONS
This section is intended to provide basic information about your
E-Scooter, battery and charger. Please read this section carefully for user
safety and to prolong the life of your battery, as well as improve battery
performance. Please follow these instructions.
When the battery indicator shows low battery capacity, please charge your
battery 3 hours using the supplied charger that you received in your
scooter package. To fully recharge your battery please follow the
instructions under charging your scooter
Dimensions unfolded 81 x 42 x (92-102) cm.
Folded dimensions 90 x 42 x 29 cm.
Weight 7,6 kg
Max. load 90 kg
Recommended driver’s age 12 - 50 years
Recommended driver’s height 100 - 180 cm

Maximum speed 24 km/h
Range 8 - 12 Km
Maximum incline 15°
Operating temperature 0 °C to +40 °C
Storage temperature -10 °C to 40 °C
Protection class IP54
Battery voltage 25,2V. - 4.0Ah
Maximum Output voltage DC 29,4V. 1.5Ah
Rated capacity 101 w/h
Motor power 250 W Brushless
Rated input voltage (AC) 110-240V. / 50/60Hz.
Charging time 3 hours approx.
Tires Hard rubber
These figures may vary depending on the speed, the person's weight and the unit's load (typical range: maximum load,
50 kg load, 25ºC and 60% maximum average speed on a flat surface)
BATTERY WARNINGS
Failure to follow the Safety Precautions listed in the Battery Warning could lead to
serious bodily injury and death. Seek immediate medical attention if you are exposed
to any substance that is emitted from the battery.
Do not attempt to modify, change, or replace your battery.
Do not use your scooter if the battery begins to emit odor, overheats, or begins to
leak.
Do not touch any leaking materials, or breathe fumes emitted
Do not allow children and animals to touch the battery.
The battery contains dangerous substances, do not open the battery, or insert
anything into the battery.
Please only use the charger provided by scooter.
Do not attempt to charge the scooter if the battery has discharged or emitted any
substances. In that case, the battery should be abandoned for safety. Please follow all

local, state and federal laws in regards to recycling, handling and disposing of Lithium
Ion batteries.
The scooter should only be shipped in its original packaging.
Do not throw away your box as you need you scooter packaging for future use.
PARTS & FEATURES
What’s in the Box?
■1 x Roller-Pro Trotter E-Scooter
■1 x Charger
■2 x Handles
■1 x User Manual
■2 x wrench (3mm / 5mm)
■Warranty card
Display
Accelerator
LED Light
Front Wheel
Handle
Electric Brake
Lock buckle
Folding Latch
Rear Brake
Deck
Vibration Light
Motor
Charging port
Kickstand
