Rollplay 6V Go Dino Assembly instructions

®
Owner’s Manual and Assembly Instructions
Model #:
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Visit us online at www.rollplay.com for
assistance and replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
®
6V Go Dino
W495NB-DN

Introduction
Specifications:
BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
6V 7AH
6V
3 Years and Up
35 kg (77 lb)
121 x 69 x 65 cm (47.6 x 27.2 x25.6 in)
4 km/h (2.5 MPH)
8-12 Hours
1-2 Hours
DC 7.0V
Thank you for purchasing this Rollplay vehicle! We hope the rider enjoys
it for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle.
Please contact Rollplay Customer Service with any questions.
Keep your sales receipt or register your product at www.rollplay.com.
Have your model number and serial number ready before calling. Please
have proof of purchase.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Email: [email protected]
Phone: [phone]
Web: www.rollplay.com

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.
BEFORE RETURNING YOUR PRODUCT TO THE
STORE, CONTACT ROLLPLAY WITH QUESTIONS.
E-mail Customer Service if you need assistance or replacement parts.
Please have your model number and serial number ready before calling.
Keep your sales receipt or register your product at www.rollplay.com as
we will require proof of purchase.
[email protected]

4Table of Contents
Safety......................................................... 5
Parts ......................................................... 7
Charging Instructions.............................. 8
Assemble the Front Wheels.................... 9
Assemble the Left Rear Wheel............... 10
Assemble the Right Rear Wheel............. 11
Assemble the Seat .................................. 12
Install the Phone Holder ........................ 13
Steering Wheel Batteries ........................ 14
Product Features ..................................... 15
Maintenance ............................................ 17
Battery Removal ...................................... 16
General Care ............................................ 18
Troubleshooting Guide............................ 19-20
FCC Information ...................................... 21
Service and Repairs ................................ 22
Warranty ................................................... 23
Product Registration ............................... 24

5
Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
•Always use common sense and safe practices when using the vehicle. The user
must be at least 3 year old and weigh no more than 35 kg (77 lbs).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unsed for a long time ; Always replace the
whole set of batteries at one time , taking care not to mix old and new ones, or
batteries of different types.
!

6Safety
(Continued)
WARNING: BATTERY SAFETY
•
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.
Battery posts, terminals and related accessories contain lead and lead components.
DO NOT open the battery.
!
!

Parts 7
1. Steering Wheel
2. Seat
3. MP3 Cable
4. Car body
5. Rear Wheels (2)
6. Inner Wheel Spacer
7. Large Washers (4)
8. Small Washers (5)
9. Snap Pins (5)
10. Wheel Covers (4)
11. Front Wheels (2)
12. Battery
13. Charger
14. Manual
15. Phone Holder
and Elastic Band
Helpful Tip:
1. Parts 6-9 and 3 are located in
the blister pack.
2. Rear wheels are marked with an
"R" and front wheels
are marked with an "F".

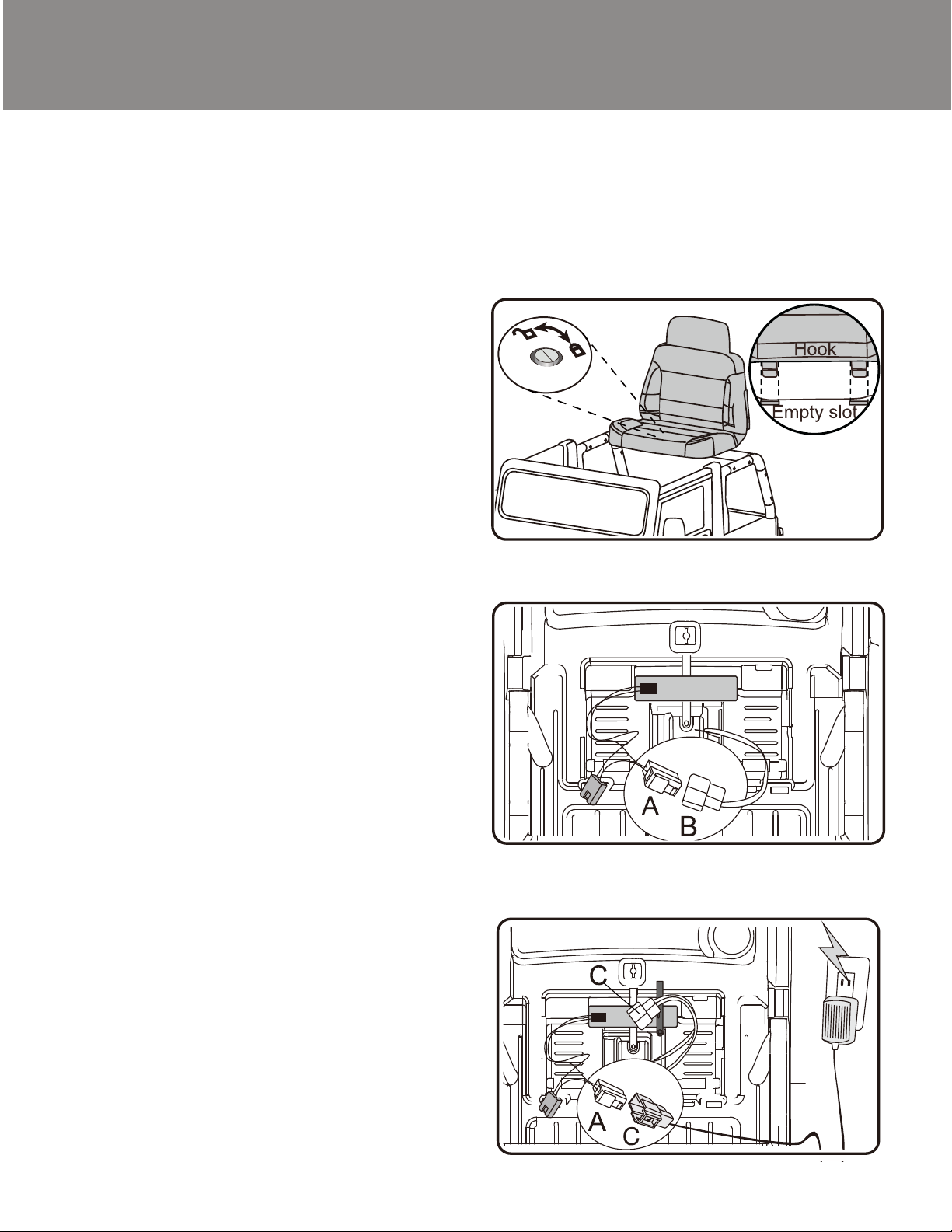

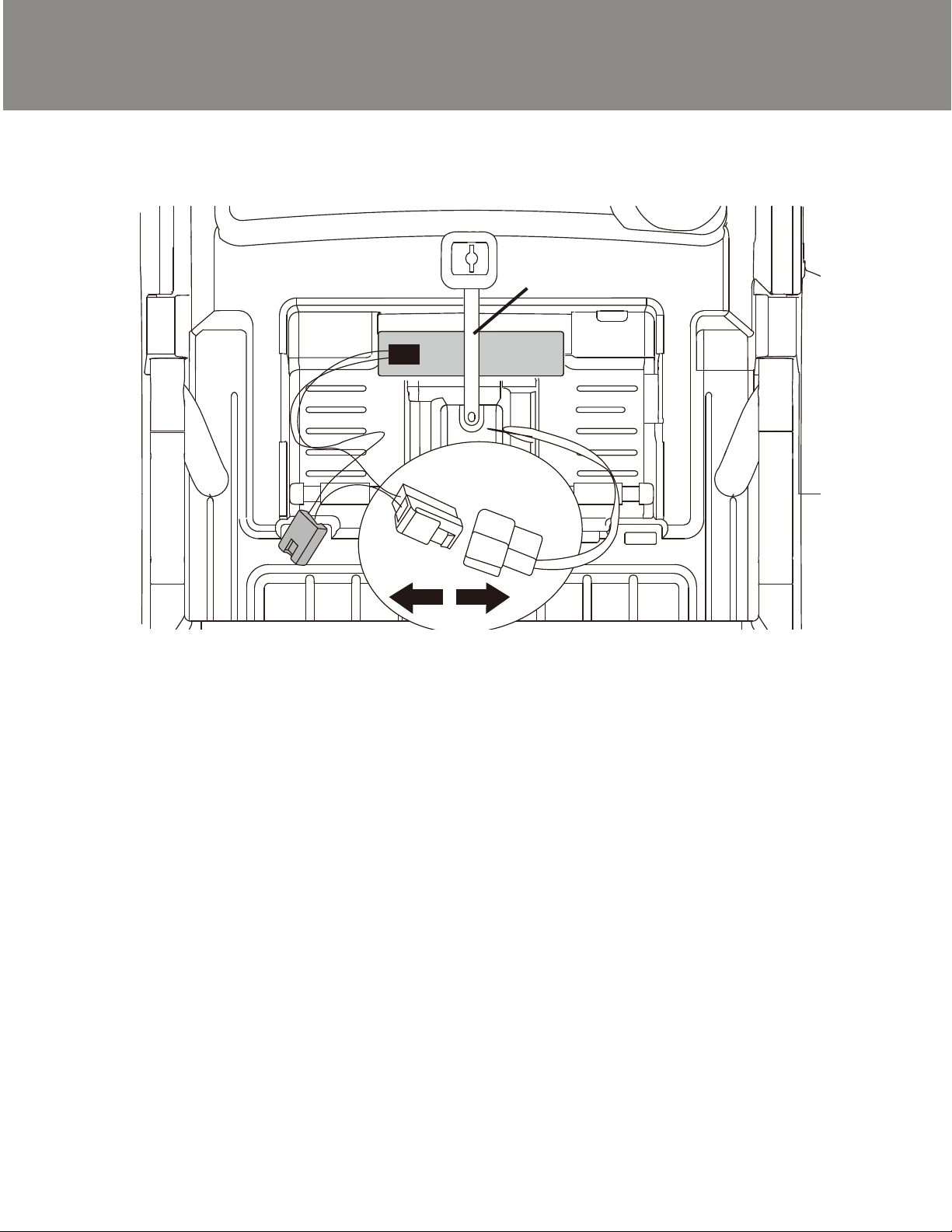

8Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
To Unplug the Battery:
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging. For
Battery Removal instructions,
see Page 16.
D
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
Battery
1. Ensure the car is stopped and the
power switch is turned off.
2. Unlock the seat by using a coin or
screwdriver to turn the seat lock to
the unlock position. Then, remove
the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120V outlet.
1. Unplug the battery charger (D) from
the outlet.
2. Unplug the red battery connector (A).
3. Reconnect the red battery connector
(A) to the red engine connector (B).
4. Replace the seat and tighten lock.

9
Wheel cover

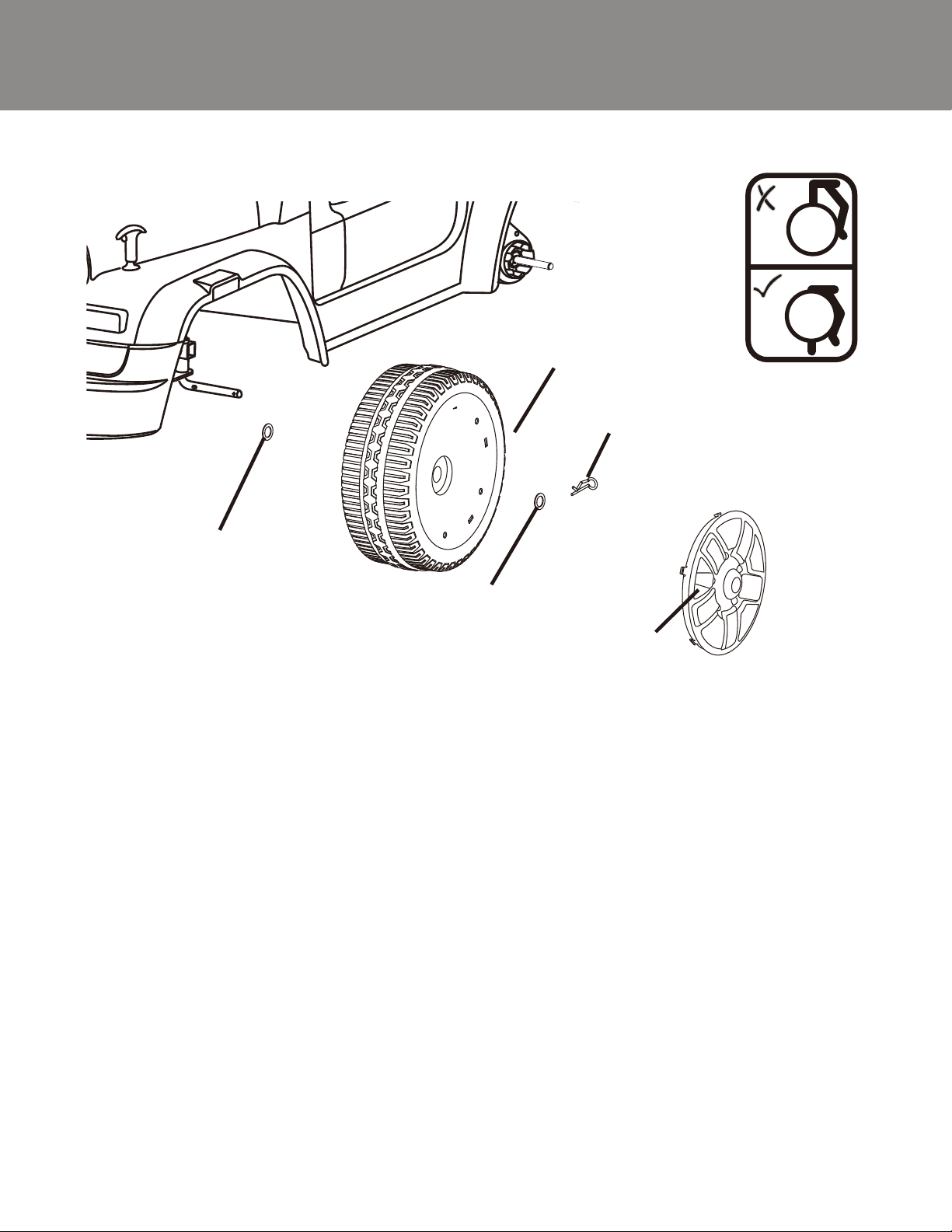

Assemble the Front Wheels
1. Slide the small washer onto the front axle.
2. Slide the front wheel onto the front axle.
3. Slide the small washer onto the front axle.
4. Insert the straight end of the snap pin through the hole at the end
of the axle to keep the wheel in place.
5. Finally snap the wheel cover on the wheel to complete the assembly.
6. Repeat steps 1-5 for the other front wheel.
Snap pin
Front wheel
Small washer
Small washer

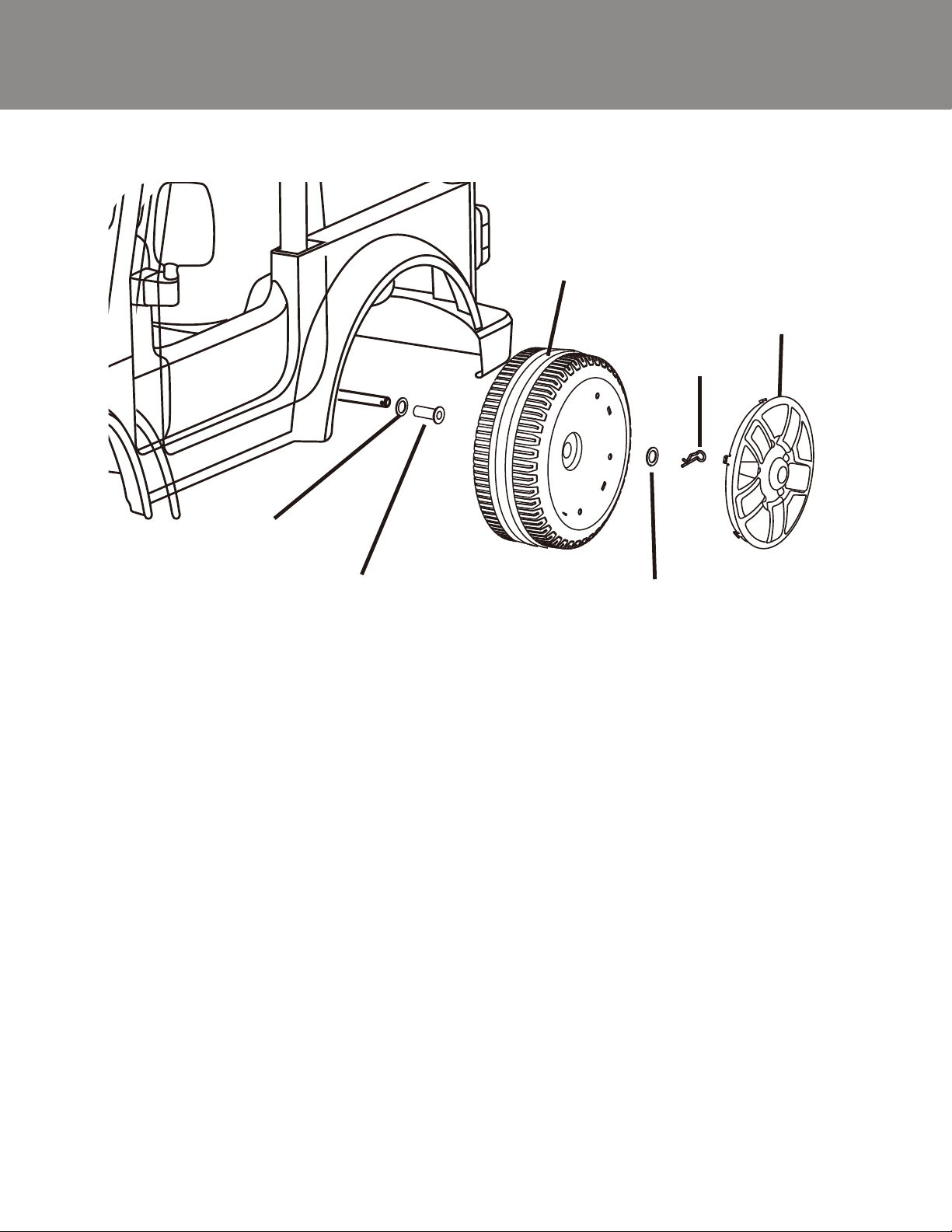

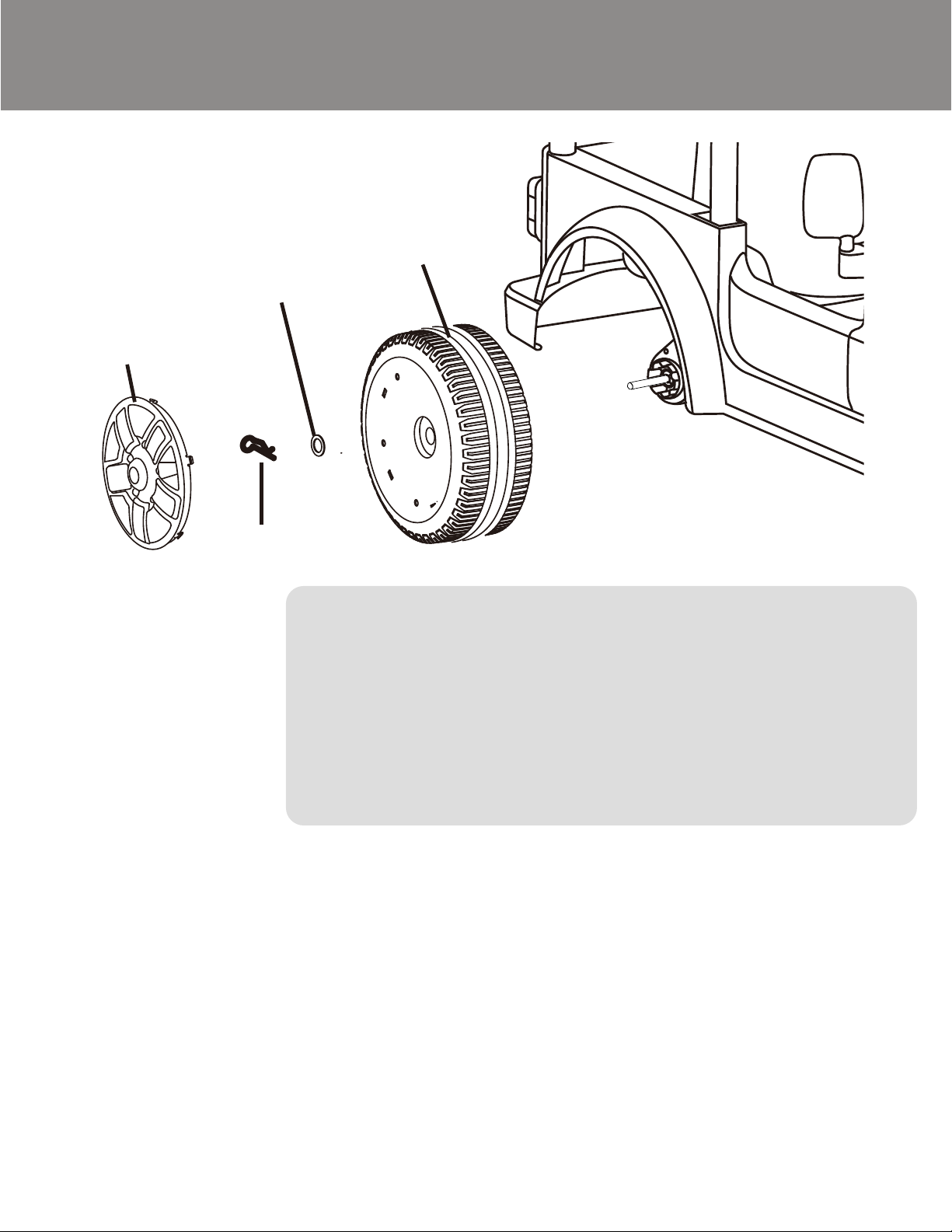

10 Assemble the Left Rear Wheel
Left Rear Wheel:
1. Slide the large washer onto the rear axle, then slide the inner wheel
spacer onto the axle.
2. Slide the left rear wheel onto the left rear axle. The side with the
gear teeth faces inward.
3. Slide the large washer onto the rear axle.
4. Insert the straight side of the snap pin through the hole at the end of
the axle to keep the wheel in place.
5. Finally snap the wheel cover onto the wheel to complete the
assembly.
Inner wheel spacer
Rear wheel
Large washer
Large washer
Snap pin
Wheel cover

11
Right Rear Wheel:
1. Slide the right rear wheel onto the righ trear wheel axle. The
side with gear teeth faces inward. (Note: the gear teeth must
engage with the gear box.)
2. Slide the large washer onto the rear axle.
3. Insert the straight side of the snap pin through the hole at the end
of the axle to keep the wheel in place.
4. Finally snap the wheel cover onto the rear wheel to complete wheel
assembly.
Assemble the Right Rear Wheel
Wheel cover
Snap pin
Large washer
Rear wheel
Helpful Tip:
1. If you encounter trouble tting both wheels onto the rear
axle, then your wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel axle. Using two
hands, push down on the rear wheel axle and slide it gently
toward the side of the vehicle that needs more room.
3. Once the rear axle is properly centered, refer to the above
steps to assemble the wheels.

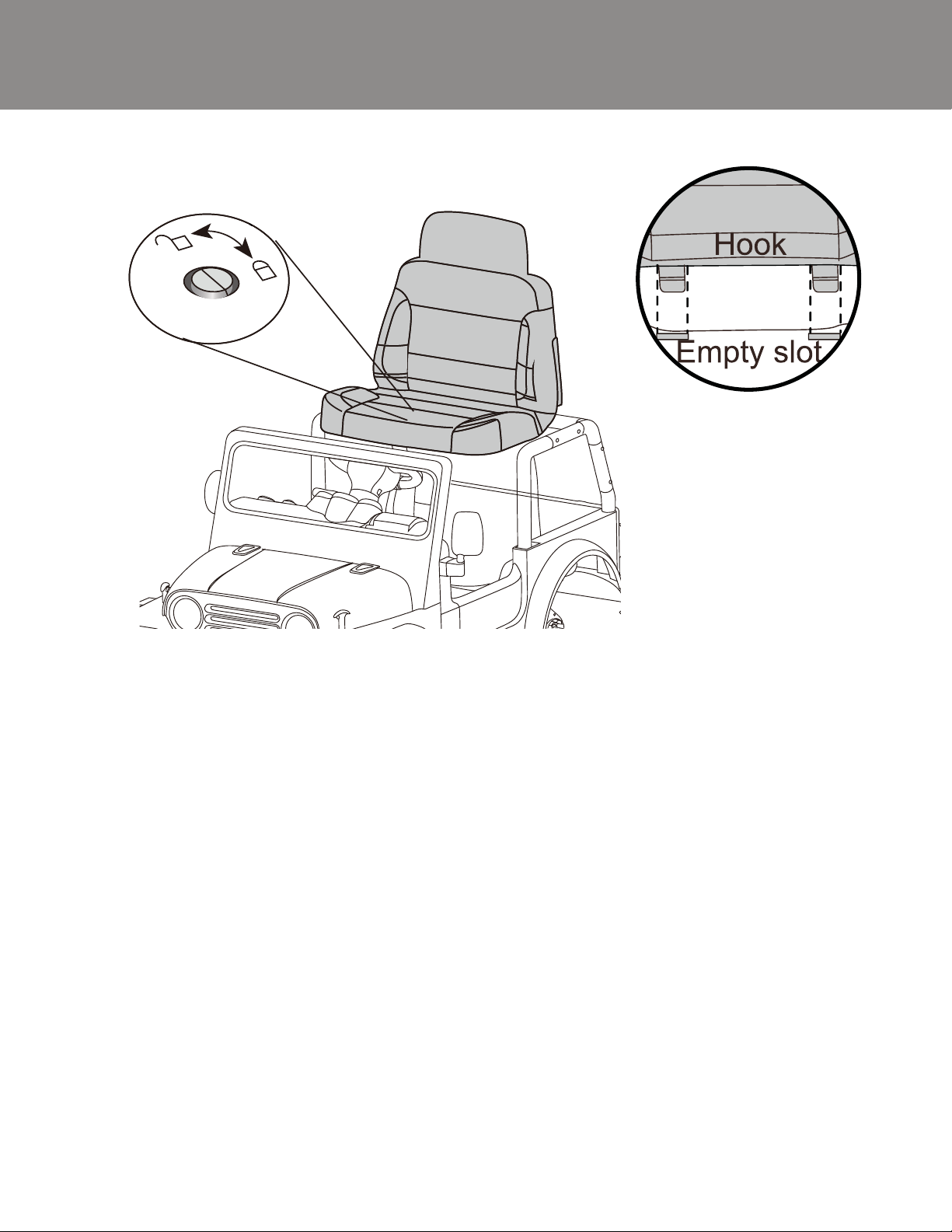

12 Assemble the Seat
1. Ensure the lock on the seat is in the unlock position.
2. Align the two hooks on the back and bottom of the car seat with the
slots on the back of the battery compartment.
3. Insert the hooks into the slots and push the seat down into place.
4.
5.
Use a at head screw driver or a coin to turn the lock on the seat
back to the locked position.
To remove the seat, repeat steps 1-4 in reverse order.

13
Install the Phone Holder
(1) (2) (3)
(4) (5)
Install the phone holder:
1. Remove the phone holder and elastic band from the packaging.
2. Unhook the elastic band from the bracket and place the phone holder
on the desired location on windshield. Secure the elastic band as shown
above.
Inserting Phone:
1.) Lift the top of the phone holder, then insert your phone into the holder.
2.) Gently release the phone holder to t to the size of your phone.
NOTE: Place the phone holder in a
position where your child will not be
tempted to play with it while driving.
Always make sure the phone holder is
secure and undamaged before play.

Steering wheel requires 2 x AAA batteries
14
WARNING!
DO NOT mix old and new batteries.
DO NOT mix alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium) batteries.
Steering Wheel Batteries
1. Open the battery compartment cover with the screwdriver.
2. Insert the two batteries into the battery compartment.
3. Replace the battery compartment cover and secure the cover
with the screw.

Sound Buttons Power Button
Shifter
Pedal
15 Product Features
MP3 Jack
Volume Dial
Battery Life
lndicator
Power lndicator
Button
•
•
•
Indicator
Power Button
Press the Power Button to turn on the car. The power indicator light will
turn on when the car is on. Press the Power Button again to turn off the
car.
Shifter
Pull the Shifter up to move forward. Push the Shifter down to reverse.
MP3 Cable
Insert the MP3 Cable into the MP3 Jack and connect your device. Turn the
MP3 on by rotating the Volume Dial. Rotate the Volume Dial to adjust the
volume.
Foot Pedal
Press the Foot Pedal down to go and release the Foot Pedal to come to a
stop.
Sound Buttons
Press the Sound Buttons on the steering wheel for horn and dinosaur
sounds.
Battery Life Indicator
Press the Power Indicator Button to check the battery level:
Green, Yellow, & Red Lights: Battery is fully charged
Yellow & Red Lights: Battery level is low
Red Light: Battery power is lower than 5.5V, and the battery must be
recharged

Battery Bar
16
Battery Removal
1. Unlock and remove the seat.
2. Disconnect the red battery connector from the red engine connector
3. Loosen and remove the screw from the battery bar using a Phillips
screwdriver.
4. Slide the battery bar out from the battery bar slot.
5. Remove the battery.
Indicator
Note: It is not necessary to remove the battery for charging. However,
if the battery does not reach the outlet, then it can be removed for
charging.

17 Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•
time.
• Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 22 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

18
General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 22 for more
information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.

19 Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped Reset fuse
Snap pins are loose Tighten snap pins
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service.
Battery is dead Call Customer Service for
a replacement battery
Electrical system is
damaged Call Customer Service
Motor is damaged Call Customer Service
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 8-12 hours.
Overcharged battery Never charge the battery for
more than 30 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order a replacement battery
Too much weight on
vehicle
Reduce weight on vehicle (35
kg / 77 lb max)
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.

20
Problem Potential Cause Solution
Vehicle needs a push to
start
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service
“Dead spot” on motor A “dead spot” means
electricity is not being
delivered to the terminal.
Contact Customer Service
Attempting to shift while
vehicle is moving
Stop the vehicle before
shifting
Motor or gear box
making grinding noises
Motor or gear damage Contact Customer Service
Battery will not recharge Charger is not plugged in Plug in the charger to a
functional wall outlet
Charger is not working Call Customer Service for a
replacement
Loose connector or loose
adapter
Check that the connectors are
securely plugged in to each
other
Battery makes bubbling
noise while recharging
This is normal No action required
Charger is warm This is normal No action required
