Rollplay STORM Assembly instructions

Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Owner’s Manual and Assembly Instructions
Model #: WUATV
Made in China.
Styles and colors may vary. Do not return to store. Email [email protected] for
assistance and replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
®
12V STORM UTV

Introduction
Thank you for purchasing this vehicle from Rollplay. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase. Keep your sales receipt or register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [email protected]
Web: www.rollplay.com
Specifications:
BATTERY 12V 12AH
MOTOR 12V
AGE 3 Years and Up
MAX WEIGHT 59 kg (130 lb)
PRODUCT SIZE 85 x 53 x 150 cm ( 33.46 x20.87 x 59.06 in)
SPEED 4 - 8 km/h (2.5 MPH - 5 MPH )
(Preset at 4km/h(2.5 MPH))
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 12.0V 1.0 A

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Contact Customer Service if you need assistance or replacement parts.
Please have your model number and serial number ready before calling.
Please have proof of purchase. Keep your sales receipt or register your
product at www.rollplay.com as we may require proof of purchase.
[email protected]
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

4Table of Contents
Safety..........................................................5
Parts ..........................................................7
Charging Instructions ...............................8
Assemble the Front Wheels
.....................9
Assemble the Rear Wheels
......................10
Assemble the Steering Wheel ................11
Attach the Front Rack
............................12
Attach the Rear Rack
.............................13
Attach the Light Bar .............................14
Attach the Seat ...................................
........................
15
Insert the Batteries 16
Operation Instructions
............................17
Maintenance ............................................18
General Care ............................................19
Troubleshooting Guide............................20-21
FCC Information ......................................22
Service and Repairs ...............................23
Warranty ...................................................24
Product Registration ...............................25

5
Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 59 kg(130 lb).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only stand on the pedal board.
• Do not allow more than two rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unused for a long time ; Always replace the
whole set of batteries at one time , taking care not to mix old and new ones, or
batteries of different types.

6Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

7

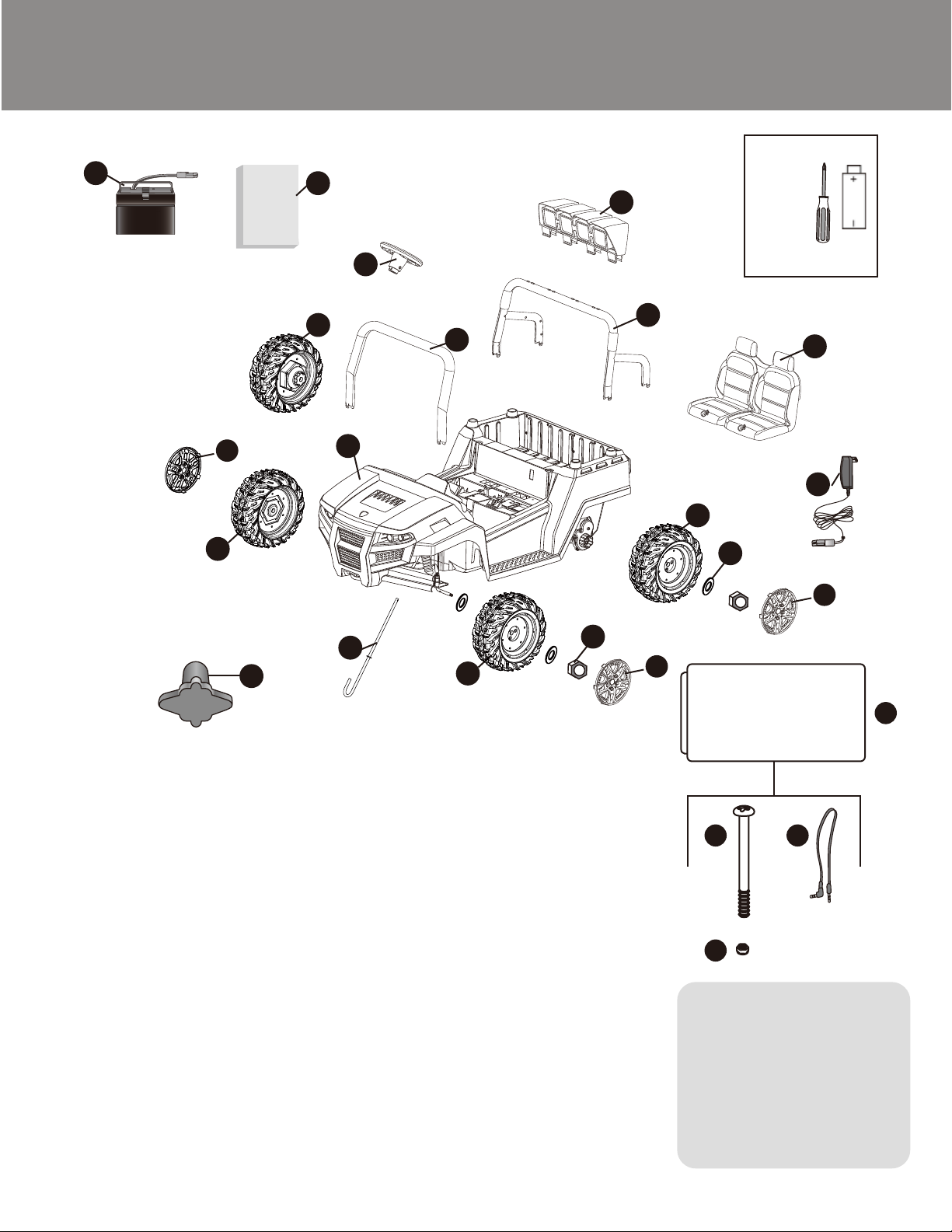

Parts
• 3 AA batteries
5
9
12
8
7
2
4
4
5
5
3
15 13
14
10
11
6
6
15
1
16
18
17
20
Helpful Tip:
1. Parts 16-18 are located
in the blister pack
2. Spare parts: Screws 2
• Phillips screwdriver
Not Included:
23
19
12. Battery Charger
13. Thin Washer (7)
14. M10 Wheel Nut (4)
15. Steering Rod
16. Steering Wheel Screw
17. MP3 Cable
18. Steering Wheel Nut
19. Hex Wrench
20. Blister Pack
1. Manual
2. 12V Battery
3. Steering Wheel
4. Rear Wheel(2)
5. Wheel Cover(4)
6. Front Wheel(2)
7. Car Body
8. Front Rack
9. Light Bar
10. Rear Rack
11. Seat
3. The Thin Washer and Wheel
Nut are located on the front
and rear axles.

8
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
Connect the Battery:
1. Ensure the vehicle is stopped and turned
off.
2. Unlock and remove the seat.
3. Locate the white battery connector (A) that
attaches directly to the battery.
4. Connect the white battery connector to the
white engine connector (B).
5. Replace the seat.
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE!
BA
BA
A
C
Charge the Battery:
1. Ensure the vehlcle is stopped and turned off.
2. Unlock and remove the seat.
3. Unplug the connect (A) from the connector (B).
Plug the charger connector (C) into the battery
connector (A). The light on the charger will turn
red to indicate that it is charging. Once charging
is completed, the light will turn green. Unplug
the battery from the charger and reconnect it to
the engine connector (B).
4. Replace the seat.
C

9
Assemble the Front Wheels
1. Locate the washers and wheel nuts on either side of the front
axle.
2. Slide a washer and front wheel onto the axle.
3. Slide a wheel nut onto the axle, then use the hex wrench to
tighten.
4. Snap on the wheel cover by aligning the tabs on the cover with
the slots on the wheel.
5. Repeat these steps for the other front wheel.

10 Assemble the Rear Wheels
Helpful Tip:
1. if you encounter trouble fitting both wheels
onto the rear axle, then your rear wheel axle
may need to be realigned,
2. Remove a wheel from the axle. Pull or push
on the axle to slide it until you have enough
room on both sides.
1. Locate the washers and wheel nuts on either side of the rear
axle. Slide the rear wheel onto the axle. Ensure that the gears
on the wheel connect with the gearbox.
2. Slide a washer onto the axle.
3. Slide a wheel nut onto the axle, then use the hex wrench to
tighten.
4. Snap on the wheel cover by aligning the tabs on the cover with
the slots on the wheel.
5. Repeat these steps for the other rear wheel.

11 Assemble the Steering Wheel
AB
AB
1. Locate the steering wheel screw and nut from the blister pack.
2. Slide the steering wheel onto the steering rod, and carefully
connect the steering wheel connector to the dashboard
connector. Slide the wires into the steering column.
3. Align the holes on the steering wheel with the holes on the
steering rod.
4. Insert the steering wheel screw through the steering wheel and
steering rod. Insert the nut into the other side of the steering wheel.
5. Fasten the screw with a screwdriver.

12
Attach the Front Rack
1. Insert both sides of the front rack into the holes on the
dashboard. Gently push on the front rack until it snaps into place.

13 Attach the Rear Rack
1. Insert the assembled back rack into the four holes on the car
body until it snaps into place.

14

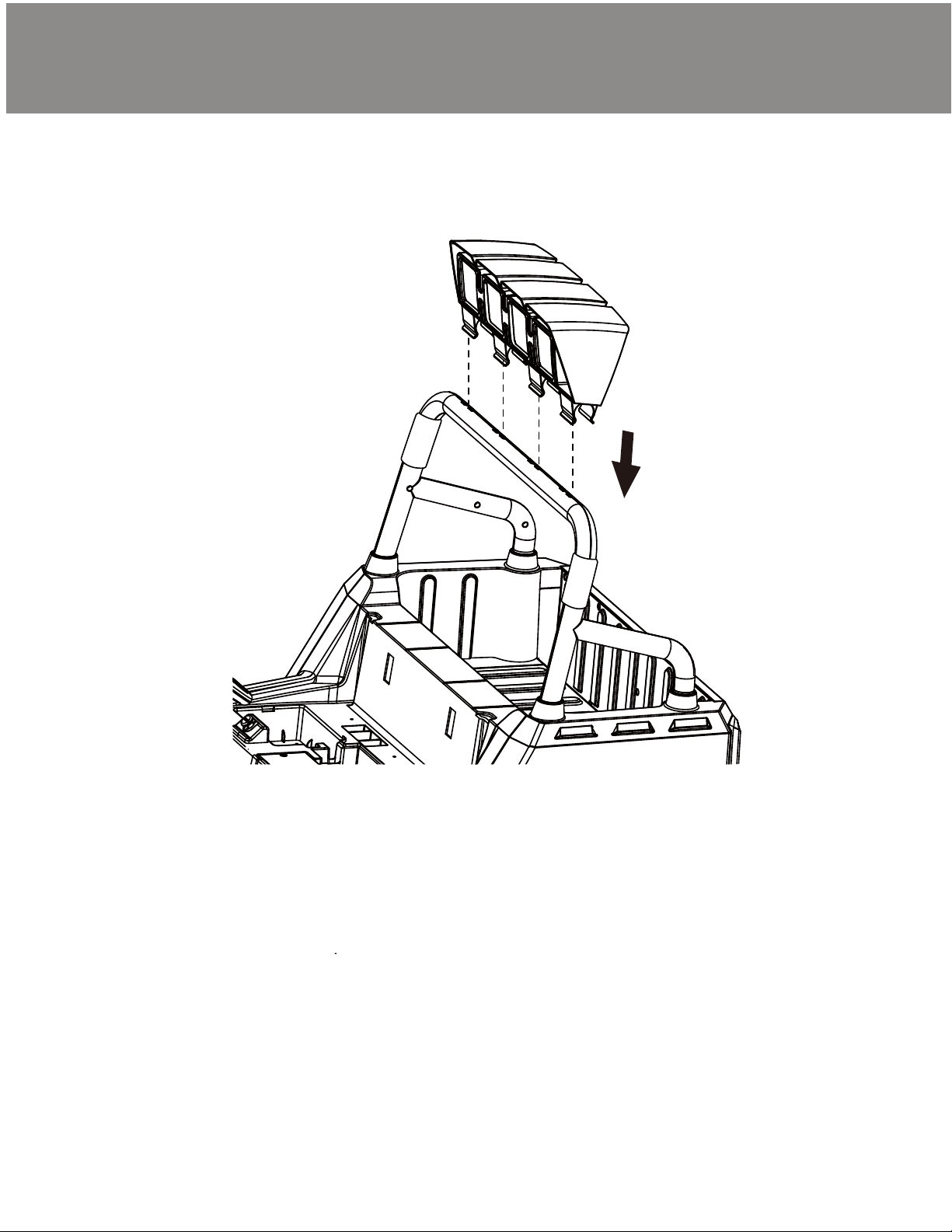

Attach the Light Bar
1. Align the hooks on the light bar with the grooves on the rear
rack.
2. Slide the light bar onto the rear rack until it is secure on the
rack.

15 Attach the Seat
22
11
1. Align the seat over the battery compartment. Ensure the
locking mechanism aligns with the holes on the car body.
2. Slide the hooks onto the back of the seat into the slots on
the car body.
3. Turn the thumbscrew clockwise until it faces the lock posi-
tion to properly secure in place.

16
WARNING!
DO NOT mix old and new batteries.
DO NOT mix alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium) batteries.
Power Switch

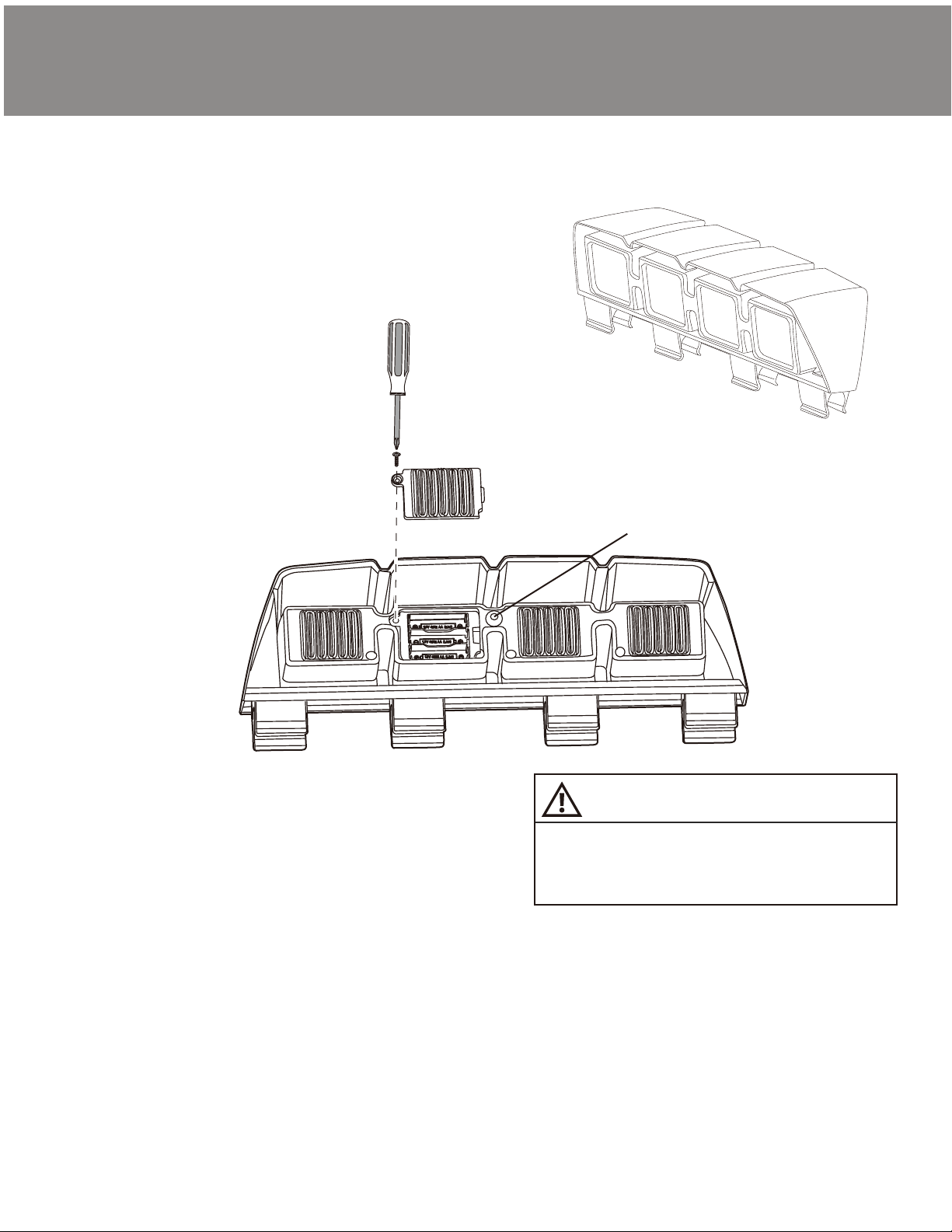

Insert the Batteries
1. Remove the screw from the light bar with a screwdriver and
open the battery compartment.
2. Insert three AA batteries (not included) into the battery com-
partment.
3. Replace the battery cover and secure with the screw.

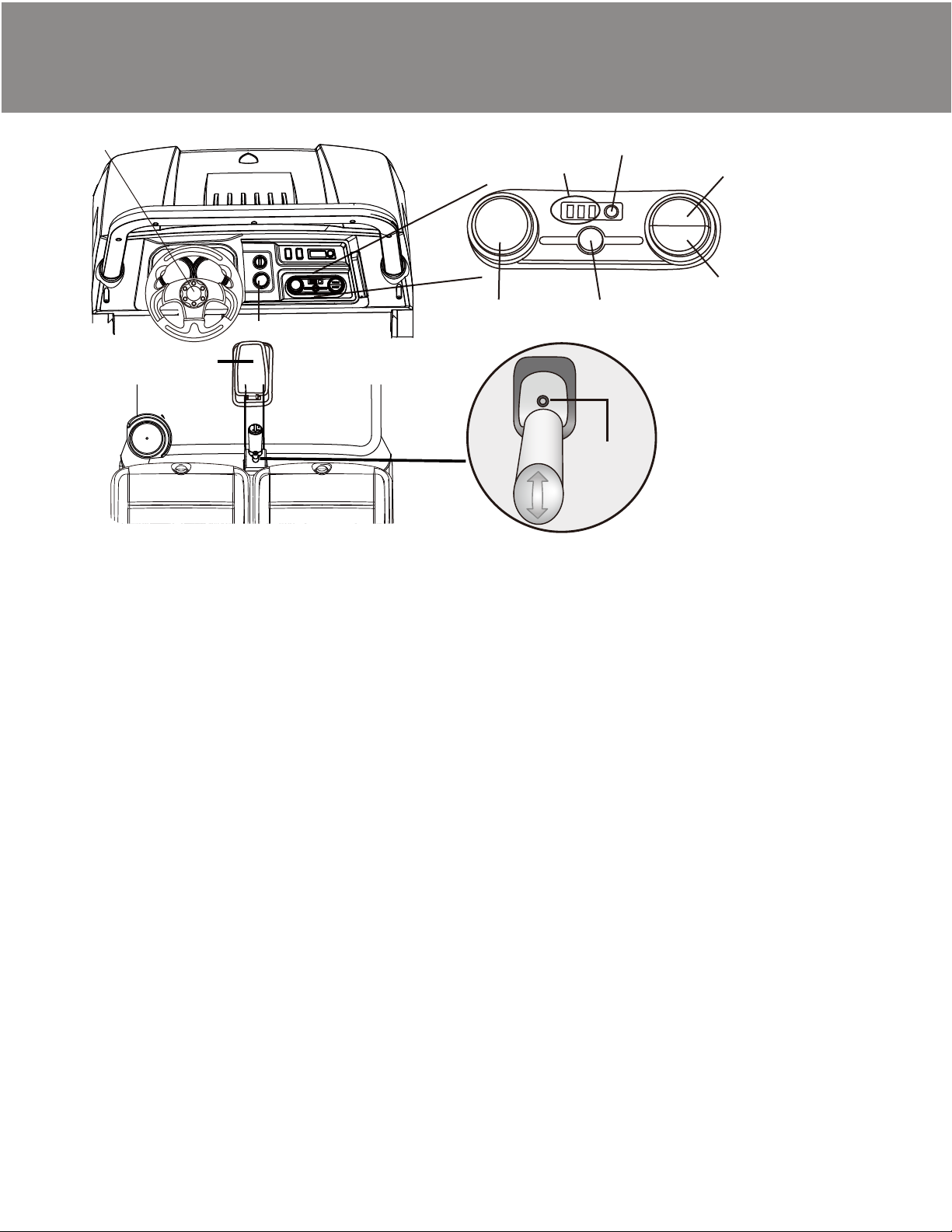

17 Operation Instructions
Pedal
•
•
•
•
•
•
•
•
•
•
•
MP3 Jack
Volume Dial
Battery Life
lndicator
Power lndicator Button
Tuning
Reset
Horn Sounds
Screw
On/Off: Push the Power Switch to Turn on the Car.The power indicator light
will turn on when the car is on. Press the power switch again to turn off the
car.
MP3: Insert the MP3 cable into the MP3 jack and connect to your device.
Turn the MP3 on by rotating the on/off dial. To adjust the volume, rotate the
dial.
Foot Pedal: Press the foot pedal down to go. Release the foot pedal to
stop.
Horn: Press the steering wheel buttons for horn sounds.
Radio: Press the tuning button to nd a station. Press the reset button to
reset the radio.
Battery power indicator: Press the power indicator button to check
battery level.
Three Lights: Battery is fully charged.
Two Lights: Battery power is low.
One Light: Battery power is lower than 5.5V, and the battery must be
recharged.
Speed and Direction: Pull the shifter to the middle to move forward 4 km/h,
2.5 MPH. Pull the shifter all the way up to move forward at 8 km/h, 5
MPH. Push the shifter all the way to the oor to go in reverse.
High-speed lockout: loosen the small screw at the base of the shifter
to allow the truck to go at the higher speed of 5 MPH. Tighten the
screw to only allow the truck to move at 2.5 MPH.
Power Switch

18 Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•
time.
• Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 23 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

19
General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 23 for more
information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.

20 Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped Reset fuse
Snap pins are loose Tighten snap pins
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service for repairs
Battery is dead Call Customer Service for
replacement battery
Electrical system is
damaged
Call Customer Service for
repairs
Motor is damaged Call Customer Service for
repairs
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for
more than 30 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order replacement battery
Too much weight on
vehicle
Reduce weight on vehicle (130
lbs max)
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.
