Rollplay W483RAC Assembly instructions

®
Owner’s Manual and Assembly Instructions
Model #: W483RAC
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
6V BMW M8 GTE

Introduction
Specifications:
BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
6V 7AH
6V 15W
3 and up
35 kg (77 lb)
1245 x 62.5 x 52.5 cm
4 km/h (2.5 mph)
8-12 Hours
1-2 Hours
DC 7.0V 0.7A
Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys
it for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle. Please have your model number
and serial number ready before calling. Please have proof of purchase.
Keep your sales receipt or register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone:
Email: [e-mail]
For French inquiries, please email only at [email protected] and
we will respond within 48 hours.

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
BEFORE YOU RETURN YOUR
PRODUCT TO THE STORE,
CONTACT ROLLPLAY WITH
QUESTIONS
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.rollplay.com as we may require proof of purchase.
Email [e-mail] or
call customer service 1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

4Table of Contents
Safety......................................................... 5
Parts ......................................................... 7
Charging Instructions.............................. 8
Assemble the Front Wheels.................... 9
Assemble the Left Rear Wheel............... 10
Assemble the Right Rear Wheel............. 11
Attach the Mirrors ................................... 14
Attach the Steering Wheel
Attach the Windshield ............................. 13
...................... 12
Operation Instructions ............................ 18
Door Operation ........................................ 17
Attach the Seat ........................................ 15
Attach the Spoiler.................................... 16
Maintenance ............................................ 19
General Care ............................................ 20
Troubleshooting Guide............................ 21
FCC Information ...................................... 23
Service and Repairs ............................... 24
Warranty ................................................... 25
Product Registration ............................... 27

5
Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unsed for a long time. Always replace the
whole set of batteries at one time, taking care not to mix old and new ones, or
batteries of different types.
Do not operate near ammable vapours (gasoline, paint thinner, acetone, etc.).

6Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead components.
DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

Parts 7
1. Windshield
2. Seat
3. Mirrors (2)
4. Steering wheel
5. Spoiler
6. Car body
7. Front wheels (2)
8. Rear wheels (2)
9. Small washers (4)
10. Large washers (3)
11. Snap pins (4)
12. Inner wheel spacer
13. Wheel covers (4)
14. Battery
15. Charger
16. Steering wheel nut
17. Steering wheel screw
18. Manual
19. MP3 jack
20. Blister pack
18 19
1
4
3
2
6
10
10
9
9
7
12
15
14
20
17
16
11
9
10
12
8
11
11
13 13
5
5.1
5.2

8Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

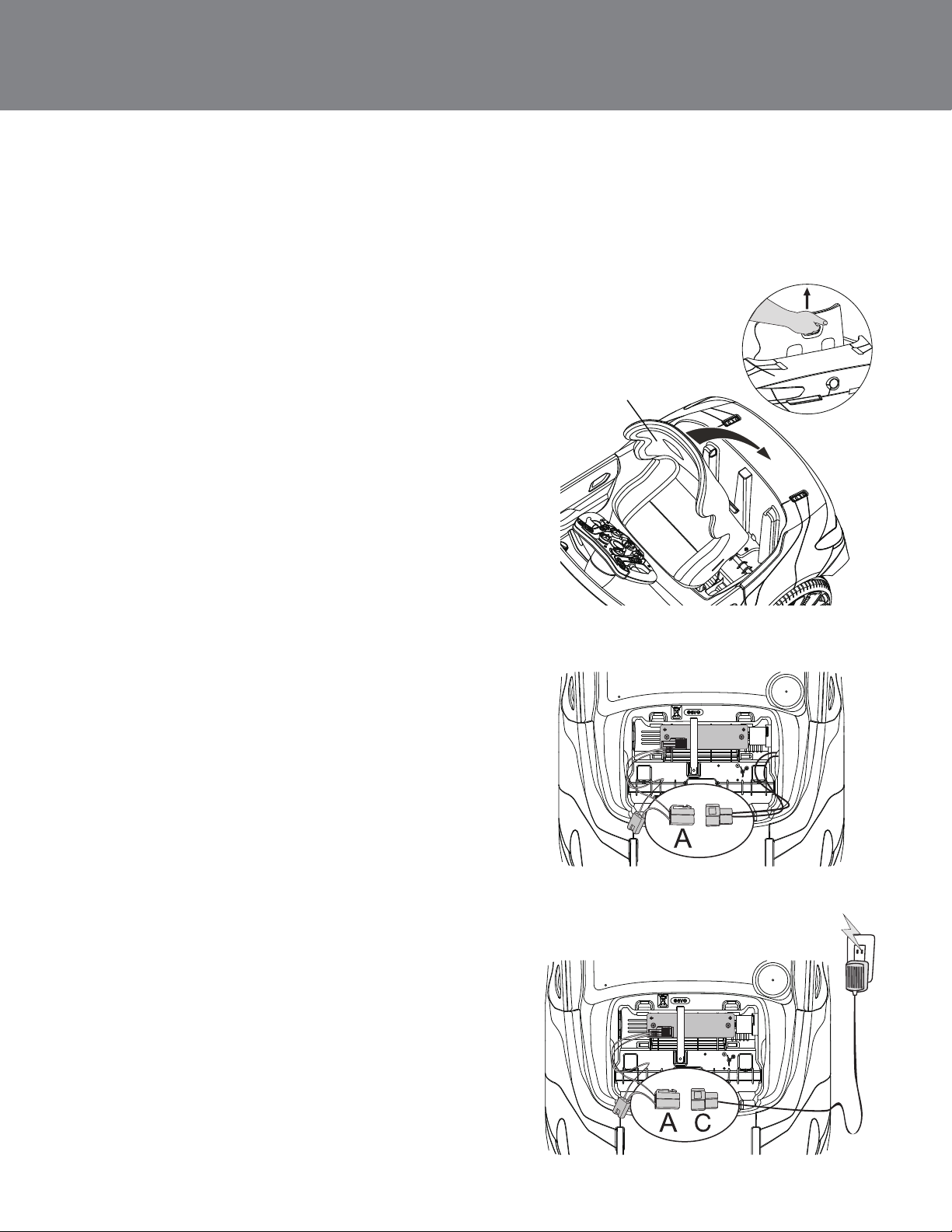

To Charge the Battery:
1. Ensure the car is stopped and the
power switch is turned off.

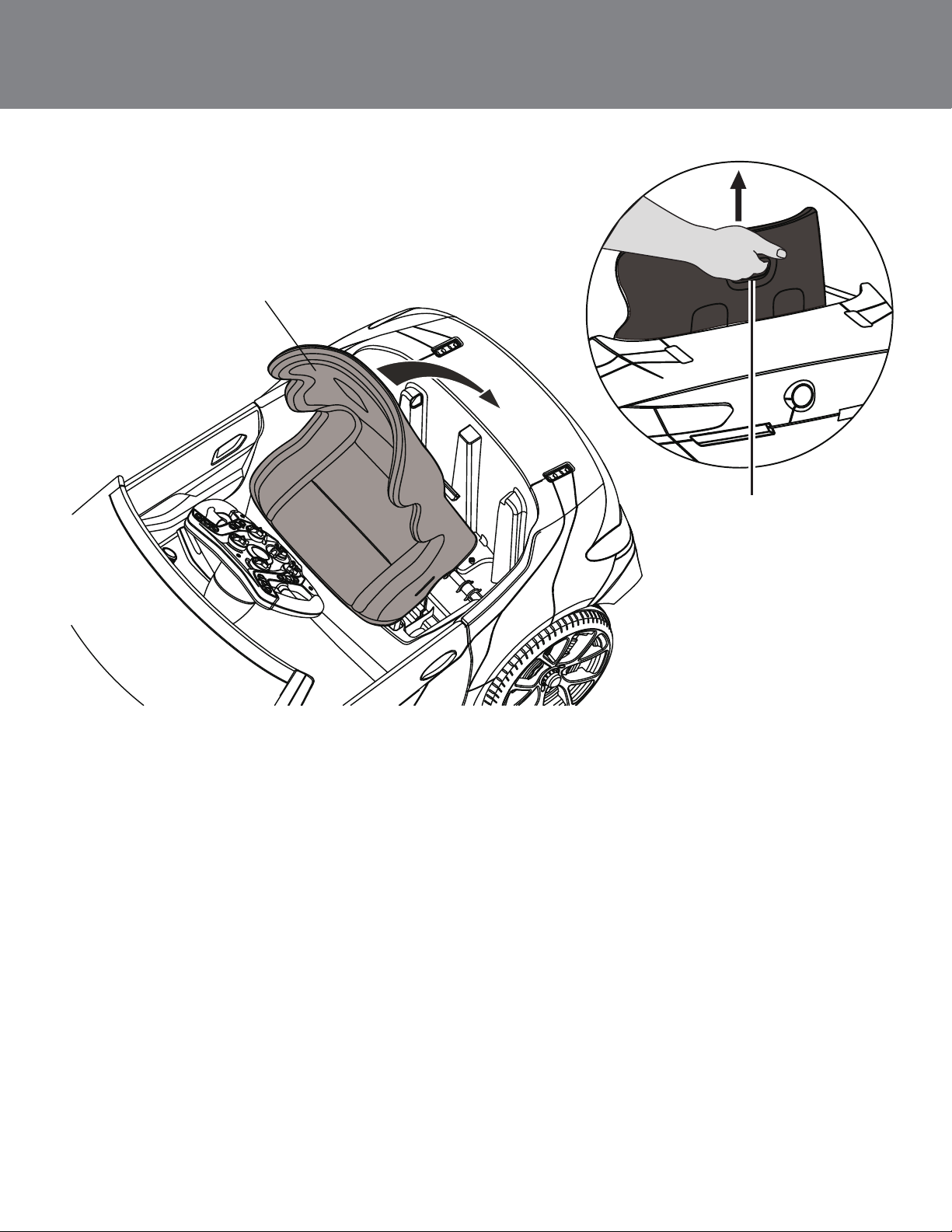

2. Press the seat unlock button on the
Seat. Lift up and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector (A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging.
To remove the battery, unscrew the
black battery clamp, disconnect the
battery, and remove the battery.
D
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
Seat
B

9
Wheel cover
Assemble the Front Wheels
1. Slide the small washer onto the front axle.
2. Slide the front wheel onto the front axle.
3. Slide the small washer onto the front axle.
4. Insert the straight end of the snap pin through the hole at the end
of the axle to keep the wheel in place.
5. Finally snap the wheel cover on the wheel to complete the assembly.
6. Repeat steps 1-5 for the remaining front wheel.
Snap pin
Front wheel
Small washer
Small washer
Correct Snap
Pin Installation

10 Assemble the Left Rear Wheel
Left Rear Wheel:
1. Slide the large washer onto the rear axle, then slide the inner wheel
spacer onto the axle.
2. Slide the left rear wheel onto the left rear axle. The side with the
gear teeth faces inward.
3. Slide the large washer onto the rear axle.
4. Insert the straight side of the snap pin through the hole at the end of
the axle to keep the wheel in place.
5. Finally snap the wheel cover onto the wheel to complete the
assembly.
Large washer
Inner wheel spacer
Rear wheel
Snap pin
Large washer
Wheel cover

Wheel cover
11
Right Rear Wheel:

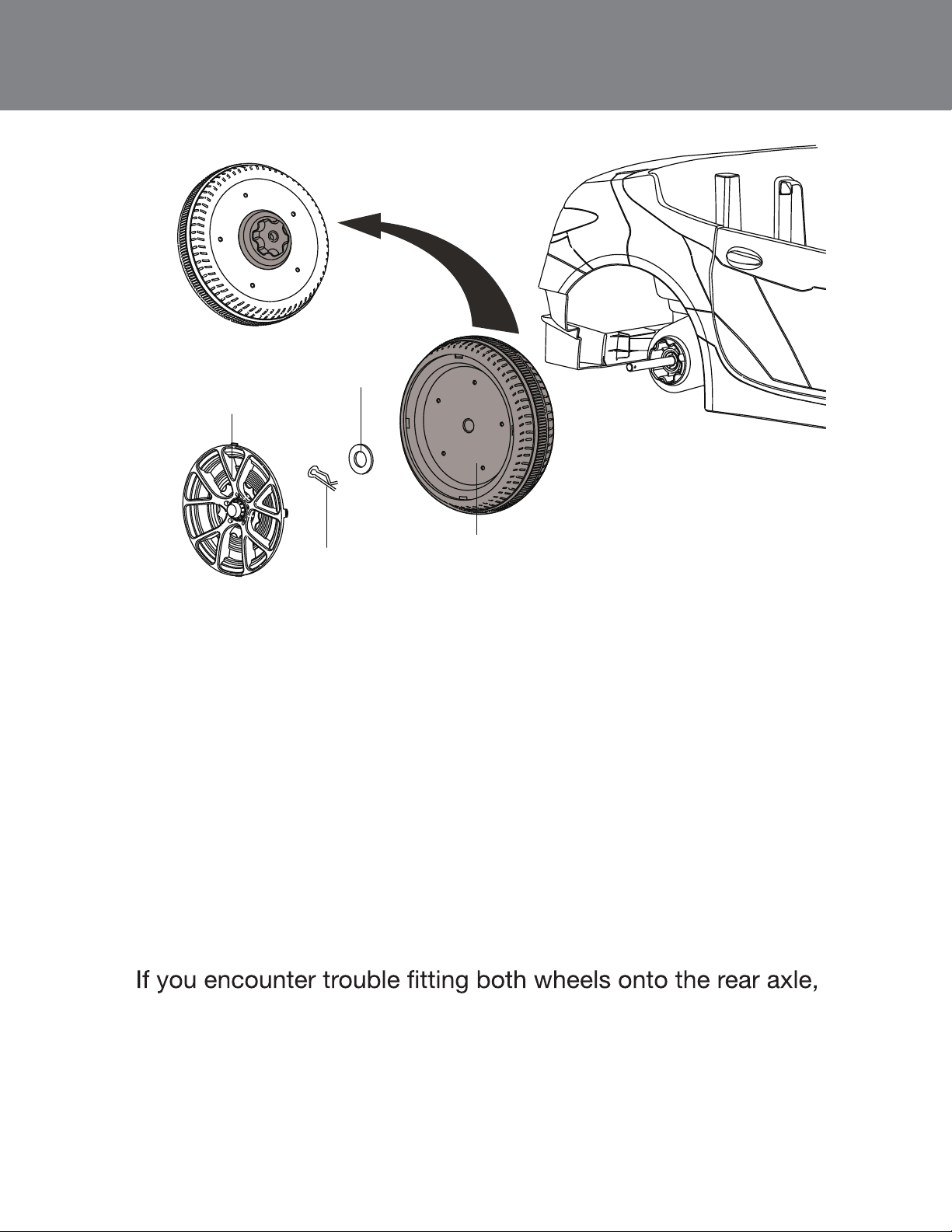

1. Slide the right rear wheel onto right rear wheel axle. The
side with gear teeth faces inward. (Note: The gear teeth must
engage with the gear box.)
2. Slide the large washer onto the rear axle.
3. Insert the straight side of the snap pin through the hole at the end
of the axle to keep the wheel in place.
4. Finally snap the wheel cover onto the rear wheel to complete wheel
assembly.
Assemble the Right Rear Wheel
Helpful Tip:
1.
then your rear wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel axle. Using two
hands, push down on the rear wheel axle and slide it gently
toward the side of the vehicle that needs more room.
3. Once the rear axle is properly centered, refer to the above
steps to assemble the wheels.
Rear wheel
Large washer
Snap pin

12 Attach the Steering Wheel
1. Locate the steering wheel screw (17) and nut (16) from blister box (20).
2. Plug the steering wheel connector (A) into the dashboard connector (B).
3. Insert the steering wheel onto the steering rod, and align the holes on
the wheel with the holes on the rod.
4. Insert the screw into the hole and fasten the nut to secure.
B A

13Attach the Windshield
1. Align the windshield with the slots between the dashboard and the
body.
2. Press down gently on the windshield until it clicks into place.

14
Insert the left mirror into the slot on the left door near the
windshield.
Press down on the mirror until it clicks into place.
3. Repeat steps 1-2 for the right mirror.
Attach the Mirrors

15
Assemble the Seat
Seat
Assemble the seat:
Align the two tabs on the back of the seat with the two holes on the
car body. Press down on the seat until you hear a click.
Remove the seat:
Press and hold the unlock button on the back of the seat and lift up the
seat.
Unlock Button

16 Attach the Spoiler
1. Attach the spoiler brackets (5.1) to the top of the spoiler (5.2).
2. Align the tabs on the spoiler with the holes on the back of the vehi-
cle. Press down rmly until all tabs snap into place.
Note: If the tabs do not align with the holes, then ip the spoiler
around.
5.2
5.1

17
Door Operation

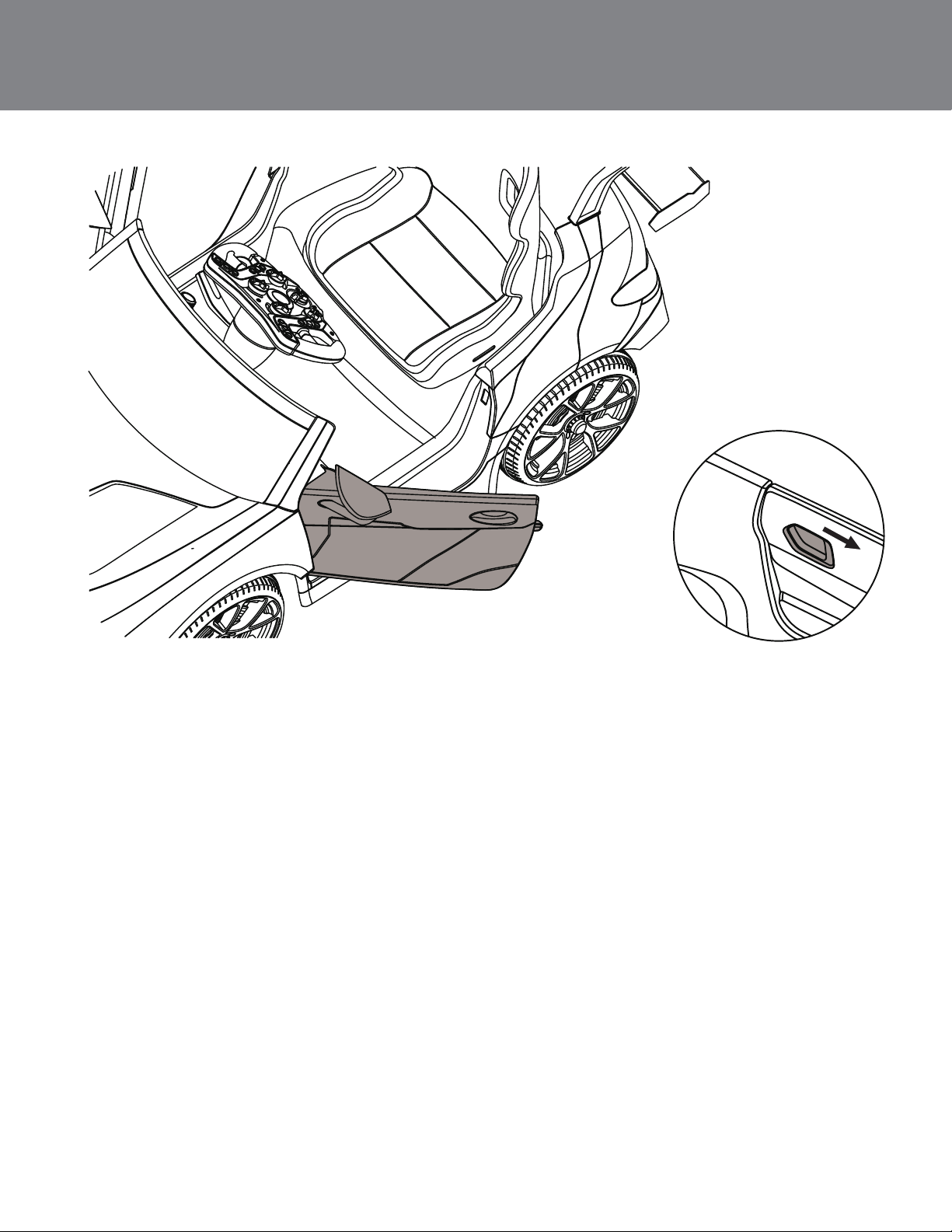

1. Pull the interior door handle towards the front of the car to unlock.
2. While pulling the handle forward, gently push the door open.
Note: Both doors open on the vehicle.

• Three Lights: Battery is fully charged.
• Two Lights: Battery power is low.
• One Light: Battery power is lower than 5.5V, and the battery must be
recharged.
Power Button Pedal
MP3 Jack
Volume Dial
Battery Life
lndicator
Power lndicator Button
Tuning
Reset

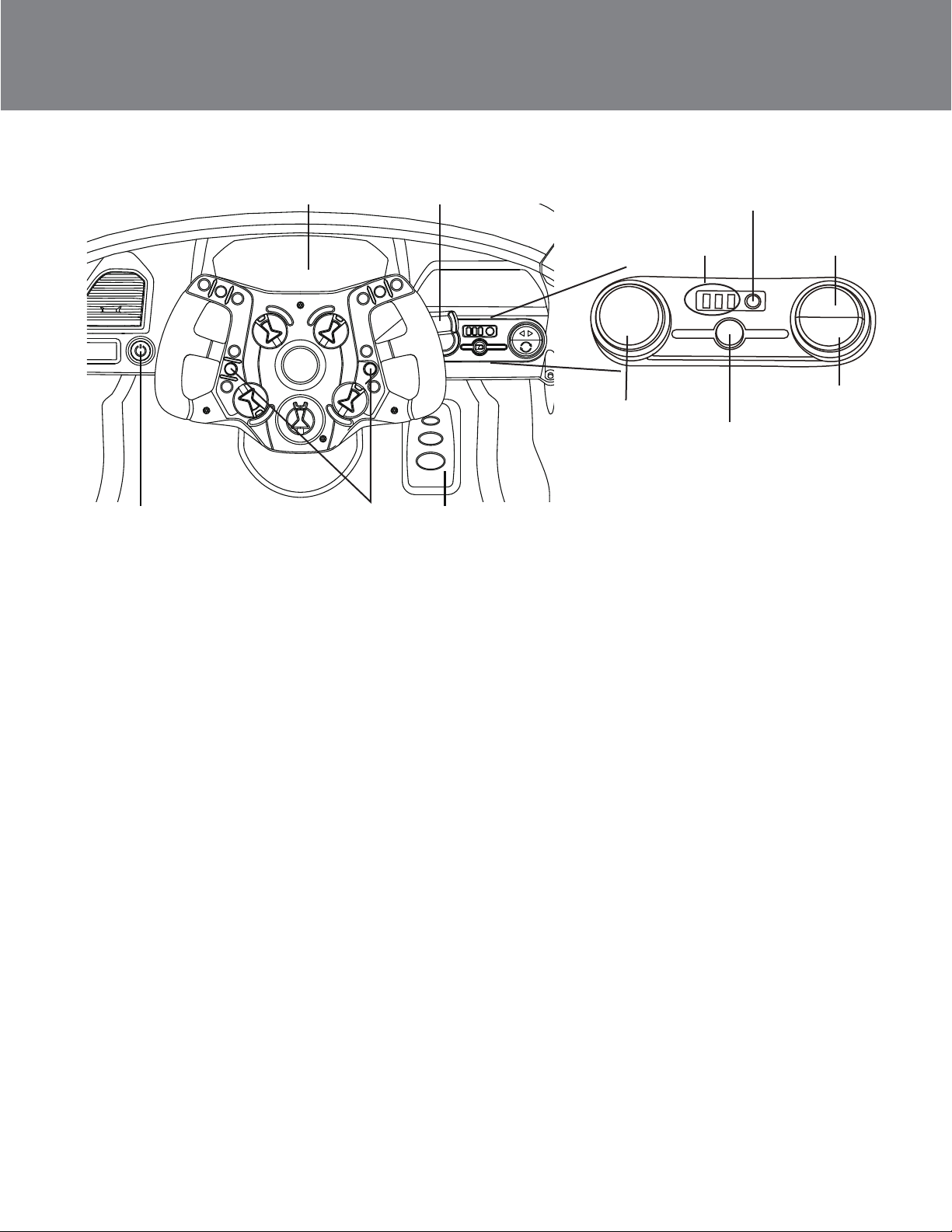

18 Operating Instructions
Shifter
Sounds
Dashboard Lights
Power Button: Press the Power Button to turn on the car. The Power
Indicator Light will turn on when the car is on. Press the Power Button
again to turn off the car.
Shifter: Pull the Shifter up to move forward. Push the Shifter down to
travel in reverse.
MP3: Insert the MP3 cable into the MP3 Jack and connect to your device.
Turn the MP3 on by rotating the Volume Dial. To adjust the volume, rotate
the dial.
Foot Pedal: Press the Foot Pedal down to go. Release the Foot Pedal to
stop.
Sounds: Press the left and right steering wheel buttons for horn and
engine sounds.
Radio: Press the Tuning Button to nd a station. Press the Reset Button
to reset the radio.
Battery Life Indicator: Press the Power Indicator Button to check battery
level.

19
Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•
time.
• Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 25 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 21 for more
information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.
20
