Rollplay Nighthawk NexGen W502 Assembly instructions

Owner’s Manual and Assembly
Instructions
Model #: W502,W502AC, W502-F, W502AC-F, W502AC-OB,
W502AC-OB-F
Read and understand the entire manual before assembly and
operation. The vehicle must be assembled by an adult who has
read and understands the instructions.
Made in China.
Styles and colors may vary.
Call 1-888-982-9309 for assistance and replacement parts.
Before returning your product to the store, contact Rollplay
with questions.
IMPORTANT:
Save this manual with your sales receipt.
®24V Nighthawk
NexGen
NOTE: You will need to connect the battery to the NexGen before using, see
instructions on Page 9.

Introduction
Thank you for purchasing the Rollplay Nighthawk NexGen. We hope the
rider enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the ride-on.
Please contact Rollplay Customer Service with any questions. Have your
model number and serial number ready before calling.
Please have proof of purchase. Keep your sales receipt and register your
product at www.rollplay.com.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [email protected]
Web: www.rollplay.com
24 V 2.9 AH
24 V
6 Years and Up
110 lb (50 kg)
28.3 x 11.4 x 9.3 in (72.0 x 29.0 x 23.5 cm)
4-6 hours
Minutes09-07
Specifications:
BATTERY
MOTOR
AGE
MAX WEIGHT
FOLDING DIMENSION
31.5 x 29.1 x 9.3 in (80.0 x 74.0 x 23.5 cm)
OPENING SIZE
SPEED
CHARGE TIME
RUN TIME
CHARGER OUTPUT DC 25.2 V
Up to 6.5 mph (10.5 km/h)
This one-year limited warranty covers the ride-on vehicle against defects in
materials and workmanship to the original purchaser. Proof of purchase
receipt from a Rollplay certified reseller is required.
For inquiries in French, please email only at [email protected].

IMPORTANT!
YOU MUST CONNECT AND CHARGE THE
BATTERY FOR 12 HOURS BEFORE FIRST USE!
Charge the battery after each use. Charge for 4-6 hours for every recharge
after the initial charge.
Charge the battery at least once a month, even if the
Nighthawk NexGen is not in use.
Read this entire manual to ensure
proper assembly and safe operation
of the ride-on.
BEFORE RETURNING YOUR PRODUCT TO THE
STORE, CONTACT ROLLPLAY WITH QUESTIONS.
E-mail Customer Service if you need assistance or replacement parts.
Please have your model number and serial number ready before calling.
Keep your sales receipt and register your product at www.rollplay.com, as
we will require proof of purchase.
[email protected]
Failure to recharge the battery periodically may result in a battery that
will not accept a charge.

4Table of Contents
Safety
Quick Start Guide
Connect the Battery
Charge the Battery
Flagpole Assembly
Folding Instructions
Operating Instructions
Maintenance
General Care

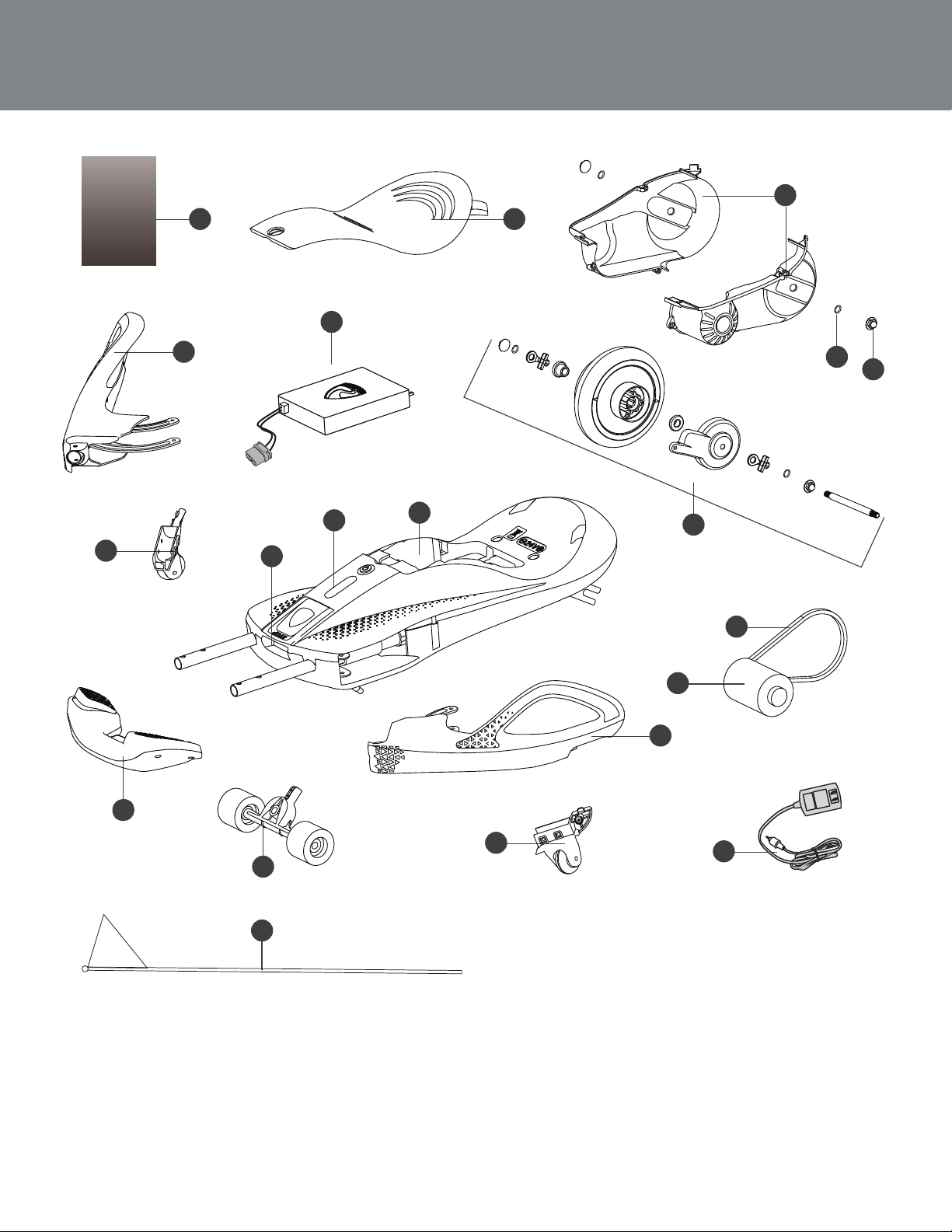

Parts
Troubleshooting Guide
FCC Information
Service and Repairs
Warranty
Product Registration ...............................21
..........................................................5
.......................................8
...................................9
.................................10
...................................11
.................................12
.............................13
.............................................14
.............................................15
..........................................................16
............................17
.......................................18
.................................19
....................................................20

5
Safety

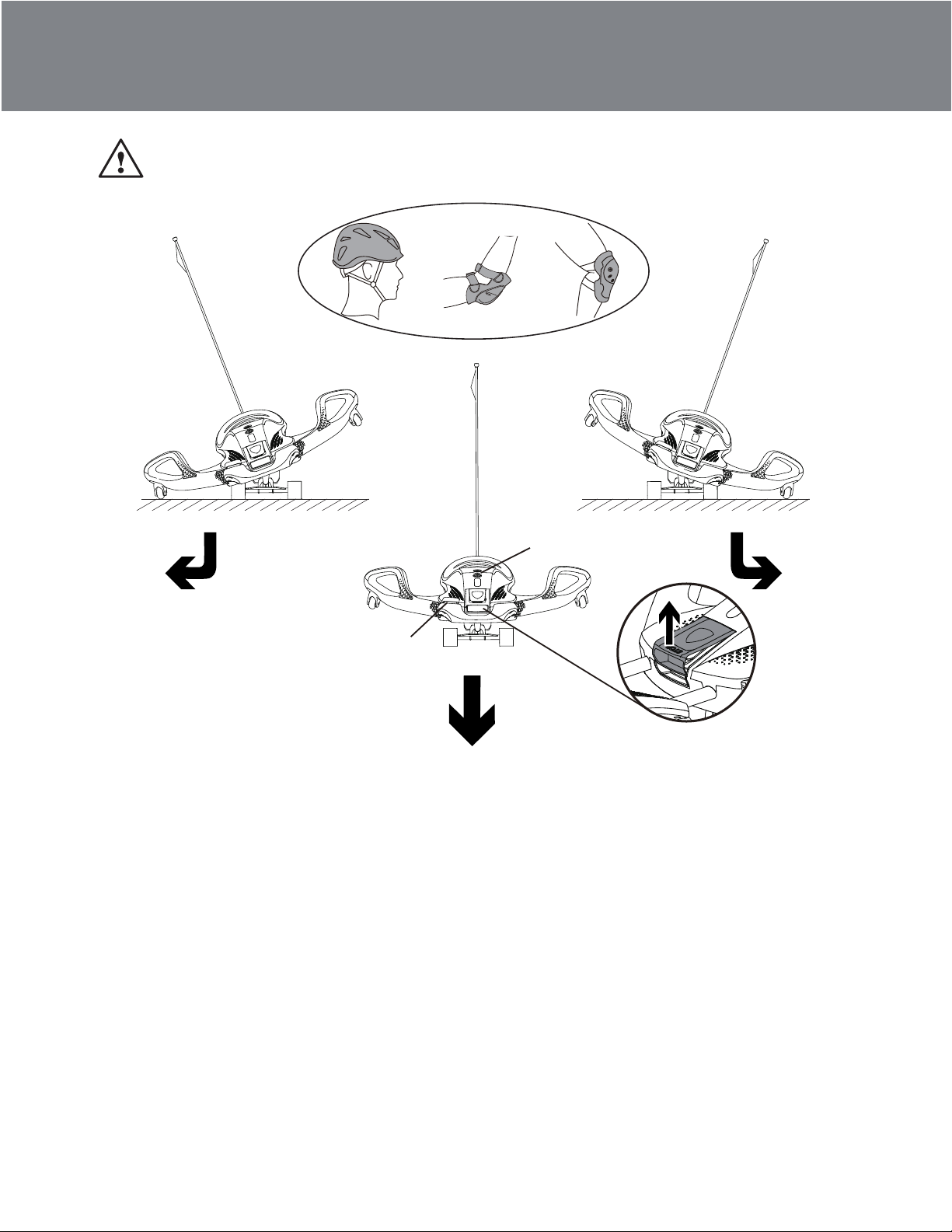

WARNING: SAFETY RIDING RULES
•The user must follow all safety rules and guidelines or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 6 years old and weigh no more than 110 lb (50 kg).The
recommended rider age is only an estimate and can be affected by the rider's
size, weight or skills. Any rider unable to t comfortably on the NexGen should not
attempt to ride it. A parent's decision to allow his or her child to ride this product
should be based on child's maturity, skill and ability to follow rules.
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling.
• Remove and dispose of all protective material and plastic bags before assembly.
• Riders must always wear a tted helmet that complies with U.S. Consumer
Product Safety Commission (CPSC) Standard 16 CFR 1203. Elbow pads and
knee pads, a long-sleeved shirt, long pants, and gloves are recommended.
Always wear athletic shoes (lace-up shoes with rubber soles), never ride barefoot
or in sandals, and keep shoelaces tied and out of the way of the wheels, motor,
and drive system.
• Come to a stop when approaching an obstruction, turn away, and use the vehicle
elsewhere.
• Only sit on the seat on the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts, such as hands, legs and hair, and clothing away from moving
parts. Moving parts can cause serious injury.
• Always wear shoes while using the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines, or hills. Operate on
relatively level ground.
• Do not operate near water, swimming pools, or other uids.
• Do not operate in dangerous weather conditions such as rain or snow.
• Do not operate near loose dirt, mud, sand, or ne gravel.
• Do not operate near ammable vapors (gasoline, paint thinner, acetone, etc.).
• Always use the vehicle in a safe, secure environment with adult supervision.
• The vehicle should be used with caution, as skill is required to avoid falls or
collisions causing injury to the user and third parties.

6Safety
• Do not touch the electric motor when in use as it can become very hot.
• Do not activate the foot pedal throttle unless you are seated and in a safe,
outdoor environment suitable for riding.
• This product was manufactured for performance and durability, but it is not
impervious to damage. Bumping into obstacles, jumping or other aggressive
riding can overstress and damage any product, including the Nighthawk, and the
rider assumes all risk associated with high-stress activity. Avoid bumping into
other objects and obstacles, as this may damage the product.
• Maintain a secure hold on handle at all times.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is
in vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near motor vehicles, on or near steep inclines or steps,
swimming pools or other bodies of water.
ALWAYS wear shoes, a helmet and protective gear.
ALWAYS sit on the seat. Do NOT lean back.
RISK OF FIRE. Do not bypass.
• Before using the vehicle, the rider must understand the vehicle controls and
safety issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.
• Store indoors when not in use. Store in a dry environment.
• Do not charge at or below 32°F (0°C). Do not store in freezing or below freezing
temperatures. Do not store in temperatures above 86° F (30° C).
• The included lithium-ion battery must be recycled or disposed of in an
environmentally safe manner. Do not dispose of a battery pack in a re; the
battery pack may explode. Do not dispose of the battery pack in your household
trash. The incineration, land lling or mixing of batteries with household trash is
prohibited by law in most areas. Return exhausted batteries to a federal or state
approved lithium-ion battery recycling facility.
• Tampering with or modifying the electric circuit system may cause shock, re or
explosion and it could permanently damage the system. Keep the battery/charger
housing and all electronic components closed to prevent exposed wiring, which
may cause electric shock.
• Battery, charger, electric wire, plug, enclosure and other parts should be
periodically checked for damage. If damage is found discontinue use until the
product is repaired.

IMPORTANT: Before using the vehicle for the rst time, the battery must be charged
for a full 12 hours. To prevent any battery leakage, heat or re, please pay attention
to the following precautions:
• Do not immerse the battery in water.
• Do not use the battery next to high temperature sources, such as a re, a heater,
etc.
• Only use the included charger for lithium battery charging.
• Do not reverse the battery.
• Do not connect the battery directly to the power outlet.
• Do not throw the battery into a re or heater.
• Do not directly connect the terminals of the battery with metal.
• Do not transport or store the battery together with metals such as hairpins,
necklaces, etc.
• Do not tap, throw or step on the battery.
• Do not directly solder the battery cells, or use sharp tools to pierce the battery pack
or battery cells.
• Do not use or leave the battery at high temperatures (in direct sunlight or in a hot
car), as this may cause the battery to overheat, cause a re or malfunction, and
result in a shorter battery life.
• Do not use in places with strong static electricity and strong magnets, otherwise it
will easily damage the safety protection device of the battery pack.
• If the battery leaks and electrolytes enter the eyes, do not rub your eyes. Rinse your
eyes with clean water, and go to a hospital for treatment immediately.
• Remove and stop using the battery immediately if it emits a foul odor, overheats, if
there is discoloration, if it becomes deformed or if there is any abnormality during
charging.
• If the terminals of the battery are dirty, use a dry cloth to clean them, to avoid poor
connection.
• Discarded batteries should be covered with insulating paper to prevent re and
smoke.
• The battery should be stored at room temperature, with 40%~60% power. It is
recommended to charge the battery at least once a month, even when the vehicle is
not in use. Failure to recharge the battery periodically may result in a battery that will
not accept a charge. If the product is stored without use for more than a year, it is
recommended to charge and to discharge the battery fully once a year to maintain
the performance of the battery.
7
Safety
(Continued)
WARNING: BATTERY SAFETY

BEFORE FIRST USE, PLEASE COMPLETE THE FOLLOWING
STEPS:
1. Connect the battery (instructions on Page 9).
2. Charge the battery (instructions on Page 10).
3. Insert agpole (instructions on Page 11).
8Quick Start Guide
3
2
1
4
5

9Connect the Battery
Fig. 1
Fig. 2
BEFORE THE INITIAL CHARGE, YOU MUST CONNECT THE
BATTERY UNDERNEATH THE SEAT.
The product ships with the battery disconnected, so please follow
the steps below to connect the battery to the Nighthawk NexGen
prior to charging for the rst time. The Nighthawk NexGen will not
charge or work if you skip this step.
1. Remove the Seat:
Rotate the seat lock (Fig.1) to the unlock position and lift up the
seat using the indentation at the front of the seat.
2. Connect the Battery:
Underneath the seat, locate the battery and the matching yellow
connectors. Plug the battery into the yellow connector located in
the compartment beneath the seat (Fig. 2).
3. Install the Seat:
After connecting the battery, slide the seat into place on the vehicle
body. Use a coin or athead screwdriver to turn the lock to the
locked position.

10
Charge the Battery
Do not use the vehicle while it is plugged in.
Battery Life Indicator:
The Battery Life Indicator, located underneath the Power Button,
displays the power level.
•When the unit is fully charged, all lights on the Battery Life
Indicator will illuminate when the NexGen is powered on.
•The unit needs to be charged when only one light is illuminated
on the Battery Life Indicator.
Charging the Battery:
1. Before charging, make sure the unit is turned off.
2. Insert the charger into the charging port located on the side of
the Nighthawk NexGen, near the seat.
3. Plug the charger into an outlet. It is recommended to charge for
12 hours for the rst charge, then 4-6 hours after the initial
charge.
NOTE: Charge the battery after each use. Charge the battery at
least once a month, even when the vehicle is not in use. Failure to
recharge the battery periodically may result in a battery that will not
accept a charge.
Battery Life Indicator
Charging Port

11
Flagpole Assembly
Before riding, insert the agpole into the hole at the back of the
vehicle.
For easy transport, there are clips to hold or store the ag
underneath the NexGen body when the unit is folded.

12 Folding Instructions
R
R
Unfolding the Nighthawk NexGen:
1. Lift the Nighthawk NexGen up by the foot rest.
2. Hold in the red circle locking button on the handle while
squeezing the red trigger into the handle and pull the foot rest
up to open.
Folding the Nighthawk NexGen:
1. Remove the agpole before folding the Nighthawk NexGen.
2. Hold in the red circle locking button while squeezing the red
trigger into the foot rest.
3. While holding both buttons, press down on the foot rest until
the unit is closed.
Locking Mechanism

13
Operating Instructions
Note: Wear protective equipment including a helmet and
padding to avoid possible injury.
Power Button
Brake
Foot Pedal
Getting Started:
1. Before riding the vehicle, ensure the battery is connected and the
seat is securely locked into place. Make sure the rider is seated and
leaning forward.
2. Press the Power Button to turn on the vehicle. The light will turn on
if the vehicle is charged.
To Go: Grip the handlebars tightly and lean forward while riding. Press
the Foot Pedal down slowly at rst to go forward. The motor will stop
when the Foot Pedal is released.
To Brake: Pull up on the red hand Brake to come to a complete stop.
To Turn or Spin: While in motion, lean to the desired direction until
the support wheel touches the ground. Note: Do not lean back while
riding.

14 Maintenance
Important Battery and Charger Information
• Only an adult who has read and understood the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•
• Recharge the battery immediately after each use. Charge for at least
4-6 hours, but no more than 12 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120 V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
65°C / 149°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided.
• Remove damaged batteries from the vehicle immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.
Charge the battery for 12 hours before using the vehicle for the rst
time.

15
General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See service information on Page 19.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters and other sources of heat.

16 Parts
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
Battery
Side Wheel (x2)
Hand Brake
Battery Life Indicator
Vehicle Body
Rear Wheel
Manual
Seat
Gearbox Cover
Washer
Nut
Handlebars (x2)
1 2
6
6
15
16
17
8
8
3
7
11
10
9
13
14
18
12
4
5
Foot Pedal
Front Truck
Gearbox
Chain
Charger
Flagpole

17
Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Battery terminal
connector loose or
detached
Reconnect battery connector
Battery not charged Recharge Battery
Electrical Components
Broken
Call Customer Service for
troubleshooting
Battery is dead Call Customer Service for
replacement battery
Drive chain fell off Reinstall the chain
Motor is damaged Call Customer Service
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 4-6 hours.
Overcharged battery Never charge the battery for
more than 12 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order replacement battery
Too much weight on
vehicle
Reduce weight on vehicle
(Max. Weight: 50 kg / 110 lb)
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Caster Wheel is Worn Replace caster wheel
Motor or gearbox making
grinding noise
Motor or gear damage Call Customer Service
Vehicle unable to turn Support wheel screw is
loose
Tighten the screw
Support wheel is worn Replace caster wheel
Completely read through the manual and troubleshooting guide before
contacting Customer Service.

18 FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Consult dealer or an experienced radio/TV technician for help.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Check the state or local requirements for the product before using the
product.
responsible for compliance could void the user’s authority to operate the
equipment.

19
If your product requires service, repairs or replacement parts, please
contact Rollplay Customer Service.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [email protected]
Web: www.rollplay.com
For a list of available replacement parts, please visit www.rollplay.com
WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales
receipt and register your product at www.rollplay.com.
Service and Repairs
Before returning your vehicle to the store, contact
Rollplay with questions.

20 Warranty
Rollplay 24-Volt Limited Warranty
• One-year limited warranty from the date of purchase with proof of purchase from
a Rollplay certied retailer.
• Six month limited warranty on the 24-Volt battery with proof of purchase from a
Rollplay certied retailer.
• Rollplay ensures the original 24-Volt battery is warranted for 6 months from initial
• This warranty covers normal use and does not cover the Rollplay vehicle or
abuse, misuse, improper service or other causes not arising out of defects in
materials or workmanship. Evidence of any attempt at consumer repair will void
this warranty.
• This warranty does not cover, and is not intended to exclude any liability on the
part of Rollplay, whether under this warranty or implied by law for any indirect or
consequential damages for breach of warranty. Some states may not allow the
exclusion or limitation, so this limitation may not apply to you.
Should you need service or assistance with your vehicle during the warranty period:
• Please do not return vehicle to the store.
• Consult the troubleshooting guide in this manual and online at www.rollplay.com
• or call Rollplay Customer Service at 1-888-982-9309.
may vary from state to state.
Please save your original sales receipt.
