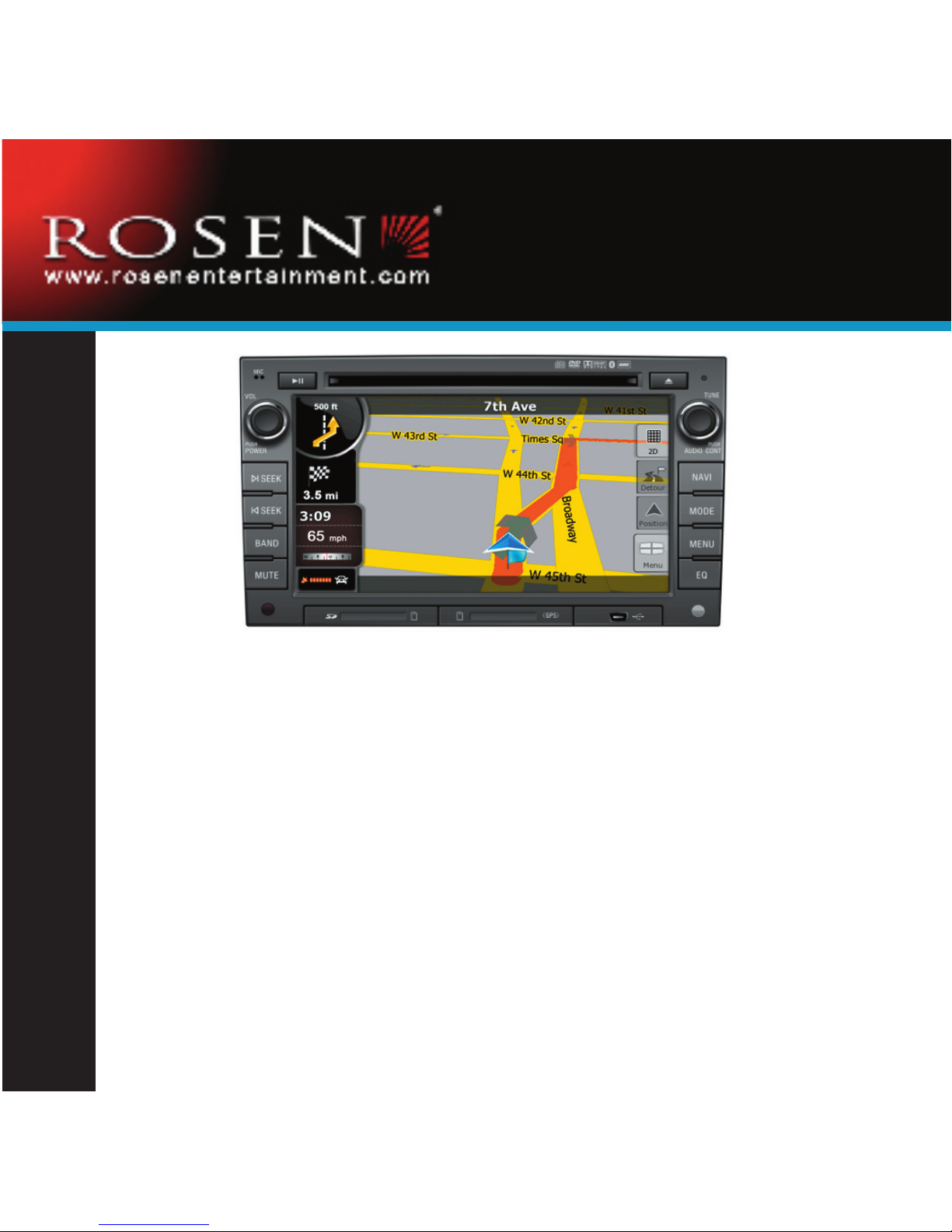

Rosen GM SERIES DS-GM0710 User manual

In-Dash Multi-Media /
Navigation System
In-Dash Multi-Media /
Navigation System
GM Series Quick Start Guide
DS-GM0710
System Features
 High resolution, touch-screen LCD display
 Navigation includes text-to-speech voice and visual turn-by-turn
directions, 5 Million+ Points-Of-Interest library, 3D route and building views
for major cities, plus 3 language options (English, Spanish, French-Canadian)
 Play DVD movies, audio CDs or discs with MP3 music files
 AM-FM stereo tuner with 24 station presets (18 FM, 6 AM)
 Bluetooth Hands-Free interface with built-in microphone
 iPodTM interface
 XM Satellite Radio ready
 Supports the vehicle’s steering wheel controls
 USB & SD Card ports for multi-media playback (SD on some models)
 Back-Up Camera and/or sensor ready
 Dual Zone interface for optional rear seat displays
 Custom DVD Splash Screen capable

Notices
NOTICE OF INTENDED USE
Some features of Rosen Entertainment Systems are not intended for viewing by the driver when the vehicle is in motion,
such as movie playback. When using navigation, minimize the amount of time spent viewing the screen and use voice
prompts as much as possible. Avoid prolonged use of the touch screen controls. Such use might distract the driver or
interfere with the driver’s safe operation of the vehicle, and thus result in serious injury or death. Such use might also
violate state or local laws.
Rosen Entertainment Systems disclaims any liability for
any bodily injury or property damage that might result
from any improper or unintended use.

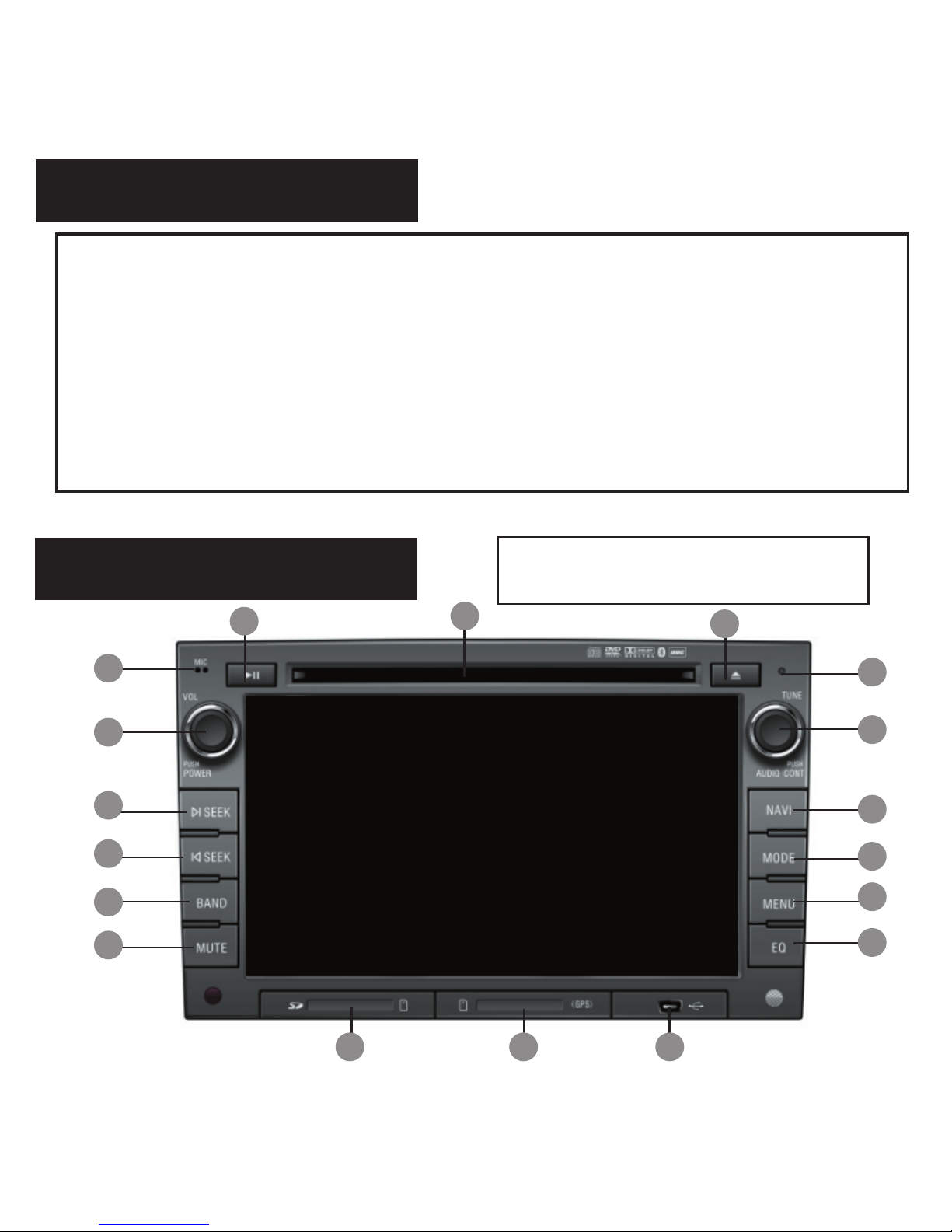

Controls & Basic Operations - IMPORTANT -
More detailed system operating instructions
are located in the Owner’s Manuals
2
3
4
5
6
7
8
1
10
11
12
13
14
1Figure 1.
8
15
9
1618 17

When in DVD/CD Mode, press to
Pause or Play.
Microphone for Bluetooth hands-free-
Turn the knob to adjust the volume.
Press in to turn system ON/OFF.
When in Radio Mode, press to
play the Next/Previous Preset station.
Press and hold to scan for stations.
When in DVD, or iPodTM Mode, press
to select the Next/Previous song or
chapter.
Press to cycle through FM and AM or
XM if equipped.
Mute/Unmute
CD/DVD/MP3 Disc Slot
Eject button for DVD Mode.
System reset (if required). Use a
paper clip (or similar) to press.
When in Radio Mode, turn the knob
to select the station. Press to select
Bass, Mid, Treble Audio Modes. Turn
to adjust tone.
Enter/Exit Navigation Mode (naviga-
tion can only be exited by pressing
this button).
Press repeatedly to cycle through dif-
ferent sources.
Press to enter main menu.
Press to change audio equalizer
presets.
SD Card Slot (for navigation only).
SD Card Slot
Control Button Details (as shown in Figure 1.)
2
1
2
3
6
45
7
8
9
10
11
12
16 Mini USB for external media device.
15
13
14
18
17

Turn System On/Off
Vehicle ignition must be On or in ACC Mode to
operate system.
Press the Left Knob on the panel to turn the
system ON/OFF (Figure 2).
Volume Adjustment
Turn the Left Knob on the panel to adjust the
volume (Figure 2.).
Main Menu
From any other screen, touch to enter
For detailed information of these functions, please refer to the “User’s Manual”.
TV Bluetooth iPodTM AM/FM Radio SAT Radio
DVD Auxiliary Input Navigation System Setup Return
Figure 3.
3
Figure 2.
Main Menu (Figure 3.) The Main Menu
includes TV, Bluetooth, iPodTM, Radio,
XM, DVD, AV, Navigation and Setup.

4
Navigation
Before using the Rosen Navigation software, read this entire manual. Make sure that you are
familiar with the system’s features and know how to operate the system.
Glance at the screen only when necessary and safe to do so. Let the computer voice guide you. If
prolonged viewing is necessary, pull off the road to a safe location.
Introduction to Your Rosen Navigation
Rosen Navigation provides turn-by-turn visual and voice assistance to direct you to your selected
destination. It quickly calculates step-by-step directions to any destination available on the in-
cluded navigation map.
Rosen Navigation uses Global Positioning System (GPS) satellites, and a digital roadway map da-
tabase to calculate and display travel directions. The system’s GPS antenna receives signals from
a constellation of 24 satellites orbiting the earth and uses the strongest of signals, to determine
your position to within meters.
_______________________________________________________
Before operating your Rosen Navigation system, please carefully read and follow the
instructions provided in the “Safety Information and Precautions”
located on Page 14 of this Quick Start Guide.
_______________________________________________________
For Complete Operating Instructions
Please refer to the Rosen Navigation User’s Manual to find complete instructions on the operation
and many features of the Rosen Navigation System.
Initial Touch Screen Calibration
You may need to calibrate the touch screen when the system is first used. To do this, enter the
Navigation Mode immediately after you turn the system on. Follow the Information screens as
indicated.

5
Start Up/Main Menu
When the Rosen Navigation software starts, you will see the reminder warning to use your
Rosen Navigation software safely and lawfully.
Note: Please refer to the User’s Manual for additional information and warning on the proper
use of the Rosen Navigation product.
The Attention screen is displayed each
time the system is turned ON as a reminder
to make use of the navigational aids in a
safe manner.
Warning Screen Main Menu
Select to
display the
map view
Main Menu Option Select this Option to...
Find Pick a destination for routing
Manage Organize or select saved routes or Points-Of-Interest
Route Edit or cancel a route in progress
Settings Set preferences for routing, map, screen, navigation and more

6

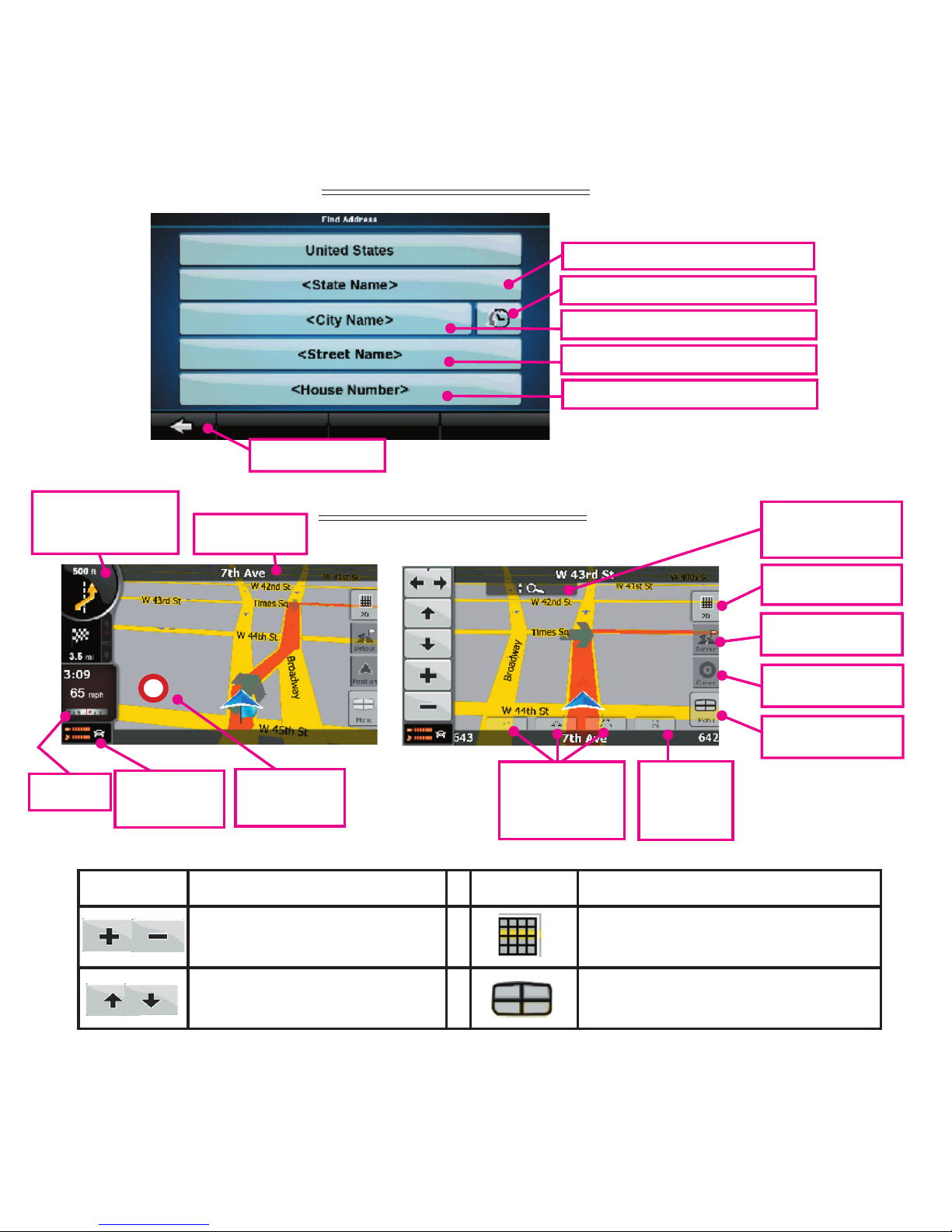

65
Select state name
Select from previously used city
Select from previously used city
Enter street name
Enter street address number
Previous screen
Find Address Screen
Map View Screens
Compass GPS strength
and quick
menu option
Indicates
posted HWY
speed
Indicates distance
to and direction of
next turn
Next turn street
or HWY
2D/3D map view
options
To avoid delays or
change route
Opens cursor menu
Return to navi
menu
Touch here to bring
up arrow and 3D
options
3 screen view op-
tions can modify
toyour preference
Return to
current GPS
position
Button Select this Option to... Button Select this Option to...
Zoom the map view in
and out
Switch map display between
2D and 3D views.
Horizon up/down adjust-
ment for 3D view
Display menu, jump to Main
Menu

7
Points of Interest Screen
POI Menu Option Select this Option to...
Around Address Find POI by state, city and address
Around Cursor Find POI by a cursor or location you have selected
Around GPS Position Locate POI by your current satellite location
Around Destination Find POI around your final destination
Along Route Find POI along your current route
NOTE: Once you have selected your POI Menu Option and entered the
requested data, the screen will switch to the POI Category Screen.

8
Set-Up Menu
You may customize the Rosen Navigation software to your own preferences. Select Settings
from the Navigation Menu. You have 8 user preference categories shown on 2 screens, the
second located by pressing the right arrow . In each of the 8 user preference categories,
there are numerous options that can be changed.
Screen 2
Screen 1
Fine tune the
appearance of the
map screen
Route settings
Set how the system
navigates
Change settings for
language, voice,
measurements,
time, etc.
Modify look and
behavior of menu
screens
Enable and disable
driving warnings
such as speeding
Set connection to
TMC receiver (if
equipped)
Information on
maps and licenses
included
Help For further explanations of screen options,
press the Help button located on the lower
Right Hand side of screen (if shown).

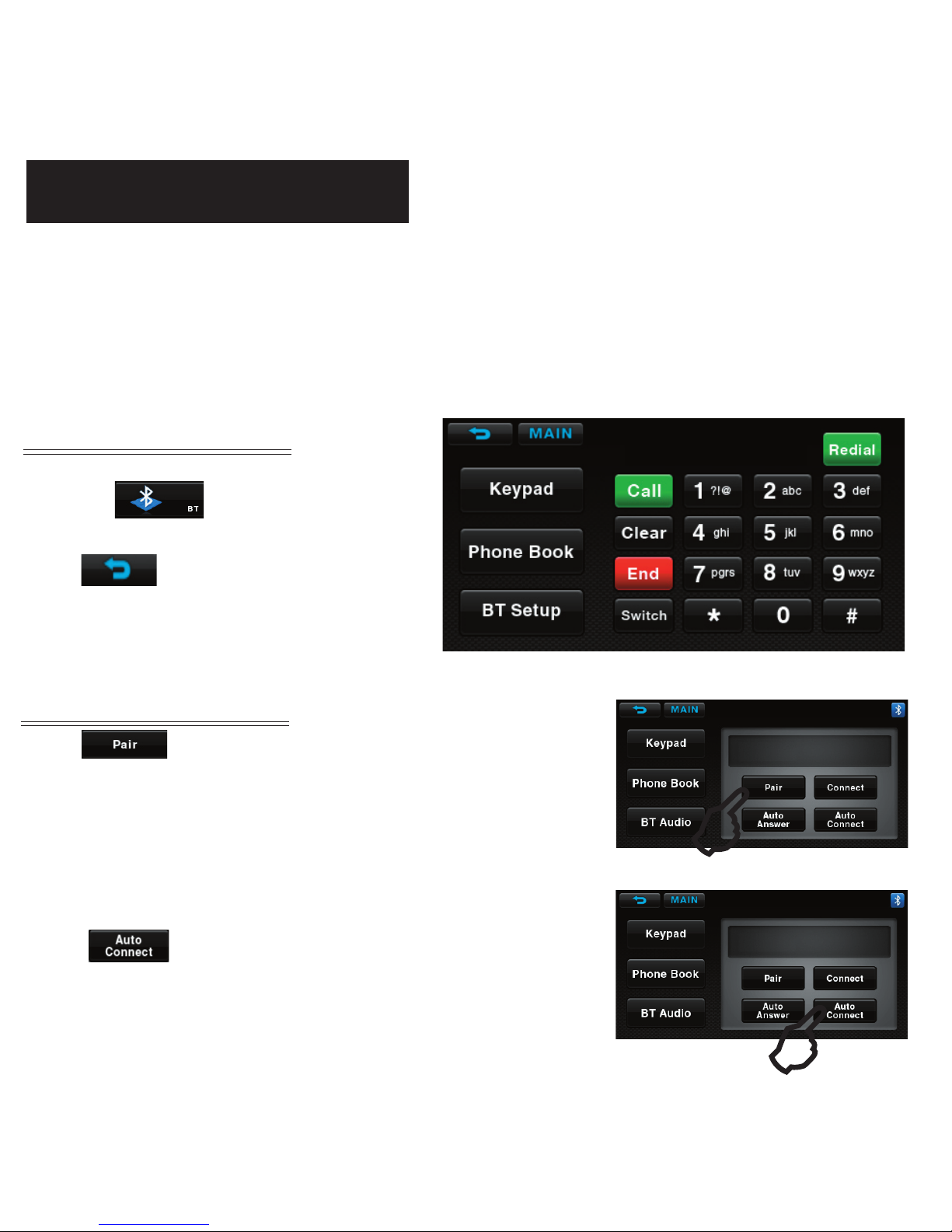

Bluetooth Hands-Free
The system provides Bluetooth Hands-Free communication function. If your mobile phone is
Bluetooth enabled, it can establish a point-to-point connection with the system, providing tele-
phone dial up, call answering, Phonebook and Bluetooth music play functions.
Note: Bluetooth modules and software of cell-phones vary by brand and date of manufacture.
Some functions may be different or not compatible with this system during actual use.
Enter/Exit
To Enter: From Main Menu (Figure 3.)
touch the icon.
To Exit: From Bluetooth screen (Figure 4)
touch button in the
upper left hand corner.
Figure 4.
Pairing Your Phone
Touch Open the Bluetooth function of your cell
phone and enable the Bluetooth device search function.
“Pairing” will be displayed on the screen. After the
connection succeeds, your cell phone will display (Rosen).
Connect to the device by entering the password (1234). The
system will indicate “Linking” and then “Connected.” When
your phone is connected its name will be displayed on the unit.
Touch (Figure 6.) if you desire the system’s Bluetooth
feature to automatically detect your cell phone when the
vehicle and system are turned on.
Figure 5.
Figure 6.


9

Making/Ending A Call (Figure 7.)
You can dial the number from your cell phone or
use the touch-screen shown at the right by entering
the number, then press the icon to dial.
Press to clear.
Touch to transfer the call to your
cell phone. Press again to transfer the call
over speakers. Press to end the call.
Answer A Call (Figure 8.)
For incoming calls, the system will automatically
switch to the answer screen.
Press the icon to answer call or the
lower to refuse the call
Touch to transfer call between cell phone
and car speakers.
Phonebook (Figure 9.)
Touch and the Phonebook will appear.
The phonebook can be used to view incoming
numbers, received numbers and missed numbers.
The system will not display your cell phone’s
internal phonebook but will show the last 5
numbers dialed, received or missed. Press the
appropriate button on the screen to view the
numbers.
Figure 7.
Figure 8.
Figure 9.
10
Dialed Received Missed

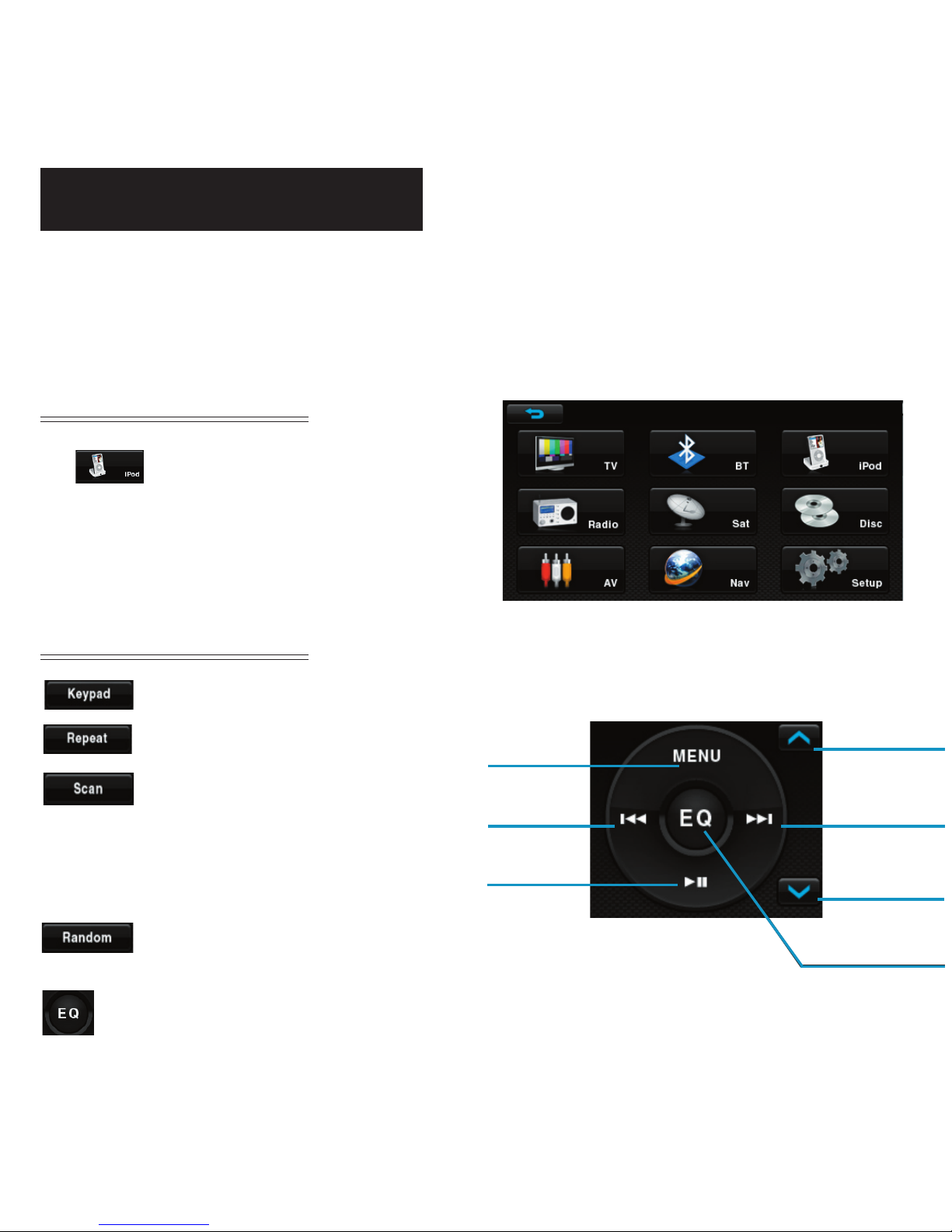

iPodTM Audio/Video
When the system is connected to an external iPodTM player, the audio and video files stored on
the iPodTM can be played through the system.
Note: Sleep mode should be enabled on the iPodTM to reduce the event of battery drain.
Enter (Figure 10.)
From the Main Menu, touch
the icon to enter the
iPodTM control system.
Touch Button Descriptions (Figure 11.)
Pop up/hide the number pad
Repeat the current played song
Scan and play songs in the
current folder. The next song
will be played after the current
song has been finished for 10
seconds.
Play songs in the current folder
at random.
Press once to display song information.
Press twice to display spectrum equalizers.
Figure 10.
Return to
upper menu
Previous
track
Play/pause
Page up
Next track
Page down
Display playing
information
11
Figure 11.

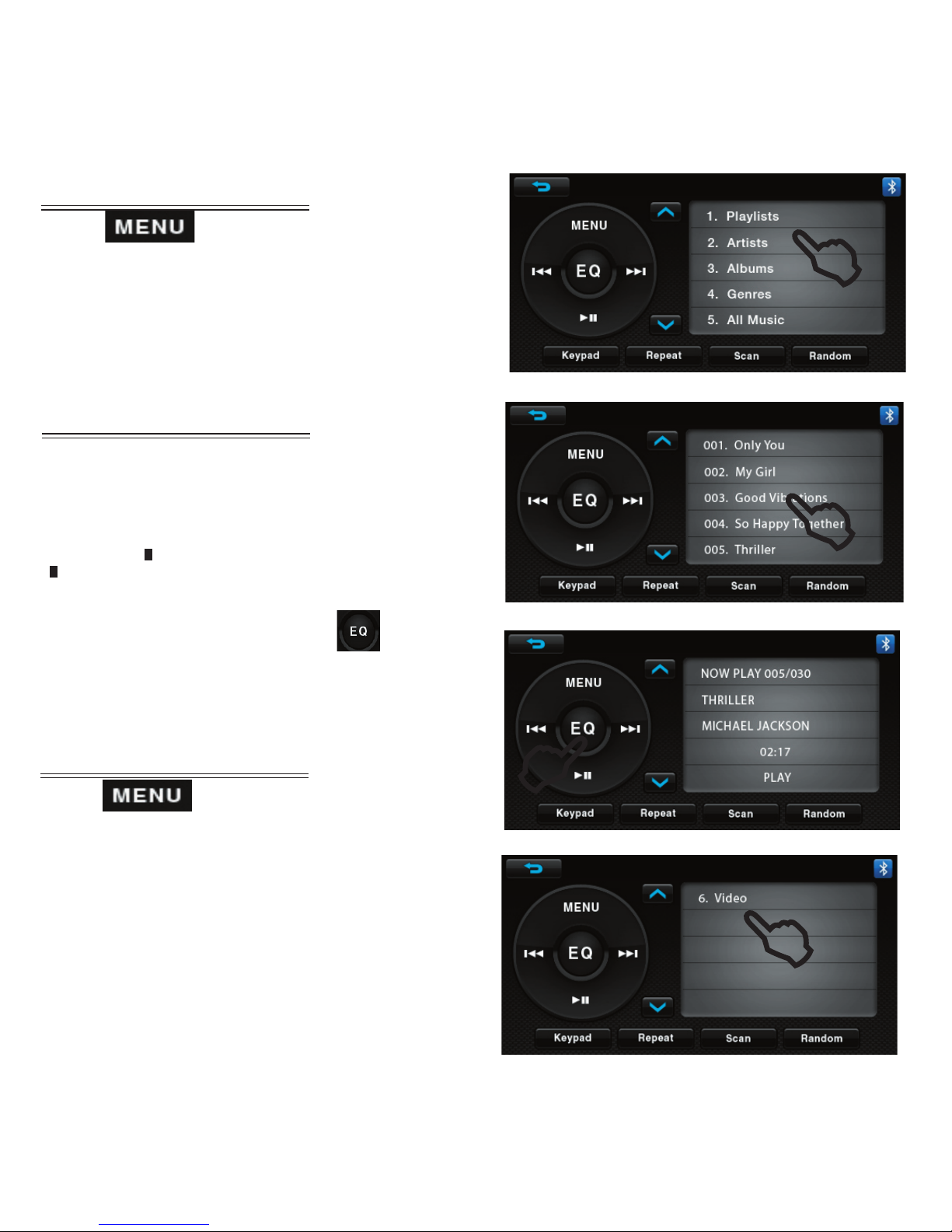

Main Menu (Figure 12.)
Touch to enter category list. The
system categorizes files into 6 options you
can select as shown in screen shot.
Touch the desired category to select that section.
Play A Song (Figure 13.)
Touch the song shown on playlist to play.
Touch I to select previous song or
I to select next song.
Touch the arrow for page up or
for page down.
Touch the center of the control
plate to display the play information on the
screen or to access the Equalizer (EQ)
Figure 14.).
Play A Video (Figure 15.)
Touch to enter category list.
Touch 6. Video to switch to iPodTM
operation.
From your iPodTM press Play for the
video file desired. The file will be
transferred to the system.
NOTE: Video function may not be supported
on all iPod models.




Figure 12.
Figure 13.
Figure 14.
Figure 15.


12

13

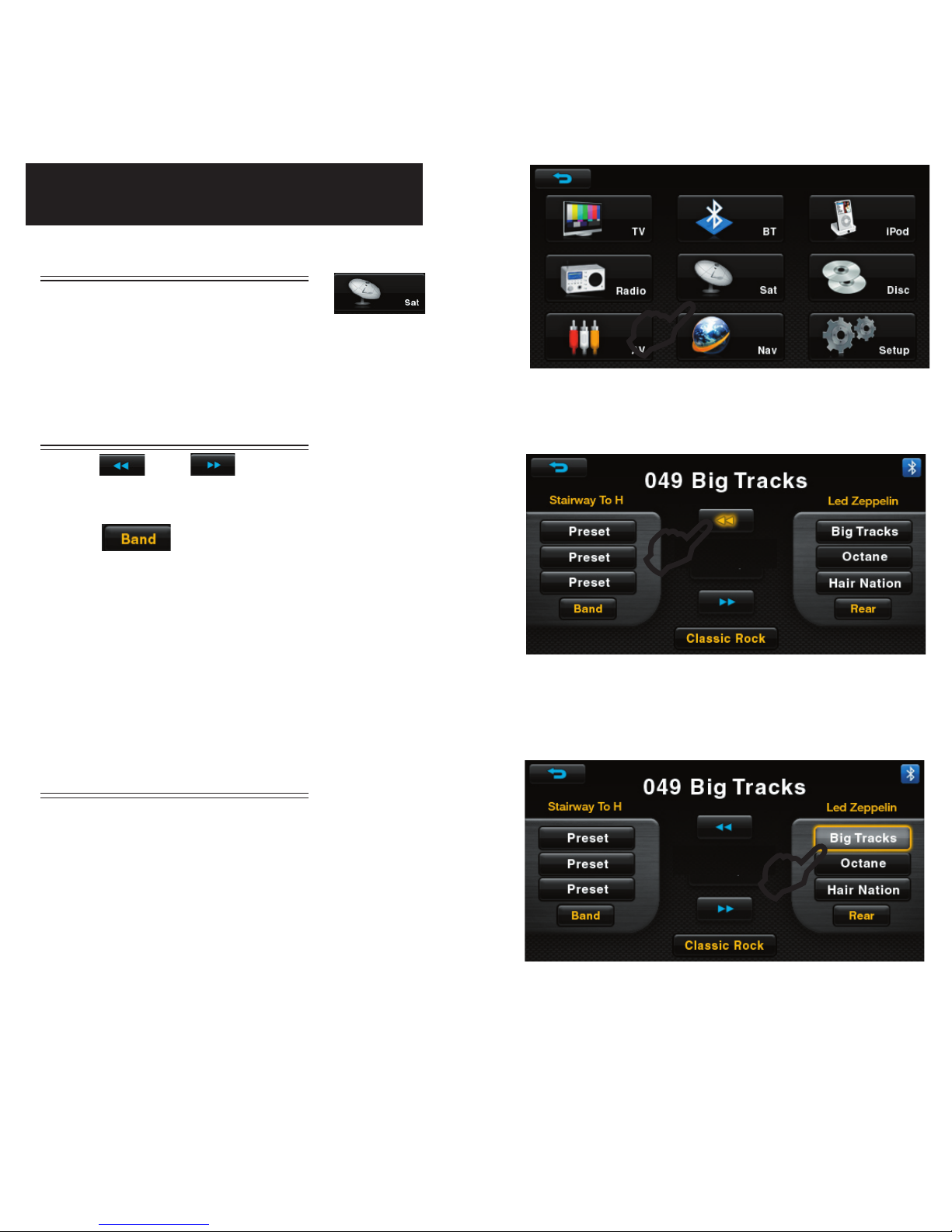

XMTM Satellite Radio (optional)
Enter (Figure 16)
From the Main Menu, touch the
icon to enter the XM Radio function.
Touch Button Descriptions (Figure 17)
Touch and to seek previous
and next available stations.
Touch to select SAT1, SAT2,
SAT3 Channel Preset screens.
To select a station as a Preset,
press and hold a PRESET bar.
The name of the station will
appear in the bar when saved.
Play A Preset Channel (Figure 18)
Touch the desired Preset channel. The
channel will load and begin to play.
NOTE: The background of the selected
channel will become lighter.

Figure 16.
Figure 17.
Figure 18.



14
Safety Information and Precautions
WARNING! Please read and follow the following safety precautions.
Failure to follow the instructions below may increase
your risk of collision and personal injury.
The Rosen Navigation software is not a substitute for your personal judgment. The route suggestions should never supersede
any local traffic regulation or your personal judgment and /or knowledge of safe driving practices. Prior to completing any
maneuvers suggested by your Rosen Navigation software (for example, a U-turn or a left turn), verify that you can legally and
safely complete the maneuver. Do not follow route suggestions if they direct you to perform an unsafe or illegal maneuver,
would place you in an unsafe situation, or would route you into an area that you consider unsafe.
Do not use the Rosen Navigation software to locate emergency services (such as police, fire stations, hospitals, and clinics).
The database may not include all emergency service providers. Use your own best judgment and ask for directions in these
situations.
If the vehicle is in motion, only a passenger should program the Rosen Navigation software. The driver should not program the
system unless the vehicle is parked in a safe location.
The Rosen Navigation software’s map database provides information on suggested routes without regard to factors that may
affect your driving experience or the time required to arrive at your destination. For example, the system does not reflect road
detours, closures or construction, some road characteristics (e.g., road surface, slope or grade, weight or height restrictions,
etc.), temporary traffic congestion, weather conditions, and similar factors.
Vehicle Position
The Rosen Navigation software’s computer considers vehicle speed and heading changes, together with longitude and latitude
information, to accurately determine vehicle heading and position on a digital map.
Map and Information Database
The map database used by your Rosen Navigation software was created using high-resolution aerial and land based data
collection.
Car navigation maps are frequently updated. While the database was judged to be as accurate as possible at the time of its
release, a map database can never be 100% accurate. Road information that is maintained in the map databases, such as turn
restrictions or road names may change over time.
End-User License Agreement
Please refer to the Rosen Navigation User’s Manual to review and accept the terms and conditions in the End-User License
before operating this product.
Rosen Navigation Information

About the Registered Marks
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and
other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
iPod® is a registered trademark of Apple Computer, Inc.
NOTE: Features and specifications listed in this manual are subject to change without notice.
Manufactured under license from Dolby Laboratories. “Dolby” and
the double-D Symbol are trademarks of Dolby Laboratories.
All rights reserved. Copyright 2009. DP-GM0711 Rev A
AM/FM
Touch
Screen
