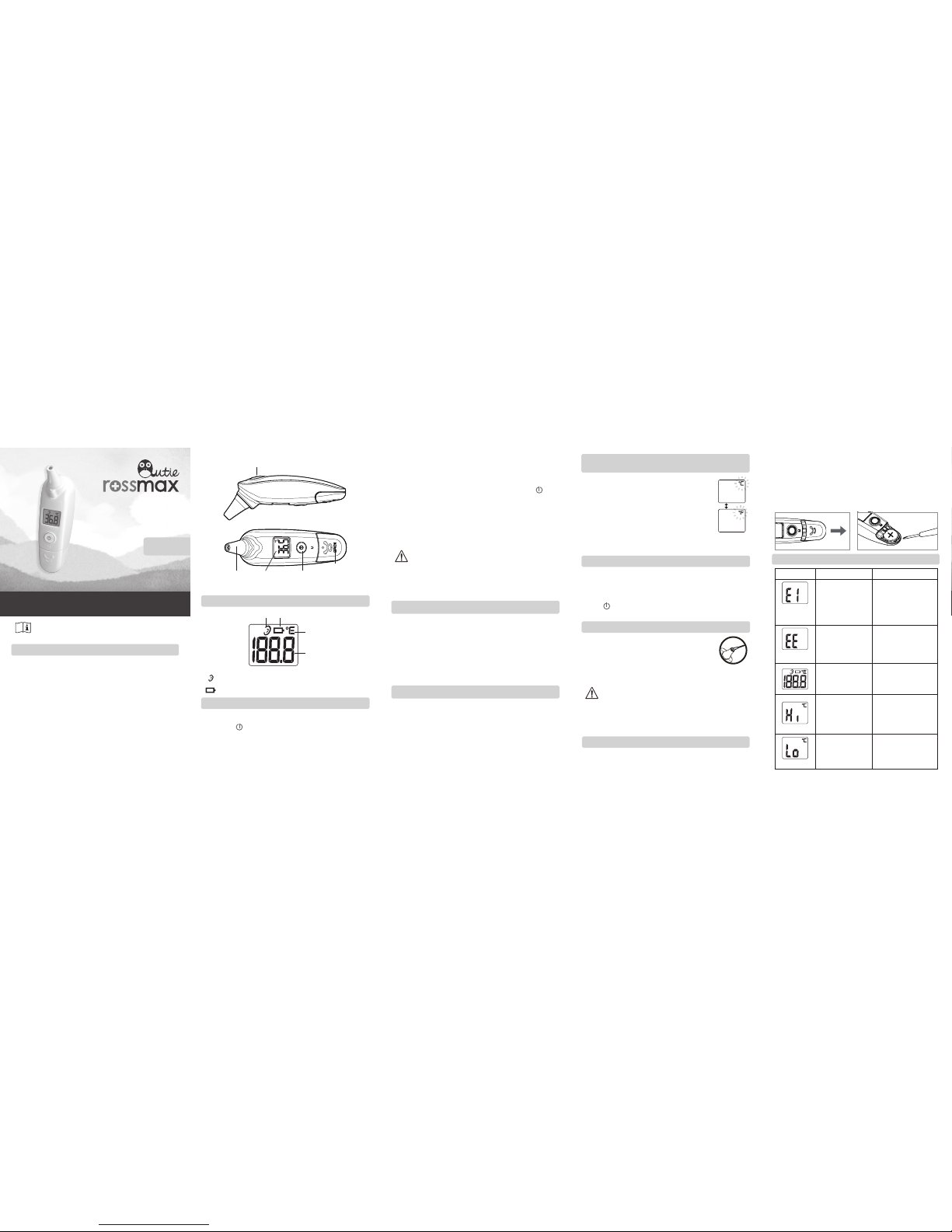

Rossmax RA500 User manual

www.qutie-rossmax.com
4. Measuring the ear temperature: Use the index nger to trig-
ger. Press “Start” button, a long beep will be sounded when
measurement is done.
5. Power Off: Device will automatically shut off if left idle for
more than 1 minute to extend buttery life. Or press “On/
Off/Memory” button for at least 3 seconds to turn the device
off.
6. Fever alarm: the measuring temperature is higher than
37.5°C(99.5°F), the display will ashing and 4 short beeps
will be sounded. The measuring temperature is higher than
42.2°C(108.0°F), the display will show “Hi“and 4 short beep
will be sounded.
a. It is recommended that you measure 3 times with the
same ear. If the 3 measurements are different, select the
highest temperature.
b. To avoid the risk of cross contamination, please clean
the probe according to “Clean and Storage“ section
after each use.
Ear Battery
°C/°F unit
Temperature
display
1. To achieve accurate readings, make sure the ear canal is clean.
2. Press the “On/Off/Memory” button. The thermometer is
ready for use after the ear icon is ashing and two beeps are
sounded.
3. Gently pull the ear back to straighten the ear canal and snugly
position the probe into the ear canal, aiming towards the
membrane of the eardrum to obtain an accurate reading.
There are total 9 set memories for body measurement. If the
reading of the thermometers is within the normal temperature
range of 34 °C to 42.2 °C (93.2 °F to 108°F ), when the meas-
urement is done, the measurement data is saved into memory.
• Press “On/Off/Memory” button again to see the tempera-
ture stored.
The probe is the most delicate part of the ther-
mometer. Use with care when cleaning the lens to
avoid damage.
1. Please use the cotton swab with the Alcohol to
clean the lens (on the inside of the probe).
2. Allow the probe to fully dry for at least 5 minutes.
a. Please check the device if it falls and damages. If you
can’t make sure of it, please send the complete device
to the nearest retailer for recalibration.
b. Keep the unit dry and away from any liquid and direct
sunlight. The probe should not be submerging into
liquids.
• It means measurable.
• When battery icon appears, please replace the battery.
How to use the RA500 Infrared Ear Thermometer
LCD dislpay
Memory function
Cleaning and storage
Please read the instruction manual carefully before using
the product and be sure to keep this manual.
1. Turn off the device.
2. Hold down the “Start” button, then press and hold the“ON/
OFF/Memory” button until the LCD shows °C.
3. Press the “ON/OFF/Memory” change beep sound from on to
off, then release the “ON/OFF/Memory” button.
4. After 6 seconds without changing, the beep On/Off setting
will be completed, and the unit will be entered into the meas-
urement mode.
If you continuously obtain different measurement results, it is
recommended that you use Scanning Mode to measure.
Measuring the ear temperature: Use the index nger to trig-
ger, press and hold the “Start” button for 3 seconds to take
measurement. During the measuring process, gently pivoting
the probe side-to-side to view the entire ear canal or in order to
nd the highest temperature. Release the “Start” button when
hearing a long beep sound and the measurement is completed.
Enabling or disabling the beep sound
Scanning Mode
The Rossmax Infrared Ear thermometer has been carefully de-
veloped for accurate, safe and fast temperature measurements
in the ear.
It is a non-invasive ear thermometer using an infrared detector
to detect body temperature from the auditory canal for adult
and child.
• The quality of the infrared ear thermometer has been veried
and conforms to the provisions of the EC council directive 93/42/
EEC(Medical Device Directive) Annex I essential requirements and
applied harmonized standards. EN 12470-5: 2003 Clinical ther-
mometers-Part 5: Performance of infrared ear thermometers (with
maximum device.)
• This thermometer converts the ear temperature to display its “oral
equivalent.” (according to the result of the clinical evaluation)
RA500 Infrared Ear Thermometer
1. This thermometer is supplied with one lithium cell (CR2032).
2. Turn off the thermometer before replace the battery.
Change the battery
Error message Problem Solution
bi-bi-bi
The ambient
temperature is not
within the range be-
tween 10°C~40°C
(50°F~104°F)
Allow the thermometer
to rest in a room for
at least 30 minutes
at room temperature:
10°C to 40°C (50°F to
104°F)
bi-bi-bi
The system is
not functioning
properly.
Unload the battery,
wait for 1 minute and
re-power it. If the mes-
sage reappears, contact
the retailer for service.
Device can not be
powered on to the
ready stage.
Change with a new
battery. If the message
reappears, contact the
retailer for service.
bi-bi-bi-bi
Temperature
taken is higher than
42.2°C (108.0°F)
Ensure no break or dirt
of the probe cover and
take a new temperature
measurement.
bi-bi-bi-bi
Temperature taken
is lower than 34°C
(93.2°F)
Make sure the probe
cover is clean and take
a new temperature
measurement.
Troubleshooting
Instruction Manual
Model: RA500
EN
3. Open the battery cover: Hold the device and ip the battery
out with a small screwdriver.
4. Insert the new battery and press the right side of the battery
down until you hear a click.
5. Place back the battery cover.
* The positive (+) side up and the negative (-) side pointed down.
To change the Unit from °C to °F:
1. Turn off the device.
2. Hold down the “Start” button, then press and hold
the“ON/OFF/Memory” button until the LCD shows °C.
3. Press the “Start” to change the °C to °F, then release
the “Start” button.
4. During the setting adjustment, each old or new tem-
perature scale setting will be ashing for 6 seconds.
After 6 seconds without changing, the temperature
scale adjustment will be completed, and the unit will
be entered into measurement mode.
Switching between temperature scale
Fahrenheit and Celsius
LCD
display
Battery
cover
ON/OFF/Memory
button
Probe
Start button
This instrument is covered by a 5 year guarantee from the
date of purchase, batteries and accessories are not included.
The guarantee is valid only on presentation of the guarantee
card completed by the dealer conrming date of purchase or
the receipt. Opening or altering the instrument invalidates the
guarantee. The guarantee does not cover damage, accidents
or non-compliance with the instruction manual. Please contact
Rossmax Service.
compare them. Take the temperature periodically to nd out
the normal ear temperature reading , then use that reading
as the basis for comparison with any measurement taken
when you suspect a fever.
2. This thermometer is designed for ear temperature meas-
urement. Do not use this thermometer for other body site
measurement.
3. Keep the unit dry and away from where it might be exposed
to moisture, liquids, direct sunlight, high temperature, high
humidity, or excessive dust.
4. This device is not shock-protected. Do not drop, heavily pres-
sure the unit or fall from high place.
5. Do not bend the device.
6. Do not disassemble or make modications the device.
7. Please do not dispose of the product in the household waste
at the end of its useful life. Disposal can take place at your
local retailer or at appropriate collection points provided in
your country.
8. Do not boil the probe.
9. Do not use the device if it operates abnormally or error mas-
sage is showed.
10. Do not use thinner or benzene to clean the device.
11. Wipe the device clean before storing.
12. When taking the device from storage below or above 10~
40°C(50~104°F), place it in 10~ 40°C(50~104°F) temperature
range for at least 30 minutes before use.
13. Remove the battery if this device is not used for a period of time.
14. If this device is used according to the operation instruction, pe-
riodic re-calibration is not required. If you still have questions,
please send the complete device to dealers.
15. Please note that this is a home healthcare product only, and
it is not intended to serve as a substitute for the advice of a
physician or medical professional.
16. Do not use this device for diagnosis or treatment of any
health problem on disease. Measurement results are for ref-
erence only. Contact your physician if you have or suspect
any medical problems. Do not change your medications
without the advice of your physician or healthcare profes-
sional.
17. This device may not meet its performance specication if
stored or used outside temperature and humidity ranges
specied in specications.
18. Battery should neither be charged nor placed into the ex-
treme environment, or it may explode.
19. The thermometer contains small parts (ex: battery, etc.)
that can be swallowed by children. Therefore never leave
the thermometer unattended to children.
1. Besides the oral temperature, the body temperature meas-
ured by ear may be different from measurements taken
by rectal or axillary. Therefore, there is no any meaning to
Warranty
IN0RA5000000000XX
OBM_IB_RA500Q_EN_ver1304
Product Information
Date of purchase:
Store where purchased:
Price Paid (excl. Tax):
Purchase for:
EMC guidance and manufacturer’s declaration
Specication
Caution
Temperature
measurement range
34.0~42.2°C(93.2~108.0°F)
Accuracy ±0.2°C(0.4°F) during
35.0~42.2°C(95~108.0°F)
±0.3°C(0.5°F) for other range
Operating
temperature range
10 ~ 40°C (50~104°F), RH≤95%
Storage and
transportation tem-
perature
Temperature:-25~55°C(-13~131°F),
RH ≤95%
Memory 9 set
Display resolution 0.1
Battery 3V, lithium CR2032 x 1
Weight (with battery) 55g
Size 12.0cm(L) x 3.5cm(w) x 2.8cm(H)
Auto shut down 60 sec.
Battery life 3000 consecutive measurements or 1
year with 1-2 measurements per day
including stand-by mode.
Safety classication Type BF equipment
Clinical repeatability 0.09°C (< 1 year old)
0.07°C (1~5 years old)
0.07°C (> 5 years old)
*Dispose of device and batteries according to local regulations
Low battery: Battery
icon is ashing, still
can be measurable.
Suggest to replace the
battery.
Dead battery: Bat-
tery icon always
enabled, no more
measurements are
possible.
Replace the battery
20. The ear thermometer must be inserted correctly to receive
correct temperature measurement.
21. Be sure to consult a doctor if you feel that your health is in
poor condition.
22. Do not judge your health only on the presence or absence
of a fever.
Guidance and manufacturer’s declaration-electromagnetic immunity
The RA500 is intended for use in the electromagnetic environment specied below.
The customer or the user of the RA500 should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance
level
Electromagnetic environ-
ment-guidance
Electrostatic discharge
(ESD) IEC 61000-4-2
± 6 kV contact
± 8 kV air
± 6 kV contact
± 8 kV air
Floors should be wood, con-
crete or ceramic tile. If oors
are covered with synthetic
material, the relative humidity
should be at least 30%
Electrical fast tran-
sient/burst IEC 61000-
4-4
± 2kV for power sup-
ply lines
± 1kV for input/out-
put lines
Not applicable
Not applicable
Mains power quality should
be that of a typical commer-
cial or hospital environment.
Surge IEC 61000-4-5 ± 1kV line(s) to line(s)
± 2kV line(s) to earth
Not applicable
Not applicable
Mains power quality should
be that of a typical commer-
cial or hospital environment.
Voltage Dips, short
interruptions and
voltage variations on
power supply input
lines IEC 61000-4-11
<5% UT(>95% dip in
UT) for 0,5 cycle
40% UT(60% dip in
UT) for 5 cycles
70% UT(30% dip in
UT) for 25 cycles
<5% UT(>95% dip in
UT) for 5 s
Not applicable
Not applicable
Not applicable
Not applicable
Mains power quality should
be that of a typical commer-
cial or hospital environment.
If the user of the RA500
series requires continued
operation during power
mains interruptions, it is rec-
ommended that the RA500
series be powered from an
uninterruptible power supply
or a battery.
Power frequency
(50/60 Hz) magnetic
eld IEC 61000-4-8
3 A/m 3 A/m The RA500 power frequency
magnetic elds should be
at levels characteristic of a
typical location in a typical
commercial or hospital envi-
ronment.
NOTE: UT is the a.c. mains voltage prior to application of the test level.
Recommended separation distance between portable and mobile RF communications equip-
ment and the RA500
The RA500 is intended for use in an electromagnetic environment in which radiated
RF disturbances are controlled. The customer or the user of the RA500 can help
prevent electromagnetic interference by maintaining a minimum distance between
portable and mobile RF communications equipment (transmitters) and the RA500 as
recommended below, according to the maximum output power of the communica-
tions equipment.
Rated maximum
output power of
transmitter / W
Separation distance according to frequency of transmitter / m
150 kHz to 80 MHz /
d=1,2√P
80 MHz to 800 MHz
/ d=1,2√P
800 MHz to 2,5 GHz
/ d=2,3√P
0,01 N/A 0,12 0,23
0,1 N/A 0,38 0,73
1 N/A 1,2 2,3
10 N/A 3,8 7,3
100 N/A 12 23
For transmitters rated at a maximum output power not listed above, the recommend-
ed separation distance d in metres (m) can be estimated using the equation applicable
to the frequency of the transmitter, where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency
range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation
is affected by absorption and reection from structures, objects and people.
Guidance and manufacturer’s declaration-electromagnetic emissions
The RA500 is intended for use in the electromagnetic environment specied below.
The customer or the user of the RA500 should assure that it is used in such an environment.
Emission test Compliance Electromagnetic environment-guidance
RF emissions CISPR 11 Group 1 The RA500 uses RF energy only for its internal
function. Therefore, its RF emissions are very low
and are not likely to cause any interference in
nearby electronic equipment.
RF emissions CISPR 11 Class B The RA500 is suitable for use in all establish-
ments, including domestic establishments and
those directly connected to the public low-
voltage power supply network that supplies
buildings used for domestic purposes.
Harmonic emissions IEC
61000-3-2
Not applicable
Voltage uctuations/icker
emissions IEC 61000-3-3
Not applicable
Guidance and manufacturer’s declaration-electromagnetic immunity
The RA500 is intended for use in the electromagnetic environment specied below.
The customer or the user of the RA500 should assure that it is used in such an environment.
Immunity
test
IEC 60601
test level Compliance
level Electromagnetic environment-guidance
Conducted
RF
IEC 61000-
4-6
Radiated RF
IEC 61000-
4-3
3 Vrms
150 KHz to
80 MHz
3 V/m
80MHz to
2,5 GHz
Not applica-
ble
3 V/m
Portable and mobile RF communications
equipment should be used no closer to any
part of the RA500 series, including cables,
than the recommended separation distance
calculated from the equation applicable to the
frequency of the transmitter.
Recommended separation distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,5 GHz
Where P is the maximum output power rating
of the transmitter in watts (W) according to
the transmitter manufacturer and d is the rec-
ommended separation distance in metres (m).
Field strengths from xed RF transmitters, as
determined by an electromagnetic site survey,
a should be less than the compliance level in
each frequency range. b
Interference may occur in the vicinity of equip-
ment marked with the following symbol:
NOTE1: At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2: These guidelines may not apply in all situations. Electromagnetic propagation
is affected by absorption and reection from structures, objects and people.
a. Field strengths from xed transmitters, such as base stations for radio (cellular/cord-
less) telephones and land mobile radios, amateur radio, AM and FM radio broadcast
and TV broadcast cannot be predicted theoretically with accuracy. To assess the elec-
tromagnetic environment due to xed RF transmitters, an electromagnetic site sur-
vey should be considered. If the measured eld strength in the location in which the
RA500 series is used exceeds the applicable RF compliance level above, the RA500
series should be observed to verify normal operation. If abnormal performance is
observed, additional measures may be necessary, such as reorienting or relocating
the RA500 series.
b. Over the frequency range 150 kHz to 80 MHz, eld strengths should be less than 3 V/m.
Rossmax International Ltd.
12F., No.189,Kang Chien Rd.,Taipei 114, Taiwan
Rossmax Swiss GmbH
Tramstrasse 16, CH-9442 Berneck, Switzerland
www.qutie-rossmax.com

Other Rossmax Thermometer manuals

Rossmax TG380 User manual

Rossmax

Rossmax TG380 User manual

Rossmax HA500 User manual

Rossmax

Rossmax HA500 User manual

Rossmax HC700 User manual

Rossmax

Rossmax HC700 User manual

Rossmax HD500 User manual

Rossmax

Rossmax HD500 User manual

Rossmax HA500 User manual

Rossmax

Rossmax HA500 User manual

Rossmax TG380 User manual

Rossmax

Rossmax TG380 User manual

Rossmax TG100 User manual

Rossmax

Rossmax TG100 User manual

Rossmax TG100 User manual

Rossmax

Rossmax TG100 User manual

Rossmax RA500 User manual

Rossmax

Rossmax RA500 User manual

Rossmax RA600 User manual

Rossmax

Rossmax RA600 User manual

Rossmax RA600 User manual

Rossmax

Rossmax RA600 User manual

Rossmax HC700 User manual

Rossmax

Rossmax HC700 User manual

Rossmax TG100 User manual

Rossmax

Rossmax TG100 User manual

Rossmax TG380 User manual

Rossmax

Rossmax TG380 User manual

Rossmax RA600 User manual

Rossmax

Rossmax RA600 User manual

Rossmax TG120 User manual

Rossmax

Rossmax TG120 User manual

Popular Thermometer manuals by other brands

TechLine TS-101 user manual

TechLine

TechLine TS-101 user manual

AND UT-801 instruction manual

AND

AND UT-801 instruction manual

Velleman VMA324 user manual

Velleman

Velleman VMA324 user manual

Amprobe TM45A user manual

Amprobe

Amprobe TM45A user manual

TESTO 925 instruction manual

TESTO

TESTO 925 instruction manual

optris CT Operator's manual

optris

optris CT Operator's manual

General IRT656 user manual

General

General IRT656 user manual

3B Laser Pen 200 mW operating instructions

3B

3B Laser Pen 200 mW operating instructions

Salter TE-250 Instructions and guarantee

Salter

Salter TE-250 Instructions and guarantee

Hetaida HTD8813C user manual

Hetaida

Hetaida HTD8813C user manual

Traceable PLATINUM instructions

Traceable

Traceable PLATINUM instructions

ThermoProbe TL3-A user manual

ThermoProbe

ThermoProbe TL3-A user manual

Summer 03014 instruction manual

Summer

Summer 03014 instruction manual

Microlife IR 1DE1 instruction manual

Microlife

Microlife IR 1DE1 instruction manual

Ryobi IR002ID Operator's manual

Ryobi

Ryobi IR002ID Operator's manual

Traceable 4189 instructions

Traceable

Traceable 4189 instructions

GREISINGER GMH 2710-T operating manual

GREISINGER

GREISINGER GMH 2710-T operating manual

Microlife MT 1931 instruction manual

Microlife

Microlife MT 1931 instruction manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
