Rotary R544PLUS Specification sheet

For spare parts drawings refer to “LIST OF COMPONENTS” section.
• For any further information please contact your local dealer.
INSTRUCTION MANUAL
GB TRANSLATION FROM THE
ORIGINAL INSTRUCTIONS
- Rev. n. 7 (02/2019)
VSB280PRTLC
RWB280PRTLC
1294-M017-7
1294-M017-7

GB
Page 2 of 62
INSTRUCTION, USE AND
MAINTENANCE MANUAL
SUMMARY
SYMBOLS USED IN THE MANUAL ________ 5
1.0 GENERAL INTRODUCTION __________ 8
1.1 Introduction ____________________________ 8
2.0 INTENDED USE _____________________ 8
2.1 Training of personnel __________________ 8
3.0 SAFETY DEVICES ___________________ 9
3.1 Residual risks __________________________ 9
4.0 GENERAL SAFETY RULES _________ 10
5.0 PACKING AND MOBILIZATION FOR
TRANSPORT _______________________ 11
6.0 UNPACKING ________________________ 11
7.0 MOBILIZATION_____________________ 12
8.0 WORKING ENVIRONMENT CONDI-
TIONS ______________________________ 12
8.1 Working area __________________________12
8.2 Lighting _______________________________12
9.0 MACHINE ASSEMBLY ______________ 13
9.1 Anchoring system _____________________13
9.2 Fixtures contained in the packing_____13
9.3 Assembly procedures _________________14
9.3.1 Fitting and removal of the pneu-
matic mandrel on the flange _______14
9.3.2 Monitor fitting _____________________15
9.3.3 Fitting the protection guard _______16
9.3.4 Fitting of external data gauge
(optional) __________________________17
9.3.5 Fitting the electronic Run-out
measuring device (optional) _______18
10.0 ELECTRICAL CONNECTIONS_______ 19
10.1 Electrical checks ______________________19
11.0 AIR CONNECTION _________________ 20
12.0 FITTING THE WHEEL ON THE MAN-
DREL ______________________________ 20
12.1 Wheel assembly _______________________20
12.2 Demounting of the wheel ______________22
13.0 CONTROL PANEL __________________ 23
14.0 WHEEL BALANCING _______________ 23
14.1 Switching the machine on and off_____23
14.1.1 Setting of balancing modes ________25
14.2 Balancing programs setting___________26
14.2.1 Programs rapid setting and
measurements through distance-
diameter caliper arm ______________26
14.2.2 Run-out measuring procedure of
(lateral inner side) with the dis-
tance-diameter caliper arm ________27
14.2.3 Correct positioning of the device
during Run-out detection
(Optional) __________________________28
14.2.4 Programs setting through “Meas-
urements acquisition” screen
page _______________________________28
14.3 Indicative display of points where to
detect measures/to fit weight__________29
14.3.1 Weights positioning ________________30
14.4 Displaying the active/modifiable field _30
14.5 Wheel balancing screen page descrip-
tion____________________________________31
14.5.1 Balancing mode____________________33
14.6 Use of machines with disabled auto-
matic gauge ___________________________34
14.6.1 Manual setting of wheel
dimensions ________________________34
14.7 Standard balancing programs ________35
14.7.1 Static ______________________________35
14.7.2 Static-1 ____________________________35
14.7.3 Static-2 ____________________________35
14.7.4 Dynamic ___________________________36
14.7.5 ALU-S ______________________________36
14.7.6 ALU-S1_____________________________36
14.7.7 ALU-S2_____________________________36
14.7.8 ALU-1 ______________________________37
14.7.9 ALU-2 ______________________________37
14.7.10 ALU-3 _____________________________37
14.7.11 ALU-4 _____________________________37
14.8 Optional balancing programs _________38
14.8.1 SPLIT mode________________________38
14.8.2 Weights hidden behind spokes
mode _______________________________40
14.8.3 matching mode ____________________41
14.9 Special balancing programs __________43
14.9.1 Pax_________________________________43
14.10 Recalculation function _______________44
14.11 Motorbike mode wheel balancing _____44
15.0 USER MENU (OPTIONS AND CALI-
BRATION) __________________________ 45
15.1 Options menu _________________________46
15.1.1 Lower weight limit ________________47
15.1.2 Setting adhesive weight dimen-
sions _______________________________48
15.1.3 User management__________________49
1294-M017-6

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 3 of 62
15.2 Enabling of electronic Run-out meas-
uring device (Optional) ________________50
15.3 Machine calibrations __________________51
15.3.1 Mandrel “zero” calibration_________51
15.3.2 Weight measurement sensors
calibration for car _________________51
15.3.3 Weight measurement sensors
calibration for truck _______________53
15.3.4 Gauge calibration__________________54
16.0 ERROR SIGNALS ___________________ 57
17.0 ROUTINE MAINTENANCE __________ 58
18.0 TECHNICAL DATA__________________ 58
18.1 Dimensions____________________________59
19.0 STORING___________________________ 60
20.0 SCRAPPING ________________________ 60
21.0 REGISTRATION PLATE DATA ______ 60
22.0 FUNCTIONAL DIAGRAMS __________ 60
Table A - Wiring connection diagram _______61
Table B - Pneumatic connection diagram ___62
1294-M017-6

GB
Page 4 of 62
INSTRUCTION, USE AND
MAINTENANCE MANUAL
KEY
1 – Weight holding bridge
2 – Wheel lifting device
3 – Distance-diameter caliper
4 – Pneumatic mandrel opening/closing pedalboard
5 – Protection guard
6 – Wheel lifting device control
7 – Main switch
8 – Monitor
9 – Flange holding stake
10 – Grippers for weight fitting
11 – Gauge for measuring truck rim width
12 – Truck calibration tool
13 – Grippers for weights
14 – Pneumatic mandrel
15 – Pressure ring
16 – Locking sleeve
17 – Adapter flange
18 – Cone Ø 202÷221 + cone Ø 281 for trucks
19 – Wheels width external data gauge (Optional)
20 – Electronic RUN-OUT measuring device (Optional)
21 – Fixed laser + led light (Optional)
1294-M017-6
Fig. 1

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 5 of 62
SYMBOLS USED IN THE MANUAL
Symbols Description
Read instruction manual.
Wear work gloves.
Wear work shoes.
Mandatory. Operations or jobs to
be performed compulsorily.
Danger! Be particularly careful.
Symbols Description
Move with fork lift truck or pallet
truck.
Lift from above.
Wear safety goggles.
Warning. Be particularly careful
(possible material damages).
Note. Indication and/or useful
information.
Attention: never lift the machine
by means of the mandrel.
Danger!
Laser presence.
1294-M017-6

GB
Page 6 of 62
INSTRUCTION, USE AND
MAINTENANCE MANUAL
INFORMATION PLATE LOCATION TABLE
1294-M017-6

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 7 of 62
Code numbers of plates
VS99990114 Arrow plate
VS99990758 Electricity danger plate
VS999910050 Protection device use plate
VS999912460 Supply pressure indicating plate
VS999912940 Lifting plate
VS999915570 Crushing danger plate
VS999916311 Rubbish skip label
VS999916980 Capacity load 200 Kg plate
VS999922780 Laser aperture plate (in case the laser device is present)
VS999923160 Prop 65 Attention plate
VS999923190 Laser aperture plate (in case the laser device is present)
VS999923200 Laser certification plate (in case the laser device is present)
▪Plate of voltage values and frequencies of operation
●Serial number plate
IF ONE OR MORE PLATES DISAPPEAR FROM THE MACHINE OR BECOMES DIFFICULT
TO READ. REPLACE IT AND QUOTE ITS/THEIR CODE NUMBER/S WHEN REORDERING.
1294-M017-6

GB
Page 8 of 62
INSTRUCTION, USE AND
MAINTENANCE MANUAL
SOME OF THE PICTURES AND/
OR DISPLAY SCREEN PAGES
PRESENT IN THIS MANUAL HAVE
BEEN OBTAINED FROM PICTURES
OF PROTOTYPES, THEREFORE
THE STANDARD PRODUCTION MA-
CHINES AND ACCESSORIES CAN
BE DIFFERENT IN SOME COMPO-
NENTS/DISPLAY SCREEN PAGES.
1.0 GENERAL INTRODUCTION
This manual is an integral part of the product and
must be retained for the whole operating life of the
machine.
Carefully study the warnings and instructions con-
tained in this manual. It contains important instruc-
tions regarding FUNCTIONING, SAFE USE and
MAINTENANCE.
KEEP THE MANUAL IN A KNOWN,
EASILY ACCESSIBLE PLACE FOR
ALL ACCESSORY OPERATORS
TO CONSULT IT WHENEVER IN
DOUBT.
THE MANUFACTURER DISCLAIMS
ALL RESPONSIBILITY FOR ANY
DAMAGE OCCURRED WHEN THE
INDICATIONS GIVEN IN THIS
MANUAL ARE NOT RESPECTED:
AS A MATTER OF FACT, THE NON-
COMPLIANCE WITH SUCH INDI-
CATIONS MIGHT LEAD TO EVEN
SERIOUS DANGERS.
1.1 Introduction
Thank you for preferring this wheel balancer. We feel
sure you will not regret your decision.
This machine has been designed for use in profes-
sional workshops and stands out for its reliability
and easy, safe and rapid operation. With just a small
degree of maintenance and care, this wheel balancer
will give you many years of trouble-free service and
lots of satisfaction.
2.0 INTENDED USE
The machines described in this manual and their
different versions, are wheels balancing machines
for car, light transport and truck wheels, projected
to be used exclusively to cancel out, or at least
reduce to acceptable limits wheels’ vibrations, by
fitting counterweights of suitable size and in specific
positions to the same wheels that are not correctly
balanced.
DANGER: EMPLOYING THESE
MACHINES OUTSIDE THE USE
DESTINATION THEY HAVE BEEN
DESIGNED FOR (AS INDICATED
IN THIS MANUAL) IS INAPPROPRI-
ATE AND DANGEROUS.
THE MANUFACTURER CANNOT
BE HELD RESPONSIBLE FOR ANY
DAMAGE CAUSED BY IMPROPER,
ERRONEOUS, OR UNACCEPTABLE
USE.
AN INTENSIVE USE OF THE EQUIP-
MENT IN INDUSTRIAL ENVIRON-
MENT IS NOT RECOMMENDED.
2.1 Training of personnel
The machine may be operated only by suitably
trained and authorized personnel.
Given the complexity of the operations necessary to
manage the machine and to carry out the operations
safely and efficiently, the personnel must be trained
in such a way that they learn all the information
necessary to operate the machine as intended by the
manufacturer.
A CAREFUL READING OF THIS
INSTRUCTION MANUAL FOR
USE AND MAINTENANCE AND A
SHORT PERIOD OF TRAINING
WITH SKILLED PERSONNEL CAN
BE AN ENOUGH PREVENTIVE
PREPARATION.
1294-M017-6

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 9 of 62
3.0 SAFETY DEVICES
PERIODICALLY, AT LEAST MONTH-
LY, CHECK THE INTEGRITY AND
THE FUNCTIONALITY OF THE
SAFETY AND PROTECTION DE-
VICES ON THE MACHINE.
• Master switch positioned on the rear of the ma-
chine
Its function is to disconnect machine electric supply.
• Protection guard
Its function is to protect the operator from possible
projections of materials on the wheel during its spin.
Wheel spinning is normally prevented if the wheel
protection guard is raised (open). When the
protection guard is open, this interrupts the cir-
cuit that triggers the motor and automatic start
is prevented, including in the case of an error.
Press stop key to stop wheel rotation in
emergency conditions.
• Laser safety (in case the laser device is present)
This is a Class I/1 (with Class II/2 embedded)
laser product which, during normal operation,
does not permit human access to laser radiation
in excess of Class I/1. This product complies with
21CFR1040.10/.11 and IEC EN60825. The system
is fully interlocked to prevent accidental access to
laser radiation. Any attempt to defeat the safety inter-
lock elements of this product is a violation of Safety
Standards which this product complies with, and the
protection provided by the product may be impaired.
USE OF CONTROLS OR ADJUST-
MENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIA-
TION EXPOSURE.
APERTURE
Side of product nearest port (see
“Plates location table”).
CLASSIFICATION
Rear of product (see “Plates location
table”).
CERTIFICATION
Rear of product (see “Plates location
table”).
3.1 Residual risks
The machine was subjected to a complete analysis of
risks according to reference standard EN ISO 12100.
Risks are as reduced as possible in relation with tech-
nology and product functionality.
Possible residual risks have been emphasized through
pictorial representations and warnings which placing is
indicated in “ PLATE POSITIONING TABLE” at page 6.
In case the laser device is present
THIS DEVICE IS EQUIPPED WITH
A LASER, A TOOL THAT USES
LASER BEAMS, PROPERLY INTER-
FACED WITH THE SOFTWARE THE
DEVICE IS EQUIPPED WITH. IT
ENSURES PRECISION MEASURE-
MENTS AND INDICATIONS OF THE
SHAPE AND SIZE OF THE WHEEL
RIM.
THIS DEVICE IS EQUIPPED WITH
A CLASS 1 LASER PRODUCT.
WARNING AND INFORMATION
PLATES HAVE BEEN APPLIED
OUTSIDE THE DEVICE (AS ILLUS-
TRATED BELOW), IN ORDER TO
INDICATE THE PRESENCE AND
EMPLOYMENT OF LASER MEAS-
URING INSTRUMENTS.
DO NOT STARE THE LASER BEAM
DIRECTLY AT CLOSE RANGE
WHILE THE EQUIPMENT IS OP-
ERATING.
1294-M017-6

GB
Page 10 of 62
INSTRUCTION, USE AND
MAINTENANCE MANUAL
OPERATORS MUST WEAR SUIT-
ABLE WORK CLOTHES, PROTEC-
TIVE GLASSES AND GLOVES,
AGAINST THE DANGER FROM
THE SPRAYING OF DANGEROUS
DUST, AND POSSIBLY LOWER
BACK SUPPORTS FOR THE LIFT-
ING OF HEAVY PARTS. DANGLING
OBJECTS LIKE BRACELETS MUST
NOT BE WORN, AND LONG HAIR
MUST BE TIED UP. FOOTWEAR
SHOULD BE ADEQUATE FOR THE
TYPE OF OPERATIONS TO BE CAR-
RIED OUT.
• The machine handles and operating grips must be
kept clean and free from oil.
• The workshop must be kept clean and dry. Make sure
that the working premises are properly lit.
The machine can be operated by a single operator.
Unauthorized personnel must remain outside the
working area, as shown in Fig. 3.
Avoid any hazardous situations. Do not use air-
operated or electrical equipment when the shop is
damp or the floor slippery and do not expose such
tools to atmospheric agents.
• When operating and servicing this machine, carefully
follow all applicable safety and accident-prevention
precautions.
The machine must not be operated by untrained
personnel.
DURING MANDREL OPENING/
CLOSING OPERATIONS, BE CARE-
FUL NOT TO LET YOUR HANDS
AND OTHER BODY PARTS NEAR
THE MOVING MANDREL.
4.0 GENERAL SAFETY RULES
• Any tampering with or modification to the machine
not previously authorized by the manufacturer ex-
empts the latter from all responsibility for damage
caused by or derived from said actions.
• Removing of or tampering with the safety devices or
with the warning signals placed on the machine leads
to serious dangers and represents a transgression of
European safety rules.
• Use of the machine is only permitted in places free
from explosion or fire hazard and in dry places
under cover.
• Original spare parts and accessories should be used.
THE MANUFACTURER DENIES
ANY RESPONSIBILITY IN CASE
OF DAMAGES CAUSED BY UNAU-
THORIZED MODIFICATIONS OR
BY THE USE OF NON ORIGINAL
COMPONENTS OR EQUIPMENT.
• Installation must be conducted only by qualified
personnel exactly according to the instructions that
are given below.
• Ensure that there are no dangerous situations dur-
ing the machine operating manoeuvres. Immediately
stop the machine if it miss-functions and contact the
assistance service of an authorized dealer.
• In emergency situations and before carrying out any
maintenance or repairs, disconnect all supplies to
the machine by using the main switch, placed on the
machine itself, and unplugging the power supply.
• The machine electrical supply system must be
equipped with an appropriate earthing, to which
the yellow-green machine protection wire must be
connected.
• Ensure that the work area around the machine is free
of potentially dangerous objects and that there is no
oil since this could damage the tyre. Oil on the floor
is also a potential danger for the operator.
• UNDER NO CIRCUMSTANCES must the machine be
used to spin anything but vehicle wheels. Bad locking
can cause rotating parts to come loose, with potential
damage to the machine and anything in the vicinity
and injury to the operator.
1294-M017-6

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 11 of 62
5.0 PACKING AND MOBILIZATION FOR
TRANSPORT
HAVE THE MACHINE HANDLED BY SKILLED
PERSONNEL ONLY.
THE LIFTING EQUIPMENT MUST WITHSTAND
A MINIMUM RATED LOAD EQUAL TO THE
WEIGHT OF THE PACKED MACHINE (SEE
PARAGRAPH “TECHNICAL SPECIFICATIONS”).
The machine is packed partially assembled.
Movement must be by pallet-lift or fork-lift trolley.
The fork lifting points are indicated on the packing.
Fig. 2
6.0 UNPACKING
DURING UNPACKING, ALWAYS
WEAR GLOVES TO PREVENT ANY
INJURY CAUSED BY CONTACT
WITH PACKAGING MATERIAL
(NAILS, ETC.).
The cardboard box is supported with plastic strapping.
Cut the strapping with suitable scissors. Use a small
knife to cut along the lateral axis of the box and open
it like a fan.
It is also possible to unnail the cardboard box from
the pallet it is fixed to. After removing the packing, and
in the case of the machine packed fully assembled,
check that the machine is complete and that there is
no visible damage.
If in doubt do not use the machine and refer to pro-
fessionally qualified personnel (to the seller).
The packing (plastic bags, expanded polystyrene, nails,
screws, timber, etc.) should not be left within reach of
children since it is potentially dangerous. These ma-
terials should be deposited in the relevant collection
points if they are pollutants or non biodegradable.
THE BOX CONTAINING THE FIX-
TURES IS CONTAINED IN THE
WRAPPING. DO NOT THROW IT
AWAY WITH THE PACKING.
1294-M017-6

GB
Page 12 of 62
INSTRUCTION, USE AND
MAINTENANCE MANUAL
7.0 MOBILIZATION
THE LIFTING EQUIPMENT MUST WITHSTAND
A MINIMUM RATED LOAD EQUAL TO THE
WEIGHT OF THE MACHINE (SEE PARAGRAPH
TECHNICAL SPECIFICATIONS). DO NOT AL-
LOW THE LIFTED MACHINE TO SWING.
NEVER LIFT THE MACHINE BY MEANS OF THE
MANDREL.
If the machine has to be moved from its normal work
post, the movement must be conducted following the
instructions listed below.
• Protect the exposed corners with suitable material
(Pluribol/cardboard).
• Do not use metallic cables for lifting.
• Make sure the electrical and pneumatic supply of the
machine is not connected.
• Place again the machine onto the original pallet with
whom it was delivered.
• Use transpallet or fork-lift for handling.
8.0 WORKING ENVIRONMENT CONDI-
TIONS
The machine must be operated under proper condi-
tions as follows:
• temperature: 0° + 45° C
• relative humidity: 30 - 90% (dew-free)
• atmospheric pressure: 860 - 1060 hPa (mbar).
The use of the machine in ambient conditions other
than those specified above is only allowed after prior
agreement with and approval of the manufacturer.

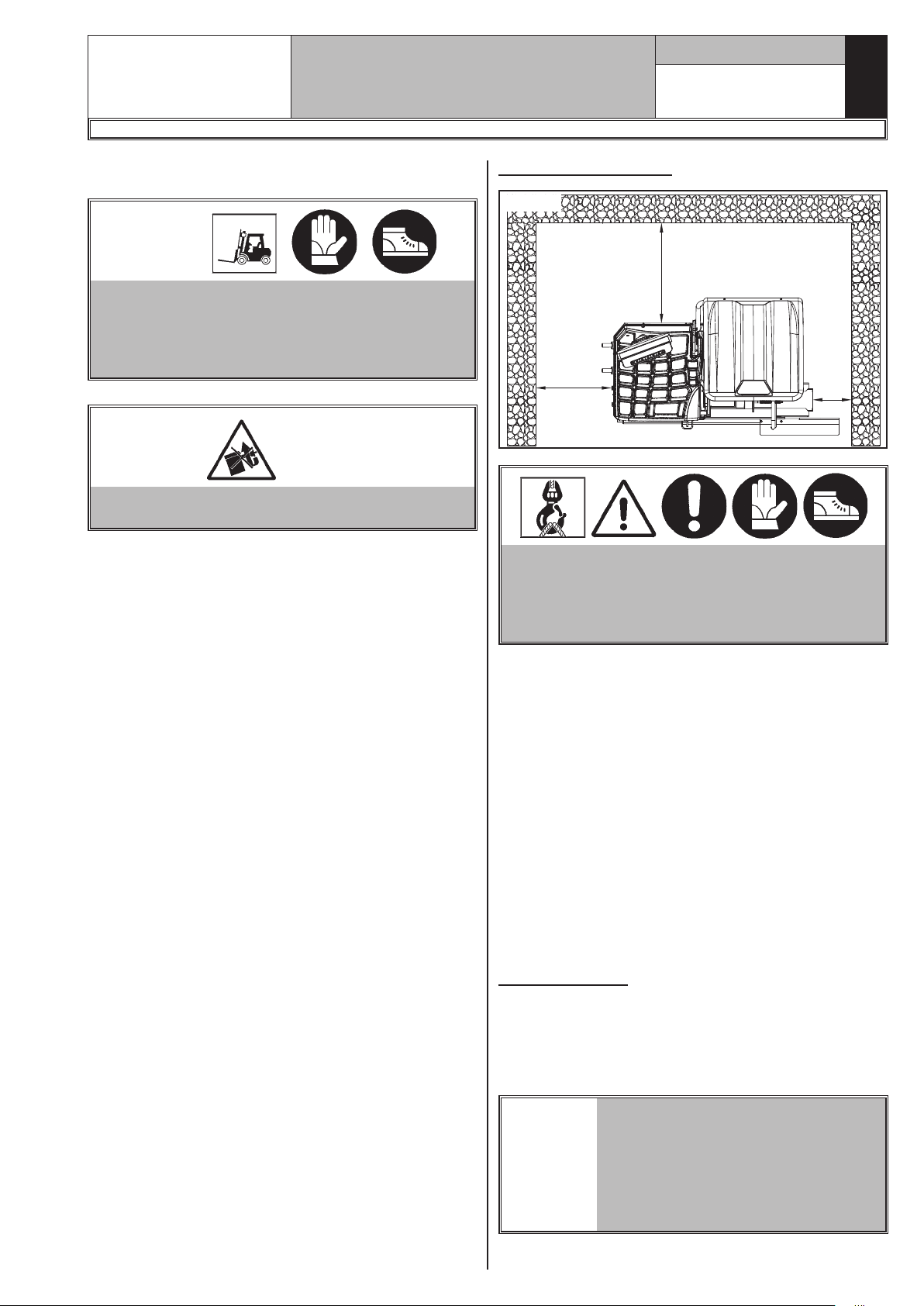

8.1 Working area
300
800
600
Fig. 3
USE THE MACHINE IN A DRY AND AD-
EQUATELY LIT PLACE, POSSIBLY INDOORS
OR ANYWAY IN A ROOFED AREA, THIS PLACE
MUST BE IN COMPLIANCE WITH APPLICABLE
SAFETY REGULATIONS.
The location of the machine requires a usable space
as indicated in Fig. 3. The positioning of the machine
must be according to the distances shown. From the
control position the operator is able to observe all the
machine and surrounding area. He must prevent unau-
thorized personnel or objects that could be dangerous
from entering the area.
The machine must be fixed on a flat floor surface,
preferably of cement or tiled. Avoid yielding or irregu-
lar surfaces.
The base floor must be able to support the loads trans-
mitted during operation.
This surface must have a capacity load of at least 500
kg/m².
The depth of the solid floor must be sufficient to guar-
antee that the anchoring bolts hold.
8.2 Lighting
The machine does not require its own lighting for
normal working operations. However, it must be used
in an adequately lit environment.
In case of poor lighting use lamps having total power
of 800/1200 Watt.
IF IT IS INSTALLED, EACH TIME
THE ROD OF THE GAUGE IS EX-
TRACTED FROM ITS HOUSING,
THE LED LIGHT (FIG. 1 REF. 21)
TURNS ON MAKING THE INSIDE
OF THE WHEEL WHERE THE OP-
ERATOR MUST WORK BRIGHTER.
1294-M017-6

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 13 of 62
9.0 MACHINE ASSEMBLY
After having freed the various components from the
packing check that they are complete, and that there
are no anomalies, then comply with the following in-
structions for the assembly of the components making
use of the attached series of illustrations.
9.1 Anchoring system
The packed machine is fixed to the support pallet
through the holes prearranged on the frame. Such
holes can be used also to fix the machine to the ground,
through floor anchor small blocks (excluded from sup-
ply). Before carrying out the definitive fixing, check that
all the anchor points are laid down flat and correctly
in contact with the fixing surface itself. If not so, insert
shimming profiles between the machine and the fixing
lower surface, as indicated in Fig. 4.
IN CASE OF WHEEL WEIGHING
MORE THAN 30 KG, IT IS COM-
PULSORY TO FIX TO THE GROUND
BY MEANS OF SCREW ANCHORS.
Fig. 4
a = 485
b = 240
c = 1296
• Fix the foot guard protection (Fig. 4 ref. 2) in using
the 2 issued screws (Fig. 4 ref. 3).
• Execute 4 holes with 10 mm diameter on the floor
by the holes on the bottom floor;
• insert the small blocks (excluded from supply) into
the holes;
• fix the machine to the ground with 4 M8x80 mm
screws (excluded from supply) (Fig. 4 ref. 1) (or
with 4 8x80 mm stud bolts (excluded from supply)).
Tighten the screws with an approximate tightening
torque of 70 Nm.

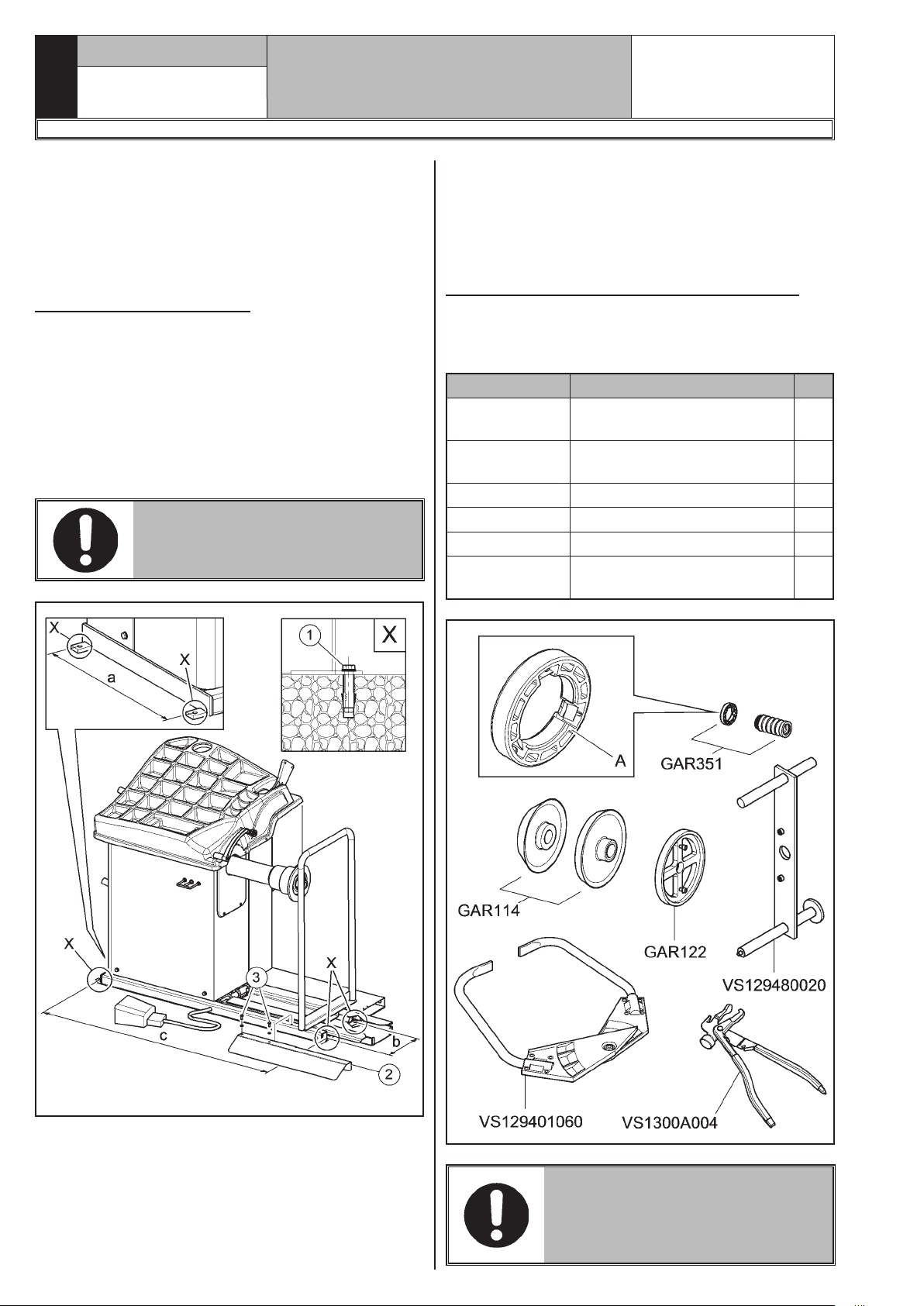

9.2 Fixtures contained in the packing
The packing case contains also the fixtures box.
Check that all the parts listed below are there (see
Fig. 5).
Code Description N.
GAR351 Locking sleeve + pressure
ring
1
GAR114 2 cones D. 202-221;281
trucks
1
VS129401060 Trucks width gauge 1
VS1300A004 Weight pliers 1
VS129480020 Trucks calibrator 1
GAR122 Flange for trucks wheels
bearing
1
Fig. 5
THE PRESSURE RING (FIG. 5
REF. A) MUST BE MOUNTED WITH
THE TEETH OR DISCHARGE SIDE
TOWARDS THE SLEEVE (SEE
FIG. 5).
1294-M017-6

GB
Page 14 of 62
INSTRUCTION, USE AND
MAINTENANCE MANUAL
9.3 Assembly procedures
9.3.1 Fitting and removal of the pneumatic
mandrel on the flange
FITTING
1. After making power and air connections switch on
the machine (the pneumatic mandrel always opens
when the machine is switched on).
2. Switch the machine off by using the master switch
(Fig. 22 ref. 1). Couple tyre’s inner rod (Fig._6 ref.
1) with flange’s inner rod (Fig._6 ref. 2) (see Fig. 6).
Fig. 6
3. Tighten tyre’s inner rod (Fig._7 ref. 1) with flange’s
inner rod (Fig._7 ref. 2) by using the wrench pro-
vided (Fig._7 ref. 3) and a 12 mm wrench (Fig._7
ref. 4).
Fig. 7
4. Screw pneumatic shaft’s screw (Fig._8 ref. 1) onto
flange (Fig._8 ref. 2) as far as it will go.
Fig. 8
5. Tighten with the wrench provided (Fig._8 ref. 3).
REMOVAL
1. Open the pneumatic mandrel by means of the pedal
provided and make sure the outer ball (Fig._9 ref.
1) is in the position indicated in Fig._9.
Fig. 9
1294-M017-6

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 15 of 62

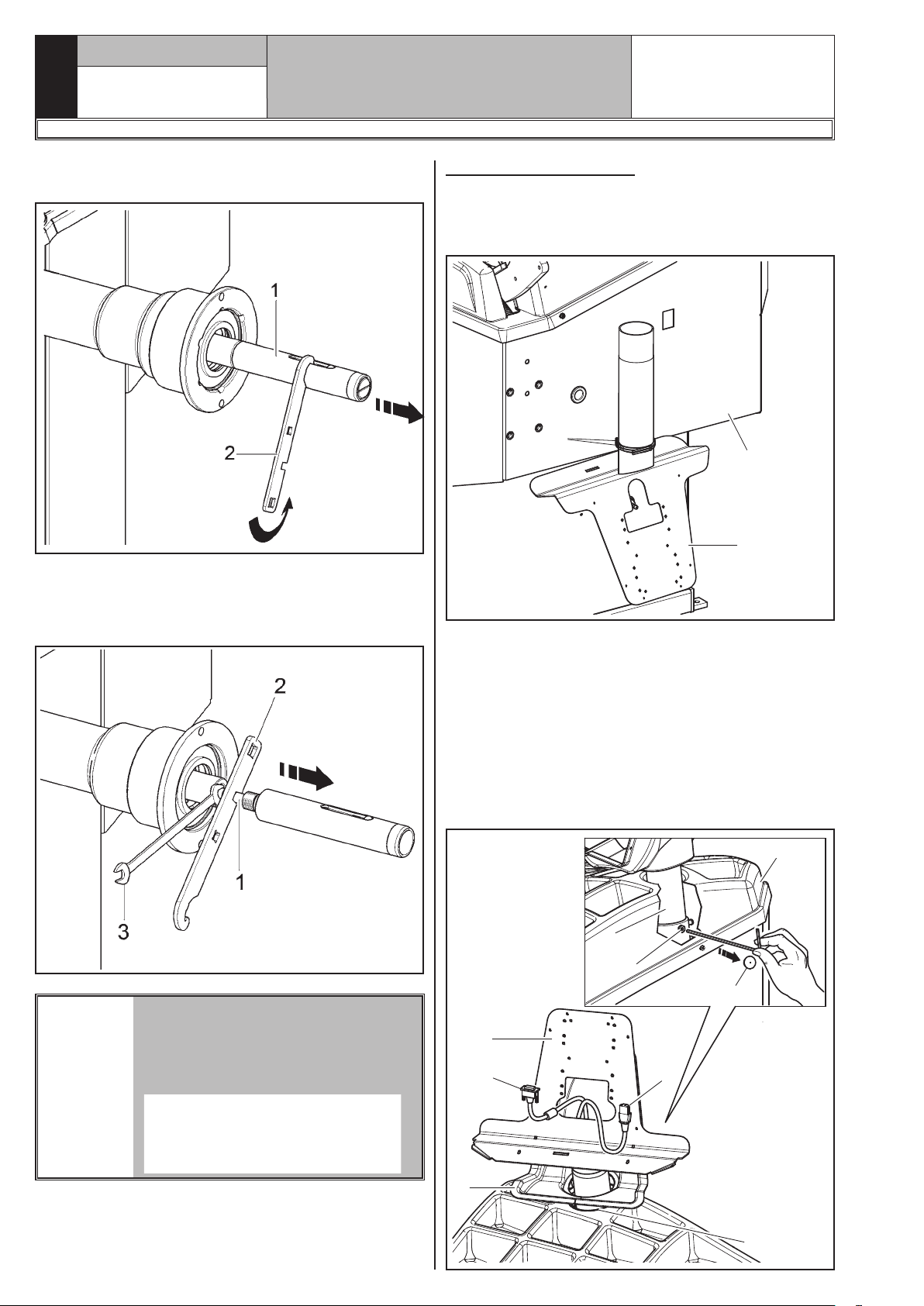

2. Release the pneumatic shaft (Fig._10 ref. 1) using
the wrench provided (Fig._10 ref. 2).
Fig. 10
3. Unscrew pneumatic shaft’s screw (Fig._11 ref. 1)
and release the two inner rods with the special
wrench provided (Fig._11 ref. 2) and a 12 mm
wrench (Fig._11 ref. 3).
Fig. 11
IF A DYNAMOMETRIC SPANNER IS
BEING USED, USE THE WRENCH
PROVIDED WITH THE PREAR-
RANGED HOLES (REF. 1) AND
TIGHTEN AT 30 NM.
9.3.2 Monitor fitting
1. Cut the two clamps(Fig. 12 ref. 1) and release the
support (Fig. 12 ref. 2) from the frame (Fig. 12
ref. 3).
1
2
3
Fig. 12
2. Introduce the monitor support tube (Fig. 13 ref. 1)
into the prearranged hole on the bridge (Fig. 13
ref. 2), interposing the guard (Fig. 13 ref. 3) and
making the cables (Fig. 13 ref. 4) pass through
its interior.
3. Remove the provided cap (Fig. 13 ref. 5) from
the bridge (Fig. 13 ref. 2) and block the monitor
support tube (Fig. 13 ref. 1) tightening the prear-
ranged grub screw (Fig. 13 ref. 6) on the rear side.
Remount the cap (Fig. 13 ref. 5).
5
2
16
1
2
3
44
Fig. 13
1294-M017-6

GB
Page 16 of 62
INSTRUCTION, USE AND
MAINTENANCE MANUAL

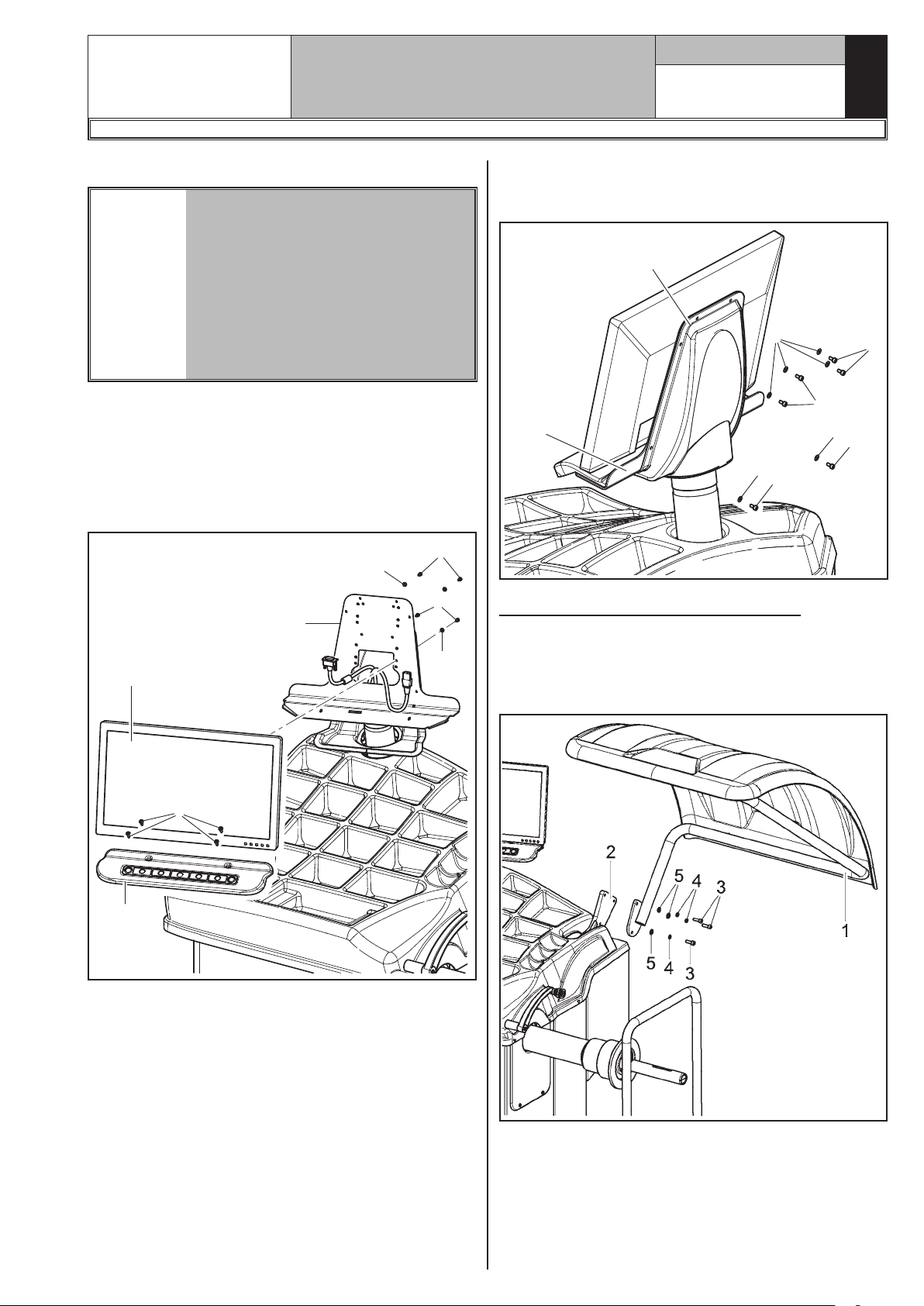

4. Connect the wiring of the keyboard.
WIRE 1 (RED OR BLUE COL-
OURED) MUST CORRESPOND TO
CONTACT 1 OF THE KEYBOARD'S
CONNECTOR (MARKED WITH A
SMALL ARROW).
KEYBOARD'S OPERATION CAN
BE TESTED. IN CASE OF POLAR-
ITY REVERSAL, THE KEYBOARD
DOESN'T WORK CORRECTLY, BUT
THERE ARE NO DAMAGES.
5. Connect the plugs on the power supply sockets and
monitor signal. Make the cables pass through the
support hole.
6. Mount the monitor (Fig. 14 ref. 1) and the key-
board (Fig. 14 ref. 2) to the support (Fig. 14
ref. 3) by means of the supplied screws (Fig. 14
ref. 4 and 5) and the washers (Fig. 14 ref. 6).
4
4
6
6
3
5
2
1
Fig. 14
7. Fix the guard (Fig. 15 ref. 1) to the support
(Fig. 15 ref. 2) with the screws (Fig. 15 ref. 3)
and the washers (Fig. 15 ref. 4) supplied.
1
2
3
3
3
3
4
4
4
Fig. 15
9.3.3 Fitting the protection guard
1. Mount the protection guard (Fig. 16 ref. 1) to the
support (Fig. 16 ref. 2) with the screws (Fig. 16
ref. 3) and interposing the supplied washers
(Fig. 16 ref. 4-5).
Fig. 16
1294-M017-6

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 17 of 62
9.3.4 Fitting of external data gauge (option-
al)
1. Introduce the 4 screws (Fig. 17 ref. 1) in the gauge
bracket (Fig. 17 ref. 2) and screw them on the
threaded rivets placed on the rear side of the frame.
Lock the gauge arm (Fig. 17 ref. 3) to the bracket
(Fig. 17 ref. 2) using the 2 screws (Fig. 17 ref. 4)
and the washers (Fig. 17 ref. 5). Lock the screws
(Fig. 17 ref. 4) with the washers (Fig. 17 ref. 5)
and the nuts (Fig. 17 ref. 6) so that the shaft and
the gauge arm are levelled out (see Fig. 18).
3
54
5
2
6
1
1
Fig. 17
2. Also make sure the gauge tip (Fig. 18 ref. 1) is
positioned at the centre of the mandrel.
Fig. 18
3. Connect connector (Fig. 19 ref. 1) of the cable com-
ing from inside the machine to connector (Fig. 19
ref. 2) of the cable coming from the gauge arm. Fit
the section of the cable with the connectors inside
the arm (Fig. 19 ref. 3).
4. Fasten the cable with clamps.
5. Enable the external data gauge and carry out the
device's calibration.
1
2
3
Fig. 19
1294-M017-6

GB
Page 18 of 62
INSTRUCTION, USE AND
MAINTENANCE MANUAL
9.3.5 Fitting the electronic Run-out measur-
ing device (optional)

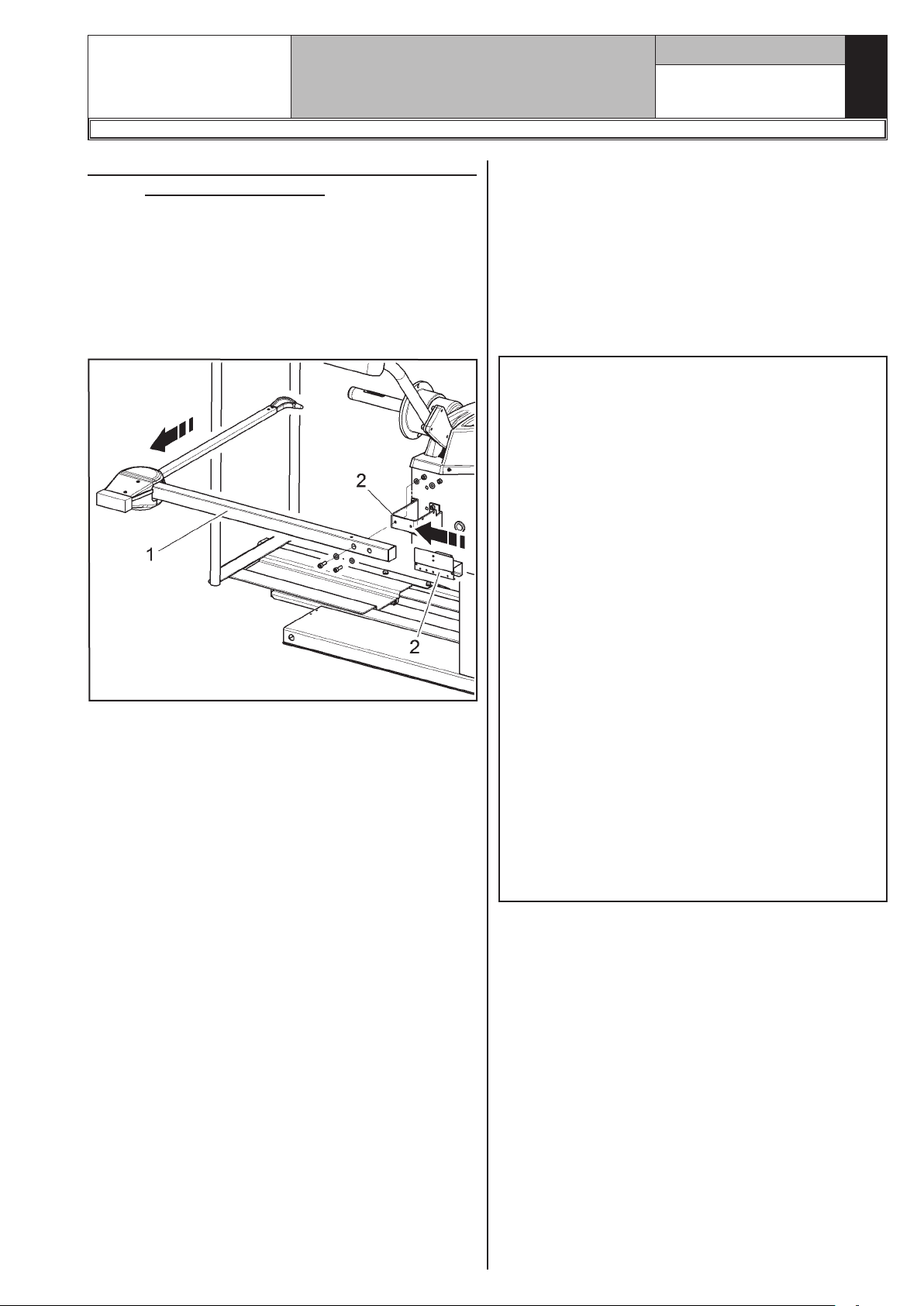

1. Remove the external data gauge (Fig. 20 ref. 1)
from the bracket (Fig. 20 ref. 2) unscrewing the
corresponding screws and nuts.
2. Fit the electronic measuring device (Fig. 20 ref. 3)
to the external data gauge, as shown in Fig. 20.
3. Fit the external data gauge to the bracket again using
the previously unscrewed screws and nuts.
Fig. 20
4. Remove the wheel cover unit, the wheel balancer
monitor and board.
5. Mount the card (Fig. 21 ref. 2)(# 18363), as shown
in Fig. 21.
6. Connect connector of GAR214TK cable (Fig. 21
ref. 1) to the electronic card (Fig. 21 ref. 2)(#
18363), as shown in Fig. 21 (blue ref. 4 cable,
brown ref. 5 cable and black ref. 6 cable). Con-
nect GAR214TK card (Fig. 21 ref. 2)(# 18363) to
the wheel balancer main card, using the supplied
cable JP19 (Fig. 21 ref. 3). Carry out the connec-
tion as shown in Fig. 21.
Fig. 21
7. Fix the cables with clamps not to let them hinder
the ordinary operation of the machine.
8. Mount again the wheel cover unit, the wheel balancer
monitor and board.
1294-M017-6

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 19 of 62
10.0 ELECTRICAL CONNECTIONS
EVEN THE TINIEST PROCEDURE
OF AN ELECTRICAL NATURE
MUST BE CARRIED OUT BY PRO-
FESSIONALLY QUALIFIED STAFF.
BEFORE CONNECTING THE MA-
CHINE MAKE SURE THAT:
• THE MAIN POWER RATING COR-
RESPONDS TO THE MACHINE
RATING AS SHOWN ON THE
MACHINE PLATE;
• ALL MAIN POWER COMPO-
NENTS ARE IN GOOD CONDI-
TION;
• THE ELECTRICAL SYSTEM
IS PROPERLY GROUNDED
(GROUND WIRE MUST BE THE
SAME CROSS-SECTION AREA
AS THE LARGEST POWER SUP-
PLY CABLES OR GREATER);
• MAKE SURE THAT THE ELEC-
TRICAL SYSTEM FEATURES A
CUTOUT WITH DIFFERENTIAL
PROTECTION SET AT 30 mA.
Connect the machine up to the mains by means of the
3-pole plug provided (110V single - 1ph - 60Hz).
If the plug provided is not suitable for the wall socket,
fit a plug that complies with local and applicable regu-
lations. This operation must be performed by expert
and professional personnel.
FIT A TYPE-APPROVED (AS RE-
PORTED BEFORE) PLUG TO THE
MACHINE CABLE (THE GROUND
WIRE IS YELLOW/GREEN AND
MUST NEVER BE CONNECTED TO
ONE OF THE TWO PHASE LEADS).
MAKE SURE THAT THE ELECTRI-
CAL SYSTEM IS COMPATIBLE
WITH THE RATED POWER AB-
SORPTION SPECIFIED IN THIS
MANUAL AND APT TO ENSURE
THAT VOLTAGE DROP UNDER
FULL LOAD WILL NOT EXCEED
4% OF RATED VOLTAGE (10%
UPON START-UP).
FAILURE TO OBSERVE THE ABOVE
INSTRUCTIONS WILL IMMEDIATE-
LY INVALIDATE THE WARRANTY.
10.1 Electrical checks
BEFORE STARTING UP THE
WHEEL-BALANCER, BE SURE TO
BECOME FAMILIAR WITH THE LO-
CATION AND OPERATION OF ALL
CONTROLS AND CHECK THEIR
PROPER OPERATION (SEE PAR.
“CONTROLS”).
CARRY OUT A DAILY CHECK OF
MAINTAINED-TYPE CONTROLS
CORRECT FUNCTIONING, BEFORE
STARTING MACHINE OPERATION.
Once the plug/socket connection has been made, turn
on the machine using the master switch (Fig. 22
ref. 1).
1
Fig. 22
1294-M017-6

GB
Page 20 of 62
INSTRUCTION, USE AND
MAINTENANCE MANUAL
11.0 AIR CONNECTION
Connect the wheel balancer to the centralised com-
pressed-air system by means of the connection on the
back of the machine (see Fig. 23 ref. 1).
The air system supplying the machine must be able
to supply filtered and de-humidified air at a pressure
between 8 and 10 bar. It must feature an on-off valve
upstream of the machine.
Fig. 23
12.0 FITTING THE WHEEL ON THE MAN-
DREL
To achieve perfect balancing, the wheel must be care-
fully and properly fitted on the mandrel. Imperfect
centring will inevitably cause unbalances.
MOST IMPORTANT IS THAT ORIGI-
NAL CONES AND ACCESSORIES
ARE USED MADE SPECIFICALLY
FOR USE ON THE WHEEL BAL-
ANCER.
Wheel fitting using the cones provided is illustrated be-
low. For alternative fittings, using optional accessories,
refer to the special instructions provided separately.
12.1 Wheel assembly
1. Open the pneumatic mandrel by pressing the special
pedal, (see Fig. 24).
Fig. 24
Open/close the pneumatic
mandrel
2. Move rightwards excluded from supply (Fig. 25 ref. 1).
Fit the adapter flange (Fig. 25 ref. 2) on the man-
drel flange (Fig. 25 ref. 3).
3. Remove any type of foreign body from the wheel
(Fig. 25 ref. 4): pre-existing weights, stones and
mud, and make sure the mandrel (Fig. 25 ref. 5)
and the rim centring area are clean before fitting
the wheel on the mandrel.
1294-M017-6
