Rotary RWB355SB User manual

For spare parts drawings refer to “LIST OF COMPONENTS” section.
• For any further information please contact your local dealer.
INSTRUCTION MANUAL
GB TRANSLATION FROM THE
ORIGINAL INSTRUCTIONS
RWB355SB
1297-M008-8
1297-M008-8- Rev. n. 8 (07/2019)

GB
Page 2 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
SUMMARY
SYMBOLS USED IN THE MANUAL ________ 5
1.0 GENERAL INTRODUCTION __________ 8
1.1 Introduction ____________________________ 8
2.0 INTENDED USE _____________________ 8
2.1 Training of personnel __________________ 8
3.0 SAFETY DEVICES ___________________ 9
3.1 Residual risks __________________________ 9
4.0 GENERAL SAFETY RULES _________ 10
5.0 PACKING AND MOBILIZATION FOR
TRANSPORT _______________________ 11
6.0 UNPACKING ________________________ 11
7.0 MOBILIZATION_____________________ 12
8.0 WORKING ENVIRONMENT CONDI-
TIONS ______________________________ 12
8.1 Working area __________________________12
8.2 Lighting _______________________________12
9.0 MACHINE ASSEMBLY ______________ 13
9.1 Anchoring system _____________________13
9.2 Fixtures contained in the packing_____13
9.3 Assembly procedures _________________14
9.3.1 Fitting the mandrel on the flange __14
9.3.2 Fitting the protection guard _______14
9.3.3 Fitting of external data gauge _____15
9.3.4 Fitting of professional external
data gauge (optional) ______________16
9.3.5 Monitor fitting _____________________16
10.0 ELECTRICAL CONNECTIONS_______ 17
10.1 Electrical checks ______________________18
11.0 FITTING THE WHEEL ON THE MAN-
DREL ______________________________ 18
11.1 Wheel assembly _______________________18
12.0 CONTROL PANEL __________________ 20
13.0 WHEEL BALANCING _______________ 20
13.1 Switching the machine on and off_____20
13.2 Balancing programs setting___________21
13.2.1 Programs rapid setting and
measurements through distance-
diameter caliper arm ______________21
13.2.2 Programs setting through “Meas-
urements acquisition” screen
page _______________________________24
13.3 Indicative display of points where to
detect measures/to fit weight__________25
13.3.1 Weights positioning ________________26
13.4 Displaying the active/modifiable field _26
13.5 Wheel balancing screen page descrip-
tion____________________________________27
13.5.1 Balancing mode____________________29
13.6 Use of machines with disabled auto-
matic data gauge______________________30
13.6.1 Manual setting of wheel
dimensions ________________________30
13.7 Standard balancing programs ________31
13.7.1 Static ______________________________31
13.7.2 Static-1 ____________________________31
13.7.3 Static-2 ____________________________31
13.7.4 Dynamic ___________________________32
13.7.5 ALU-S ______________________________32
13.7.6 ALU-S1_____________________________32
13.7.7 ALU-S2_____________________________32
13.7.8 ALU-1 ______________________________33
13.7.9 ALU-2 ______________________________33
13.7.10 ALU-3 _____________________________33
13.7.11 ALU-4 _____________________________33
13.8 Optional balancing programs _________34
13.8.1 SPLIT mode________________________34
13.8.2 Weights hidden behind spokes
mode _______________________________36
13.8.3 matching mode ____________________37
13.9 Special balancing programs __________39
13.9.1 Pax_________________________________39
13.10 Recalculation function _______________40
13.11 Motorbike mode wheel balancing _____40
14.0 USER MENU (OPTIONS AND CALI-
BRATION) __________________________ 41
14.1 Options menu _________________________42
14.1.1 Lower weight limit ________________43
14.1.2 Setting adhesive weight dimen-
sions _______________________________44
14.1.3 User management__________________44
14.2 Machine calibrations __________________45
14.2.1 Mandrel “0” (zero) calibration _____46
14.2.2 Weight measurement sensors
calibration _________________________46
14.2.3 Gauge calibration__________________47
15.0 ERROR SIGNALS ___________________ 51
16.0 ROUTINE MAINTENANCE __________ 52
17.0 TECHNICAL DATA__________________ 52
17.1 Dimensions____________________________53
1297-M008-8

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 3 of 57
18.0 STORING___________________________ 54
19.0 SCRAPPING ________________________ 54
20.0 REGISTRATION PLATE DATA ______ 54
21.0 FUNCTIONAL DIAGRAMS __________ 54
Table A - Wiring connection diagram _______55
Table B - Wiring connection diagram
(GAR334 - optional) _______________57
1297-M008-8

GB
Page 4 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
KEY
1 – Weight holding bridge
2 – 7-keys keyboard
3 – Distance-diameter caliper
4 – Threaded mandrel
5 – Protection guard
6 – Pedal brake
7 – Main switch
8 – External data gauge
9 – Fixed laser unit + led light
10 – Monitor
11 – Pressure ring
12 – Rapid ring nut
13 – Cones and centring bushings kit
14 – Grippers for weight fitting
15 – Lateral guard
16 – External data gauge
17 – Carriages counterweight
18 – Grippers for weights
19 – Protection cup
20 – Casing for protection cup
21 – D.88-132 cone
22 – Professional external data gauge (optional)
23 – “12 o’clock” laser device (optional)
24 – Support panel unit
Fig. 1
1297-M008-8

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 5 of 57
SYMBOLS USED IN THE MANUAL
Symbols Description
Read instruction manual.
Wear work gloves.
Wear work shoes.
Mandatory. Operations or jobs to
be performed compulsorily.
Danger! Be particularly careful.
Symbols Description
Move with fork lift truck or pallet
truck.
Lift from above.
Wear safety goggles.
Warning. Be particularly careful
(possible material damages).
Note. Indication and/or useful
information.
Attention: never lift the machine
by means of the mandrel.
Danger!
Laser presence.
1297-M008-8

GB
Page 6 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL

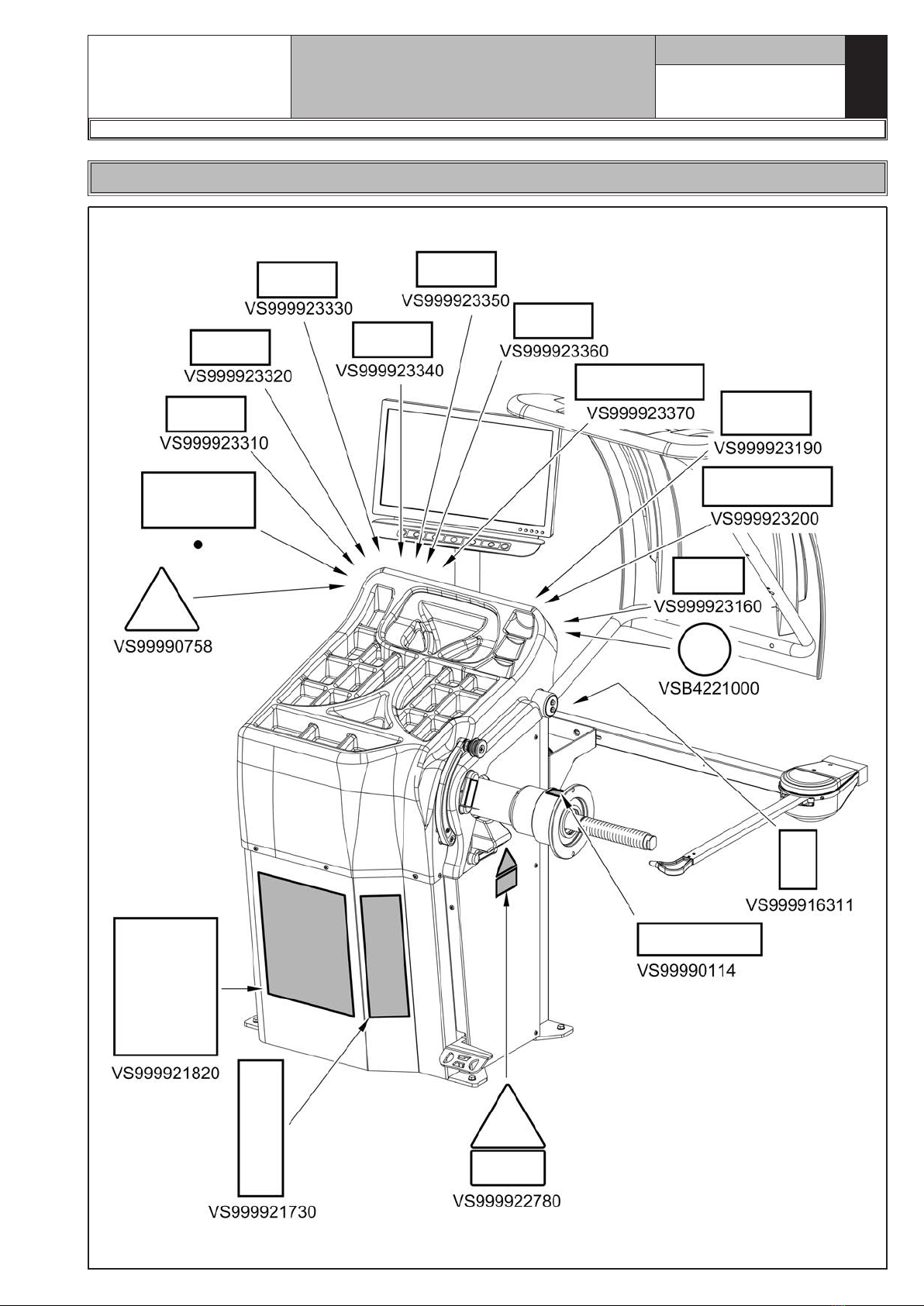

INFORMATION PLATE LOCATION TABLE
1297-M008-8

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 7 of 57
Code numbers of plates
VSB4221000 Grounding plate
VS99990114 Arrow plate
VS99990758 Electricity danger plate
VS999916311 Rubbish skip label
VS999921730 Rotary plate
VS999921820 Rotary plate R155
VS999922780 Laser aperture plate
VS999923160 Prop 65 Attention plate
VS999923190 Laser classification class 1 plate
VS999923200 Laser certification plate
VS999923310 Fuse-type-rating car plate
VS999923320 Replace fuse plate
VS999923330 F1 fuse plate
VS999923340 F2 fuse plate
VS999923350 For indoor use only plate
VS999923360 Disconnect power supply plate
VS999923370 1Ph 110V 3,15A 60Hz plate
•Serial number plate
IF ONE OR MORE PLATES DISAPPEAR FROM THE MACHINE OR BECOMES DIFFICULT
TO READ. REPLACE IT AND QUOTE ITS/THEIR CODE NUMBER/S WHEN REORDERING.
1297-M008-8

GB
Page 8 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
SOME OF THE PICTURES AND/
OR DISPLAY SCREEN PAGES
PRESENT IN THIS MANUAL HAVE
BEEN OBTAINED FROM PICTURES
OF PROTOTYPES, THEREFORE
THE STANDARD PRODUCTION MA-
CHINES AND ACCESSORIES CAN
BE DIFFERENT IN SOME COMPO-
NENTS/DISPLAY SCREEN PAGES.
1.0 GENERAL INTRODUCTION
This manual is an integral part of the product and
must be retained for the whole operating life of the
machine.
Carefully study the warnings and instructions con-
tained in this manual. It contains important instruc-
tions regarding FUNCTIONING, SAFE USE and
MAINTENANCE.
KEEP THE MANUAL IN A KNOWN,
EASILY ACCESSIBLE PLACE FOR
ALL ACCESSORY OPERATORS
TO CONSULT IT WHENEVER IN
DOUBT.
THE MANUFACTURER DISCLAIMS
ALL RESPONSIBILITY FOR ANY
DAMAGE OCCURRED WHEN THE
INDICATIONS GIVEN IN THIS
MANUAL ARE NOT RESPECTED:
AS A MATTER OF FACT, THE NON-
COMPLIANCE WITH SUCH INDI-
CATIONS MIGHT LEAD TO EVEN
SERIOUS DANGERS.
1.1 Introduction
Thank you for preferring this wheel balancer. We feel
sure you will not regret your decision.
This machine has been designed for use in profes-
sional workshops and stands out for its reliability
and easy, safe and rapid operation. With just a small
degree of maintenance and care, this wheel balancer
will give you many years of trouble-free service and
lots of satisfaction.
2.0 INTENDED USE
The machines described in this manual and their
different versions, are wheels balancing machines
for car and light transport, projected to be used
exclusively to cancel out, or at least reduce to ac-
ceptable limits the vibrations of the wheels, by fit-
ting counterweights of suitable size and in specific
positions to the same wheels that are not correctly
balanced.
DANGER: EMPLOYING THESE
MACHINES OUTSIDE THE USE
DESTINATION THEY HAVE BEEN
DESIGNED FOR (AS INDICATED
IN THIS MANUAL) IS INAPPROPRI-
ATE AND DANGEROUS.
THE MANUFACTURER CANNOT
BE HELD RESPONSIBLE FOR ANY
DAMAGE CAUSED BY IMPROPER,
ERRONEOUS, OR UNACCEPTABLE
USE.
2.1 Training of personnel
The machine may be operated only by suitably
trained and authorized personnel.
Given the complexity of the operations necessary to
manage the machine and to carry out the operations
safely and efficiently, the personnel must be trained
in such a way that they learn all the information
necessary to operate the machine as intended by the
manufacturer.
A CAREFUL READING OF THIS
INSTRUCTION MANUAL FOR
USE AND MAINTENANCE AND A
SHORT PERIOD OF TRAINING
WITH SKILLED PERSONNEL CAN
BE AN ENOUGH PREVENTIVE
PREPARATION.
1297-M008-8

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 9 of 57
3.0 SAFETY DEVICES
PERIODICALLY, AT LEAST MONTH-
LY, CHECK THE INTEGRITY AND
THE FUNCTIONALITY OF THE
SAFETY AND PROTECTION DE-
VICES ON THE MACHINE.
• Master switch positioned on the rear of the ma-
chine
Its function is to disconnect machine electric supply.
• Protection guard
Its function is to protect the operator from possible
projections of materials on the wheel during its spin.
Wheel spinning is normally prevented if the wheel
protection guard is raised (open). When the
protection guard is open, this interrupts the cir-
cuit that triggers the motor and automatic start
is prevented, including in the case of an error.
Press stop key to stop wheel rotation in
emergency conditions.
• Laser safety (in case the laser device is present)
This is a Class I/1 (with Class II/2 embedded)
laser product which, during normal operation,
does not permit human access to laser radiation
in excess of Class I/1. This product complies with
21CFR1040.10/.11 and IEC EN60825. The system
is fully interlocked to prevent accidental access to
laser radiation. Any attempt to defeat the safety inter-
lock elements of this product is a violation of Safety
Standards which this product complies with, and the
protection provided by the product may be impaired.
USE OF CONTROLS OR ADJUST-
MENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIA-
TION EXPOSURE.
APERTURE
Side of product nearest port (see
“Plates location table”).
CLASSIFICATION
Rear of product (see “Plates location
table”).
CERTIFICATION
Rear of product (see “Plates location
table”).
3.1 Residual risks
The machine was subjected to a complete analysis of
risks according to reference standard EN ISO 12100.
Risks are as reduced as possible in relation with tech-
nology and product functionality.
Possible residual risks have been emphasized through
pictorial representations and warnings which placing is
indicated in “ PLATE POSITIONING TABLE” at page 6.
In case the laser device is present
THIS DEVICE IS EQUIPPED WITH
A LASER BAR, A TOOL THAT USES
LASER BEAMS, PROPERLY INTER-
FACED WITH THE SOFTWARE THE
DEVICE IS EQUIPPED WITH. IT
ENSURES ABSOLUTE PRECISION
MEASUREMENTS OF THE SHAPE
AND SIZE OF THE WHEEL RIM,
WHICH IS ROLLED IN FRONT OF
IT.
THIS DEVICE IS EQUIPPED WITH
A CLASS 1 LASER BAR.
WARNING AND INFORMATION
PLATES HAVE BEEN APPLIED
OUTSIDE THE DEVICE (AS ILLUS-
TRATED BELOW), IN ORDER TO
INDICATE THE PRESENCE AND
EMPLOYMENT OF LASER MEAS-
URING INSTRUMENTS.
DO NOT STARE THE LASER BEAM
DIRECTLY AT CLOSE RANGE
WHILE THE EQUIPMENT IS OP-
ERATING.
1297-M008-8

GB
Page 10 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
4.0 GENERAL SAFETY RULES
• Any tampering with or modification to the machine
not previously authorized by the manufacturer ex-
empts the latter from all responsibility for damage
caused by or derived from said actions.
• Removing of or tampering with the safety devices or
with the warning signals placed on the machine leads
to serious dangers and represents a transgression of
European safety rules.
• Use of the machine is only permitted in places free
from explosion or fire hazard and in dry places
under cover.
• Original spare parts and accessories should be used.
THE MANUFACTURER DENIES
ANY RESPONSIBILITY IN CASE
OF DAMAGES CAUSED BY UNAU-
THORIZED MODIFICATIONS OR
BY THE USE OF NON ORIGINAL
COMPONENTS OR EQUIPMENT.
• Installation must be conducted only by qualified
personnel exactly according to the instructions that
are given below.
• Ensure that there are no dangerous situations dur-
ing the machine operating manoeuvres. Immediately
stop the machine if it miss-functions and contact the
assistance service of an authorized dealer.
• In emergency situations and before carrying out any
maintenance or repairs, disconnect all supplies to
the machine by using the main switch, placed on the
machine itself, and unplugging the power supply.
• The machine electrical supply system must be
equipped with an appropriate earthing, to which
the yellow-green machine protection wire must be
connected.
• Ensure that the work area around the machine is free
of potentially dangerous objects and that there is no
oil since this could damage the tyre. Oil on the floor
is also a potential danger for the operator.
• UNDER NO CIRCUMSTANCES must the machine be
used to spin anything but vehicle wheels. Bad locking
can cause rotating parts to come loose, with potential
damage to the machine and anything in the vicinity
and injury to the operator.
OPERATORS MUST WEAR SUIT-
ABLE WORK CLOTHES, PROTEC-
TIVE GLASSES AND GLOVES,
AGAINST THE DANGER FROM
THE SPRAYING OF DANGEROUS
DUST, AND POSSIBLY LOWER
BACK SUPPORTS FOR THE LIFT-
ING OF HEAVY PARTS. DANGLING
OBJECTS LIKE BRACELETS MUST
NOT BE WORN, AND LONG HAIR
MUST BE TIED UP. FOOTWEAR
SHOULD BE ADEQUATE FOR THE
TYPE OF OPERATIONS TO BE CAR-
RIED OUT.
• The machine handles and operating grips must be
kept clean and free from oil.
• The workshop must be kept clean and dry. Make sure
that the working premises are properly lit.
The machine can be operated by a single operator.
Unauthorized personnel must remain outside the
working area, as shown in Fig. 3.
Avoid any hazardous situations. Do not use air-
operated or electrical equipment when the shop is
damp or the floor slippery and do not expose such
tools to atmospheric agents.
• When operating and servicing this machine, carefully
follow all applicable safety and accident-prevention
precautions.
The machine must not be operated by untrained
personnel.
1297-M008-8

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 11 of 57

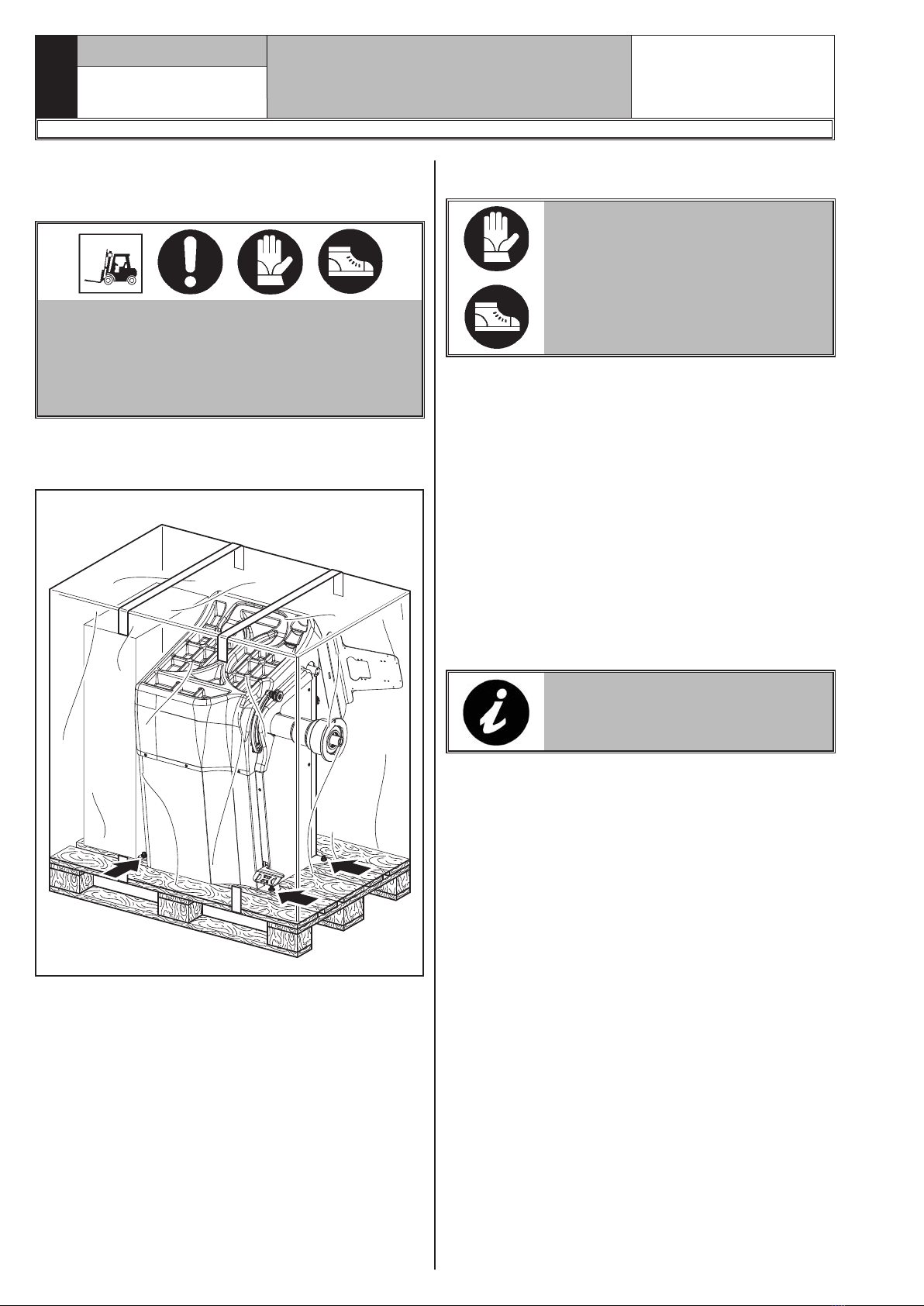

5.0 PACKING AND MOBILIZATION FOR
TRANSPORT
HAVE THE MACHINE HANDLED BY SKILLED
PERSONNEL ONLY.
THE LIFTING EQUIPMENT MUST WITHSTAND
A MINIMUM RATED LOAD EQUAL TO THE
WEIGHT OF THE PACKED MACHINE (SEE
PARAGRAPH “TECHNICAL SPECIFICATIONS”).
The machine is packed partially assembled.
Movement must be by pallet-lift or fork-lift trolley.
The fork lifting points are indicated on the packing.
Fig. 2
6.0 UNPACKING
DURING UNPACKING, ALWAYS
WEAR GLOVES TO PREVENT ANY
INJURY CAUSED BY CONTACT
WITH PACKAGING MATERIAL
(NAILS, ETC.).
The cardboard box is supported with plastic strapping.
Cut the strapping with suitable scissors. Use a small
knife to cut along the lateral axis of the box and open
it like a fan.
It is also possible to unnail the cardboard box from
the pallet it is fixed to. After removing the packing, and
in the case of the machine packed fully assembled,
check that the machine is complete and that there is
no visible damage.
If in doubt do not use the machine and refer to pro-
fessionally qualified personnel (to the seller).
The packing (plastic bags, expanded polystyrene, nails,
screws, timber, etc.) should not be left within reach of
children since it is potentially dangerous. These ma-
terials should be deposited in the relevant collection
points if they are pollutants or non biodegradable.
THE BOX CONTAINING THE FIX-
TURES IS CONTAINED IN THE
WRAPPING. DO NOT THROW IT
AWAY WITH THE PACKING.
1297-M008-8

GB
Page 12 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
7.0 MOBILIZATION
THE LIFTING EQUIPMENT MUST WITHSTAND
A MINIMUM RATED LOAD EQUAL TO THE
WEIGHT OF THE MACHINE (SEE PARAGRAPH
TECHNICAL SPECIFICATIONS). DO NOT AL-
LOW THE LIFTED MACHINE TO SWING.
NEVER LIFT THE MACHINE BY MEANS OF THE
MANDREL.
If the machine has to be moved from its normal work
post, the movement must be conducted following the
instructions listed below.
• Protect the exposed corners with suitable material
(Pluribol/cardboard).
• Do not use metallic cables for lifting.
• Make sure that the electricity supply is not connected.
• Place again the machine onto the original pallet with
whom it was delivered.
• Use transpallet or fork-lift for handling.
8.0 WORKING ENVIRONMENT CONDI-
TIONS
The machine must be operated under proper condi-
tions as follows:
• temperature: 0° + 45° C
• relative humidity: 30 - 90% (dew-free)
• atmospheric pressure: 860 - 1060 hPa (mbar).
The use of the machine in ambient conditions other
than those specified above is only allowed after prior
agreement with and approval of the manufacturer.
8.1 Working area
Fig. 3
USE THE MACHINE IN A DRY AND AD-
EQUATELY LIT PLACE, POSSIBLY INDOORS
OR ANYWAY IN A ROOFED AREA, THIS PLACE
MUST BE IN COMPLIANCE WITH APPLICABLE
SAFETY REGULATIONS.
The location of the machine requires a usable space
as indicated in Fig. 3. The positioning of the machine
must be according to the distances shown. From the
control position the operator is able to observe all the
machine and surrounding area. He must prevent unau-
thorized personnel or objects that could be dangerous
from entering the area.
The machine must be fixed on a flat floor surface,
preferably of cement or tiled. Avoid yielding or irregu-
lar surfaces.
The base floor must be able to support the loads trans-
mitted during operation.
This surface must have a capacity load of at least 500
kg/m².
The depth of the solid floor must be sufficient to guar-
antee that the anchoring bolts hold.
8.2 Lighting
The machine does not require its own lighting for
normal working operations. However, it must be used
in an adequately lit environment.
In case of poor lighting use lamps having total power
of 800/1200 Watt.
EACH TIME THE ROD OF THE
GAUGE IS EXTRACTED FROM ITS
HOUSING, THE LED LIGHT (FIG.
1 REF. 9) TURNS ON MAKING THE
INSIDE OF THE WHEEL WHERE
THE OPERATOR MUST WORK
BRIGHTER.
1297-M008-8

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 13 of 57
9.0 MACHINE ASSEMBLY
After having freed the various components from the
packing check that they are complete, and that there
are no anomalies, then comply with the following in-
structions for the assembly of the components making
use of the attached series of illustrations.
9.1 Anchoring system
The packed machine is fixed to the support pallet
through the holes prearranged on the frame. Such
holes can be used also to fix the machine to the ground,
through floor anchor small blocks (excluded from sup-
ply). Before carrying out the definitive fixing, check that
all the anchor points are laid down flat and correctly
in contact with the fixing surface itself. If not so, insert
shimming profiles between the machine and the fixing
lower surface, as indicated in Fig. 4.
IN CASE OF WHEEL WEIGHING
MORE THAN 30 KG, IT IS COM-
PULSORY TO FIX TO THE GROUND
BY MEANS OF SCREW ANCHORS.
X
ba
1X
X
Fig. 4
a = 374
b = 616
• Execute 4 holes with 10 mm diameter on the floor
by the holes on the bottom floor;
• insert the small blocks (excluded from supply) into
the holes;
• fix the machine to the ground with 4 M8x80 mm
screws (excluded from supply) (Fig. 4 ref. 1) (or
with 4 8x80 mm stud bolts (excluded from supply)).
Tighten the screws with an approximate tightening
torque of 70 Nm.
9.2 Fixtures contained in the packing
The packing case contains also the fixtures box.
Check that all the parts listed below are there (see
Fig. 5).
Code Description N.
GAR345 Rapid ring nut + pressure
ring
1
VS129571492 Gauge 1
VS1300A004 Weight pliers 1
VS999072 Carriages counterweight 1
GAR371 Cones and centring bushings
kit
1
GAR372 Support panel unit 1
VS129580191 Protection cup 1
VS129580500 Casing for cup protection 1
GAR307 External data gauge 1
GAR112 D.95-124 cone 1
Fig. 5
THE PRESSURE RING (FIG. 5
REF. A) MUST BE MOUNTED WITH
THE TEETH OR DISCHARGE SIDE
TOWARDS THE RING-NUT (SEE
FIG. 5).
1297-M008-8

GB
Page 14 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
9.3 Assembly procedures

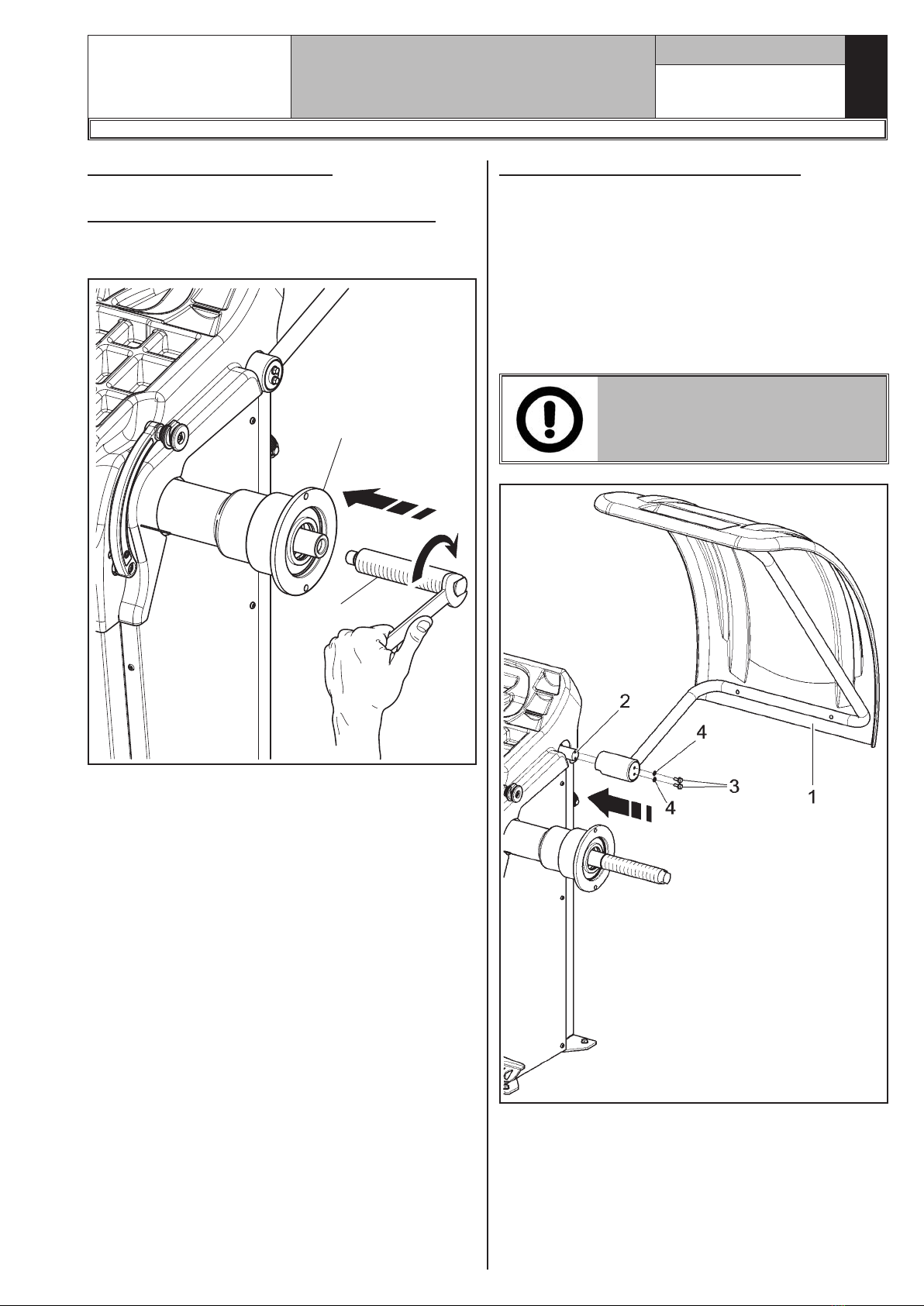

9.3.1 Fitting the mandrel on the flange
Screw the mandrel with an Allen wrench (Fig. 6 ref. 1)
on the flange (Fig. 6 ref. 2).
1
2
Fig. 6
9.3.2 Fitting the protection guard
1. Mount the protection guard (Fig. 7 ref. 1) to the
support (Fig. 7 ref. 2) using the screws (Fig. 7
ref. 3), interposing the Belleville washers (Fig. 7
ref. 4).
2. Tighten the screws (Fig. 7 ref. 3) in order to make
the guard (Fig. 7 ref. 1) lift or lower without
bumping against the limit switch. Carry out the
adjustment so that it's possible to manually guide
the guard both during closing and opening.
DURING GUARD'S ASSEMBLY,
PAY ATTENTION TO THE MICRO
PLACED INSIDE THE MACHINE.
Fig. 7
1297-M008-8

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 15 of 57

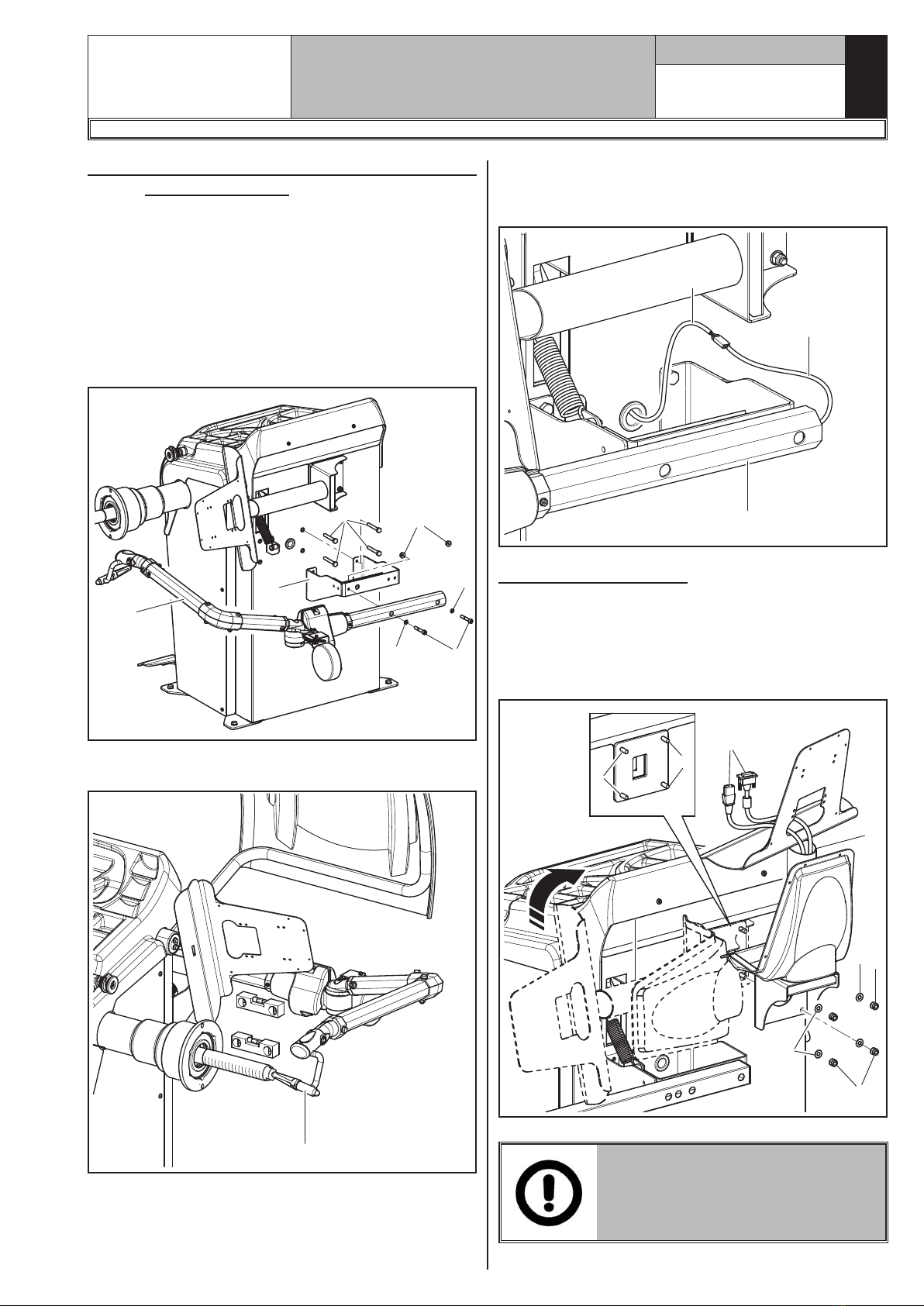

9.3.3 Fitting of external data gauge
1. Introduce the 4 screws (Fig. 8 ref. 1) in the gauge
bracket (Fig. 8 ref. 2) and screw them on the
threaded rivets placed on the rear side of the frame.
Lock the gauge arm (Fig. 8 ref. 3) to the bracket
(Fig. 8 ref. 2) using the 2 screws (Fig. 8 ref. 4) and
the washers (Fig. 8 ref. 5). Lock the screws (Fig. 8
ref. 4) with the washers (Fig. 8 ref. 5) and the nuts
(Fig. 8 ref. 6) so that the shaft and the gauge arm
are levelled out (see Fig. 9).
1
2
34
5
5
65
Fig. 8
2. Also make sure the gauge tip (Fig. 9 ref. 1) is po-
sitioned at the centre of the mandrel.
Fig. 9
3. Connect connector (Fig. 10 ref. 1) of the cable com-
ing from inside the machine to connector (Fig. 10
ref. 2) of the cable coming from the gauge arm. Fit
the section of the cable with the connectors inside
the arm (Fig. 10 ref. 3).
4. Fasten the cable with clamps.
5. Enable the external data gauge and carry out the
device's calibration.
1
2
3Fig. 10
1297-M008-8

GB
Page 16 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
9.3.4 Fitting of professional external data
gauge (optional)
1. Introduce the 4 screws (Fig. 11 ref. 1) to the gauge
bracket (Fig. 11 ref. 2) and screw them to the
threaded rivets placed on the rear side of the frame.
Lock the gauge arm (Fig. 11 ref. 3) to the bracket
(Fig. 11 ref. 2) using the 2 screws (Fig. 11 ref. 4)
and the washers (Fig. 11 ref. 5). Lock the screws
(Fig. 11 ref. 4) with the nuts (Fig. 11 ref. 6) so
that the shaft and the gauge arm are levelled out
(see Fig. 12).
1
2
3
4
5
5
6
Fig. 11
2. Also make sure the gauge tip (Fig. 12 ref. 1) is
positioned at the centre of the mandrel.
1
Fig. 12
3. Connect connector (Fig. 13 ref. 1) of the cable com-
ing from inside the machine to connector (Fig. 13
ref. 2) of the cable coming from the gauge arm. Fit
the section of the cable with the connectors inside
the arm (Fig. 13 ref. 3).
4. Fasten the cable with clamps.
5. Enable the external data gauge and carry out the
device's calibration.
1
2
3Fig. 13
9.3.5 Monitor fitting
1. Unscrew the nuts (Fig. 14 ref. 1) and the washers
(Fig. 14 ref. 2) from the screws (Fig. 14 ref. 3).
Fit the support tube (Fig. 14 ref. 4) rotated
through 90°. Then screw the previously unscrewed
nuts and washers again.
3
2
1
1
2
2
3
4
5
Fig. 14
DURING THIS OPERATION PAY
PARTICULAR ATTENTION TO THE
POWER SUPPLY/SIGNAL CABLE
OF THE MONITOR (FIG. 14 REF. 5)
IN ORDER NOT TO DAMAGE IT.
1297-M008-8

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 17 of 57
2. Connect the plugs on the power supply sockets and
monitor signal. Connect the wiring of the keyboard.

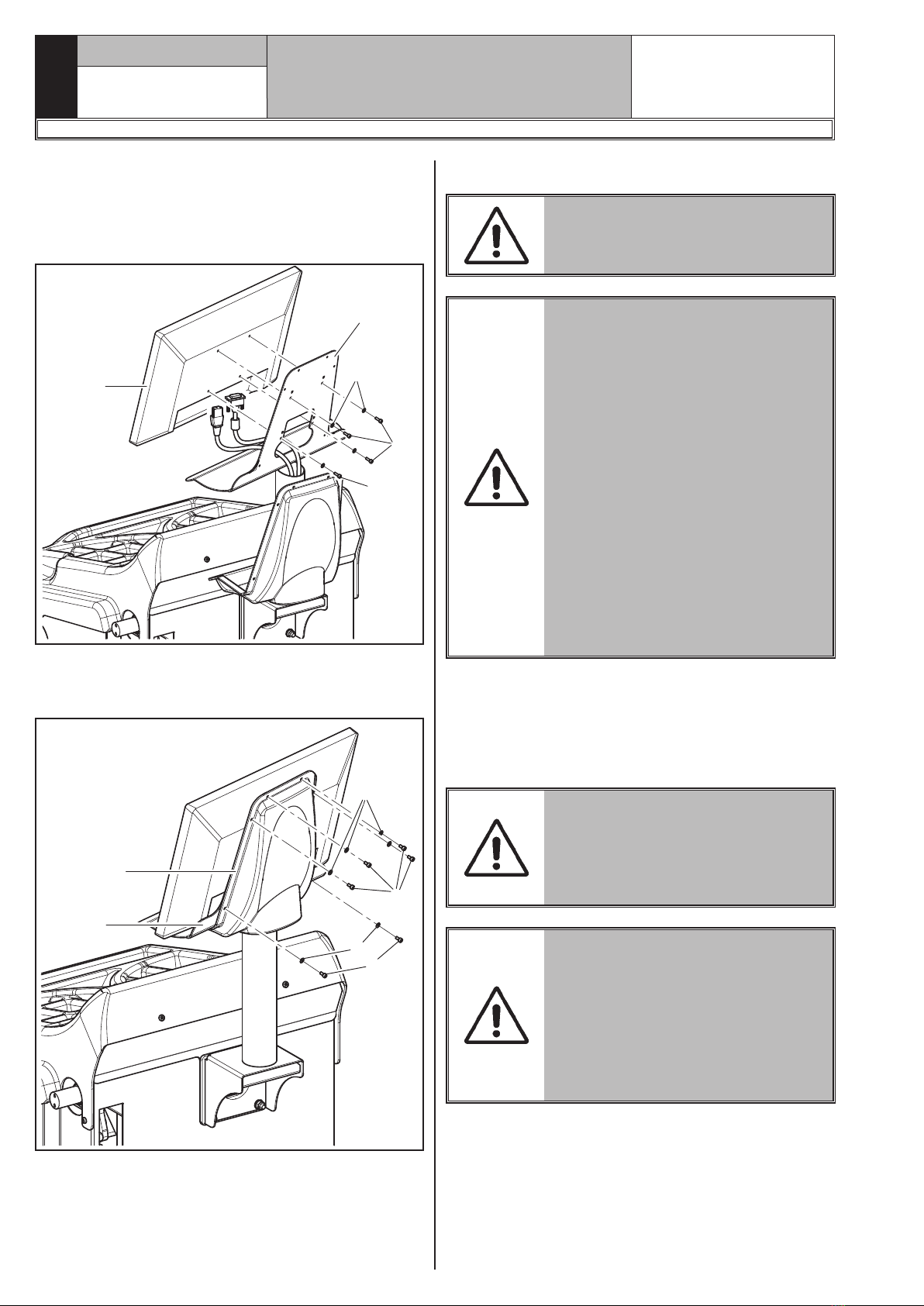

3. Fix the monitor (Fig. 15 ref. 1) to the support
(Fig. 15 ref. 2) with the screws (Fig. 15 ref. 3)
and the washers (Fig. 15 ref. 4) supplied.
1
2
3
3
4
Fig. 15
4. Fix the guard (Fig. 16 ref. 1) to the support
(Fig. 16 ref. 2) with the 6 screws (Fig. 16 ref. 3)
and the washers (Fig. 16 ref. 4) supplied.
1
23
3
4
4
Fig. 16
10.0 ELECTRICAL CONNECTIONS
EVEN THE TINIEST PROCEDURE
OF AN ELECTRICAL NATURE
MUST BE CARRIED OUT BY PRO-
FESSIONALLY QUALIFIED STAFF.
BEFORE CONNECTING THE MA-
CHINE MAKE SURE THAT:
• THE MAIN POWER RATING COR-
RESPONDS TO THE MACHINE
RATING AS SHOWN ON THE
MACHINE PLATE;
• ALL MAIN POWER COMPO-
NENTS ARE IN GOOD CONDI-
TION;
• THE ELECTRICAL SYSTEM
IS PROPERLY GROUNDED
(GROUND WIRE MUST BE THE
SAME CROSS-SECTION AREA
AS THE LARGEST POWER SUP-
PLY CABLES OR GREATER);
• MAKE SURE THAT THE ELEC-
TRICAL SYSTEM FEATURES A
CUTOUT WITH DIFFERENTIAL
PROTECTION SET AT 30 mA.
Connect the machine up to the mains by means of the
3-pole plug provided (110V single - 1ph - 60Hz).
If the plug provided is not suitable for the wall socket,
fit a plug that complies with local and applicable regu-
lations. This operation must be performed by expert
and professional personnel.
FIT A TYPE-APPROVED (AS RE-
PORTED BEFORE) PLUG TO THE
MACHINE CABLE (THE GROUND
WIRE IS YELLOW/GREEN AND
MUST NEVER BE CONNECTED TO
ONE OF THE TWO PHASE LEADS).
MAKE SURE THAT THE ELECTRI-
CAL SYSTEM IS COMPATIBLE
WITH THE RATED POWER AB-
SORPTION SPECIFIED IN THIS
MANUAL AND APT TO ENSURE
THAT VOLTAGE DROP UNDER
FULL LOAD WILL NOT EXCEED
4% OF RATED VOLTAGE (10%
UPON START-UP).
1297-M008-8

GB
Page 18 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
FAILURE TO OBSERVE THE ABOVE
INSTRUCTIONS WILL IMMEDIATE-
LY INVALIDATE THE WARRANTY.
10.1 Electrical checks
BEFORE STARTING UP THE
WHEEL-BALANCER, BE SURE TO
BECOME FAMILIAR WITH THE LO-
CATION AND OPERATION OF ALL
CONTROLS AND CHECK THEIR
PROPER OPERATION (SEE PAR.
“CONTROLS”).
CARRY OUT A DAILY CHECK OF
MAINTAINED-TYPE CONTROLS
CORRECT FUNCTIONING, BEFORE
STARTING MACHINE OPERATION.
Once the plug/socket connection has been made, turn
on the machine using the master switch (Fig. 17
ref. 1).
1
Fig. 17
11.0 FITTING THE WHEEL ON THE MAN-
DREL
To achieve perfect balancing, the wheel must be care-
fully and properly fitted on the mandrel. Imperfect
centring will inevitably cause unbalances.
WHAT IS MOST IMPORTANT IS
THAT ORIGINAL CONES AND
ACCESSORIES, SPECIALLY DE-
SIGNED TO BE EMPLOYED WITH
THE WHEEL BALANCERS, ARE
USED.
Wheel fitting using the cones provided is illustrated be-
low. For alternative fittings, using optional accessories,
refer to the special instructions provided separately.
11.1 Wheel assembly
1. Remove any type of foreign body from the wheel
(Fig. 18 ref. 3): pre-existing weights, stones and
mud, and make sure the mandrel (Fig. 18 ref. 1)
and the rim centring area are clean before fitting
the wheel on the mandrel.
2. Carefully choose the cone (Fig. 18 ref. 2) most suit-
able for the wheel to be balanced. These accessories
must be selected according to the shape of the rim.
Position the wheel (Fig. 18 ref. 3), fitting the cone
(Fig. 18 ref. 2) on the mandrel (Fig. 18 ref. 1): be
careful (otherwise this could seize) until this rests
against the support flange (Fig. 18 ref. 4).
3. Fit the wheel with the inner side of the rim towards
the wheel balancer and against the cone.
1
2
3
4
Fig. 18
1297-M008-8

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB Page 19 of 57
4. Fit the protection cap (Fig. 19 ref. 1) in the locknut
(Fig. 19 ref. 2) and fasten against the wheel.
Fig. 19
Some aluminium wheels, with very high centring,
must be fitted with the cone outside the wheel.
5. Clean the mandrel (Fig. 20 ref. 1) before fitting
the wheel.
6. Fit the wheel (Fig. 20 ref. 3) with the inside of the
rim towards the wheel balancer, until the wheel is
up against the support flange (Fig. 20 ref. 2).
1
2
3Fig. 20
7. Fit the cone (Fig. 21 ref. 3) with the narrowest part
turned towards the wheel.
8. Fit the pressure ring (Fig. 21 ref. 1) in the nut
(Fig. 21 ref. 2) and fasten the cone (Fig. 21
ref. 3).
Fig. 21
THE PRESSURE RING (FIG. 21
REF. 1) MUST BE MOUNTED WITH
THE TEETH SIDE TOWARDS THE
RING NUT (FIG. 21 REF. 2).
1297-M008-8

GB
Page 20 of 57
INSTRUCTION, USE AND
MAINTENANCE MANUAL
12.0 CONTROL PANEL
The wheel balancers are equipped with a control panel
equipped with a keyboard to interact/operate the con-
trols presented in graphical form on the monitor.
On the monitor are displayed all the instructions for the
correct wheel balancing, for example indicating where
the operator shall fit adhesive or clip weights and the
balancing mode and/or option used, as well as correct
wheel rotation for inner/outer weights positioning.
1
9
7234568
Fig. 22
KEY
1 – Monitor
2 – Function push button (red)
3 – Function push button (yellow)
4 – Function push button (grey)
5 – Function push button (blue)
6 – Function push button (green)
7 – Previous page push button
8 – Next page/print push button
9 – Push button panel (keyboard with 7 keys)
13.0 WHEEL BALANCING
13.1 Switching the machine on and off
Press the "ON" switch (Fig. 17 ref. 1), located in the
rear part of the equipment.
Wait a few seconds until the complete loading of the op-
erational program. The equipment is ready to operate
when the main screen "Home" appears on the monitor.
ALL SCREEN PAGES LISTED IN
THE MANUAL, UNLESS OTHER-
WISE SPECIFIED, DISPLAY THE
MEASUREMENTS EXPRESSED IN
GRAMS.
Fig. 23
1 2 34A B C
KEY
A – Displaying operations/information area
B – Colour identification buttons to use
C – Function icons
1 – Programs and measurements acquisition but-
tons
2 – Wheel spin push button
3 – Go to next page
4 – User management (if enabled) (user manage-
ment is not enabled on machine delivery)
At the bottom of the main screen page and of each
screen page described below, there will be coloured
rectangles (Fig. 23 ref. B) located above function iden-
tification icons (Fig. 23 ref. C). These functions are
activated by pressing the appropriate coloured button
on the push-button panel (Fig. 22 ref. 9). Press the
button (Fig. 23 ref. 3) to display a second page where
you can access “Technical assistance” and “Run-out”
Menu (see Fig. 24).
1297-M008-8
