Rotwild R.T750 HT Series User manual

MANUAL

1
Contents ................................................................. 1
Introduction............................................................ 3
Requirements for riders.......................................... 4
Safety...................................................................... 5
Safety information in the instruction manual......... 5
Symbols on the product .......................................... 5
Current regulations ................................................ 6
Type plate............................................................... 6
General information ............................................... 7
Version of the product and edition of the manual .. 7
Manufacturer.......................................................... 7
Online Registration ................................................ 7
Copyright................................................................ 7
Language ............................................................... 7
Target group / users............................................... 7
Product and type designation................................. 7
Power...................................................................... 8
Pushing aid mode................................................... 8
Emergency stop...................................................... 8
Detailed information .............................................. 9
Important information.......................................... 10
Proper use of the eMTB........................................ 12
Safety information................................................ 12
Problems while using the eMTB............................ 13
Categories of use ................................................. 14
Using the eMTB .................................................... 14
Brose Allround operating system......................... 15
Display screen ...................................................... 15
Description of the functions ................................. 15
On/off button (1) .................................................. 15
Menu button (2).................................................... 15
Light button (3) .................................................... 15
Rocker switch (+/-) (4)......................................... 15
Pushing aid mode (5) ........................................... 15
Technical data ...................................................... 17
R.T750 HT TOUR ................................................... 17
R.T750 FS TOUR.................................................... 18
R.C750 HT CORE................................................... 19
R.C750 FS CORE................................................... 20
R.C750 FS PRO ..................................................... 21
R.C750 FS ULTRA.................................................. 22
R.X750 CORE........................................................ 23
R.X750 PRO .......................................................... 24
R.X750 ULTRA....................................................... 25
R.E750 CORE........................................................ 26
R.E750 PRO .......................................................... 27
First use and before every ride............................ 28
Connecting the charger cable............................... 28
Charging the drive battery.................................... 28
Drive battery in the down tube.............................. 28
Quick release levers.............................................. 29
Wheels and tyres................................................... 29
Brake system ........................................................ 30
Pedals................................................................... 30
Handlebars, stem and suspension fork................. 31
Saddle height and position................................... 31
Switching the drive system on and off.................. 32
Checking the bolts................................................ 32
Riding on public roads.......................................... 32
What to check after a crash................................. 34
Wheels and tyres................................................... 34
Handlebars and stem ........................................... 34
Frame ................................................................... 34
Drive train............................................................. 35
Other checks......................................................... 35
Brake system........................................................ 37
Checking the brake system................................... 37
Bedding in the brakes........................................... 37
Grip width............................................................. 37
Brake chafing ....................................................... 38
Drive system ......................................................... 39
Electric drive......................................................... 39
Motor .................................................................... 39
Contents

2
Mechanical drive .................................................. 39
Cranks.................................................................. 40
Chain.................................................................... 40
Changing gear...................................................... 42
Adjusting the gear system.................................... 42
Drive battery......................................................... 44
IPU750 ................................................................. 44
Charging the IPU750 ........................................... 46
Removing the IPU750 ........................................... 47
Installing the IPU750............................................ 47
Adjusting the tension on the drive battery............ 48
Storing the eMTB .................................................. 51
Handlebars, stem and headset ............................ 52
Adjusting the handlebars ..................................... 52
Headset ................................................................ 52
Stem..................................................................... 52
Adjusting the saddle ............................................ 53
Adjusting the Eightpins seat post ........................ 54
Adjusting the seat post – quick release lever....... 55
Adjustment of the seat post, clamping screw....... 55
Lowering the saddle ............................................ 55
Suspension - suspension fork.............................. 56
Adjusting the suspension fork .............................. 56
Compression damping.......................................... 57
Rebound damping ................................................ 57
Running gear - rear triangle ................................ 59
Adjusting the rear shock....................................... 59
Compression damping.......................................... 59
Rebound damping ................................................ 60
Testing the fork and shock settings...................... 61
Wheels and tyres .................................................. 62
Checks before every ride....................................... 62
Quick test ............................................................. 62
Front wheel........................................................... 63
Rear wheel............................................................ 64
Tyres ..................................................................... 65
Checking the tyres................................................ 65
Checking the spokes............................................. 65
Checking that the rims run true............................ 66
Transporting the ROTWILD eBike ......................... 67
Transporting the eBike by car............................... 67
Transporting the eBike by air................................ 68
Troubleshooting.................................................... 69
Warranty, wear and brake pads........................... 70
Wear parts excluded from the warranty ................ 70
Normal wear and tear........................................... 70
Brake pads ........................................................... 70
Cleaning ............................................................... 71
Recycling and disposal......................................... 71
Cleaning, packaging and disposal........................ 71
Packaging material............................................... 72
Service record ...................................................... 73
1. service .............................................................. 73
2. service .............................................................. 73
3. service .............................................................. 73
4. service .............................................................. 74
5. service .............................................................. 74
6. service .............................................................. 74
7. service .............................................................. 75
8. service .............................................................. 75
9. service .............................................................. 75
List of tables ......................................................... 76
Recommended tightening torques ........................ 76
EU Declaration of Conformity............................... 77
List of figures........................................................ 78

3
Dear customer,
Thank you for buying this eBike. You have chosen
a high-quality product.
This instruction manual contains information
about the safe use and maintenance of your
eBike. Please read the instruction manual
carefully before you go for your first ride,
so that you can find out about the risks
associated with the incorrect use of your eBike.
In this instruction manual it is not possible to
describe in detail all the maintenance that your
eBike needs. Therefore, you should also refer to
the enclosed instructions provided by our
component manufacturers and visit their
websites.
It is important that you care for and maintain
your eBike correctly. This will help to ensure that
it runs without problems and performs at its best.
This manual cannot teach you the skills you need
to be a bike mechanic. In addition, special tools
are needed for some jobs.
Therefore, you should have maintenance and
repairs carried out by the ROTWILD authorised
dealer that supplied your bike. You will find the
contact details and company stamp of the on the
back page of this original instruction manual.
If you are not able to contact the dealer, you will
find a list of other ROTWILD authorised dealers on
our website at www.rotwild.de.
ROTWILD is constantly developing and improving
its cycles and reserves the right to make changes
to the design, equipment and technology. For this
reason, you cannot make any legal claims on the
basis of the information, illustrations and
descriptions in this instruction manual.
The eBike is supplied almost completely pre-
assembled. Nevertheless we recommend that you
check the bike’s functions before riding it. Always
wear suitable safety clothing, including a helmet,
gloves and glasses.
Before you ride the bike on public roads, you
should check the regulations that apply in your
country and ensure that your eBike meets the
necessary requirements. You should also follow
the road traffic regulations and behave
considerately to avoid putting yourself and other
road users in danger.
The standard equipment required on bicycles in
other countries may differ from that in Germany.
In particular, the road traffic regulations may be
different.
Before you use your bike, find out about the
regulations that apply to cyclists and bikes on the
roads in your country.
When you use your eBike off road, you must
comply with the law in your country. We would
also ask you to respect nature and the
environment.
We at hope that you enjoy riding your new eBike.
Introduction

4
Requirements for riders
Please follow the national regulations in your
country.
Where no other legal requirements apply to riders
of electrically assisted bikes, we recommend that
the rider should be a minimum of 15 years old
and have experience of riding pedal-powered
bikes.
In addition, the rider must have the physical and
mental capability to ride a pedal-powered eBike.
You should only use your eBike for its intended
purpose (see the section “Proper use of the
eBike”). This will ensure that the eBike is always
ridden in accordance with the intended category
of use.
If the eBike is not used properly, this will
invalidate the warranty.
Make sure that you understand the technical
terms that are explained in this instruction
manual on the page where there is an overview of
your eBike.
Please note that this instruction manual does not
describe how to build a eBike from parts or how
to turn a partially assembled eBike into a
roadworthy bike.
Keep this manual in a safe place so that you can
carry out the function checks correctly at any
time. Parents should explain the contents of the
manual to their children if they do not understand
it.
Your ROTWILD authorised dealer will help you to
choose the right frame size for your height. The
eBike comes in different frame sizes. for people of
the following heights:

5
Safety information in the instruction
manual
The following types of safety instructions are
provided in this instruction manual:
Serious injuries or death.
If you do not follow the safety instructions in the
“Danger” category, you will suffer serious injuries
or death.
Serious injuries or death possible.
If you do not follow the safety instructions in the
“Warning” category, you could risk serious
injuries or death.
Moderate or minor injuries possible.
If you do not follow the safety instructions in the
“Caution” category, you could suffer moderate or
minor injuries.
Damage to property possible.
If you do not follow the safety instructions in the
“Note” category, you could cause damage to the
eBike.
Additional information, tips and notes come
under the heading “Information”. Please read
and follow them carefully.
Symbols on the product
Symbol Meaning
General warning. Refer to the owner’s
manual.
Separate disposal of electrical and
electronic equipment and batteries.
Do not burn.
(Do not burn). Do not open battery.
Device in protection class II. Read
instructions.
Keep at temperatures below 50°C and
out of direct sunlight.
Recyclable material.
Device in protection class II.
Fuse (device fuse).
Only for indoor use.
Safety

6
Current regulations
The eBike models described in this instruction
manual are electrically assisted (EPAC). They
meet the requirements of the EN 15194 standard,
among others.
This instruction manual complies with the
standards listed in the EU declaration of
conformity
that can be found at the end of the instruction
manual.
You should use only original spare parts and
accessories on your eBike. cannot be held liable
for any damage caused if other spare parts and
accessories are used.
Your ROTWILD authorised dealer will have a list of
approved accessories.
Before you fit accessories to your eBike, please
check with your dealer that they are permitted
and approved for road use.
Type plate
Figure 1:Sample type plate for ROTWILD electric power assisted cycles (EPACs)You will find the latest version of the instruction
manual for your eBike at:

7
Version of the product and edition of
the manual
This original instruction manual relates to the
2021 model year, which runs from August 2020 to
August 2021.
The manual was published in August 2020.
Manufacturer
The manufacturer of the eBikes is:
ADP ENGINEERING GMBH
Am Bauhof 5
64807 Dieburg, Germany
Tel.: [phone]
Fax: [phone] - 25
E-mail: [email protected]
Website: www.rotwild.de
Online Registration
Please register your ROTWILD eBike online at
www.rotwild.de. We will confirm immediately that
your warranty has started. Once you have
registered your product, you can request an
extended manufacturer’s warranty.
You will find more information in the ROTWILD
warranty terms at www.rotwild.de.
Copyright
© ADP ENGINEERING GMBH, 2020
This original instruction manual must not be
reproduced or distributed and its content must
not be used or communicated, unless specific
permission has been given. If you breach these
regulations, you will be liable for damages. All
rights reserved in the event of the registration of
a patent, utility model or industrial design.
Language
The original instruction manual is written in
German. Other language versions are
translations and are not valid without the
German original instruction manual.
Target group / users
This original instruction manual is intended for
the rider and operator of the ROTWILD eBike
described here.
The operator generally has the right of disposal
over the ROTWILD eBike and makes it available
for the rider to use and for the specialist dealer to
maintain and repair. If the eMTB is being test
ridden, hired out or loaned, for example, the
operator and the rider may be different people.
ROTWILD authorised dealers have trained staff
who are able to identify and prevent the risks that
can occur when maintaining and repairing the
ROTWILD eBike.
Product and type designation
This original instruction manual applies to the
following ROTWILD eBikes:
RC750HT21 / RC750FS21 / RC750UFS21 /
RX750FS21 / RX750UFS21 / RE750FS21 /
RT750HT21 / RT750FS21
The eBike does not have a separate emergency
stop or shut-off button.
The bike can be shut down by removing the
battery or taking the connector out of the drive
system.
General information

8
Power
The power is switched off as soon as the rider
stops pedalling. The eBike can be stopped
mechanically using the brakes. The brake system
is not connected to the drive system.
When support mode is switched on, the drive
system responds to the smallest pressure on the
pedals.
When you get off the bike, you should apply the
brakes to prevent it from rolling away and to
reduce the risk of an accident.
Pushing aid mode
When the pushing aid mode is switched on, the
drive train will disconnect as soon as you release
the walk-assist button.
The drive system does not switch off when you
apply the brakes, which means that it is always
available.
Figure 2: Applying the brakes / pulling away
The eBike must only be switched on if the rider is
ready to apply the brakes, in other words, if he or
she can reach at least one of the brakes.
Figure 3: ON/OFF switch
The eBike must be switched off as soon as the
rider is no longer able to apply the brakes.
Emergency stop

9

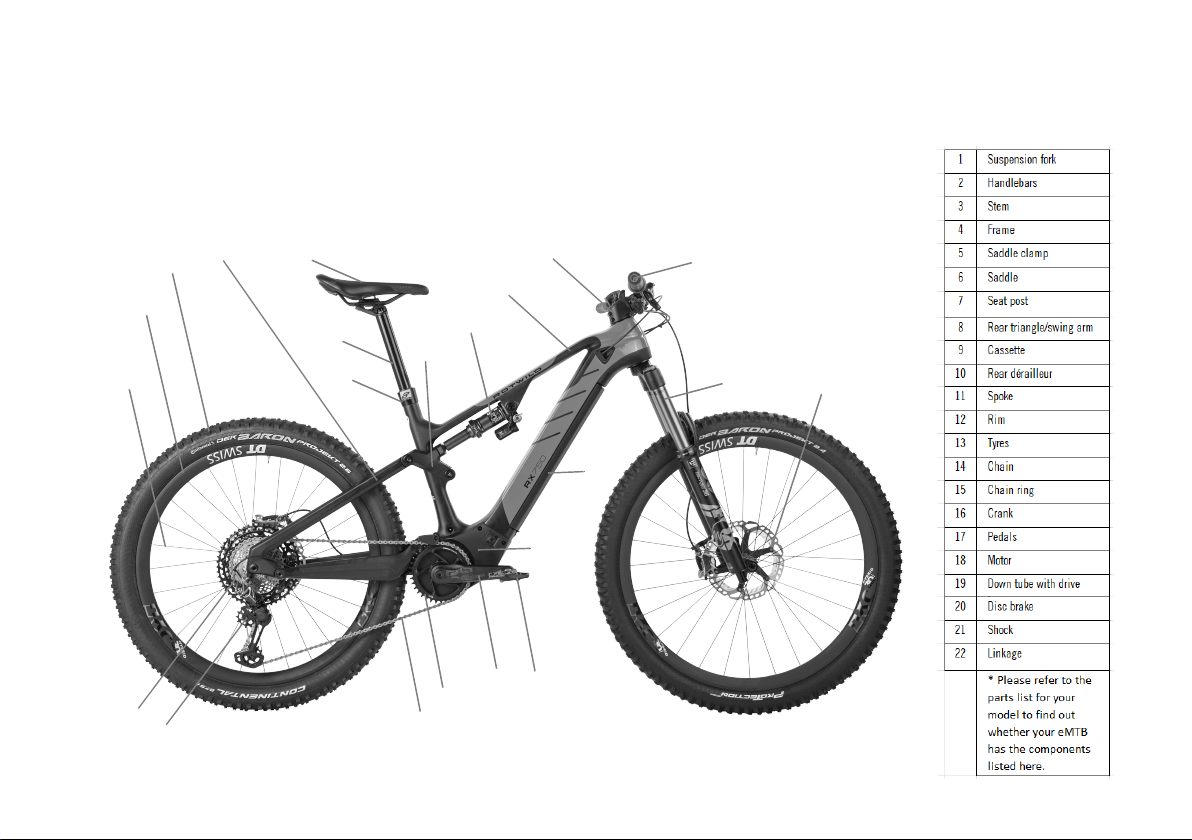

Figure 4: Detailed information about the ROTWILD e-
MTB
11
12
13
9
10
8
7
5
6
21
22
14
15
16 17
18
19
20
1
2
3
4
Detailed information

10
The frame of the eBike is made by hand from
high-quality carbon fibre composite and is
designed to be robust enough for the intended
category of use of the eBike (see the section
“Proper use of the eBike”).
Damage to the frame caused by excessive
stresses, accidents or crashes.
A damaged frame can suddenly fail and cause a
crash. If your eBike is damaged or if you have had
an accident or a crash, contact your ROTWILD
authorised dealer.
The eBike has a modern, lightweight design and
its components have a limited life span. Different
materials and components react in different
ways to wear and fatigue caused by stress. If a
component exceeds its design service life, it can
suddenly fail. This may result in the rider being
injured.
Specific information about carbon. Please note
that carbon and aluminium behave in a
fundamentally different way when damaged.
Unlike aluminium, when carbon is overstressed it
does not become dented or deformed.
The effects of damage to carbon are generally
internal and invisible (cracks). After a crash, the
frame and front wheel fork must be checked by a
dealer and replaced if the carbon structure has
been damaged. Carbon components can
suddenly fail as a result of damage.
If the fibres have broken, take care when
handling the material. The fine carbon fibres can
cause injuries.
Components made from carbon must never be
straightened after they have been damaged. They
must be replaced immediately. Paint damage
must be repaired to prevent the material from
absorbing moisture, which could have a negative
impact on its properties. Please note that carbon
fibre is highly sensitive to pressure when
clamped (for example the saddle and dérailleur
clamps).
Important information

11
Always use a torque wrench and note the
recommended tightening torques (see the section
“Recommended tightening torques”).
Keep the contact surfaces of the carbon free of
grease. Use special carbon assembly paste
(available from bike dealers). Never clamp a
carbon frame in a stand (when maintaining the
bike) or in a roof rack. Only use the seat post for
this purpose, providing that it is not made from
carbon fibre.
Make sure that carbon components do not get too
hot, for example if exposed to sunlight in a car.
We recommend that you do not paint or powder
coat your frame or front wheel fork. These
processes can involve high temperatures which
could damage or destroy the components.
If you have had the frame or fork partially
repainted, you must ask your ROTWILD authorised
dealer to check them.
Material fatigue in carbon components.
Carbon components that are exposed to high
levels of stress, such as handlebars, stems and
seat posts, can suffer from material fatigue in
the same way as metal parts.
Have your bike serviced regularly at the
recommended intervals so that these
components can be checked.
Using damaged carbon components.
If carbon frames, carbon forks or other carbon
components make cracking noises or if you can
see cracks, nicks or dents, you must stop using
them. Damaged carbon components can
suddenly fail and cause a crash.
The damaged carbon components must be
replaced immediately.
Your ROTWILD dealer will clean the eBike
thoroughly and check it for signs of material
fatigue.
If you notice any signs of material fatigue while
you are using the bike, you must stop using it
immediately and ask your ROTWILD authorised
dealer to check it.

12
Using the eMTB properly includes following the
instructions on operating, maintaining and
servicing the bike in this instruction manual. The
instruction manual has been written specifically
for your ROTWILD eBike, but cannot describe your
ROTWILD eBike down to the smallest detail.
The ROTWILD eBike is an electric mountain bike.
The models described in this manual are
designed for private use on paved roads and
paths and for off-road riding in accordance with
the specified category of use. They are intended
to transport one person. See the section
"Categories of use".
Safety information
If you do not follow the safety instructions in this
instruction manual, you run the risk of the eBike
breaking down. ROTWILD will not be liable for the
resulting damage.
The total permitted weight of the ROTWILD eBike,
including the rider and any luggage, is shown on
the type plate of the eBike.
Using child seats and child trailers.
ROTWILD eBikes are not approved for child seats
or for towing child trailers. Do not use child seats
or child trailers.
Your ROTWILD authorised dealer will have a list of
approved accessories.
If the drive system is switched on,
bags or loads can activate the pushing aid mode.
They can also interfere with other functions, such
as braking.
Overloading the eBike.
Overloading the eBike can cause safety-related
components to break or fail (for example the
frame, front wheel fork, handlebars, stem, seat
post etc.). Do not exceed the total permitted
weight under any circumstances. Never take a
second person on the bike.
You must not use the eBike if it is damaged or
incomplete, for example if the drive battery has
been removed.
Proper use of the eMTB

13
Uncontrolled riding.
By failing to fasten loads properly and riding
carelessly you can put yourself and other road
users at risk. You can lose control of the eBike. Do
not transport bags or other loads on the
handlebars. Do not ride with your hands off the
handlebars. Only ride on suitable surfaces that
have sufficient grip.
Kickstands / centre stands.
The ROTWILD models with the type designation
specified on the cover can only be fitted with a
kickstand if the ROTWILD stand adapter (
available from ROTWILD authorised dealers) is
used to fit it.
Using the eMTB in any other way does not
constitute proper use.
ROTWILD will not accept liability if the eMTB is
not used properly. This will also invalidate the
warranty. This includes lending the eBike to a
rider who is not familiar with it, transporting
more than one person, riding with excessive
luggage, riding with your hands off the
handlebars, riding on unsuitable surfaces (ice or
snow) and incorrect maintenance or repairs.
You must not hang shopping bags or similar
loads on the handlebars.
Problems while using the eMTB
If you notice unusual noises, vibrations, smells,
discolouration, deformed components, friction or
wear while riding or maintaining the eBike or
while charging the drive battery, you must stop
using it and take it to your ROTWILD authorised
dealer. The same applies if the bike feels
different, for example during braking, pedalling
or steering.
Please follow the instructions for use and
assembly provided by the component
manufacturers which are included with your
eBike, together with the instruction manual for
use on the component manufacturers’ websites.
Your ROTWILD authorised dealer will be happy to
answer any further questions you may have.
The various ROTWILD models are suitable/
designed for different categories of use:

14
Category 1This is a set of conditions for the operation of a
bicycle on a regular paved surface where the tires
are intended to maintain ground contact.
Category 2TYPE RC750HT21 / RT750FS21
TYPE RT750HT21
This is a set of conditions for the
operation of a bicycle that includes Condition 1
as well as unpaved and gravel roads and trails
with moderate grades. In this set of conditions,
contact with irregular terrain and loss of tire
contact with the ground may occur. Drops are
intended to be limited to 15 cm (6 in.) or less. The
tyres may briefly lose contact with the ground.
Jumps and drops are restricted to a maximum
height of 15 cm.
Category 3TYPE RC750HT21 / RT750FS21
This is a set of conditions for the
operation of a bicycle that includes
Condition 1 and Condition 2 as well
as rough trails, rough unpaved roads, and rough
terrain and unimproved trails that require
technical skills. Jumps and drops are intended to
be less than 61 cm (24 in.). A good riding
technique is needed. Jumps and drops are
restricted to a maximum height of 61 cm.
Category 4TYPE RC750FS21 / RC750UFS21 /
RX750FS21 / RX750UFS21 /
RE750FS21
This is a set of conditions for the
operation of a bicycle that includes Conditions 1
to 3 and riding downhill on rough trails at a speed
of up to 40 km/h. Jumps and drops are restricted
to a maximum height of 122 cm.
Using the eMTB
Only use the ROTWILD eBike in the manner
described in this instruction manual.
Any other type of use constitutes improper use
and can lead to accidents, injuries or damage to
property. The ROTWILD eBike is not a toy.
The manufacturer and the dealer accept no
liability for damage caused by improper or
incorrect use.
The Brose Allround operating system is on the left
of the handlebars when you are sitting on the
bike.



Categories of use

15
Display screen
Figure 1: Overview of the fields on the display.
Description of the functions
The operating system has four buttons and a
rocker switch. The functions are as follows:
On/off button (1)
The on/off button (1) located in the eMTB’s
direction of travel is used to switch the ROTWILD
e-MTB on and off. Hold the button down for
approx. 2 seconds to switch the eMTB off. If the
ROTWILD e-MTB has not been used for approx. 15
minutes, the system switches off automatically
to save energy.
Menu button (2)
On the display, you can switch between different
pieces of information about your ride by pressing
the menu button (2).
To access the menu, hold down the menu button
(2) for two seconds. You can navigate through the
list items with the rocker switch (4) and then
select them by pressing the menu button (2).
The menu cannot be accessed while you are
riding your eBike.
Light button (3)
When you press the light button (3), the light
symbol appears on the display and the eMTB
lights are switched on, if your bike has this
option.
Rocker switch (+/-) (4)
The rocker switch (4) is used to select the
different levels of support. If you press the "+”
button, you increase the level of support. To
reduce the level of support, you press the "-"
button.
Pushing aid mode (5)
Pushing aid mode is switched on by pressing and
holding the pushing aid button (5).
Using pushing aid mode.
You must steer the eMTB using both hands in
pushing aid mode.
Please note that because of the design of the
bike, the pedals may turn, so you should leave
enough space for them to move. The power and
speed of pushing aid mode can be adjusted by
selecting a different gear. Brose Allround operating system

16

17
R.T750 HT TOUR
HEADSET ACROS RW750 1.5 HEADSET W/ BLOCK LOCK COLOUR BLACK
FORK SR SUNTOUR RAIDON 34 BOOST 100 LOR DS TOTAL PERMITTED WEIGHT ASTM2 - 130 KG
HANDLEBARS (S/M/L/XL) B280 AL7075 (35-740/740/780/780)
STEM (S/M/L/XL) S240 AL6061 (50)
DISPLAY BROSE ALLROUND / CONNECT C READY
SEAT POST CRANKBROTHERS HIGHLINE
Ø34.9 OFFSET 34.9x100(S)/125(M/L/XL) TRAVEL
SADDLE ERGON SM-E MOUNTAIN SPORT
HANDLEBAR GRIPS ERGON GA30 SPORTIVE WING
DRIVE TRAIN BROSE DRIVE S MAG AIR COOLER
BATTERY IPU750 // 4,5A CHARGER
CRANK E13 PLUS (165(S)/170(M/L/XL)) // E13 DM 38T
CHAIN GUIDE ROTWILD SL750
SHIFTING LEVER SHIMANO XT
REAR DERAILLEUR SHIMANO XT 8100 SGS STANDARD PLUS
CHAIN SHIMANO HG 7100 12-SPEED
CASSETTE SHIMANO CS 6100 10-51T. 12-SPEED
BRAKES SHIMANO 520/500
DISC ROTOR SHIMANO RT64/EM600 SENSOR 203/203
WHEELS DT SWISS H1900 SPLINE (30) 110-15QR/148-12 TA CL
TYRES SCHWALBE RACING RAY / RACING RALPH EVO - SUPER TERRAIN TLE 29x2.35
CITY KIT SUPERNOVA M99 MINI PRO HIGH BEAM / SUPERNOVA M99 TL2 LED TAIL LIGHT
CURANA FENDER / PANNIER CARRIER / BELL / KICKSTAND
Technical data

18
R.T750 FS TOUR
SUSPENSION
ELEMENT
SR SUNTOUR EDGE LOR TRUNNION 185Tx50 BRAKES SHIMANO 520/500
HEADSET ACROS RW750 1.5 HEADSET W/ BLOCK LOCK DISC ROTOR SHIMANO RT64/EM600 SENSOR 203/203
FORK SR SUNTOUR RAIDON 34 BOOST 130 LOR DS WHEELS DT SWISS H1900 SPLINE (30) 110-15QR/148-12 TA CL
HANDLEBARS (S/M/L/
XL)
B280 AL7075 (35-740/740/780/780) TYRES SCHWALBE RACING RAY / RACING RALPH EVO - SUPER TERRAIN
TLE 29x2.35
STEM (S/M/L/XL) S240 AL6061 (50) CITY KIT SUPERNOVA M99 MINI PRO HIGH BEAM, SUPERNOVA M99 TL2 LED
TAIL LIGHT
DISPLAY BROSE ALLROUND / CONNECT C READY CURANA FENDER / PANNIER CARRIER, BELL,KICKSTAND
SEAT POST CRANKBROTHERS HIGHLINE COLOUR BLACK
Ø34.9 OFFSET 34.9x100(S)/125(M)/150(L/XL) TRAVEL TOTAL PERMITTED WEIGHT ASTM3 - 130 KG
SADDLE ERGON SM-E MOUNTAIN SPORT
HANDLEBAR GRIPS ERGON GA30 SPORTIVE WING
DRIVE TRAIN BROSE DRIVE S MAG AIR COOLER
BATTERY IPU750 // 4,5A CHARGER
CRANK E13 PLUS (165(S)/170(M/L/XL)) // E13 DM 36T
CHAIN GUIDE ROTWILD SL750
SHIFTING LEVER SHIMANO XT
REAR DERAILLEUR SHIMANO XT 8100 SGS STANDARD PLUS
CHAIN SHIMANO HG 7100 12-SPEED
CASSETTE SHIMANO CS 6100 10-51T. 12-SPEED
Technical data

19
R.C750 HT CORE
HEADSET ACROS RW750 1.5 HEADSET W/ BLOCK LOCK
FORK DT SWISS F535 ONE 120 APT LINEAIR/COILPAIR / INCONTROL/PLUSHPORT
HANDLEBARS (S/M/L/XL) B280 AL7075 (15-740/740/780/780)
STEM (S/M/L/XL) S240 AL6061 / ML READY (50)
DISPLAY BROSE ALLROUND / CONNECT C READY
SEAT POST CRANKBROTHERS HIGHLINE
Ø34.9 OFFSET 34.9x125(S)/150(M/L/XL) TRAVEL
SADDLE ERGON SM MOUNTAIN SPORT
HANDLEBAR GRIPS ERGON GD10 SLIM FACTORY FROZEN
DRIVE TRAIN BROSE DRIVE S MAG AIR COOLER
BATTERY IPU750 // 4,5A CHARGER
CRANK E13 PLUS 165(S/M)/170(L/XL) // E13 DM 36T
CHAIN GUIDE ROTWILD SL750
SHIFTING LEVER SHIMANO XT I-SPEC EV
REAR DERAILLEUR SHIMANO XT 8100 SGS STANDARD PLUS
CHAIN SHIMANO HG 7100 12-SPEED
CASSETTE SHIMANO CS 6100 10-51T. 12-SPEED
BRAKES MAGURA MT5 HC1 / SHIFTMIX
DISC ROTOR MAGURA MDR-P SENSOR 203/203
WHEELS DT SWISS H1900 SPLINE (30) 110-15/148-12 TAS 6-BOLT
TYRES SCHWALBE NOBBY NIC EVO - SUPER GROUND TLE SPEEDGRIP 29x2.35
COLOUR COOL WHITE
TOTAL PERMITTED WEIGHT ASTM3 - 130 KG
