Royal Sovereign ARP-7014 User manual

Royal Sovereign International, Inc
PORTABLE AIR CONDITIONER
PORTÁTIL DE AIRE ACONDICIONADO
Página en Español 13
Read and retain these instructions for future reference
ARP-7014
OWNER’S MANUAL
PORTABLE AIR CONDITIONER

PORTABLE AIR CONDITIONER
ARP-7014
INTRODUCTION
Thank you for choosing Royal Sovereign to provide you and your family with all of the “Home Comfort” requirements for your home, apartment, or office. This Portable Air
Conditioner can be set-up in just minutes and can be easily moved from room to room. It is a multi-functional room air comfort system that offers you Air Conditioning,
Dehumidification and Air Circulation modes. This manual will provide you with valuable information necessary for the proper care and maintenance for your new appliance.
Please take a few moments and read the instructions thoroughly. If properly maintained, your appliance will give you many years of troublefree operation.

Page
Safety Awareness  4
Identification Of Parts  5
Appearance and Function of Control Panel  6
Appearance and Function of Remote Controller  6
Introduction  7
Installation  9
Maintenance  9
Troubleshooting  10
Technical Specifications  11
Warranty  12
Página en Español  13
CONTENTS

4
SAFETY AWARENESS
Electrical Specifications and Power Cord
Check to ensure that the electrical service being used is adequate for the model you’ve chosen. The electrical rating of your new
air conditioner is defined on the serial plate of the unit. Please refer to the rating when checking electrical requirements to ensure
they meet the electrical codes of your location.






have a qualified electrician install the proper outlet.


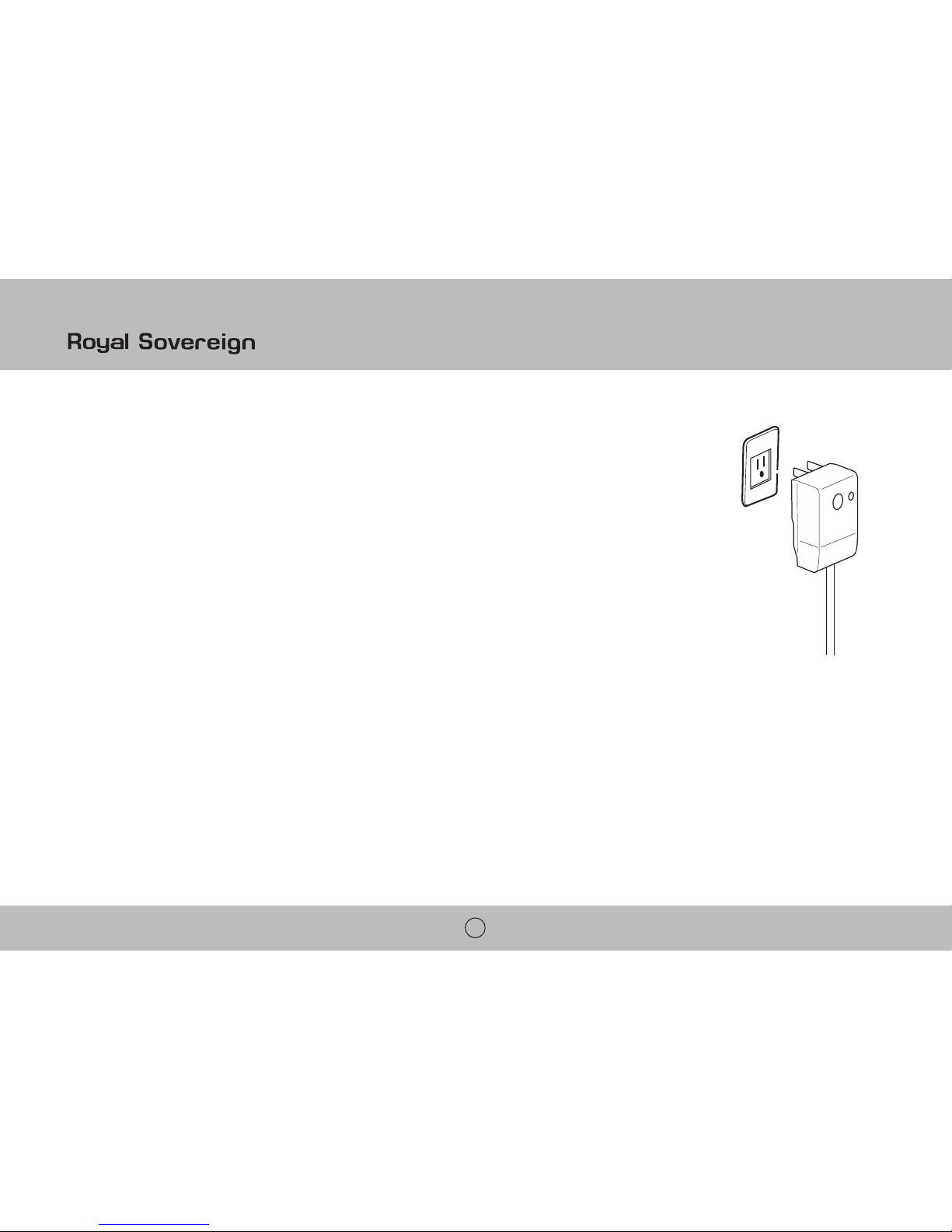

• Do not use this unit with any extension cords or adapter plugs.



General Use







ARP-7014
5
1
2
3
5
6
7
8 9 10 11 12
13

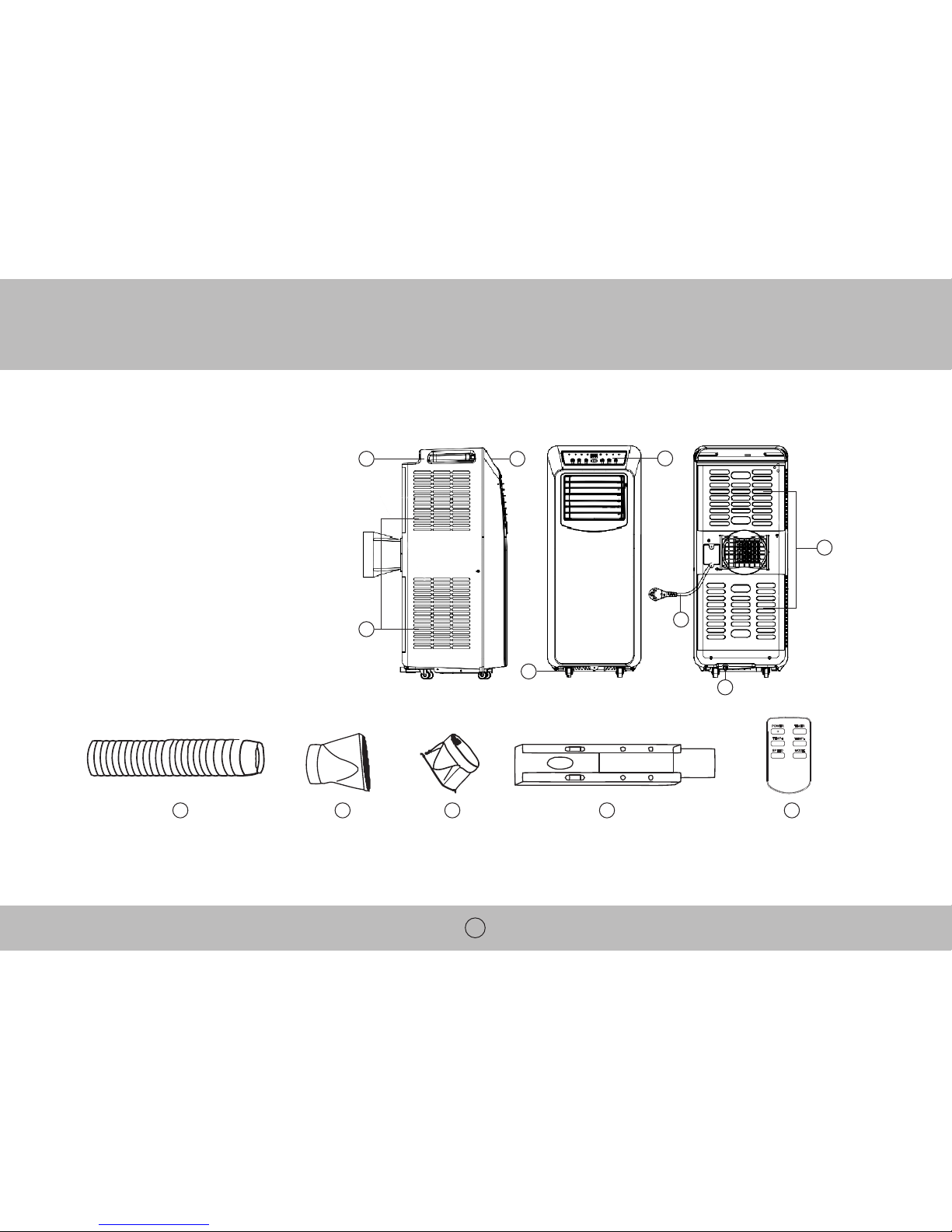

IDENTIFICATION OF PARTS
1. Rear cover
2. Air inlet
3. Front cover
4. Operation panel
5. Castor
6. Power line
7. Air inlet



11. Window kit
12. Remote control
13. Drain plug
After unpacking, please check whether the above mentioned accessories are included, and check their purposes in the installation introduction in this manual.
4
POWER TIMER
TEMP+ TEMP-
MODESPEED
Fig.1
Fig.2

6
APPEARANCE AND FUNCTION OF CONTROL PANEL
1. POWER button
2. TEMPERATURE+ button
3. TEMPERATURE- button

5. OPERATION MODE button
6. FAN SPEED ADJUSTMENT button
7.TIMER ON/OFF button
APPEARANCE AND FUNCTION OF REMOTE CONTROLLER
1. POWER button
Press this button will turn the machine ON or OFF.
2. TIMER button
Press to set the time for timed switch-on or switch-off.
3. TEMPERATURE/TIMER buttons
Use these buttons to set the desired temperature.
The buttons are also used for setting the On-Timer and Off-Timer.
4. SPEED button
Press this button will choose high or low speed of air delivery.
5. MODE button
Press this button will select among the modes of fan, cooling, dry.
6. Battery compartment

1
1
2
2
3
3
4
4
5
5
6
6
POWER TIMER
TEMP+ TEMP-
MODESPEED
7
Fig.3
Fig.4

ARP-7014
7
INTRODUCTION
Before starting operations in this section:




Before using
Notice: Operation temperature range:
Maximum cooling Minimum cooling
℉95/75 64/54




Cautions for cooling and dehumidifying operations:






Conduct a Power Plug Check:





Fig.5 Fig.5a
Fig.6
drain hose
←

8
Cooling operation

℉-90℉

Dehumidifying operation

Fan operation


Timer operation
Timer ON setting:



Timer OFF setting



Drainage
Internal Tank Water Full Alarm Function
The inner water tank in the air conditioner has one water level safety switch, it controls water level. When the water level reaches an anticipated height, the water full indicator lamp

Continuous Drainge






ARP-7014
9
INSTALLATION
Installation Explanations:


Introduction to Exhaust Hose Installation
Temporary installation



Window Slider Kit Installation

the window slider on the inside edge of the window. Adjust the window slider to the width of the

MAINTENANCE
Declaration:




1.Air Filter
 If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks.
 Dismounting Open the air inlet grille and take off air filter.
Cleaning ℉
• Mounting Put the air filter into the inlet grille, replace the components as they were.
2.Cleaning Air Conditioner Surface
First clean the surface with a neutral detergent and wet cloth, and then wipe it with a dry cloth.
Fig.9 Fig.9a
Fig.10

min: 2.75 ' 
 ' 

min: 2.75 ' 
 ' 
Fig.7 Fig.8
drain hose
←
30cm
30cm

10
TROUBLESHOOTING
Problem Possible Suggested Remedies
Unit does not start
when pressing
power button
Unit does not start when pressing power button. Check and reset the power plug. Wait 3 minutes and try to run
the unit again.
Water full indicator lamp blinks, and water tank is full. 
 Reset the temperature.
 Reset the temperature.
Not cool enough
The doors or windows are not closed. P
free of curves as possible to avoid bottlenecks .
There are heat sources inside the room. Check and remove any obstacles obstructing air discharge.
 
Temperature setting is too high. Reset the temperature.
Air inlet is blocked. Clean the air inlet.
Noisy
The ground is not level or not flat enough. Place the unit on a flat, level ground if possible
The sound comes from the flowing of the refrigerant inside the air conditioner. It is normal.
E1 Code Room temperature sensor failed. Replace room temperature sensor

E2 Code Water tank full. Please empty the water tank.
E3 Code Pipe defrost sensor failed. Replace pipe defrost sensor


ARP-7014
11
TECHNICAL SPECIFICATIONS

Description of Product ARP-7014
 14000 BTU
 
Input Power 1340 W
Operating Sound Level 52 dB
Timer 24 hours
Coolant R410 A
Dimensions 13.6 "  "  "
Weight 58 lb
“Electrical waste products should not be disposed of with household waste.


12
ROYAL SOVEREIGN INTERNATIONAL, INC.


www.royalsovereign.com
RS CANADA INC.
5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA

www.royalsovereign.ca
WARRANTY
Full One Year Warranty
Royal Sovereign warrants each Portable Air Conditioner to be free from defects in material and workmanship. Our obligation under this warranty is limited to the repair or

in effect to the original purchaser, for a period of one year from the date of purchase and is not transferable. This warranty shall apply only if the air conditioner is used on

Limited Five Year Warranty (Compressor)
For a period of five years from the date of purchase, when this Royal Sovereign Portable Air Conditioner is operated and maintained according to the instruction manual provided

material. If repair becomes necessary, please contact our customer service center. You will be responsible for all freight, insurance, and any other transportation charges to get the
unit to our factory or service center. If shipping is required, be sure to pack the unit properly to avoid shipping damages, as we will not be responsible for such damages.
Exclusions

centers, mishandling, improper installation, modification or unreasonable use including incorrect voltage, acts of God, or failure to provide reasonable and necessary maintenance.


rights which vary from state to state.

Royal Sovereign International, Inc
PORTÁTIL DE AIRE ACONDICIONADO
Página en Español 13
Lea y conserve estas instrucciones para referencia futura.
Para cualquier asistencia al cliente las necesidades, por favor, seleccione la pestaña de soporte en
www.royalsovereign.com
ARP-7014
MANUAL DEL USUARIO
PORTÁTIL DE AIRE ACONDICIONADO

PORTÁTIL DE AIRE ACONDICIONADO
ARP-7014
Introducción
Gracias por elegir Royal Sovereign para brindarle a usted ya su familia con todas las de la "Casa Confort" los requisitos para su casa,apartamento u oficina. Este
acondicionador de aire portátil puede ser puesta en marcha en cuestión de minutos y se pueden mover fácilmente de una habitación a otra. Es un aire multi-funcional sala de
sistema de confort que le ofrece aire acondicionado, deshumidificación y los modos de circulación de aire. Este manual le proporcionará valiosa información necesaria para el
cuidado y mantenimiento para su nuevo aparato. Porfavor, tómese unos minutos y lea las instrucciones cuidadosamente. Si el mantenimiento adecuado, el aparato le dará
muchos años de operación libre de problemas.

Page
Conciencia de Seguridad  16
 17
Apariencia y Función del Panel de control  18
Apariencia y Función del regulador alejado  18
Introducción  19
Instalación  21
Mantenimiento  21
Solución de problemas  22
Especificaciones técnicas  23
Garantía  24
CONTENIDOS

16
CONCIENCIA DE SEGURIDAD
Especificaciones eléctricas y cable de alimentación

acondicionador de aire nuevo se define en la placa de serie de la unidad. Por favor refiérase a la calificación al comprobar







o un interruptor de circuito, usted debe tener un electricista calificado instale un tomacorriente adecuado.

su uso para confirmar la operación normal.
No utilice esta unidad con todos los cables de extensión o adaptador de enchufe.



apague la unidad y desenchufe.
Uso General







ARP-7014
17
1
2
3
5
6
7
8 9 10 11 12
13
IDENTIFICACIÓN DE LAS PIEZAS
1. Cubierta trasera
2. Entrada de aire
3. Cubierta frontal
4. Panel de operaciones
5. Castor
6. Línea eléctrica
7. Entrada de aire



11. Kit de la ventana
12. Mando a distancia
13. Tapón de drenaje
Después de desembalar, compruebe si se incluyen los accesorios antes mencionados, y comprobar sus efectos en la introducción de instalación de este manual.
4
POWER TIMER
TEMP+ TEMP-
MODESPEED
Fig.1
Fig.2

18
APARIENCIA Y FUNCIÓN DEL PANEL DE CONTROL
1. Botón POWER
2. Botón TEMPERATURA +
3. Botón TEMPERATURA -

5. Botón MODO FUNCIONAMIENTO

7. Botón TIMER ON / OFF
APARIENCIA Y FUNCIÓN DEL REGULADOR ALEJADO
1. Botón POWER
Pulse este botón para encender la máquina o NO.
2. Botón TIMER

3. Botones de TEMPERATURA / TIMER
Utilice estos botones para ajustar la temperatura deseada.


Pulse este botón seleccionará alta o baja velocidad de la entrega de aire.
5. Botón MODE
Pulse este botón para seleccionar entre los modos de ventilador, enfriamiento y seco.
6. Compartimiento de la batería

1
1
2
2
3
3
4
4
5
5
6
6
POWER TIMER
TEMP+ TEMP-
MODESPEED
7
Fig.3
Fig.4

ARP-7014
19
INTRODUCCIÓN
Antes de iniciar las operaciones en esta sección:




Antes de utilizar
Aviso: Rango de temperatura de funcionamiento:
Refrigeración máxima Refrigeración mínima
℉95/75 64/54




Precauciones para la refrigeración y deshumidificación de op eraciones :

nuevamente de enfriamiento.





Llevar a cabo una alimentación Enchufe Check:





Fig.5 Fig.5a
Fig.6
manguera de drenaje
←

20
Operación de refrigeración

℉- 90℉

Operación de deshumidificación

El funcionamiento del ventilador


Duncionamiento del temporizador
Timer ON Ajuste:



Temporizador de establecer



Drenaje
Tanque interno de agua completa función de alarma



Continuo drainge

drenaje de la parte inferior Clip de fijación. Toda el agua en el tanque de agua se drene fuera.


favor conecte una manguera de drenaje de la parte inferior Clip de fijación, entonces toda el agua en el tanque de agua drene fuera. La unidad también puede funcionar bien.
