Royal Sovereign RSC-1400C User manual

www.royalsovereign.com
ROLL LAMINATOR
Service Manual

3 ~ 3
4 ~ 6
4 ~ 4
5 ~ 6
7 ~ 9
7 ~ 8
8 ~ 8
8 ~ 8
8 ~ 9
9 ~ 9
9 ~ 9
10 ~ 10
10 ~ 10
10 ~ 10
11 ~ 11
12 ~ 15
12 ~ 15
16 ~ 23
16 ~ 23
24 ~ 26
2.1) Rollers Not Running ……………….………………………………………………………………
2.2) No Main Power ……………………..………………………………………………………………
Table of Contents
1. Safety Precautions ………………………………………………………………………
2. Troubleshooting ……………………………………………………………………………
3.4) Main PCB ……………………………………………………………………………………………
3.5) Sub PCB ………………………………………………………………………………………………
3.6) Cross Cutter …………………………………………………………………………………………
3. Replacing Parts ………………………………………………………………………………
3.1) Right Cover …………………………………………………………………………………………
3.2) Left Cover …………………………………………………………………………………………
3.3) Rear Cover …………………………………………………………………………………………
2
6. Parts List …………………………………………………………………………………………
6.1) RSC-1400C Parts List ………………………………………………………………………………
7. Exploded Drawings ………………………………………………………………………
7.1) RSC-1400C Whole Exploding Drawing and Part Exploding Drawing ……………………
8. Wire Diagram …………………………………………………………………………………
4. Adjustments ……………………………………………………………………………………
4.1) Adjusting Take-Up Shaft Speed ……….…………………………………………………………
4.2) Adjusting Front Roller ……………………………………………………………………………
5. Installation of Options ……………………………………………...……………………

3 ~ 7
9 ~ 10
10 ~ 11
11 ~ 11
12 ~ 12
12 ~ 12
12 ~ 12
13 ~ 13
14 ~ 21
14 ~ 17
18 ~ 21
22 ~ 36
3
1. Safety Precautions
Safety Precaution
Failure to comply any of the following safety procedures could result in serious injury.
Please read the instructions carefully and keep for future reference.
1. Only a licensed electrician should install wiring and outlet for the laminator.
2. Ensure the unit is plugged into a properly grounded outlet with the correct
voltage.
3. Keep hands and clothing (ie.Neckties) away from the rollers. The rollers have pinch
points that can trap body parts or clothing and cause serious injury.
4. Keep flammable and wet objects away from the machine.
5. Place machine on a level surface.
6. Avoid excessive sunlight, humidity and extreme temperatures.
7. Ensure the unit is turned off, cooled, and unplugged from the outlet prior to
moving and/or repairing.
8. Keep out of reach of children.
9. Only Royal Sovereign authorized maintenance and service technicians should
make repairs.
10. Do not attempt to laminate items that exceed total recommended material
thickness for the unit.
11. When cleaning the machine, don't use flammable sprays or materials.
12. Do not touch the rollers when they are hot or place foreign objects inside the
machine.
13. Do not cover the surface of the machine until the machine has completely cooled.

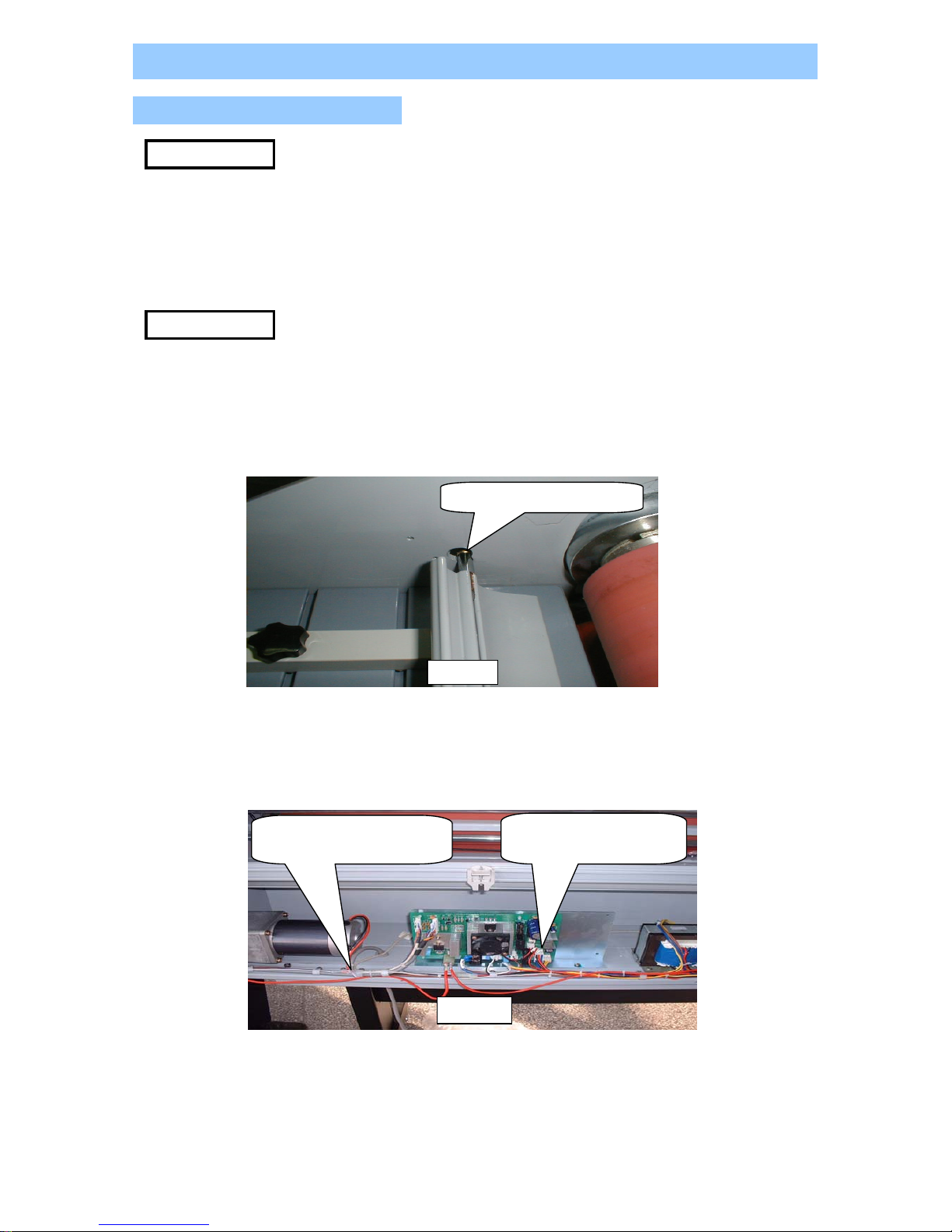

2.1) Rollers Not Running
1. Emergency Switches are Active.
2. Pressure Plate is not in Proper Position.
3. Film is Jammed on the Rollers.
4. Main Motor Wires are Disconnected.
5. Defective Main PCB.
6. Defective Main Motor.
1. Emergency Switch is (are) Active.
2. Pressure Plate is not in Proper Position.
a) Ensure that the Pressure Plate is in the proper position and the
Pressure Plate switch is active. Figure 1
3. Film is Jammed on the Rollers.
a) Carefully un-jam the film from the rollers.
4. Main Motor Wires are Disconnected.
a) Ensure that the wire is connected properly. Figure 2
5. Defective Main PCB.
a) Replace the Main PCB.
6. Defective Main Motor.
a) Replace the Main Motor.
2. Troubleshooting
a) Deactivate front and rear emergency switches.
MEASURES
4
CAUSES
Pressure Plate Switch
Figure 1
Motor wire connector
from the Motor Motor wire connector
from the PCB
Figure 2

2.2) No Main Power
1. Main Power is Not Turned On.
2. No Power from the Outlet.
3. Defective Main Fuse.
4. Control Panel (Sub-PCB) Wire is Not Connected.
5. Disconnected Main Power Wire.
6. Defective Transformer.
1. Main Power is Not Turned On.
a) Turn on the power switch which is located on the rear left.
2. No Power from the Outlet.
a) Ensure there is power on the outlet - check the circuit breaker.
3. Defective Main Fuse.
a) Using Multi-Meter test the continuity of the Main Fuse. If it fails, replace it. Figure 1
4. Control Panel (Sub-PCB) Wire is Not Connected.
a) Ensure that the control wires are connected to the Control Panel (Sub-PCB).
5. Disconnected Main Power Wire.
a) Connect the Main Power wires. Figure 2
CAUSES
5
MEASURES
Main Fuse
Figure 1
Main Power wires
Figure 2

6. Defective Transformer.
a) Replace the Transformer. Figure 3
6
Transformer
Figure 3

NOTE : Before replacing any parts, ensure that the machine is turned off and

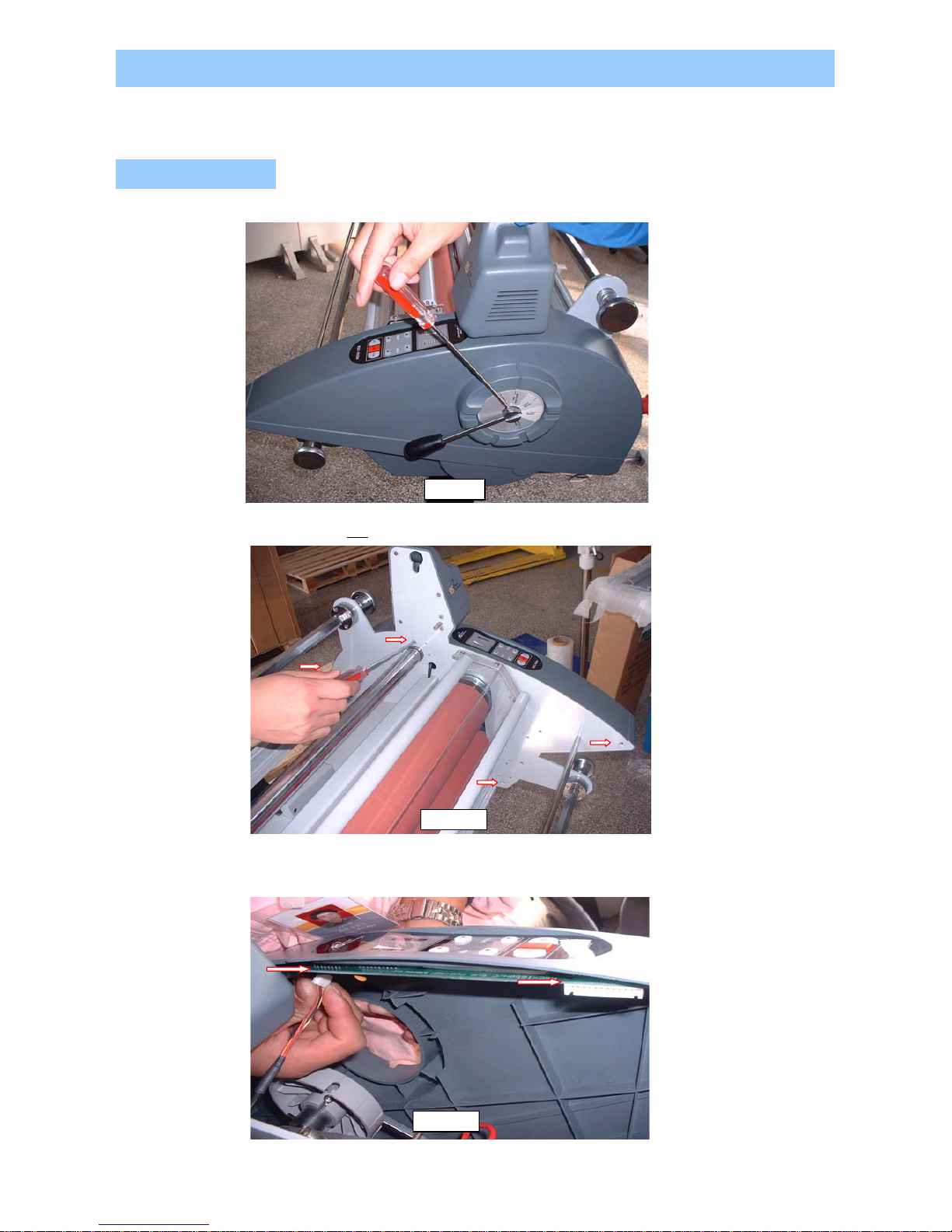

3.1 Right Cover
1. Using Philips Screw Driver, loosen the screw on the Pressure Lever. Figure 1
2. Take out the four screws as shown in Figure 2.
3. Disconnect control wires from the Sub-PCB. Figure 3
3. Replacing Parts
unplugged from the outlet.
7
Figure 1
Figure 2
Figure 3

4. Take out two Sub-PCB screws. Figure 4
5) Repeat the steps in reverse to assemble the Right Cover.
3.2 Left Cover
1. Take out four screws on the Left Cover.
3.3 Rear Cover
1. Disassemble the Left and Right Covers.
2. Take out the side screws - one on each side. Figure 5
3. Loosen eight Rear Cover screws. Figure 5
3.4 Main PCB
1. Pull out all the connectors from the main PCB. Figure 6
8
Figure 4
Figure 5
Figure 6

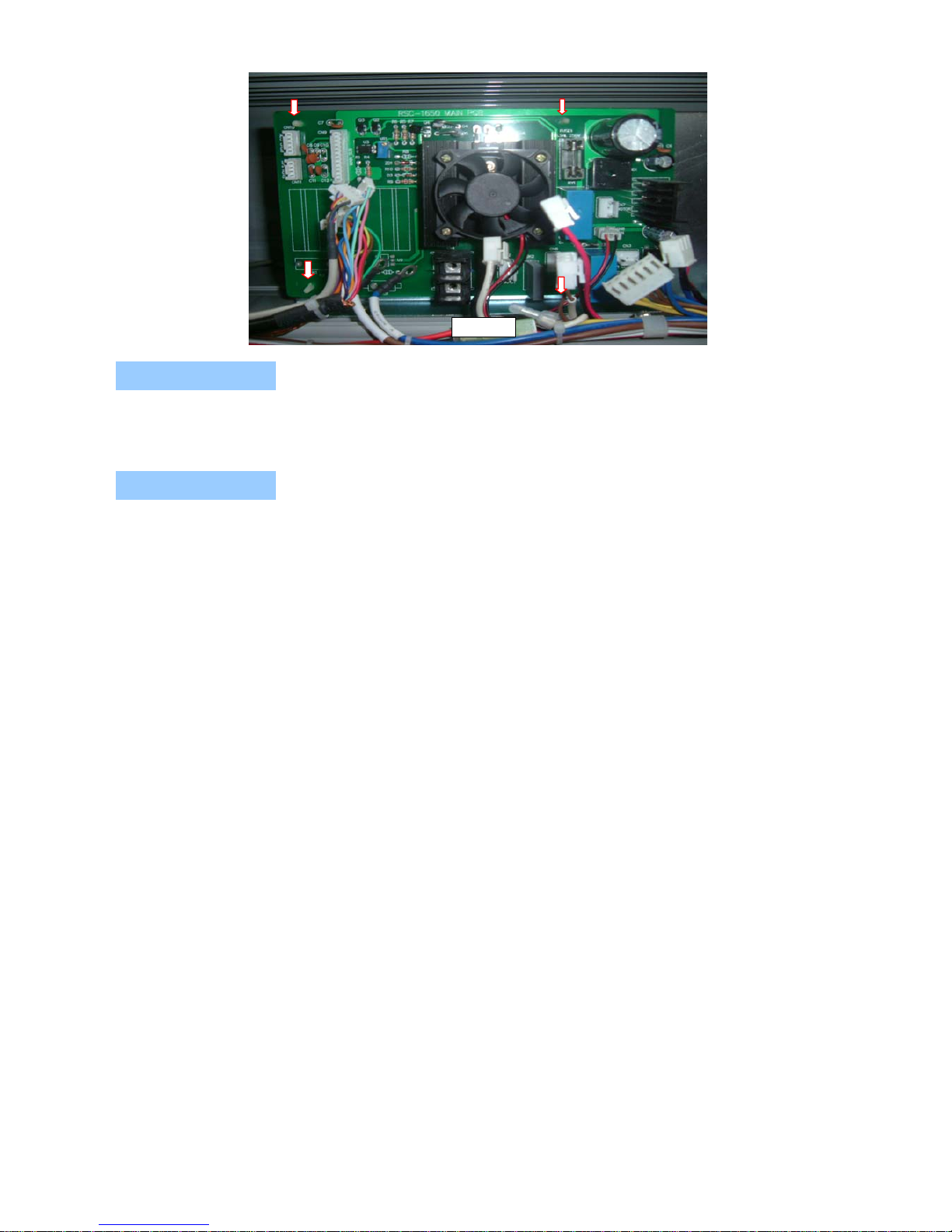

2. Detach the main PCB from the 4 white plastic supporters. Figure 7
3.5 Sub PCB
1. Follow the same steps as in the "Replacing the Right Cover" section.
3.6 Cross Cutter
1. Disassemble the nut from the frame-cutter.
2. Unfasten the spring from the cutter .
3. Change the cutter-knob.
9
Figure 7

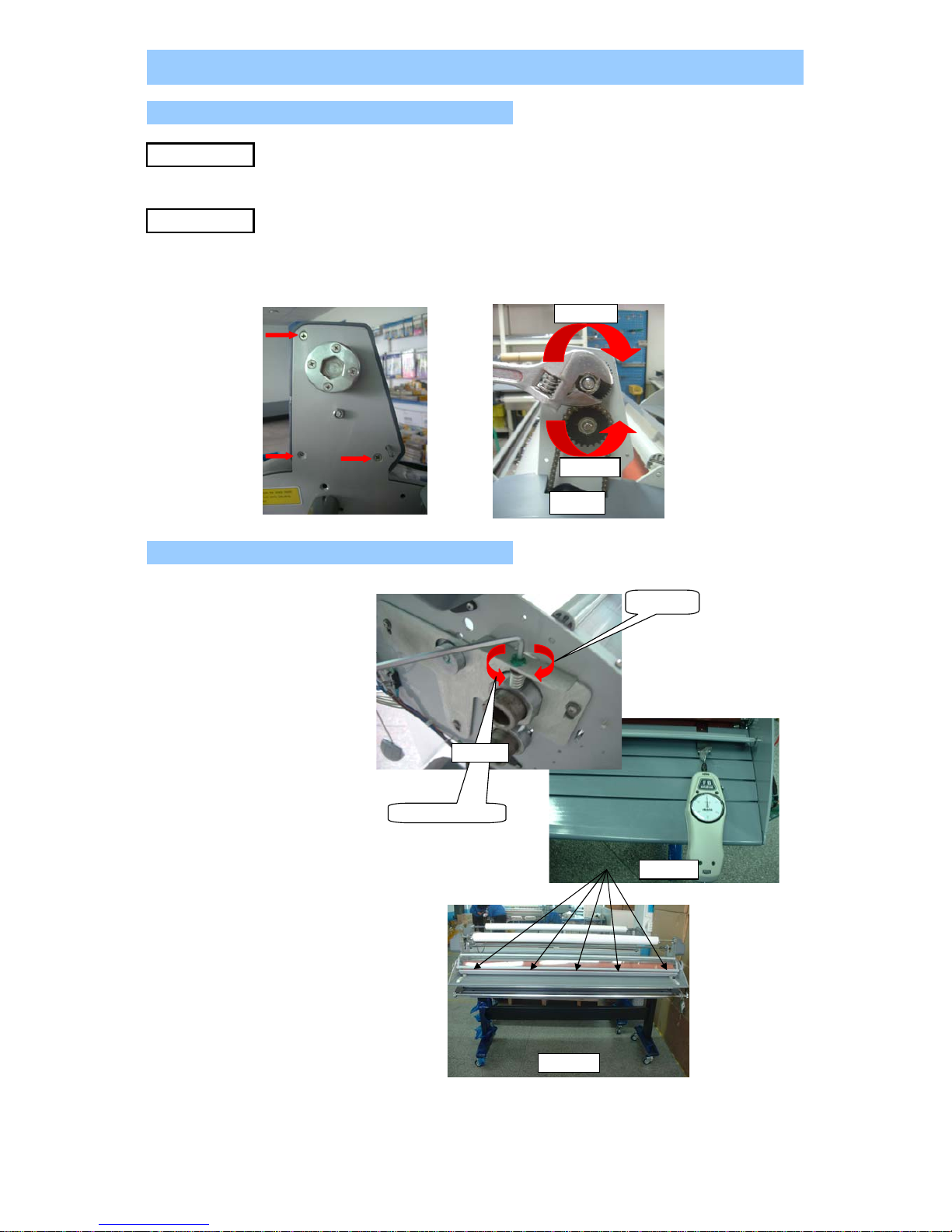

4.1 Adjusting Take-Up Shaft Speed
1. Main rollers and Take-Up Shaft speed is not synchronized.
1. Take out the Take-Up Shaft Cover by loosing three screws. Figure 1
2. Use a 11/16" (17mm) wrench to loosen (increases speed) or tighten (reduces speed) the bolt. Figure 2
4.2 Adjusting Front Roller
7.2)
RSC
30 ~ 36
37 ~ 42
on the gauge
when the machine is running, check that
the top and the bottom films are fed in
without any wrinkles.
4. Adjustments
with different thickness of substrates.
3. Laminating Test – Laminate samples
1.5mil & 5mil films.
4. Check above steps 2 through 3with
5 spots as shown on Figure B &C:
Front roller should read between 2-3
2. Checking for over all tension –
10
CAUSES:
MEASURES:
Pressure
• Use 5/16” or 8mm Allen wrench
to adjust the roller pressure:
Clockwise – Increase pressure.
Counter Clockwise – Decrease pressure.
1. Using Push-Pull Scale, measure
Figure B
Figure C
Decrease
Increase
Figure 2
Figure 1
Clockwise
Counterclockwis
Figure A

Note: Below options are to be installed by an authorized RS reseller.
Installation of the Front Feeder Option (Includes 2 brackets, one spindle, and mounting hardware).
1. Install the Front Feeder to the inside of the front frames
using four 9/16” hexagon bolts on each side (Figure 1). 3 ~ 7
Installing the Rear Rewinder Option (Includes motorized winder, bracket, one spindle,
and mounting hardware).
1. Remove the left and right covers by using a Phillips
screwdriver (four screws on each side cover) (Figures 1 & 2).
9 ~ 10
2. Remove the lever knob screw and lever (Figure 3).
3. Remove the rear cover by removing all 10 screws
(4 top, 4 bottom, and 1 on each side) (Figure 4 & 5).
4. Disassemble the power switch bracket and place the left rewinder
(included in the option kit). Then, reinstall the power switch bracket (Figure 6).
5. Install the right rewinder on the outside of the frame and
connect the motor wire to the rear wire (Figures 7 & 8).
6. Reinstall the rear cover.
7. Reinstall the side covers.
8. Reinstall the lever knob and screw.
5. Installation of Options
11
Figure 1
Figure 1 Figure 2
Figure 3
Figure 4
Figure 6
Figure 7 Figure 8
Figure 5

6.1 RSC-1400C Parts List
No. Part No. Part Name Spec. Qt'y
1 13500X001A CASTER-STAND1 20-30S-B3-SBB-TG KYUNG CHANG(BRAKE) 2
2 13500X002A CASTER-STAND2 20-30S-B3-SBB-TG KYUNG CHANG(N,BRAKE) 2
3 WSB16038D2 WASHER-SPRING SWRH Φ16.2*3.8T FZY 4
4 BHE08065D2 BOLT HEXA HEAD M8*15 SUS27 4
5 WSB08016D2 WASHER-SPRING SWRH Φ8.5*3.8T FZY 8
6 212LR1008A STAND-FRAME SPCC 2
7 212LR1006B STAND-CENTER STKR 120*50*2.3T 1
8 212LR1009A STAND-CONNECTOR FRAME STKR 125*50 2
9 013LR3032A FRAME-BASE AL6063 1
10 013LR3002E FRAME-CUTTER AL6063 1
11 141LR3001B BRACKET-PCB SECC 1.6T ZWP5 1
12 34000S008A POWER TRANSFORMER 1
13 WSB04008D0 WASHER-SPRING;Φ4.1*0.8T SWRH 8
14 MBC04008D2 SCREW-BH SUS 8
15 MBC04010D2 SCREW-BH SUS 16
16 23200X001A SUPPORT-BRACKET PCB DASS-9N TENSION DONG-A 4
17 050LR3027C PCB-MAIN ASS'Y 1
18 21000S029A MOTOR-MAIN:75:1 1
19 BHE06020D2 BOLT;M6*20 SUS 10
20 WSB06015D0 WASHER-SPRING;Φ6.1*1.5T 18
21 365LR4003A SWITCH-FOOT ASS'Y 1
22 013LR2009E FRAME-FRONT AL6063 1
23 125LR4001A HANDLE-TENSION S45C 3
24 138LR4002A SPRING-FILM TENSION; Φ3.8 SWRH 3
25 WPB15020D2 WASHER-PLAIN; 3
26 12200X022A BEARING-RADIAL TRUST;Φ15*28 7
27 147LR4002A PAD-TENSION;1.5T LEATHER 3
28 140LR4001A HOLDER-SHAFT,FILM S45C 3
29 141LR4005A PLATE-SHAFT,FILM SPCC 4
30 MFC04008D2 SCREW FH;M4*8 SUS 21
31 MBC05030D2 SCREW BH M5*30 SUS 24
32 MBC04025D2 SCREW M4*25 SUS27 24
33 120LR3004F SHAFT-FILM,LO S45C 3
34 12200X009A DU BUSH;FRANGE 15*20 3
35 143LR3001A SUPPORT-SHAFT,LO S45C 3
36 RC001500C8 SNAP-RING;STW-15 WONIL 3
37 013LR3014A FRAME-FRONT TENSION,R SPCC 4.5T 1
38 013LR3015A FRAME-FRONT TENSION,L SPCC 4.5T 1
39 013LR4003A SAFETY COVER FRAME-R SPCC 1
40 013LR4002A SAFETY COVER FRAME-L SPCC 1
41 111LR4009A BOLT-SAFETY COVER S45C 1
42 138LR4010A SPRING-SAFETY COVER SWRH 1
43 WPB04008A6 WASHER-PLAIN;4.4*8*0.8 1
44 RE00400C8 E-RING;ETW-4 WONIL 1
45 23300X008A CABLE GRAND PG-7 2
6. Parts List
RSC-1400C
12

No. Part No. Part Name Spec. Qt'y
RSC-1400C
46 BHE08070D2 BOLT(圆柱头六角螺栓)SUS27 4
47 141LR4022J BRACKET-SAFETY COVER,LOW AL6063 1
48 141LR4022K BRACKET-SAFETY COVER,UP AL6063 1
49 36400X014B SWITCH-SAFETY COVER 1
50 NHB03024A6 NUT;HEXAGON M3 2
51 MPC03014D2 SCREW PH;M3*14 SUS 2
52 021LR3011A SAFETY COVER PC PLATE 1
53 013LR2013E FRAME-GUIDE,PAPER AL-6063 1
54 111LR4016A BOLT2-PAPER GUIDE S45C 3
55 111LR4015A BOLT1-PAPER GUIDE S45C 1
56 014LR1005A TABLE-FRONT AL6063 1
57 145LR3001A GUIDE-DOCUMENT ABS 94V-0 2
58 023LR4002A KNOB-BOLT GUIDE PHENOL BLK 2
59 111LR4006A BOLT-GUIDE S45C 2
60 120LR4001F SHAFT-TABLE S45C 1
61 MBC05018D2 SCREW BH;M5*18 SUS 16
62 WSB05013D2 WASHER-SPRING SWRH 16
63 TFH04035D2 SCREW FH;M4*35 SUS 11
64 013LR2039A FRAME-R SPCC 4.5T 1
65 013LR2040A FRAME-L SPCC 4.5T 1
66 015LR3008A BAR-IDLE,UP S45C 2
67 138LR4001A SPRING-CUTTER CROSS SWRH 1
68 213LR4001A CUTTER-CROSS STS420J2 1T 1
69 NHB08065D2 NUT SUS 4
70 140LR3001A HOLDER-CUTTER,C ABS 94V-0 1
71 013LR3020B FRAME-MIDDLE AL6063 1
72 133LR2029A ROLLER-LAMI UP;Φ82 S45C,SILICON 2
73 12200X032A DU BUSH;FLANGE 12*10 4
74 023LR3003A KNOB-CUTTER,C ABS 94V-0 1
75 MPC03006D2 SCREW PH;M3*6 SUS 1
76 1200X012A DU-BUSH;FLANGE Φ40*25 4
77 1200X014A DU-BUSH;W/O FLANGE Φ40*10 4
78 122LR4022A BUSH-ROLLER LAMI,LO S45C 2
79 122LR4007A BUSH-ROLLER LAMI,UP S45C 2
80 131CR4001A SPROCKET-ROLLER,LAMI S45C 1
81 MFC05018D2 SCREW FH;M5*18 SUS 8
82 TFH04018D2 SCREW FH;M4*18 SUS 9
83 381LR4032A WIRE-FUSE,UL1015AWG#14 BRN 1
84 381LR4083A WIRE-REMOTE 1
85 381LR4048A WIRE-TAKE UP UL1007 AWG#20 1
86 141LR4050A PLATE-BEARING SECC 2
87 141LR2014A PLATE-PRESSURE,R SPCC 3T 1
88 141LR2015A PLATE-PRESSURE,L SPCC 3T 1
89 124LR4004A ECCENTRIC-CAM S45C 2
90 SKE05015B6 SCREW-SET;M5*15 23
91 111LR4014A BOLT-PRESSURE SUS 2
92 WPB06015D2 WASHER-PLAIN;Φ6.6*Φ12.5*1.6T SUS 2
93 138LR4008A SPRING-PRESSURE SWRH 2
94 120LR3013A SHAFT-CAM S45C 1
95 SKE05010B6 SCREW-SET;M5*10 1
13

No. Part No. Part Name Spec. Qt'y
RSC-1400C
96 023LR4007A KNOB-LEVER NYLON BLK 1
97 021LR3006A BRACKET-CLAMPER LEVER ABS 94V-0 1
98 125LR4003A LEVER-PRESSURE S45C 1
99 144LR4001A CLAMP-LEVER S45C 1
100 MBC04018D2 SCREW BH;M4*18 SUS 3
101 032LR4011A SHEET-PRESSURE PC 0.3T 1
102 032LR3006C SHEET-FUNC PC 0.75T 1
103 023LR3008A BUTTON-FUNC SILICON KE-9X1 1
104 350LR3028C PCB-SUB ASS'Y 1
105 MPC03006D2 SCREW TAP TITE PH;M3*6 SUS 2
106 136LR4004D CHAIN-ROLLER;#35 32EA 1
107 36400X001A SWITCH-EMERGENCY 2
108 032LR4008A SHEET-CUTTER PC 0.18T 1
109 021LR2002C COVER-R ABS 94V-0 1
110 021LR2001A COVER-L ABS 94V-0 1
111 SKE06010B6 SCREW-SET;M6*10 1
112 SKE06015B6 SCREW-SET;M6*15 1
113 131LR4030A SPROCKET-MOTOR S45C 1
114 SKE04010B6 SCREW-SET;M4*10 1
115 SKE04015B6 SCREW-SET;M4*15 1
116 021LR2003B COVER-TAKE UP,L ABS 94V-0 1
117 021LR2004B COVER-TAKE UP,R ABS 94V-0 1
118 021LR2004A COVER-TAKE UP,R ABS 94V-0 1
119 021LR2003A COVER-TAKE UP,L ABS 94V-0 1
120 021LR1003A COVER-TAKE UP2 ABS 94V-0 1
121 36400X003A SWITCH-POWER 1
122 141LR4003A BRACKET-MOTOR SECC 2T 1
123 21000S025A MOTOR-AC; AC120V60Hz 1
124 130LR4004A GEAR-MOTOR S45C 1
125 447LR4001A KEY-MOTOR TAKE UP;3*4.5*8 S45C 1
126 RE000600C8 E-RING;ETW-6 1
127 120LR4002F SHAFT-TAKE UP S45C 2
128 140LR4015A HOLDER-SHAFT,T S45C 2
129 130CR4005A GEAR-TAKE UP S45C 2
130 147LR4009A PAD-SLIP LEATHER φ36*1.5T 2
131 141LR4006A PLATE-SLIP;Φ36*2T SECC 2
132 138LR4006A SPRING-SLIP SWRH 2
133 WPB15010D2 WASHER-PLAIN;15.5*28.1T SUS 2
134 112004001C NUT;HEXAGON LOCK TYPE M8 2
135 136CR4001D CHAIN-TAKE UP;#25 124EA 1
136 134LR4001A PULLY-CHAIN S45C 1
137 BHE08045D2 BOLT;M8*45 SUS 3
138 32500X0009 FUSE-MAIN;AC250 5A 65TS LITTLE FUSE 1
139 36600X001A FUSE BLOCK 1
140 141LR4007A BRACKET-SWITCH SPCC 2T 1
141 36400X002A SWITCH-MAIN 1
142 23300X001A BUSHING-CORD;7NR32 1
143 380CR4004A POWER-CORD;AC125 15A LT-202 1
144 013LR3011A FRAME-REWINDER,R SPCC 4.5T 1
14

No. Part No. Part Name Spec. Qt'y
RSC-1400C
145 013LR3012A FRAME-REWINDER,L SPCC 4.5T 1
146 381LR4008A WIRE-MAIN;2464 SB24AWG 12C 1
147 381LR4035A WIRE-MOTOR;UL1007 AWG#18 1
148 381LR4013B WIRE-POWER S/W 1
149 011LR2007A COVER-REAR AL6063 1
150 013LR3002G FRAME-CUTTER AL6063 1
151 141LR4009A BRACKET-REAR COVER SECC 2T 2
152 MBC05025D2 SCREW BH;M5*25 SUS 6
153 12200X004A DU-BUSH;FLANGE 10*10 2
154 381LR4020B WIRE-FUSE;UL1015 AWG#14 1
155 122LR4006A BUSH-PULLY S45C 1
156 023LR4005A LIMIT SWITCH COVER PP 2
157 141LR4039A LIMIT SWITCH PLATE SPCC 2
158 130LR4032A GEAR-TAKE UP S45C 1
159 WPB05030H8 WASHER-PLAIN 3TΦ11.8*Φ5SPCC 6
160 WSB05013D2 WASHER-SPRING Φ5.3*1.3T SWRH 6
161 025LR4001A CASE-REMOCON ASS'Y 1
162 350CR4001A PCB-REMOCON ASS'Y 1
163 141LR4069A 2"FILM CORE SUPPORT PLATE SPCC 8
164 141LR4070A 3"FILM CORE SUPPORT PLATE SPCC 12
165 021LR3009A 3"FILM CORE COVER ABS 12
166 013LR3023A 3"FILM CORE HOUSING AL3043 6
167 147CR4003A SILICON ELASTIC SILICON 10
168 021LR3008A 2"FILM CORE COVER ABS 8
169 013LR3022A 2"FILM CORE HOUSING AL3043 4
170 130LR4031A IDLE-GEAR TAKE UP S45C 1
171 MBC06030D2 SCREW BH M6*30 SUS 1
172 112004001D NUT; HEXAGON M6*1.25 1
173 RIV05013E8 BRINDER RIVET Φ5*13 1
174 111LR4017A PIN S45C 1
15

Frame R
Stand Part, Frame-Base
Frame, Roller, Shaft,Front Table
Wire, Front Paper and Rewinder
Film Shafts and Safety Cover
16
7. Exploded View
7.1 RSC-1400C Explored View
Frame L

7.1 RSC-1400C Explode View
17
152 SCREW BH; M 5*25 SUSMBC05025D2 6
154 WIRE-FUSE; UL1015 AWG#14 381LR4020B 1BRN
153 DU-BU SH; FL ANGE 10 *1012200X004A 2
151 BRACKET-REAR COVER SECC 2T141LR4009A 2
149 COVER-REAR AL60630 11LR2007A 1 PAN TONE 421U
150 FRAME-CUTTER AL60630 13LR3002G 1 PAN TONE 421U
77
26
62
168
164
15
155 BUSH-PULLY S45C122LR4006A 1
61
155
160
168
168
163
163
12
4
5
61
159
61
160
164
37
25
24
23
26
133 W ASHER- PLAIN; ┵15 .5*28* 1.0 SUSWPB15010D2 2
132 S PR IN G- SL IP SW RH1 38LR4006A 2
134 N UT; HE XAGON LOCK TYPE M8112004001C 2
131 P LATE-S LIP; ┵ 36*2T S ECC141LR4006A 2
130 P AD-SLI P; 36* 1.5T LE ATHER147LR 4009A 2
164
9 FRAME BASE AL6063013LR3032A 1
8 STAND-CONNECTOR FRAME212LR1009A 2
7 STAND-CENTER212LR1006B 1
0.08 ~ 6
0.8
0.6
0.4
0.2
601 ~ 1200
301 ~ 600
121 ~ 300
31 ~ 120
7 ~ 30 0.1
165
165
164
164
79
63
168
IMPORTANCE OF QUALITY
2nd GRADE FATAL DEFECT
1st GRADE FATAL DEFECT
1 CASTER-STAND1; KYUNG CHANG 13 500X001A 2BRAKE
2 CASTER-STAND; KYUNG CHANG13 500X002A 2 NO BRAKE
3 WASHER-SPRING; ┵16.2*3.8TWSB16038D0 4 FZY
RSC-1400C
EXPLODE VIEW(CUL) N/S
6 STAND-FRAME SPCC 3.2T212LR1008A 2
5 WASHER-SPRING; ┵8.2*2T SUS27WSB08016D2 8 SUS
30
166
159
160
4 BOLT(途料庫코짇실쭁堈）M8*65 SUS27BHE08065D2 4
2
3
4th GRADE SLIG HTLY DEFECT
3rd GRADE MEDI UM DEFECT0
0
TOTAL IMPORTANCE OF QUALITY
T.I.Q
0
TOTAL
0
1

Frame - L
18
160
61
159
160
159
61
88 PLATE-PRESSURE,L SPCC 3T141LR2015A 1
89 ECCENTRIC CAM S45C124LR4004A 2
86 PLATE-BEARING SECC141LR4050A 2
30 SCREW FH; M4*8 SUSMFC04008D2 21
65 FRAME-L SPCC 4.5T013LR2040A 1 PANTONE 421U
61 SCREW BH; M5*18 SUSMBC05018D2 16
14 SCREW-BH; M4*8 SUSMBC04008D2 8
13 WASHER-SPRING; ┵4.1*0.8T SWRHWSB04008D0 8

Frame - R
19
23 HANDLE-TENSION S45C125LR4001A 3
13 WASHER-SPRING; ┵4.1*0.8T SWRHWSB04008D0 8
15 SCREW-BH; M4*10 SUSMBC04010D2 16
49 SWITCH-SAFETY COVER 36400X014B 1
50 NUT; HEXAGON M3 NHB03024A6 2
51 SCREW PH; M3*14 SUSMPC03014D2 2
30 SCREW FH; M4*8 SUSMFC04008D2 21
26 BEARING-RADIAL TRUST; ┵15*28 NTB12200X022A 7
27 PAD-TENSION; 1.5T LEATHER147LR4002A 3
28 HOLDER-SHAFT,FILM S45C140LR4001A 3
29 PLATE-SHAFT,FILM SPCC141LR4005A 4
24 SPRING-FILM, TENSION; ┵3.8 SWRH138LR4002A 3
25 WASHER-PLAIN; ┵15.5*28*2T WPB15020D2 3
101 SHEET-PRESSURE PC 0.3T032LR4011A 1
102 SHEET-FUNC PC 0.75T032LR3006C 1
104 PCB-SUB ASS'Y FR-4350LR3028C 1
103 BUTTON-FUNC SILICON KE-9X1023LR3008A 1
106 CHAIN-ROLLER; #35 32EA 136LR4004D 1
105 SCREW TAP TITE PH; M3*6 SUSMPC03006D2 2
107 SWITCH-EMERGENCY 36400X001A 2
99 CLAMP LEVER S45C144LR4001A 1
100 SCREW BH; M4*18 SUSMBC04018D2 3

Stand Part, Frame - Base
20
21
7
12 POWER-TRANSFORMER34000S008A 1
4 BOLT(途料庫코짇실쭁堈）M8*65 SUS27BHE08065D2 4
1 CASTER-STAND1; KYUNG CHANG 13500X001A 2 BRAKE
2 CASTER-STAND; KYUNG CHANG13500X002A 2 NO BRAKE
3 WASHER-SPRING; ┵16.2*3.8TWSB16038D0 4FZY
6 STAND-FRAME SPCC 3.2T212LR1008A 2
5 WASHER-SPRING; ┵8.2*2T SUS27WSB08016D2 8SUS
10 FRAME-CUTTER(連냑) AL6063013LR3002E 1AL6063
9 FRAME BASE AL6063013LR3032A 1
8 STAND-CONNECTOR FRAME212LR1009A 2
7 STAND-CENTER212LR1006B 1
13 WASHER-SPRING; ┵4.1*0.8T SWRHWSB04008D0 8
11 BRACKET-PCB; 1.6T ZWP5 SECC141LR3001B 1
15 SCREW-BH; M4*10 SUSMBC04010D2 16
16 SUPPORT-BRACKET PCB DASS-9N TENSION DONG-A23200X001A 4
17 PCB-MAIN ASS'Y350LR3027C 1
14 SCREW-BH; M4*8 SUSMBC04008D2 8
