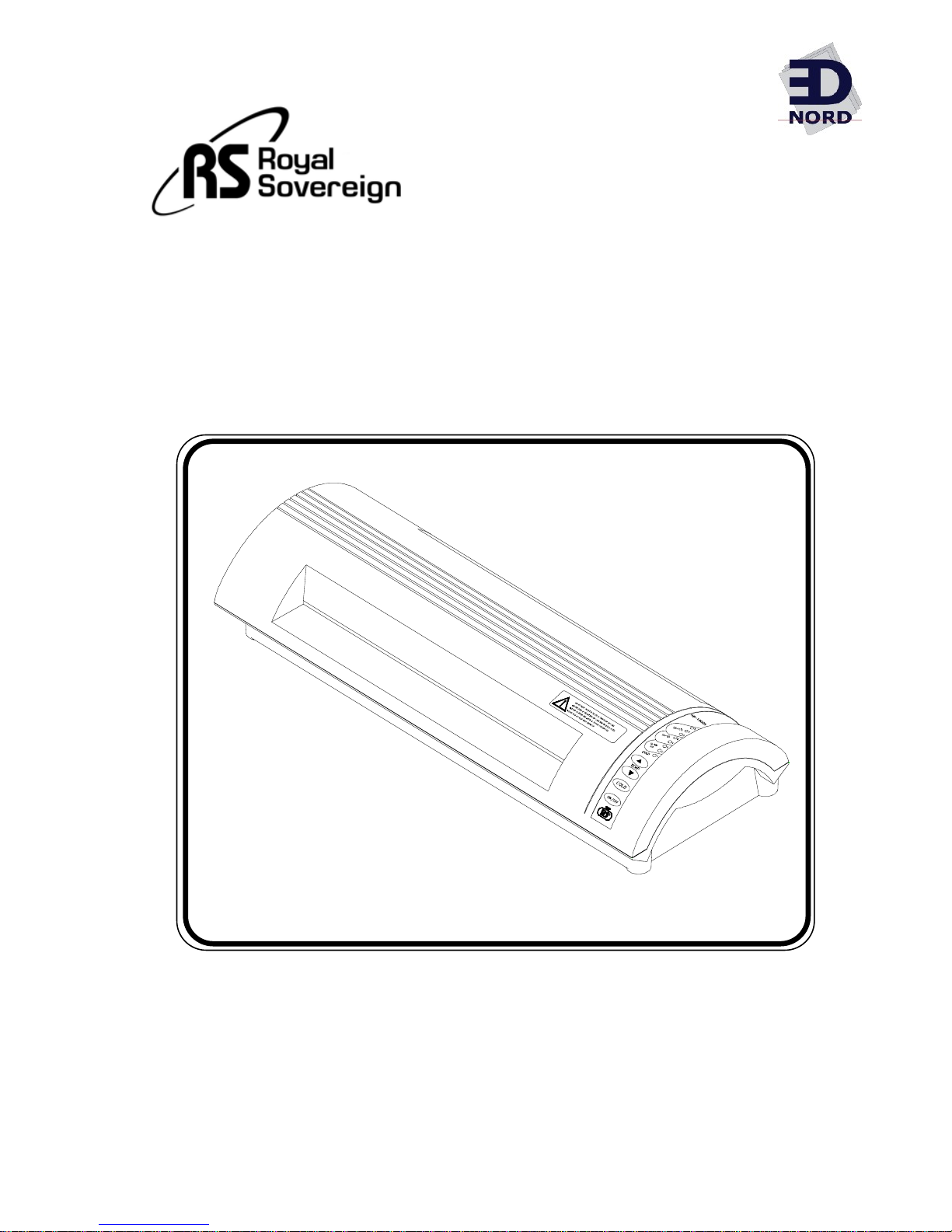

Royal Sovereign NB-1900N User manual

OWNER'S MANUAL
PLEASE READ AND SAVE INSTRUCTIONS
PROFESSIONAL PHOTO LAMINATOR
NB-1900N
1
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

TOPICS PAGE
INTRODUCTION -----------------------------------------
-
SAFETY PRECAUTIONS -----------------------------------
-
CHARACTERISTICS OF NB-1900N ---------------------------
-
SPECIFICATIONS ----------------------------------------
-
SETUP ------------------------------------------------
NAME OF MAJOR PARTS OF MACHINE -----------------------
-
INSTRUCTION OF CONTROL PANEL AND DISPLAY ---------------
-
1.FUNCTION OF BUTTONS ------------------------------
-
2.DISPLAY ------------------------------------------
-
3.INSTRUCTION BOTTONS AND LED -----------------------
-
LAMINATING STEPS --------------------------------------
1.HOT LAMINATING -----------------------------------
-
2.COLD LAMINATING ----------------------------------
-
3.COLOR FOIL LAMINATING -----------------------------
-
4.MOUNT BOARD LAMINATING ---------------------------
-
HOW TO CLEAN ROLLERS AND REMOVE JAMMED FILMS ----------
IMPORTANT SAFETY CONCERNS ----------------------------
-
MAINTENANCE -----------------------------------------
-
ASSEMBLY PARTS ---------------------------------------
-
TROUBLESHOOTING -------------------------------------
-
ONE YEAR LIMITED COMMERCIAL/PROFESSIONAL WARRANTY -----
-
12
13
14
11
3
14
14
14
8
9
9
6
7
7
3
4
5
15
10
5
7
TABLE OF CONTENTS
2
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

Thank you for purchasing a Royal Sovereign Laminator.
To insure high quality lamination, please read this instroduction manual thoroughly.
For additional product support or factory-direct ordering information.
Call Royal Sovereign Customer Service at [phone].
The safety recommendations outlined in this section are to be read,
understood and followed before operating the machine.
Keep this information for future reference. Failure to comply with any of
the following safety procedures could result in serious personal injury.
1. To prevent the possibility of electrical shock, do not immerse machine
in water or permit liquids to get inside.
2. Do not allow articles of clothing (neckties, scarves, etc.) or papers near
the front or rear of the machine while operating as they could get cought
by the rollers and be pulled inside, causing personal injury.
3. Do not insert sharp objects into front or rear machine openings.
4. Do not attemp to laminate items that exceed total recommended material
thickness.
5. Do not operate machine for any other purpose other than its intended use.
6. Do not operate machine if electrical plug or power cord is damaged.
7. Turn off the power when unattended or not in use. Unplug machine
before moving it or when it is not in use for an extended period of time.
8. This machine is intended for indoor use only.
9. Do not alter the electric plug in any way.
10. The electrical outlet should be installed near the equipment and should
be easily accessible.
SAFETY PRECAUTIONS
INTRODUCTION
3
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

LAMINATOR NB-1900N is an advanced laminator of contemporary
design, utilizing the lastest in laminating technology.
1. Contemporary design and rounded shape will enhance any decor.
2. A microprocessor is used for added protection.
1) The microprocessor protects the rollers
①Even when power is off, rollers continue to turn until properly cooled down.
②In the event of a power failure, rollers continue turning until properly cooled
down.
2) The microprocessor prevents overheating
If a temperature sensor fails, the microprocessor prevents rollers
from overheating.
3. Designed to prevent heat from radiating through the housing, using
powerful fans.
4. Eight function settings, allow you to laminate various types of film.
6. Every time a button is pressed, a buzzor sounds.
7. Temperature is controled automatically for energy efficiency.
CHARACTERISTICS OF LAMINATOR NB-1900N
4
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

Place laminator on a sturdy, flat work surface. Allow ample clearence behind laminator
for laminated document or photograph to exit completely without bending.
Connect laminator to an electrical outlet that matches laminator's rated voltage and
power requirements.
If an extension cord is required, use a cord rated higher than the laminator's capacity.
DC FAN
Voltage / Cycle
11Kg (24 lbs.)
A
C 100V 50/60Hz, AC 120V 60Hz , AC 220-240V 50/60H
z
AC MOTOR
520mm (20.5") per min.
Power Consumption
Temp. Operating Range
Film thickness
Transport Type
Weight
Cooling Fan Type
Motor Type
Max. Laminating Speed
SETUP
1000W
Max.Laminating Thickness
445mm (17.5")
8 SETTINGS
4~5 min
Four Roller (no carrier)
Hot roller
Description NB - 1900N
680x225x127mm (26.8"x10"x5")
SPECIFICATIONS
Dimensions(w x d x h)
Max.Laminating Width
Heat Source
Pre-Heating Time
2mm (1/12")
75~250mic(3~10 mil)
5
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

1. Top Cabinet
2. Control Button Panel
3. LED
4. Input
5. Output
6. Power Cord
MAJOR PARTS IDENTIFICATION
6
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

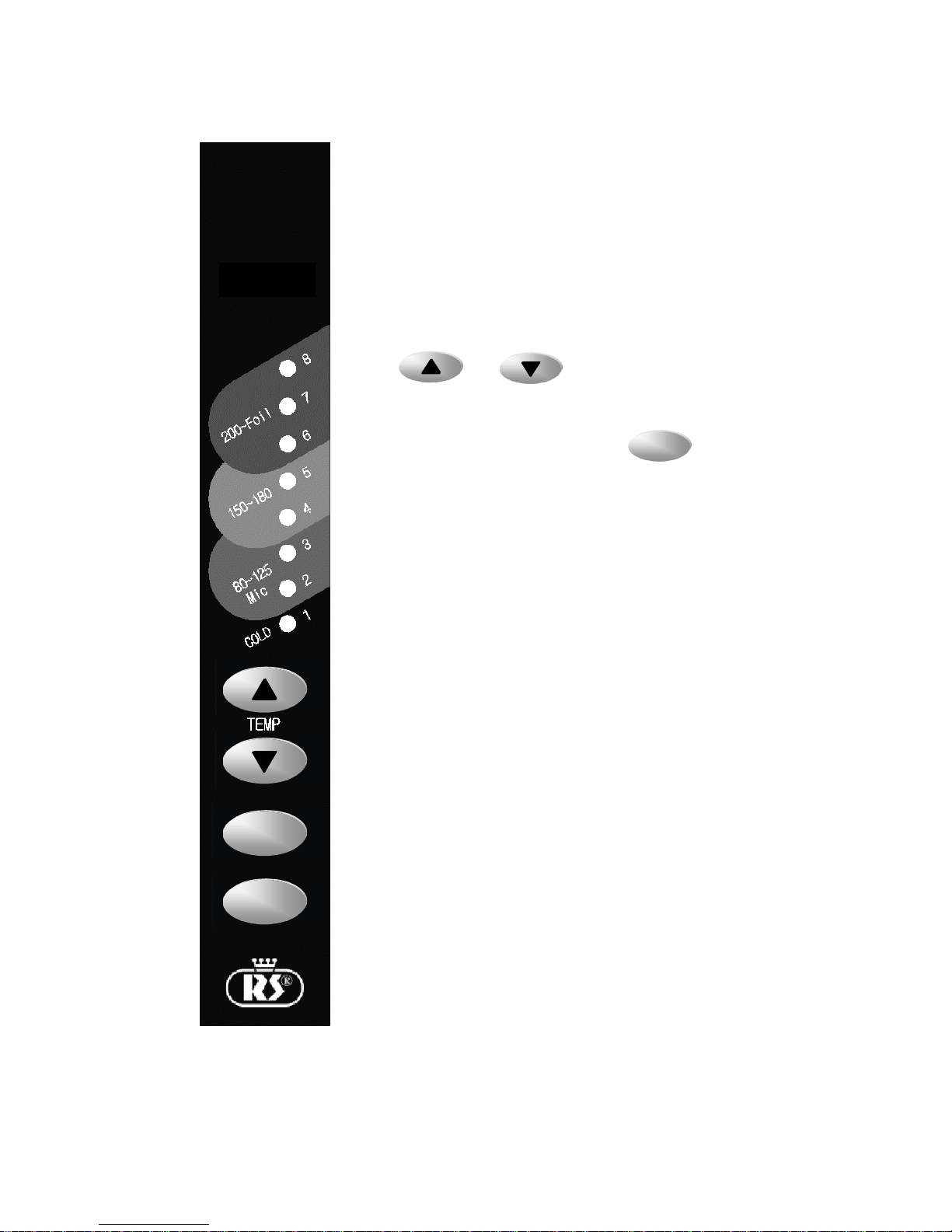

Eight Functions allow you to laminate as necessary.
TACT-BUTTON and LED were designed for your convenience.
1.FUNCTION OF BUTTONS
: Increase setting
: Decrease setting
: COLD Function
: Power On/off
2.DISPLAY
200~250 micron (8~10 mil) film, color foil and
mount board laminating
150~180 micron (6~7 mil) film laminating
80~125 micron (3~5 mil) film laminating
CONTROL PANEL SETTINGS
Cold film laminating
COLD
ON/OFF
COLD
ON/OFF
NB-1900N
7
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

3.INSTRUCTION OF BUTTONS AND LED
1. Press power button to turn laminator on or off.
2. When you press power button, "FUNC 2"
LED is blinking. At this time, function
buttons become available.
3. To choose film thickness, press
or and you will see
the LED read-out.
4. For cold laminating, press
then green LED will light up.
5. When you choose any function, a blinking LED light
means it's not ready. When the blinking stops, the
laminator is ready.
6. When blinking stops, a buzzer will ring once
every two minutes.
7. Even if you turn off as soon as finishing laminating,
rollers will continue to turn until cooled
down properly, and then stop.
COLD
COLD
ON/OFF
NB-1900N
8
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

1. HOT LAMINATING
1. Press the power button.
2. Choose setting by or
3. When red LED stops blinking and buzzer rings, you're ready to laminate.
(It takes 4~5 minutes depending on setting function.)
4. Put document to be laminated, into a laminating pouch. Leave a minimum
border of about 3mm(1/8"), to provide a proper edge seal.
5. Insert pouch squarely into opening slot.
6. Finished lamination will exit through rear of machine.
7. Emerging laminated document is hot to the touch.
(Always allow lamination to cool down on a flat surface for about a minute before
handling, to prevent permanent bending. If document is not laminated well,
re-insert it and run it through a second time.)
8. When continuously laminating, run the laminator at a lower setting
because the internal machine temperature may be higher than
the required temperatur, causing the document to bend or ripple.
9. When finished laminating, turn off the machine.
* Sometimes, when continuously laminating, LED may begin blinking.
If this happens, finish laminating the current document, then wait
until the LED stops blinking, before inserting the next lamination.
* Do not laminate empty or thin pouch on a thick film setting.
The pouch could stick to the roller.
* Do not unplug laminator while laminating.
This could be fatal for the rollers due to the high internal temperature.
LAMINATING STEPS
***USEFUL INFORMATION***
9
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

2. COLD LAMINATING
1. Press the power button to turn laminator on.
2. Press
3. It is ready when green LED blinking stops and buzzer rings.
4. Insert document into Royal Sovereign cold laminating pouch as
follows.
1) Prepare cold pouch film.
2) Remove protective paper inside cold pouch.
(Be careful not to allow the pouch to close and
seal itself closed. If the pouch closes on itself
and seals,you will not be able to the document
to be laminated inside.)
3) Place document squarely into the pouch, where
the protecting paper was.
Cold film's minimum border of about 3mm(1/8")
is necessary to provide a proper edge seal.
4) Beware of dust while inserting document.
5) Feed pouch squarely into opening slot.
5. Finished laminated pouch will exit through rear of machine.
6. When you are finished laminating, press the power button to turn off.
If it has recently been used for hot lamination, allow the rollers to be cooled
down about 20~30 minutes.
**HOW TO ATTACH DOCUMENT ON COLD POUCH FILM**
***USEFUL INFORMATION***
COLD
Front
Back
Back
10
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

3. COLOR FOIL LAMINATING
**Your laminator has ability to add color by using color foil to documents copied
or printed by laser printer using toner.**
**PAPER CARRIER is required**
1. Press the power button to turn laminator on.
2. Find FOIL setting, using
3. Machine is ready when red LED stops blinking and the buzzer rings.
4. Position color foil where
y
ou want on the document and insert it into the
p
a
p
er carrier.
5. Insert the paper carrier squarely into the opening slot.
6. Finished foil laminated paper will exit through rear of machine.
7. When you are finished laminating, press the power button to turn machine off.
* The document, which has been foil laminated, is hot and easily bent.
Try not to touch the document until it has cooled down.
* When you do laminating several colors, use high temperature tape
to hold color foils in place.
* For high quality lamination, choose FUNC depending on thickness of material
and PAPER CARRIER.
(Foil laminating temperature is set for a bond paper.)
***USEFUL INFORMATION***
11
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

4. MOUNTING BOARD LAMINATING
**You can laminate photographs or pictures on a mounting
board, less than 2mm (1/12") thick without any tension adjustment.**
1. Press the power button to turn the machine on.
2. Set FOIL setting with
3. When the LED light stops blinking and buzzer rings, the laminator is ready.
4. Place material on Mounting board.
5. Insert Mounting board squarely into opening slot.
6. Finished Mounting board will exit through rear of machine.
7. When you are finished laminating, press the power button to turn machine off.
* The document, which has been mounting board laminated, is pretty hot
and easily bent. Try not to touch the document until it has cooled down.
* When laminating to mounting board, pressure adjustment is needed for
good quality lamination.
1. Unplug the machine and unscrew the 8 screws on bottom of laminator, set machine
upright and lift off the cover.
2. Locate each end of left and right pressure spring on the upper part as shown.
3. Reassemble top cover with 8 retaining screws and do lamination.
* For general lamination, set pressure springs to lower position.
***LAMINATION PRESSURE ADJUSTMENT***
***USEFUL INFORMATION***
12
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

1. Cleaning rollers with a clean and thick paper
1) If film adhesive apears on the laminated pouch surface, Insert a sheet of clean, thick
paper (about 0.5mm(1/50") thickness) into the machine 2~3 times on "FUNC 4"
setting. The paper will attract the excess adhesive from the roller.
2. Cleaning rollers with cleaning solvent.
1) When rollers are hot, turn on and set
"COLD" mode to cool them down.
2) Press the power button to turn off.
3) Loosen 8 retaining screws on bottom
and lift off the cover.
4) Use a recommended silicon roller cleanin
g
solvent such as Laminex Poly-Off or
equivalent, on a lint-free cloth to clean
residue of laminate adhesive on exposed
roller surface.
Prevent any liquid from spilling into the unit.
5) Re-assemble the unit in reverse-order of
disassembling.
* Do not turn the unit on until the rollers are completely dry.
Wet rollers could cause serious harm.
Be careful not to allow to damage temperature sensor, as damaged sensor
could cause serious harm.
CLEANING ROLLERS AND REMOVING FILM
JAMMED OR STUCK TO ROLLERS
***USEFUL INFORMATION***
SENSOR
13
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

1. Be sure that neckties, necklaces, long hair and loose clothing are
kept away while the laminator is in operation.
2. Prevent children from accessing the machine.
3. Place the machine on a sturdy, flat work surface to prevent damage.
4. Make certain that the machine is connected to an adequate power source.
5. Do not use for any other purpose, other than laminating.
1. Width of upper and lower side of film should be same in order not to
allow melted adhesive to stick to the roller.
2. Routine roller cleaning is required to prevent adhesive build-up.
3. Always keep the machine clean.
To remove dust, finger prints, etc. on housing, use diluted
alcohol on lint-free cloth. Prevent any liquids from getting into the laminator.
(Do not use strong alcohol or petroleum-based cleaning solvents
or abrasives.)
1. Owner's manual : 1EA
*Motor doesn't work. 1.Power cord may not be 1.Check the power cord.
plugged in.
2.Power switch in 2.Check that switch is on.
OFF mode.
*Film is not laminated. 1.Cold mode is set. 1.Change the setting to
hot lamination
*Lamination 1.Setting is too low. 1.Increase setting.
is not clear.
IMPORTANT SAFETY CONCERNS
MAINTENANCE
Cause Check point
ASSEMBLY PARTS
TROUBLESHOOTING
Symptom
14
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]

This product iis warranted for 1 year from date of purchase to be free from
electrical or mechanical defects in material and workmanship. Should
product fail to operate during warranty period, return it, freight prepaid, to
Royal Sovereign Corporation, 100 West Sheffield Avenue, Englewood,
NJ 07631, for service. There will be no charge for parts and labor to repair
or replace this product whthin warranty period. When returning machine,
purchaser must include a photo copy of purchase receipt and a check or
money order for $20.00 to cover return shipping and handling. Please
include a brief note explaining the problem.
This warranty is voided in cases of improper use, abuse, mishandling and
unauthorized modifications or repairs. This warranty does not cover
suitability of this product for specific applications. Determining suitability
of each application is solely the reponsibility of the user. This warranty
does not cover incidental or consequential damages resulting from its use.
This warranty is not to be considered a service contract, and does not
cover routine adjustment, cleaning, jams or removal of materials that have
become stuck inside machine.
This warranty does not cover damage or injury resulting from improper use
or failure to follow the instruction manual provided. In no event will
manufacturer, importer, warranty service center, its agents or assigns, be
liable for losses, either direct or indirect, including but not limited to special,
incidental, consequential, or punitive damages whatsoever incurred arising
out of any breach of warranty by manufacturer, importer, warranty service
center, their heirs or assigns or successors in interest. Purchaser hereby
accepts and agrees to these conditions by returning the registration card
to the warranty service center. There are no other warranties either
expressed or implied other than this written limited warranty. This warranty
gives you specific legal rights, and you may also have other rights which
vary from state to state. Warranty registration card must be mailed within
ten days of purchase.
WARNING: Please read all safety warnings and instructions before using
this product. Improper use or failure to read and follow instructions
may cause a fire, the unit to overheat, or serious personal injury.
ONE YEAR LIMITED COMMERCIAL/PROFESSIONAL WARRANTY
15
EDNord - Istedgade 37A - 9000 Aalborg - Telefon [phone]
