Instruction Manual
RS-96
Stock No: 155-8903
Mini Particle Counter
EN

1
Mini Particle Counter / English
19/12/2017 Version No. 001
1. Introduction
Thank you for purchasing this RS Pro Mini Particle Counter.
This Mini Particle Counter with 2.0" colour TFT LCD display provides fast, easy and
accurate readings for particle counter, particle mass concentration, air temperature and
relative humidity. The counter is a delicate and practical hand-held instrument. Real scene
and time can be displayed on color TFT LCD. Any memory readings can be recorded in
meter. It would be the best instrument for environment protection and energy save.
2. Features
• 2.0" TFT Color LCD display
• 220*176 pixels
• Simultaneously measure PM2.5 and Pm10
• Air temperature and humidity
• Real time clock display
• Analog bar indicator
• Auto Power Off

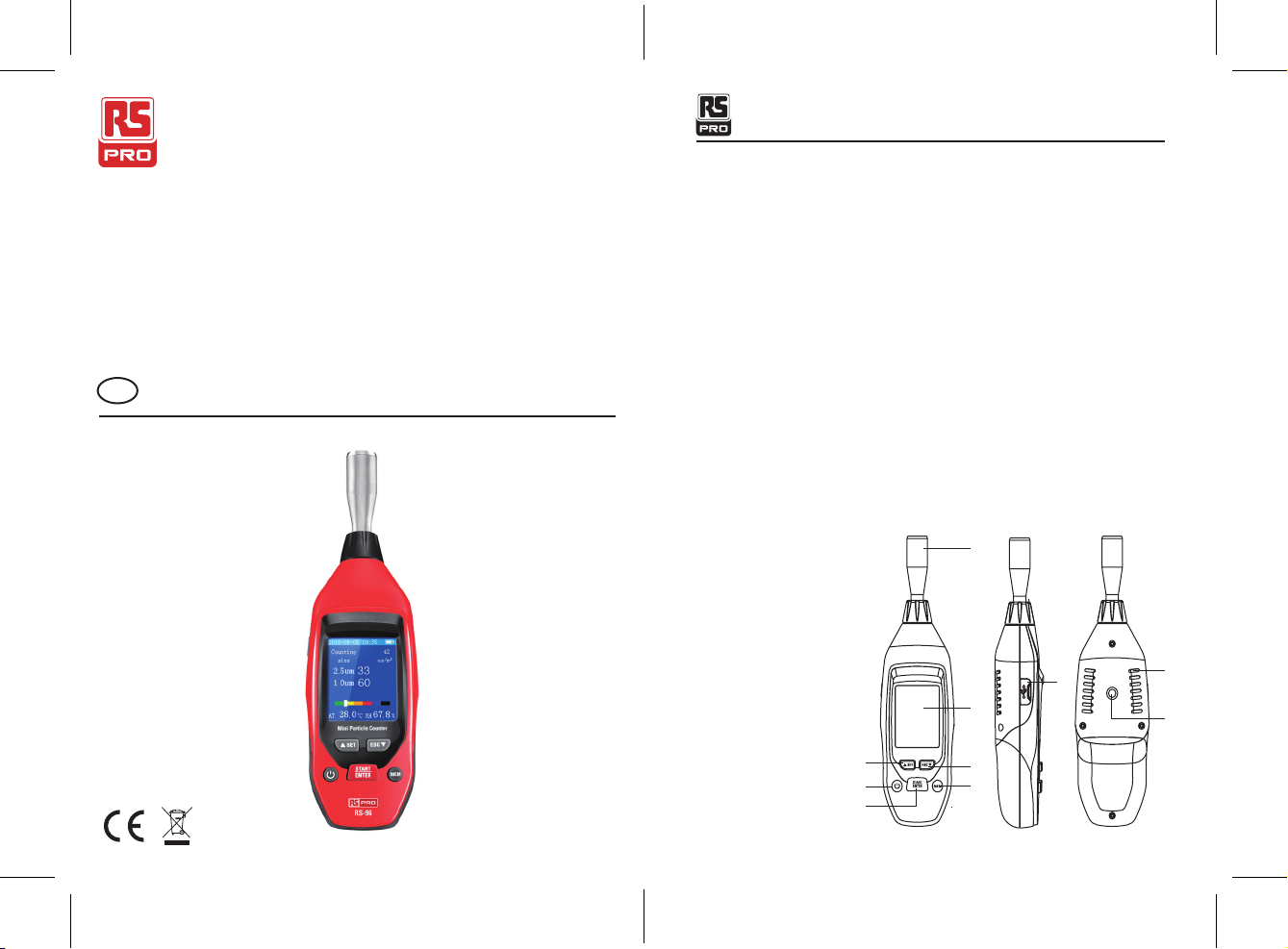

3. Front Panel and Bottom Description
1. Particle Sensor
2. LCD Display
3. Page up and Setup button
4. Page down and ESC button
5. Power ON/OFF button
6. Measure and Enter button
7. Memory View button
8. USB charge interface
9. Air-bleed hole
10. Bracket fixing hole
9
10
7
2
4
3
5
6
1
8

2 3
Particle Counter
Channel 2.5μm, 10um
Mass Concentration PM2.5: 0~2000ug/m3
PM10: 0~2000ug/m3
Resolution 1ug/m3
Air Temperature Measure
Air Temp Range 0~50°C/ 32~122°F
Resolution 0.1°C/°F
Basic Accuracy ±1°C/2°F
Humidity Range 0 to 100%RH
Resolution 0.1%RH
Basic Accuracy ±5%RH 0~20%RH, 80~100%RH
±3.5%RH 20~80%RH
4. Specications
Mini Particle Counter / EnglishMini Particle Counter / English
19/12/2017 Version No. 00119/12/2017 Version No. 001
5. Power On/ Off
On the power off mode, press and hold button until the LCD is on, then the unit will
power on.
On the power on mode, press and hold button until the LCD is off, then the unit will
power off.
6. Measurement Mode
On the power on mode, you can press the button to start measuring PM2.5 and
PM10, the top left corner of the LCD display “Counting”, the top right corner of the LCD
display count down, LCD main display PM2.5 and PM10 data and temperature & humidity
readings are at the bottom of LCD.
Press the button again to stop the measurement. The top left corner of the LCD display
will show “Stopped”. The LCD display will show the last measurement data. Data will be
automatically save to the instrument memory, which can store up to 5000 data.
7. Setup mode
Powering on the instrument. Long press button to enter into the system setup mode
as shown below:
Press the button and the button to select the menu option needed. Then
press button to enter into the appropriate settings page.

4 5
18/12/2017 Version No. 001

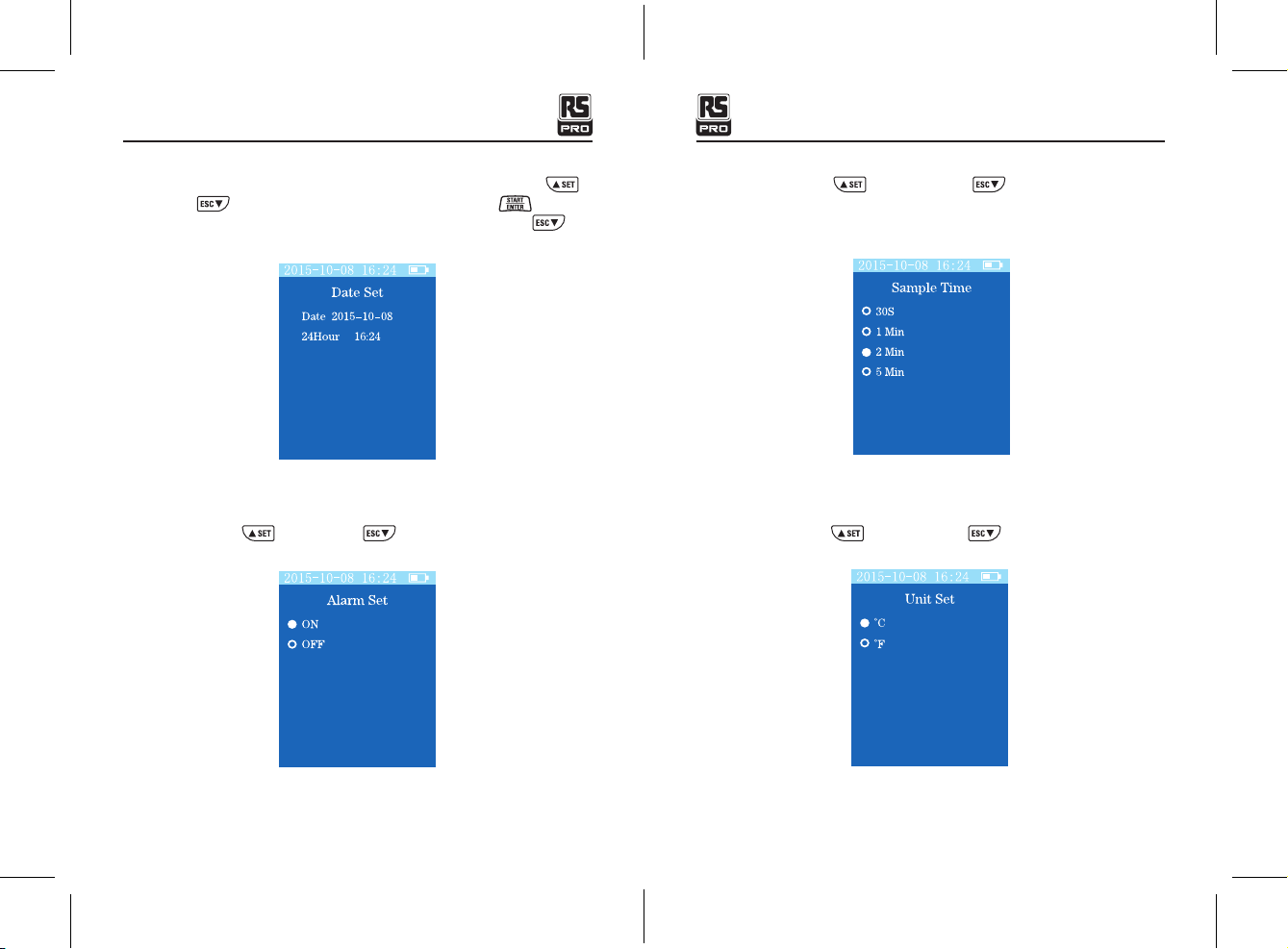

7-2 Alarm setup
Press button and button to activate or deactivate alarm function.
7-3 Sample Time
Press button and thes button to select the sampling time.
Sampling time can be selected by 30s,1min,2min or 5min.
7-4 Unit (°C/ °F) setup
Press button and the button to select the temperature unit (°C/ °F).
7-1 Date/ Time setup
After entering into Date/Time setup mode, press button and button to select
the value, press button to set next value. After finishing the setup, please press
button to exit time setting mode and returns to the system settings mode.
Mini Particle Counter / EnglishMini Particle Counter / English
19/12/2017 Version No. 00119/12/2017 Version No. 001

6 7

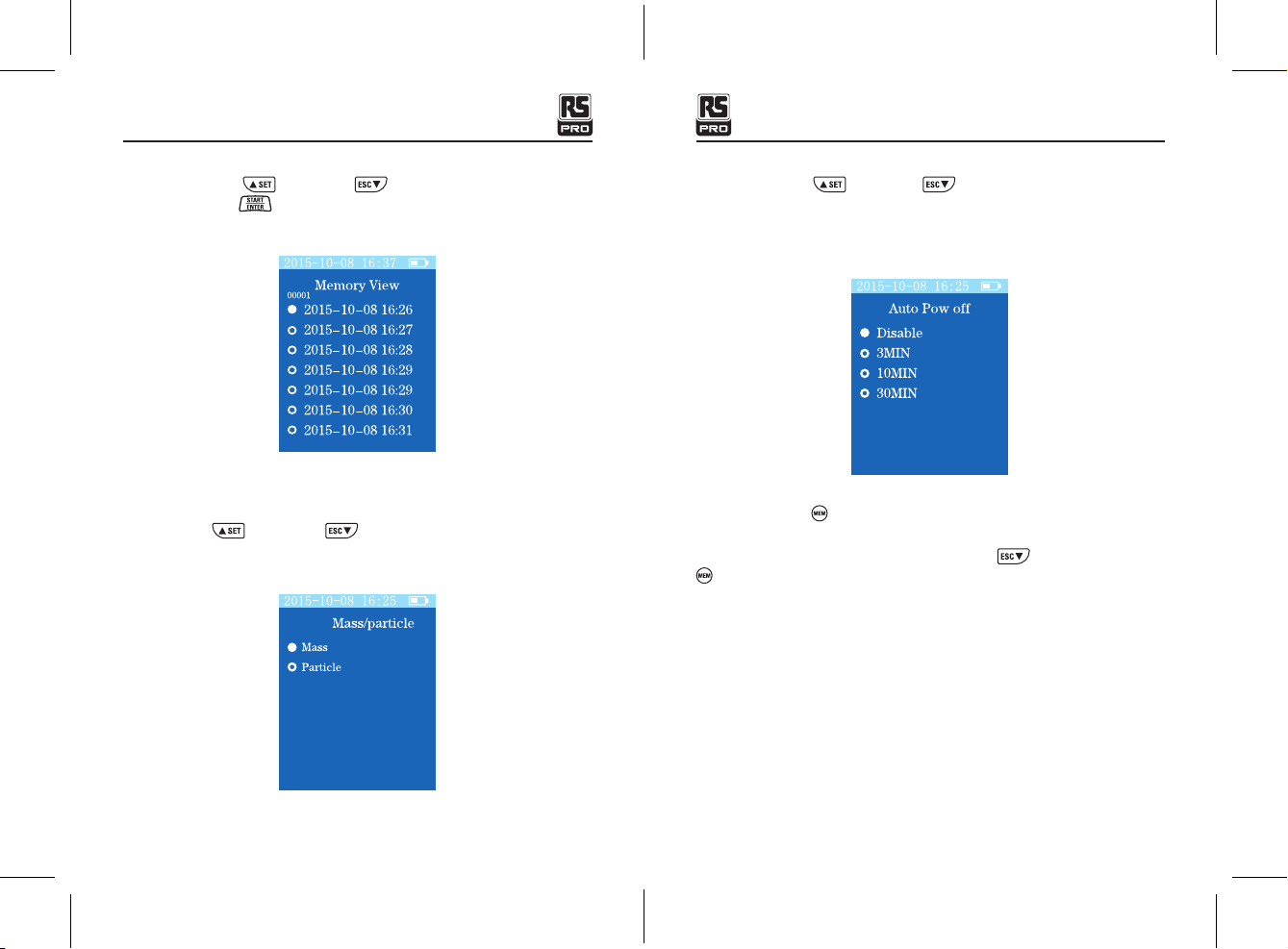

7-5.Memory View
Press button and button to select storage catalog. Press button to
view data in selected storage catalog.
5000 sets of data can be stored in the instrument.
7-6.Mass/Particle setup
Press button and the button to select the mode par ticle concentration and
mass concentration mode.
7-7 Auto Power Off setup
Press button and button to set the auto-off time.
Disable: Power off function is deactivated.
3MIN: Automatically shutdown in 3 minutes without any operations.
10MIN: Automatically shutdown in 10 minutes without any operations.
30MIN: Automatically shutdown in 30 minutes without any operations.
8. Shortcut keys
Press the button to quickly enter the storage data directory view.
Select the directory button to view the specific data.
In the main LCD interface, press and hold the button then press the button until the
sound of a buzzer deletes the stored data.
9. Product Maintenance
• Maintenance or service is not included in this manual. The product must be repaired by
professionals
• It must use the required replacement parts in maintenance
10. Cautions
• Do not use in/over dirty or dusty environment. Inhalation of too many particles will
damage the product.
• To ensure the measured accuracy, please do not use in an over fogged environment.
• Do not use in explosive environment.
• Follow the instructions to use the product. Privately take apart the unit is not allowed.
Mini Particle Counter / EnglishMini Particle Counter / English
19/12/2017 Version No. 00119/12/2017 Version No. 001
