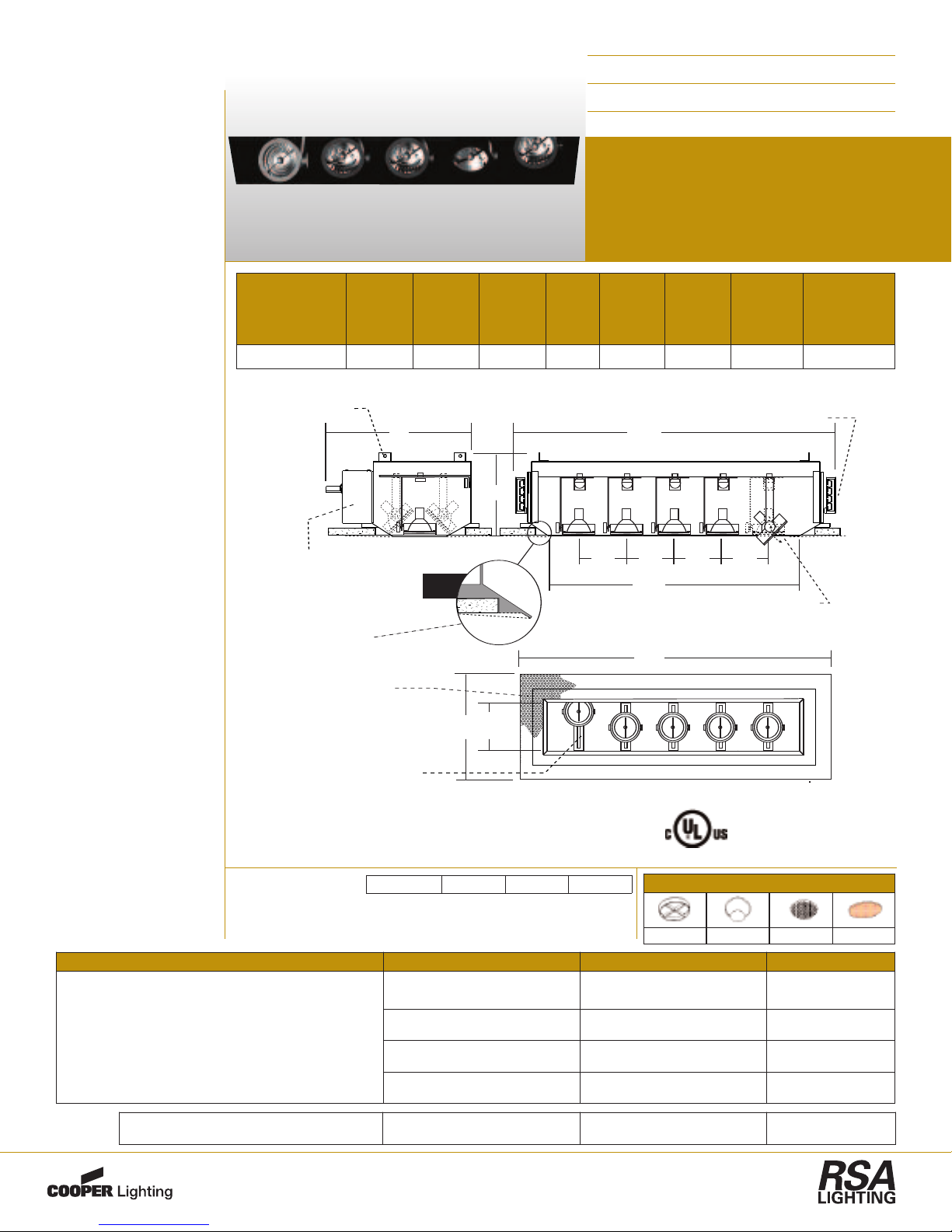

RSA Lighting COMBOLIGHT LV570 User manual

Catalog #
Type
Project
COMBOLIGHT®LV Series
FIVE (5) Light Recessed
Next Generation Trimless
Multi-Lamp Luminaire
Low Voltage AR70
3.75"3.75"3.75"3.75"
A
B
C
E D
F
G
380º x 45º locking
angular adjustment

45º visual cut-off
Perforated mesh plaster 
frame adheres to ceiling 
compound for seamless 
trimless mounting.
Beveled housing interior and 
standard retractable yokes allow 
lamp holders to slide within the 
housing for added adjustability.
Trimless
Detail
Ceiling mudding 
compound is applied 
directly to the edge 
of the aperture.

Side mounted compartment
houses wiring, electronic
transformers and thermal
protector. Accessible 
through fixture opening.
Tabs for aircraft 
cable suspension
above ceiling Butterfly Brackets
for Black Iron mounting
Other Adders
CC - Two Circuit
CP - Chicago Plenum
RECESSED AR70
LV TRIMLESS
SPECIFY -
Dimensions A
Housing
Length
B
Housing
Height
C
Aperture
Length
D
Aperture
Width
E
Plaster Frame
Width
F
Plaster Frame
Length
G
Above Ceiling
Width
Ceiling
Cut-Out
26.87” 6.80” 21.10” 4.00” 9.75” 26.85” 11.75” 24.20” x 7.46”
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
DESCRIPTION:
An adjustable AR70 fixture suit-
able for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All aluminum construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless trimless mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50” or
0.625” drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
5-AR70 lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
aroundfixture.Ventholesinhous-
ing provide cooler operation
ELECTRICAL:
Integral electronic transformer.
Secondary lead is 11.5V. Primary
lead is 120V. Dimmable. Junction
boxisULlistedforthroughbranch
wiring, (access above ceiling not
required) for 8 #12, 90°C supply
conductors or 60°C for end of run.
Fusedandshortcircuitprotection.
Transformers and electrical
accessible through ceiling open-
ing via access door on housing
sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
ORDERING EXAMPLE:
=Five Light Trimless Recessed AR70 - White Interior - 50 watt lamps -
120 Volt
LV570 WH 50 120
Cat. # / Description Interior Finish Lamp Wattage Voltage
LV570 : 5Light Recessed Next Generation Trimless
Combo Fixture
12V AR70
BK - Black 20 - 20 Watt AR70 120 - 120 Volt
(Standard)
WH - White 50 - 50 Watt AR70 277 - 277 Volt
S - Silver
PT - Custom (Specify)
LV570
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX [phone]
