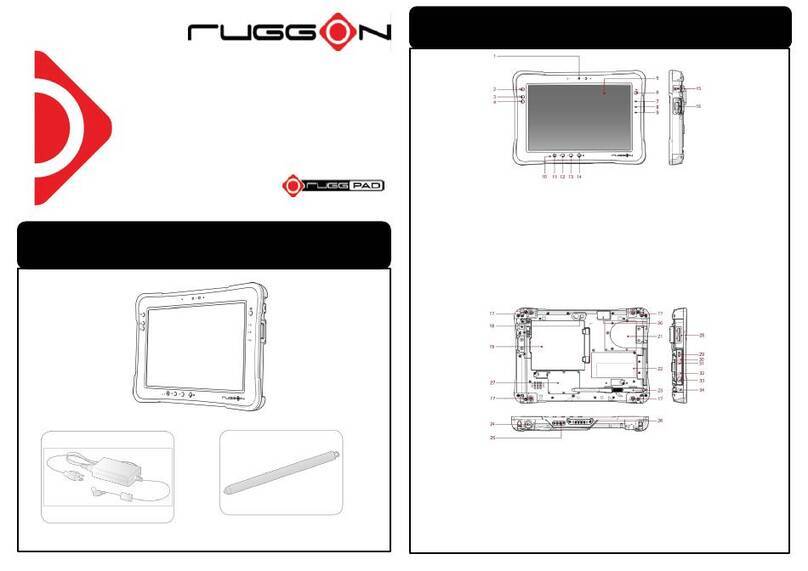

RuggON PM-521 User manual

Quick Start Guide
Overview
Accessory
fn
f1
f2
fn
PM-521
Power Adapter
2-Point
Shoulder Strap
Stylus
2-Point
Carrying Handle 4-Point Handstrap
Hitch D-rings
(Attaching straps)
PM-521
fn
f1
f2
fn
2
3
4
7
9
10 11 12 13 14
8
6
5
1
15
16
1Front camera 7Battery LED 13 Volume +
2FN key 8Wi-Fi LED 14 Home key
3F1 key 9FN LED 15 DC-IN jack
4F2 key 10 Power LED 16 RS-232
5Touch screen 11 Power key
6Barcode trigger 12 Volume -
Note: To prevent damage or malfunction, always dry the touch screen when wet.
17 Securing holes 24 Kensington lock 31 Micro SIM slot
18 Rear camera 25 Pass-through 32 USB 3.0
19 Battery 26 Docking connector 33 Audio jack
20 Barcode reader 27 USB 2.0 34 Ethernet
21 NFC sensing area 28 Micro HDMI 35 Tether hole
22 Expansion bay 29 MicroSD slot
23 Stylus holder 30 Battery switch
ON OFF
SDSIM
3.0
2.0
ON OFF
SDSIM
3.0
2.0
26
17 17
17
24
25
17
23
20
18
19 21
28
29
30
31
32
33
34
35
27
22
All manuals and user guides at all-guides.com
all-guides.com

MicroSD Card Charging
Visit www.ruggon.com to download the latest user manual and installation information.
1. Unlock the latch.
2. Open the I/O compartment cover.
3. Take the microSD card from its
packaging.
4. Insert the microSD card into the slot,
making sure the beveled edge is
aligned in the slot.
5. Press in until an audible click sounds.
ON OFF
3.
SDSIM
SIM Card
1. Unlock the latch.
2. Open the I/O compartment cover.
3. Take the SIM card from its
packaging.
4. Insert the SIM card into the slot,
making sure the beveled edge is
aligned in the slot.
5. Press in until an audible click sounds.
Power On
1. Open the I/O compartment cover.
2. Switch the DIP switch to the ON
position.
3. Install the external battery cover
over the battery connector.
4. Press and hold the power button until
the screen lights. The device runs
through the start up sequence and
powers up.
1. Flip open the DC-IN cover to expose
the DC-IN jack.
2. Connect the AC adapter to the
DC-IN port.
3. After charging, disconnect the AC
adapter.
4. Replace the DC-IN cover by angling
the rear side at an angle.
5. Press the front open end down in the
compartment to seal in place.
ON OFF
3.
SDSIM
ON OFF
SIM
