Russell Hobbs RHGWC1B-C User manual

Model number(s):
RHGWC1B-C (-LCK) & RHGWC3SS-C (-
LCK)
For Customer Services & Spare Parts please call 0345 2088750
or visit us at https://mda.russellhobbs.com
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
Glass Table Top Wine Cooler
Instruction Manual
r6.2

Contents
Safety Instructions ………………………………………. 3-4
Electrical Safety ………………………………………. 5
Transportation & Handling ………………………………………. 5
Installing & Switch on your
Appliance
………………………………………. 6
Before Switching On ………………………………………. 7
Product Overview ………………………………………. 8
Unit & Spare Parts ………………………………………. 8
Usage ………………………………………. 9
Temperature Selection ………………………………………. 9
Lock & Keys (selected models) ………………………………………. 10
Door Reversal ………………………………………. 10-11
Energy Saving Advice ………………………………………. 12
Maintenance & Cleaning ………………………………………. 13
Internal Cleaning ………………………………………. 13
External Cleaning ………………………………………. 13
When not in Use ………………………………………. 13
Trouble Shooting ………………………………………. 14-15
Connection to the Mains Supply ………………………………………. 16
Guarantee ………………………………………. 17
Technical Specification ………………………………………. 18
Product Fiche ………………………………………. 19
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
- 2 -

Safety Instructions
Important note: Please read this booklet before installing and switching on
this appliance. The manufacturer assumes no responsibility for incorrect
installation and usage as described in this booklet.
Warning: When positioning the appliance, ensure the supply cord is not
trapped or damaged.
Warning: Do not locate multiple portable socket-outlets or portable
power suppliers at the rear of the appliance.
•This model uses natural refrigerant gas as part of its cooling system.
This gas is known as R600a (Isobutene) and is environmentally friendly
but can be combustible. Care should therefore be taken when handling or
transporting the product to ensure that none of the refrigeration circuit
components are damaged,
•Do not obstruct ventilation openings in the appliance
•The appliance must not be placed or rested on its power cord.
•Do not use mechanical devices or other artificial means to accelerate the
defrosting process, such as a heater or a hair dryer.
•Do not use electrical appliances in the cooler compartment of the
appliance.
•Ifthis appliance is to replace an old cooler with a lock, the lock must be
removed as a safety measure before storing it or disposing of it. This is
to protect children from locking themselves inside the appliance.
•Old refrigerators, coolers and freezers contain insulation gases and
refrigerant, they must be disposed of properly. Contact your local
authority or your dealer if you have any questions. Please ensure that
you do not damage the scrapunit prior to being picked-up by the relevant
waste disposal service.
•Donot use adaptors or extension leads when connecting the appliance to
the electrical power supply
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
- 3 -

•Donot plug in damaged plugs.
•Donot pull, twist or damage the power cable.
•Donot plug-in or un-plug the appliance with wet hands to prevent
electrical shock.
•This appliance can be used by childrenaged from 8 years and above and
persons with reduced physical, sensoryor mental capabilitiesor lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children should not play with the appliance.
•Children aged from 3 to 8 years are allowed to load and unload this
appliance.
•This appliance is designed to be used by adults, do not allow childrento
play with the appliance or letthem hang over the door.
•Donot place explosive or flammable material in your appliance for your
own safety.
•Donot cover the body or the top of the appliance
•Fix down the accessories in the appliance during transportation to
prevent damage to them.
•If the appliance is left empty for long periods, switch off, defrost, clean, dry
and leave the door open to prevent mount developing within the
appliance.
•This refrigerating is intended to be used exclusively for the storage of
wine.
•This refrigerating appliances is not intended to be used as a built -in
appliance.
•This refrigerating appliance is not suitable for freezing foodstuffs.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
- 4 -

Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply
is the same as that indicated on the rating plate. This product is designed to
operate on 220 –240V AC; 50Hz. Connection to any other power source
may damage the unit.
•This product may be fitted with a non re-wireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse
cover becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or
becomes damaged in any way, it should be cut off and an appropriate plug
fitted following the wiring instructions. This should be carried out by a
qualified electrician. The plug removed must be disposed of safely, as
insertion into a 13 Amp socket is likely to cause an electrical hazard.
Transportation and Handling
For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold
the base and rear corners of cabinet. Lift the cooler carefully. Never use the
door handles for lifting. To move the cooler on a flat level surface, tilt it
slightly backwards and push backwards.
This unit is heavy and could cause injury –ensure there are adequate people
present to move the appliance.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
- 5 -

Installing and Powering Your Appliance
•Operating voltage for your appliance is 220-240Vat 50Hz.
•Before plugging in the power supply, ensure that the voltage on the rating
label corresponds to the working voltage of your electrical system in your home.
•Insert the plug into an efficient Ground (Earth) connection. If the socket has
no Ground (Earth) contact or the plug does not match, we suggestyou call an
authorised electrician for assistance.
•Place your appliance in an area that is not exposed to direct sunlight.
•Your appliance should be placed at least 10cm away from stoves, ovens and
other heating cores.
•This appliance should never be used outdoors or left in the rain.
•When your appliance is placed nextto achest freezer or freezer, there should be
at least 10cms between them to prevent humidityon the outer surface.
•Do not place anything on your appliance and install the unit in a suitable place so
that there is at least 30cm clearance above the appliance.
•If placing your appliance nextto kitchen cabinets, leave 5cm between them.
•The rear of the appliance should be at least 6cm away from the back wall.
•The appliance must be used in the vertical position and on a flat surface.
•To level the appliance, use the adjustable feet on the appliance.
•Do not place your appliance on a carpeted surface as this will prevent
adequate ventilation.
•This appliance should only be placed on a flat, firm surface.
•Choose a dry and well-ventilated space.
•The appliance should be positioned so that the plug is easily accessible.
•If you need help or are unsure how to install the unit, please contact
Customer Services on 0345 208 8750 or visit https://mda.russellhobbs.com.
WARNING! During use, service and disposal of the appliance,
please pay attention to symbol similar to the one shown, which is
located on rear of the appliance (rear panel or compressor) and
with a yellow or orange colour. It’s risk of fire warning symbol.
There are flammable materials in refrigerant pipes and
compressor. Please be far away from fire source during use,
service and disposal.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
- 6 -

Before Switching On
•Before using your appliance, add a teaspoon of bicarbonate of soda to
warm water and with a damp cloth wipe down all parts of the new
appliance, then repeat the process with a clean damp cloth and dry (ensure
the appliance is not connected to the power when performing this task).
•Remove all transport tapes and foam protection pieces. Clean the interior
with a cloth dampened in lukewarm soap and water. Wipe with clean water
and wipe dry.
•There may be an odour when you first switch on the appliance, it will
disappear when the appliance starts to cool.
•When the appliance has been positioned, adjust the feet to ensure the unit
is stable. This is essential to ensure quiet running and proper door opening
/closing.
•Connect to the electrical socket but do not switch the power to the cooler
on for at least 3 hours. The coolant within the product needs time to settle
after it has been transported and put in to position, failure to do this will
affect the cooling performance of your appliance.
•Once the appliance has settled, locate the thermostat knob on the product
(this is at the rear of the appliance and set between position “4” and “5” and
switch on the power. The compressor will begin to work. Close the door.
•You may hear faint gurgling or bubbling sounds when the refrigerant is
pumped to the cooling system and through the coils or tubing at the rear of
the appliance. When the compressor is in operation you may hear a slight
whirring sound or pulsating noise. The thermostat controls the operation
of the compressor, and you may hear a slight click as it cycles in and out
(this is normal).
•To save energy, you should minimize the frequency and duration of door
opening.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
- 7 -

Unit Parts & Spare Parts
Before installation, check that all parts detailed in the product overview are
present. If any parts are missing, please contact the Customer Service team on
0345 208 8750 or visit us at https://mda.russellhobbs.com

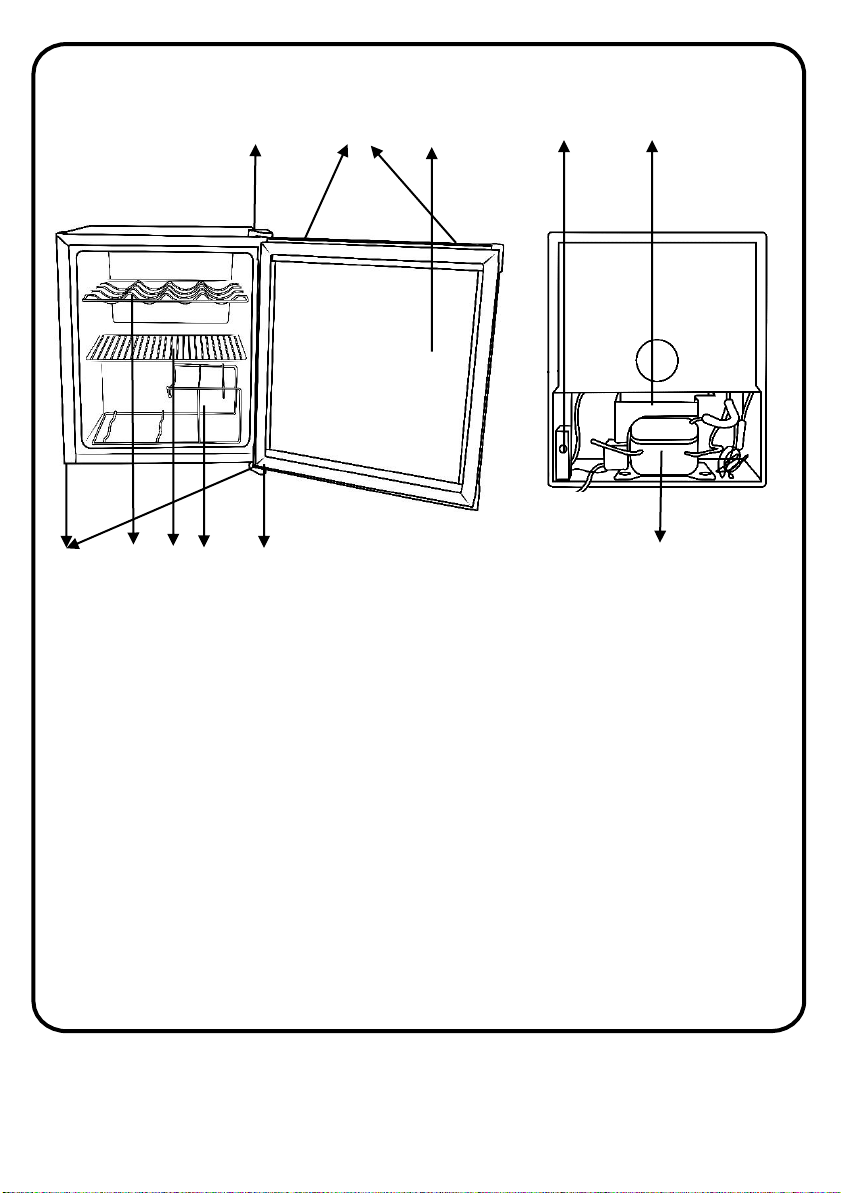

Product Overview
Front of the appliance
1. Upper hinge
2. Handle recess (not applicable to the
RHGWC3SS-C)
3. Glass door
4. Lower hinge
5. Bottle rack
6. Shelf
7. Bottle shelf
8. Adjustable feet
Rear of the appliance
9. Thermostat
10. Driptray
11. Compressor
123910
11
4
5
867
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
- 8 -

Allow to stand for a minimum of 3 hours before plugging in to the mains
The temperature in the appliance is controlled by the temperature control
dial located on the rear of the cooler on the outside of the product. Rotate
the control dial left or right to regulate the temperature inside the cooler.
On the temperature control, 0 is off, 1 is the warmest setting and 5 is the
coldest setting. Under normal conditions the temperature control should
be set between setting 4 and 5.
Once the temperature control has been set, close the door and plug in the
appliance. We recommend that the door is not opened for a minimum of 4
hours to allow the appliance to reach the standard operating temperature.
Note: The standard operating temperature for the cooler compartment
should be between 5ºC and 18ºC.
•Note: Thetemperature of items stored in the appliance and how
often the door is opened affects the temperature in the cooling
compartment. If required, change the temperature setting.
Usage
Rear of the appliance
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
- 9 -

Lock & Keys (selected models)
•Some models are provided with a lock and 2 keys. The lock will be on
the front of the unit/door at the bottom. The keys are packaged with
the instruction manual inside the appliance.
•To lock the appliance insert 1 of the keys into the lock and turn it
clockwise until the metal pin is fully engaged and the door is locked.
Remove the key and place it in a secure place.
•To unlock the appliance insert 1 of the keys in to the lock and turn the
key counter clockwise until the metal pin is fully released and the door
is unlocked. Remove the key and place it in a secure place.
•If required the locking plate at the bottom of the unit (this is where the
locking pin locates when the unit is locked) can be adjusted. To do this
loosen the 2 screws, adjust the plate and retighten the screws. Check
the locking pin locates correctly.
Door Reversal
You will need to tilt the cooler backward to access the lower hinge which
holds screws. Do not tilt more than 45 degrees and do not lay the cooler flat
on its side.
Tools Required: Philip head screwdriver, flat headed screwdriver and
hexagonal spanner.
1. Remove the top plastic hinge cover and set aside, then unscrew the 4
screws from the metal bracket and set aside. Carefully remove the door
and place it on a cushioned surface.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
-10 -

Door Reversal
2. Remove the hinge plug and plastic insert from the top of the door and fix
them to the opposite sides. For the RHGWC3SS-C & RHGWC3SS-C-LCK
you will need to remove the hinge stopper from the bottom of the door
and fix it to the opposite side of the door, ensuring it is fixed securely. For
all other versions this part is not applicable.
3. Remove the plastic insert on the left side of the cooler and fix it to the
opposite side.
4. Tilt the appliance no more than 45 degrees and remove the screw on the
left side of the cooler and set it aside. Then unscrew the 4 screws holding
the bottom door hinge in place, move it across to the opposite side and fix
it into position. Now fix the screw that you set aside to the right side of
the cooler.
5. Place the door back on to the bottom hinge, put the pin of the top hinge
into the top of the door and fix the hinge in to place by screwing it to the
top of the cabinet (use a spanner to tighten it if necessary). Ensure the
door is aligned horizontally and vertically so that the seals are closed on
all sides before finally tightening the top hinge.
Note: The appliance must now be upright for a minimum of 3 hours before
turning it on.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
-11 -

Energy Saving Advice
•Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator.
•Locate the appliance in a cool well-ventilated room and make sure that the
air vents are clear.
•Try to avoid keeping the doors open for a long time, warm air will enter the
cabinet and may cause a build-up of ice as well as affecting the energy
consumption. Ensure there are no obstructions preventing the doors from
closing properly.
•Ensure that the door seals are clean and there are no tears or splits.
•Do not overload the appliance: the cooling air that circulates to keep the
appliance cold gets blocked and pockets of warm air form.
•Do not put hot items into the cooler –let them cool down first.
•The shelves are placed in factory mode this delivers the most energy
efficient usage for this appliance.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
-12 -

Maintenance & Cleaning
Disconnect the appliance from the power supply before cleaning.
Internal Cleaning
•Do not pour water over the appliance.
•The cavity should be cleaned periodically using a solution of bicarbonate
of soda and lukewarm water (5ml to 0.5 litre of water)
•Clean the accessories separately with soap and water. Do not put them in
the dishwasher.
•Do not use abrasive products, detergents or soaps.
•After washing, rinse with clean water and dry carefully.
•When you have finished cleaning reconnect the plug with dry hands.
External Cleaning
•Wash the outer cabinet with warm soapy water. Do NOT use abrasive
products.
•There are sharp edges on the underside of the product so care should be
taken when cleaning.
•Once or twice a year dust the rear of the appliance and the compressor at
the back of the appliance, with a brush or vacuum cleaner, as an
accumulation of dust will affect the performance of the appliance and
cause increased energy consumption.
When the appliance is not in use
When the appliance is not in use for long periods, disconnect from the
electricity supply, empty all of the items and clean the inside. Leave the door
open to prevent the build-up of odours.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
-13 -

Trouble shooting
Problem
Solution
The cooler doesn't work
Check that the appliance is switched on.
Check that there has not been a power cut.
Check that the plug is not
faulty.
Check that the fuse has not blown.
Check that the voltage is correct for the appliance.
Are there any faults with the socket? For this purpose,
try the plug of your appliance by connecting it to a
socket which you are sure is working.
The temperature inside the
appliance is not cold enough
Check that the appliance is not overloaded
Check that the thermostat is set to a suitable
temperature.
Check that the appliance is not placed in direct
sunlight, or too near to a heating source.
Check that the ambient temperature is within the
operation limits of the appliance.
Are the doors of the appliance opened frequently?
Once the door is opened, the humidity found in the air
in the room enters the appliance, especially if the
humidity levels in the room are very high. The more
frequently the door is opened in humid conditions the
more chance of the build up of moisture.
The temperature within the
appliance is too cold
Increase the working temperature by adjusting the
thermostat to a lower setting.
The
highest setting
should only be used as a rapid cool
setting and should only be set 2 hours before a large
amount of food is placed in the cooler. If this is not
done the temperature in the cooler compartment
could fall below
0ºC as the compressor will run
continuously.
The inner surfaces of the
appliance are wet
Caused by condensation
- dry the inside of the
appliance.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
-14 -

Trouble shooting
Problem
Solution
Smell/odour
Check all
the items that are in the cooler are in
date and correctly packaged. If it isn’t then it
should be removed immediately or repackaged.
Check for spillages on each shelf and rack. You
may need to remove the shelf and rack to check
that no spillages have settled underneath them.
Spillages that have not been cleaned and have
been left can cause smells and unwanted odours.
The doors do not close
properly
Ensure there are no obstructions preventing
door closure.
Check the door compartments and shelves are
correctly in place.
Check the door seal is not warped or torn.
Check the appliance is level.
Unusual noises
Check that the appliance is on a flat, level surface
and is stable.
Check the spacing's around the appliance
and
ensure it is
not touching other items.
Bubbling and gurgling sound:
• This noise is
emitted as the coolant fluid flows through the
pipes within the system. This is normal.
Water flowing sound: • This is the normal sound
of water flowing into the drain trough during the
defrosting process.
If the appliance is operating noisily (compressor
noise):
This is normal. This noise indicates that
the compressor is operating normally.
As the
compressor is being energized, it might run a bit
more noisily for a short period of time.
The outer surfaces of the
appliance are wet
Caused by condensation
- dry the outer of the
appliance carefully.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
-15 -

WARNING- THIS APPLIANCE MUST BE EARTHED
This appliance is designed to operate from a mains supply of AC220V - 240V;
50HZ.
Check that the voltage marked on the product corresponds with your supply
voltage.
For UK use only –Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
The GREEN/YELLOW wire is the EARTH and must be connected to the terminal
which
is marked with the letter E or by the earth symbol or coloured GREEN or
GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be connected to
the terminal marked with the letter N or coloured BLACK.
The BROWN wire is the LIVE wire and must be connected
to the terminal marked with the letter L or coloured RED.
Always ensure that the plug cord grip is fastened correctly.
If a13A (BS1363) fused plug is used it must be fitted with a 13amp fuse
conforming to BS1362 and be BSI or ASTA approved.
Connection to the Mains Supply
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
-16 -

Guarantee
This product is guaranteed for 12 months from the
date of the original purchase. If any defect arises due
to faulty materials or workmanship you must contact
Product Care with the original proof of purchase so a
replacement or refund can be arranged.
Refund or replacement is at the discretion of Product
Care.
The following conditions apply:
•Product Care will require a valid proof of purchase
at the point of replacement or refund.
•The product must be installed and used in
accordance with the instructions contained in this
instruction guide and any other instructions for use
which has been supplied.
•It must be used for domestic purposes only and for
its intended use.
•This guarantee does not cover wear and tear,
damage, misuse or consumable parts.
This does not affect your statutory rights.
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
-17 -

Technical Specification
Model number RHGWC1B-C (-LCK)
Rated Voltage 220V –240V ~ 50Hz
Capacity 12 bottles (75cl) / 46L
External Dimensions(HxWxD) 513mm x 430mm x 480mm
Model number RHGWC3SS-C (-LCK)
Rated Voltage 220V –240V ~ 50Hz
Capacity 12 bottles (75cl) / 46L
External Dimensions(HxWxD) 513mm x 430mm x 480mm
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
-18 -

Product Fiche
Model
RHGWC1B-C/-LCK & RHGWC3SS-C/-LCK
Fresh Food Storage Compartment Volume (L)
N/A
Frozen Food Storage Volume (L)
N/A
Storage Temperature (
°C) 5 -18
Energy Consumption (kWh/per year)
147
Energy Consumption (kWh/per year), based on standard test results for 24 hours
Energy Rating
G
Defrosting Type
Static
Climate Class
SN/N
This appliance is intended to be used at an ambient temperature between 10°c and 32°c
Airborne Acoustical Noise (dB)
40
Temperature Rise Time
N/A
Freezing Capacity
N/A
Compartment Humidity Range
50-80%
Rated voltage
220- 240V / 50Hz
Rated Current
0.55A
Product Dimensions
CMs (H x W x D) 51.3 x 43 x 48
Total Storage Volume (L)
46L
Wine Bottle Capacity
12
This appliance is intended to be used
exclusively for the storage of wine
Yes
Built in appliance
No
Net Weight (KG)
18.5 / 19.5
Class Symbol
Ambient temperature
range (°C) Information
Extended
temperate SN +10 to +32
Extended temperate: 'this refrigerating appliance is
intended to be used at ambient temperatures ranging
from 1o
°c to 32°c;
Temperate N +16 to +32
Temperate: 'this refrigerating appliance is intended to
be used at ambient temperatures ranging from 16
°c to
32
°c;
Subtropical ST +16 to + 38
Subtropical: 'this refrigerating appliance is intended to
be used at ambient temperatures ranging from 16
°
c to
38
°c;
Tropical T +16 to+ 43
Tropical: 'this refrigerating appliance is intended to be
used at ambient temperatures ranging from 16
°c to
43
°c;
r6.2 For Customer Services, Spare Parts & Warranty Information please call0845 209 7461
-19 -

Russell Hobbs is a registered trademark used under license from
Spectrum Brands (UK) Ltd. Made under license by G2S Limited,
Wigan, WN2 4AY/G2S (NI) Ltd, Belfast, BT5 5AD.
Russell Hobbs Support: call 0345 209 7461 or visit
https://mda.russellhobbs.com
The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie bin Symbol'.
When this symbol is marked on a product/batteries, it means that the
product/batteries should not be disposed of with your general household
waste. Only discard electrical/electronic/battery items in separate collection
schemes, which cater for the recovery and recycling of materials contained
within. Your co-operation is vital to ensure the success of these schemes and
for the protection of the environment. For your nearest disposal facility, visit
www.recycle-more.co.uk or ask in store for details.
SEDEX –Connecting businesses and their global suppliers to share ethical
data and enabling improvement in ethical performance. Visit
www.sedex.org.uk for further information.
We reserve the right, due to possible changes to design, to alter the
instruction manual without prior notice.
r6.2 -20 -
