Ryobi BCL3620 User manual
Important! It is essential you read the instructions in this manual before starting and
operating this machine.
Subject to technical modifications.
OPERATOR’S MANUAL
2
sunshine) etc. causes heat to accumulate and can
damage the device.
If the battery is not going to be used for a long period,
pull the battery off the battery charger and pullout the
mains plug.
Protect battery contacts to avoid a short circuit caused
by a metallic object that can cause a fire or explosion!
Do not rivet or screw any name-plates or signs
onto the device. The protective insulation can
thereby be rendered ineffective. Adhesive labels are
recommended.
If the mains cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING
Do not insert any object into the ventilation slots or
charging connector. This can cause damage to the
appliance and may increase the risk of personal injury
and property damage.
WARNING
Never allow the charger to be modied in any way
unless at an authorised service centre. This may
increase the risk of serious personal injury or property
damage.
Before you plug in your product, make sure that the
supply voltage used corresponds to that indicated on
the rating plate.
See Figure 4.
Insert the provided power cord into charger socket before
charging.
1. BCL3620 charger
2. Charger socket
3. Indicator LED
4. Battery port
5. "Key hole" hanger
6. Depress latches to remove battery pack
7. Power cord
This charger is only intended to charge Ryobi battery pack
BPL3626, see specication table for details.
This appliance is not intended for use by persons
(including children) who may not be completely capable,
or who may lack experience, knowledge and common
sense necessary to operate the appliance safely. Children
should be supervised to ensure that they do not play with
the appliance.
When using the battery charger, the following basic
safety precautions should be observed for protection
against electric shock, danger of injury and burns.
Please read and observe these instructions before using
the device.
This charger is only to be used indoor under dry
conditions.
This charger is not intended to charge any other type
of battery and should never be used in explosive or
inflammable environments.
Non-rechargeable batteries cannot be charged with
this battery charger.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Before using the device check that the mains cable
and mains plug are not damaged.
The device must not be damp, and it should not be
used in a damp environment.
Do not use the device if it has suffered any heavy
shock or jolting, or is damaged in any other way.
Due to the heat generated during charging, the battery
charger should not be operated on a combustible
surface/in an inflammable environment.
Do not cover the ventilating slits.
Never disassemble the device yourself. Danger of
an electric shock or fire could be caused by improper
reassembly.
When the appliance is not in use and before cleaning
and maintenance, unplug the appliance from the
outlet.
During charging, the battery pack with charger must
be placed in a well ventilated area. Malfunction during
charging can be caused by storing and operating
in places where the temperature exceeds +40°C;
this should be avoided. Battery charging in closed
cupboards, near heat sources (radiators, bright
3

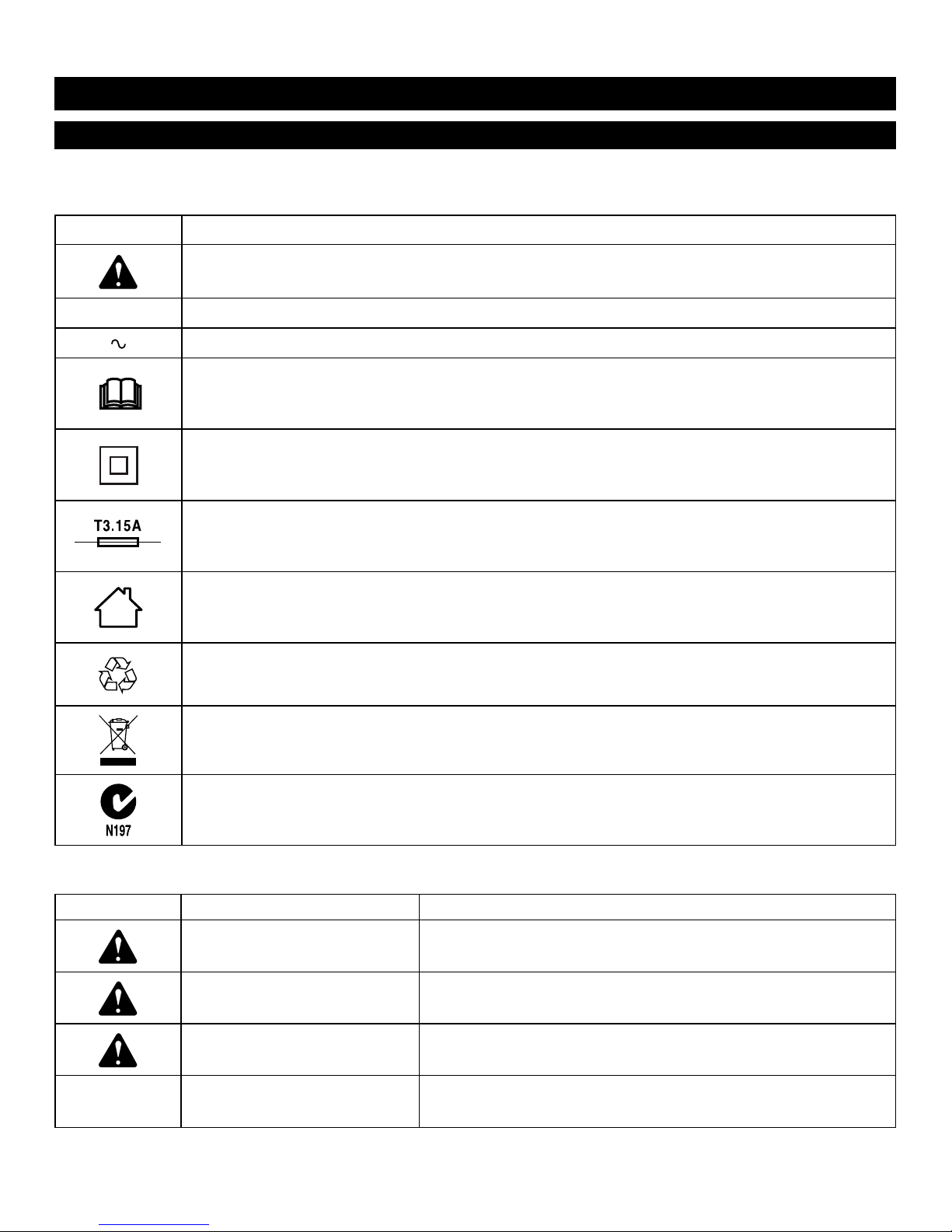

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
Precautions that involve your safety.
V
Voltage
Alternating current
To reduce the risk of injury, user must read and understand user’s manual before using this product.
Class II: Protection against electric shock rely on double insulation or reinforced insulation.
Time-lag type fuse
Indoor use only
Recycle unwanted
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
SAA and C-Tick Conformity
The following signal words and meanings are intended to explain the levels of risk associated with this product.
Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
4
of a tool causes the batteries to become hot. It does not
occur under normal circumstances. Refer to CHARGING
A COOL BATTERY PACK for normal recharging of
batteries. If the charger does not charge the battery pack
under normal circumstances, return both the battery pack
and charger to your nearest Authorized Service Center for
an electrical check.
Only charge the Ryobi battery pack BPL3626 with this
charger.
Make sure the power supply is normal household
voltage, 220-240 V, 50-60 Hz, AC only.
Make sure the battery pack latch snaps into place
and the battery pack is secured in the charger before
beginning operation.
Make sure the power cord is fully seated in the charger
socket.
Connect the charger to the power supply.
Slide the battery pack along the groove of the charger.
Be sure that contacts on the battery pack engage
properly with contacts in the charger.
: After charging is complete, the charger LED
will remain on with green color until the battery pack is
removed from the charger or charger is disconnected from
the power supply.
The battery pack will become slightly warm to the
touch while charging. This is normal and does not
indicate a problem.
Do not place the charger and battery pack in an area
of extreme heat or cold. They will work best at normal
room temperature.
: The charger and battery pack should be placed in
a location where the temperature is more than 10°C but
less than 38°C.
When batteries become fully charged, unplug the
charger from the power supply and remove the battery
pack.
To remove the battery pack from the charger, depress
the battery pack latch.
BPL3626
36V
220V-240V,
50Hz-60Hz AC only
2.6Ah
20
100 minutes
60%
WARNING
Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a
second is sufcient to inict serious injury.
WARNING
Do not use any attachments or accessories not
recommended by the manufacturer of this product. The
use of attachments or accessories not recommended
can result in serious personal injury.
WARNING
Never operate the charger where there is a possibility of
inammable or explosive gasses or vapour. Keep well
away from petroleum, paint and cleaning supplies and
gas red heating systems.
WARNING
Charge in a well ventilated area. Do not block charger
vents. Keep them clear to allow proper ventilation.
Battery packs are shipped in a low charge condition to
prevent possible problems. Therefore, you should charge
them until the LED on the front of the charger glows green.
When using a tool continuously, the batteries in the battery
pack will become hot. You should let a hot battery pack
cool down for approximately 30 minutes before attempting
to recharge.
This situation only occurs when continuous use
5
Power Without battery pack On / Ready to charge battery pack.
Evaluate Hot battery pack Flashing / When battery pack reaches cooled temperature, charger
begins fast charge mode.
Evaluate Cold battery pack Flashing / When battery pack reaches warmed temperature, charger
begins fast charge mode.
Evaluate Deeply discharged Flashing / Charger pre-charges battery until normal voltage is reached,
then begins fast charge mode.
Defective Defective Flashing Flashing Battery pack or charger is defective.
yIf the LED status repeats a second time, try charging a different battery.
yIf a different battery charges normally, dispose of the defective pack (see maintenance section).
yIf a different battery also indicates "defective," the charger may be defective.
Charging Fast charging / Flashing —
Full — / On Fast charging is complete; charger maintains charge mode.
Off Off Off Flashing In charging process, battery pack capacity is lower than 25%
Off Off Flashing On In charging process, battery pack capacity is between 25%-50%.
Off Flashing On On In charging process, battery pack capacity is between 50%-75%.
Flashing On On On In charging process, battery pack capacity is between 75%-100%.
On On On On Full charged
Off Off Off Off One minute after full charge, all LEDs on the battery are off, charger LED is on with
green color.
Ryobi 36 V lithium-ion batteries are designed with features
that protect the lithium-ion cells and maximize battery life.
If the tool stops during use, release the trigger to reset and
resume operation. If the tool still does not work, the battery
needs to be recharged.
WARNING
If at any point during the charging process none of the
LEDs are lit, remove the battery pack from the charger
to avoid damaging the product. Do not insert another
battery. Return the charger and battery to your nearest
service center for service or replacement.
6
There are no user serviceable parts or adjustments inside
the battery or charger. Both should be returned to an
authorised service centre for specialised attention.
WARNING
Service, testing and repairs should only
be carried out by authorised service centres.
WARNING
Unplug the charger power cord from power supply
before cleaning at any time to prevent serious personal
injury.
Clean the charger surface (except labels) using a
damp cloth with a mild detergent.
Do not use any strong detergents on the plastic
housing. They can be damaged by certain aromatic
oil such as pine and lemon, and by solvents such as
kerosene.
Moisture can cause a shock hazard. Wipe off any
moisture with a soft dry cloth.
Use a small brush or the air discharge of a small
vacuum cleaner brush to clean the air vents on the
charger.
Keep the air vents free of obstructions.
Store your charger in a cool dry place between 10-25 °C. It
is not recommend to leave it in a vehicle during hot or cold
conditions. Ensure no metal lings or swarf can fall into
the vents during storage, as this may cause serious injury
when it is next used.
Recycle raw materials instead of disposing
of as waste. The machine, accessories
and packaging should be stored for
environmentally friendly recycling.
TECHTRONIC INDUSTRIES (AUSTRALIA) PTY. LTD.
Level 1, 660 Doncaster Road,
Doncaster, Victoria 3108,
Australia
Tel: 1300 361 505 Fax: 1800 807 993
TECHTRONIC INDUSTRIES N.Z. LIMITED
Auckland: 27 Clemow Drive, Mt Wellington, N.Z.
Tel: (09) 573 0230 Free Call: 0800 279 624 Fax: (09) 573 0231
Contact during normal business hours.
Subject to the guarantee condition below, this Ryobi
tool (hereinafter called “the product”) is guaranteed by
TECHTRONIC INDUSTRIES AUSTRALIA PTY
LIMITED (hereinafter called “the Company”) to be free
from defects in material or workmanship for a period
of 24 months from the date of original purchase
covering both parts and labour. Under the terms of
this guarantee, the repair or replacement of any part
shall be the opinion of the Company or its authorised
service centre. Should service become necessary
during the warranty period, the owner should contact
the customer service HELPLINE 1300 361 505 or
contact the retailer from whom the product was
purchased.
In order to obtain guarantee service, the owner must
present the sales docket and Guarantee Certificate to
confirm date of purchase. This product is sold by the
dealer or service centre as principal and the dealer
has no authority from the Company’s behalf except as
herein contained or herein referred to.
Guarantee Conditions
This guarantee only applies provided that the product
has been used in accordance with the manufacturer’s
recommendations under normal use and reasonable
care (in the opinion of the Company) and such
guarantee does not cover damage, malfunction or
failure resulting from misuse, neglect, abuse, or used
for a purpose for which it was not designed or is not
suited and no repairs, alterations or modifications
have been attempted by other than an authorised
service centre. This guarantee will not apply if the tool
is damaged by accident or if repairs arise from normal
wear and tear. The Company accepts no additional
liability pursuant to this guarantee for the costs of
travelling or transportation of the product or parts to
and from the service dealer or service centre - such
costs are not included in this guarantee.
Certain legislation, including the Trade Practices Act,
1974 (as amended) and other state and territorial laws
give rights to the buyer and impose liability on the
seller in certain circumstances. Nothing herein shall
have the effect of excluding, restricting or modifying
any condition, guarantee, right or liability imposed, to
the extent only that such exclusion, restriction or
modification would render any term herein void.
Other manuals for BCL3620
1
Table of contents
Other Ryobi Batteries Charger manuals
Ryobi
Ryobi P125 User manual
Ryobi
Ryobi P118BVN User manual
Ryobi
Ryobi RC18150U Operation instructions
Ryobi
Ryobi P119 User manual
Ryobi
Ryobi RC18180 User manual
Ryobi
Ryobi RC18115 User manual
Ryobi
Ryobi AP4700 User manual
Ryobi
Ryobi OP407 User manual
Ryobi
Ryobi AP4500 User manual
Ryobi
Ryobi OP404 User manual
