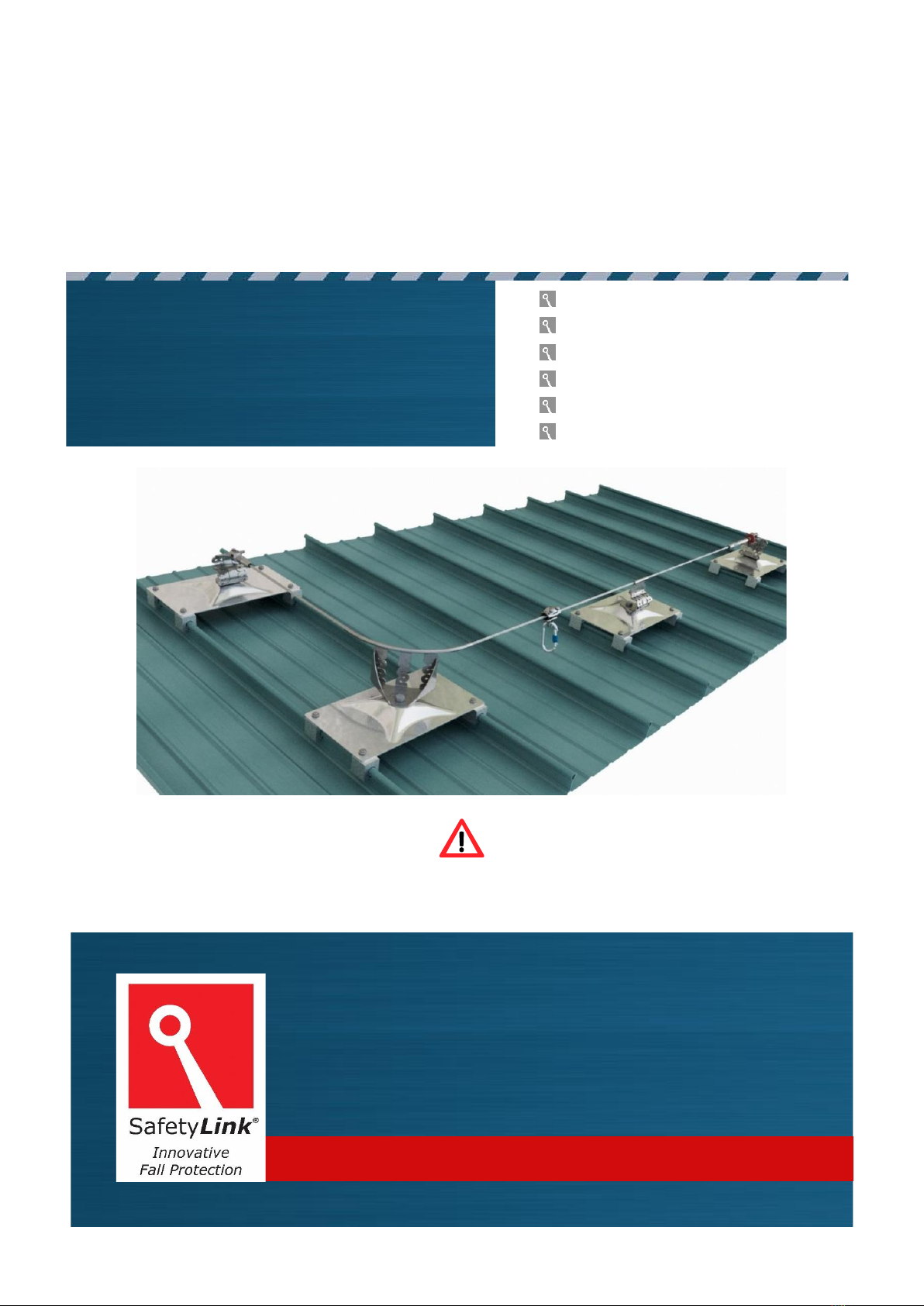

Safety Link Frogline Horizontal Lifeline System manual

SafetyLink is an innovative
anchor company achieving
success and keeping you safe
whilst working at heights.
INSTALLATION HANDBOOK
FROGLINE HORIZONTAL LIFELINE:
Installation to Standing Seam
Read entire handbook before installing SafetyLink products. All products must be installed in accordance
with SafetyLink’s installation handbook, using only products supplied by SafetyLink Pty Ltd. Failure to
follow all warnings and instructions may result in serious injury or death.
ROOF ANCHORS
HORIZONTAL LIFELINES
PERMANENT LADDERS
LADDER STABILISERS
TEMPORARY ANCHOR
X-RAIL - HORIZONTAL RAIL
Asia-Pacific/The Americas
[phone] | [email protected]
Europe/Africa/Middle East
[phone] | [e-mail]
Northern Europe
[phone] | [e-mail]
www.safetylink.com

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 2 of 16
Doc ID: MKT-383 Version: 13.0
TABLE OF CONTENTS
INSTALLATION OF A SAFETYLINK
SURFACE MOUNTED FROGLINE HORIZONTAL LIFELINE
WARNINGS................................................................................................................................... 3
MAINTENANCE –PERIODIC INSPECTIONS ...................................................................................... 4
WARRANTIES................................................................................................................................ 5
FROGLINE SURFACELINK ANCHORS –COMPLETE UNITS ................................................................. 6
FROGLINE SURFACELINK–COMPONENTS....................................................................................... 7
FROGLINE SURFACELINK–ASSEMBLING......................................................................................... 8
ASSEMBLING STEPS FOR END, INTERMEDIATE AND CORNER UNITS...........................................8
FROGLINE SURFACELINK –INSTALLATION...................................................................................... 9
INSPECT THE INTEGRITY OF THE STRUCTURE AND ROOF SHEETING ...........................................9
LIFELINE SYSTEM INFORMATION................................................................................................. 10
INSTALLATION: CABLE, TENSIONERS &TERMINATION FITTINGS ..............................................10
TIGHTENING ASSEMBLY &TORQUE SETTINGS FOR SWAGELESS TERMINALS ...........................10
APPENDIX A –SWAGELESS/SWAGED FITTINGS INSTALLATION ..................................................... 11
APPENDIX B –CRIMPED FITTINGS INSTALLATION ........................................................................ 12
FROGLINE SHUTTLE..................................................................................................................... 13
CONNECTING TO THE LIFE LINE SYSTEM....................................................................................13
PROGRESSING ALONG THE LIFE LINE SYSTEM............................................................................13
DISCONNECTING FROM THE LIFE LINE SYSTEM .........................................................................13
EXAMPLE: HORIZONTAL LIFELINE ON PITCHES BELOW 25 DEGREES .............................................. 14
EXPERT FALL PROTECTION PLANNING ......................................................................................... 15
IN CASE OF ACCIDENT ................................................................................................................. 16
FROGLINE VIDEO
CATALOGUE
WEBSITE

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 3 of 16
Doc ID: MKT-383 Version: 13.0
WARNINGS
READ CAREFULLY SOMEONE’S LIFE DEPENDS ON IT
-The building or structure for the anchorages should be assessed by an engineer, unless it is clear to a
competent height safety installer that the structure is adequate.
-SafetyLink Height Safety Systems must only be installed as per our installation guides, to structures as
specified in the installation manual for each product.
-All safety procedures must comply in accordance with the current safety code(s) of practice(s) for working
at heights. Ensure safety at all times by being attached to suitable anchor points and approved safety
equipment or approved scaffolding.
-Installation is to be carried out by, or under the supervision of a competent height safety installer.
-To prevent galling of non-permanent or adjustable stainless-steel components use nickel anti-seize or
similar boundary layer lubricant.
-Recommended waterproofing for roof tiles: Sika Flex Co-Polymer Sealant.
-Recommended waterproofing for metal roof: Silicone Sealant Neutral Cure.
-Recommended chemical anchor: Fischer FIS-V as per Fischer Product Supplement Data sheets.
-A personal energy absorber or a fall-arrest device with a personal energy absorber must be used in
conjunction with all SafetyLink Anchorages and Lifeline systems.
-Install SafetyLink horizontal lifeline systems on roof pitches no greater than 15 degrees and across roof
pitches no greater than 25 degrees.
WARNING: SURFACE MOUNTED ANCHOR SYSTEMS INSTALLED ON CONCEALED FIX ROOF TYPES MAY REQUIRE
ADDITIONAL ROOF FIXINGS, PLEASE CHECK INDIVIDUAL ROOF SHEET TYPE INSTALLATION MANUALS.
MAXIMUM NUMBER OF USERS PER SYSTEM IS FOUR (4).
MAXIMUM NUMBER OF USERS PER SPAN IS TWO (2).
REFER TO SYSTEM INFORMATION FOR SITE SPECIFIC USE.

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 4 of 16
Doc ID: MKT-383 Version: 13.0
MAINTENANCE –PERIODIC INSPECTIONS
All items of height safety equipment which are in regular use shall be subjected to periodic inspection and
servicing.
These regular scheduled inspections and servicing must be carried out by a competent height safety installer (refer
to AS/NZS 1891.4:2009 if clarification required or contact SafetyLink).
SafetyLink Anchorages (In accordance with AS/NZS 1891.4:2009)
ALL ANCHORAGES MUST BE INSPECTED EVERY 12 MONTHS.
Procedures to be followed at inspection time:
-Visually inspect anchors for signs of deterioration.
-The FrogLine End, Intermediate and Corner anchor points have energy absorbing regions and stabilising
joins. If these energy absorbing regions are expanded this will indicate the anchor point has arrested a fall
and should be replaced. Similarly, if the stabilising joins have been broken this would also indicate the
anchor point has arrested a fall and should be replaced. (The design features of the FrogLine’s curved profile
provides the initial shock absorbing capabilities in the event of a fall. Further extension is provided in the
serpentine shapes which progressively dissipate and absorb energy whilst retaining their strength. This
lessens the force on the person falling and the structure the anchor is attached to).
-Visually inspect the components of the anchor for corrosion, superficial surface marking is permitted while
deeper corrosion or pitting would require attention.
-Manually (by hand) check the 16mm bolt securing the FrogLine Base to the Plate for rigidity and tightness.
If the Bolt can turn in the anticlockwise direction it will require attention.
-Visually inspect the attachment component of the anchorage where practically possible.
-Visually inspect the parent structure for modifications or deterioration which might lead to loss of
anchorage strength.
-Check the full length of the stainless-steel cable for any evidence of wear, cuts, looseness, extension, inter-
strand wear, corrosion, stiffness, brittleness or fraying.
-Check the integrity of cable terminations and that lifeline tensioners are correctly adjusted
(80kg/0.8kN/800N) and lock nuts are tensioned correctly.
-Check for the presence of contaminants or exposure to corrosive or extreme environment signs may include
discoloration, crystallisation or oxidation. These could significantly reduce the safe working load of the
Lifeline.
-Run the FrogLine Shuttle along the full length of the lifeline to verify its correct function.
-For Concrete Installation Only: To comply with Australian Standards, each ConcreteLink must be tested after
installation and at every recertification inspection. Ensure you wait the recommended curing time as
specified by the chemical anchor instructions. The pull test can be done using a 16mm threaded eyebolt.
Test consists of ultimate pull out force proof loading to 50% of design purpose of anchorage.
IN ADDITION TO SAFETYLINK PTY LTD EQUIPMENT, ALL ANCILLARY EQUIPMENT MUST BE INSPECTED IN
ACCORDANCE WITH APPLICABLE REGULATORY REQUIREMENTS AND THE MANUFACTURER’S INSTRUCTIONS.
FOR MAINTENANCE ADVICE AND SERVICES PLEASE CONTACT SAFETYLINK
ON [phone] OR 1300 789545 FOR YOUR NEAREST SAFETYLINK INSPECTION SERVICE CENTRE OR
EMAIL: [email protected]

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 5 of 16
Doc ID: MKT-383 Version: 13.0
WARRANTIES
EXTRACT: SafetyLink Pty Ltd STANDARD TERMS AND CONDITIONS
11.1 To the extent permitted by law all implied conditions, warranties and undertakings are expressly excluded.
11.2 Except as provided in this clause the Company shall not be liable for any loss or damage, whether direct or indirect
(including consequential losses or damage) arising out of any breach of contract by the Company or any negligence
of the Company, its employees or agents.
11.3 Should the Company be liable for a breach of a guarantee, condition or warranty implied by the Australian
Consumer Law (not being a guarantee, condition or warranty implied by sections 51, 52 and 53 of that Law) then
its liability for a breach of any such condition or warranty express or implied shall be limited, at its option, to any
one or more of the following.
A) in case of Goods
(I) the replacement of the Goods or the supply of equivalent Goods.
(II) the repair of the goods,
(III) the payment of the cost of replacing the Goods or acquiring equivalent Goods.
(IV) The payment of the cost of having the Goods repaired.
Provided that any such Goods are returned to the Company by the Purchaser at the Purchaser’s expense.
B) in the case of services
(i) the supply of the services again,
(ii) the payment of the cost of having the services supplied again.
11.4 The Company will not be liable for the costs of recovery of the Goods from the field, loss of use of the Goods, loss
of time, inconvenience, incidental or consequential loss or damage, nor for any other loss or damage other than
as stated above, whether ordinary or exemplary, caused either directly or indirectly by use of the Goods.
11.5 The Company warrants that at the time of shipment, Products manufactured by it will be free from defects in
material and workmanship. In the absence of a modified written warranty, the Company agrees to making good
any such defects by repairing the same or at the Company’s option by replacement, for a period of (1) one year
from the date of shipment. This limited warranty applies provided that:
(a) defects have arisen solely from faulty materials or workmanship;
(b) the Products have not received maltreatment, inattention or interference;
(c) the Products have been installed in accordance with the Company’s Installation Handbooks using only
products supplied by the Company;
(d) accessories used with the Products are manufactured by or approved by the Company;
(e) the Products are maintained in accordance with Australian Standard 1891.4 (section 9).
(f) you notify any claim under this warranty to SafetyLink in writing to the address below no later than 14
days after the event or occurrence concerning the product giving rise to the claim and you pay all costs
related to your claim.
This warranty does not apply to any defects or other malfunctions caused to the Goods by accident, neglect, vandalism,
misuse, alteration, modification or unusual physical, environment or electrical stress.
Please note that the benefits to the purchaser (as a consumer) given by this warranty are in addition to your other rights and
remedies under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
11.6 If any goods are not manufactured by the Company, the guarantee of the manufacturer thereof shall be accepted
by the Purchaser as the only express warranty given in respect of the goods.
11.7 Except as provided in this clause 11, all express and implied warranties, guarantees and conditions under statute
or general law as the merchantability, description, quality, suitability or fitness of the Products for any purpose or
as to design, assembly, installation, materials or workmanship or otherwise are hereby expressly excluded (to the
extent to which they may be excluded by law).
PLEASE SEE SAFETYLINK PTY LTD FULL STANDARD TERMS OF CONDITIONS OF SALE FOR FURTHER REFERENCE.

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 6 of 16
Doc ID: MKT-383 Version: 13.0
FROGLINE SURFACELINK ANCHORS –COMPLETE UNITS
INSTALLATION OF A SAFETYLINK HORIZONTAL LIFELINE SYSTEM USING FROGLINE
SURFACELINKS UP ROOF PITCHES NO GREATER THAN 15 DEGREES AND ACROSS ROOF
PITCHES NO GREATER THAN 25 DEGREES

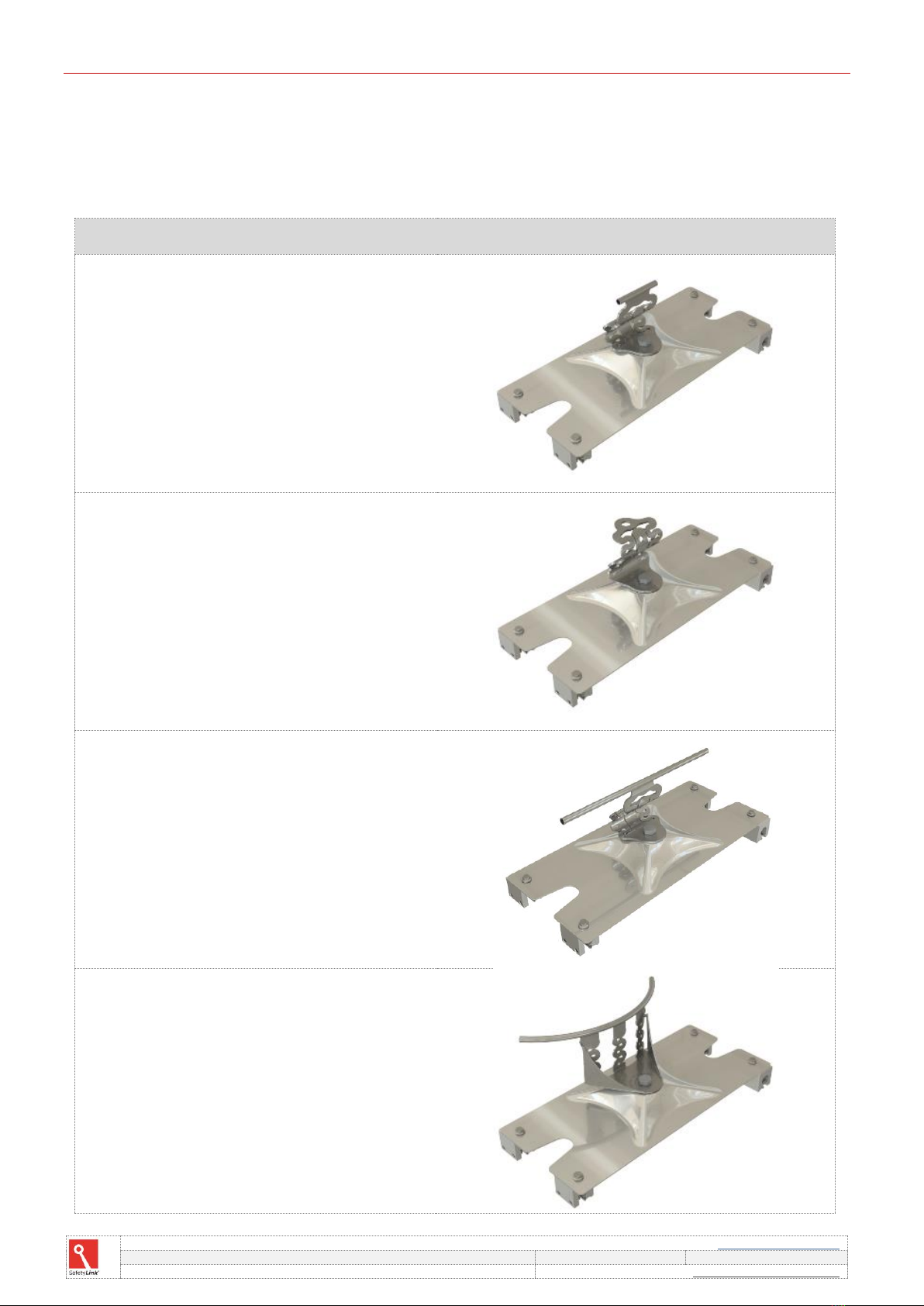

PRODUCT
COMPLETE UNITS
FROGLINE INTERMEDIATE ANCHOR
Product Code: STAT.FROGKSCF001+FIXING
FROGLINE END ANCHOR
Product Code: STAT.FROGKSCF002+FIXING
FROGLINE INTERMEDIATE EXTENDED ANCHOR
Product Code: STAT.FROGKSCF008+FIXING
FROGLINE CORNER ANCHOR
Product Code: STAT.FROGKSCF003+FIXING

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 7 of 16
Doc ID: MKT-383 Version: 13.0

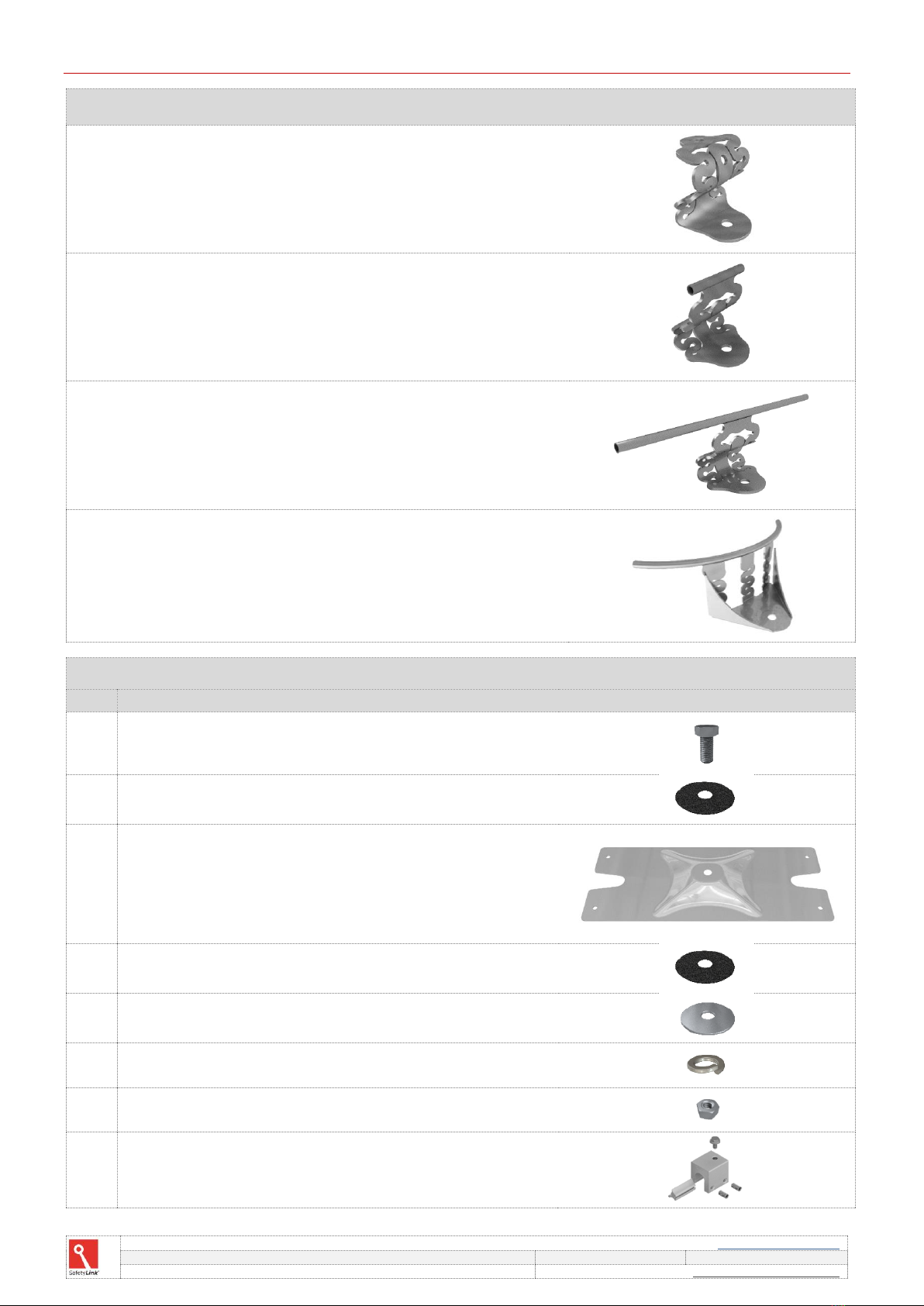

FROGLINE SURFACELINK–COMPONENTS
DESCRIPTION
INDIVIDUAL ITEMS
FrogLine Base End
FrogLine Base Intermediate
FrogLine Base Intermediate Extended
FrogLine Base Corner
COMPONENTS FOR END, INTERMEDIATE AND CORNER BASES
QTY
DESCRIPTION
INDIVIDUAL ITEMS
1
Bolt: M16 x 35mm 316 Stainless Steel Set Screw
1
Washer: 70mm OD Black Plastic
1
SurfaceLink Plate: 550mm
Marine Grade Aluminium
1
Washer: 70mm OD Black Plastic
1
Washer: 70mm OD 316 Stainless Steel
1
Washer: M16 Spring
1
Nut: M16 316 Stainless Steel
4
Clamps (for different standing seam profiles, consult with
SafetyLink for suitable clamps).

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 8 of 16
Doc ID: MKT-383 Version: 13.0
FROGLINE SURFACELINK–ASSEMBLING
LIFELINE CABLE
Following cables can be used for SafetyLink lifeline systems,
•Cable (STAT.CABLE001): 8mm dia, 7x7 wire rope
•Cable (STAT.CABLE_8MM_7X19_SS): 8mm dia, 7x19 wire rope. It provides high flexibility and suited for
lifelines with short intermediate intervals and multiple corners.
ASSEMBLING STEPS FOR END, INTERMEDIATE AND CORNER UNITS
STEP 1
Bolt all four clamps under plate, ensuring the set
screws are all facing the same direction.
STEP 2
Place FrogLine Intermediate/End/Corner Base on top
of Plate with 70 OD Black Washer between them.
Insert M16 x 35mm Bolt through FrogLine
Intermediate/End/Corner Base and Plate.
STEP 3
Place the 70 OD Black Plastic, then 70mm stainless
steel washer onto M16 x 35mm Bolt underneath plate.
STEP 4
Place M16 Spring Washer and M16 Nut onto M16 x
35mm Bolt to secure unit together. Tighten Nut and
Bolt making certain the Intermediate/End/Corner
Base Unit lines up with the intended direction of the
lifeline system.
Note: Threads need to have a minimum of six full 360º turns into the ultimate thread.

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 9 of 16
Doc ID: MKT-383 Version: 13.0
FROGLINE SURFACELINK –INSTALLATION
Step 1
Place the Clamps over the roofing profile and secure
each clamp with two set screws (if required to tighten
set screws located under the plate, remove bolt and
plate, tighten then replace plate).
Step 2
Ensure bolts connecting plate to the Clamps have
Loctite applied and tightened correctly.
NOTE: All bolt threads must be applied with Loctite 243 thread-locker prior to assembly. (IMPORTANT NOTE:
Before applying Loctite 243 use Loctite 7471 primer to activate the surface according to manufacturer’s
instructions).
INSPECT THE INTEGRITY OF THE STRUCTURE AND ROOF SHEETING
-Installation of anchors can only be made to roof sheeting strong enough to support the anchor point.
-MINIMUM roof sheet gauge is 0.42mm for steel and 0.7mm for aluminium.
-Roof sheets must be inspected thoroughly for splits, rust, corrosion damage and correct installation.
-Ensure the roof sheeting and structure is secured in accordance with Kingspan Insulated Roof Panel
Installation Guide.
BROWNBUILT / KLIP-LOK ROOF PROFILES
Surface Mounted Anchor systems installed on concealed fix roof types may require additional roof fixings.
Additional securing can be made to roof sheets with 12 gauge roofing screws through the roof sheeting into the
purlin/batten, four (4) above or four (4) below the anchor, on the side of the anchor that falls under two metres
from an edge. This secures the roof sheeting in place to the purlins/battens to prevent horizontal movement in
the event of a fall. Note: screws may be required on both sides of the anchor depending on the individual
situation.
Surface Mounted Anchor systems installed on concealed fix roof types may require additional roof fixings,
please check individual roof sheet type installation manuals.
FrogLine intermediate anchors must only be spaced at a maximum of 10 metres apart.
If any doubt exists as to the strength of the structure an engineer should make the assessment.
During installation you must be safe at all times.

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 10 of 16
Doc ID: MKT-383 Version: 13.0
LIFELINE SYSTEM INFORMATION
INSTALLATION: CABLE, TENSIONERS & TERMINATION FITTINGS
1. Install Swaged/Swageless Termination to the cable in accordance with product guidelines. See Appendix A or B.
2. Determine which end is most suitable to have the cable Tensioner with Tension Indicator. (Some lifelines may
require a Tensioner with Tension Indicator on both ends). Connect the cable with Termination end to the
FrogLine End Anchor top connection point. This will be at the opposite end to where the Tensioner end will be.
(Ensure securing pin has been installed correctly).
3. Install the cable through Intermediates and Corners to the opposite end of the Lifeline system (Intermediates
must be installed as per installation manual, maximum distance between End, Intermediate and Corner
Anchors is 10 metres).
4. Connect Swaged/Swageless Tensioner with Tension Indicator to FrogLine End Anchor top connection point. (Do
not attach Tensioner to cable at this stage).
5. Adjust the Tensioner out to the maximum safe length.
6. Match the cable along the side of the Tensioner and mark where to cut cable so that it will reach safely into the
Tensioner unit in accordance with product guidelines. Appendix A or B.
7. Cut cable to length.
8. Install Swaged/Swageless Tensioner fitting to cable as per Appendix A or B. Connect Tensioner to FrogLine End
Anchor top connection point (Ensure securing pin has been installed correctly).
9. Tension cable until the disc on the Tension Indicator can spin and indicates 80kg/0.8kN/800N.
TIGHTENING ASSEMBLY & TORQUE SETTINGS FOR SWAGELESS TERMINALS
Wire size:
Nm
Lbf ft
Ø 3
-
11
8.25
-
1/8”
11
8.25
Ø 4
5/32”
17
12.75
-
3/16”
22
16.5
Ø 5
-
22
16.5
-
7/32
38
28.5
Ø 6
-
38
28.5
-
1/4”
38
28.5
Ø 7
9/32”
48
35.5
Ø 8
5/16”
58
43.0
-
3/8”
75
55.5
Ø 10
-
75
55.5
Ø 12
-
-
1/2”
Ø 14
-
Ø 16
-

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 11 of 16
Doc ID: MKT-383 Version: 13.0

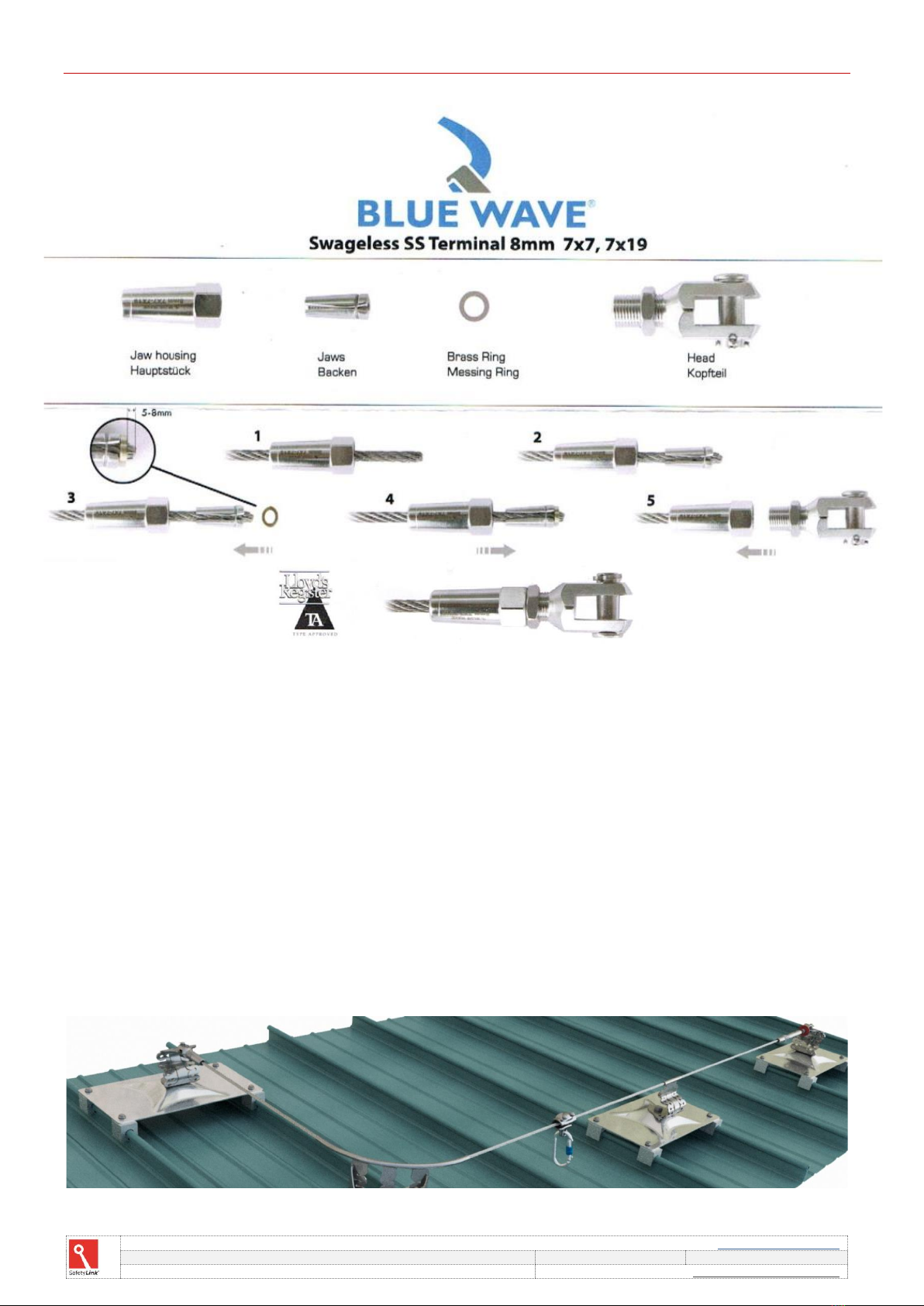

APPENDIX A –SWAGELESS/SWAGED FITTINGS INSTALLATION
Make sure that the cable matches the terminal.
The SS terminal use only for 8mm 7x7 and 7 x 19 Stainless Wire.
Do not reuse jaws or house.
1Slide the jaw housing in place on the cable.
2Slide the jaws onto the cable, ensuring there is equal space between the jaws.
3Place the brass pressure ring on the end of the cable. Make sure that the distance from the
pressure ring to the end of the cable is 5-8mm.
4Slide the jaw housing over the jaws.
5The terminal can now be assembled. Screw the head on the jaw housing with a torque
wrench –min. 58 Nm (43Lbf ft), Tighten the lock nut with min. 50 Nm (36 Lbf ft).
Note: after the first dynamic load the terminal MUST be tightened again. When assembling
Swageless Terminals the breaking strength of the cable will be reduced by 0-15%.
The user is responsible for choosing the proper cable, and for correct assembly.

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 12 of 16
Doc ID: MKT-383 Version: 13.0
APPENDIX B –CRIMPED FITTINGS INSTALLATION
1. Insert the cable into the open end of the fitting to be swaged, mark the cable where the cable and
the fitting meet. Remove the cable and check that the mark is at least 84mm from the cable end.
2. Re-insert the cable into the fitting to distance previously marked. Start swaging the fitting from the
closed end as shown above. Continue to swage as indicated above 5 times, first swage is 6mm from
the depth indicator.
3. Ensure that you can no longer see the mark that was made in Step 1. Check the crimped sections are
within the allowable tolerances using Vernier Callipers. (Allowable tolerances = 11.10 + - 0.2mm).
IMPORTANT NOTES TO REMEMBER
Ensure marked cable as indicated in step one is a minimum of 84mm.
Ensure all crimped sections (flat) are with 11.10mm, with a tolerance level of + or - 0.2mm. This distance
should be the case of all 8mm 1x19, 7x19 and 7x7 cable. The measurement should be taken with Vernier
Callipers to ensure accuracy. If your measurements are outside the acceptable tolerance range this can be
a sign of either a loss of pressure in your swaging tool or an indication that your dies are worn or
incompatible. Any swaging that occurs outside the acceptable tolerances will need to be restarted using
the appropriately amended tools.
When swaging terminations, the mark made in step 1 will disappear during the final swage due to the
lengthening of the material during the swaging operation.
The swaged end has a mark indicating the end of the solid section (depth indicator) of the unit and the
start of the hollow section. Start swaging 6mm from the mark indicating the solid section.
When completed the swaged section should be a minimum of 80mm long. The dies are made with a 9mm
wide section to crimp. These 9mm crimping sections need to completed 5 times, leaving five flat sections
along the swaged end. In between each crimped section you need to maintain a distance of between 5 and
6mm.
DO NOT swage the solid section indicated by the mark on the unit this will damage the swaging tool and the
dies.

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 13 of 16
Doc ID: MKT-383 Version: 13.0
FROGLINE SHUTTLE
Product Code: STAT.SHUTL003
CONNECTING TO THE LIFELINE SYSTEM
1. Remove the Karabiner from the FrogLine Shuttle. The supplied Karabiner is a SafetyLink
steel trilock and needs three distinct movements to be removed from the shuttle (Slide
gate up, twist gate, depress gate).
2. Slide the inner component of the FrogLine shuttle to the right or left of the shuttle body.
This will put the two shuttle karabiner connecting holes adjacent to each other and widen
the mouth of the shuttle. The shuttle is now in the open position and can be placed face
down onto the lifeline cable.
3. To lock the shuttle onto the cable, push the inner component from its position to the right
or left back across the shuttle body. This will re-align the karabiner connection holes and
narrow the mouth of the shuttle.
4. Insert the SafetyLink Karabiner through both connecting holes. This locks the shuttle body
and inner component of the shuttle together and ensures the shuttle remains in the closed
position. Check that the Karabiner has locked correctly. The Shuttle is now secured to the
lifeline system.
5. It is a requirement when connecting a lanyard between the users harness and FrogLine
shuttle/lifeline system that a personal tear web energy absorber be used. This tear web
energy absorber needs to be at the harness end of the lanyard to ensure maximum energy
absorption.
MAKE SURE YOU ARE SAFE AT ALL TIMES WHILST ATTACHING OR DETACHING FROM THE
FROGLINE LIFELINE SYSTEM.
A FALL RESCUE PLAN SHOULD BE DEVELOPED PRIOR TO USING SAFETYLINK EQUIPMENT.
ENSURE YOU USE THE SAFETYLINK KARABINER SUPPLIED ONLY.
PROGRESSING ALONG THE LIFELINE SYSTEM
1. Always progress the system manually. Do not progress in any vehicle or motioning device.
2. When progressing towards a corner, to ensure the FrogLine Shuttle continues on a smooth path avoid cutting the
corner sharply.
3. Do not place any tools or equipment onto the lifeline system.
DISCONNECTING FROM THE LIFELINE SYSTEM
1. If you are attaching to an alternative fall arrest system, ensure you are attached to that system before
disconnecting from the FrogLine System.
2. Unlock Karabiner and detach it from the FrogLine Shuttle.
3. Slide the inner component of the FrogLine shuttle to the right or left of the shuttle body. This will put the two
shuttle karabiner connecting holes adjacent to each other and widen the mouth of the shuttle. The shuttle is
now in the open position and can be removed from the lifeline cable.
4. Slide inner component of the Shuttle into original position and insert Karabiner through the two connecting
holes to store.
REMEMBER YOU MUST BE SAFE AT ALL TIMES.
Where a risk of a fall exists on entering or exiting the lifeline system additional fall prevention measures must exist.
Where additional fall prevention exists on entry and exit the user must ensure:
1. Attachment is correctly made to the lifeline system before detaching from the additional fall prevention system.
2. DO NOT detach from the lifeline system unless correct attachment is made to the additional fall prevention
system.

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 14 of 16
Doc ID: MKT-383 Version: 13.0
EXAMPLE: HORIZONTAL LIFELINE ON PITCHES BELOW 25 DEGREES
All working at heights safety procedures must be complied with when installing SafetyLink Height Safety Systems. For more
information refer to your state or territories current legislation, regulations, policies and codes of practices. Horizontal height
safety lifelines must only be installed and used by competent people with relevant current height safety qualifications.
SAFETYLINK HEIGHT SAFETY SYSTEMS MUST ONLY BE INSTALLED AS PER OUR INSTALLATION GUIDES, TO
STRUCTURES AS SPECIFIED IN THE INSTALLATION MANUAL FOR EACH PRODUCT. SHOULD ANY DOUBT EXIST IN
REGARD TO THE STRUCTURES INTEGRITY AN ENGINEER SHOULD BE CONSULTED.
FrogLine
Intermediate Unit
FrogLine End Unit and
Tensioner with Tension indicator
FrogLine
Corner Unit
FrogLine Intermediate Unit
WARNING:
Surface Mounted Anchors
should be positioned
two 2 metres from the edge
on clip down/standing seam
style roof profiles unless
additional securing of roof
sheeting is made.
Cable
MAXIMUM SPACE BETWEEN
INTERMEDIATE ASSEMBLY IS
TEN (10) METRES
FrogLine End Unit and Termination
This is a guide only
FrogLine Intermediate Unit

Return to Table of Contents
Ref: FROGLINE_Surface_Mounted_Standing_Seam_Handbook
Page 15 of 16
Doc ID: MKT-383 Version: 13.0
EXPERT FALL PROTECTION PLANNING
SafetyLink's design and planning team are here to help work out the positioning of your fall
protection system, ensuring all areas of your roof are accessed safely.
Things to consider when planning your roof layout:
Are all areas of your roof protected, allowing complete access when working at heights?
Are you protected from the ground up, allowing complete access to your roof?
Detailed comprehensive documentation provided e.g. installation guides, testing results,
product sheets should be provided.
SafetyLink can also provide you with a qualified and reputable installer of SafetyLink
products.
Contact our design team at [e-mail] and we can plan your fall arrest system for you.
© 2018, SafetyLink Pty Ltd, Australia.
Patents: SafetyLink Pty Ltd has a multitude of patents, patents pending, design applications, trademarks and copyrighted documents
both lodged and issued. Should you wish to know the progress of our intellectual property on a specific product please email us on
[e-mail] and quote the product code.

IN CASE OF ACCIDENT
A FALL RESCUE PLAN SHOULD BE DEVELOPED PRIOR TO USING SAFETYLINK EQUIPMENT.
PERSONS WORKING AT HEIGHTS SHOULD NOT WORK ALONE.
It is critical that before using any SafetyLink Systems a fall rescue plan is in place for any persons suspended mid-
air following a fall. Serious injury or death can occur in a matter of minutes, particularly if a person’s movement
or breathing is restricted or loss of consciousness has occurred. In accordance with your fall rescue plan and
appropriate first aid procedures it is essential to remove the person from the suspended position as quickly as
possible.
IN ACCORDANCE WITH AS/NZS 1891.4:2009 CLAUSE 9.5
EQUIPMENT WHICH HAS ARRESTED A FALL OR SHOWS A DEFECT
Any piece of equipment including both personal and permanently installed items, which has been used to
arrest a fall or which shows any defect during operator or periodic inspection shall be withdrawn from service
immediately and a replacement obtained if necessary. A label indicating the condition or defect should be
attached to the equipment, and it should be examined by a competent height safety installer who will decide
whether the equipment is to be destroyed or repaired if necessary and returned to service. In the latter case,
details of any repair shall be documented, and a copy given to the operator.
DISTRIBUTOR:
Asia-Pacific/The Americas | [phone] | [e-mail]
Europe/Africa/Middle East | [phone] | [e-mail]
Northern Europe | [phone] | [email protected]
SafetyLink Pty Ltd | ABN 83 081 777 371 | www.safetylink.com
