Instruction Manual
for
Self Retracting Devices
ANSI Z359.14 and ANSI/ASSE A10.32
This manual is intended to meet the manufacturer’s instructions as
required by ANSI Z359.14 and should be used as part
of an employee training program as required by OSHA.
V2.7 2019 Copyright SAFEWAZE™ Page 1
WARNING
This product is part of a personal fall arrest, work positioning, or rescue system. The manufacturer’s instructions must be provided to
users of this equipment. The user must follow the manufacturer’s instructions for each component of the system. The user must read and
understand these instructions before using this equipment. Manufacturer’s instructions must be followed for proper use and maintenance
of this equipment. Alterations to this product, misuse of this product, or failure to follow instructions may result in serious injury or death.
IMPORTANT
Questions regarding the use, care, or suitability of this equipment for your application? Contact SAFEWAZE™.
IMPORTANT

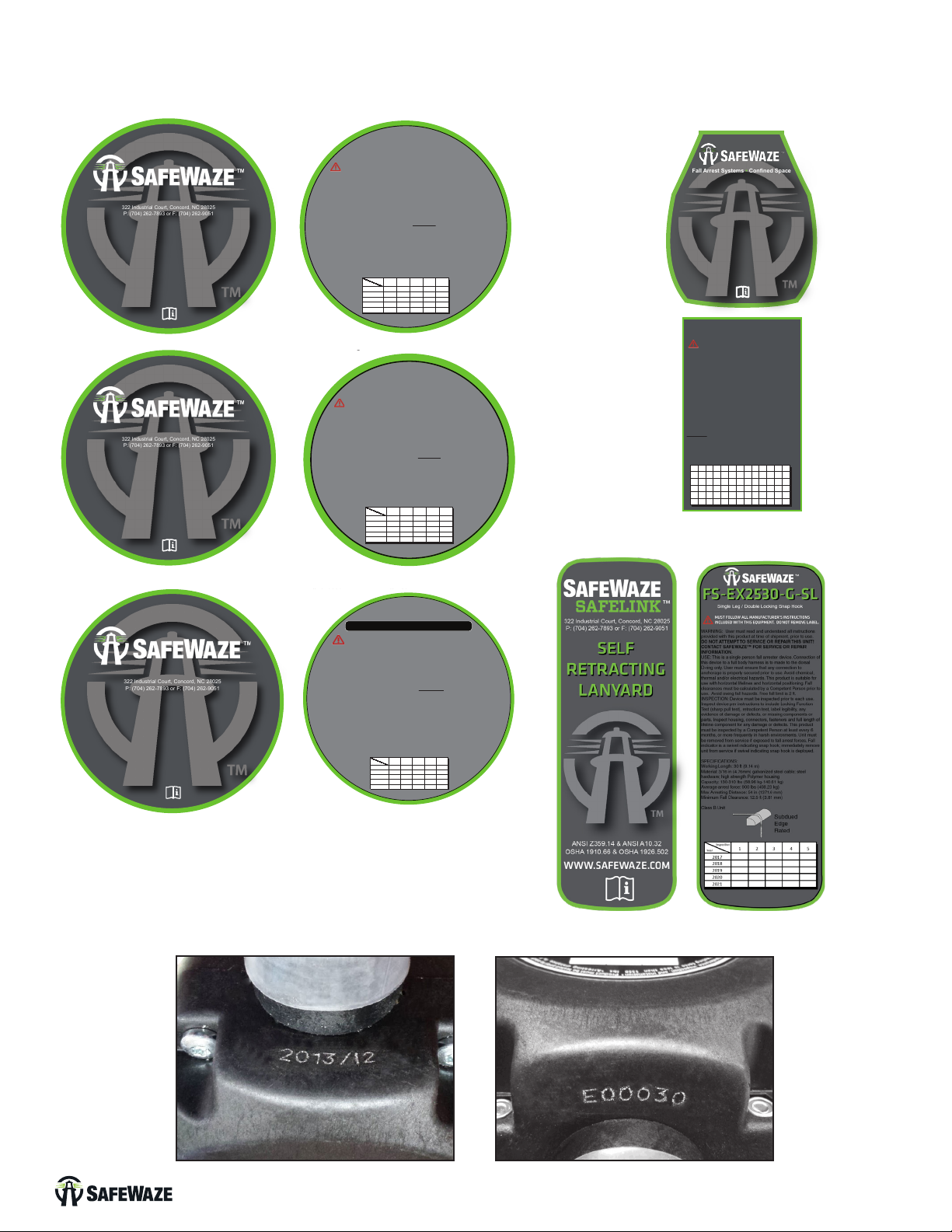

Record identication information before using this product. Identication information may be found on the equipment label
(see gure 16) and etched into the equipment casing (see gure 17). This information should be recorded in the “Inspection and
Maintenance Log” located at the back of this manual (p 19).
2020

V2.7 2019 Copyright SAFEWAZE™
Page 2
SINGLE
L
ength
M
aterial
S
wivel Indicator
3
/4" Aluminum Snaphook
3
/4" Steel Snaphook
1
.75" Aluminum Rebar Hook
1
.75" Steel Rebar Hook
T
ie Back Hook
H
ousing
C
arabiner
FS-FSP1407-W 7 WEB X ALUMIN X
FS-FSP1407-W-RBH 7 WEB X ALUMIN X
FS-FSP1407-W-TBH 7 WEB X ALUMIN X
FS-FSP1409-W 9 WEB X ALUMIN X
FS-FSP1409-W-RBH 9 WEB X ALUMIN X
FS-FSP1411-W 11 WEB X ALUMIN X
FS-FSP1411-W-RBH 11 WEB X ALUMIN X
FS-FSP1411-W-TBH 11 WEB X ALUMIN X
FS-FSP1420-W 20 WEB X POLY X
FS-FSP1430-W 30 WEB X POLY X
FS-EX1540-W 40 WEB X POLY X
FS-EX1550-W 50 WEB X POLY X
TABLE 1
SAFEWAZE SINGLE LEG WEB RETRACTABLE LIFELINE MODELS
TABLE 2
SAFEWAZE DUAL LEG WEB RETRACTABLE LIFELINE MODELS
Carabiner w/dual bracket
Behind the Web
DUAL
L
ength
M
aterial
3
/4" Aluminum Snaphook
3
/4" Steel Snaphook
1
.75" Aluminum Rebar Hook
1
.75" Steel Rebar Hook
T
ie Back Hook
H
ousing
C
arabiner
C
arabiner w/Dual Bracket
B
ehind the Web
FS-FSP14075-W 7 WEB X ALUMIN X
FS-FSP14085-W-RBH 7 WEB X ALUMIN X
FS-FSP14075-W-TBH 7 WEB X ALUMIN X
FS-FSP15075-W-BWB 7 WEB X ALUMIN X
FS-FSP15085-W-RBH-BWB 7 WEB X ALUMIN X
FS-FSP1409-W-DL 9 WEB X ALUMIN X
FS-FSP1409-W-DL-RBH 9 WEB X ALUMIN X
FS-FSP1409-W-DL-BWB 9 WEB X ALUMIN X
FS-FSP1409-W-DL-RBH-BWB 9 WEB X ALUMIN X
FS-FSP14095-W 11 WEB X ALUMIN X
FS-FSP14095-W-RBH 11 WEB X ALUMIN X

V2.7 2019 Copyright SAFEWAZE™ Page 3
TABLE 3
SAFEWAZE SINGLE LEG CABLE RETRACTABLE LIFELINE MODELS
TABLE 4
SAFEWAZE DUAL LEG CABLE RETRACTABLE LIFELINE MODELS
SINGLE
L
ength
M
aterial
S
wivel Indicator
3
/4" Aluminum Snaphook
3
/4" Steel Snaphook
1
.75" Aluminum Rebar Hook
1
.75" Steel Rebar Hook
E
nergy Absorber (Indicator)
H
ousing
C
arabiner
FS-FSP1211-G 11 CABLE X X POLY X
FS-FSP1211-G-RBH 11 CABLE X POLY X
FS-FSP1215-G 15 CABLE X X POLY X
FS-FSP1220-G 20 CABLE X X POLY X
FS-FSP1230-G 30 CABLE X X POLY X
FS-FSP1240-G 40 CABLE X X POLY X
FS-FSP1250-G 50 CABLE X X POLY X
FS-FSP1265-G 65 CABLE X X POLY X
FS-FSP9020 (LEADING EDGE) 20 CABLE X X POLY X
FS-FSP9030 (LEADING EDGE) 30 CABLE X X POLY X
FS-FSP9050 (LEADING EDGE) 50 CABLE X X POLY X
FS960-50 50 CABLE X X ALUMIN
FS-EX1080-G 80 CABLE X POLY X
FS-EX10-100-G 100 CABLE X POLY X
SW-8008-10 10 CABLE X X POLY X
SW-8008-10-ALU 10 CABLE X X POLY X
SW-8008-10-RBH 10 CABLE X X POLY X
SW-8008-10-ALU-RBH 10 CABLE X X POLY X
SW-8008-11LE (LEADING EDGE) 10 CABLE X X POLY X
SW-8008-11LE-ALU (LEADING EDGE) 10 CABLE X X POLY X
SW-8008-11LE-RBH (LEADING EDGE) 10 CABLE X X POLY X
SW-8008-11LE-RBH-ALU (LEADING EDGE) 10 CABLE X X POLY X
DUAL
L
ength
M
aterial
S
wivel Indicator
3
/4" Aluminum Snaphook
3
/4" Steel Snaphook
1
.75" Aluminum Rebar Hook
1
.75" Steel Rebar Hook
E
nergy Absorber (Indicator)
H
ousing
B
ehind the Web
SW-8008-10-DL 10 CABLE X X POLY X
SW-8008-10-ALU-DL 10 CABLE X X POLY X
SW-8008-10-RBH-DL 10 CABLE X X POLY X
SW-8008-10-ALU-RBH-DL 10 CABLE X X POLY X
SW-8008-11LE-DL (LEADING EDGE) 11 CABLE X X POLY X
SW-8008-11LE-ALU-DL (LEADING EDGE 11 CABLE X X POLY X
SW-8008-11LE-RBH-DL (LEADING EDGE) 11 CABLE X X POLY X
SW-8008-11LE-RBH-ALU-DL (LEADING EDGE) 11 CABLE X X POLY X
322Industrial Court, Concord, NC 28025
P:[phone] or F: [phone]
WWW.SAFEWAZE.COM
SELF RETRACTINGL ANYARD
SELF RETRACTINGL ANYARD
ANSIZ359.14 & ANSI A10.32
OSHA1910.66& OSHA1926.502
FallArrest Systems •Confined Space •Engineering •Rescue Systems
LE
LEADINGEDGE
322Industrial Court, Concord, NC 28025
P:[phone] or F: [phone]
WWW.SAFEWAZE.COM
SELF RETRACTINGL ANYARD
SELF RETRACTINGL ANYARD
ANSIZ359.14 & ANSI A10.32
OSHA1910.66& OSHA 1926.502
FallArrest Systems •Confined Space •Engineering •Rescue Systems
LE
LEADINGEDGE

V2.7 2019 Copyright SAFEWAZE™
Page 4
FIGURE 1 - SAFEWAZE™ SELF RETRACTING DEVICE COMPONENTS
Descriptions
Figure 1 illustrates key components of SAFEWAZE™ Self Retracting Devices (SRD). Web models contain 6 ft (1.83 m),
7 ft (2.13m), 11 ft (3.35 m), 20 ft (6.09 m), 30 ft (9.14 m), 40 ft (12.19 m) 50 ft (15.24 m)of webbing. Cable models contain various lengths, from
11ft (3.35 m) to 100 ft (30.48 m), of galvanized or stainless steel wire rope cable that retracts within the SRD housing.
SAFEWAZE™ Tie Back SRD’s contain 7 ft (2.13 m) poly webbing that retracts within the SRD housing. Tie Back SRD’s have an additional web section
that is 1.5 ft (0.46 m) long and is wrapped around an anchorage and tied back into itself. (See Figure 14)
Cable models are single leg (The SW8008 series is available in a dual conguration), and can be mounted to a suitable anchor point overhead or worn
attached to the dorsal back D-ring of the harness.
Web models come in dual, single, and Tie Back options. Dual leg SAFEWAZE™ SRD’s can be mounted to a suitable anchor point overhead or worn
attached to the dorsal D-Ring of the harness or with a Behind the Web Bracket. The only cable models that are available in a dual conguration are the
SW-8008-10 and SW-8008-11LE series of Self Retracting Devices.
SRD units extend and retract freely with normal movement. If a fall occurs the system locks automatically, arresting the fall, and keeps the worker from
falling further.
Retractable Fall Arrester
FS-EX1006-W
Working Length
6 Feet
www.fallsafeusa.com
MeetsOSHA 1926.502 ANSIZ359.14-2012
ANSIA10.32 2004
DO NOT REMOVE LABEL
Swivel Top
Housing Housing
Cable
Webbing
Shock Pack
Shock Pack
Webbing
Spring
Hook (varies by model)
Stop Ball
Brackets
for Carabiner for Behind the web
*Labeling which includes Date of
Manufacture and Serial Number can be
found imprinted on the casing, either at
the top (a) or bottom (b) of the device
*b
*a
*a
Hook (varies by model)
Housing
Housing
Carabiner
Carabiner
* a
D-Ring Bracket
Swivel Top Swivel Top
Swivel Top
SAFEWAZE™ RETRACTABLE HARNESS CONNECTION OPTIONS
SAFEWAZE™ RETRACTABLE HARNESS CONNECTION OPTIONS
SAFEWAZE™ SRD’s are designed for use in environments where a fall could occur. The purpose is to prevent the fall or limit the potential free fall as
much as possible. Applications include, but are not limited to: roong, concrete, steel, MEP, industrial maintenance, and material handling. Tables 1,2,
3, and 4 show models covered in this manual. Some versions of the SAFEWAZE™ SRD’s are designed for 100% tie o󰀨 and Tie Back options.
1.0 Applications
1.1 Purpose

V2.7 2019 Copyright SAFEWAZE™ Page 5
ANSI Z359.0 Denitions and Nomenclature Used for Fall Protection and Fall Arrest
ANSI Z359.2 Minimum Requirements for a Comprehensive Managed Fall Protection Program
ANSI Z359.12 Connecting Components for Personal Fall Arrest Systems
ANSI Z359.14 Safety Requirements for Self-Retracting Devices for Personal Fall Arrest and Rescue Systems
ANSI A10.32 Personal Fall Protection use in Construction and Demolition
1.3 Training
This equipment is intended to be used by persons trained in its correct application and use. It is the responsibility of the user to assure they are familiar
with these instructions and are trained in the correct care and use of this equipment. Users must be aware of the operating characteristics, application,
limits, and the consequences of improper use.
2.1 Capacity
SAFEWAZE™ Retractable Fall Arresters are all designed in compliance with ANSI Z359.14 to meet the weight capacity range of (130-310 lbs).
However, there are units that are rated to a higher weight capacity than the ANSI recognized 310 lb maximum. Please see Table 12 and Table 13 on
page 20 for higher weight capacity units.
2.0 Limitations & Requirements
When installing or using this equipment always refer to the following requirements and limitations:
2.2 Anchorage
Anchorages selected for fall arrest systems shall have a strength capable of sustaining static loads applied in the directions permitted by the system of at
least:
1. 5,000 lbs. (22.2 kN) for non-certied anchorages, or
2. Two times the maximum arresting force for certied anchorages.
When more than one fall arrest system is attached to an anchorage, the strengths set forth in (1) and (2) above shall be multiplied by the number
of systems attached to the anchorage.
1.2 Standards
SAFEWAZE™ SRD’s conform to the national standard(s) identied on their ID label. Refer to local, state, and federal (OSHA) requirements for additional
information concerning the governing of occupational safety regarding Personal Fall Arrest Systems (PFAS).
2.4 Rescue Plan
When using this equipment, employers must create a rescue plan, and provide the means to implement said rescue plan. This plan must be
communicated to equipment users, authorized persons, and rescuers.
2.3 INSPECTION FREQUENCY
Either the Authorized Person1 (User), or the Rescuer2 must inspect this equipment before each use. Factory authorized inspections must be completed
by a Competent Person3other than the equipment user. The inspection table (Table 7) located on (p 6) of this manual should be used to determine
proper inspection frequency. The inspection checklist (see page 18) describes proper inspection procedures. The Competent Person should record
inspection results in the “Maintenance Log” located in the back of this manual. (p19)
1 Authorized Person: A person assigned by the employer to perform duties at a location where such person will be exposed to a fall hazard.
2 Rescuer: Person or persons other than the rescue subject acting to perform an assisted rescue by operation of a rescue system.
3Competent Person: An individual designated by the employer to be responsible for the immediate supervision, implementation, and
monitoring of the employer’s managed fall protection program who, through training and knowledge, is capable of identifying,
evaluating, and addressing existing and potential fall hazards, and who has the employer’s authority to take prompt corrective action with
regard to such hazards.
From OSHA 1926.500 And 1910.66
Anchorages used for attachment of personal fall arrest systems shall be independent of any anchorage being used to support or suspend platforms,
and capable of supporting at least 5,000 lbs (22.2 kN) per user attached, or be designed, installed, and used as part of a complete personal fall arrest
systems which maintains a safety factor of at least two, and is under the supervision of a qualied person.
WARNING: The anchor point must be located at the same height or above the edge over which a fall might
occur. Never anchor SAFEWAZE™ SRD’s below user’s feet. Workers over 310 lbs (141 kg) must not use these SRD’s where falls over
edges may occur. Failure to comply with this warning may result in equipment malfunction, serious injury, or death.
NOTE: Special rescue measures may be required for a fall over an edge.
TABLE 5 - ANSI STANDARDS
TABLE 6 - CSA STANDARDS
CSA Z259.12-11 Connection Components for Personal Fall Arrest Systems (PFAS)
CSA Z259.2.2 Self-Retracting Devices for Personal Fall Arrest Systems

V2.7 2019 Copyright SAFEWAZE™
Page 6
Type of Use Application Examples Conditions of Use Inspection
Frequency
Competent Person
Infrequent to Light Rescue and Conned Space,
Factory Maintenance
Good Storage Conditions, Indoor
or Infrequent Outdoor Use, Room
Temperature, Clean Environments
Annually
Moderate to Heavy Transportation, Residential
Construction, Utilities, Warehouse
Fair Storage Conditions, Indoor and
Extended Outdoor Use, All Temperatures,
Clean or Dusty Environments
Semi-Annually to
Annually
Severe to Continuous Commercial Construction, Oil and
Gas, Mining
Harsh Storage Conditions, Prolonged
or Continuous Outdoor Use, All
Temperatures, Dirty Environment
Quarterly to Semi-
Annually
TABLE 7 - INSPECTION SCHEDULE PER ANSI Z359.14
2.5 Locking Speed
The nature of this equipment requires su󰀩cient space in the working area to allow for the SRD to lock. Working in small or conned spaces may keep
the user’s body from reaching the speed needed to lock the SRD during a fall. Working on slowly shifting materials, such as grain or sand, may not allow
the speed needed to cause the SRD to lock.
2.6 Normal Operations
During normal operation the SRD lifeline should freely extend and retract without hesitation. When moving at normal speeds the lifeline will have no
slack. A fall will activate the brake system and stop the fall. Avoid sudden or fast movements during normal operation as this may cause the SRD to lock.
2.7 Free Fall
In order to ensure reduced fall distances, always attempt to anchor the SRD directly overhead. Overhead anchoring will limit free fall distance to a
minimum length. Be aware of workers sharing the workspace to avoid becoming tangled with another worker. Steer clear of objects that could fall and
impact the lifeline. The lifeline should never pass under the user’s arms or legs. The lifeline should never be knotted, clamped, or be otherwise restricted
from retraction or a taut state.
2.8 Hazards
External hazards can require additional precautions to be taken when using this SRD. Hazards may include but are not limited to: Overhead operations,
other equipment, other workers, external environment, weather and walking surface. Users should be trained to watch for other hazards not listed here.
2.9 Sharp Edges
Use of this equipment should be avoided in areas where the lifeline may come into contact with sharp, abrasive and/or leading edges unless otherwise
noted.
2.10 Body Support
The SRD must be used with a Full Body Harness. The Full Body Harness must connect via the dorsal D-ring. SAFEWAZE™ SRD’s are not rated for use
with a body belt. Use of SAFEWAZE™ SRD’s with a body belt may result in injury.
2.11 Fall Clearance
It is important to make sure that adequate clearance is available. To determine this know your free fall, maximum arrest distance, height of worker, and
current clearance above the next fall hazard.
2.12 Determine Fall Clearance Required
Determining fall clearance is critical in understanding the correct connecting device to use. The lower the clearance height, the less options
available to connect to the anchor point with. To Determine Fall Clearance several factors must be considered:
Length of Anchorage connector (LA)
Length of Connecting device (LC)
Maximum Arrest Distance of connecting device (MAD)
Height of Worker (HW)
Safety Factor (SF) - (Includes harness stretch, typically 2’)
Distance from Anchor Point to next closest obstruction (DAP)
Using the above information Fall Clearance (FC) can be determined with the following formula
FC (from anchor point)=LA+LC+MAD+HW+SF

V2.7 2019 Copyright SAFEWAZE™ Page 7
2.13 Swing Falls An anchorage point located in a position that is not directly over the user’s fall location results in a swing fall (see gure 2). Swing
falls may result in the user striking an object with enough force to cause serious injury. Greater clearance is needed to ensure safety during a swing fall
as vertical fall distance will be greater than a fall originating directly below the anchorage point.
FALLSAFE USA
2.14 Self Retracting Devices with Leading Edge
Some of the SRD’s covered in these instructions include those with Leading Edge capabilities. The ve models of SAFEWAZE™ Self Retracting
Devices which have Leading Edge capability are the FS9020, FS9030, FS9050, SW-8008-11LE-RBH and SW8008-11LE--RBH-ALU . These units
were tested for horizontal use and falls over a steel edge with no burrs.
Precautions pertaining to Leading Edge SRD’s
1. The angle of redirection allowed regarding the lifeline portion of the LE retractable shall be at least 90 degrees.
2. The anchor point for the LE retractable shall be at the same height or higher than the leading edge over which a fall may occur (see gure 3). An
anchor point situated below the level of a leading edge, could cause the lifeline portion of the retractable to exceed a 90 degree angle over the edge in
the event of a fall.
FIGURE 2 - SWING FALLS
≤ 90˚≥ 90˚
OK NO
3. The user must be aware of all situations which may limit the work area in relation to the anchor point. Factors such as swing fall and abrasion of the
lifeline at the Leading Edge should be considered during development of the fall protection plan.
4. User must not work on the far side of an opening opposite his/her anchor point for the LE retractable.
C
B
A
5 ft
(0.61 m)
16.5 ft
(5.03 m)
16.9 ft
(5.15 m)
18.6 ft
(5.67 m)
********** ********** **********
10 ft
(1.52 m)
16.5 ft
(5.03 m)
16.7 ft
(5.09 m)
17.7 ft
(5.39 m)
20.6 ft
(6.28 ft)
********** **********
15 ft
(4.57 m)
16.5 ft
(5.03 m)
16.6 ft
(5.06 m)
17.3 ft
(5.27 m)
19.5 ft
(5.94 m)
22.7 ft
(6.92 m)
**********
20 ft
(6.1 m)
16.5 ft
(5.03 m)
16.6 ft
(5.06 m)
17.1 ft
(5.21 m)
18.9 ft
(5.76 m)
21.5 ft
(6.55 m)
24.8 ft
(7.55 m)
25 ft
(7.62 m)
16.5 ft
(5.03 m)
16.6 ft
(5.06 m)
17 ft
(5.18 m)
18.4 ft
(5.61 m)
20.7 ft
(6.31 m)
23.5
(7.16 m)
30 ft
(9.14 m)
16.5 ft
(5.03 m)
16.6 ft
(5.06 m)
16.9 ft
(5.15 m)
18.1 ft
(5.52 m)
20 ft
(6.10 m)
22.6 ft
(6.89 m)
35 ft
(10.67 m)
16.5 ft
(5.03 m)
16.6 ft
(5.06 m)
16.9 ft
(5.15 m)
17.9 ft
(5.46 m)
19.6 ft
(5.97 m)
21.8 ft
(6.64 m)
40 ft
(12.19 m)
16.5 ft
(5.03 m)
16.5 ft
(5.03 m)
16.8 ft
(5.12 m)
17.7 ft
(5.40 m)
19.2 ft
(5.85 m)
21.2 ft
(6.46 m)
50 ft
(15.24 m)
16.5 ft
(5.03 m)
16.5 ft
(5.03 m)
16.7 ft
(5.10 m)
17.5 ft
(5.33 m)
18.7 ft
(5.70 m)
20.4 ft
(6.22 m)
B
C
A
0 ft
(0.00 m)
2 ft
(0.61 m)
5 ft
(1.52 m)
10 ft
(3.05 m)
15 ft
(4.57 m)
20 ft
(6.1 m)
C=Setback Distance, B=Working Distance Along Edge, A=Clearance Required
********** (Indicates distance along edge is outside safe work radius for setback distance)
FIGURE 3 - LE ANCHOR POINT ILLUSTRATION
FIGURE 4 - LE FALL CLEARANCE

V2.7 2019 Copyright SAFEWAZE™
Page 8
FIGURE 7 - INAPPROPRIATE CONNECTIONS
2.17 MAKING CONNECTIONS
Snap hooks and carabiners used with this equipment must be double locking and/or twist lock. Carabiners supplied for use with SAFEWAZE™ SRD
models FS-EX1006-W and FS-EX1006-W-RBH are triple locking. Ensure all connections are compatible in size, shape and strength. Do not use
equipment that is not compatible. Ensure all connectors are fully closed and locked.
SAFEWAZE™ connectors (snap hooks and carabiners) are designed to be used only as specied in each product’s user’s instructions.
(See Figure 7) for examples of inappropriate connections. Do not connect snap hooks and carabiners:
• To a D-ring to which another connector is attached.
• In a manner that would result in a load on the gate (with the exception of tie back hooks). NOTE: Large snap hooks must not be connected to
objects which will result in a load on the gate if the hook twists or rotates, unless the snap hook complies with ANSI Z359.12 and is equipped with a
3,600 lb (16 kN) gate. Check the marking on your snap hook to verify its compatibility.
NOTE: Large throat snap hooks must not be connected to standard size D-rings or similar objects which will result in a load on the
gate if the hook or D-ring twists or rotates, unless the snap hook complies with ANSI Z359.12 and is equipped with a 3,600 lb (16 kN)
gate. Check the marking on your snap hook to verify that it is appropriate for your application.
• In a false engagement, where features that protrude from the snap hook or carabiner catch on the anchor, and
without visual conrmation seems to be fully engaged to the anchor point.
• To each other.
• By wrapping the web lifeline around an anchor and securing to lifeline except as allowed for Tie Back models (see section 4.5).
• To any object which is shaped or sized in a way that the snap hook or carabiner will not close and lock, or that
roll-out could occur.
• In a manner that does not allow the connector to align properly while under load.
2.16 COMPATIBILITY OF CONNECTORS
Connectors are compatible with connecting elements when they have been designed to work together in such a way that their sizes and shapes do not
cause their gate mechanisms to inadvertently open regardless of how they become oriented. Connectors (hooks, carabiners, and D-rings) must be
capable of supporting at least 5,000 lbs. (22.2 kN). Connectors must be compatible with the anchorage or other system components (see Figure 7). Do
not use equipment that is not compatible. Non- compatible connectors may unintentionally disengage (see Figure 6). Connectors must be compatible in
size, shape, and strength. Self-locking snap hooks and carabiners are required by ANSI Z359 and OSHA guidelines. Contact SAFEWAZE™ if you have
any questions about compatibility.
FIGURE 6 - UNINTENTIONAL DISENGAGEMENT
Non-compliant part
Using a connector that is undersized or irregular in shape (1) to connect a snap hook or carabiner could allow the connector to force open the gate of the
snap hook or carabiner. When force is applied, the gate of the hook or carabiner presses against the non-compliant part (2) and forces open the gate (3).
This allows the snap hook or carabiner to disengage (4) from the connection point.
3 - gate opens
2 - gate presses
against
non-complaint
part
4 - and parts disengage.
1 -
NOTE: SOME SPECIALTY CONNECTORS HAVE ADDITIONAL REQUIREMENTS. CONTACT SAFEWAZE™ WITH
QUESTIONS.
2.15 COMPATIBILITY OF COMPONENTS
Unless otherwise noted, SAFEWAZE™ equipment is designed for use with SAFEWAZE™ approved components and subsystems only. Substitutions or
replacements made with non approved components or subsystems may jeopardize compatibility of equipment and may a󰀨ect safety and reliability of the
complete system. SAFEWAZE™ SAFELINK SRD’s are designed specically for use with the SAFELINK Horizontal Lifeline System.
IMPORTANT: Read and follow manufacturer’s instructions for associated components and subsystems in your personal fall
arrest system.

V2.7 2019 Copyright SAFEWAZE™ Page 9
3.0 INSTALLATION
3.1 PLANNING
Plan your fall protection system before starting your work. Account for all factors that may a󰀨ect your safety before, during, and after a fall. Consider all
requirements and limitations dened in section 2.
3.2 HARNESS MOUNTING WITH BEHIND THE WEB BRACKET
The behind the web bracket comes fully assembled and ready for installation. No tools are required for installation of the bracket onto harness. Use the
following instructions and Figure 8 to install the bracket:
To Fasten To Harness:
1. Unfasten the two small brackets on the green retractable spacer o󰀨 of the carabiner.
2. Slide the green spacer around to the side of carabiner to allow opening of the carabiner gate.
3. Open the carabiner gate and slide spacer o󰀨 of carabiner and remove one of the retractables.
4. Holding gate open on carabiner, insert the open end of carabiner through the webbing loops at Dorsal D-ring on the X Pad of harness.
Ensure that both loops of webbing on X Pad are inside of carabiner.
5. With carabiner gate still open, slide the removed retractable and green spacer back onto carabiner and allow carabiner gate to close.
6. Slide the green retractable spacer back over the gate of carabiner and snap the two small brackets back into place on carabiner, with the
web loops positioned between these two small brackets.
FIGURE 8 - BEHIND THE WEB BRACKET INSTALLATION
X Pad
Bracket Bracket
3.3 HARNESS MOUNTING WITH SW-9012 BEHIND THE WEB BRACKET
The D-RING brackets comes fully assembled and ready for installation. No tools are required for installation of the bracket onto harness. Use the
following instructions and Figure 9 to install the SW-9012 Behind the Web Bracket. Figure 10 illustrates the Carabiner w/Dual Bracket which simply
utilizes a double locking carabiner to attach the bracket to the Dorsal D-Ring of the harness:
To Fasten To Harness:
1. Ensure that the curved portion of SW-9012 is in a downward orientation relative to the harness (See drawing 1, Figure 9).
2. Simultaneously depress both locking buttons (A) and (B) (See Drawing 2, Figure 9) and slide the bracket open as indicated
(See drawing 3, Figure 9).
3. With the bracket open, install dual leg retractables onto the bracket via the swivel tops of each. Swivels should be hanging on the curved
portion of bracket.
4. While pressing in on locking button (A) slide the bar behind both loops of webbing at dorsal D-ring until the bar locks back into place.
5. Check the locking function of the bracket by attempting to slide the bracket open WITHOUT depressing locking buttons (A) or (B). Bracket
bar should not move and the bracket is now locked into place.
FIGURE 9 - SW-9012 DUAL BRACKET INSTALLATION
Carabiner Attachment Point
FIGURE 10 - CARABINER W/DUAL BRACKET
INSTALLATION
X Pad
Curved Portion
of SW-9012
Bar assembly of bracket which in-
serts behind webbing at dorsal D-ring
Dwg. 1
Locking Button (B)
Locking Button (A)
Dwg. 2
Diagram of SW-9012 in opened
conguration
Dwg. 3
Diagram of
SW-9012 correctly
installed at Dorsal
D-ring of harness
Dwg. 4
3.4 HARNESS MOUNTING WITH 9013 BEHIND THE WEB BRACKET
The D-RING brackets comes fully assembled and ready for installation. No tools are required for installation of the bracket onto harness. Use the
following instructions and Figure 11 to install the 9013 Behind the Web Bracket.

V2.7 2019 Copyright SAFEWAZE™
Page 10
FIGURE 12 - MOUNTING THE SW-8008-11LE-RBH-ALU
TO A SAFEWAZE FULL BODY HARNESS
FIGURE 11 - 9013 DUAL BRACKET INSTALLATION
Curved Portion
of SW-9012
Bar assembly of bracket which in-
serts behind webbing at dorsal D-ring
Dwg. 1
Locking Button (B)
Locking Button (A)
Dwg. 2 Diagram of SW-9012 in opened
conguration
Dwg. 3
To Fasten To Harness:
1. Ensure that the curved portion of 9013 is in a downward orientation relative to the harness (See Dwg. 1).
2. Simultaneously depress both locking button (A) and and slide lock (B) (See Dwg. 2) to swing the bracket open as indicated
(See Dwg. 3).
3. With the bracket open, install dual leg retractables onto the bracket via the swivel tops of each. Swivels should be hanging on the
curved portion of bracket.
4. Slide the bar behind both loops of webbing at dorsal D-ring. Swing the bracket closed unti it locks into place.
5. Check the locking function of the bracket by attempting to wing the bracket open WITHOUT depressing locking button (A) or
slide lock (B). Bracket bar should not move and the bracket is now locked into place.
6. Dual leg Retractables can be easily installed and removed from bracket by once again depressing both locking button (A) and
slide lock (B), which allows bracket to swing open without complete removal from harness.
Slide Lock (B)
Locking Button (A)
Curved Portion of 9013
9013 correctly
installed at Dorsal D-ring of harness
Dwg. 1 Dwg. 2
Dwg. 4
Bar assembly of bracket which inserts behind webbing
at dorsal D-ring
322IndustrialCourt, Concord, NC 28025
P:[phone] or F: [phone]
WWW.SAFEWAZE.COM
SELF RETRACTING LANYARD
SELF RETRACTING LANYARD
ANSIZ359.14& ANSI A10.32
OSHA1910.66& OSHA 1926.502
FallArrestSystems •Confined Space •Engineering •Rescue Systems
7’
7’
322IndustrialCourt, Concord, NC 28025
P:[phone] or F: [phone]
WWW.SAFEWAZE.COM
SELF RETRACTING LANYARD
SELF RETRACTING LANYARD
ANSIZ359.14& ANSI A10.32
OSHA1910.66& OSHA 1926.502
FallArrestSystems •Confined Space •Engineering •Rescue Systems
7’
7’
Dwg. 3
9013 in opened
conguration
Dwg. 5
To Fasten To Harness:
1. Ensure that the curved portion of SW-9012 is in a downward orientation relative to the harness (See Dwg. 1).
2. Simultaneously depress both locking buttons (A) and (B) (See Dwg. 2) and slide the bracket open as
indicated (See Dwg. 3).
3. With the bracket open, install web loop of the SW-8008-10LE-RBH-ALU backpack assembly onto the bracket. The web loop should be
hanging on the curved portion of bracket.
4. While pressing in on locking button (A) slide the bar behind both loops of webbing at dorsal D-ring until the bar locks back into place.
5. Check the locking function of the bracket by attempting to slide the bracket open WITHOUT depressing locking buttons (A) or (B).
Bracket bar should not move and the bracket is now locked into place.
6. Fasten the underside of the backpack assembly to the Full Body Harness Shoulder straps via the hook and loop fastener tabs as
indicated (See Dwg. 4).
7. Installation of unit to Dorsal D-ring webbing should appear as indicated (See Dwg. 5)
Dwg. 4
3.5 HARNESS MOUNTING THE SW-8008-11LE SERIES TO A SAFEWAZE FULL BODY HARNESS
The bracket comes fully assembled and ready for installation. No tools are required for installation of the bracket onto harness. Use the following
instructions and Figure 12 to install the SW-8008-11LE series retractables onto a Safewaze Full Body Harness.

V2.7 2019 Copyright SAFEWAZE™ Page 11
WARNING: Only the Tie Back hook may be used to snap back onto the Tie Back portion of the SRD Lifeline. When installed, the
Tie Back hook must contact the heavy web section. If the anchor structure is so large that the Tie Back hook contacts the lifeline
above the Tie Back portion of the lifeline, a di󰀨erent anchor structure must be used.
WARNING: Contact SAFEWAZE™ if you have questions, regarding compatibility of this equipment, that are not covered in this
manual. Do not alter or misuse this equipment. Some subsystem components could a󰀨ect the performance of the operation of this
equipment. Do not anchor this product to moving machinery, hazards that include chemical, electrical or gaseous characteristics.
Failure to comply with this warning could result in injury or death.
WARNING: Consult your doctor if there is reason to doubt your tness to safely absorb the shock from a fall
arrest. Age and tness seriously a󰀨ect a worker’s ability to withstand falls. Pregnant women or minors must not
use SAFEWAZE™ SRD’s. Failure to heed this warning may result in serious injury or death.
4.0 USE
4.1 OPERATION
Inspect the SRD, as described in section 8, before using the equipment. Refer to gure 15 for the most common system connections used with SRD
applications. Depending on the SRD model, mount the SRD either to an approved anchor point or on the back of a Full Body Harness as described in
section 3.2. Connect the snap hook, carabiner or tie back attachment to a suitable anchorage. Ensure connections are compatible in size, shape, and
strength. Ensure hooks are fully closed and locked. When the worker is fully attached, the worker is then free to move about within the recommended
working area. If a fall occurs, the SRD will lock and arrest the fall. Upon rescue, remove the SRD from use. When working with an SRD, always allow the
lifeline to retract back into the device in a controlled manner. Do not release the unit to “free-spin” back into itself.
WARNING: Do not tie or knot the lifeline. Avoid lifeline contact with sharp or abrasive surfaces. Inspect the lifeline frequently for
cuts, fraying, burns, or signs of chemical damage. Dirt, contaminants, and water can lower performance of the lifeline. Use caution
near power lines. Failure to comply with this warning may result in serious injury or death.
4.2 AFTER A FALL
Equipment exposed to the force of a fall, or that shows damage consistent with the e󰀨ects of a fall, must be removed from service immediately.
Equipment must then be repaired (see section 5.1) in the correct manner or disposed of (see section 8.5).
4.3 BODY SUPPORT
A full body harness must be worn when using SAFEWAZE™ SRD’s.
4.4 SYSTEM CONNECTIONS
Figure 15 illustrates harness and anchorage connections for SAFEWAZE™ SRD Fall Arrest Systems. When using a snap hook to make a connection,
ensure roll-out cannot occur (see gure 6). Do not use snap hooks or carabiners that will not completely close over the anchor point. This includes
traditional overhead anchor point tie o󰀨, housing attachment to dorsal D-ring, and 100% tie o󰀨. Follow the manufacturer’s instructions supplied with each
system component.
IMPORTANT: Do not use a body belt for free fall applications. See OSHA 1926.502 for guidelines.
4.5 TIE BACK OPTIONS
Tie Back Snap Hooks operate in the same manner as standard double locking snap hooks. The gate is rated at 5,000lbs, allowing the unit to be tied
back into the webbing extension of the SRD. Grip the hook in one hand. Use the thumb and index nger to squeeze the locking mechanism and gate
latch, to open the gate as shown in gure 13. Lessen nger pressure and the gate will close.
To attach to an anchor point, wrap the Tie Back portion of the lifeline around an approved anchor , then open the gate of the Tie Back snap hook and
pass the web portion of the lifeline through the snap hook. Ensure that the lifeline only passes through the hook once. Ensure that the Tie Back portion of
the lifeline is captured and the gate closes completely. (See Figure 14)
WARNING: Never connect the snap hook of one SRD to the lifeline of another SRD or lanyard. Failure to comply with this warning
may result in equipment malfunction, serious injury or death.
FIGURE 13 - HOOK OPERATION FIGURE 14 - TIE BACK ANCHORING

V2.7 2019 Copyright SAFEWAZE™
Page 12
FIGURE 15 - SYSTEM CONNECTIONS
4.7 TWIN LEG SAFEWAZE™ SRD
With the twin leg SAFEWAZE™ SRD mounted on the back of a Full Body Harness, the user can have continuous fall protection (100 % tie-o󰀨) while
ascending, descending, or moving laterally (see gure 15-C).With the lifeline leg of one SRD attached to an anchorage point, the worker can move to a
new location, attach the unused lifeline leg of the other SRD to another anchorage point, and then disconnect from the original anchorage point.
5.1 SERVICE
Remove the SRD from use if the SRD has been subjected to fall arrest forces or inspection reveals an unsafe or defective condition. If unrepairable
Dispose of the SRD as recommended in section 8.5 or send the unit back to an authorized SAFEWAZE™ Service Center for repair.
5.2 CLEANING
Cleaning procedures for SAFEWAZE™ SRD’s are as follows:
Periodically clean the exterior of the SRD using water and a mild soap solution. Clean labels to maintain readability.
An excessive buildup of debris on the cable/web may prevent the cable lifeline from fully retracting back into the housing
and create a potential free fall hazard.
Clean webbing using water and a mild soap solution. Allow to dry fully before using or allowing web to fully retract into housing.
Clean cable using an acid-free oil or petroleum jelly at regular intervals. Always wear gloves when servicing/inspecting steel cable SRD’s.
IMPORTANT: If the lifeline comes in contact with acids or other caustic chemicals, remove the SRD from service and wash with
water and a mild soap solution. Inspect the SRD (using the Inspection Checklist on p 19) before returning to service.
5.0 MAINTENANCE, SERVICING, AND STORAGE
5.3 STORAGE
Store SAFEWAZE™ SRD’s in a cool, dry, clean environment out of direct sunlight. Avoid areas where chemical vapors may exist. Thoroughly inspect the
SRD after any period of extended storage.
322IndustrialCourt,Concord,NC 28025
P:[phone]orF: [phone]
WWW.SAFEWAZE.COM
SELF RETRACTING LANYARD
SELF RETRACTING LANYARD
ANSIZ359.14&ANSIA10.32
OSHA1910.66&OSHA1926.502
FallArrestSystems•ConfinedSpace •Engineering •Rescue Systems
7’
7’
322IndustrialCourt,Concord,NC 28025
P:[phone]orF: [phone]
WWW.SAFEWAZE.COM
SELF RETRACTING LANYARD
SELF RETRACTING LANYARD
ANSIZ359.14&ANSIA10.32
OSHA1910.66&OSHA1926.502
FallArrestSystems•ConfinedSpace •Engineering •Rescue Systems
7’
7’
A
B
C
IMPORTANT: Never connect more than one person at a time to the twin-leg system.
IMPORTANT: Do not allow the lifelines to pass under arms or between legs.
4.6 ANCHORAGE
Figure 15 Illustrates typical SAFEWAZE™ SRD anchorages and connections. Select an anchorage location with minimal free fall and swing fall hazards
(see Section 2). Select a rigid anchorage point capable of sustaining static loads as dened in section 2.2. Where anchoring overhead is not feasible,
SAFEWAZE™ SRD’s may be secured to anchorage points below the level of the user’s dorsal D-Ring, but never below the user’s feet. NOTE: THIS
ADJUSTMENT WILL ADJUST THE TOTAL FREE FALL AND MAXIMUM ARREST DISTANCE OF A FALL.

V2.7 2019 Copyright SAFEWAZE™ Page 13
6.1 PERFORMANCE
SAFEWAZE™ SRD’s have been tested and certied to the performance requirements of the standard(s) identied on their ID labels. See Tables 8 & 9
for performance specications.
Average Arresting Force ≤ 1,350 lbs (6.0kN)
Maximum Arresting Force ≤ 1,800 lbs (8.0 kN)
Maximum Arrest Distance 24 in (0.61 m)
6.0 SPECIFICATIONS
6.2 MAXIMUM ARREST FORCE AND MAXIMUM ARREST DISTANCE
SRD’s documented in this instruction meet the following Arrest Force and Arrest Distance maximums when tested in accordance with Section 4.2.1 of
ANSI Z359.14.
7.0 MATERIALS
Average Arresting Force ≤ 900 lbs (5.0kN)
Maximum Arresting Force ≤ 1,800 lbs (8.0 kN)
Maximum Arrest Distance 54 in (1.37 m)
TABLE 8 - CLASS A
TABLE 9 - CLASS B
TABLE 10 - MATERIALS
Housing Aluminum, Poly, or Thermoplastic Web Ultra High Molecular Weight Webbing
Drum Aluminum Alloy Dual D-Ring Bracket Stainless Steel
Zinc Plated Alloy Steel Screws Motor Spring Stainless Steel
Stainless Steel Rivets Swivel Zinc Plated Steel
Locking Pawls Brass Cable 3/16" Galvanized or Stainless Steel / 7/32" Galvanized Cable (Leading Edge Units)
Main Shaft Stainless Steel Tie Back Extension Polyester
SW-9012 Bracket Forged Steel Snap Hook / Rebar Hook Forged Steel or Aluminum
Dual Bracket BWB Alloy Steel, Heat Treated w/ Plastic Keeper 9013 Bracket Forged Steel Gate, Aluminum Barrel
Fasteners

V2.7 2019 Copyright SAFEWAZE™
Page 14
7.1 PRODUCT SPECIFICATIONS
TABLE 11 - PRODUCT SPECIFICATIONS
8.1 BEFORE EACH USE
Before each use ensure that the equipment is in good working condition. Inspect the unit to ensure it has not been damaged and that the unit pays out
and retracts properly. Prior to each use, the braking system must be inspected. Grasp the body of the unit in one hand and the cable/web in the other.
With a quick, jerking motion, pull down on the web/cable. The brake should engage, stopping movement almost immediately. Inspect the webbing and/or
cable (using “Inspection Checklist” p 18) and ensure that all connection hardware is working properly. Brake failure or unsatisfactory results during any
portion of the inspection, require immediate removal of the SRD from service.
8.2 INSPECTION FREQUENCY
The SAFEWAZE™ SRD - must be inspected at the intervals dened in section 2.3. Inspection procedures are described in the “Inspection Checklist”
(See page 18).
8.0 INSPECTION
8.3 UNSAFE OR DEFECTIVE CONDITIONS
Figure 19 shows examples of equipment damage. Equipment inspectors must be trained to look for damage as illustrated in Figure 19, as well as other
damage that may occur. If inspection reveals an unsafe or defective condition remove the SRD from service.
8.5 DISPOSAL
Dispose of the SAFEWAZE™ SRD if it has been damaged by fall arrest forces or inspection reveals an unsafe or defective condition that cannot be
repaired by an authorized SAFEWAZE™ Service Center. Before disposing of the SRD, cut the cable/web lifeline in half so that it is not mistakenly
reused.
8.4 PRODUCT LIFE
The working life of SAFEWAZE™ SRD’s is determined by work conditions, care and inspection provided. As long as the SRD passes inspection, it may
remain in service.
Item Length Class
FS-FSP1211-G 11 A
FS-FSP1211-G-RBH 11 A
FS-FSP1215-G 15 A
FS-FSP1220-G 20 A
FS-FSP9020 (LEADING EDGE) 20 B
FS-FSP9030 (LEADING EDGE) 30 B
FS-FSP1230-G 30 B
FS-FSP1250-G 50 B
FS-FSP9050 (LEADING EDGE) 50 B
FS-FSP1265-G 65 B
FS-FSP1275-G 75 B
FS-FSP1407-W 7 A
FS-FSP1407-W-RBH 7 A
FS-FSP1407-W-TBH 7 A
FS-FSP14075-W 7 A
FS-FSP14085-W-RBH 7 A
FS-FSP14075-W-TBH 7 A
FS-FSP15075-W-BWB 7 A
FS-FSP15085-W-RBH-BWB 7 A
FS-FSP1409-W 9 A
FS-FSP1409-W-RBH 9 A
FS-FSP1409-W-DL 9 A
FS-FSP1409-W-DL-RBH 9 A
FS-FSP1409-W-DL-BWB 9 A
FS-FSP1409-W-DL-RBH-BWB 9 A
FS-FSP1411-W 11 A
FS-FSP1411-W-RBH 11 A
FS-FSP14095-W 11 A
FS-FSP14095-W-RBH 11 A
Item Length Class
FS-EX1006-W 6 A
FS-EX1006-W-RBH 6 A
FS-EX10065-W-BWB 6 A
FS-EX10065-W-RBH-BWB 6 A
FS-EX20065-W-RBH-BWB 6 A
FS-EX1420-W 20 B
FS-EX2530-G-SL 30 B
FS-EX1530-W 30 B
FS-EX1540-W 40 B
FS-EX1550-W 50 B
FS960-65 65 B
FS-EX2550-G-SL 50 B
FS-EX1080-G 80 B
FS-EX10-100-G 100 B
Item Length Class
SW-8008-10 10 A
SW-8008-10-ALU 10 A
SW-8008-10-RBH 10 A
SW-8008-10-ALU-RBH 10 A
SW-8008-10-DL 10 A
SW-8008-10-ALU-DL 10 A
SW-8008-10-RBH-DL 10 A
SW-8008-10-ALU-RBH-DL 10 A
SW-8008-11LE (LEADING EDGE) 11 B
SW-8008-11LE-ALU (LEADING EDGE) 11 B
SW-8008-11LE-RBH (LEADING EDGE) 11 B
SW-8008-11LE-RBH-ALU (LEADING EDGE) 11 B
SW-8008-11LE-DL (LEADING EDGE) 11 B
SW-8008-11LE-ALU-DL (LEADING EDGE) 11 B
SW-8008-11LE-RBH-DL (LEADING EDGE) 11 B
SW-8008-11LE-RBH-ALU-DL (LEADING EDGE) 11 B

V2.7 2019 Copyright SAFEWAZE™ Page 15
FIGURE 17 - SERIAL NUMBER & DATE OF MANUFACTURE
9.0 LABELING
FIGURE 16 HOUSING LABELS
322 Industrial Court, Concord, NC 28025
P: [phone] or F: [phone]
WWW.SAFEWAZE.COM
Ø 103mm
SELF RETRACTING LANYARD
SELF RETRACTING LANYARD
ANSI Z359.14 & ANSI A10.32
OSHA 1910.66 & OSHA 1926.502
Inv #: 01006aR1
Fall Arrest Systems •Confined Space •Engineering •Rescue Systems
322 Industrial Court, Concord, NC 28025
P: [phone] or F: [phone]
WWW.SAFEWAZE.COM
Ø 103mm
SELF RETRACTING LANYARD
SELF RETRACTING LANYARD
ANSI Z359.14 & ANSI A10.32
OSHA 1910.66 & OSHA 1926.502
Inv #: 01006aR1
Fall Arrest Systems •Confined Space •Engineering •Rescue Systems
Ø 103mmInv #: 01006bR3
FS-FSP1220-G
FS-FSP1220-G
WARNING: User must read and understand all
instructions, provided with this product at time of
shipment, prior to use.
DO NOT ATTEMPT TO SERVICE OR REPAIR THIS
UNIT! CONTACT SAFEWAZE™ FOR SERVICE OR
REPAIR INFORMATION.
USE: This is a single person fall arrester device.
Connection of this device to a full body harness is to
be made to the dorsal D-ring only. User must ensure
that any connection to anchorage is properly secured
prior to use. Avoid lifeline contact with sharp or
abrasive edges. Avoid chemical, thermal and/or
electrical hazards. This product is suitable for use
with horizontal lifelines and horizontal positioning.
Fall clearances must be calculated by a Competent
Person prior to use. Avoid swing fall hazards. Fall
clearance number for this device is based upon unit
installed in an overhead vertical position in-line with
the user. Not to be used for leading edge
applications
INSPECTION: Device must be inspected prior to
each use. Inspect device per instructions to include
Locking Function Test (sharp pull test), retraction
test, label legibility, any evidence of damage or
defects, or missing components or parts. Inspect
housing, connectors, fasteners and full length of
lifeline component for any damage or defects. This
product must be inspected in accordance with the
manufacturer’s instructions. Unit must be removed
from service if exposed to fall arrest forces. Fall
indicator is a swivel indicating snap hook;
immediately remove unit from service if swivel
indicating snap hook is deployed.
Specifications:
Working length: 20 ft (6.10 m)
Material: 3/16 in galvanized steel cable; steel
hardware; nylon and glass fiber housing
Capacity range: ANSI, 130-310 lbs (58.96-140.61 kg)
OSHA, up to 420 lbs (190.51 kg)
Average arresting force: 1350 lbs (612.35 kg)
Max arrest force: 1800 lbs (816.47 kg)
Max arresting distance: 24 in (60.96)
Free fall limit: 24 in (60.96 cm)
Class A unit
Single Leg / Swivel Indicating Snap Hook
1 2 3 4 5
Inspection
Year
MUST FOLLOW ALL MANUFACTURER’S INSTRUCTIONS
INCLUDED WITH THIS EQUIPMENT. DO NOT REMOVE LABEL.
Ø 60mmInv #: 01008g9R4
FS-FSP1409-W-RBH
FS-FSP1409-W-RBH
Single Leg / Rebar Hook
1 2 3 4 5
Inspection
Year
MUST FOLLOW ALL MANUFACTURER’S INSTRUCTIONS
INCLUDED WITH THIS EQUIPMENT. DO NOT REMOVE LABEL.
WARNING: User must read and understand all
instructions, provided with this product at time of
shipment, prior to use.
DO NOT ATTEMPT TO SERVICE OR REPAIR THIS
UNIT! CONTACT SAFEWAZE™ FOR SERVICE OR
REPAIR INFORMATION.
USE: This is a single person fall arrester device.
Connection of this device to a full body harness is to
be made to the dorsal D-ring only. User must ensure
that any connection to anchorage is properly secured
prior to use. Avoid lifeline contact with sharp or
abrasive edges. Avoid chemical, thermal and/or
electrical hazards. This product is suitable for use
with horizontal lifelines and horizontal positioning.
Fall clearances must be calculated by a Competent
Person prior to use. Avoid swing fall hazards. Fall
clearance number for this device is based upon unit
installed in an overhead vertical position in-line with
the user. Not to be used for leading edge
applications.
INSPECTION: Device must be inspected prior to
each use. Inspect device per instructions to include
Locking Function Test (sharp pull test), retraction
test, label legibility, any evidence of damage or
defects, or missing components or parts. Inspect
housing, connectors, fasteners and full length of
lifeline component for any damage or defects. This
product must be inspected in accordance with the
manufacturer’s instructions. Unit must be removed
from service if exposed to fall arrest forces. Fall
indicator is sewn into webbing above the snap hook;
immediately remove unit from service if the fall
indicator is visible.
Specifications:
Working length: 9 ft (2.74 m)
Material: Steel hardware; nylon and glass fiber
housing; 1 in UHMWPE webbing
Capacity range: ANSI, 130-310 lbs (58.96-140.61 kg)
OSHA, up to 420 lbs (190.51 kg)
Average arresting force: 1350 lbs (612.35 kg)
Max arrest force: 1800 lbs (816.47 kg)
Max arresting distance: 24 in (60.96 cm)
Free fall limit: 24 in (60.96 cm)
Class A unit
01003aR2
Fall Arrest Systems •Confined Space
Engineering •Rescue Systems
322 Industrial Court, Concord, NC 28025
P: [phone] or F: [phone]
SELF RETRACTING LANYARD
SELF RETRACTING LANYARD
WWW.SAFEWAZE.COM
ANSI Z359.14 & ANSI A10.32
OSHA 1910.66 & OSHA 1926.502
FS-EX1006-W-RBH
FS-EX1006-W-RBH
Single Leg / Rebar Hook
MUST FOLLOW ALL MANUFACTURER’S INSTRUCTIONS
INCLUDED WITH THIS EQUIPMENT. DO NOT REMOVE LABEL.
WARNING: User must read and understand all instructions, provided with this
product at time of shipment, prior to use.
DO NOT ATTEMPT TO SERVICE OR REPAIRTHIS UNIT! CONTACT
SAFEWAZE™ FOR SERVICE OR REPAIR INFORMATION.
USE: This is a single person fall arrester device. Connection of this device to a
full body harness is to be made to the dorsal D-ring only. User must ensure
that any connection to anchorage is properly secured prior to use.Avoid lifeline
contact with sharp or abrasive edges. Avoid chemical, thermal and/or electrical
hazards. This product is suitable for use with horizontal lifelines and horizontal
positioning. Fall clearances must be calculated by a Competent Person prior
to use. Avoid swing fall hazards. Fall clearance number for this device is based
upon unit installed in an overhead vertical position in-line with the user. Not to
be used for leading edge applications.
INSPECTION: Device must be inspected prior to each use. Inspect device per
instructions to include Locking Function Test (sharp pull test), retraction test,
label legibility, any evidence of damage or defects, or missing components or
parts. Inspect housing, connectors, fasteners and full length of lifeline
component for any damage or defects.This product must be inspected in
accordance with the manufacturer’s instructions.Unit must be removed from
service if exposed to fall arrest forces. Immediatly remove unit from service if
swivel indicator on the top of the housing shows red.
Specications:
Working length: 6 ft (1.83 m); Materials: Aluminum hardware, thermoplastic
housing and UHMWPE webbing; Capacity: 400 lbs (181.44 kg); Average
arresting force: 1350 lbs (612.35 kg); Max arrest force: 1800 lbs (816.47 kg);
Max arresting distance: 24 in (60.96 cm); Free fall limit: 24 in (60.96 cm)
Class A unit
J F M A M J J A S O N D
01001bR4
Ø 135mmInv #: 01650aR4
322 Industrial Court, Concord, NC 28025
P: [phone] or F: [phone]
WWW.SAFEWAZE.COM
SELF RETRACTING LANYARD
SELF RETRACTING LANYARD
ANSI Z359.14 & ANSI A10.32
OSHA 1910.66 & OSHA 1926.502
Fall Arrest Systems •Confined Space •Engineering •Rescue Systems
LE
LEADING EDGE
Ø 135mmInv #: 01650bR7
MUST FOLLOW ALL MANUFACTURER’S INSTRUCTIONS
INCLUDED WITH THIS EQUIPMENT. DO NOT REMOVE LABEL.
WARNING: User must read and understand all
instructions, provided with this product at time of
shipment, prior to use.
DO NOT ATTEMPT TO SERVICE OR REPAIR
THIS UNIT! CONTACT SAFEWAZE™ FOR
SERVICE OR REPAIR INFORMATION.
USE: This is a single person fall arrester device.
Connection of this device to a full body harness
is to be made to the dorsal D-ring only. User must
ensure that any connection to anchorage is
properly secured prior to use.Avoid chemical,
thermal and/or electrical hazards. This product is
suitable for use with horizontal lifelines and
horizontal positioning. Fall clearances must be
calculated by a Competent Person prior to use.
Avoid swing fall hazards. Free fall limit is 2 ft.
INSPECTION: Device must be inspected prior to
each use. Inspect device per instructions to
include Locking Function Test (sharp pull test),
retraction test, label legibility, any evidence of
damage or defects, or missing components or
parts. Inspect housing, connectors, fasteners
and full length of lifeline component for any
damage or defects. This product must be
inspected in acccordance with the
manufacturer’s instructions. Unit must be
removed from service if exposed to fall arrest
forces. Immediately remove unit from service if
energy absorber is deployed.
Specications:
Materials: 3/16 in galvanized steel cable; steel
hardware; nylon and glass ber housing
Capacity range: 130-310 lbs (58.96 kg-140.61 kg)
Average arresting force: 900 lbs (408.23 kg)
Max Arresting Distance: 42 in / 1.07 m (OSHA)
OR 54 in / 1.37 m (ANSI)
Setback distance: 3 ft (0.91 m)
Minimum fall clearance: 12.5 ft-16.5 ft
(3.81 m-5.03 m)
Class B unit
1 2 3 4 5
Inspec�on
Year
FS-FSP9030
FS-FSP9030
30 FT LEADING EDGE CABLE

9.1 LABELING PICTOGRAM IMAGES AND DEFINITIONS (MAY BE PRESENT ON EARLIER VERSIONS)
PICTURE 1.1 Store the fall arrester, hanging up, in a ventilated place away from humitity and from ultraviolet light.
PICTURE 1.2 Per ANSI/OSHA regulations, anchorage points must support a minimum of 5,000 lbs. Per EU EN 795
standard, anchorages must have a resistance superior to 10 kN.
PICTURE 1.3 Avoid swing fall hazards. Work as directly underneath your anchorage as possible. Always check for
obstructions below your work area to ensure your fall path is clear.
PICTURE 1.4 Ensure cable or webbing does not show any sign of wear (i.e., tearing, fraying, breaking, corrosion, etc.).
PICTURE 1.5 Do not allow the lanyard to retract into the housing freely. This may damage the retracting mechanism.
PICTURE 1.6 Use of this equipment should be avoided in areas where the lifeline may come into contact with sharp,
abrasive and/or leading edges, unless designated LE certied.
PICTURE 1.7 Retractable lifeline should only be attached to back dorsal D-ring of fall protection full-body harness.
PICTURE 1.8 Temperature of use: from -30°C to +50°C or -22°F to 122°F.
PICTURE 1.9 Maximum weight capacity listed, 310 lbs (140 kg), is for a single user, including all clothing, equipment
and tools.
PICTURE 1.10 It is strictly forbidden to modify or repair this device yourself. Only the manufacturer or a qualied repair
center is authorized to carry our these repairs.
PICTURE 1.11 The braking function operates by giving a quick downward tug on the cable or web lifeline. When testing
the braking function, pull straight down on the lifeline element, not to the side of the retractable housing.
PICTURE 1.12 Do not use and remove from service if load indicator is deployed (on cable units).
PICTURE 1.13 Do not use and remove from service if sewn in load indicator is deployed (on web units).
PICTURE 1.14 Do not use if shock pack incorporated on certain cable units (Including LE Units) indicates signs of
of deployment due to fall arrest forces.
4
4
4
X
X
X
PULL
TEST
V2.7 2019 Copyright SAFEWAZE™
Page 16

V2.7 2019 Copyright SAFEWAZE™ Page 17
Crimp
Stitching
Cable
Webbing
Stop Ball
Spring
Housing
Housing
Labeling
Labeling
Swivel Top
Swivel Top
Swivel on
Snaphook
Hook Body
Load Impact
Indicator
Gate
Gate
Hinge
Hinge
Hook Nose
Hook Nose
Carabiner
Bracket
FIGURE 18 - INSPECTION DIAGRAMS
Cut
Frayed Heavily Soiled
Welding Burns
Cable Damage Examples Webbing Damage Examples
FIGURE 19 - EXAMPLES OF EQUIPMENT DAMAGE
Load Impact Indicator
Hook Nose
Gate
Hinge
Stitching
Labeling
Load Impact Indicator
Webbing
Shock Pack
Swivel Top
Bracket
Welding Spatter
Broken Wires Bird-Caging
Kinked Wire Rope

V2.7 2019 Copyright SAFEWAZE™
Page 18
Inspection Checklist - Fall Protection Equipment
Retractable Lifeline
Model #:
Date of Manufacture: Date Inspected:
Pass Fail Comments
Webbing or Cable
Stitching or Crimp
Stop Ball (cable only)
Spring (cable only)
Housing
Labeling or Engraving
Swivel Top
Swivel on Sanphook (cable only)
Hook Body
Hook Nose
Load Impact Indicator
Gate (keeper)
Hinge (at gate)
Bracket (dual only)
Carabiner
Retraction & Tension
Braking Test
Description:
Serial #:
Inspector:
Inspector Signature:
Description
Main Unit
Hooks
&
Carabiners
Tests
 PASS: Initial  FAIL: Initial

V2.7 2019 Copyright SAFEWAZE™ Page 19
INSPECTION DATE NOTES CORRECTIVE ACTION MAINTENANCE PERFORMED
APPROVED BY: APPROVED BY: APPROVED BY: SERIAL NUMBER: MODEL NUMBER: DATE OF PURCHASE: APPROVED BY: APPROVED BY: APPROVED BY: APPROVED BY: APPROVED BY:

V2.7 2019 Copyright SAFEWAZE™
Page 20
TABLE 12 - 420 LB CAPACITY UNITS
TABLE 13 - 400 LB CAPACITY UNITS
FS-EX20065-W-RBH-BWB
400 lb Capacity Self Retracting Devices
FS-EX1006-W
FS-EX1006-W-RBH
FS-EX10065-W-BWB
FS-EX10065-W-RBH-BWB
FS-EX2006-W-RBH
SW-8008-10
SW-8008-10-ALU
SW-8008-10-RBH
SW-8008-10-ALU-RBH
420 lb Capacity Self Retracting Devices
SW-8008-10-DL
SW-8008-10-ALU-DL
SW-8008-10-RBH-DL
SW-8008-10-ALU-RBH-DL
