Samson 3353 User manual

Mounting and
Operating Instructions
EB 8139 EN
Translation of original instructions
Edition August 2017
Type3353 Angle Seat Valve

2 EB 8139 EN
Note on these mounting and operating instructions
These mounting and operating instructions assist you in mounting and operating the device
safely. The instructions are binding for handling SAMSON devices.
ÎFor the safe and proper use of these instructions, read them carefully and keep them for
later reference.
ÎIf you have any questions about these instructions, contact SAMSON‘s After-sales Service
Department (aftersalesser[email protected]).
The mounting and operating instructions for the devices are included in
the scope of delivery. The latest documentation is available on our website
(www.samson.de) > Product documentation. You can enter the document
number or type number in the [Find:] eld to look for a document.
Denition of signal words
Hazardous situations which, if not avoided,
will result in death or serious injury
Hazardous situations which, if not avoided,
could result in death or serious injury
Property damage message or malfunction
Additional information
Recommended action
DANGER
!
WARNING
!
NOTICE
!
Note
Tip

Contents
EB 8139 EN 3
1 Safety instructions and measures ...................................................................5
1.1 Notes on possible severe personal injury .........................................................7
1.2 Notes on possible personal injury ...................................................................7
1.3 Notes on possible property damage................................................................8
2 Markings on the control valve........................................................................9
2.1 Valve nameplate ............................................................................................9
3 Design and principle of operation ................................................................10
3.1 Fail-safe action ............................................................................................10
3.2 Technical data .............................................................................................12
3.3 Dimensions and weights ...............................................................................13
3.4 Permissible differential pressures ...................................................................14
3.4.1 Version FA/NC with fail-safe position: fail-close .............................................14
3.4.2 Version FE/NO with fail-safe position: fail-open.............................................14
4 Measures for preparation............................................................................16
4.1 Unpacking ..................................................................................................16
4.2 Transporting and lifting ................................................................................16
4.3 Storage.......................................................................................................16
4.4 Preparation for installation............................................................................17
5 Mounting and start-up.................................................................................18
5.1 Installing the valve into the pipeline ...............................................................18
5.1.1 Mounting position........................................................................................18
5.1.2 Installing the valve........................................................................................18
5.2 Connecting the signal pressure......................................................................18
5.3 Additional ttings.........................................................................................19
5.4 Quick check ................................................................................................20
6 Operation...................................................................................................21
7 Servicing.....................................................................................................22
7.1 Replacing the gaskets ...................................................................................23
7.2 Replacing the packing..................................................................................24
7.3 Tightening torques........................................................................................27
7.4 Preparation for return shipment.....................................................................28

4 EB 8139 EN
Contents
7.5 Ordering spare parts and operating supplies .................................................28
8 Malfunctions ...............................................................................................29
8.1 Troubleshooting ...........................................................................................29
8.2 Emergency action ........................................................................................30
9 Decommissioning and disassembly ..............................................................31
9.1 Decommissioning.........................................................................................31
9.2 Removing the valve from the pipeline.............................................................31
9.3 Disposal......................................................................................................31
10 Annex.........................................................................................................32
10.1 After-sales service........................................................................................32
10.2 Certicates ..................................................................................................32
10.3 Spare parts .................................................................................................34

EB 8139 EN 5
Safety instructions and measures
1 Safety instructions and measures
Intended use
The Type3353 Angle Seat Valve is designed for on/off service in process engineering and
plants with industrial requirements. The valve is suitable for liquids, vapors and gases at tem-
peratures from –10 to +180°C and a pressure rating of PN40. The angle seat valve is com-
bined with a pneumatic piston actuator.
The control valve is designed to operate under exactly dened conditions (e.g. operating
pressure, process medium, temperature). Therefore, operators must ensure that the control
valve is only used in applications that meet the specications used for sizing the valve at the
ordering stage. In case operators intend to use the control valve in other applications or con-
ditions than specied, contact SAMSON.
SAMSON does not assume any liability for damage resulting from the failure to use the
valve for its intended purpose or for damage caused by external forces or any other external
factors.
ÎRefer to the technical data and nameplate for limits and elds of application as well as
possible uses.
Reasonably foreseeable misuse
The control valve is not suitable for the following applications:
−Use outside the limits dened during sizing and by the technical data
−Use outside the limits dened by the valve accessories mounted on the control valve
Furthermore, the following activities do not comply with the intended use:
−Use of non-original spare parts
−Performing service and repair work not described in these instructions
Qualications of operating personnel
The control valve must be mounted, started up, serviced and repaired by fully trained and
qualied personnel only; the accepted industry codes and practices are to be observed. Ac-
cording to these mounting and operating instructions, trained personnel refers to individuals
who are able to judge the work they are assigned to and recognize possible hazards due to
their specialized training, their knowledge and experience as well as their knowledge of the
applicable standards.

6 EB 8139 EN
Safety instructions and measures
Personal protective equipment
We recommend wearing the following protective equipment depending on the process medi-
um:
−Protective clothing, gloves, and eyewear in applications with hot, cold, and/or corrosive
media
−Wear hearing protection when working near the valve.
ÎCheck with the plant operator for details on further protective equipment.
Revisions and other modications
Revisions, conversions or other modications to the product are not authorized by SAMSON.
They are performed at the user's own risk and may lead to safety hazards, for example. Fur-
thermore, the product may no longer meet the requirements for its intended use.
Warning against residual hazards
To avoid personal injury or property damage, plant operators and operating personnel must
prevent hazards that could be caused in the control valve by the process medium, the
operating pressure, the signal pressure or by moving parts by taking appropriate
precautions. They must observe all hazard statements, warning and caution notes in these
mounting and operating instructions, especially for installation, start-up and service work.
Responsibilities of the operator
The operator is responsible for proper operation and compliance with the safety regulations.
Operators are obliged to provide these mounting and operating instructions as well as the
referenced documents to the operating personnel and to instruct them in proper operation.
Furthermore, the operator must ensure that operating personnel or third persons are not ex-
posed to any danger.
Responsibilities of operating personnel
Operating personnel must read and understand these mounting and operating instructions as
well as the referenced documents and observe the hazard statements, warning and caution
notes specied in them. Furthermore, the operating personnel must be familiar with the ap-
plicable health, safety and accident prevention regulations and comply with them.
Referenced standards and regulations
The devices comply with the requirements of the European Pressure Equipment Directive
2014/68/EU. Devices with a CE marking have an EU declaration of conformity, which in-
cludes information about the applied conformity assessment procedure. This EU declaration
of conformity is included in the Appendix of these instructions.

EB 8139 EN 7
Safety instructions and measures
Referenced documentation
The mounting and operating instructions of the mounted valve accessories (e.g. uEB8357
for Type4740 Limit Switch) apply in addition to these mounting and operating instructions.
1.1 Notes on possible severe personal injury
DANGER
!
Risk of bursting in pressure equipment.
Valves and pipelines are pressure equipment. Improper opening can lead to valve
components bursting.
ÎBefore starting any work on the valve, depressurize all plant sections concerned as
well as the valve.
ÎDrain the process medium from all the plant sections concerned as well as the
valve.
ÎWear personal protective equipment.
1.2 Notes on possible personal injury
WARNING
!
Risk of personal injury when the actuator vents.
While the valve is operating, the actuator may vent when the valve opens or closes.
ÎInstall the control valve in such a way that the actuator does not vent at eye level.
ÎUse suitable silencers and vent plugs.
ÎWear eye protection when working in close proximity to the control valve.
Risk of personal injury due to residual process medium in the valve.
While working on the valve, residual process medium can escape and, depending on
its properties, may lead to personal injury, e.g. (chemical) burns.
ÎIf possible, drain the process medium from all the plant sections concerned and the
valve.
ÎWear protective clothing, safety gloves and eyewear.

8 EB 8139 EN
Safety instructions and measures
WARNING
!
Risk of burn injuries due to hot or cold components and pipelines.
Depending on the process medium, valve components and pipelines may get very hot
or cold and cause burn injuries.
ÎAllow components and pipelines to cool down or heat up.
ÎWear protective clothing and safety gloves.
1.3 Notes on possible property damage
NOTICE
!
Risk of valve damage due to contamination (e.g. solid particles) in the pipeline.
The plant operator is responsible for cleaning the pipelines in the plant.
ÎFlush the pipelines before start-up.
ÎObserve the maximum permissible pressure for valve and plant.
Risk of valve damage due to unsuitable medium properties.
The valve is designed for a process medium with dened properties.
ÎOnly use the process medium specied for sizing the valve.
Risk of leakage and valve damage due to excessively high or low tightening
torques.
Observe the specied torques on tightening valve components.
Excessively tightened torques lead to parts wearing out quicker. Parts that are too loose
may cause leakage.
ÎObserve the specied tightening torques (see section7.3).

EB 8139 EN 9
Markings on the control valve
2 Markings on the control valve
2.1 Valve nameplate
1 Actuator area and number of actuator
springs (Ior II)
2 Required signal pressure in bar
3Valve size (DN and NPS)
4 Max. perm. differential pressure in
bar
5Conguration ID
6Max. permissible medium temperature
7 Year of manufacture
3
3 3
3
4 4
4 4
2
2
5
6 7
1
1
Made in Europe
SAMSON 3353
Stelldruck
Supply
(bar)
Antrieb
Act. size
Max. Diff.druck/pressure ∆p in bar
Fig.1: Nameplate
The nameplate is stuck on the pneumatic actuator.

10 EB 8139 EN
Design and principle of operation
3 Design and principle of oper-
ation
The pneumatic control valve consists of an
angle seat valve with a soft-seated plug and
a pneumatic piston actuator. Depending on
the version, the actuator can be equipped
with a mechanical manual override or an
electric limit switch.
The medium ows through the valve in the
direction indicated by the arrow. The signal
pressure applied to the piston actuator deter-
mines the position of the plug and thus the
cross-sectional area of ow between the seat
and plug.
The plug/actuator stem (14) is sealed by a
self-adjusting PTFE V-ring packing (22) at
the valve and by a radial shaft seal (25) at
the actuator.
3.1 Fail-safe action
The fail-safe position of the valve upon sup-
ply air (signal pressure) failure is determined
by how the piston and actuator spring are
arranged in the pneumatic actuator.
Fail-close (FA)
The actuator spring closes the valve upon air
supply failure. The valve opens when the sig-
nal pressure increases.
Fail-open (FE)
The actuator spring opens the valve upon air
supply failure. The valve closes when the sig-
nal pressure increases.

EB 8139 EN 11
Design and principle of operation
20
3
25
66
20
3
S
55
66
25
22
14
1
55
S
22
14
1
Fail-close (FA)
FA/NC/TS
Fail-open (FE)
FE/NO/TR
1Body
3 Piston
14 Plug (with plug/actuator stem)
20 Spring
22 V-ring packing
25 Radial shaft seal
55 Vent plug
66 Filter
S Signal pressure connection

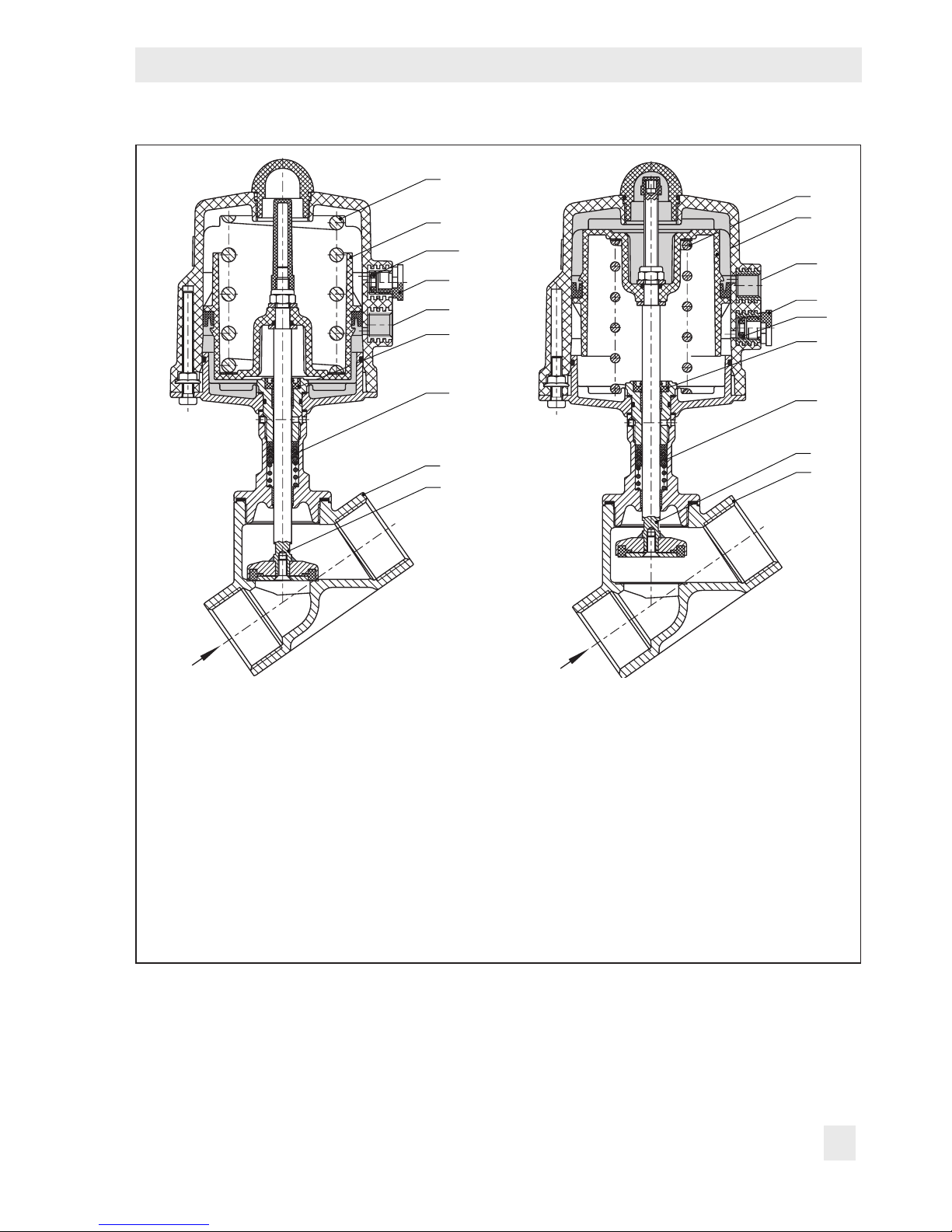

Fig.2: Type3353 Angle Seat Valve

12 EB 8139 EN
Design and principle of operation
3.2 Technical data
The nameplate provides information on the control valve version (see section2.1). More in-
formation is available in Data Sheet uT8139.
Table1: Technical data
Valve sizes DN15 to 50 · NPS½ to 2
Material 1.4408
Type of connection Welding ends · Threaded ends
Pressure rating PN 40
Seat-plug seal Soft seal
Characteristic Quick-opening
Compliance ·
Actuator 30cm² (Ø = 63mm) or 60cm² (Ø = 90mm)
Permissible signal pressure Minimum according to section3.4 · Maximum 8bar
Control pressure connection G¼
Temperature range
Permissible medium temperature –10 to +180°C
Permissible ambient temperature –10 to +60°C
Permissible ow velocity
Max. velocity at the valve outlet Liquids: 3m/s · Gases: 0.3Mach

EB 8139 EN 13
Design and principle of operation
3.3 Dimensions and weights
Valve size DN (NPS) 15 (½) 20 (¾) 25 (1) 32 (1¼) 40 (1½) 50 (2)
FTF dimension L mm 65 75 90 110 120 150
End-to-end length L1 mm 170 175 197 205 210 226
Height inc. actuator H mm 193 194 211 212 224 226
Body connection GG½ G¾ GG1¼ G1½ G2
Thread length t mm 15 16 19 22 22 26
Valve weight kg 0.28 0.33 0.64 0.8 1.3 1.9
Version with welding ends
Valve size DN (NPS) 15 (½) 20 (¾) 25 (1) 32 (1¼) 40 (1½) 50 (2)
FTF dimension L mm 100 120 150 160 180 190
End-to-end length L1 mm 187 197 227 218 230 241
Height inc. actuator H mm 197 199 214 223 230 229
Ød1 connection mm 18.1 23.7 29.7 38.4 44.3 55.1
Wall thickness s mm 1.6 2 2.6
Valve weight kg 0.28 0.33 0.64 0.8 1.3 1.9
Pneumatic piston actuator
Version Actuator
area/Ø 30cm²/Ø63 60cm²/Ø90 (one
spring)
60cm²/Ø90 (two
springs)
Housing ØD mm 100 127
Control pressure connection G¼
Weight kg 1.35 2.2 2.75
ØD
L1
S
H
H
Ød1ISO 4200
L
L1
L
ØD
ØG ISO 228-1
t
Version with welding
ends
Version with female
thread

14 EB 8139 EN
Design and principle of operation
3.4 Permissible differential pressures
The specications for the standard version have a dark gray background.
3.4.1 Version FA/NC with fail-safe position: fail-close
Pressure rating DN 15 · 20 25 · 32 40 · 50
NPS ½ · ¾ 1 · 1¼ 1½ · 2
Actuator Signal
pressure ∆pActuator area Thrust
30cm² 720N 4.0bar 17 6 2
60cm² 1440N (one spring) 3.8bar 40 16 6
2160N (two springs) 5.4bar – 25 10
3.4.2 Version FE/NO with fail-safe position: fail-open
Required actuators and signal pressures to close the valve at the specied differential pres-
sure. Assigned according to valve size and actuator area.
Control valve DN15 · DN20
Pressure
rating
DN 15 · 20 Control valve DN15 (NPS½) · DN20 (NPS¾)
NPS ½ · ¾
∆
60 cm²/Ø90 30 cm²/Ø63
0
345678
5
10
15
20
25
30
35
40
p[bar]
[bar]
pzul
Actuator Signal
pressure ∆p
30cm²
Ø = 63mm
4bar 6
5bar 16
6bar 26
7bar 36
8bar 40
60cm²
Ø = 90mm
3bar 27
4bar 40

EB 8139 EN 15
Design and principle of operation
Control valve DN25 · DN32
Pressure
rating
DN 25 · 32 Control valve DN25 (NPS1) · DN32 (NPS1¼)
NPS 1 · 1¼
∆
60 cm²/Ø90
30 cm²/
Ø63
0345678
5
10
15
20
25
30
35
40
p[bar]
[bar]
pzul
Actuator Signal
pressure ∆p
30cm²
Ø = 63mm
5bar 6
6bar 10
7bar 14
8bar 18
60cm²
Ø = 90mm
3bar 11
4bar 19
7bar 40
Control valve DN40 · DN50
Pressure
rating
DN 40 · 50 Control valve DN40 (NPS1½) · DN50 (NPS2)
NPS 1½ · 2
∆
60 cm²/
Ø90
30 cm²/
Ø63
0345678
5
10
15
20
25
30
35
40
p[bar]
[bar]
pzul
Actuator Signal
pressure ∆p
30cm²
Ø = 63mm
5 2
6 4
7 5
8 7
60cm²
Ø = 90mm
3 4
4 7
5 11
6 14
7 18
8 21

16 EB 8139 EN
Measures for preparation
4 Measures for preparation
After receiving the shipment, proceed as fol-
lows:
1. Check the scope of delivery. Compare
the shipment received against the deliv-
ery note.
2. Check the shipment for transportation
damage. Report any damage to
SAMSON and the forwarding agent
(refer to delivery note).
4.1 Unpacking
Do not remove the packaging until immedi-
ately before installing the valve into the pipe-
line.
Proceed as follows to lift and install the con-
trol valve:
1. Remove the packaging from the control
valve.
2. Dispose of the packaging in accordance
with the valid regulations.
4.2 Transporting and lifting
Due to the low service weight, lifting equip-
ment is not required to lift and transport the
control valve (e.g. to install it into the pipe-
line).
Transport instructions
−Protect the control valve against external
inuences (e.g. impact).
−Do not damage the corrosion protection
(paint, surface coatings). Repair any
damage immediately.
−Protect the control valve against moisture
and dirt.
−Observe the permissible ambient tem-
peratures (see section3.2).
4.3 Storage
Risk of valve damage due to improper stor-
age.
−Observe storage instructions.
−Avoid long storage times.
Contact SAMSON in case of different stor-
age conditions or long storage periods.
We recommend regularly checking the con-
trol valve and the prevailing storage condi-
tions during long storage periods.
Storage instructions
−Protect the control valve against external
inuences (e.g. impact).
−Do not damage the corrosion protection
(paint, surface coatings). Repair any
damage immediately.
−Protect the control valve against moisture
and dirt. Store it at a relative humidity of
less than 75%. In damp spaces, prevent
condensation. If necessary, use a drying
agent or heating.
Note
NOTICE
!
Note

EB 8139 EN 17
Measures for preparation
−Make sure that the ambient air is free of
acids or other corrosive media.
−Observe the permissible ambient tem-
peratures (see section3.2).
−Do not place any objects on the control
valve.
4.4 Preparation for installation
ÎFlush the pipelines.
The plant operator is responsible for clean-
ing the pipelines in the plant.
ÎCheck the valve to make sure it is clean.
ÎCheck the valve for damage.
ÎCheck to make sure that the type desig-
nation, valve size, material, pressure rat-
ing and temperature range of the valve
match the plant conditions (size and
pressure rating of the pipeline, medium
temperature etc.).
Note

18 EB 8139 EN
Mounting and start-up
5 Mounting and start-up
The pneumatic control valve is delivered
ready for use.
5.1 Installing the valve into the
pipeline
5.1.1 Mounting position
The control valve may be installed in any po-
sition. We recommend installing it in a hori-
zontal pipeline with the actuator pointing
upwards.
ÎChoose a place of installation that allows
you to freely access the control valve
even after the entire plant has been com-
pleted.
ÎInstall the valve in horizontal pipelines.
ÎDuring installation, observe the ow di-
rection through the valve. The arrow on
the valve indicates the direction of ow.
ÎObserve the permissible ambient tem-
peratures (see section3.2).
5.1.2 Installing the valve
1. Close the shut-off valve in the pipeline
while the valve is being installed.
2. Remove the protective caps from the
valve ports before installing the valve.
3. Install the valve into the pipeline. Ob-
serve the ow direction through the
valve. The arrow on the valve indicates
the direction of ow.
4. Install the valve free of stress and with the
least amount of vibrations as possible.
5. Depending on the eld of application,
allow the valve to cool down or heat up
to reach ambient temperature before
start up.
6. Slowly open the shut-off valve in the
pipeline after the valve has been in-
stalled.
Risk of valve damage due to a sudden pres-
sure increase and resulting high ow veloci-
ties.
Slowly open the shut-off valve in the pipeline
during start-up.
5.2 Connecting the signal pres-
sure
Signal pressure connection and venting are
designed as boreholes with a G ¼ female
thread.
The venting hole is tted with a replaceable
lter (66) with order no. 0550-0213. This l-
ter can be removed by rst unscrewing the
vent plug (55).
The signal pressure connection also allows
an adapter plate to be attached that com-
plies with VDI/VDE3845 for mounting a so-
lenoid valve.
ÎTurn the actuator as required to connect
the signal pressure line.
ÎUse the customary ttings for metal or
copper tubing or plastic hoses.
NOTICE
!

EB 8139 EN 19
Mounting and start-up
ÎBlow through all air pipes and hoses
thoroughly before connecting them.
5.3 Additional ttings
Strainers
We recommend installing a SAMSON
strainer upstream of the valve. It prevents sol-
id particles in the process medium from
damaging the valve.
Additional actuator spring (changing the
spring force)
Fail-close (FA/NC/TS) valves with the valve
sizes DN40 and 50 (NPS1½ and 2) and
with 60cm² actuators can be tted with one
or two actuator springs (marked on the
nameplate with Ior II, see section2.1).
By adding a spring or removing the internal
spring, the permissible differential pressure
and associated signal pressure can be
changed.
Actua-
tor Version Spring
force
Quantity
of
springs
Signal
pressure
60cm² FA/NC/TS 1440N 13.8bar
2160N 25.4bar
AUF/Open/OuvertFE/NO/TR
ZU/Close/FermeFA/NC/TS
Fail-open
Fail-close
CLOSED
OPEN
Fig.3: Signal pressure connection

20 EB 8139 EN
Mounting and start-up
5.4 Quick check
Tight shut-off
1. Close the valve.
2. Slowly open the shut-off valve in the
pipeline.
Risk of valve damage due to a sudden
pressure increase and resulting high ow
velocities.
Slowly open the shut-off valve in the pipeline
during start-up.
3. Check the valve for leakage (visual in-
spection).
Fail-safe position
ÎShut off the signal pressure line.
ÎCheck whether the valve moves to the
fail-safe position.
Pressure test
During the pressure test, make sure the fol-
lowing conditions are met:
−Retract the plug stem to open the valve.
−Observe the maximum permissible pres-
sure for valve and plant.
The plant operator is responsible for per-
forming the pressure test. SAMSON's Af-
ter-sales Service department can support you
to plan and perform a pressure test for your
plant.
NOTICE
!
Note
