Samsung SGH-Z800 User manual

SGH-Z800 User’s Guide
•Read Health and safety information before using your device.
• The program screens and your device may appear different from the
screen images and the illustrations in this guide.
• Depending on the software installed or your service provider, the
descriptions in this guide may differ, and may change without notice.

Health and safety information
Copyright © 2007 Samsung, Inc. All rights
reserved. This guide may not be copied,
reproduced, translated, or converted to any
electronic or machine-readable form in
whole or in part without written approval
from Samsung, Inc.
This is for users’ safety and property
protection. Read all safety guidelines
carefully and follow all instructions and
warnings. Failure to comply with them can
be dangerous or illegal.
Do not use the device in potentially
explosive environments
• Obey all regulations, signs and
instructions.
Switch off in aircraft
• Wireless devices can cause interference
with aircraft electronics.

1
Health and safety information
Do not use the device when it can
cause interference with RF signals or
when it can be dangerous
• All wireless phones may be susceptible
to interference from other electrical
equipment that could affect performance.
Remember to make backup copies of
important information stored in the
device
Do not disassemble or modify the
device
• Samsung is not liable for any damages
caused by users disassembling or
modifying the device.
Do not subject the device to shocks
• Subjecting the device to shocks may
cause damage or deform the shape of
the device.
Keep it dry
• Moisture or liquid can form inside the
device, which may damage the device’s
parts and circuit boards.
Do not store the device in hot areas
• High temperatures can warp or melt
certain plastics and shorten the life of
electronic devices.
Do not store the device in cold areas
• When the device returns to its normal
temperature, moisture can form inside
the device and damage electronic circuit
boards.
H

2
Health and safety information
Do not leave the device in a closed car
for a long time
• The temperature in a car can reach
80° C, which can permanently damage
your device.
Use only Samsung-approved
components and accessories
• Unapproved components and
accessories are not guaranteed.
Use the device carefully to prevent
damages
• Do not bend or expose to impacts. Doing
so may cause data loss.
Keep it clean
• Keep the USB connector clean to
prevent damage. Wipe it with a soft, dry
cloth to clean. Do not use harsh
chemicals such as thinner and solvents.
Be sure to follow all instructions and
precautions when connecting the
device to your PC
• Please note that the device must connect
in a manner that will not damage the USB
connector or port.
• Do not forcibly connect the device to a
USB port. Doing so may cause damage
to the device.

3
Health and safety information
• Use only the specified voltage. Non-
specified voltages may cause the device
to catch fire, give off an electrical shock,
or damage the device.
• Do not disconnect the device while
initialising the modem, as it may cause
the HSDPA Connection Manager to
malfunction.
• Do not remove the USIM card when the
device is connected yo your PC, as it
may cause the HSDPA Connection
Manager to malfunction or damage the
USIM card.

4
Contents
Getting started
Unpack .................................................... 6
Overview .................................................. 6
Inserting the USIM card............................ 7
Removing the USIM card .........................................7
Inserting an optional memory card ........... 8
Inserting the HSDPA USB dongle into your
PC ........................................................... 9
Installing the USB driver and HSDPA
Connection Manager program................ 10
Checking the USB driver........................................11
Using basic functions
Running the HSDPA Connection Manager
program................................................. 12
From the Start menu ............................................ 12
From the desktop ................................................. 12
Using the tray icon ................................. 12
Connecting to the Internet ..................... 13
Using additional functions
Using messages .................................... 14
Creating and sending a text message .................... 14
Checking messages ............................................. 15
Managing a text template ..................................... 16
Using My folder .................................................... 17

5
Contents
Using Phonebook................................... 18
Adding a new contact............................................18
Finding a contact ..................................................19
Copying or moving contacts...................................19
Importing or exporting contacts..............................20
Using the inserted memory card............. 21
Opening the electronic version of the user’s
guide...................................................... 21
Customising the settings
General settings ..................................... 22
Configuring Internet settings................... 22
Changing the network ............................ 23
Setting alarms ........................................ 23
Locking the USIM card .......................... 24
Changing the PIN................................... 24
Accessing information............................ 25
Appendix
Frequently asked questions ................... 26
About the device and services............................... 26
About the HSDPA Connection Manager program .... 28
Warranty and parts replacement ............ 31

6
Getting started

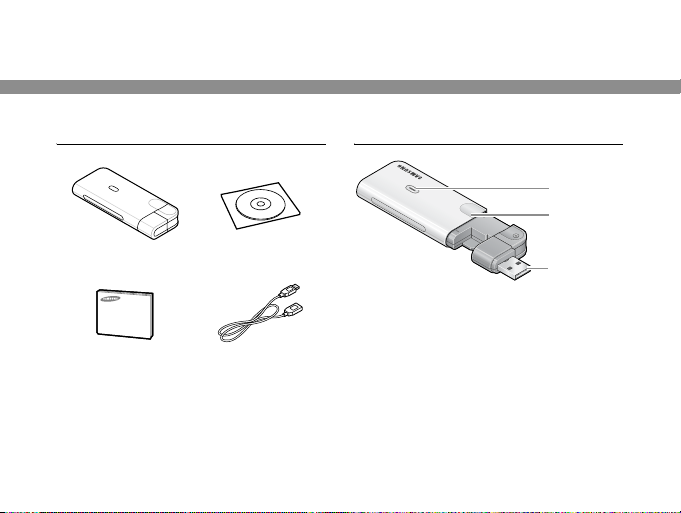

Unpack Overview
HSDPA USB Dongle Program CD
User’s Guide Extension Cable
Status light
USB
connector
Cover

7
Getting started
Inserting the USIM card

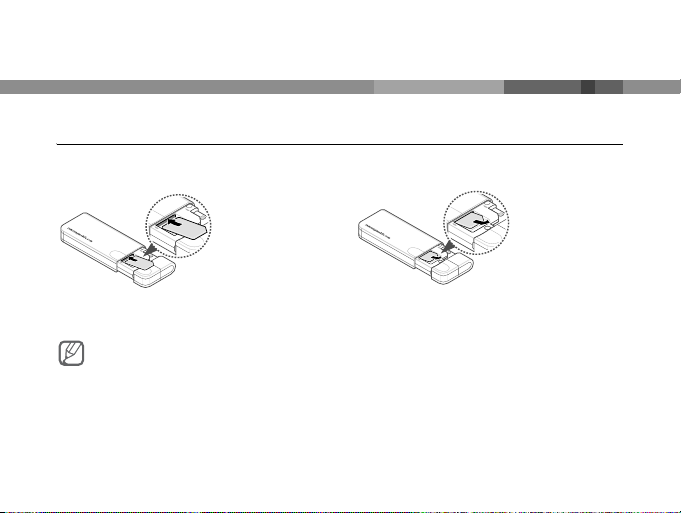

Open the cover and insert the USIM card
in the slot.
Removing the USIM card
The gold-coloured contacts
on the card are face down.
Important USIM card information
• The USIM card and its contacts can be easily damaged by scratches or bending, so
be careful when handling the card.
• To prevent someone using your USIM card when it is stolen or lost, you can lock the
card. See page 24.
• To purchase a USIM card or subscribe to a network, contact your service provider.
• Inserting or removing the USIM card when the device is on can damage the card.

8
Getting started
Inserting an optional memory card
1. Pull the HSDPA USB dongle out of the cover completely.
2. Insert an optional memory card into the slot.
The gold-coloured contacts on the card are face up.
Important memory card information
• Do not remove a card from the device while data is being accessed or transferred. This
could result in loss of data and/or damage to the card or device.
• Do not subject cards to strong shocks.
• Do not touch card terminals with your fingers or metal objects. If dirty, wipe the card with
a soft cloth.
• Do not expose cards in a place subject to electrostatic discharge and/or electrical noise.

9
Getting started
Inserting the HSDPA USB dongle into your PC
1. Insert the USIM card into the HSDPA USB dongle.
2. Open the cover and rotate the USB connector.
3. Close the cover and insert the HSDPA USB dongle into the USB port of your PC.
If necessary, connect the dongle and your PC with the supplied extension cable.
Note
Connect the USB connector to the USB port carefully. Forcing the connector the wrong
way may damage the USB connector or USB port.

10
Getting started
Installing the USB driver and HSDPA Connection Manager
program
1. Insert the supplied CD into the CD-ROM drive of your PC.
The program launches automatically.
2. Click [Install Driver].
• The USB driver is installed.
3. Click [Finish].
4. Select [No, I will restart my computer later.] and click [Finish].
• If you have installed the USB driver before, the option window may appear.
Remove the installed driver, and install the supplied USB driver again.
5. Click [Install Connection Manager] and then [Next].
6. Change the location, if necessary, and click [Next].
7. Click [Install].
• The HSDPA Connection Manager program is installed.
8. Click [Finish] to finish the installation.

11
Getting started
Checking the USB driver
1. Insert the HSDPA USB dongle into the USB port of your PC.
2. Click [Start] and select [Settings] - [Control Panel] - [System] - [Hardware] -
[Device Manger].
After the successful installation of the USB driver, Samsung USB Composite Device
appears on the Device Manager window.

12
Using basic functions
Running the HSDPA Connection Manager program
From the Start menu
Click [Start] and select [All programs] - [Samsung] - [Connection Manager] - [Connection
Manager].
From the desktop
Double-click the [Connection Manager] icon on the desktop.
Using the tray icon
1. Right click the icon in the notification area.
2. Select the menu you want.
•Open: open the HSDPA Connection Manager window.
•Mass storage: open the folders of the inserted memory card and the HSDPA USB
dongle. While using the folders, you may not use the HSDPA network.

13
Using basic functions
•Convert Modem mode: change to Modem mode which allows you to connect to
the Internet, and send or receive text messages.
•Minimize: minimize the open window.
•Exit: exit the program.
Connecting to the Internet
Click [Connect to net] in the HSDPA Connection Manager window to connect to the
Internet using the HSDPA network.
You can check information about the current network connection at the bottom of the
window.
To end the connection with the Internet, click [Disconnect from net].
Note
The WAP (Wireless Application Protocol) browser is not supported.

14
Using additional functions
Using messages
Send a text message and view the received messages. The EMS (Enhanced Messaging
Service) and multimedia messages are not supported.
Creating and sending a text message
1. Click [Text message] in the HSDPA Connection Manager window.
2. Click [Write].
3. Enter the message text.
• Click [Templates] to use the stored text. To create text templates, see page 16.
4. Enter the phone numbers in the Recipients list field.
• Click [Phonebook] to retrieve numbers from Phonebook.
• Click [Recent contacts] to retrieve numbers from the recent contact list.
5. Click [Send] to send the message.
• Click [Sending options] to set up the options for sending text messages.
• Click [Save] the send the message later.
• Click [Close] to cancel the message composition.

15
Using additional functions
Checking messages
Access messages you have received, sent, or saved to send at a later time.
To view the messages you have received:
1. Click [Text message] in the HSDPA Connection Manager window.
2. Click [Inbox] from SIM or PC.
3. Check the message you want.
To view the messages you have sent:
1. Click [Text message] in the HSDPA Connection Manager window.
2. Click [Sentbox] from SIM or PC.
3. Check the message you want.

16
Using additional functions
To view the messages that the device has failed to send or you have saved to send at a
later time:
1. Click [Text message] in the HSDPA Connection Manager window.
2. Click [Drafts] or [Outbox] from SIM or PC.
3. Check the message you want.
From any message folder, you can use the following message options:
• Click [Reply] to reply to the sender.
• Click [Forward] to forward the message to other people.
• Click [Move] to move the message to My folders.
• Click [Delete] to delete the message.
Managing a text template
Create templates and use them to create new messages.
1. Click [Text message] - [Write] - [Templates].
2. Click [ ] in the Templates window.

17
Using additional functions
3. Enter the text.
• Click [ ] to enter emotions.
4. Click [ ] to save the template.
Using My folder
Create new folders and organise your messages.
To create a new folder:
1. Click [Text message] in the HSDPA Connection Manager window.
2. Right click [My folders] from PC and select [Create folder].
3. Enter the folder name and click [OK].
To move the message to my folder, check the message you want to move and click
[Move].

18
Using additional functions
Using Phonebook
Store phone numbers and search for them in Phonebook.
Adding a new contact
Add new contacts to Phonebook.
1. Click [Phonebook] in the HSDPA Connection Manager window.
2. Click [New].
3. Select a location and enter the contact information.
• Click [Create] to create a new group.
4. Click [Save].
