Samsung Wingo MY-MP200 User manual

ELECTRELECTRONICS
MP3 PLAYER
MY-MP200
Instruction Manual

2MP3 PLAYER
Accessories Supplied
Contents
◆ Accessory Supplied ........................................................................... 2
◆ Locations of Controls........................................................................ 3
◆ To Get Started..................................................................................... 4
◆ MP3 Player
•Connecting to a PC........................................................................................................ 5
•To install the program to your PC .............................................................................. 6
•Using MP3 program...................................................................................................... 7
•When to play back MP3................................................................................................ 9
•Special features...............................................................................................................10
◆ Troubleshooting Guide..................................................................... 12
◆ Specifications...................................................................................... 12
Owner's Manual
(Including Warranty) CD-ROM DISC Parallel Cable
Earphone Smart Card Recording Protect
Sticker
Press Push Important Note
Symbols

3MP3 PLAYER

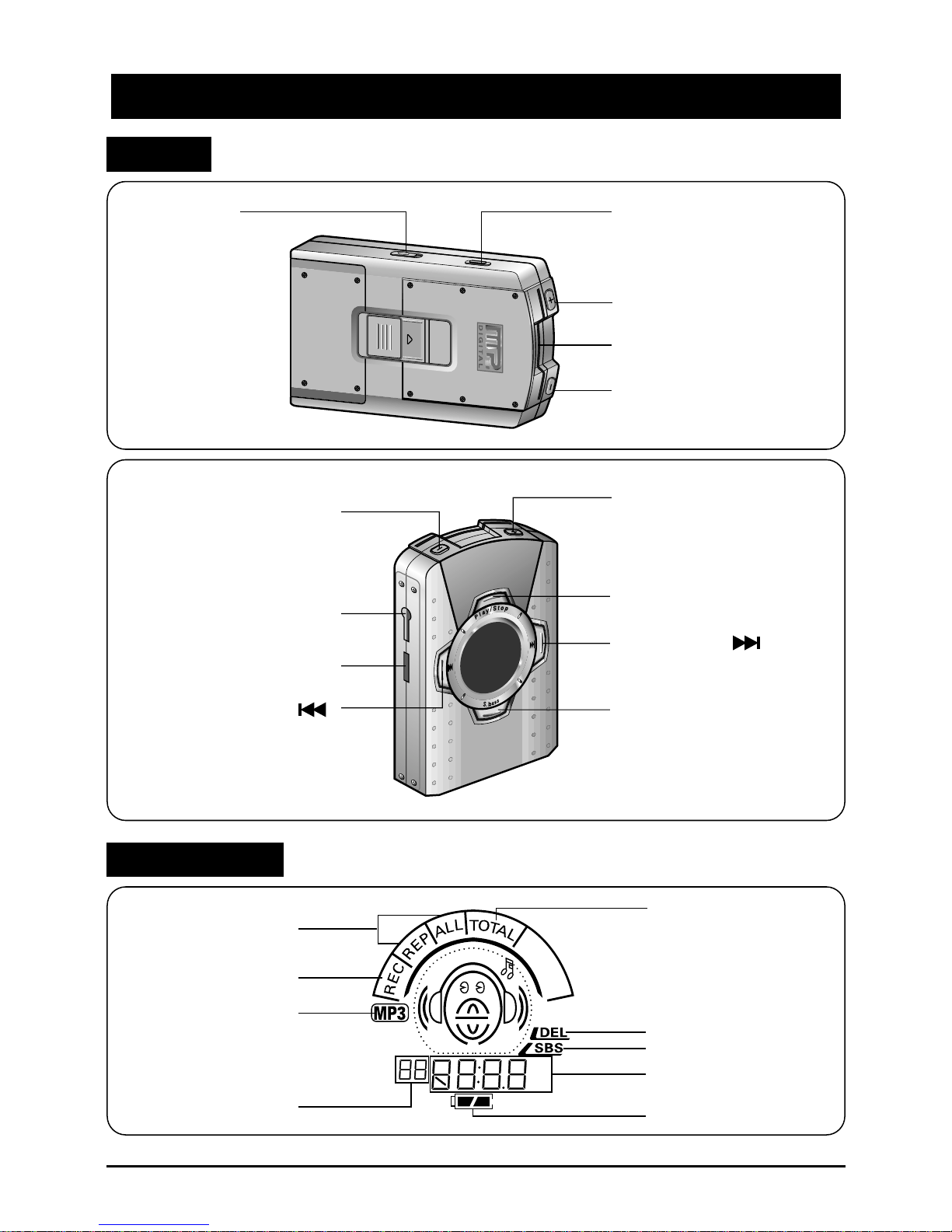

Location of controls
UNIT
DISPLAY UNIT
Repeat Button
Volume Increase Button
Volume Decrease Button
Insert a Smart Card
Hold Switch
Volume Decrease Button
Earphone Terminal
Skip/Search( )
PC Terminal
Volume Increase Button
Play/Stop Button
Skip/Search( )
S. bass Button
Repeat
Recording
MP3
Channel
Total File
Delete Files
S. bass
Display Digits
Battery Display

4MP3 PLAYER
To Get Started

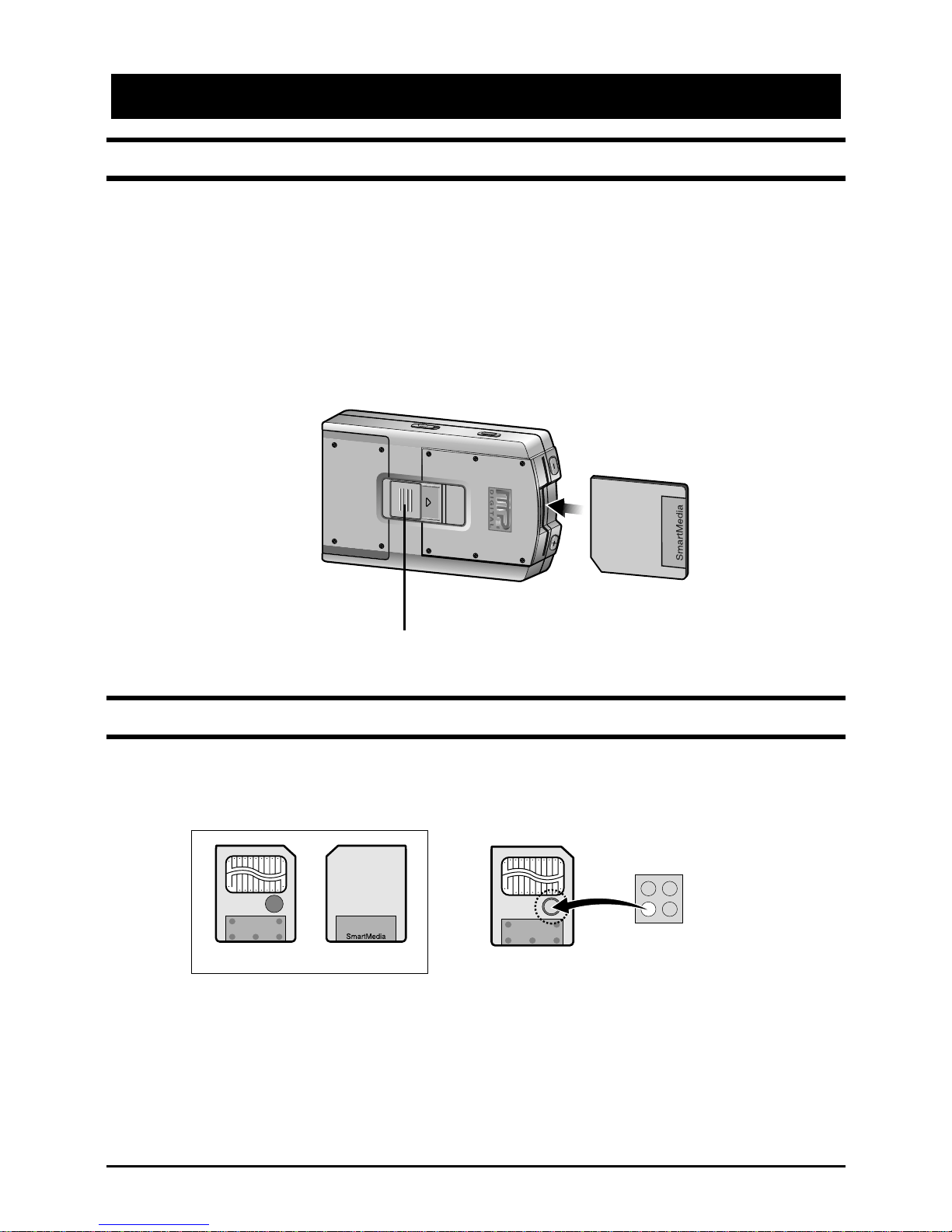

Setting the Smart Card
Smart Card Erasure Protection Feature
1
Insert a Smart Card into the Unit
2
Use Downloading MP3 file.
3
To change Smart Card.
• Push the Eject Switch of Smart Card.
Eject Switch of Smart Card
(Front) (Back)
(Recording protect sticker)
• To keep a music file input not to be erased, attach the memory erasing
protection sticker to the memory protection tab.
• Be cautious to protect Smart Card from magnet, humidity, shock, etc.
• Be sure to power off when Smart Card is inserted into or out of MP3 player. Or
otherwise the music file stored in it may be damaged.
• Smart Card 16MB and 32MB only are available in this product.
• The smart card from other vendors cannot be used with this product.
• Please use the smart card provided by this company.
☛

Connecting to a PC
5MP3 PLAYER

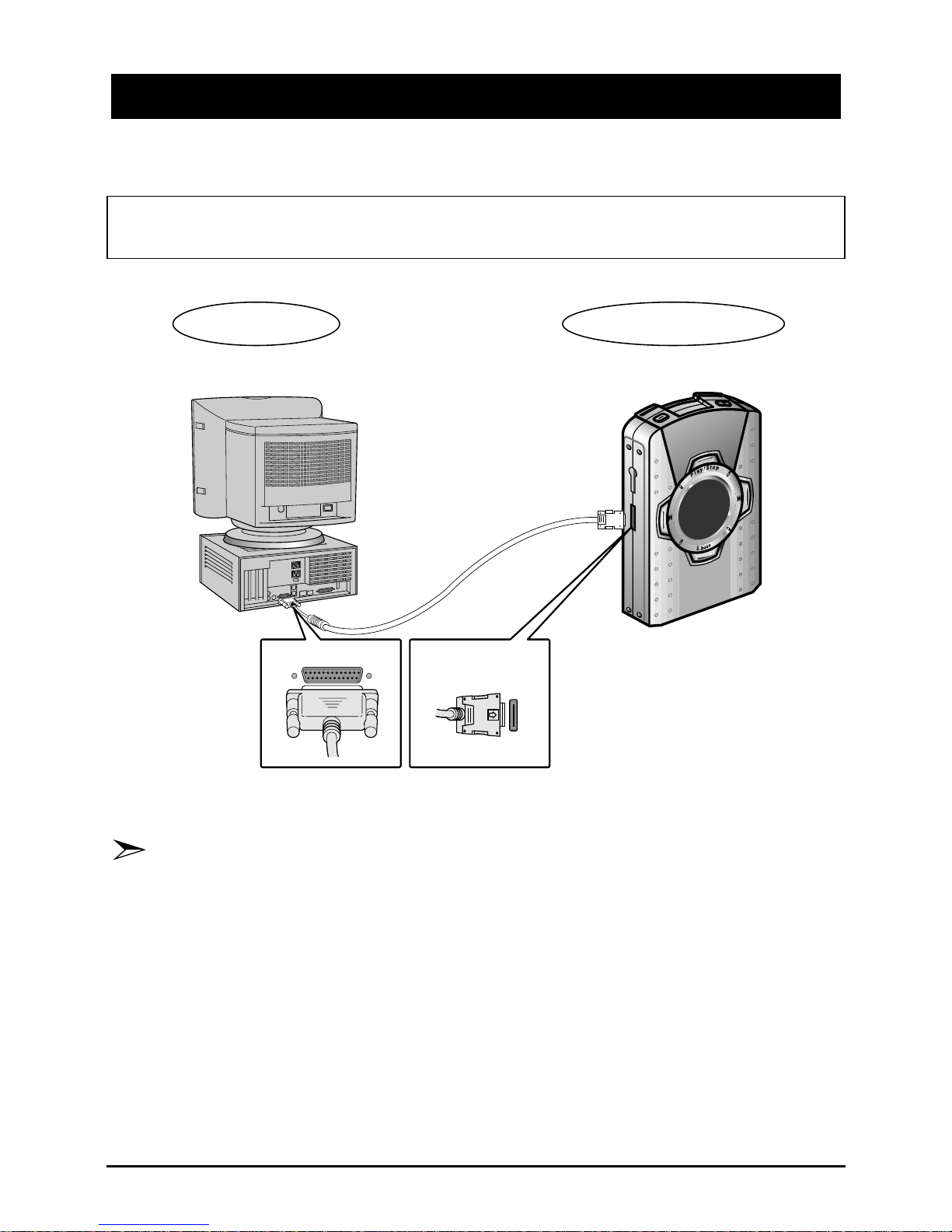

Taking the steps shown below will prepare your Wingo for downloading MP3 files.
• Connect the MP3 Player to a PC using a parallel cable.
PARALLEL Data In/Out
MP3 Player
PC.
• To download an MP3 file to your MP3 Player, the parallel port should be
available on your computer.
• If a printer is connected to the parallel port of your PC, disconnect it
temporarily to connect your MP3 Player.
• If your PC does not have a parallel port, inquire with the dealer's where you
purchased your PC and have a parallel port installed.
• For best results, your system requirements should be as follows:
- Pentium 120MHz or higher
- Window
95/98
- At least 20MB Hard Disk space
- Parallel Port supporting
ECP
- CD-ROM Drive
- 32MB RAM or higher

6MP3 PLAYER
To install the program to your PC
• The computer should be set while booting as shown below.
1) Turn on the computer.
2) While testing the RAM, press the F2 or Del key to enter the Setup screen.
3) Move to the Peripheral setting screen to set the Printer port.
4) Set the Printer port to the ECP mode.
5) Save the setting and reboot the computer.
Check the “Environment ➔options” menu of unit, set to the ECP mode by check.
• Refer to page 7.
In order to download MP3 files to MP3 Player, you should install
programs contained on the CD-ROM supplied for your PC.
• This program may not be installed normally depending upon the type of your PC if
MS EXPLORER version 4.01 or higher has not been installed, so install it by the
supplied CD-ROM disc and via Internet.
1Load the supplied software CD into the CD-ROM
drive of your PC and click on the "NEXT" Button.
• The MP3 Player setup program will start
automatically.
• If the setup does not start automatically, find the
"setup.exe" file using the File Finder, then double
click on it to execute the program.
• To install in another directory, use the Browse Button
to select.
2Check the icon of program path and then press
the "NEXT" Button.
• An icon will be created automatically.
3After installing procedures are completed, click
the "Finish" Button to exit the setup program.
Be sure to keep the CD supplied safe. If you lost it, or if you want to upgrade to the
newest version, you can download from the Internet Site below:

7MP3 PLAYER
Using MP3 program
• When the power MP3 Player is off and the connection cable is disconnected in the use of this
program, then the fatal error will be occurred, so you should take care of it. If the error is
occurred, turn off the power MP3 Player turn it on again, make the correct connection, and
run this program.
• If you stop this program during downloading or uploading a file, an error will be occurred.
Then, select "REFRESH" menu to initialize the program, and reconnect the communication.

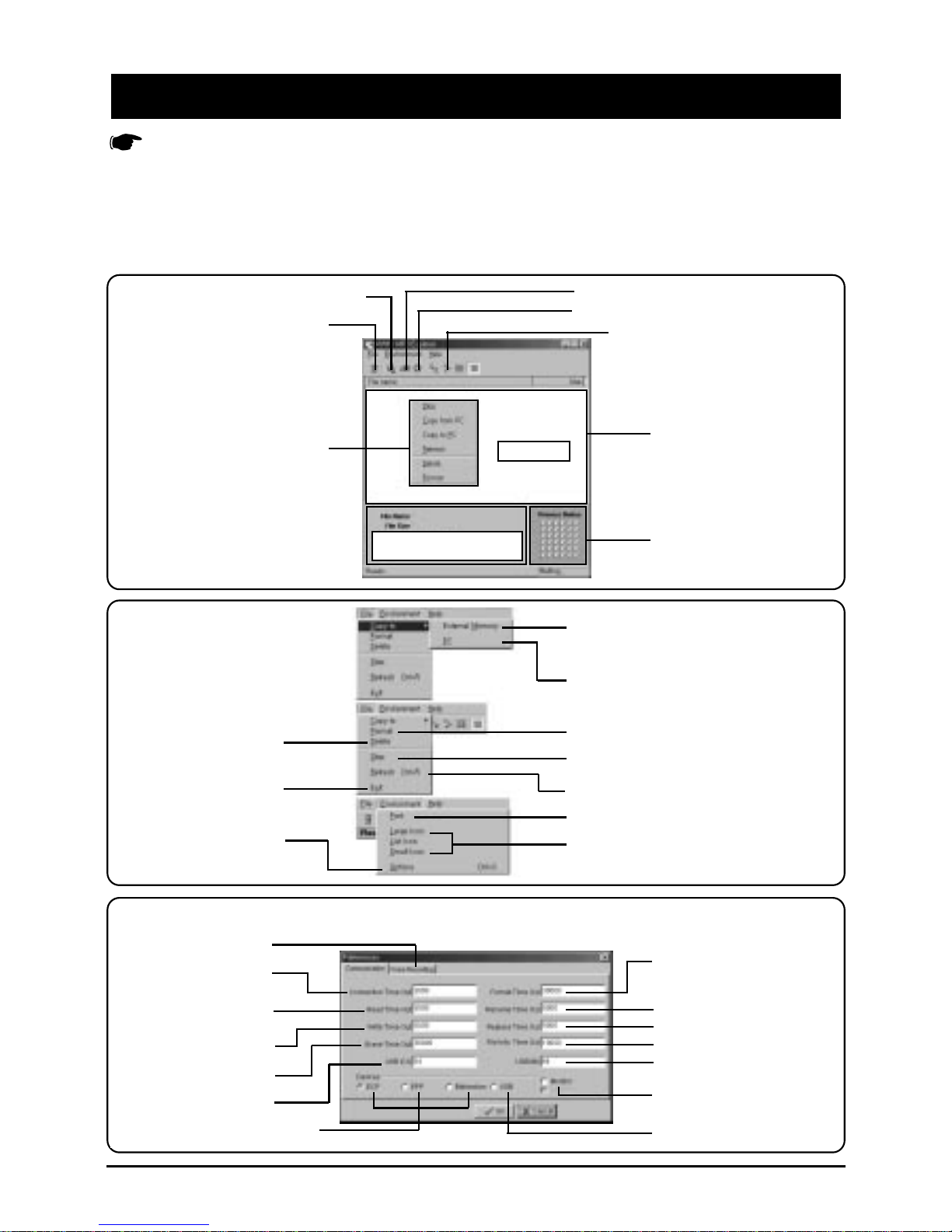

File Window
Press the right button of the
mouse, then the menu
window will open.
To select options to see files in
the File Window
To show the files stored in
the MP3 Player
To show the progress of
file copying
To copy files from PC to the
Flash Memory of MP3 Player
To copy files from MP3 Player to PC
To delete all the data on the
Flash Memory of MP3 Player
To stop all the current jobs
To restore the updated data on PC
or MP3 Player
To adjust the screen font of the program
To select options to show files in the
File Window
To delete selected file
To copy files from MP3 Player to PC
Window for showing the
progress of the data transmitting
To delete the selected file
To finish all jobs and
exit the program
To move to Option screen
Not use When erasing all the
data on MP3 Player
To backup files
To update files
To read file information
Not use
Not use
Not use
Standby time at initial
connection
When reading data by PC
When writing on MP3
Player
When deleting files
Not use
* Communication: When error occurs, to set "Standby Time" (Unit: millisecond (1 sec. = 1000 millisecond)
To copy files from PC to MP3 Player
To stop the current job
Check on it when the computer
does support ECP mode

8MP3 PLAYER
Using MP3 program
When to transfer files from PC to MP3 Player
1
2
3
4
Double click on “MP3 Player Explorer icon” to execute the program.
Then choose "External Memory" command from "Copy to"
command.
Alternately, press the Button on the screen.
From the PC window, choose the "File" menu either by
clicking the left button of the Mouse or by using (ins) key.
Press the OPEN button on the screen.
When to transfer files from MP3 Player to PC : Excepting MP3 files
1
2
3
From the MP3 Player window, choose the "File" menu either
by clicking the left button of the Mouse or by using (Ins) key.
Then choose "Flash Memory" command from "Copy to"
command. Alternately, press the Button on the screen.
From the PC window, choose the “Directory”, Press the
“SAVE” Button.
According to the copyright law for the MP3 file and audio file, these files cannot be uploaded
(saving to the PC). Only the general file (document file) can be uploaded.
When to delete files
1
2
From the MP3 Player window, choose the "File" menu either
by clicking the left button of the Mouse or by using (ins) key.
Then choose the "Delete" command from the File menu.
Alternately, press the Button on the screen.
When to delete all files in MP3 Player
1
Choose the "File" menu. Then choose the "Format"
command from the "File" menu to delete all the files.
• Your unit (MP3 Player) can download up to 32 Mbytes. Hence, depending on the
size of MP3 file, the number of files to be downloaded may be limited.
• The number on the Total Space of the window for the progress of the data
transmission indicates the remaining space for download.

9MP3 PLAYER
When to play back MP3
☛
Copy audio files from your PC to playback them with the set.
1
Press the Play/Stop Button.
• Switch the System on by pressing Play/Stop.
• Switch the System off by pressing Play/Stop for over 2 seconds.
If you want to pause MP3 music, press “Play/Stop” button
If you want to play MP3 music again,
press "Play/Stop" button again.
-MP3 music will restart to play at the point where it was stopped.
2
After connecting an earphone, adjust the volume.
• If the power is completely disconnected by replacing the battery, the first music
will be played at the beginning of that music.
☛
• The set automatically switches off if no keys are pressed within 100 seconds of
when playback is stopped, the end of a file is reached, or pause is activated.
☛
21

10 MP3 PLAYER
Special Features
Press PEPEAT button to select “REPEAT” or “REPEAT ALL”
To listen to the present song repeatedly:
• Press the REPEAT button to select, then “REP” appears on the LCD flash.
To repeat all the songs.
• Press the REPEAT button once more, then “REP ALL” appears on the LCD.
If you want to disable the repeat function.
• press REPEAT button once more to disappear “REP ALL” at the LCD.

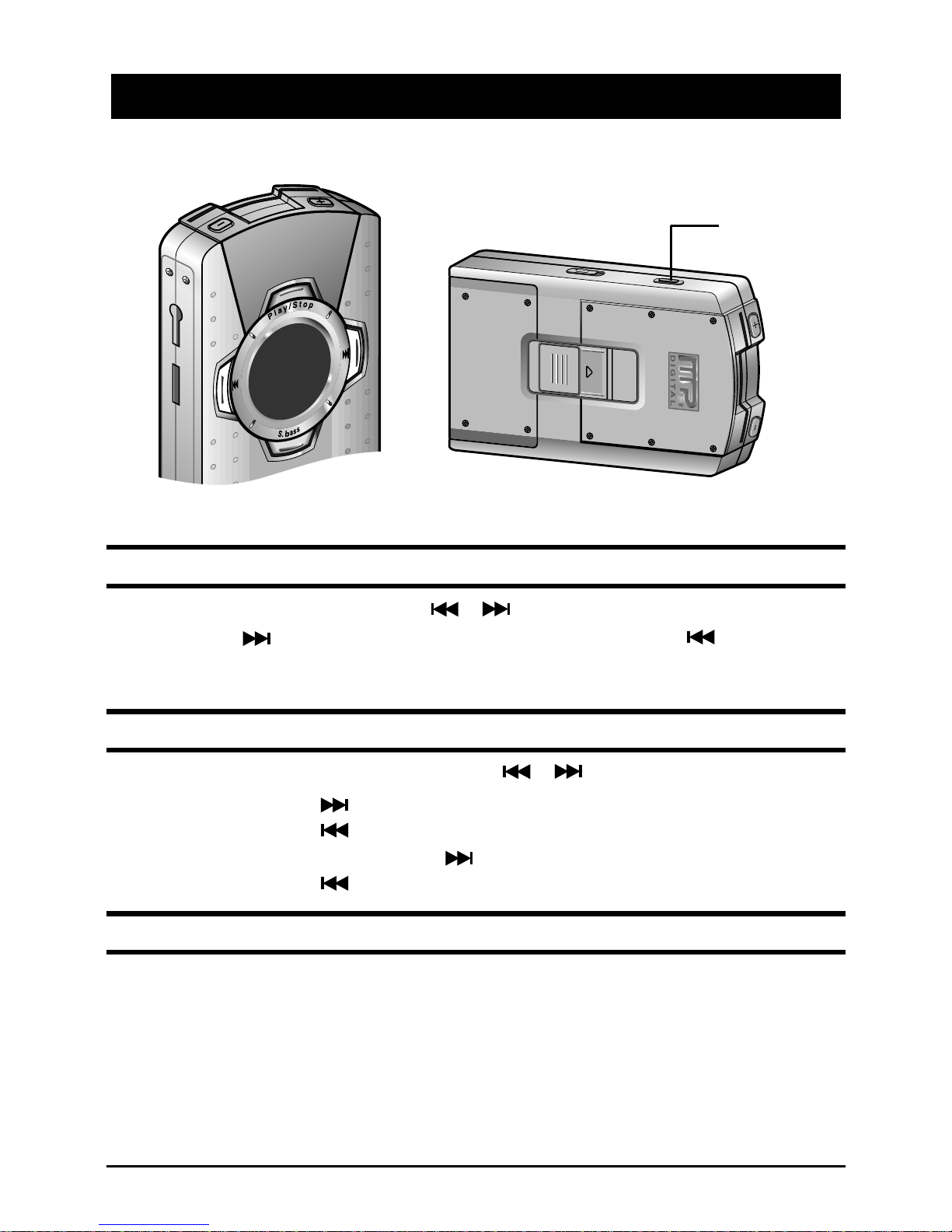

During playback, momentarily press the " , " Button.
•Press and release the " " Button to select the next track.
Press and release the " " Button to replay the current track.
• When in STOP mode, press and release the " " Button to playback the second track.
Press and release the " " Button to playback the last track.
To select a track
REPEAT Function
Repeat Button
During playback, hold down the " , " Button.
•Hold down " " Button to fast forward the track. Hold down " " Button for
the fast playback backwards.
•Release the button for playback at normal speed.
High-Speed Search

11MP3 PLAYER
Special Features
How “HOLD” Switch of MP3 Player unit or Remote Control works:
HOLD Switch Button OPERATION
Unlock Working
Lock Not working
While the HOLD Switch on the main unit is in “Lock” posi-
tion, pressing any button on MP3 Player unit will cause the
“Hold” Indicator to flash and the operation corrersponding to
the button will not start.
DEL
AREA
TAPE ST
F
R
SBS AUTO
ME
REP
FREE
FM
MP3
Various S. bass Function
1Press the S. bass Button
•Each press cause ” SBS ” to appear on the LCD as
shown in Fig.1
2Pressing it again to selct “OFF”
SBS NONE
Fig.1
11
Unlock
lock
➨
➨
1
11
Set the HOLD Switch to Lock position.
•Use the HOLD Function in the following cases:
1)While in playback mode, if the HOLD Switch is set to Lock position, any other but-
ton will not work.
2)Even when the HOLD Switch on main unit is in Lock position, the Remote Control
will work.
•If you carry this unit in your bag without using it, be sure to check that the unit is in
“HOLD” mode to prevent the power button from being pressed accidentally. (This
function will save the battery life.)

12 MP3 PLAYER
Troubleshooting Guide
Specifications
Checks
Problem
Check the charge level of the general or
rechargeable batteries loaded in the set.
Check the polarity (+, -) of the loaded
batteries.
Check if the Hold function is selected.
Check that MP3 files are stored in
the memory of the set.
Check the connection of the PC and
the set.
If the power cannot be
turned on or no
operations can be
performed:
If the buttons on the
set do not work:
If no playback of music is
performed even when the
Play button is pressed in
the MP3 mode:
If the download of MP3
files cannot be performed:
Check the power is
properly supplied.
M
P
3
P
L
A
Y
E
R
MP3
Memory Size .......................................................................... ~ 32MByte
Signal/Noise Ratio .......................................................................... 70dB
Frequency Range............................................................. 20Hz~20KHz

THIS APPLIANCE IS MANUFACTURED BY:
ELECTRONICS
AH68-00582B
