Samsung MWR-BS00 User manual

7-day Scheduler
MWR-BS00
DB98-29808A(2)
IFSE P G Ne Po Hu ARD
Air Conditioner
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
29808-2_co.indd 3 2010-09-03 오후 2:34:44

Safety Precautions
◆Do not attempt to install or repair the 7-day Scheduler
by yourself.
◆Always consult an authorized service personnel for
repair.
◆When moving, consult an authorized service
personnel for disconnection and reinstallation of the
7-day Scheduler.
◆Ensure that the wall is strong enough to support
the weight of the 7-day Scheduler.
◆The 7-day Scheduler must be installed with the rated
power supply.
◆In the event of a malfunction (burning smell, etc.),
turn off the electrical breaker immediately, and consult
an authorized service personnel.
WARNING
CAUTION ◆
Do not use inflammable gases near the 7-day Scheduler.
◆ Do not let water into the 7-day Scheduler.
◆ Do not operate the 7-day Scheduler with wet hands.
◆ Do not install the 7-day Scheduler in a location where
it will come into contact with combustible gases,
machine oil, sulphide gas, etc.
◆ Do not press the buttons with a sharp object.
◆ Do not pull or bend the 7-day Scheduler cable
excessively.
◆ Do not use the 7-day Scheduler for other purpose.
◆ Do not spray insecticide or other combustible
substances on the 7-day Scheduler.
◆ Do not clean the 7-day Scheduler with benzene,
solvents or other chemicals.
◆ Do not apply excessive force to the 7-day Scheduler or
disassemble it by yourself.
E-2
●
Before using the 7-day Scheduler, read the instructions carefully.
●
After reading the instructions, keep this owner's instructions and the
installation manual in a handy and safe place.
●
Never attempt to install the air conditioner or to move the 7-day Scheduler
by yourself.
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 2

E-3
ENGLISH
Contents
◆ N
AME OF E ACH P ART
◆ G ETTING
S TARTED
◆ S
ETTING THE P RESENT D AY
◆ S ETTING THE P RESENT T IME
◆ S ETTING THE O PERATING D AY
◆ S ETTING THE O N T IME
◆ S ETTING THE O FF T IME
◆ C ANCELING THE O N T IME
◆ C ANCELING THE O FF T IME
◆ C ANCELING THE O PERATING D AY
◆ C HECKING Y OUR T IME S ETTINGS

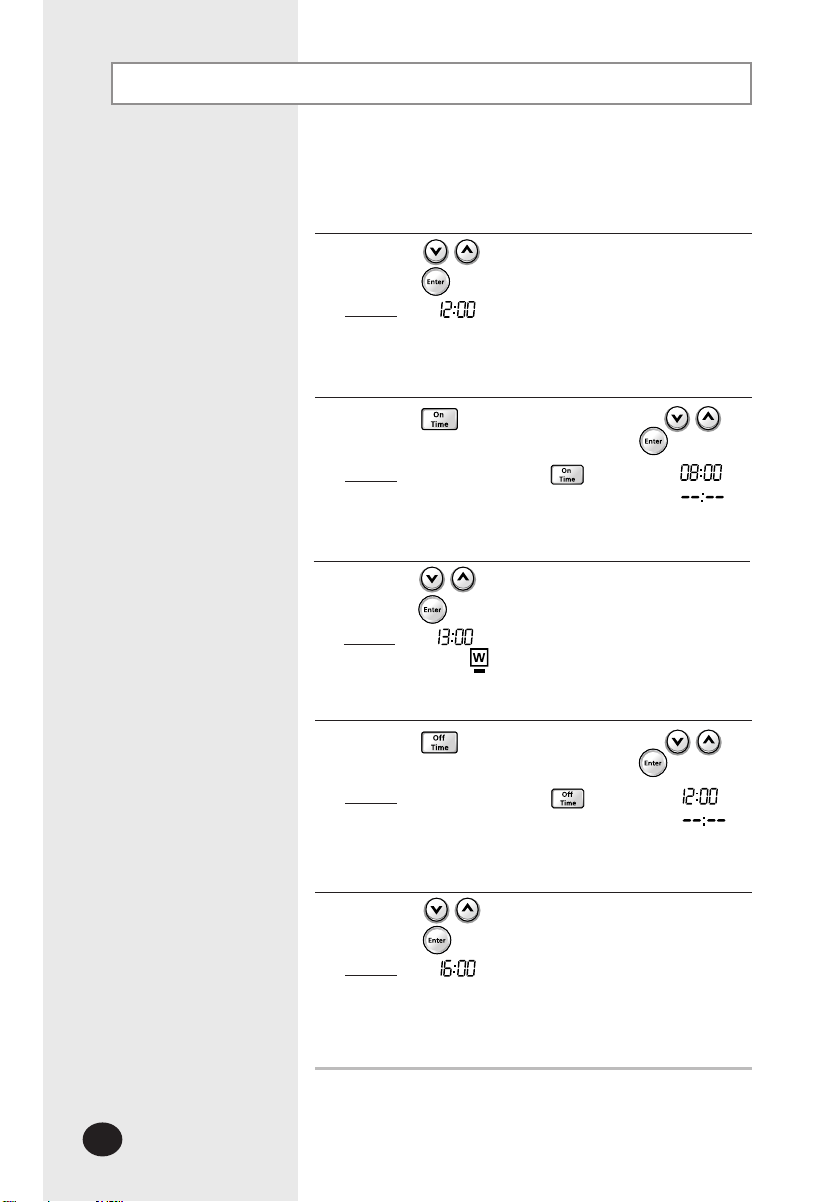

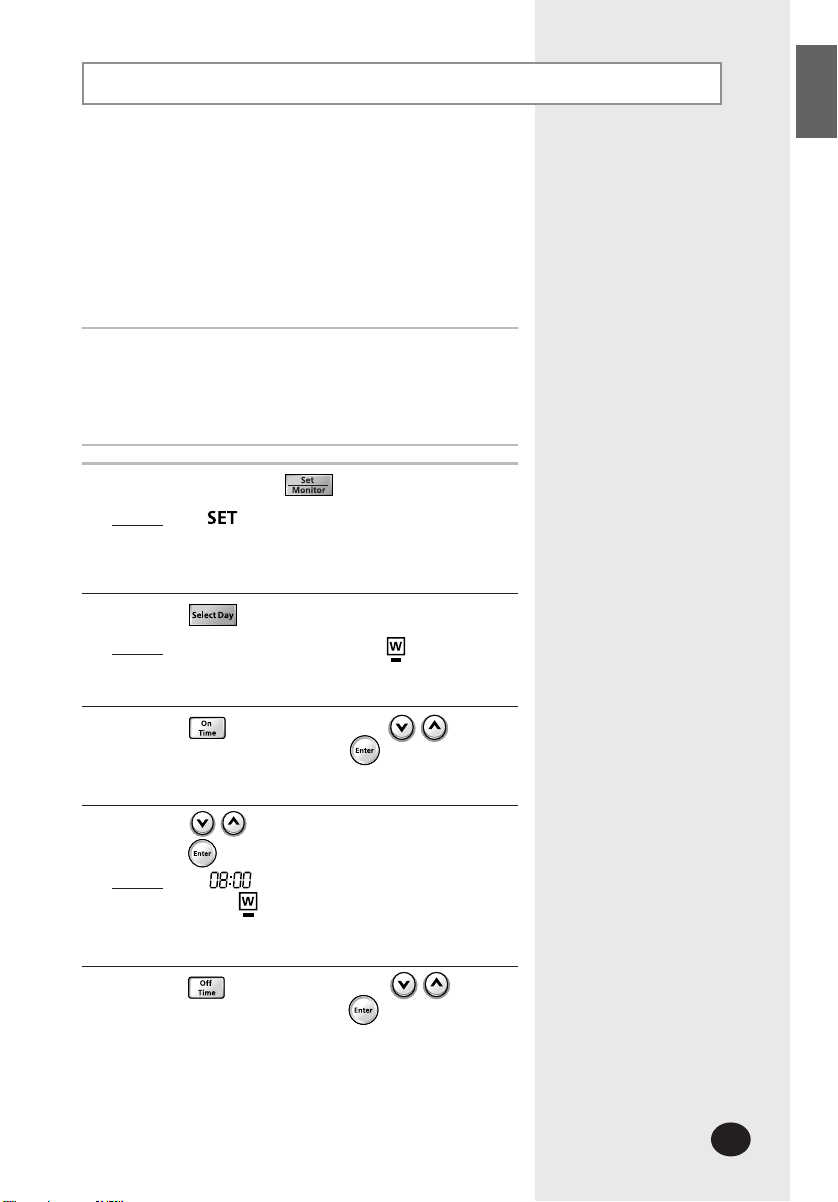

◆ E XAMPLES OF H OW TO S ET THE S CHEDULES
◆ R ESETTING Y OUR 7- DAY S CHEDULER
◆ L
OCKING Y OUR 7- DAY S CHEDULER
4
5
6
7
8
9
10
11
12
13
14
15
17
17
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 3

E-4
The 7-day Scheduler is installed on the wall.
Digital time display

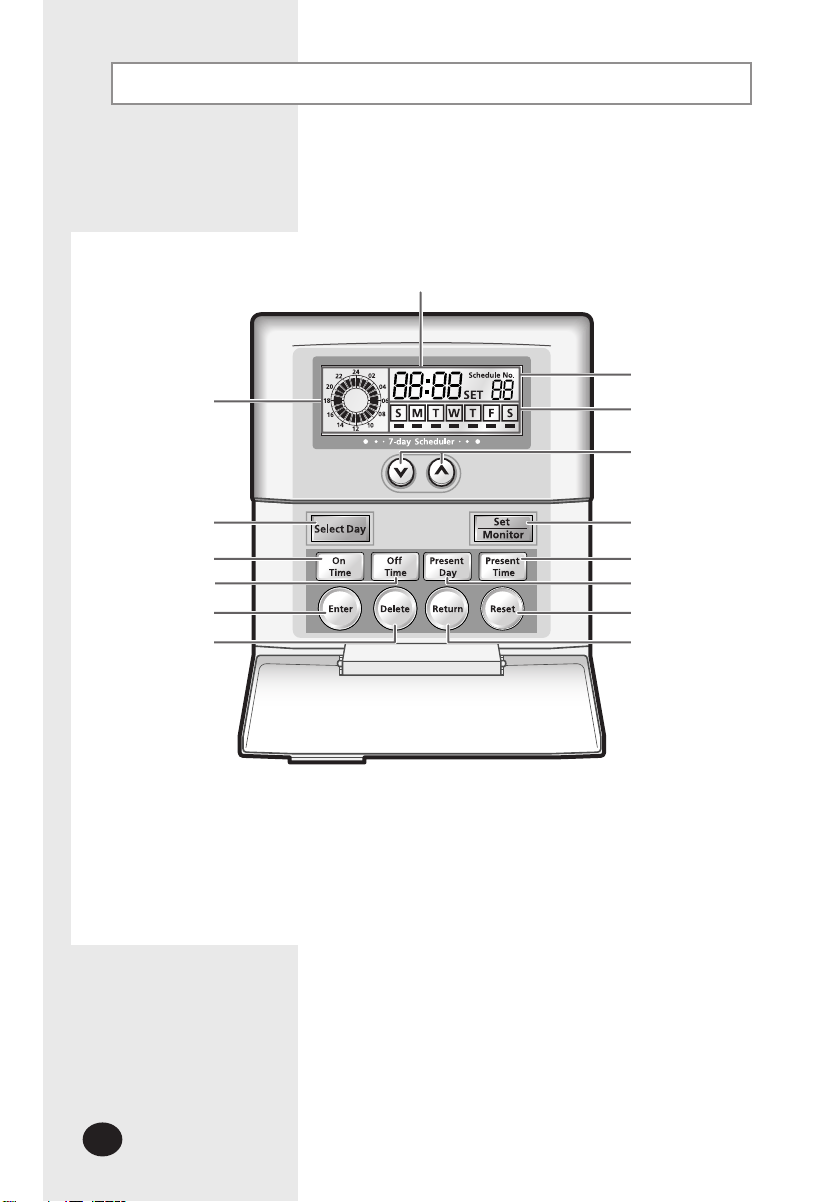

Name of Each Part
Analog time display
Select day button
On Time button
Off Time button
Enter button
Delete button
Set/Lock display
Operating day display
Time adjustment buttons
Set/Monitor button
Present time button
Present day button
Reset button
Return button
◆The 7-day Scheduler must be installed with a wired remote control.
◆The schedule function of the wireless remote control, wired remote control and
the 7-day Scheduler can be used simultaneously and the air conditioner will
operate according to each schedule.
NN
NNoo oott ttee ee
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 4

ENGLISH
E-5
G etting Started
You have just purchased a 7-day Scheduler and it has
been installed by your installation specialist.
Your User’s manual contains much valuable information on using
your 7-day Scheduler. Please take the time to read them as they will
help you take full advantage of the unit’s features.
In the manual, you will find a series of step-by-step procedures for each
function available.
If you connect the power cable, the 7-day Scheduler turns on and the
Monitor Mode is selected automatically.
If you do not press any button for 20 seconds or press the [Return]
button while in the Set Mode, the mode is changed to the Monitor
Mode.
Once you set the On Time and Off Time on a specific day, they will
run every week and the air conditioner will turn on and off every
week on the same time.
The illustrations in the step-by-step procedures use three
different symbols:
PRESS PUSH HOLD DOWN
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 5

E-6
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
Before setting the On Time, Off Time and the operating
day, you should set the present day in advance.
Press the button to select the present day.
Result: ◆and flicker.
◆Each time you press the button,
moves to the right.
2
Press the button to complete the setting.
Result: ◆and stop flickering and the present
day is selected.
3
◆Press the or button to cancel it
during setting. You cannot cancel after
pressing the button.
NN
NNoo oott ttee ee

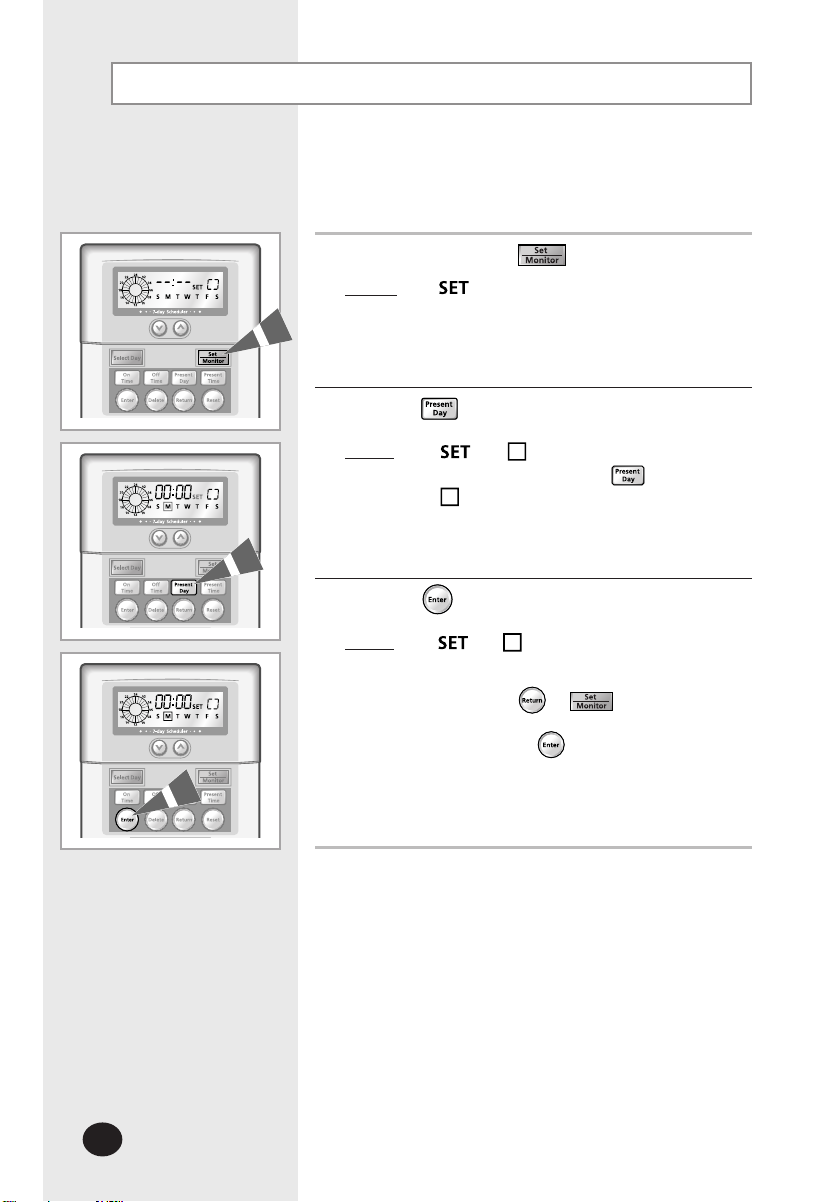

Setting the Present Day
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 6

E-7
ENGLISH
Before setting the On Time, Off Time and the operating
day, you should set the present time in advance.
◆Press the or button to cancel it
during setting. You cannot cancel after
pressing the button.
NN
NNoo oott ttee ee
Press the button to select the present time.
Result: : ◆is displayed and flickers.
2
Press the buttons to set the hour and press
the button.
Result: :◆Each time you press the buttons,
the time is adjusted by one hour.
◆If you press the button, and
flicker.
3
Press the buttons to set the minute and press
the button.
Result: :◆Each time you press the buttons,
the time is adjusted by one minute.
◆If you press the button, stops
flickering and the set time is displayed.
4
Setting the Present Time
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 7

E-8
Setting the Operating Day
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
Select an operating day to set the On Time and
the Off Time.
Press the button to select the operating day.
Result: ◆Each time you press the button,
moves to the right.
◆and flicker.
2
Press the button.
Result: ◆stops flickering and is displayed on
the selected day.
3
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 8

ENGLISH
E-9
Setting the On Time
Set the On Time to turn on the air conditioner
automatically at the same day and time each week.
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
Press the button.
Result: : ◆If there are no On Time set:
- is displayed and flickers.
◆If there is more than one On Time set:
- Each time you press the button,
the set times are displayed in order.
After displaying all the set times,
is displayed and flickers.
2
Press the buttons to set the hour and press
the button.
Result: :
◆Each time you press the buttons,
the time is adjusted by one hour.
The set time is displayed on the analog
time display.
3
Press the buttons to set the minute and press
the button.
Result: :
◆Each time you press the buttons,
the time is adjusted by one minute.
◆If you press the button, stops
flickering and the On Time is set.
4
◆When setting more than one On Time
continuously:
- Press the and press the
buttons to set the time.
Press the button. Press the
button until is displayed to set a
new On Time.
NN
NNoo oott ttee ee
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 9

Press the buttons to set the hour and press
the button.
Result: :
◆Each time you press the buttons,
the time is adjusted by one hour.
The set time is displayed on the analog
time display.
3
Press the buttons to set the minute and press
the button.
Result: :
◆Each time you press the buttons,
the time is adjusted by one minute.
◆If you press the button, stops
flickering and the Off Time is set.
◆The respective hour segment flickers on the
analog display.
4

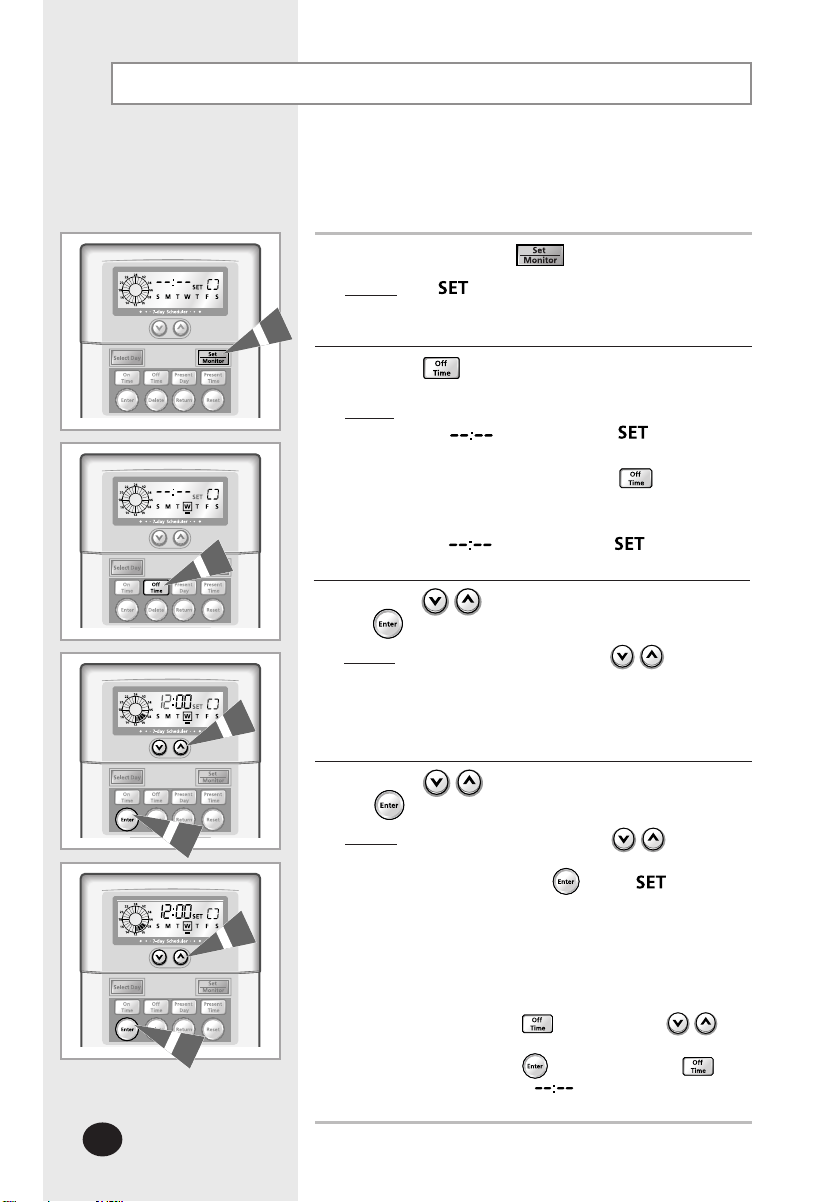

Setting the Off Time
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
Set the Off Time to turn off the air conditioner
automatically at the same day and time each week.
Press the button.
Result: ◆If there are no Off Time set:
- is displayed and flickers.
◆If there is more than one Off Time set:
- Each time you press the button,
the set times are displayed in order.
After displaying all the set times,
is displayed and flickers.
2
E-10
◆When setting more than one Off Time
continuously:
- Press the and press the
buttons to set the time.
Press the button. Press the
button until is displayed to set a
new Off Time.
NN
NNoo oott ttee ee
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 10

Canceling the On Time
Cancel the On Time you want. You can cancel one or
more On Time.
Press the button to select the day with the
On Time you want to cancel.
1
Press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
2
Press the button to select the On Time you want
to cancel.
Result: :
◆The On Times you have set appear.
◆Each time you press the button,
the On Times you have set are displayed
in order.
3
Press the button to cancel the selected On Time.
Result: : ◆Other On Times you have set appear. If you
have canceled all the On Times, is
displayed.
4
E-11
ENGLISH
◆Press the buttons to change the
set time.
NN
NNoo oott ttee ee
◆Once you set the On Time on a specific
day, the On Time will run every week and
the air conditioner will turn on every week
on the same time.
◆The On Time and the Off Time can not be
set on the same time. The schedule will not
be set even if the button is pressed if
the On Time and the Off Time overlap.
NN
NNoo oott ttee ee
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 11

Press the button to cancel the selected Off Time.
Result: : ◆Other Off Times you have set appear.
If you have canceled all the Off Times,
is displayed.
4

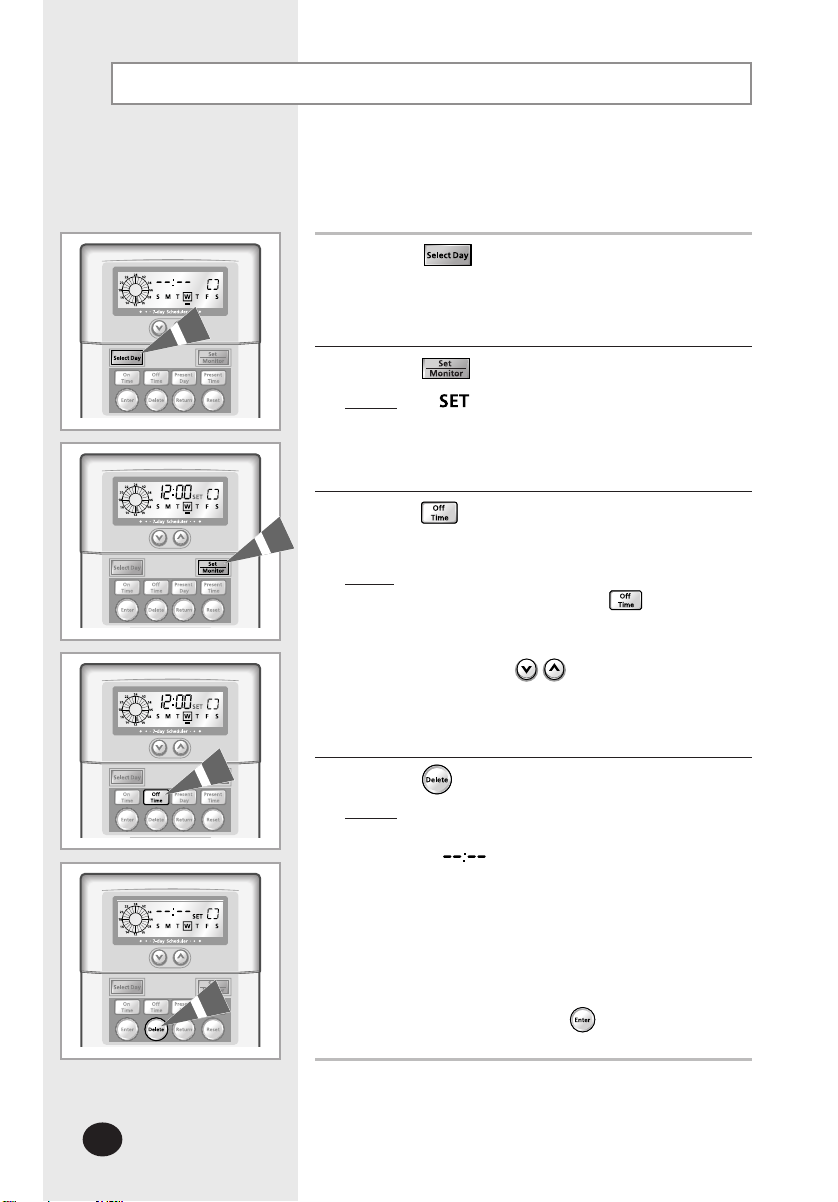

Canceling the Off Time
Press the button to select the day with the
Off Time you want to cancel.
1
Cancel the Off Time you want. You can cancel one or
more Off Times.
Press the button to select the Off Time you want
to cancel.
Result: ◆The On Times you have set appear first.
◆Each time you press the button,
the Off Times you have set are displayed
in order.
3
Press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
2
◆Press the buttons to change the
set time.
NN
NNoo oott ttee ee
◆Once you set the Off Time on a specific day,
the Off Time will run every week and the air
conditioner will turn off every week on the
same time.
◆The On Time and the Off Time can not be
set on the same time. The schedule will not
be set even if the button is pressed if
the On Time and the Off Time overlap.
NN
NNoo oott ttee ee
E-12
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 12

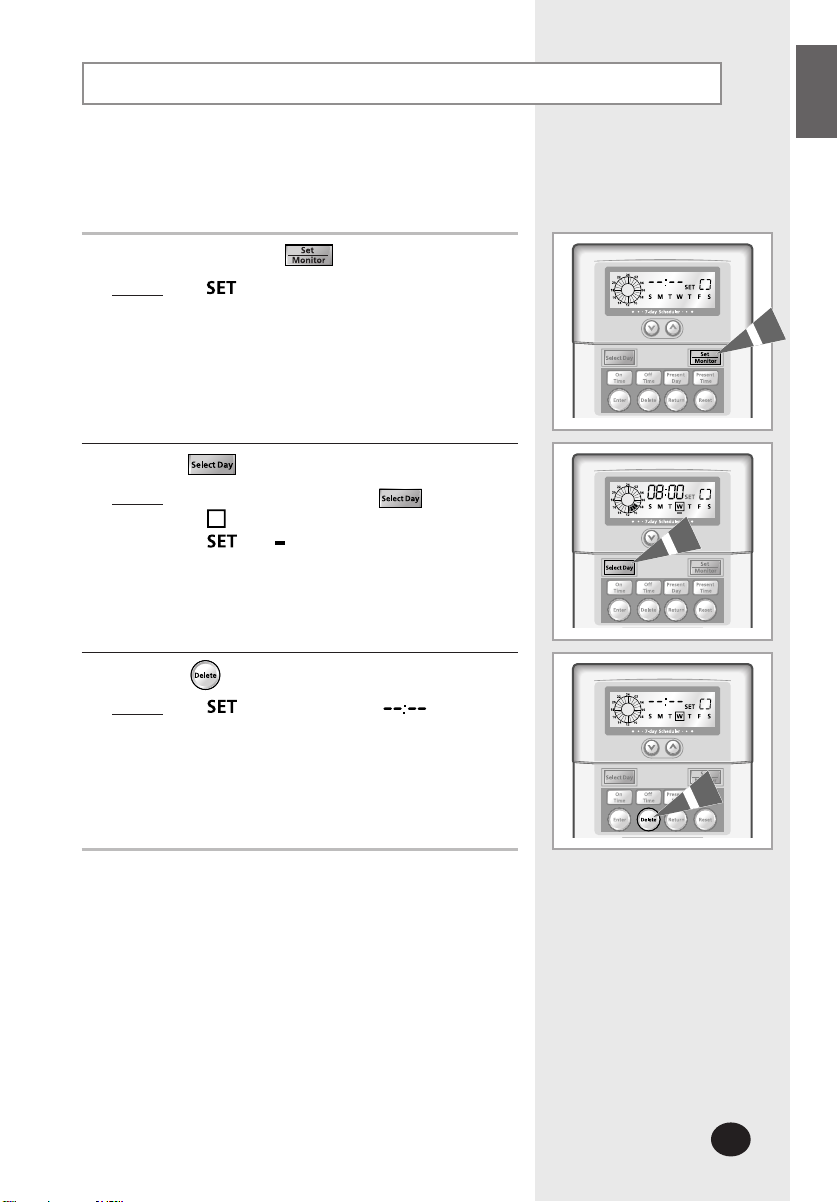

Canceling the Operating Day
Cancel all the On Times and the Off Times of the
selected day.
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
Press the to select the operating day to cancel.
Result: : ◆Each time you press the button,
moves to the right.
◆and under the selected day flicker.
2
Press the button.
Result: : ◆stops flickering and is displayed.
◆All the On Times and the Off Times of the
selected day are canceled.
3
E-13
ENGLISH
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 13

Cancel the On Time or the Off Time if needed.
Result: :
◆Press the button for 3 seconds to
cancel the On Time or the Off Time set.
Refer to pages 11 and 12 for further details.
◆Press the button for 3 seconds to
cancel the selected operating day.
Refer to page 13 for further details.
3
Checking Your Time Settings
Press the button in the Monitor Mode.
Result: :◆Each time you press the button,
moves to the right.
◆The first On Time of the selected day you
have set is displayed on the digital time
display. All the On Times and the Off Times
of the selected day you have set are
displayed on the analog time display.
◆If the On Time is not set, is
displayed. Press the button to check
the Off Time.
1
You can check the On Time and the Off Time settings
on the display.
Press the button after checking the time settings.
Result: ◆The present day and time is displayed.
2
E-14
MWR-BS00 IB_E_29808 10/24/08 19:20 Page 14

Examples of How to Set the Schedules
You can set your air conditioner to turn on or off at the
desired time. As long as the set time does not overlap,
you can set the On Time and the Off Time as many as
possible.
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
If you want to set the air conditioner to turn on and off as
following:
Present day
Present time
Operating day
Operating time
Monday
06:00
Wednesday
08:00(On)/12:00(Off)
13:00(On)/16:00(Off)
1
Press the button to select Wednesday.
Result: : ◆If you select Wednesday, is displayed.
2
Press the button and press the buttons
to set the hour to '08'. Press the button.
3
Press the button and press the buttons
to set the hour to '12'. Press the button.
5
Press the buttons to set the minute to '00'.
Press the button.
Result: :
◆is displayed on the digital time display
and is displayed.
4
E-15
ENGLISH
MWR-BS00 IB_E_29808 10/24/08 19:20 Page 15

Examples of How to Set the Schedules (Continued)
Press the buttons to set the minute to '00'.
Press the button.
Result: :
◆is displayed on the digital time display
and the selected time flickers on the analog
time display.
6
Press the button twice and press the
buttons to set the hour to '13'. Press the button.
Result: :
◆If you press the button once, is
displayed and if you press it twice, is
displayed.
7
Press the buttons to set the minute to '00'.
Press the button.
Result: :
◆is displayed on the digital time display
and is displayed.
8
Press the button twice and press the
buttons to set the hour to '16'. Press the button.
Result: :
◆If you press the button once, is
displayed and if you press it twice, is
displayed.
9
Press the buttons to set the minute to '00'.
Press the button.
Result: :
◆is displayed on the digital time display
and the respective hour segment flickers on
the analog time display.
10
E-16
MWR-BS00 IB_E_29808 10/24/08 19:20 Page 16

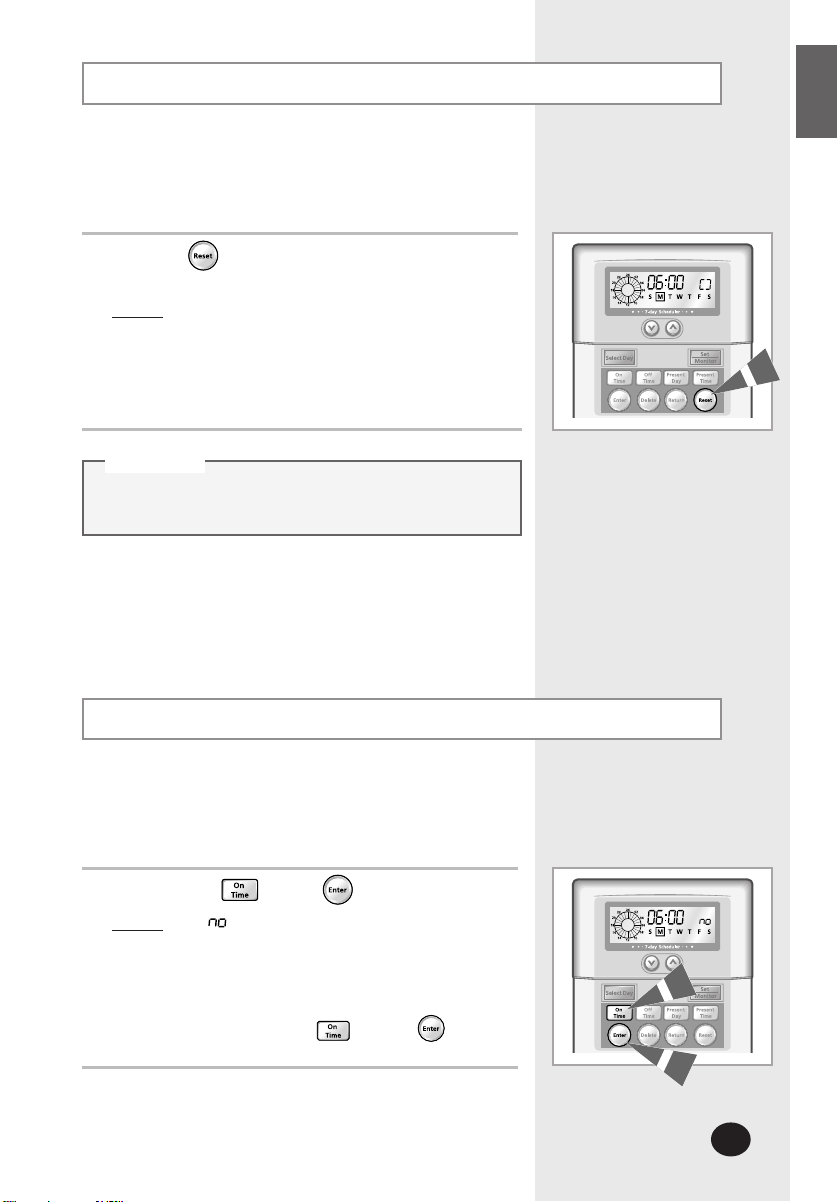

Resetting Your 7-day Scheduler
Locking Your 7-day Scheduler
Press the button for 5 seconds in the Monitor
Mode.
Result: :◆All the On Times and the Off Times you
have set are deleted.
1
E-17
ENGLISH
You can initialize all the On Times and the Off Times
using only one button.
◆Once you initialize your settings, the previous
setting cannot be restored.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Press both the and the buttons for 3 seconds.
Result: :◆is displayed on the Set/Lock display.
1
You can lock the 7-day Scheduler to stop running the
On Times and the Off Times without deleting all.
◆The On Time and the Off Time you have
set are not deleted. However the On Times
and Off Times will not run.
◆Press both the and the buttons for
3 seconds again to cancel the lock function.
NN
NNoo oott ttee ee
MWR-BS00 IB_E_29808 10/24/08 19:20 Page 17

29808-2_co.indd 2 2010-08-30 오후 9:43:23
