Samsung MWR-WG00UN User manual

Airconditioner
Installationmanual
Wired remote controllerMWR-WG00UN
࡙Thank you forpurchasing this Samsung Product.
࡙Before operating this unit, please read this installation manual carefullyand retain it for
future reference.

01 02 07
05 0603 04
Components EN
01 Wired Remote Controller/1EA
02 Cable Tie / 2EA
03 Cable Clamp / 3EA
04 M4x16 Screw / 5EA
05 UserManual /1EA
06 Installation Manual /1EA
07 U Terminal / 6EA
CAUTION
࡛ The Wired Remote Controllershould be installed byan
installation expert.
࡛ Check and confirm the poweris off before installing your
Wired Remote Controller.
࡛ Install theWired Remote Controllercables in accordance
with the electricalwiring rules, and allowit to pass through
the innerarea of thewall so that otherpeople can’t reach it.
Composants FR
01 Télécommande filaire / QTÉ1
02 Attache de câble / QTÉ 2
03 Serre-câble / QTÉ 3
04 Vis M4X16 / QTÉ 5
05 Manuel de l’utilisateur/ QTÉ1
06 Manuel d’installation / QTÉ1
07 Borne U / QTÉ 6
ATTENTION
࡛ La télécommande filaire doit être installée par un
installateurspécialisé.
࡛ Vérifiez et confirmez que l’alimentation est coupée avant
d’installervotre télécommande filaire.
࡛ Installez les câbles de la télécommandefilaire
conformément aux règles de câblage électrique, etveillez
à les faire passerparla zone intérieure du murafin que
d’autres personnes ne puissent pas les atteindre.
Componentes ES
01 Mando a distancia con cable /1 unid.
02 Brida / 2 unid.
03 Abrazadera para cables / 3 unid.
04 Tornillo M4X16 / 5 unid.
05 Manual de usuario /1 unid.
06 Manual de instalación /1 unid.
07 Terminal U / 6 unid.
PRECAUCIÓN
࡛ El mando a distancia con cable debe serinstalado porun
técnico experto en instalaciones.
࡛ Asegúrese de que la alimentación esté apagada antes de
instalarel mando a distancia con cable.
࡛ Instale los cables del mando a distancia con cable de acuerdo
con las normas sobre el cableado eléctricoy haga pasarel cable
porel interiorde la pared para que nadie pueda accedera él.
Componentes PT
01 Controlo remoto comfios /1 de cada
02 Braçadeira de cabos / 2 de cada
03 Grampo do cabo / 3 de cada
04 Parafuso M4X16 / 5 de cada
05 Manual do utilizador/ 1 de cada
06 Manual de instalação /1 de cada
07 Terminal U / 6 de cada
CUIDADO
࡛ O controlo remoto com fios deve serinstalado por um
técnico de instalação.
࡛ Antes de instalaro controlo remoto com fios, confirme que
a alimentação está desligada.
࡛ Instale os cabos do controlo remoto comfios de acordo
com as regras de cablagem elétrica e permita que passem
pordentro da parede, para que não estejam ao alcance das
outras pessoas.
A
C
0
Please enteryour PASSWORD
Service mode
16
Scanning…
B
Product option (2/5)
Target Address:20 00 00
Press the OKbutton to set the current step.
Product option (5/5)
Target Address:20 00 00
Press the OKbutton to complete the setting.
TargetAddress
Depending on the changes, the system may be restarted.
Serial No.: A0013CBH700369
Press the OKbutton to set the current step.
Product option (1/5)
Indoorunit/Ventilatoroption
Address
Product option
Installation option1
Installation option 2
Indoorunit/Ventilatoroption
Address
Product option
Installation option1
Installation option 2
Depending on the changes, the system may be restarted.
Depending on the changes, the system may be restarted.

2English
Contents
SafetyInformation 3
SafetyInformation 3
WiredRemote ControllerInstallation 4
Wired Remote ControllerInstallation 4
External Dimensions 4
Wired Remote ControllerInstallation 5
Tracking YourIndoorUnit from theWired Remote Controller[See the image A] 8
Individual Control with YourWired Remote Controller 9
Group Controlwith YourWired Remote Controller 10
Controlling the 2-remote controller 13
Initializing YourWired Remote ControllerCommunication 16
Errors displayed on the Wired Remote Controller 16
Installation/Servicemode 17
Installation/Service mode 17
Additional functions of the Wired Remote Controller[See the image B] 17
Installation/Service mode 18
The example ofWired Remote Controlleroption setting method 23
Howto download to microSD Card 23

SafetyInformation
3
English
California Proposition 65Warning (US)
WARNING :
Cancerand Reproductive Harm -www.P65Warnings.ca.gov.
This installation manual explains howto install a Wired Remote Controllerconnectedto the indoorunit of your
Samsung system airconditioner. Please read this manual thoroughlybefore installing the product. (Please referto
appropriate installationforany optional product installation.)
WARNING
Hazards orunsafe practices that mayresult in severe personal injuryor death.
CAUTION
Hazards orunsafe practices that mayresult minorpersonal injuryorproperty damage.
SafetyInformation
WARNING
Contact a service centre forinstallation.
࡙Potential risk of malfunction,waterleak, electric
shock and fire.
Install the product on a hard and even placethat can
support its weight.
࡙If the place cannot support itsweight, the product
mayfall down and it maycause product damage.
Install the productwith properpowersupply.
࡙Potential risk of fire orproduct damage.
Do not move orreinstall the product onyourdiscretion.
࡙Potential risk of electric shock orfire.
Consult the place of purchase ora contact centre to
disassemble orrepairthe product.
࡙Potential risk of malfunction, electric shock, orfire.
Check if the installationwork is done correctly
according to the installation manual.
࡙Incorrect installation may cause electric shock or
fire.
The electricwork must be done by qualified person
according to nationalwiring regulations and
installation guide.
࡙If an unauthorized person performsthe installation,
anyresulting defects can cause malfunctions,
electrical shocks, orfire accidents.
When you want to disposeyourWired Remote
Controller, ask the service centre.
CAUTION
Do not install the product where there’s combustible
gas.
࡙Potential risk of fire and explosion.
Do not install the product in areas exposed to oil or
vapor.
࡙Potential risk of product damage ormalfunction.
Ensure nowatergets into the Wired Remote Controller.
࡙Potential risk of electric shock orfire.
Do not put undue stress onthe powercable.
࡙Potential risk of broken cable and fire.
Install the air conditioneraway from direct exposure
to sunlight, in room temperature range of 0 °C(32 °F)~
39 °C(102 °F).
࡙Potential risk of electric shock ormalfunction.
Do not install the product in areaswith frequent use of
acid oralkali spray.
࡙Potential risk of electric shock orproduct
malfunction.
Do not handle the product with sharp objects.
࡙Potential risk of electric shock orproduct damage.
Do not connect powercable to a communication
terminal.
࡙Potential risk of fire.
Be cautious not to interfere any otherelectrical devices
if the product is installed in a place such as hospital.
࡙Potential risk of product malfunction.

WiredRemoteControllerInstallation
4English
WiredRemoteControllerInstallation
WiredRemoteControllerInstallation
WiredRemoteControllerInstallation
ExternalDimensions
[Unit : mm(inch)]
120.0 (4.72) 19.0(0.75)
120.0 (4.72)

5
English
WiredRemoteControllerInstallation
WiredRemoteControllerInstallation
1 Insert the flat-head screwdriverinto two square grooves at the bottom of the Wired Remote Controllerand rotate
it to lift the front coverforremoval from the rear cover.
2 Arrange the powercable and the communication cable sothat theyfit in the housing along the edges of the rear
cover.
<When the cable is not concealed> <When the cable is concealed>
8 cm (3.15 inch) 8 cm (3.15 inch)
Area A
NOTE
࡙When connecting the powerand communication cables to the bottom of the Wired Remote Controller, first cut
off the area A.

WiredRemoteControllerInstallation
6English
WiredRemoteControllerInstallation
WiredRemoteControllerInstallation
3 Using two ormore screws,firmlyaffix the rearcoverof the remote controllerto the wall, andthen cut off the
grooves of the front covers forcommunication and powercables, making sure these cables have reasonable
length.
ߢߡ࣍ߡࢋߥ
inch) ormore
ߢߡ࣍ߡࢋߥ
inch) ormore
ߦߡ࣍ߣʀ˵࣎
ormore
ߢߡ࣍ߡࢋߥʀ˵࣎ͱθͱθʪ
Screw hole
Rearcover
࢘9ʪ˙ͱθʪ˙у˝ϩ˵ʪθʪɇθʀͱЭʪθࡡ
ϑʪʀЇθʪɇϩʪɇϑϩߢߡ࣍ߡࢋߥʀ˵࣎
space of upperside, left side,
θ˝˵ϩϑʒʪࡡɇʒߦߡ࣍ߣʀ˵࣎
space of bottom side.
࢘ǽͱЇЇϑϩ˙ϩϩ˵ʪ
screws into the
screwholes.
4 Connect the communication cables (F3, F4) to theterminals of the back of thefront cover, and then fix thewires
so that theydo not get stuck during connection.
V1F1 F2 V2 F3 F4
PCB terminal
Front cover
Wire (not supplied)
࢘Uͱͱϩϩ˝˵ϩʪϩ˵ʪϑʀθʪиϑͱϩ˵ʪťA9
terminalwith excessive force.
Indoor
Wired
Remote
Controller
CAUTION
࡙When using an electric screwdriver, tighten the screws tothe standard torque because thetop of screws maybe
worn out ifyou use a strong torque.

7
English
WiredRemoteControllerInstallation
5 Reassemble the Wired Remote Controller.
NOTE
࡙Align the controllerwith the uppergroove first, and then insert it by
turning it downwards as shown in the figure.
Afterassembly, check and confirmthat nowires are stuck in the gap
between the back and front covers.

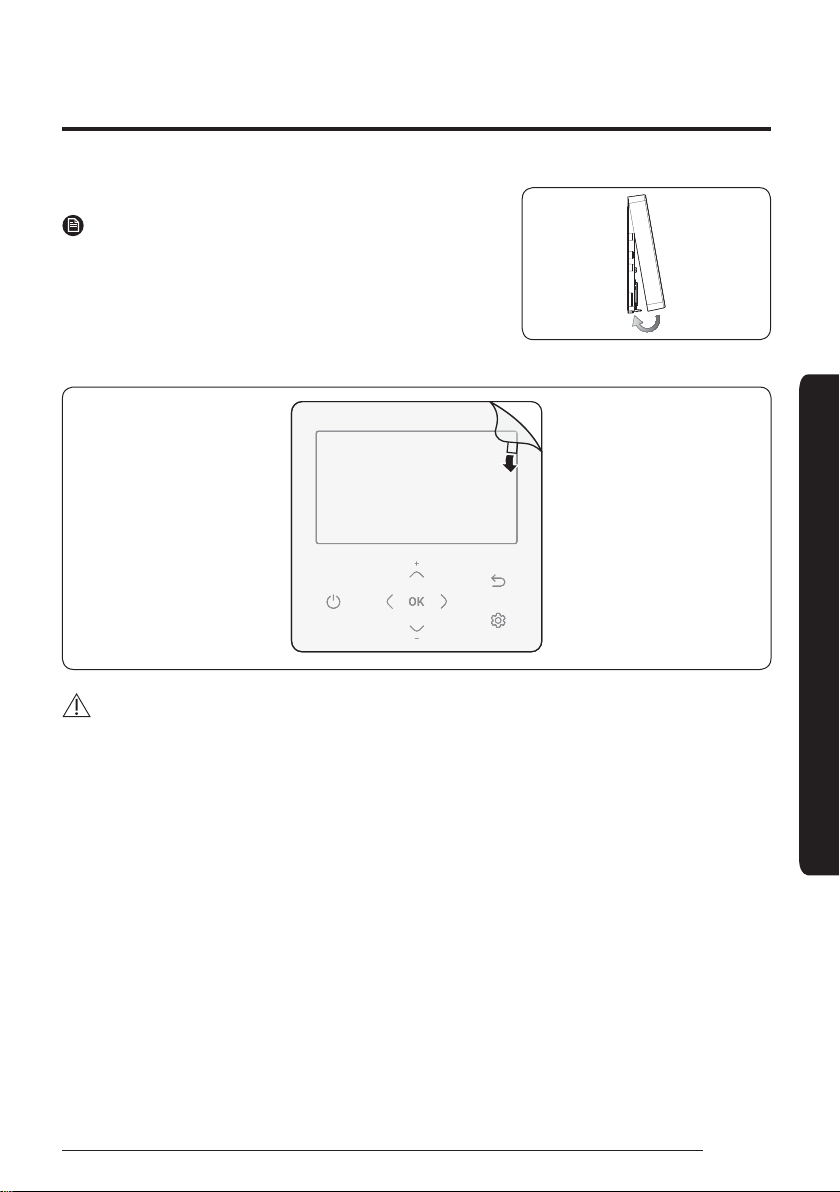

6 Remove the front protective film.
CAUTION
࡙ Ǯ˵ʪϑϩɇ˝ɇǮθʪʒŵʪͱϩʪAͱϩθͱʪθɵцЇϑ˝ɇʀɇɵʪͱ˝ʪθϩ˵ɇߢߡ࣍ߤߣࢋߩߡ˙ϩ࣎ࡡцͱЇЇϑϩϑϩɇϩ˵ʪ
communication cable and the powercable separately. (Electrical interference can causetheWired Remote
Controllerto malfunction.)
࡙When installing yourWired Remote Controlleron the wall, considerthe size of thewire hole, and select awire
with a properthickness.
࡙Wire that is connectable toWired Remote ControllerPCB.
ࣚIf you install the Wired Remote Controllerby reclaiming, install it according to U-terminal cable specification.
ࣚ Ã˙цͱЇϑϩɇϩ˵ʪǮθʪʒŵʪͱϩʪAͱϩθͱʪθɵцЇϑ˝ϩиͱΧʪʀʪϑͱ˙ťǤAиθʪࡡθʪͱЭʪϩ˵ʪߤߡʀ࣍ߢߣʀ˵࣎ͱ˙ϩ˵ʪ
sheath of the cable and install it onlywith the two pieces ofwires. (Recommended specification: AWG20)

WiredRemoteControllerInstallation
8English
WiredRemoteControllerInstallation
WiredRemoteControllerInstallation
࡙The following are the specs ofthe compression ringterminal connected toyourWired Remote ControllerPCB.
Stud
W
t
E
FG
L
ØD
ŵɇ˝ʪͱ˙ťʪθϩϩʪʒǮθʪϑ Rated Size Stud Size Basic Size [mm (inch)]
AWG mm²
(inch²) mm² (inch²) mm (inch) tØDG E F WL
22~16 0.25~1.65
(0.0003 ~ 0.0025) 1.5 (0.0023)
3
(0.1181) 0.7 (0.0275) 3.8 (0.1496) 10.0 (0.3937) 4.5 (0.1771) 6.5 (0.2559) 6.0 (0.2362) 21.2 (0.8346)
࢘đɇуЇʒϑϩɇʀʪ˙ͱθʀͱʪʀϩ˝ʀͱЇʀɇϩͱɇʒΧͱиʪθʀɇɵʪࡠߢߡߡ࣍ߤߣߩ˙ϩ࣎
࡙Screws on the PCB terminal must be tightened with less than 6N-cm tightening torque. If thetightening torque is
greater, it may damage the screwthread.
TrackingYourIndoorUnitfromtheWiredRemoteController[Seethe image A]
1 Tracking of yourWired Remote Controllerwill automaticallystart whenyouturn on the powerafterinstallation.
2 If you want to performtracking again afterinstallation, then press the and buttons at the same time for
more than 5 seconds.
࡙The systemwill reset, and trackingwill start again.
3 During tracking,the total numberof currentlysearched indoorunits andventilator(ERV)will be displayed.
4 ÃϩɇцϩɇʪɇɵͱЇϩߦЇϩʪϑɇϩϩɇϑϩɇɇϩͱͱθи˵ʪцͱЇθʪࣗϑʪϩϩ˵ʪđɇϑϩʪθϑʪϩϩ˝ࢋ
NOTE
࡙The operation displays onthe remote controllermay differdepending on the selected language.
࡙If youwant to perform tracking again afterinstallation, then press the and buttons at the same time for
more than 5 seconds.

9
English
WiredRemoteControllerInstallation
IndividualControlwith YourWiredRemoteController

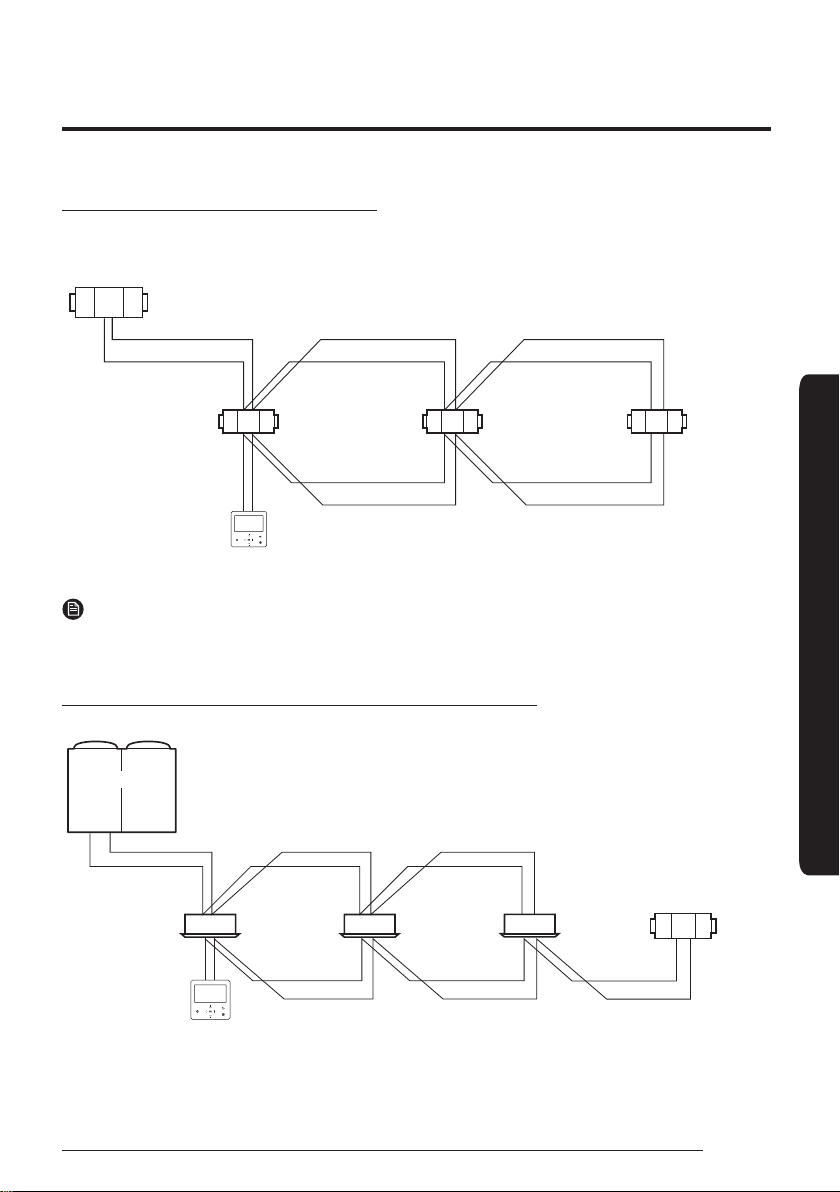

Individual control meansthatyou are using one remote controllerto control one indoorunit orventilator(ERV).

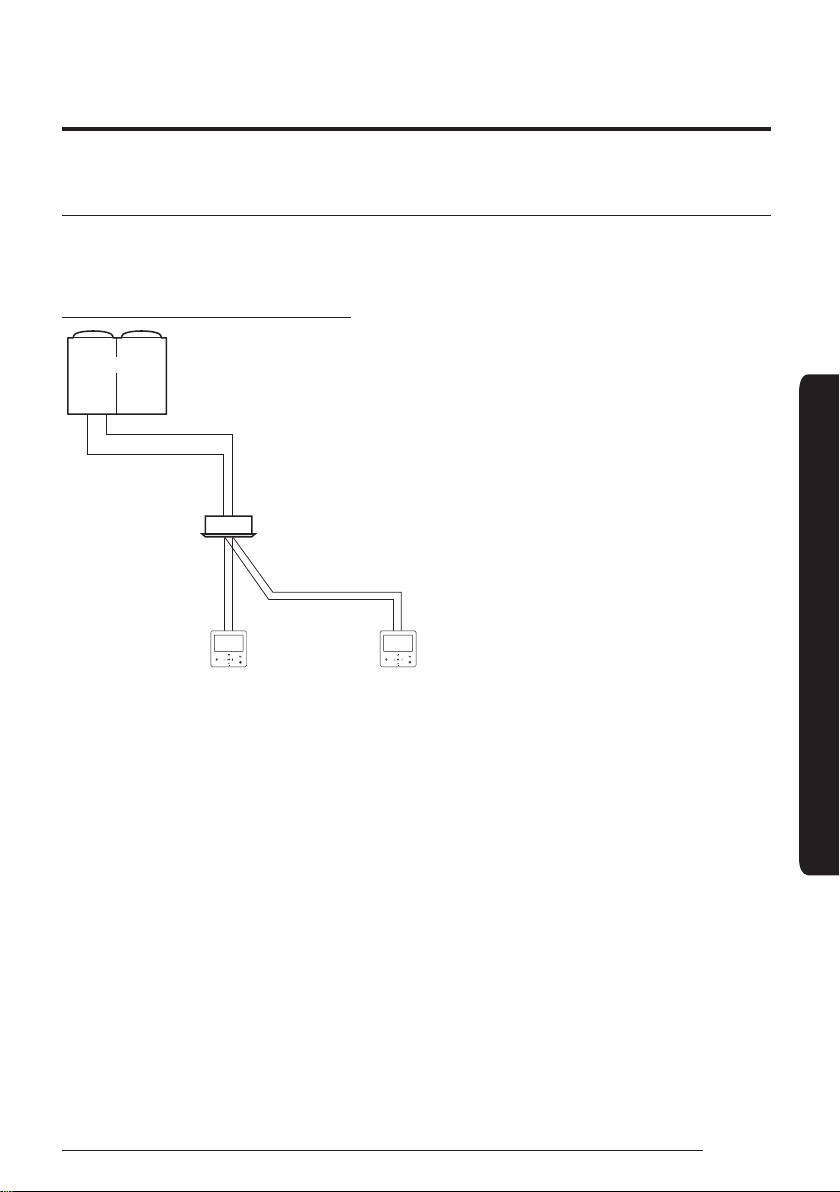

Whenconnectedto an indoorunitonly
Outdoorunit
Indoor
AĮđߢ࣍ߢࡡߣ࣎
AĮđߣ࣍ߤࡡߥ࣎
AĮđߢ࣍ߢࡡߣ࣎
AĮđߣ࣍ߤࡡߥ࣎ AĮđߣ࣍ߤࡡߥ࣎
Wired Remote Controller
Indoor Indoor
Wired Remote Controller
Wired Remote Controller
Whenconnectedto aventilator(ERV)only
AĮđߣ࣍ߤࡡߥ࣎ AĮđߣ࣍ߤࡡߥ࣎ AĮđߣ࣍ߤࡡߥ࣎
AĮđߢ࣍ߢࡡߣ࣎ AĮđߢ࣍ߢࡡߣ࣎
Ventilator(ERV) Ventilator(ERV) Ventilator(ERV)
Wired Remote Controller Wired Remote ControllerWired Remote Controller
Masterventilator(ERV)
NOTE
࡙ ŵʪ˝ɇθʒʪϑϑͱ˙ϩ˵ʪʒͱͱθ˝θͱЇΧɇʒʒθʪϑϑ࣍ŵđAɇʒʒθʪϑϑ࣎ͱθϩ˵ʪЭʪϩɇϩͱθ࣍kŵǤ࣎˝θͱЇΧɇʒʒθʪϑϑࡡͱцϩ˵ʪʒͱͱθЇϩ
ʀͱʪʀϩʪʒϩͱAĮđߣϑʒЭʒЇɇцʀͱϩθͱʪʒࢋ

WiredRemoteControllerInstallation
10 English
WiredRemoteControllerInstallation
WiredRemoteControllerInstallation
GroupControlwithYourWired RemoteController
Group control means thatyou are using oneWired Remote Controllerto control two ormore indoorunits and
ventilator(ERV) at the same time.
Whenconnectedto an indoorunitonly
࡙Using One Wired Remote Controllerto control three indoorUnits
Outdoorunit
AĮđߢ࣍ߢࡡߣ࣎ AĮđߢ࣍ߢࡡߣ࣎
Wired Remote Controller
AĮđߣ࣍ߤࡡߥ࣎ AĮđߣ࣍ߤࡡߥ࣎
AĮđߢ࣍ߢࡡߣ࣎
Indoor Indoor Indoor
࡙Using One Wired Remote Controllerto control indoorunits connected to different outdoorunit
Outdoorunit
Indoor
Wired Remote Controller
Outdoorunit
Indoor
AĮđߢ࣍ߢࡡߣ࣎
AĮđߣ࣍ߤࡡߥ࣎
AĮđߢ࣍ߢࡡߣ࣎
AĮđߣ࣍ߤࡡߥ࣎
NOTE
࡙ ŵʪ˝ɇθʒʪϑϑͱ˙ϩ˵ʪʒͱͱθЇϩ࣭ϑ˝θͱЇΧɇʒʒθʪϑϑ࣍ŵđAɇʒʒθʪϑϑ࣎ࡡͱцϩ˵ʪʒͱͱθЇϩϑʀͱʪʀϩʪʒϩͱAĮđߣɇθʪ
controlled in group.
࡙Regardless of youroutdoorunits,you can control a maximum of16 indoorunits as a group.
࡙Address of each outdoorunits must be set differentlywhen group control indoorunits connected to the other
outdoorunit.

11
English
WiredRemoteControllerInstallation
Whenconnectedto aventilator(ERV)only
࡙Using One Wired Remote Controllerto Control Threeventilator(ERV)
Masterventilator(ERV)
Wired Remote Controller
AĮđߣ࣍ߤࡡߥ࣎
AĮđߢ࣍ߢࡡߣ࣎
Ventilator(ERV) Ventilator(ERV) Ventilator(ERV)
AĮđߢ࣍ߢࡡߣ࣎
AĮđߣ࣍ߤࡡߥ࣎
AĮđߢ࣍ߢࡡߣ࣎
NOTE
࡙ ŵʪ˝ɇθʒʪϑϑͱ˙ϩ˵ʪЭʪϩɇϩͱθ࣍kŵǤ࣎࢒ϑ˝θͱЇΧɇʒʒθʪϑϑ࣍ŵđAɇʒʒθʪϑϑ࣎ࡡͱцϩ˵ʪЭʪϩɇϩͱθ࣍kŵǤ࣎ʀͱʪʀϩʪʒϩͱAĮđߣ
controlled in group.
Whenconnectinganindoorunitand aventilator(ERV) together
࡙Using One Wired Remote Controllerto control multiple indoorunits and ventilator(ERV)
Outdoorunit
AĮđߢ࣍ߢࡡߣ࣎ AĮđߢ࣍ߢࡡߣ࣎
Wired Remote
Controller
AĮđߣ࣍ߤࡡߥ࣎ AĮđߣ࣍ߤࡡߥ࣎
AĮđߢ࣍ߢࡡߣ࣎
Indoor Indoor Indoor
AĮđߣ࣍ߤࡡߥ࣎
Ventilator(ERV)

WiredRemoteControllerInstallation
12 English
WiredRemoteControllerInstallation
WiredRemoteControllerInstallation
࡙Using One Wired Remote Controllerto control indoorunits connected to different outdoorunit and
ventilator(ERV)
Outdoorunit
Indoor
Wired Remote Controller
Outdoorunit
Indoor
AĮđߢ࣍ߢࡡߣ࣎
AĮđߣ࣍ߤࡡߥ࣎
AĮđߢ࣍ߢࡡߣ࣎
Ventilator(ERV)
AĮđߣ࣍ߤࡡߥ࣎
NOTE
࡙ ŵʪ˝ɇθʒʪϑϑͱ˙ϩ˵ʪʒͱͱθЇϩ࣭ϑ˝θͱЇΧɇʒʒθʪϑϑ࣍ŵđAɇʒʒθʪϑϑ࣎ࡡͱцϩ˵ʪʒͱͱθЇϩϑɇʒЭʪϩɇϩͱθ࣍kŵǤ࣎ʀͱʪʀϩʪʒ
ϩͱAĮđߣɇθʪʀͱϩθͱʪʒ˝θͱЇΧࢋ
࡙When controlling indoorunits and ventilator(ERV) togetherin group, you can control maximum of16 indoorunits
andventilator(ERV).
࡙If you want to use the powersaving function,you have to connectWired Remote Controllerto onlyone indoor
unit and one ventilator(ERV).

13
English
WiredRemoteControllerInstallation
Controlling the2-remote controller
2-Remote controlleris controlling one indoorunit, ventilator(ERV) orone group of indoorunits andventilator(ERV)
with two remote controllers.
Whenconnectedto an indoorunitonly
Outdoorunit
Indoor
AĮđߢ࣍ߢࡡߣ࣎
Wired Remote
Controller(Master)
AĮđߣ࣍ߤࡡߥ࣎
Wired Remote
Controller(Slave)

WiredRemoteControllerInstallation
14 English
WiredRemoteControllerInstallation
WiredRemoteControllerInstallation
Whenconnectedto aventilator(ERV)only
Wired Remote
Controller(Master)
AĮđߣ࣍ߤࡡߥ࣎
Masterventilator
(ERV)
AĮđߢ࣍ߢࡡߣ࣎
Ventilator(ERV)
Wired Remote
Controller(Slave)
NOTE
࡙Forthe slaveWired Remote Controllersettings, please see Option of theWired Remote Controller.
(Referto page18)
࡙ ǽͱЇʀɇϑϩɇЇΧϩͱϩиͱǮθʪʒŵʪͱϩʪAͱϩθͱʪθϑ࣍đɇϑϩʪθࢥƊɇЭʪ࣎ࢋ
CAUTION
࡙ Ã˙ϩ˵ʪǮθʪʒŵʪͱϩʪAͱϩθͱʪθ࣍đɇϑϩʪθ࣎ϑɇθʪɇʒцϑϩɇʪʒɇʒɇͱϩ˵ʪθͱʪ࣍ƊɇЭʪ࣎ϑϩͱɵʪϑϩɇʪʒࡡϩ˵ʪθʪͱϩʪ
control starts again forprotection of the product.

15
English
WiredRemoteControllerInstallation
Whenconnectinganindoorunitand aventilator(ERV) together
Outdoorunit
Indoor
AĮđߢ࣍ߢࡡߣ࣎
Wired Remote
Controller(Master)
AĮđߣ࣍ߤࡡߥ࣎
Wired Remote
Controller(Slave)
AĮđߣ࣍ߤࡡߥ࣎ Ventilator(ERV)
NOTE
࡙ ŵʪ˝ɇθʒʪϑϑͱ˙ϩ˵ʪʒͱͱθЇϩ˝θͱЇΧɇʒʒθʪϑϑ࣍ŵđAɇʒʒθʪϑϑ࣎ࡡͱцϩ˵ʪʒͱͱθЇϩϑʀͱʪʀϩʪʒϩͱAĮđߣɇθʪ
controlled bythe 2-remote controller.
࡙Forthe slaveWired Remote Controllersettings, please see Option of theWired Remote Controller.
(Referto page18)

WiredRemoteControllerInstallation
16 English
WiredRemoteControllerInstallation
WiredRemoteControllerInstallation
Initializing YourWiredRemoteControllerCommunication
Wired remote controllermust be initialized if installation status changes.
࡙Changing numberofventilator(ERV)/indoorunit ortheir address
1 Press the and buttons at the same time formorethan 5 seconds.
࡙YourWired Remote Controllerwill be initialized, and the devicewill search forthe indoorunits/
ventilator(ERV) connected toyourWired Remote Controlleragain.
Errorsdisplayedon theWiredRemoteController
Errorcodes forthe Wired Remote Controllerandthe product connected toyourWired Remote Controllerwill be
displayed in the LCD display.
WiredRemote Controllererrorcodes
Indication Description Remarks
Communication errorbetweenwired remote controllerand indoor/ERV units after
successful communication. (communication stop for3 minutes afterdetection)
ĘͱʀͱЇʀɇϩͱɵʪϩиʪʪđɇϑϩʪθ࣍đɇ࣎ɇʒƊɇЭʪ࣍ƊЇɵ࣎Ǯθʪʒŵʪͱϩʪ
Controllers. (communication stop for3 minutes afterdetection)
When tracking between the Wired Remote Controllerand indoor units/ventilators
(ERV) is not complete formore than 5 minutes (Including communication error
between indoorunits and outdoorunits)
Over16 indoorunits andventilators (ERV) installed.
Reset is required aftercheckingthe numberof installed indoorunits and
ventilators (ERV).
Temperature sensorOpen/Short error
Can be detected by
the productwith
a temperature
sensor.
kkťŵĮđʪθθͱθ
NOTE
࡙Forthe errorcodes foryourindoor/outdoor units andventilator(ERV), referto the installation manual of each
device.

17
English
Installation/Servicemode
Installation/Servicemode
Additionalfunctions oftheWiredRemoteController[Seethe image B]
1 If youwant to use the various additional functions foryourWired Remote Controller, press the and
buttons at the same time formore than 3 seconds.
࡙The password entry screen appears.
2 Enterthe password,“0202,” and then press the button.
࡙The settings screen forinstallation/service mode appears.
3 See the list of additional functions fortheWired Remote Controlleron the next page, and then select the desired
menu.
࡙Onceyou have entered the setting screen, the current setting appears.
࡙Referto the chart fordata setting.
࡙Using the /buttons, change the settings and press the button to moveto the next setting.
࡙Press the button to save the new setting.
࡙Press the buttonto moveto the Home screen.
NOTE
࡙While setting the data,you can press the button to move tothe Home screen afterchecking the saving status
at a pop-up screen.

Installation/Servicemode
18 English
Installation/Servicemode
Installation/Servicemode
Installation/Servicemode
NOTE
࡙Unavailablefunctions are marked inactive and theycannot be set.
࡙If communication initialization is needed afterthe setting, the systemwill reset automaticallyand
communicationwill be initialized.
Major Step1 Step 2 Step 3 Description Default
General
IndoorUnit option
Powerbutton
-
Default/Indoorunit &
Ventilation Indoorunit & Ventilation
Auto mode
- ON/OFF ON
Cool/Heat selection
- Cool Only/Cool & Heat Cool & Heat
Wireless remote controller
- ON/OFF ON
đÃĘࢥƊƸ9иθʪʒθʪͱϩʪ
- đɇϑϩʪθ/Slave đɇϑϩʪθ
Temperature unit Temperature unit Celsius (°C)/ɇ˵θʪ˵ʪϩ࣍ঔ࣎ ɇ˵θʪ˵ʪϩ࣍ঔ࣎
Set temp. Unit AʪϑЇϑ࣍ঐ࣎ࡠߢঐࢥߡࢋߦঐࢥߡࢋߢঐࡡ
ɇ˵θʪ˵ʪϩ࣍ঔ࣎ࡠߢঔ ߢঔ
Temperature sensor
selection
- Indoor/Wired remote controller Wired remote
controller
Average temperature
- ON/OFF OFF
Set Temperature Type
- ON/OFF ON
Connection
Information
Numberof Connection Indoor 0 to16 -
Ventilator 0 to16 -
đɇϑϩʪθÃʒͱͱθƸϩ
Information
Serial No. -
đͱʒʪĘͱࢋ -
Indoorunit room temp. Temperature -
Indoor unit EVA IN temp. Temperature -
Indoor unit EVA OUT
temp.
Temperature -
Indoorunit EEVstep EEV step -
ViewmasterIndoorUnit Indoor Address -
Ventilator Address -
đͱʒʪɇϑϩʪθʒͱͱθЇϩ đͱʒʪɇϑϩʪθʒͱͱθ
unit 1)* Address -

19
English
Installation/Servicemode
Major Step1 Step 2 Step 3 Description Default
General
Indoorunit/
Ventilatoroption
Address đɇɇʒʒθʪϑϑ 00 to 4F -
ŵđAɇʒʒθʪϑϑ 00 to FE -
Product option 3)* - Referto the installation manual
of the connected indoorunit or
ventilator.
-
Installation option1 3)* - -
Installation option 2 3)* - -
đAƸťͱθϩ
đAƸɇʒʒθʪϑϑ 00 to15 -
đAƸťͱθϩ A to F -
Device
Information
(Wired Remote
Controller)
đʀͱʀͱʒʪ -đʀͱ code -
Programversion - đͱʒ˙ʪʒʒɇϩʪ -
Touch code - Touch IC code -
Programversion - đͱʒ˙ʪʒʒɇϩʪ -
Graphic image - Graphic image code -
Programversion - đͱʒ˙ʪʒʒɇϩʪ -
Reset All Service
modes
EraseAll Service mode
data
Initialize a remote
controller ---
ťͱиʪθđɇϑϩʪθ
Reset 2)* -- --
ODU K3 reset - - - -
Outdoorcapacity - - ON/OFF
