Samsung OfficeServ 7200 User manual

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 MAY2010
TABLE OF CONTENTS
INSTALLATION SECTION
PART DESCRIPTION PAGE
1 PRE-INSTALLATION INFORMATION
1.1 SITE REQUIREMENTS............................................................................................1.1
1.2 GROUNDING CONDITIONS................................................................................1.2
1.3 POWER CONDITIONS...........................................................................................1.4
1.4 UNPACKING AND INSPECTION.........................................................................1.4
2 INSTALLING CABINETS
2.1 SYSTEM INSTALLATION PROCEDURE.............................................................2.1
2.2 SELECTING INSTALLATION METHOD .............................................................2.1
2.3 INSTALLING IN A RACK........................................................................................2.1
2.4 INSTALLING ON A WALL.....................................................................................2.4
2.5 CONNECTING GROUND WIRES.........................................................................2.8
3 INSTALLING AND REPLACING BOARDS
3.1 CABINET CONFIGURATION ................................................................................3.1
3.2 MCP/MP20 AND LCP MODULES ......................................................................3.3
3.3 INTERFACE BOARDS.......................................................................................... 3.13
3.4 CONNECTING POWER FAIL TRANSFER ....................................................... 3.58
4 CONNECTING EXTERNAL BATTERIES
4.1 CONNECTING EXTERNAL BATTERIES..............................................................4.1
5 CONNECTING POWER
5.1 BEFORE CONNECTING POWER .........................................................................5.1
5.2 PROCEDURE FOR CONNECTING POWER.......................................................5.1
5.3 CONNECTING THE OFFICESERV 7150 EXTERNAL PoE
PSU SUPPLEMENTAL POWER SUPPLY............................................................5.3
6 CONNECTING C.O, LINES
6.1 SAFETY PRECAUTIONS ........................................................................................6.1
6.2 CONNECTING C.O. LINES ....................................................................................6.2
Home Page
Table of Contents
Home Page
Table of Contents
Table of Contents
Home Page

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 MAY2010
7 CONNECTING STATIONS AND ADDITIONAL EQUIPMENT
7.1 CONNECTING STATIONS ....................................................................................7.1
7.2 CONNECTING ADDITIONAL EQUIPMENT................................................... 7.33
8 POWER UP PROCEDURES
8.1 PRE-CHECK ..............................................................................................................8.1
8.2 STARTING THE SYSTEM.......................................................................................8.1
8.3 CHECKING THE FAN .............................................................................................8.3
8.4 NUMBERING EXTENSIONS AND C.O. LINES..................................................8.3
9 SOFTWARE AND DATABASE MANAGEMENT
9.1 SOFTWARE MANAGEMENT on MCP and MP20 ..........................................9.1
9.2 DATABASE MANAGEMENT ................................................................................9.1
10 ADDING CARDS TO THE SYSTEM
10.1 ADDING STATIONS AND TRUNKS................................................................. 10.1
FIGURES

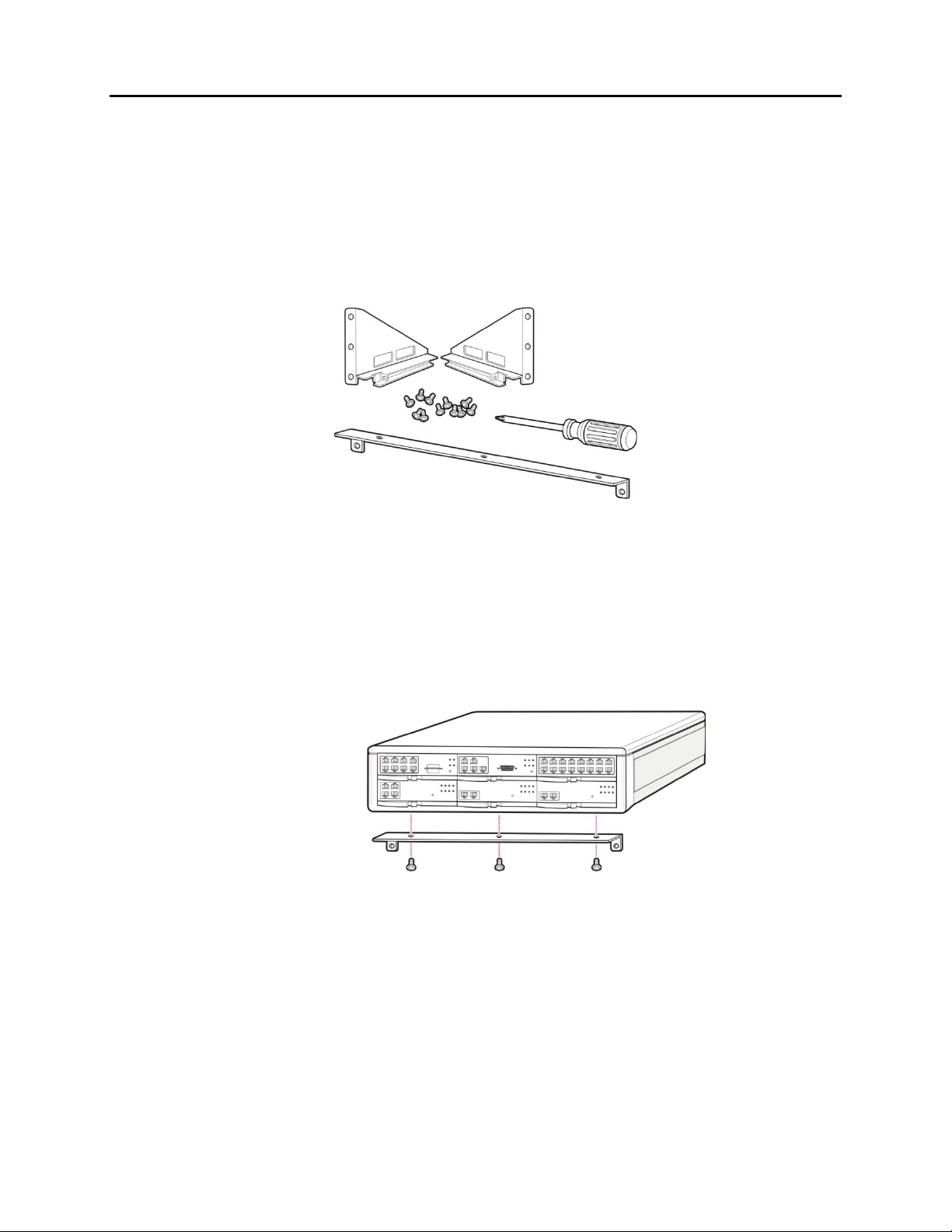

Figure 2.1 Tools Required for Rack Installation

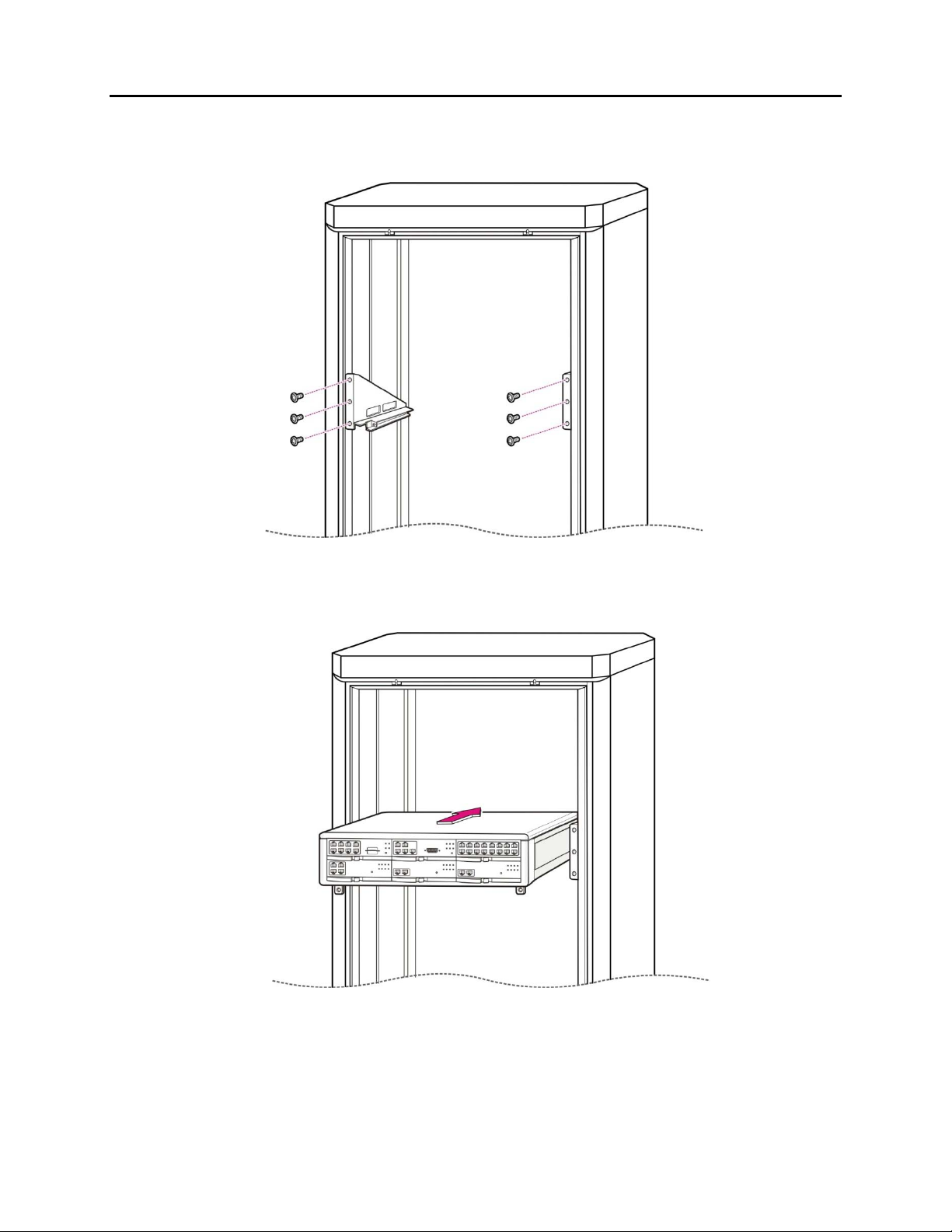

Figure 2.2 Rack Installation (1)
Figure 2.3 Rack Installation (2)

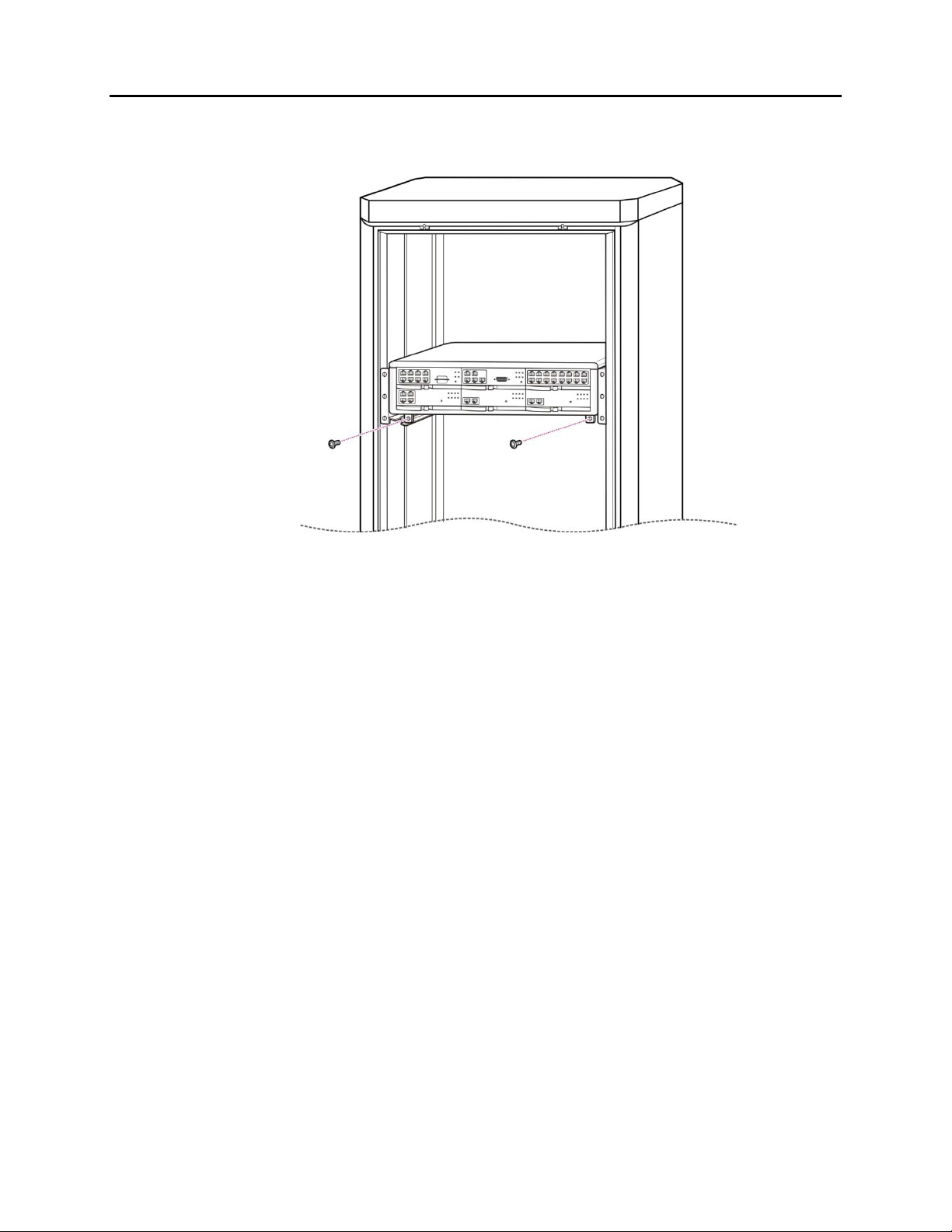

Figure 2.4 Rack Installation (3)
Figure 2.5 Rack Installation (4)

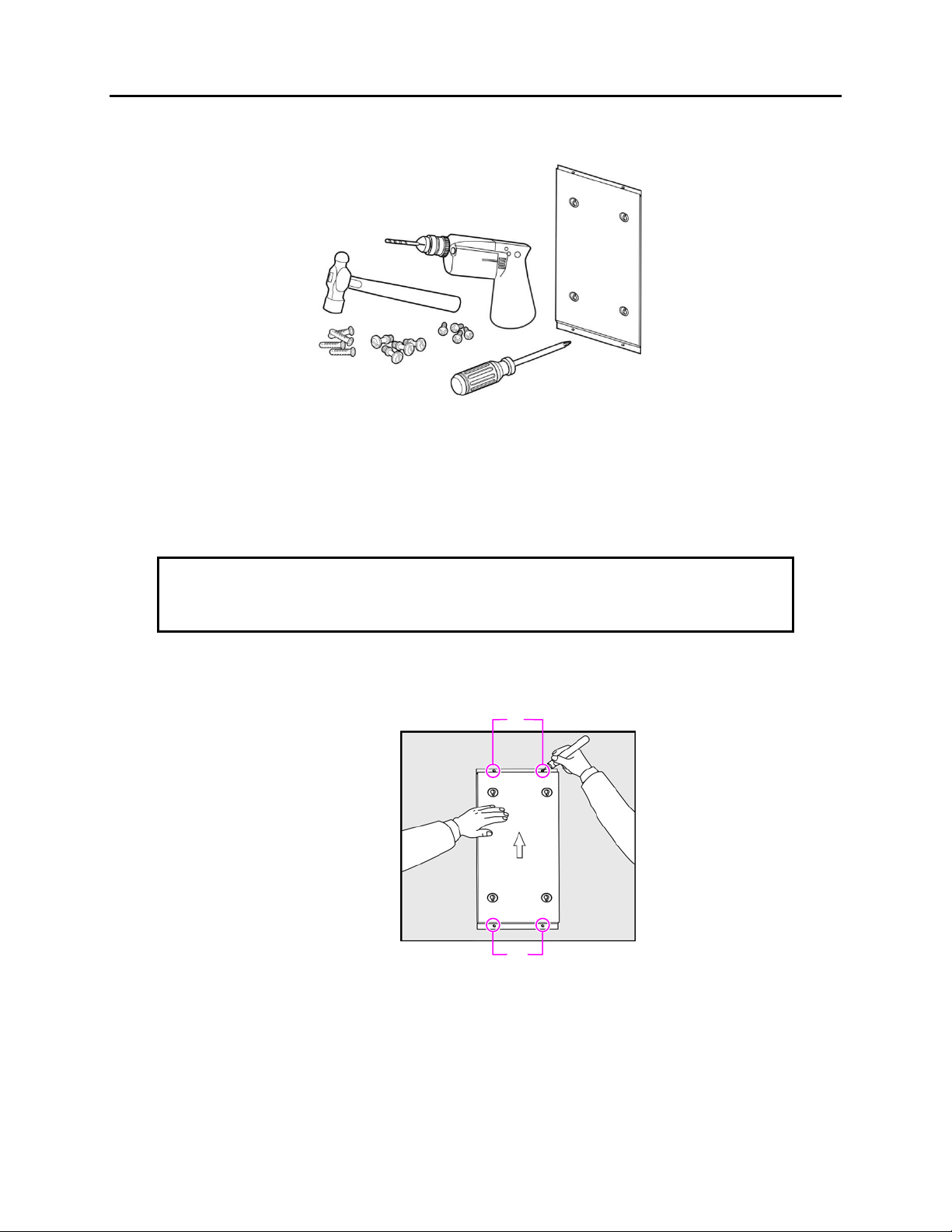

Figure 2.6 Tools Required for Wall Installation
Figure 2.7 Wall Installation (1)
Figure 2.8 Wall Installation (2)
Figure 2.9 Wall Installation (3)
Figure 2.10 Wall Installation (4)
Figure 2.11 Wall Installation (5)
Figure 2.12 Wall Installation (6)
Figure 2.13 Grounding
Figure 3.1 Front Panel Configuration
Figure 3.2 Back Panel Components
Figure 3.3a MCP Switch Settings
Figure 3.3b MP20 Switch Settings
Figure 3.4 Installing the Processor Board (1)
Figure 3.5 Installing the Processor Board (2)
Figure 3.6 Link Cables
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 MAY2010
Figure 3.7 Connecting MCP/MP20 Board to LCP Board
Figure 3.8a Front View of the MCP with Smart Media /
Front View of MCP with Media Card (MMC+)
Figure 3.8b Front View of MP20
Figure 3.9 Front View of the LCP
Figure 3.10 Installing Optional Modem Daughtercards on MP20 Only
Figure 3.11 Installing Optional Daughterboard on MCP/MP20
Figure 3.12 Installing Interface Board into Slot
Figure 3.13 Front Panel Lever
Figure 3.14 Turning the Cabinet Power Off
Figure 3.15 Removing Cable
Figure 3.16 Removing Board
Figure 3.17 Replacing a Board
Figure 3.18 Setting Switches on the TEPRI Board
Figure 3.19 Setting Switches on the TEPRIa Board
Figure 3.20 Front View of the TEPRI
Figure 3.21 Front View of the TEPRIa
Figure 3.22 Front View of the 8TRK
Figure 3.23 Front View of the 8TRK2
Figure 3.24 Front View of the 16TRK
Figure 3.25 Front View of the 16DLI2
Figure 3.26 Front View of the 8DLI
Figure 3.27 Front View of the 8COMBO
Figure 3.28 Front View of the 8COMBO2
Figure 3.29 Front View of the 16SLI2
Figure 3.30 Front View of the 16MWSLI
Figure 3.31 Front View of the 8SLI
Figure 3.32 Front View of the 8SLI2
Figure 3.33 Jumper Setting of WIM Board
Figure 3.34 Front View of the WIM Board
Figure 3.35 V.35 Cable Pin Outs
Figure 3.36 SIO Connector, RJ45 Pin Assignment
Figure 3.37 Front View of the PLIM Board
Figure 3.38 Front View of the PLIM2 Board
Figure 3.39 Setting the Jumpers of PLIM2 Board
Figure 3.40 Front View of the GPLIMT
Figure 3.41 Front View of the GSIMT
Figure 3.42 Mounting Optional Board on MGI Board
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 MAY2010
Figure 3.43 Front View of the MGI Board
Figure 3.44 Front View of the MGI-16 Board
Figure 3.45 Front View of the OAS
Figure 3.46 Front View of the 4WLI Board
Figure 3.47 Front View of the 4DSL Board
Figure 3.48 4DSL Card Ports (P1~P4) Wiring Pinout
Figure 3.49 SVMi-20E LED Indications
Figure 3.50 4VPM (VPM-E, VPM-F) and 8VPM (8VPMF-E) Combinations
Figure 3.51 SVMi-20E/HD with no optional boards installed (LEFT) and
SVMi-20E/CF with all components installed (RIGHT)
Figure 3.52 Power Fail Transfer Connection to 16MWSLI/16SLI2/8SLI/8SLI2
Figure 4.1 Connecting an External Battery (1)
Figure 4.2 Connecting an External Battery (2)
Figure 5.1 Connecting Power (for Single Cabinet)
Figure 5.2 Connecting Power (using Power Cable)
Figure 5.3 Connecting Power (using Power Extension Cable)
Figure 5.4 Front View of OS 7150 Cabinet
Figure 5.5 Rear View of OS 7150 Cabinet
Figure 5.6 Tools Needed for Installation in a Rack
Figure 5.7 OS 7150 Installation in a Rack (1)
Figure 5.8 OS 7150 Installation in a Rack (2)
Figure 5.9 OS 7150 Installation in a Rack (3)
Figure 5.10 OS 7150 Installation in a Rack (4)
Figure 5.11 OS 7150 Grounding
Figure 5.12 Connecting an External Battery
Figure 5.13 Power Connection
Figure 5.14 Connecting OS 7150 to OS 7200
Figure 6.1 Tip and Ring Connections to Analog Trunk Cards
Figure 6.2 RJ-45 Port of TEPRI/TEPRIa Board
Figure 7.1 RJ-45 Port of the 8SLI
Figure 7.2 RJ-45 Port of the 16SLI2
Figure 7.3 RJ-45 Port of the 8COMBO/8COMBO2 (For Analog Phone)
Figure 7.4 RJ-45 Port of the 8DLI (For Digital Phone)
Figure 7.5 RJ-45 Port of the 16DLI2 (For Digital Phone)
Figure 7.6 RJ-45 Port of the 8COMBO/8COMBO2 (For Digital Phone)
Figure 7.7 LAN Connections
Figure 7.8 RJ-45 Port of 4WLI
Figure 7.9 Connecting a Door Phone and a Door Lock
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 MAY2010
Figure 7.10 Adding an iDCS Keyset Daughterboard Module
Figure 7.11 Keyset Base
Figure 7.12 Installing KDB-DLI Daughterboard
Figure 7.13 Keyset Daughterboard Output Jack
Figure 7.14 Connecting Keyset Daughterboard to Keyset PCB
Figure 7.15 Installing KDB-SLI Daughterboard
Figure 7.16 Connecting a Keyset to KDB-DLI
Figure 7.17 Connecting a Single Line Telephone to a KDB-SLI
Figure 7.18 Connecting a Station Device to a KDB via MDF
Figure 7.19 Wall-Mounting a Keyset
Figure 7.20 Ultra Base Wedge
Figure 7.21 Wall-Mounting an iDCS Keyset
Figure 7.22 Wall-Mounting DS 5000, ITP-5121D and ITP-5107S Keysets
Figure 7.23 Attaching 24B/12B to 64 Button Module
Figure 7.24 Attaching 24B/12B to AOM
Figure 7.25 Attaching 7B/Single Line to AOM or to 64 Button Module
Figure 7.26 Attaching the iDCS 64 Button Module to an iDCS Keyset
Figure 7.27 Attaching iDCS 14 Button AOM to an iDCS Keyset
Figure 7.28 Attaching DS 64 Button Modules to a DS 5021D or a DS 5014D Keyset
Figure 7.29 Attaching SMT-i5264 AOM to Phone
Figure 7.30 Setting-Up SMT-i5264 AOM
Figure 7.31 IP AOM Network Configuration
Figure 7.32 Connecting MOH/BGM Sources
Figure 7.33 Connecting External/Additional Page Equipment
Figure 7.34 Connecting Common Bell
Figure 7.35 OSM/OIT Connection to PLIM/PLIM2 Board via LAN
Figure 7.36 OSM Screen
Figure 7.37 Setting OSM Parameters
Figure 7.38 Link Control: Site List Tab
Figure 7.39 Site List: Detailed Information
Figure 7.40 Site List: Link Type Modem
Figure 7.41 Link Control: Option Tab
Figure 7.42 Connecting SMDR to the LAN Port of the PLIM/PLIM2
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 MAY2010
TABLES
Table 1.1 Power Specifications
Table 3.1 Applicable Boards per Slot
Table 3.2 Back Panel Parts
Table 3.3 Types of Control Boards
Table 3.4 Ports and LEDs of the MCP/MP20
Table 3.5 Ports and LEDs of the LCP
Table 3.6 Types of Interface Board and Applicable Slots
Table 3.7 Ports and LEDs of the TEPRI
Table 3.8 Ports and LEDs of the TEPRIa
Table 3.9 Ports and LEDs of the 8TRK
Table 3.10 Ports and LEDs of the 16TRK
Table 3.11 Ports of the 16DLI2
Table 3.12 Ports and LEDs f the 8DLI
Table 3.13 16SLI2/16MWSLI Board Ports
Table 3.14 Ports and LEDs of the 8SLI/8SLI2
Table 3.15 Ports and LEDs of the WIM
Table 3.16 Ports and LEDs of the PLIM
Table 3.17 Ports and LEDs of the PLIM2
Table 3.18 Ports and LEDs of the GPLIMT
Table 3.19 Ports and LEDs of the GSIMT
Table 3.20 Ports and LEDs of the MGI-16
Table 3.21 OAS Front Panel Components
Table 3.22 Ports and LEDs of the 4WLI
Table 3.23 Ports and LEDs of the 4DSL
Table 3.24 VPM Configuration
Table 5.1 Consumption per Device
Table 5.2 Input Voltage and Frequency
Table 5.3 Rated Output in the Case of Operation with AC
Table 5.4 Rated Output in the Case of Operation with DC
Table 6.1 OfficeServ 7200 Line Conditions
Table 7.1 Distance Between Stations and the System
Table 7.2 Specification for Wireless LAN Connection
Table 7.3 OfficeServ Manager Specification
Table 7.4 Minimum PC Requirements for Installation Tool
Table 7.5 Minimum Software Version Requirements for Installation Tool
Table 7.6 Link Control Parameters
Table 7.7 Modem Configuration
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 MAY 2010
1.1
PART 1. PRE-INSTALLATION INFORMATION
1.1 SITE REQUIREMENTS
Select a location that satisfies the following conditions for safety, temperature, humidity, power
and grounding.
1.1.1 Safety Conditions
•The OfficeServ 7200 system should not be installed near materials that can cause a fire,
such as explosive gas and inflammables. The OfficeServ 7200 system should not be near
equipment that generate electromagnetic waves, such as monitors or copying machines.
•The installation location should be convenient for distributing trunk lines and extension
lines, for connecting power and grounding wires, and for maintenance and repair.
•The OfficeServ 7200 system should not be installed in aisles or passageways that are
populated or used for moving equipment.
•Always maintain cleanliness to prevent dust from damaging the board connectors of the
cabinet.
•Before installing the OfficeServ 7200 system, check items such as the electrical wiring
status, grounding status, voltage and frequency.
•Do not expose equipment to direct sun light, corrosive fumes, and constant vibrations.
•Do not install in close proximity to a fire sprinkler or other sources of water.
•A dedicated commercial AC power outlet is required. Do not use extension cords.
•Ensure that all wires and cables to and from the OfficeServ 7200 do not cross fluorescent
lights or run in parallel with AC wires.
•This equipment is to be installed only in restricted access areas (dedicated, equipment
closets, etc.) in accordance with articles 110-16, 110-17, 110-18 of the National Electric
Code, ANSI/NFPA 70.
1.1.2 Temperature/Humidity Conditions
The conditions for temperature and humidity are as follows:
•Operation temperature: 32°F~113°F
•Storage temperature: 14°F~122°F
•Humidity: 10~90%
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 MAY 2010
1.2
1.2 GROUNDING CONDITIONS
An equipment grounding conductor that is not smaller in size than the ungrounded branch-
circuit supply conductors is to be installed as part of the circuit that supplies the product or
system. Bare, covered, or insulated grounding conductors are acceptable. Individually
covered or insulated equipment grounding conductors shall have a continuous outer finish
that is either green or green with one or more yellow stripes. The equipment grounding
conductor is to be connected to ground at the service equipment.
The attachment-plug receptacles in the vicinity of the product or system are all to be of a
grounding type, and the equipment grounding conductors serving these receptacles are to
be connected to earth ground at the service equipment.
WARNING: HIGH LEAKAGE CURRENT! Earth connection is essential before connecting
supply.
The OfficeServ 7200 system requires that a supplementary earth ground be connected to the
system. This is the preferred method of grounding the OfficeServ 7200. It should be noted
that when the third wire ground becomes inferior it many prevent the digital data bus from
canceling out noise. This may result in erratic operation of the OfficeServ 7200. Another
problem that has occurred is that some UPS battery systems do not pass the ground through
to the power cord resulting in no ground to the system. The ground lug in the back of the
cabinet must be connected to one of the following: bonded building steel, cold water pipe, or
a ground rod using at least #16 AWG copper wire. Additionally, the ground between cabinets
in a multiple cabinet system must also be at least #16 AWG copper wire. The third wire AC
ground or field ground is connected to the system frame via the ground strap from the
ground connector on the AC socket.
A supplementary equipment grounding conductor shall be installed between the system and
ground that is in addition to the equipment grounding conductor in the power supply cord.
The supplementary equipment grounding conductor shall not be smaller in size than the
ungrounded branch-circuit supply conductors. The supplementary equipment grounding
conductor shall be connected to the product at the terminal provided, and shall be
connected to ground in a manner that will retain the ground connection when the product is
unplugged from the receptacle. The connection to ground of the supplementary equipment
grounding conductor shall be in compliance with the rules for terminating bonding jumpers
in Part K of Article 250 of the National Electrical Code ANSI/NFPA 70. Termination of the
supplementary equipment grounding conductor is permitted to be made to building steel, to
a metal electrical raceway system, or to any grounded item that is permanently and reliably
connected to the electrical service equipment ground.
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 MAY 2010
1.3
Bare, covered, or insulated grounding conductors are acceptable. A covered or insulated
grounding conductor shall have a continuous outer finish that is either green or green with
one or more yellow stripes.
Failure to provide an adequate ground may cause a safety hazard, confusing trouble
symptoms, or even circuit card failure.

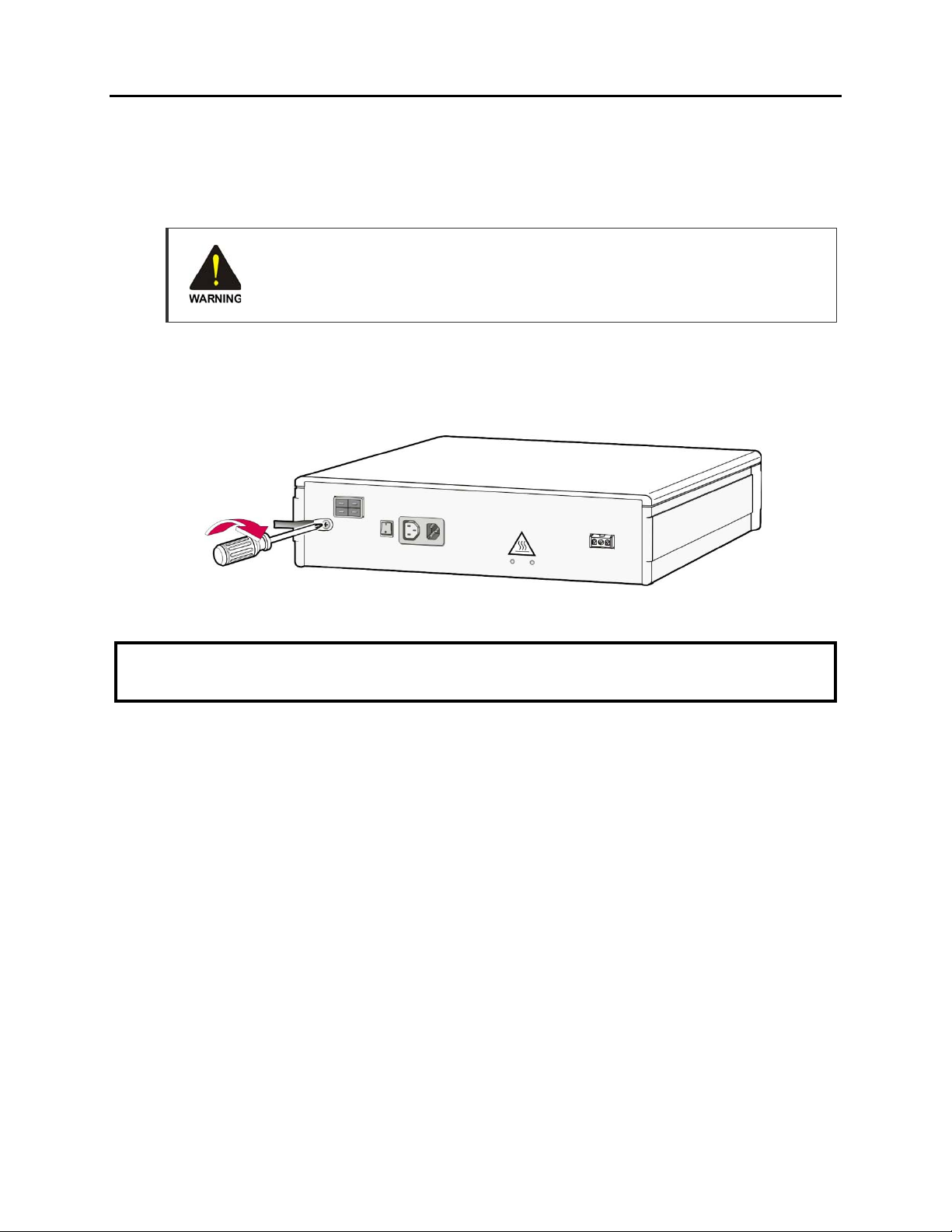

WARNING: Unplug the power cord from the AC outlet before attempting to connect the
ground. Hazardous voltage may cause death or injury. Observe extreme caution when
working with AC power. Remove lines from trunk cards.
What the above paragraphs mean is that when conventional analog telephone circuits are
connected to the OfficeServ 7200 system, under fault conditions (i.e., the tip and/or ring
conductor is crossed with a power line, or the circuit is affected by lightning during a storm), it
is possible for hazardous potentials to appear across the tip and ring wiring coming into the
OfficeServ 7200 cabinet(s) from the outside plant (i.e., overhead cables, buried cables, cable
head pedestal). These circuits are provided with both primary and secondary protection
circuitry which will attempt to drain off these high voltages and currents to earth ground.
Obviously, it is important to have a good source of ground connected to the OfficeServ 7200
system to drain this energy off. Again, a good earth ground source is required by the
OfficeServ 7200 system.

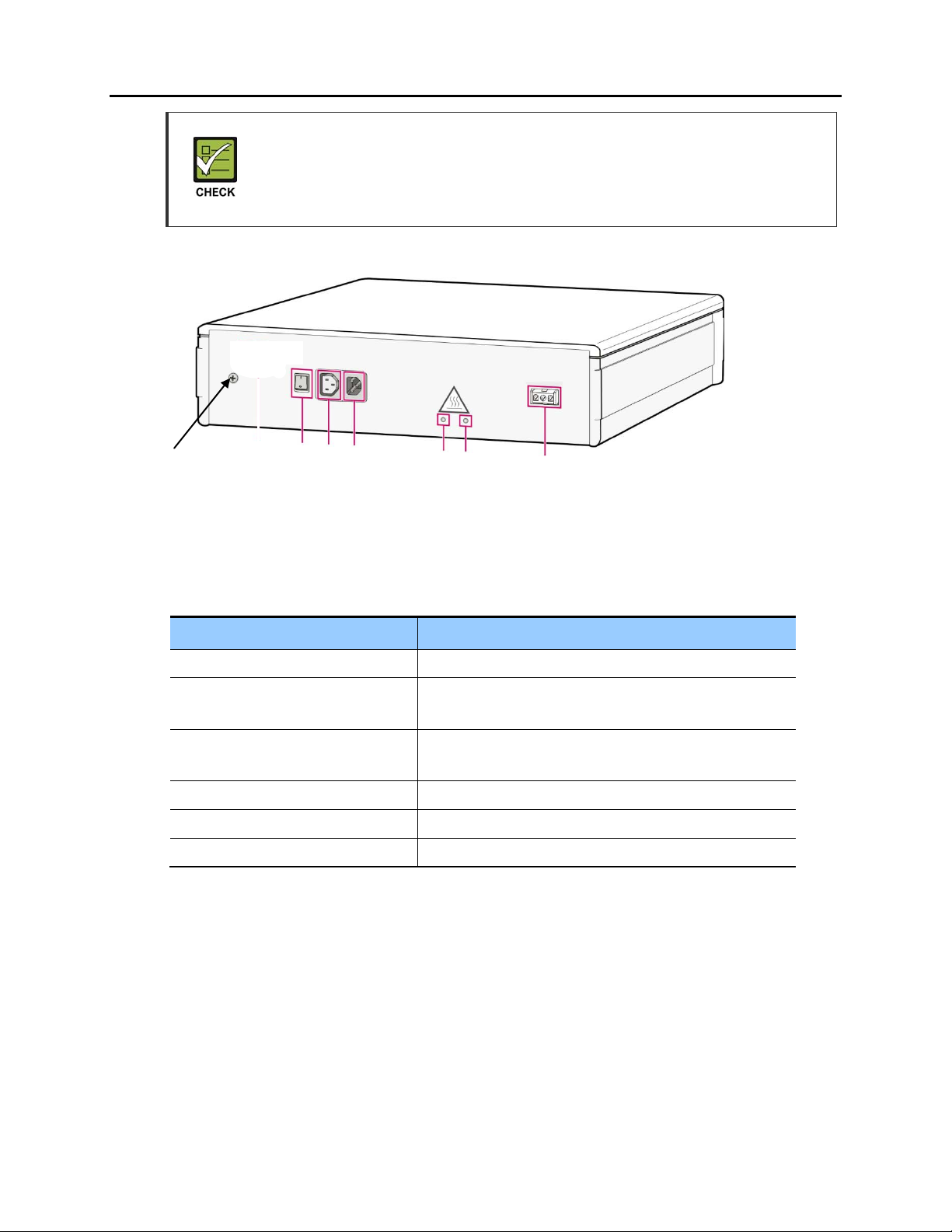

The OfficeServ 7200 system has two ground reference points. One point is via the green wire
in the power cord connected to the AC power outlet. This ground connection is provided to
meet local electrical codes when the AC ground is required to be common with the earth
ground. However, this can be disconnected either intentionally or unintentionally.
Consequently, a more permanent ground connection is required by connecting a high
current/voltage capacity ground wire which is bonded to ground at the electric service power
entrance or via some other method approved by the National Electrical Code to the
OfficeServ 7200 system ground lug. This is a more secure ground connection, which can only
be disconnected intentionally. These precautions are taken for safety reasons to protect
personnel working on the Office Serv 7200 system and also for operational reasons to
accommodate ground return and/or ground-referenced analog telephone circuits, which
require this solid earth ground connection for normal functioning.
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 MAY 2010
1.4
1.3 POWER CONDITIONS
The power supply board of the OfficeServ 7200 system receives AC input power or battery
power, and supplies -48V, -5V, +5V, +3.3V, +12V, and -56V to the system cabinet.
The rating is as follows:
•RATING: AC 110-120V; 6A; 50/60Hz or DC 48V 3A
Table 1.1 Power Specifications
Power Supply Unit(PSU) Specification
PSU Input power AC 110V
DC 48V
(DC 48V for battery backup ONLY)
Output power - DC 48V, 2.2A
- DC +5V, 8.0A
- DC -5V, 1.0A
- DC +3.3V, 10A
- DC +12V, 0.4A
- DC -56V, 0.4A (for battery backup)
1.4 UNPACKING AND INSPECTION

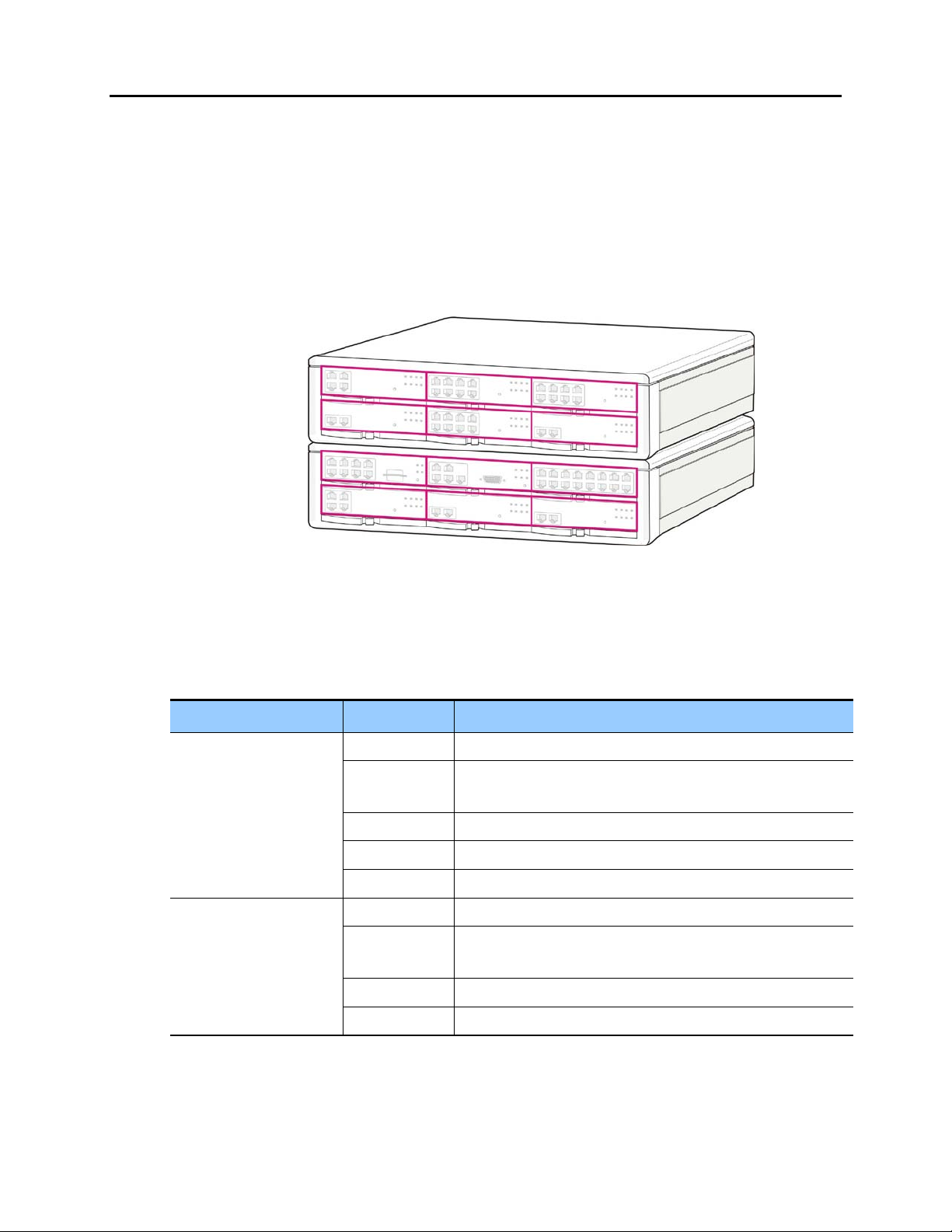

The OfficeServ 7200 can be configured as a single cabinet or dual cabinet system.
All OfficeServ 7200 cabinets are identical when shipped from Samsung. After unpacking the
cabinet(s), inspect for signs of physical damage. If any damage is detected, do not attempt to
install the system. Contact Samsung Telecommunications America Technical Support
Department.
Check to see that each cabinet carton includes the following:
•OfficeServ 7200 cabinet
•AC Power Cable
•Rack Mount Side Flange Brackets (2)
•Rack Mount Cross Bar (1)
•Screw Pack
•Battery Cable Assembly
•Blanking Plates (3)
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 MAY 2010
2.1
PART 2. INSTALLING CABINETS
This section describes how to install an OfficeServ 7200 cabinet on a table/desktop in a data
rack or on a wall, depending on the installation environment.
2.1 SYSTEM INSTALLATION PROCEDURE
The procedure for system installation is as follows:
1) Install the OfficeServ 7200 cabinet on a table, inside a data rack or on the wall depending
on the installation environment.
2) Connect the ground to the ground lug behind the main cabinet.
3) Put the MCP/MP20 board into slot 0 of the main cabinet. If there is an expansion cabinet,
install the LCP board into slot 0 of the expansion cabinet.
4) Install interface boards into universal slots (slots 1 through slot 5) of the main cabinet and
if required slots 1 through 5 of the expansion cabinet.
5) Connect an external battery with proper capacity if required.
6) Connect AC 110V input power.
2.2 SELECTING INSTALLATION METHOD
The OfficeServ 7200 cabinet can be installed on a table, inside a 19-inch rack or on a wall
depending on the number of cabinets and environment of the installation area.
2.3 INSTALLING IN A RACK
2.3.1 Cautions for Installation
Take the following precautions when installing the OfficeServ 7200 cabinet inside a rack:
•The 19-inch rack should be a standard equipment rack.
•When using an enclosed-type rack, check if the rack is properly ventilated. Vents should be
equipped on the side of the rack and fans should be attached to ventilate cool air into the
rack.
•Take special caution when using an enclosed-type rack that has vents on top of the rack
since hot air coming out of the vent may enter the intake vent of a system installed above
the rack.
•When using an open rack, do not block the entrance of a port or fan of the OfficeServ
7200 system.
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 MAY 2010
2.2
2.3.2 Required Tools
•A mid-sized Phillips screwdriver
•A bracket and three screws for attaching cabinet to rack mount
•Two brackets and six screws for rack mount
•Two screws for fastening
Figure 2.1 Tools Required for Rack Installation
2.3.3 Installing in a Rack
The procedure for installing the OfficeServ 7200 cabinet inside a 19-inch rack is as follows:
1) Attach the cabinet bracket to the bottom surface of the OfficeServ 7200 cabinet and
fasten the bracket firmly with the three screws.
Figure 2.2 Rack Installation (1)
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 MAY 2010
2.3
2) Attach the rack brackets to both sides of the rack and fasten the brackets firmly with the
six screws.
Figure 2.3 Rack Installation (2)
3) Align the cabinet to the guardrails of the rack and slide the cabinet into the rack.
Figure 2.4 Rack Installation (3)
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 MAY 2010
2.4
4) Align the two holes of the cabinet bracket and the holes of the rack brackets, and fasten
the cabinet to the rack with the two screws.
Figure 2.5 Rack Installation (4)
5) The above steps 1~4 also apply to expansion cabinets.
2.4 INSTALLING ON A WALL
This section describes how to install the OfficeServ 7200 cabinet on a wall. The optional
OfficeServ 7200 wall mount bracket is required (must be ordered separately).
2.4.1 Required Tools
•A mid-sized Phillips screwdriver
•An electric drill
•A hammer
•A wall bracket
•Four plastic anchors
•Four Phillips screws
•Four install lock screws
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 MAY 2010
2.5
•Two screws that are already screwed in the bottom of the OfficeServ 7200 cabinet.
Figure 2.6 Tools Required for Wall Installation
2.4.2 Wall Installation
The procedure for installing the OfficeServ 7200 cabinet on a wall by using a wall bracket is as
follows:
CAUTION: Only mount OfficeServ 7200 onto a wall capable of supporting the
combined weight of 2 cabinets; associated blocks, cables and peripheral
equipment.
1) There are four screw holes (see [A] Figure 2.7) on the wall bracket as shown below. Mark
the four screw holes where the wall bracket should be installed.
Figure 2.7 Wall Installation (1)
A
A
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 MAY 2010
2.6

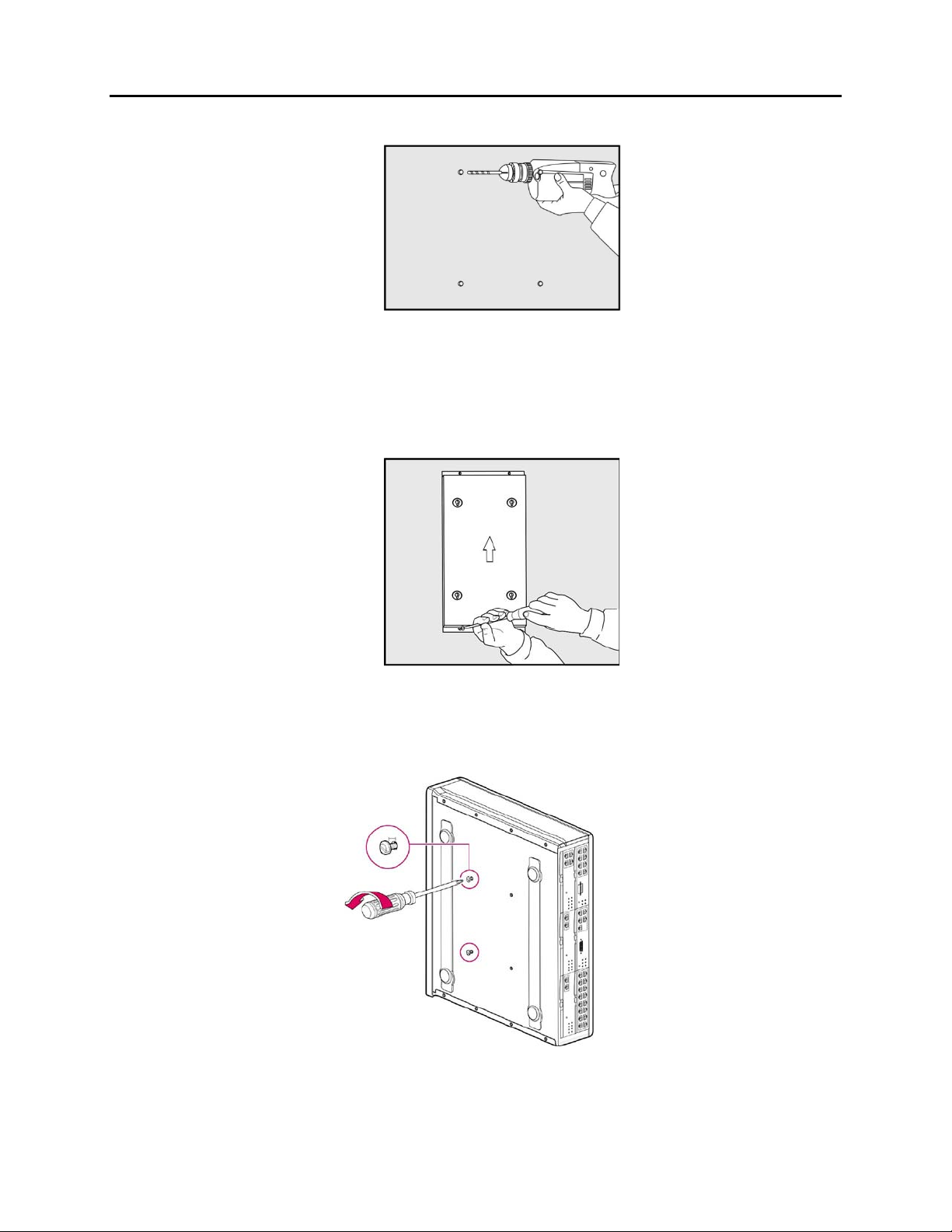

2) Use the electrical drill to make holes where the screw holes were marked.
Figure 2.8 Wall Installation (2)
3) Select appropriate screws, toggle bolts, or plastic anchors to suit the selected mounting
surface.
4) Secure the bracket to the wall using appropriate hardware.
Figure 2.9 Wall Installation (3)

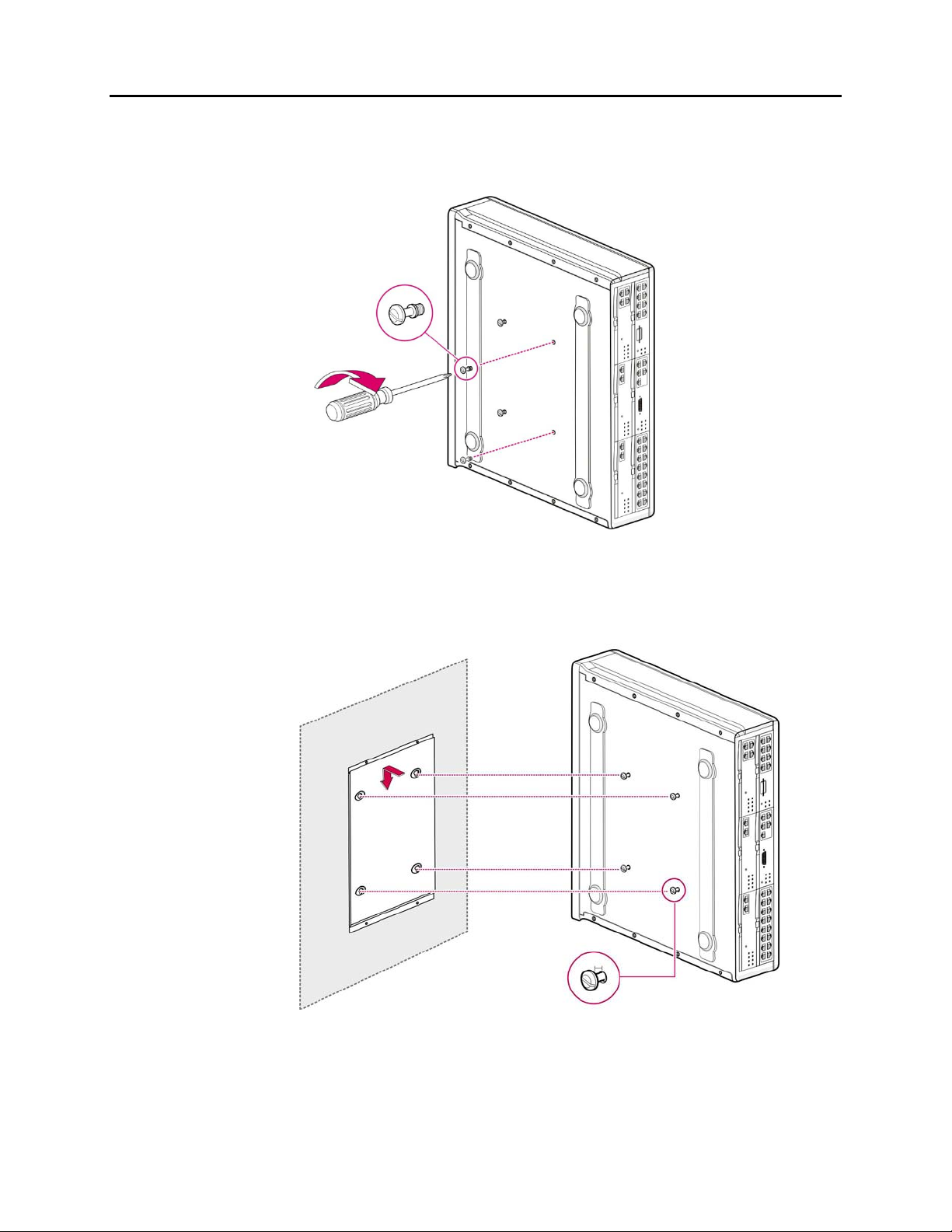

5) There are two screws in two of the four holes at the bottom of the OfficeServ 7200 cabinet as
shown below. To install on the wall, loosen the two screws to approximately 2mm as shown in
Figure 2.10.
Figure 2.10Wall Installation (4)
2mm
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 MAY 2010
2.7
6) Tighten two more screws to the other two holes which do not have screws at the bottom
of the OfficeServ 7200 cabinet. Do not tighten the screws all the way in but leave about
2 mm space.
Figure 2.11Wall Installation (5)
7) Hang the screws on the bottom surface of the OfficeServ 7200 cabinet to the holes of the
wall bracket and push the cabinet downward to fix the cabinet.
Figure 2.12Wall Installation (6)
2mm
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 MAY 2010
2.8
2.5 CONNECTING GROUND WIRES
This section describes how to connect an external grounding wire to the OfficeServ 7200
system.
External Grounding
External grounding is required to prevent human injuries and system damage caused
by lightning, static electricity, or voltage surge.
As shown in the figure below, connect an earth ground to the ground lug behind the
OfficeServ 7200. For an expansion cabinet, connect and ground the external ground wire
between the expansion cabinet and the main cabinet.
Figure 2.13Grounding
IMPORTANT: Follow the grounding requirements described in Section 1.2 (Grounding
Conditions) when connecting a ground to the system.
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 3 MAY2010
3.1
PART 3. INSTALLING AND REPLACING BOARDS
This section describes how to install and replace various boards of the OfficeServ 7200 system.
3.1 CABINET CONFIGURATION
The main and expansion cabinets of the OfficeServ 7200 system have six slots each.
Figure 3.1 Front Panel Configuration
The following boards may be installed in the cabinet slots according to the configuration of the
OfficeServ 7200.
Table 3.1 Applicable Boards per Slot
Cabinet Slot Applicable Boards
Expansion Cabinet
Slot 0 For LCP ONLY
Slot 1 All boards EXCEPT MCP/MP20, LCP, TEPRI/TEPRIa and
PLIM/PLIM2
Slot 2 All boards EXCEPT MCP/MP20, LCP, TEPRI/TEPRIa and WIM
Slot 3 All boards EXCEPT MCP/MP20, LCP and WIM
Slot 4, 5 All boards EXCEPT MCP/MP20, LCP, TEPRI/TEPRIa and WIM
Main Cabinet
Slot 0 For MCP/MP20 ONLY
Slot 1 All boards EXCEPT MCP/MP20, LCP, TEPRI/TEPRIa and
PLIM/PLIM2
Slot 2 All boards EXCEPT MCP/MP20, LCP, TEPRI/TEPRIa and WIM
Slot 3, 4, 5 All boards EXCEPT MCP/MP20, LCP and WIM
The front panel
of an expansion
cabinet
The front
panel of a
main cabinet
Slot 0 Slot 1 Slot 2
Slot 3 Slot 4 Slot 5
Slot 0 Slot 1 Slot 2
Slot 3 Slot 4 Slot 5
Table of Contents
Home Page
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 3 MAY2010
3.2
Checking Slots
The WIM board can only be installed in slot 1 of the main cabinet or slot 1 of the
expansion cabinet, and the TEPRI/TEPRIa can only be installed on slots 3, 4 and 5 of
the main cabinet and slot 3 of the expansion cabinet.
Figure 3.2 Back Panel Configuration
Figure 3.2 Back Panel Components
Back panel components:
Table 3.2 Back Panel Parts
Parts Description
qPower switch Switches the power of OfficeServ 7200 on/off.
wPower connector between a basic
cabinet and an extension cabinet
Extends 110V AC power from basic cabinet to expansion
cabinet.
eAC Power Cord“IN” Connects to a grounded electrical outlet on a dedicated
circuit.
rAC LED Is lit for the AC input power.
tDC LED Is lit for the DC output power (internal DC voltage)
yBattery Backup connector Connects an external battery source “48V DC only”
y
t
r
e
w
q
Ground Connector
Table of Contents
Home Page
Home Page
Table of Contents
