Samsung OfficeServ 7200 User manual

TABLE OF CONTENTS
INSTALLATION SECTION
PART DESCRIPTION PAGE
1PRE-INSTALLATION INFORMATION
1.1 SITE REQUIREMENTS ............................................................... 1.1
1.2 GROUNDING CONDITIONS ....................................................... 1.2
1.3 POWER CONDITIONS ................................................................ 1.4
1.4 UNPACKING AND INSPECTION ................................................ 1.4
2INSTALLING CABINETS
2.1 SYSTEM INSTALLATION PROCEDURE ..................................... 2.1
2.2 SELECTING INSTALLATION METHOD ...................................... 2.1
2.3 INSTALLING IN A RACK ............................................................. 2.1
2.4 INSTALLING ON A WALL ........................................................... 2.4
2.5 CONNECTING GROUND WIRES ............................................... 2.8
3INSTALLING AND REPLACING BOARDS
3.1 CABINET CONFIGURATION....................................................... 3.1
3.2 MCP AND LCP MODULES.......................................................... 3.2
3.3 INTERFACE BOARDS ............................................................... 3.10
3.4 CONNECTING POWER FAIL TRANSFER................................. 3.39
4CONNECTING EXTERNAL BATTERIES
4.1 CONNECTING EXTERNAL BATTERIES ..................................... 4.1
5CONNECTING TELCO CIRCUITS
5.1 BEFORE CONNECTING POWER ............................................... 5.1
5.2 PROCEDURE FOR CONNECTING POWER ............................... 5.1
6CONNECTING STATION EQUIPMENT
6.1 SAFETY PRECAUTIONS............................................................. 6.1
6.2 CONNECTING C.O. LINES ......................................................... 6.1
OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL TABLE OF CONTENTS SEPTEMBER 2005
Home Page
Table of Contents

7CONNECTING STATIONS AND ADDITIONAL EQUIPMENT
7.1 CONNECTING STATIONS .......................................................... 7.1
7.2 CONNECTING ADDITIONAL EQUIPMENT .............................. 7.23
8POWER UP PROCEDURES
8.1 PRE-CHECK ............................................................................... 8.1
8.2 STARTING THE SYSTEM............................................................ 8.1
8.3 CHECKING THE FAN ................................................................. 8.2
8.4 NUMBERING EXTENSIONS AND C.O. LINES ........................... 8.3
9SOFTWARE AND DATABASE MANAGEMENT..............................9.1
9.1 SOFTWARE MANAGEMENT ...................................................... 9.1
9.2 DATABASE MANAGEMENT ........................................................ 9.1
10 ADDING BOARDS TO THE SYSTEM
10.1 ADDING STATION AND TRUNKS ............................................. 10.1
OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL TABLE OF CONTENTS SEPTEMBER 2005
FIGURES
FIGURE 2.1: Tools Required for Rack Installation

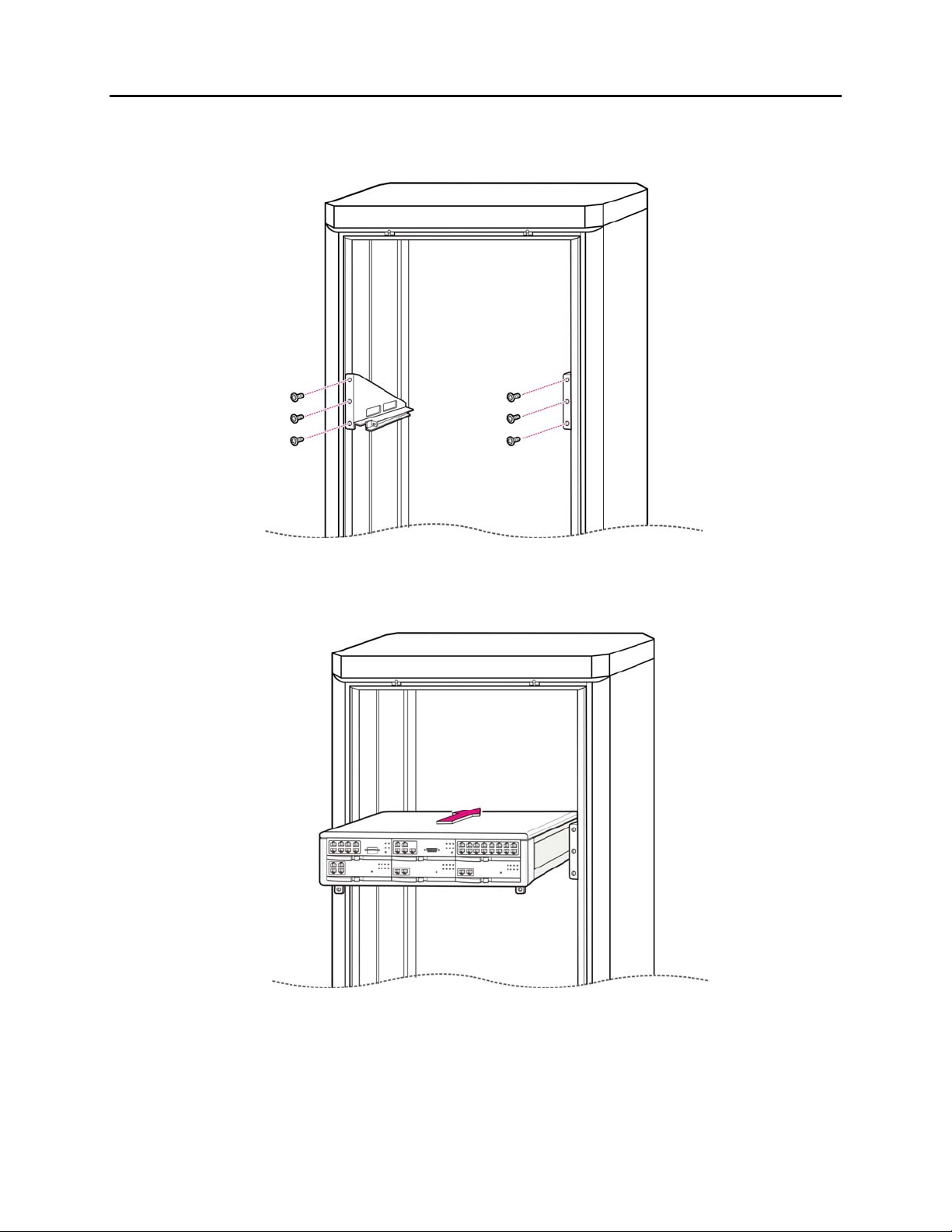

FIGURE 2.2: Rack Installation (1)
FIGURE 2.3: Rack Installation (2)
FIGURE 2.4: Rack Installation (3)
FIGURE 2.5: Rack Installation (4)
FIGURE 2.6: Tools Required for Wall Installation

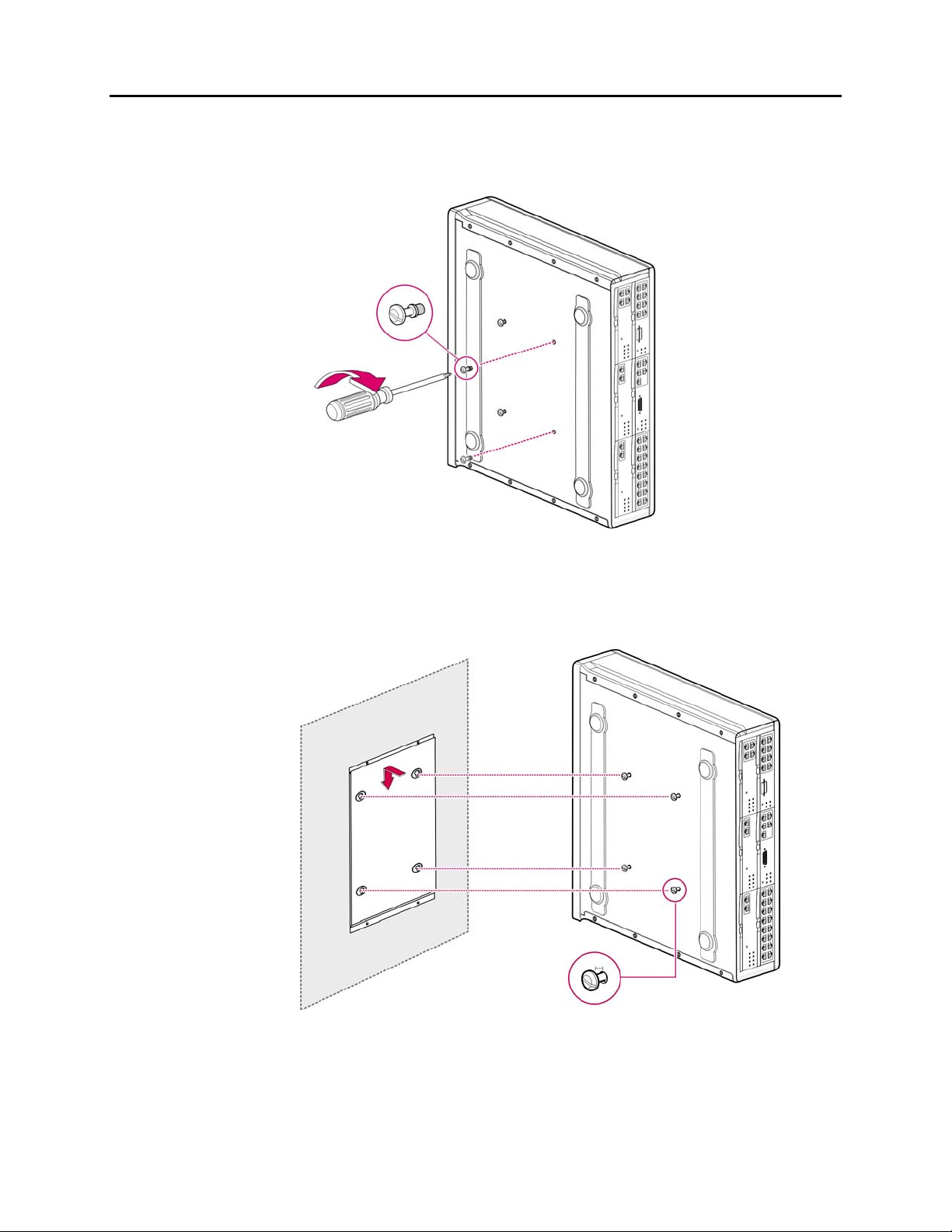

FIGURE 2.7: Wall Installation (1)
FIGURE 2.8: Wall Installation (2)
FIGURE 2.9: Wall Installation (3)
FIGURE 2.10: Wall Installation (4)
FIGURE 2.11: Wall Installation (5)
FIGURE 2.12: Wall Installation (6)
FIGURE 2.13: Grounding
FIGURE 3.1: Front Panel Configuration
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL TABLE OF CONTENTS SEPTEMBER 2005
FIGURE 3.2: Switch Setting
FIGURE 3.3: Installing the Processor Board (1)
FIGURE 3.4: Installing the Processor Board (2)
FIGURE 3.5: Link Cables
FIGURE 3.6: Connecting MCP Board to LCP Board
FIGURE 3.7: Front View of the MCP
FIGURE 3.8: Front View of the LCP
FIGURE 3.9: Installing Optional Boards
FIGURE 3.10: Installing Interface Board into Slot
FIGURE 3.11: Front Panel Lever
FIGURE 3.12: Turning the Cabinet Power Off
FIGURE 3.13: Removing Cable
FIGURE 3.14: Removing Board
FIGURE 3.15: Replacing to New Board
FIGURE 3.16: Setting Switches on the TEPRI Board
FIGURE 3.17: Front View of the TEPRI
FIGURE 3.18: Front View of the 8TRK
FIGURE 3.19: Front View of the 16DLI2
FIGURE 3.20: Front View of the 8DLI
FIGURE 3.21: Front View of the 8COMBO
FIGURE 3.22: Front View of the 16SLI2
FIGURE 3.23: Front View of the 8SLI
FIGURE 3.24: Jumper Setting of WIM Board
FIGURE 3.25: Front View of the WIM Board
FIGURE 3.26: V.35 Cable Pin Outs
FIGURE 3.27: SIO Connector, RJ45 Pin Assignment
FIGURE 3.28: Front View of the LIM Board
FIGURE 3.29: Mounting Optional Board on MGI Board
FIGURE 3.30: Front View of the MGI Board
FIGURE 3.31: Front View of the 4WLI Board
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL TABLE OF CONTENTS SEPTEMBER 2005
FIGURE 3.32: Front View of the 4DSL Board
FIGURE 3.33: Ports (P1~P4) Wiring Pinout
FIGURE 3.34: SVMi-20E LED Indications
FIGURE 3.35: SVMi-20E/HD and SVMi-20E/CF
FIGURE 3.36: Power Fail Transfer Connection to 16MWSLI/16SLI2/8SLI
FIGURE 4.1: Connecting an External Battery (1)
FIGURE 4.2: Connecting an External Battery (2)
FIGURE 5.1: Connecting Power (For Single Cabinet)
FIGURE 5.2: Connecting Power (Using Power Cable)
FIGURE 5.3: Connecting Power (Using Power Extension Cable)
FIGURE 6.1: 8TRK Board
FIGURE 6.2: RJ-45 Port of TEPRI Board
FIGURE 7.1: RJ-45 Port of the 8SLI Board
FIGURE 7.2: RJ-45 Port of the 16SLI2 Board
FIGURE 7.3: RJ-45 Port of the 8COMBO Board (For Analog Phone)
FIGURE 7.4: RJ-45 Port of the 8DLI Board (For Digital Phone)
FIGURE 7.5: RJ-45 Port of the 16DLI2 Board (For Digital Phone)
FIGURE 7.6: RJ-45 Port of the 8COMBO Board (For Digital Phone)
FIGURE 7.7: RJ-45 Port of Boards for Ethernet
FIGURE 7.8: RJ-45 Port of 4WLI Board
FIGURE 7.9: RJ-45 Port of 8DLI Board (For Door Phone)
FIGURE 7.10: RJ-45 Port of 16DLI2 (For Door Phone)
FIGURE 7.11: RJ-45 Port of the 8COMBO Board (For Door Phone)
FIGURE 7.12: Adding an iDC S Keyset Daughter Board Module
FIGURE 7.13: Keyset Base
FIGURE 7.14: Installing KDB-DLI Daughter Board
FIGURE 7.15: Keyset Daughter Board Output Jack
FIGURE 7.16: Connecting Keyset Daughter Board to Keyset PCB
FIGURE 7.17: Installing KDB-DLI Daughter Board
FIGURE 7.18: Connecting a Keyset to a KDB-DLI
Home Page
Table of Contents

FIGURE 7.19: Connecting a Single Line Telephone to a KDB-SLI
FIGURE 7.20: Connecting a Station Device to a KDB via MDF
FIGURE 7.21: Wall-Mounting a Keyset
FIGURE 7.22: Ultra Base Wedge
FIGURE 7.23: Wall-Mounting an iDCS Keyset
FIGURE 7.24: Attaching 24B/12B to 64BM
FIGURE 7.25: Attaching 24B/12B to AOM
FIGURE 7.26: Attaching 7B/Single Line to AOM and 7B/Single Line to 64 BM
FIGURE 7.27: Attaching iDCS 64 Button Module to an iDCS Keyset
FIGURE 7.28: Attaching iDCS 14 Button Module to an iDCS Keyset
FIGURE 7.29: Connecting MOH/BGM Sources
FIGURE 7.30: Connecting External/Additional Page Equipment
FIGURE 7.31: Connecting Common Bell
FIGURE 7.32: OSM Connection to LIM Board via LAN
FIGURE 7.33: OSM Screen
FIGURE 7.34: Setting OSM Parameters
FIGURE 7.35: Connecting SMDR to the LAN Port of the LIM Board
TABLES
TABLE 1.1: Power Specifications
TABLE 3.1: Applicable Boards per Slot
TABLE 3.2: Back Panel Parts
TABLE 3.3: Types of Control Boards
TABLE 3.4: Ports and LEDs of the MCP Board
TABLE 3.5: Ports and LEDs of the LCP
TABLE 3.6: Types of Interface Board and Applicable Slots
TABLE 3.7: Ports and LEDs of the TEPRI
TABLE 3.8: Ports and LEDs of the 8TRK
TABLE 3.9: Ports of the 16SLI2
TABLE 3.10: Ports and LEDs of the 8DLI Board
OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL TABLE OF CONTENTS SEPTEMBER 2005
Home Page
Table of Contents

TABLE 3.11: 16SLI2 Board Ports
TABLE 3.12: Ports and LEDs of the 8SLI
TABLE 3.13: Ports and LEDs of the WIM
TABLE 3.14: Ports and LEDs of the LIM
TABLE 3.15: Ports and LEDs of the MGI
TABLE 3.16: Ports and LEDs of the 4WLI
TABLE 3.17: Ports and LEDs of the 4DSL
TABLE 6.1: OfficeServ 7200 Line Conditions
TABLE 7.1: Distance Between Stations and the System
TABLE 7.2: Specification for Wireless LAN Connection
TABLE 7.3: Wiring Between 4WLI and WBS24
TABLE 7.4: OfficeServ Manager Specification
OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL TABLE OF CONTENTS SEPTEMBER 2005
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 SEPTEMBER 2005
1.1
PART 1. PRE-INSTALLATION INFORMATION
1.1 SITE REQUIREMENTS
Select a location that satisfies the following conditions for safety, temperature, humidity,
power and grounding.
1.1.1 Safety Conditions
•The OfficeServ 7200 system should not be installed near materials that can cause a
fire, such as explosive gas and inflammables. The OfficeServ 7200 system should
not be near equipment that generate electromagnetic waves, such as monitors or
copying machines.
•The installation location should be convenient for distributing trunk lines and
extension lines, for connecting power and grounding wires, and for maintenance
and repair.
•The OfficeServ 7200 system should not be installed in aisles or passageways that
are populated or used for moving equipment.
•Always maintain cleanliness to prevent dust from damaging the board connectors
of the cabinet.
•Before installing the OfficeServ 7200 system, check items such as the electrical
wiring status, grounding status, voltage and frequency.
•Do not expose equipment to direct sun light, corrosive fumes, and constant
vibrations.
•Do not install in close proximity to a fire sprinkler or other sources of water.
•A dedicated commercial AC power outlet is required. Do not use extension cords.
•Ensure that all wires and cables to and from the OfficeServ 7200 do not cross
fluorescent lights or run in parallel with AC wires.
•This equipment is to be installed only in restricted access areas (dedicated,
equipment closets, etc.) in accordance with articles 110-16, 110-17, 110-18 of the
National Electric Code, ANSI/NFPA 70.
1.1.2 Temperature/Humidity Conditions
The conditions for temperature and humidity are as follows:
•Operation temperature: 32°F~113 °F
•Storage temperature: 14°F~122 °F
•Humidity: 10~90 %
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 SEPTEMBER 2005
1.2
1.2 GROUNDING CONDITIONS
An equipment grounding conductor that is not smaller in size than the ungrounded
branch-circuit supply conductors is to be installed as part of the circuit that supplies the
product or system. Bare, covered, or insulated grounding conductors are acceptable.
Individually covered or insulated equipment grounding conductors shall have a
continuous outer finish that is either green or green with one or more yellow stripes.
The equipment grounding conductor is to be connected to ground at the service
equipment.
The attachment-plug receptacles in the vicinity of the product or system are all to be of
a grounding type, and the equipment grounding conductors serving these receptacles
are to be connected to earth ground at the service equipment.
WARNING: HIGH LEAKAGE CURRENT! Earth connection is essential before
connecting supply.
The OfficeServ 7200 system requires that a supplementary earth ground be connected
to the system. This is the preferred method of grounding the OfficeServ 7200. It should
be noted that when the third wire ground becomes inferior it many prevent the digital
data bus from canceling out noise. This may result in erratic operation of the OfficeServ
7200. Another problem that has occurred is that some UPS battery systems do not
pass the ground through to the power cord resulting in no ground to the system. The
ground lug in the back of the cabinet must be connected to one of the following:
bonded building steel, cold water pipe or a ground rod using at least #16 AWG copper
wire. Additionally, the ground between cabinets in a multiple cabinet system must also
be at least #16 AWG copper wire. The third wire AC ground or Field Ground is
connected to the system frame via the ground strap from the ground connector on the
AC socket.
A supplementary equipment grounding conductor shall be installed between the
system and ground that is in addition to the equipment grounding conductor in the
power supply cord.
The supplementary equipment grounding conductor shall not be smaller in size than
the ungrounded branch-circuit supply conductors. The supplementary equipment
grounding conductor shall be connected to the product at the terminal provided, and
shall be connected to ground in a manner that will retain the ground connection when
the product is unplugged from the receptacle. The connection to ground of the
supplementary equipment grounding conductor shall be in compliance with the rules
for terminating bonding jumpers in Part K of Article 250 of the National Electrical Code
ANSI/NFPA 70. Termination of the supplementary equipment grounding conductor is
permitted to be made to building steel, to a metal electrical raceway system, or to any
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 SEPTEMBER 2005
1.3
grounded item that is permanently and reliably connected to the electrical service
equipment ground.
Bare, covered, or insulated grounding conductors are acceptable. A covered or
insulated grounding conductor shall have a continuous outer finish that is either green
or green with one or more yellow stripes.
Failure to provide an adequate ground may cause a safety hazard, confusing trouble
symptoms or even circuit card failure.
WARNING: Unplug the power cord from the AC outlet before attempting to connect
the ground. Hazardous voltage may cause death or injury. Observe extreme caution
when working with AC power. Remove lines from trunk cards.
What the above paragraphs mean is that when conventional analog telephone circuits
are connected to the OfficeServ 7200 system, under fault conditions (i.e., the tip and/or
ring conductor is crossed with a power line, or the circuit is affected by lightning during
a storm), it is possible for hazardous potentials to appear across the tip and ring wiring
coming into the OfficeServ 7200 cabinet(s) from the outside plant (i.e., overhead
cables, buried cables, cable head pedestal). These circuits are provided with both
primary and secondary protection circuitry which will attempt to drain off these high
voltages and currents to earth ground. Obviously, it is important to have a good source
of ground connected to the OfficeServ 7200 system to drain this energy off. Again, a
good earth ground source is required by the OfficeServ 7200 system.
The OfficeServ 7200 system has two ground reference points. One point is via the
green wire in the power cord connected to the AC power outlet. This ground
connection is provided to meet local electrical codes when the AC ground is required
to be common with the earth ground. However, this can be disconnected either
intentionally or unintentionally. Consequently, a more permanent ground connection is
required by connecting a high current/voltage capacity ground wire which is bonded to
ground at the electric service power entrance or via some other method approved by
the National Electrical Code to the OfficeServ 7200 system ground lug. This is a more
secure ground connection, which can only be disconnected intentionally. These
precautions are taken for safety reasons to protect personnel working on the Office
Serv 7200 system and also for operational reasons to accommodate ground return
and/or ground-referenced analog telephone circuits, which require this solid earth
ground connection for normal functioning.
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 1 SEPTEMBER 2005
1.4
1.3 POWER CONDITIONS
The power supply board of the OfficeServ 7200 system receives AC input power or
battery power, and supplies -48 V, -5 V, +5 V, +3.3 V, +12 V, and -56 V to the system
cabinet.
The rating is as follows:
•RATING: AC 110-120 V; 6 A; 50/60 Hz or DC 48 V 3 A
Table 1.1 Power Specifications
Power Supply Unit(PSU) Specification
Input power AC 110 V
DC 48V
(48VDC for battery backup ONLY)
PSU
Output power - DC 48 V, 2.2 A
- DC +5 V, 8.0 A
- DC -5 V, 1.0 A
- DC +3.3 V, 10 A
- DC +12 V, 0.4 A
- DC -56 V, 0.4 A (for battery backup)
1.4 UNPACKING AND INSPECTION
The OfficeServ 7200 can be configured as a single cabinet or dual cabinet system.
All OfficeServ 7200 cabinets are identical when shipped from Samsung. After
unpacking the cabinet(s), inspect for signs of physical damage. If any damage is
detected, do not attempt to install the system. Contact Samsung Telecommunications
America Technical Support Department.
Check to see that each cabinet carton includes the following:
•OfficeServ 7200 cabinet
•AC Power Cable
•Rack Mount Side Flange Brackets (2)
•Rack Mount Cross Bar (1)
•Screw Pack
•Battery Cable Assembly
•Blanking Plates (3)
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 SEPTEMBER 2005
2.1
PART 2. INSTALLING CABINETS
This section describes how to install an OfficeServ 7200 cabinet on a table/desktop in a
data rack or on a wall, depending on the installation environment.
2.1 SYSTEM INSTALLATION PROCEDURE
The procedure of system installation is as follows.
1) Install the OfficeServ 7200 cabinet on a table, inside a data rack or on the wall
depending on the installation environment.
2) Connect the ground to the ground lug behind the main cabinet.
3) Put the MCP board into slot 0 of the main cabinet. If there is an expansion cabinet,
install the LCP board into slot 0 of the expansion cabinet.
4) Install interface boards into universal slots (slot 1 through slot 5) of the Main Cabinet
and if required slots 1 through 5 of expansion cabinet.
5) Connect an external battery with proper capacity if required.
6) Connect AC 110 V input power.
2.2 SELECTING INSTALLATION METHOD
The OfficeServ 7200 cabinet can be installed on a table, inside a 19-inch rack or on a
wall depending on the number of cabinets and environment of the installation area.
2.3 INSTALLING IN A RACK
2.3.1 Cautions for Installation
Take the following precautions when installing the OfficeServ 7200 cabinet inside a
rack:
•The 19-inch rack should be a standard equipment rack.
•When using an enclosed-type rack, check if the rack is properly ventilated. Vents
should be equipped on the side of the rack and fans should be attached to ventilate
cool air into the rack.
•Take special caution when using an enclosed-type rack that has vents on top of the
rack since hot air coming out of the vent may enter the intake vent of a system
installed above the rack.
•When using an open rack, do not block the entrance of a port or fan of the
OfficeServ 7200 system.
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 SEPTEMBER 2005
2.2
2.3.2 Required Tools
•A mid-sized Phillips screwdriver
•A bracket and three screws for attaching cabinet to rack mount
•Two brackets and six screws for rack mount
•Two screws for fastening
Figure 2.1 Tools Required for Rack Installation
2.3.3 Installing in a Rack
The procedure for installing the OfficeServ 7200 cabinet inside a 19-inch rack is as follows:
1) Attach the cabinet bracket to the bottom surface of the OfficeServ 7200 cabinet and
fasten the bracket firmly with the three screws.
Figure 2.2 Rack Installation (1)
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 SEPTEMBER 2005
2.3
2) Attach the rack brackets to both sides of the rack and fasten the brackets firmly with
the six screws.
Figure 2.3 Rack Installation (2)
3) Align the cabinet to the guardrails of the rack and slide the cabinet into the rack.
Figure 2.4 Rack Installation (3)
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 SEPTEMBER 2005
2.4
4) Align the two holes of the cabinet bracket and the holes of the rack brackets, and
fasten the cabinet to the rack with the two screws.
Figure 2.5 Rack Installation (4)
5) The above steps 1~4 also apply to expansion cabinets.
2.4 INSTALLING ON A WALL
This section describes how to install the OfficeServ 7200 cabinet on a wall. The
optional OfficeServ 7200 wall mount bracket is required (must be ordered separately).
2.4.1 Required Tools
•A mid-sized Phillips screwdriver
•An electric drill
•A hammer
•A wall bracket
•Four plastic anchors
•Four Phillips screws
•Four install lock screws
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 SEPTEMBER 2005
2.5
•Two screws that are already screwed in the bottom of the OfficeServ 7200 cabinet.
Figure 2.6 Tools Required for Wall Installation
2.4.2 Wall Installation
The procedure for installing the OfficeServ 7200 cabinet on a wall by using a wall
bracket is as follows:
CAUTION: Only mount OfficeServ 7200 onto a wall capable of supporting
the combined weight of 2 cabinets associated blocks, cables and
peripheral equipment.
1) There are four screw holes (see [A] Figure 2.7) on the wall bracket as shown below.
Mark the four screw holes where the wall bracket should be installed.
Figure 2.7 Wall Installation (1)
A
A
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 SEPTEMBER 2005
2.6
2) Use the electrical drill to make holes where the screw holes were marked.
Figure 2.8 Wall Installation (2)
3) Select appropriate screws, toggle bolts, or plastic anchors to suit the selected
mounting surface.
4) Secure the bracket to the wall using appropriate hardware.
Figure 2.9 Wall Installation (3)
5) There are two screws in two of the four holes at the bottom of OfficeServ 7200 cabinet
as shown below. To install on the wall, loosen the two screws to approximately 2mm as
shown in figure 2.10.
Figure 2.10 Wall Installation (4)
2mm
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 SEPTEMBER 2005
2.7
6) Tighten two more screws to the other two holes which do not have screws at the
bottom of OfficeServ 7200 cabinet. Do not tighten the screws all the way in but
leave about 2 mm space.
Figure 2.11 Wall Installation (5)
7) Hang the screws on the bottom surface of the OfficeServ 7200 cabinet to the holes
of wall bracket and push the cabinet downward to fix the cabinet.
Figure 2.12 Wall Installation (6)
2mm
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 2 SEPTEMBER 2005
2.8
2.5 CONNECTING GROUND WIRES
This section describes how to connect an external grounding wire to the OfficeServ
7200 system.
External Grounding
External grounding is required to prevent human injuries and system damage
caused by lightning, static electricity, or voltage surge.
As shown in the figure below, connect an earth ground to the ground lug behind the
OfficeServ 7200. For an expansion cabinet, connect and ground the external ground
wire between the expansion cabinet and the main cabinet.
Figure 2.13 Grounding
IMPORTANT: Follow the grounding requirements described in section 1.2
(Grounding Conditions) when connecting a ground to the system.
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 3 SEPTEMBER 2005
3.1
PART 3. INSTALLING AND REPLACING
BOARDS
This section describes how to install and replace various boards of the OfficeServ 7200
system.
3.1 CABINET CONFIGURATION
The main and expansion cabinets of the OfficeServ 7200 system have six slots each.
Figure 3.1 Front Panel Configuration
Following boards are installed in the slots according to the configuration of the OfficeServ
7200.
Table 3.1 Applicable Boards per Slot
Cabinet Slot Applicable Boards
Slot 0 For LCP ONLY
Slot 1 All boards EXCEPT M C P, L C P, T E P R I a n d L I M
Slot 2 All boards EXCEPT M C P, L C P, T E P R I a n d W I M
Slot 3 All boards EXCEPT MCP, LCP and WIM
Expansion Cabinet
Slot 4, 5 All boards EXCEPT M C P, L C P, T E P R I a n d W I M
Slot 0 For MCP ONLY
Slot 1 All boards EXCEPT M C P, L C P, T E P R I a n d L I M
Slot 2 All boards EXCEPT M C P, L C P, T E P R I a n d W I M
Main Cabinet
Slot 3, 4, 5 All boards EXCEPT MCP, LCP and WIM
The front panel
of an expansion
cabinet
The front
panel of a
main cabinet
Slot 0 Slot 1 Slot 2
Slot 3 Slot 4 Slot 5
Slot 0 Slot 1 Slot 2
Slot 3 Slot 4 Slot 5
Home Page
Table of Contents

OfficeServ 7200 INSTALLATION
TECHNICAL MANUAL PART 3 SEPTEMBER 2005
3.2
Checking Slots
The WIM board can only be installed in slot 1 of the main cabinet or slot 1 of
the expansion cabinet, and the TEPRI board can only be installed on slots 3, 4
and 5 of the main cabinet and slot 3 of the expansion cabinet.
Figure 3.2 Back Panel Configuration
Back panel components:
Table 3.2 Back Panel Parts
Parts Description
qPower switch Switches the power of OfficeServ 7200 on/off.
wPower connector between a
basic cabinet and an extension
cabinet
Extends 110V AC power from base cabinet to
expansion cabinet.
eAC Power Cord “IN” Connects to a grounded electrical outlet on a
dedicated circuit.
rAC LED Is lit for the AC input power.
tDC LED Is lit for the DC output power (internal DC voltage)
yBattery Backup connector Connects an external battery source “48VDC only”
3.2 MCP AND LCP MODULES
This section describes the procedures for setting switches, installing optional daughter
boards, installing the boards in a slot, and how to connect between the MCP and LCP
boards.
The OfficeServ 7200 MCP (Main Control Processor) controls the system operation. The
MCP is required for all configurations and goes in slot 0 of the main cabinet. The LCP
goes in slot 0 of the expansion cabinet.
y
t
r
e
w
q
Ground Connector
Home Page
Table of Contents
