Sanav MU-201 User manual

a
SANAV MU-201
GPS/GPRS Nano Tracker
User Manual
Revision: 1.1.5
Revision Date: 2012/07/16
July 2012 1.1.5
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
This document contains information that is the property of SANAV. This document may not be copied, reproduced,
reduced to any electronic medium or machine readable form, or otherwise duplicated, and the information herein may not
be used, disseminated or otherwise disclosed, except with the prior written consent of SANAV

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
b
MU-201 User Documentation
Introduction SANAV MU-201 is a more compact version of focusing on the pets or asset tracking market. Its
location can be real time tracked through internet or specified terminals. The user can
communicate with the service server through GPRS/GSM network, transfer alarms of
Emergency, Geo-fencing., Remote Control, and Lower power, and record the tracking history
stored in internal memory through USB or website.
This User Manual details the specification, hardware introduction, SMS commands and Tracker
Status of MU-201. If you have any question about the operation of MU-201, please contact
SANAV Customer Service [e-mail].
Disclaimer This document, and all other related products, such as device, firmware, and software, is
developed by San Jose Technology Inc. thoroughly. At the time of release, it is most compatible
with specified firmware version. Due to the functionalities of the devices are being developed and
improved from time to time, the change in the protocol, specification, and firmware functions are
subjects to change without prior notice. SANAV is obligated to modify all the documentation
without the limitation of time frame. A change notice shall be released to San Jose Technology
Inc. customers upon the completion of document modification.
San Jose Technology Inc. products are not intended to be used as life support or rescue
equipments. San Jose Technology Inc. is not liable for any loss or injury caused by using or
referencing to any products. Any possible means of using or integrating San Jose Technology Inc.
products shall be avoided.
Copyright Copyright © 2011, San Jose Technology, Inc. All rights reserved.
The information in this publication is proprietary to San Jose Technology, Inc.
No part of this publication may be used, disclosed, reproduced, adapted, translated, stored in a
retrieval system, or transmitted in any form of or by any means, electronic or mechanical, for any
purpose, without the prior written permission of San Jose Technology, Inc. although every
precaution has been taken in the preparation of this publication, San Jose Technology, Inc.,
assumes no (i) responsibility for errors or omissions contained herein or (ii) liability for any
damages resulting from the use of information contained herein. Information in this publication is
subject to change without notice.

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
c
Document Amendments
Revision
Date F/W Version Comments
1.0.1 2011/1/5 B2.02T Main Functions implemented
1.0.2 2011/3/8 B2.02T LED & SMS commands Redefined
1.0.3 2011/4/20 B2.03T Bug fixes, VS status show/hide, HTTP get/post protocol.
1.0.4 2011/5/25 B2.05T Specifications& VS status show/hide
1.0.5 2011/7/29 V2.06 Vibration sensitivity
1.0.6 2011/8/18 V2.07 1. Define over speed logic
2. Add Tail Report On/Off
3. Modify all respond messages by SMS/COTA.
1.0.7 2011/10/5 V2.08 1. Define the battery gauge (%) data come after voltage information.
2. px3kr connection support
1.0.8 2011/11/10 V2.09 Vibration Sensor logic
1.0.9 2011/12/7 V3.00 Quick reset
1.1.0 2011/12/27 V3.01 1. Heartbeat
2. During startup, GPS and GSM LED will stay ON (Red light) for 20
seconds.
1.1.1 2011/12/29 V3.02 Add GF clear data function
1.1.2 2012/3/21 V3.03 1. AGPS
2. PIN Code
3. Show LP when under 3.7V LP,
4. MCU shutdown voltage is from 3.4V to 3.15V,
5. Power button
6. AUTO ON
7. Power OFF Message
8. Power ON/OFF schedule
9. Use”;” replace with”,” for GF and voltage message
1.1.3 2012/4/10 V3.031 Bug fix for PIN code setup fail
1.1.4 2012/7/2 V3.06 Log GPRMC sentences increased from 2000 to 5000
1.1.5 2012/7/16 V3.06 New amendment& release
1. Voltage Percentage (P53)

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
d
Contents
Document Amendments............................................................................c
MU-201 Hardware General Introduction ..................................................... 1
Specification........................................................................................... 1
Package Contents .............................................................................. 2
Front View ........................................................................................ 3
MU-201 LED Indication....................................................................... 3
Charging MU-201 .............................................................................. 5

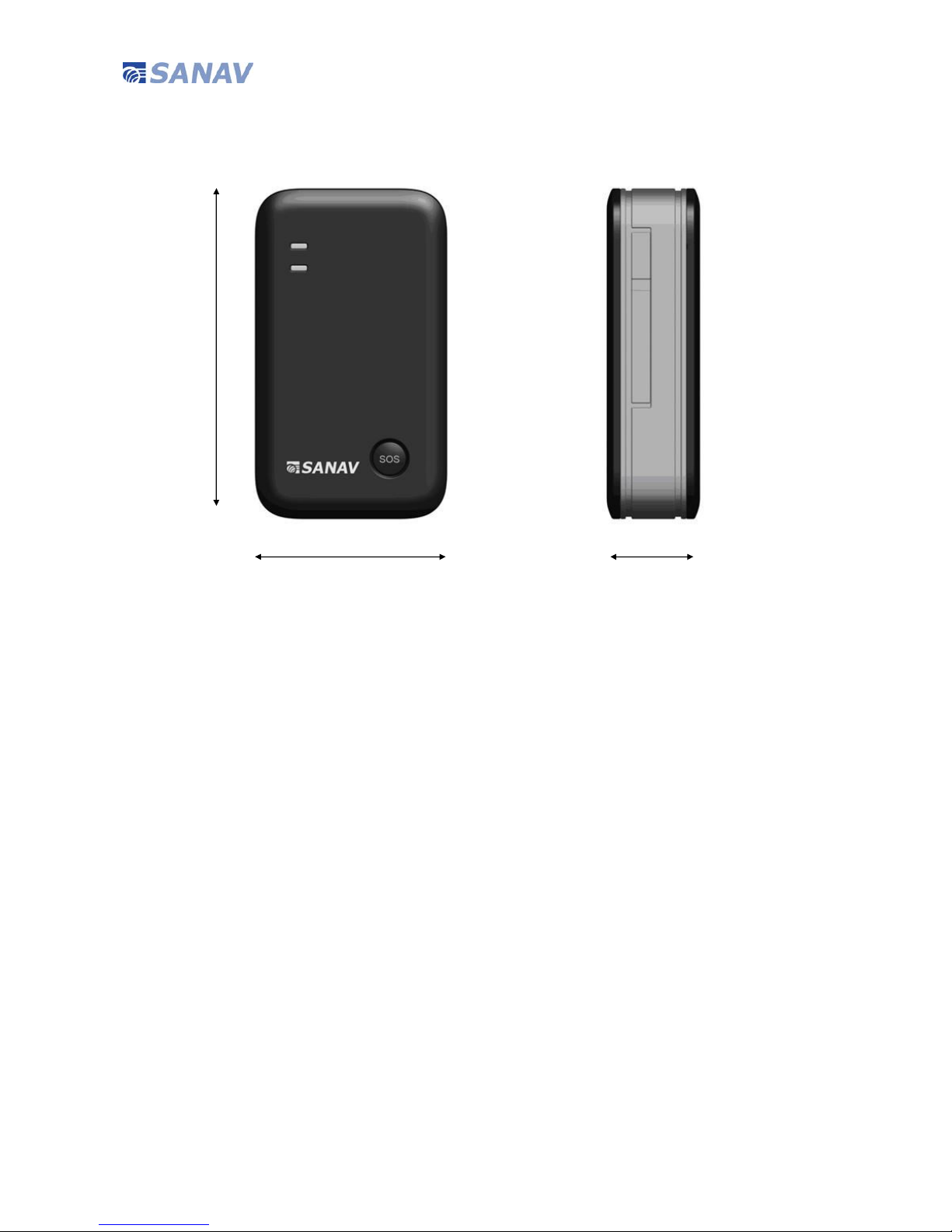

Dimension ........................................................................................ 6
Command Setup for MU-201 .................................................................... 7
Change User Name ................................................................................. 8
Change Password.................................................................................... 9
Request IMEI Number.............................................................................10
Set up APN for GPRS Service ...................................................................11
Set up Route for Data Transmission..........................................................12
Set up URL............................................................................................14
Set up TCP/UDP Server Address...............................................................15
Set up Phone Book List ...........................................................................16
Set up Security Phone Book List...............................................................17
Enable Security Phone Book ....................................................................18
Set up Answer Call Mode.........................................................................19
Set up SOS Phone Book..........................................................................20
Set up SOS Event Report Interval ............................................................21
SOS Event Report Flow ...........................................................................22
Stop SOS Report (Exit from SOS Mode) ....................................................23
Set up Auto Report.................................................................................24
Auto Report by Distance .........................................................................25
Auto Report by Stationary Times..............................................................26
Current Position Polling...........................................................................28
Set up Polling Format .............................................................................29

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
e
Google MAP Report with Address..............................................................30
Set up Address Language........................................................................32
Language Codes Reference Table .............................................................33
Set up Park/Move...................................................................................35
Set up Move Interval ..............................................................................36
Set up Vibration.....................................................................................37
Show Vibration Status ............................................................................38
Vibration Sensitivity ...............................................................................39
Set up Over Speed .................................................................................40
Set up Over Speed Interval .....................................................................41
Set up Geo-Fence Coordinates.................................................................42
Enable Geo-Fence ..................................................................................44
Set up Geo-Fence Event Report Interval ...................................................46
Erase the Logged Data............................................................................47
Power Button.........................................................................................48
Power Cord AUTO ON .............................................................................49
Power ON/OFF Schedule .........................................................................51
Request Battery Voltage .........................................................................52
Voltage Percentage.................................................................................53
Reset to Default Setting..........................................................................54
Tail Report.............................................................................................55
Appendix 1: Tracker Event List.................................................................57
Appendix 2: GPRMC Data Output Format ..................................................58
Appendix 3: NMEA 0183 GPRMC Data Format ............................................61
FAQ......................................................................................................62
Warranty Regulation ...............................................................................63

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
1
MU-201 Hardware General Introduction
Specification
GSM
Frequency:
Quad-Band: 850/900/1800/1900MHz
Compliant to GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
GPRS: GPRS multi-slot class 10
GPRS mobile station class B
RMS Phase Error: ≤5deg
Max Out RF power: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102 dBm
Receiving Sensitivity: Class II RBER≤2％（-102dBm）
Stability Of Frequency: Greater than 2.5ppm
Max Frequency Error: ±0.1ppm
GPS
GPS Chipset: UBX-G5010
Receiver Type
50 Channels
GPS L1 frequency, C/A Code
GALILEO Open Service L1 frequency
Sensitivity:
Tracking & Navigation -160 dBm
Acquisition -160 dBm
Cold Start (Autonomous) -145 dBm
TTFF (Open Sky): Cold start 40 s average Warm start <30s Hot start <2 s
User Interface
Mini USB Connector: Include charger
Power Button: Power on and power off.
General
Dimension: 60mm* 35 mm * 19mm
Weight: 65 g
Backup Battery: Li-Polymer 650 mAh , 3.7V
Standby Time: 10 minutes reporting: 50 Hours (estimation)
60 minutes reporting: 100 Hours (estimation)
Charge Voltage 5 V DC
Air Interface Protocol
Transmit Protocol: TCP,UDP,SMS
Geo-Fence: 10 Geo-Fence regions can be defined.
Low Power Alarm: Alarm when battery is low
Power On Report: Report on power up
Operating Environment
Operating Temperature 0°C to +55°C
Storage Temperature -20°C to +85°C
*This specification is subject to change without prior notice

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
2
Package Contents
MU-201 x 1 Power Cord (USB Type) x 1
AC Adapter x 1 100～240V AC / 1.2A Manual/Utility/USB Driver
(by downloading)
Note: Connect Power Cord to AC Adapter to be a whole power charging solution.
Optional Accessories
Utility AP Data Cable Note the Difference!!!

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
3
Front View
MU-201 LED Indication
GSM GPS
Device Stat
us
Red Green Red Blue
Power ON
Long Press Power key for 3s
Steady ON
then following
booting procedure
(About 20s)
Steady ON
then following
booting procedure
(About 20s)
Power OFF
Long Press Power key for 3s
Steady ON around 8s
Than power off
Steady ON around 8s
Than power off
GPS is not fixed - - Flash/5s -
GPS is fixed - - - Flash/5s
GPS Status
GPS sleeping mode
- - - -
GSM NOT in Service
Flash/5s - - -
GSM Status
GSM in Service - Flash/5s - -
SOS Mode
In SOS Mode Steady ON - Steady ON -
Park Trigger on - - Flash 5 times
Park state - Flash/5s - -
Park Mode
Park Trigger off - - Flash 5 times
Receive SMS Command - Flash 5 times - -
Low Power Flash/1s - -
Battery Charging - - - Flash/1s
Battery Full Charged - Flash/1s - -
NO SIM or Invalid SIM ERROR
(After Power On)
OFF OFF - -
SOS/Park Button
 SOS - Press and hold for 3s to
trigger SOS Mode.
 Exit from SOS - In SOS Mode,
press and hold for 3s again.
 Park - One Short Press to trigger
Park Mode.
 Exit from Park – In Park mode,
one short press again to exit Park
Mode.
 GSM LED (Red)
 GPS LED (Blue)

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
4
Top View
Note: Please insert SIM card BEFORE turning ON the device.
Bottom View
Side View
Power button
Turn ON/OFF: Press and hold for more than 3
seconds.
ON: Both red LEDs steady ON
OFF: Both green& blue LEDs steady ON
Hidden Microphone
(For Overhearing)
SIM Card Holder

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
5
Insert SIM Card (Please note the SIM Card direction)
Note: Please make sure PIN Code function is disabled before inserting the SIM card.
Charging MU-201
Plug power cord into Mini USB socket for charging. (5V DC Input)
MINI USB 8 PIN
Charge the device for 2~3 hours for 1st time
charging.

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
6
Dimension
Weight: 65g
60 mm
35 mm
19mm

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
7
Command Setup for MU-201
MU-201 currently provides SMS command and COTA (TCP) command for remote setup. User can setup the MU-201 by
following the instructions shown in following chapters via SMS/COTA. Key the specific SMS message in your cellular phone
and send it to the SIM number of MU-201. The setup messages are showed in the following sections.
1: The default setting:
Default ID is “username”. Please read chapter Change User Name to desired ID.
Default password is “0000”. Please read chapter Change Password to change the password.
There is no number in the default contact. Please read chapter Set up Phone Book List to add the number.
Default setting of Auto Report is deactivated. Please read chapter Set up Auto Report by Time to setup the
regular
auto report.
Default setting of APN is only suitable for Taiwan GSM network. Please read chapter Set up APN for GPRS Service
to
change the APN.
Default setting of URL is http://www.sanavtw.com/uploadM1.php. Please read chapter Set up URL
to change the
URL for http server setup.
Before doing any setup, please ensure the device is connected with the GSM network. The GSM
LED must light on. And
please note the device is not in SOS/Panic mode.
2: Please note that all the characters which include #, * and comma (,) should be HALFWIDTH form.
3: Please be aware of the upper (capital)/lower cases when entering the SMS command.
4: While entering any SMS command, note that NO SPACE is allowed between the characters, comma and signs
in the
SMS.
5: Any setup command must be started with a “#” sign and ended up with a “*” sign.
6: The comma (,) can be abbreviated if no further setup required for the command besides Set up APN for GPRS
Service. Please refer to the examples of Set up Auto Report.
6: Add or not add the
“+ “sign in front of the cellular phone number(s) are both acceptable, while the”+” sign should
precede the international call prefixes. The specified international call prefix is required if “+ “sign is not added.
7: The device will update setting Only when the password, username and setup command are all correct.
If the command is not valid, a failure report is going to be sent to the user’s cell phone.
8: Some PREPAID PHONE CARD SIM modules do not enable or even support GPRS service. Please consult with GSM
carrier for further information.

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
8
Change User Name
Generally, SMS command execution needs correct user name with password, or it will remain the same setting.
The SMS command default user name is “username”. It can be changed by following the command format.
For example, entering the SMS command as the following allows user to change the user name from “username” to a new
user name “jacky”.
Only enter new command with new user name after it has been changed.
Setup Format: #「username」,「Password」,「Function Mode」,「New User Name」*
Command: #username,0000,1,jacky*
SMS/ COTA Command Description
# Start sign.
user name Default ID of the device.
0000  Default password.
 If you have changed the password, please use the updated one.
1 Mode 1 defines user name setup mode.
jacky  New user name changed by the user.
 At the maximum of 16 characters, including a~z,A~Z,0~9, @ - _ / .!%&

Please notice that you should notice if the letters is capitalized or in small
letters when sending the command.
* End sign.
Table: User Name Change Format Description
Situation Message Reply
Setup Succeeds <OK>Username setup,V4.231;100%
Setup Fail <FAIL>Username setup,V4.231;100%
Emergency Mode <FAIL>PANIC ON; Command not Allow!,V4.200;100%
Table: User Name Change Response Description

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
9
Change Password
Generally, SMS command execution needs correct user name with password, or it will remain the same setting.
The SMS command default password is “0000”. It can be changed by following the command format.
For example, entering the SMS command as the following allows user to change the password from “0000” to a new
password “1111”.
Only enter new command with new password after it has been changed.
Setup Format: #「username」,「Password」,「Function Mode」,「new Password」,「new Password」*
Command: #username,0000,2,1111,1111*
SMS/ COTA Command Description
# Start sign.
username  Default ID of the device.
 If you have changed the username, please use the updated one.
0000  Default password.
 If you have changed the password, please use the updated one.
2 Mode 2 defines the password setup mode.
1111 New password (Please note at the maximum of 4 number)
1111 Reconfirm the password
* End sign.
Table: Password Change Format Description
Situation Message Reply
Setup Succeeds <OK>Password setup,V4.239;100%
Setup Fail <FAIL>Password setup,V4.239;100%
Emergency Mode <FAIL>PANIC ON; Command not Allow!,V4.200;100%
Table: Password Change Response Description

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
10
Request IMEI Number
IMEI stands for International Mobile Equipment Identification, a unique number for identifying mobile devices validity in
GSM network.
As above stated, each device has a unique IMEI number. Entering the command as the following allows user to check the
IMEI number of the device for network registration and tracking.
Setup Format: #「username」,「Password」,「Function Mode」*
Command: #username,0000,imei*
SMS/ COTA Command Description
# Start sign.
username Default ID of the device.
If you have changed the user name, please use the updated one.
0000 Default password.
If you have changed the password, please use the updated one.
imei Mode “imei” defines the device IMEI number request mode.
* End sign.
Table: IMEI Number Request Format Description
Situation Message Reply
Setup Succeeds <OK>Read IMEI=357566000046804,V4.097;98%
Table: IMEI Number Request Response Description

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
11
Set up APN for GPRS Service
Access Point Name (APN) is a protocol that typically allows a user's device to access the internet using the mobile phone
network. It is a network identifier used by a mobile device when connecting to a GSM carrier. The carrier will then examine
this identifier to determine what type of network connection should be created.
For uploading the data to a web server, a set of GPRS APN from your GSM network is required. Various GSM network
provides different GPRS APN settings. Please ask your GMS carrier about the APN settings. If the user name and password
of APN are indefinite or showed in blank, just leave the parameters empty (no space). User can follow the Setup Format
below to setup the APN that is provided by your GSM carrier.
Setup Format: #「username」,「Password」,「Function Mode」,「APN name」,「APN username」,「APN password」,「APN
DNS」*
Example1:#username,0000,3,twm,1234,1234, 172.20.2.10*
Example2:#username,0000,3,internet,,*
Note1: The total length of APN name, APN username, APN Password, and APN DNS should be less than 70 characteristics.
Note2: Some PREPAID PHONE CARD SIM modules do not enable or even support GPRS service. Please consult with GSM
carrier for further information.
SMS/ COTA Command Description
# Start sign.
username  Default ID of the device.
 If you have changed the user name, please use the updated one.
0000  Default password.
 If you have changed the password, please use the updated one.
3 Mode 3 defines the APN setup mode.
twm APN Name
1234 APN user name (optional)
1234 APN Password (optional)
172.20.2.10 APN DNS (optional)
* End sign.
Table: APN Setup Format Description
Situation Message Reply
Setup Succeeds <OK>GPRS APN setup,V4.195;100%
Emergency Mode <FAIL>PANIC ON; Command not Allow!,V4.091;98%
Table: APN Setup Response Description

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
12
Set up Route for Data Transmission
This SMS command instructs the device decide to transmit GPS (GPRMC) positioning data to where in which protocol.
Please confirm the back-end server protocol type and corresponded URL or IP address (with port number if required)
before setup. There are 4 main protocols available for transmitting route setup:
1. HTTP: Hypertext Transfer Protocol. An internet browser based server protocol that usually has a specified URL (Uniform
Resource Locator).
2. TCP/IP: Transmission Control Protocol. An OSI Transport layer protocol that has more complex frame structure, higher
reliability but slower processing speed than UDP/IP.
3. UDP/IP: User Datagram Protocol. An OSI Transport layer protocol that has faster processing than TCP/IP but does not
guarantee data delivery.
4. SMS: The DEVICE will send GPS data by SMS message format to Cellular phone.
User can choose the route to transmit the data by HTTP/TCP/UDP protocol individually or with SMS message as a backup
route. Please refer to the following table for the route setup.
Setup Format: #「username」,「Password」,「Function Mode」,「0,2,4,6,7,8 or 9」*
Command: #username,0000,14,6*
SMS/ COTA Command Description
# Start sign.
Username Default ID of the device.
If you have changed the user name, please use the updated one.
0000 Default password.
If you have changed the password, please use the updated one.
14 Mode 14 defines Transmission Route mode.
0
HTTP/SMS. Send data to HTTP server. If the route is not available, send data by SMS
message instead.
2
HTTP only. Send data to HTTP server. No SMS backup route.
4
SMS only. Send data by SMS message to cell phone. No backup route.
6
TCP/SMS. Send data to TCP server. If the route is not available, send data by SMS
message instead.
7
TCP Only. Send data to TCP server. No SMS backup route.
8
UDP/SMS. Send data to UDP server. If the route is not available, send data by SMS
message instead.
6
9
UDP Only. Send data to UDP server. No SMS backup route.
* End sign.
Table: Transmission Route Setup Format Description

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
13
Situation Message Reply
<OK>Route is HTTP/SMS mode, V3.793;56%
<OK>Route is HTTP mode, V3.793;56%
<OK>Route is SMS mode, V3.793;56%
<OK>Route is TCP/SMS mode, V3.793;56%
<OK>Route is TCP mode, V3.793;56%
<OK>Route is UDP/SMS mode, V3.793;56%
Setup Succeeds
<OK>Route is UDP mode, V3.793;56%
<FAIL>PANIC ON; Command not Allow!,V4.091;98%
<FAIL>PANIC ON; Command not Allow!,V4.091;98%
<FAIL>PANIC ON; Command not Allow!,V4.091;98%
<FAIL>PANIC ON; Command not Allow!,V4.091;98%
<FAIL>PANIC ON; Command not Allow!,V4.091;98%
<FAIL>PANIC ON; Command not Allow!,V4.091;98%
Emergency Mode
<FAIL>PANIC ON; Command not Allow!,V4.091;98%
Table: Transmission Route Setup Response Description

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
14
Set up URL
This SMS command instructs the device to transmit GPS (GPRMC) positioning data to a specified URL (Uniform Resource
Locator) or IP address of HTTP protocol server for real time GPS tracking.
Entering the SMS command as the following allows user to changes the address to
“http://www.sanavtw.com/uploadM1.php”. The address will be assigned to receive the GPS data sent by the device.
Setup Format: #「username」,「Password」,「Function Mode」,「URL」*
Command: #username,0000,4, http://www.sanavtw.com/uploadM1.php*
Note: The URL should be less than 80 characteristics.
Table: URL or IP Setup Format Description
Table: URL or IP Setup Response Description
SMS/ COTA Command Description
# Start sign.
username  Default ID of the device.
 If you have changed the user name, please use the updated one.
0000  Default password.
 If you have changed the password, please use the updated one.
4 Mode 4 defines the URL setup mode.
http://www.sanavtw.com/
uploadM1.php
URL of the HTTP server.
* End sign.
Situation Message Reply
Setup Succeeds <OK>IP/Domain setup, V3.793;56%
Emergency Mode <FAIL>PANIC ON; Command not Allow!,V4.091;98%

MU-201 GPS/GPRS Nano Tracker User Manual
Copyright © 2011 San Jose Technology, Inc. All Rights Reserved.
15
Set up TCP/UDP Server Address
User can use IP address setup command to indicate the device transmit GPS (GPRMC) positioning data to a specified TCP
or UDP protocol based server for real time tracking.
Entering the SMS command as the following allows user to change the address to specified IP and port. The IP address will
be assigned to receive the GPS data sent by the device.
Setup Format: #「username」,「Password」,「Function Mode」, 「TCP/UDP server address」*
Command: #username,0000,18,220.128.123.1:7878 *
Or #username,0000,18,icare-u.com.tw:12345*
SMS/ COTA Command Description
# Start sign.
username Default ID of the device.
If you have changed the user name, please use the updated one.
0000 Default password.
If you have changed the password, please use the updated one.
18 Mode 18 defines the TCP/UDP Server Address setup mode.
220.128.123.1:7878 TCP/UDP Server Address and Port / Domain name
* End sign.
Table: Server Address Setup Format Description
Situation Message Reply
Setup Succeeds <OK>TCP/UDP URL setup, V3.793;56%
Emergency Mode <FAIL>PANIC ON; Command not Allow!,V4.091;98%
Table: Server Address Setup Response Description
