Santec PCU-110 User manual

Polarization Control Unit
Operation Manual
PCU-110

PCU-110 Operation Manual
Trademarks
is a trademark of Santec Corporation.
PCU-110 is a trademark of Santec Corporation.
Notes to Users
1) Copyright 2020, Santec Corporation. All rights reserved. No part of this Operation
Manual may be reproduced or transmitted in any form or by any means, electronic
or mechanical, for any purpose, without the prior written permission of Santec.
2) Information in this Operation Manual is subject to change without notice.
3) Information of this Operation Manual is prepared with careful examination, however,
in the event of any mistake, please contact us.
Notes in Bringing This Product Out of Japan
1) When this product is brought out of Japan, some laws or regulations of a destination
country may prohibit this product from being used there. In such countries, the use
of this product may lead to punishment. Please note, that in such cases Santec
Corporation shall not be held responsible in anyway.
2) When this product is exported (or brought out of Japan), and this product is applicable
to a strategic material specied in the “Foreign Exchange and Foreign Trade Control
Law”, then under law of the Japanese Government, an export permit is required.

Polarization Control Unit PCU-110
The packing materials and box of this product are needed for long-term storage or
transportation; keep them in a safe place after unpacking the product.
NOTE
Introduction
Thank you very much for purchasing our product, the Santec PCU-110. This Operation
Manual contains the necessary information for proper operation of the PCU-110, and
it is intended for those with sufcient knowledge about the dangers of lasers and their
safe control. Before operating the PCU-110, you should rst read thoroughly through
this Operation Manual and become familiar with its contents. After reading this
Operation Manual, keep it close by for an easy reference anytime.

PCU-110 Operation Manual
How to Read the Manual
Before operating the PCU-110, please read this instruction manual carefully.
This Operation Manual consists of 9 Chapters:
Chapters 1 to 4 illustrate the outline of the product, safety precautions, and installation.
Chapter 5 describes how to operate the product. Santec recommends that Chapter 1
to 4 be read carefully before proceeding to this chapter.
Chapter 6 explains the specications.
Chapter 7 describes the maintenance and storage methods of the product.
Chapter 8 explains the packing instructions and shipping.
Chapter 9 describes the operation, troubleshooting.
Before using this product, please carefully read this Operation Manual.
NOTE

Polarization Control Unit PCU-110
Explanation of Terms
The meanings of the following terms used in this Operation Manual are defined as below:
(1) Meaning
Markings on the instrument
(2) Importance of Information
From the above meanings, the priority of the terms here are as shown below:
DANGER > WARNING > CAUTION > NOTE
NOTE
This indicates pressing DANGER, and if it
is not avoided, personnel death or serious
injury may result; therefore, it is the most
emphasized special information.
This indicates potential danger, and if it is
not avoided, personnel death or serious
injury may result; therefore, it is special
information.
This indicates potential danger, and if it
is not avoided, mild or slight injury may
result; therefore, it is special information. It
also indicates potential danger leading to
only physical damage.
This section only indicates supplementary
explanations of the text and thus other
than DANGER, WARNING, and CAUTION.
CAUTION
WARNING!
DANGER!!
DANGER
WARNING
CAUTION
NOTE
This mark is used on the equipment as warning of danger.

PCU-110 Operation Manual
1. Introduction 1-1
2. Product Composition 2-1
3. Panel Description 3-1
3-1 Front Panel 3-1
3-2 Rear Panel 3-2
3-3 Bottom 3-3
4. Installation 4-1
4-1 Warning and Caution 4-1
4-2 Operating environments 4-1
4-3 Power supply 4-2
4-4 Maximum safe input power 4-2
5. Basic Operation 5-1
5-1 GPIB 5-1
5-1-1 Connection 5-1
5-1-2 GPIB Function 5-2
5-2 LAN 5-3
5-2-1 Connection 5-3
5-2-2 Communication Conditions and System Requirements 5-3
5-3 USB 5-4
5-3-1 Connection 5-4
5-3-2 Communication Conditions and System Requirements 5-4
5-3-3 Installing a USB Driver Software 5-5
5-3-4 Installing a VCP Driver Software 5-8
5-4 Turning on PCU-110 5-15
5-5 Turning off PCU-110 5-15
5-6 Command Reference 5-16
5-6-1 Common Commands 5-16
Contents
Introduction
How to Read the Manual
Instrument Markings
Explanation of Terms

Polarization Control Unit PCU-110
5-6-2 PCU-110 Status System 5-17
5-6-3 IEEE488.2 Common Commands –Detailed Description 5-19
5-6-4 PCU-110 Specic Command Overview 5-21
5-6-5 PCU-110 Specic Command – Detailed Description 5-23
5-6-6 Command Error 5-28
5-7 Power Monitor Signal Output 5-29
6. Specications 6-1
7. Maintenance 7-1
7-1 Daily Maintenance 7-1
7-2 Cleaning the Optical Connector 7-1
7-3 Replacing Fuses 7-2
7-4 Long-Term Storage 7-2
8. Re-packing and Shipping 8-1
8-1 Re-packing 8-1
8-2 Shipping 8-1
9. Troubleshooting 9-1

PCU-110 Operation Manual

Polarization Control Unit PCU-110
1-1
Introduction
1
The PCU-110 is a polarization state generation device. This device is capable of
generating 6 special states of polarization (SOP) across the Poincare sphere: linear
polarization states at 0°, +90°, +45°, and –45° as well as right hand circular (RCP)
and left hand circular (LCP) polarization states, relative to the axis defined by an
internal linear polarizer. The actual output polarization states may be rotated due to
the output single mode ber, so the exact SOP locations on the Poincaré sphere of
the Polarimeter may be different. However, the 6 generated polarization states will
symmetrically cover the Poincaré sphere with the same angular relationship.

1-2
PCU-110 Operation Manual

Polarization Control Unit PCU-110
2-1
Product Composition
2
This product is composed of the PCU-110 body and accessories.
The following parts are included:
・
PCU-110 Body 1
・
Power cord 1
・
Operation Manual & Software 1
・
Inspection report 1
Check to make sure that the product body and the accessories have no scratches or
stains. If any item is found to have scratches or stains, please contact us.

2-2
PCU-110 Operation Manual

Polarization Control Unit PCU-110
3-1
Panel Description
3
Figure 3-1. Front Panel
(1) Power on switch
Switch the unit on and off using the power switch.
(2) Optical input Port
This port is connected with PM ber.
(3) Optical Output Port
This port is connected with SM ber.
(4) SOP display
Displays the current SOP (state of polarization) setting.
3-1 Front Panel
(1) (2) (3)
(4)

3-2
PCU-110 Operation Manual

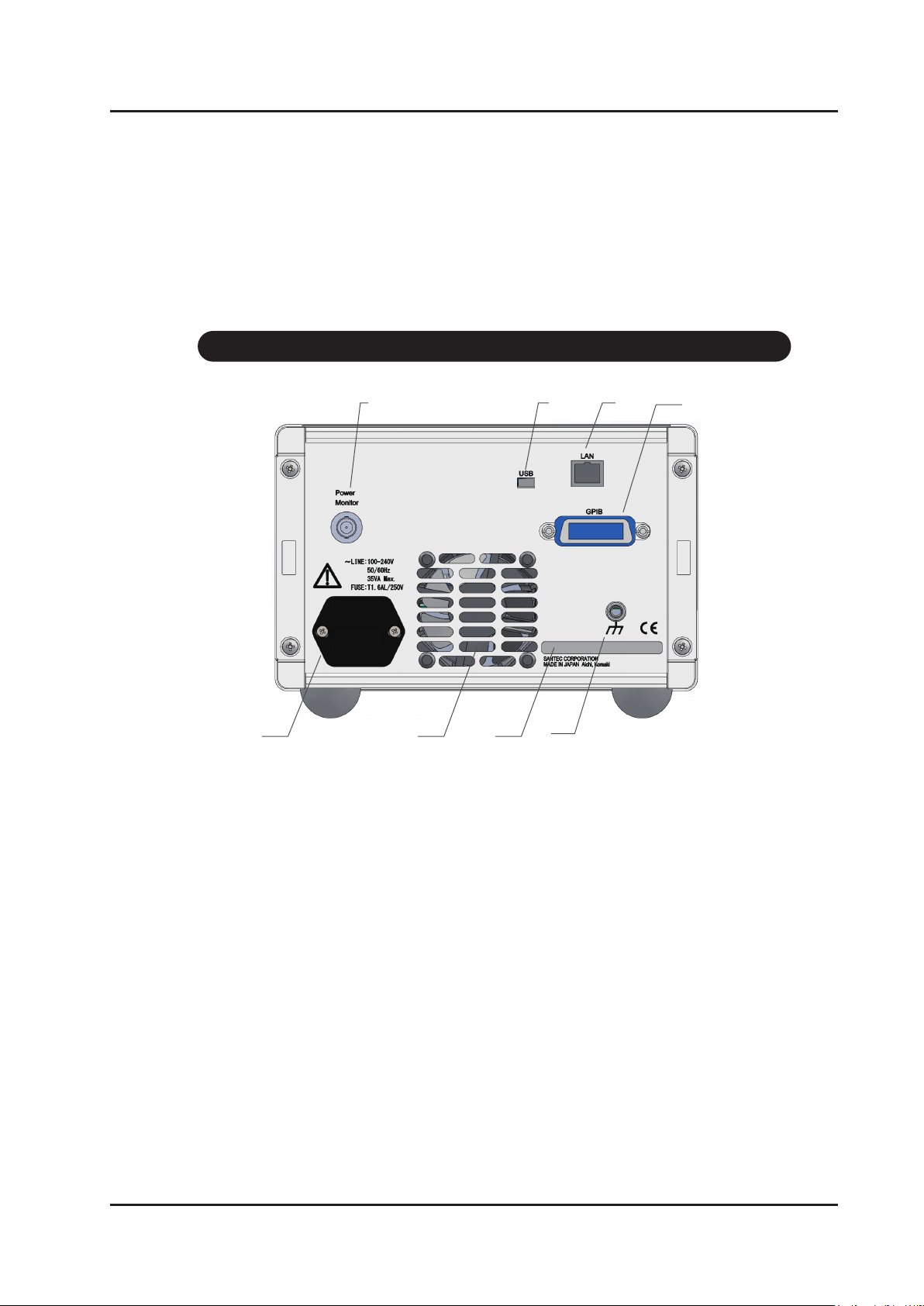

3-2 Rear Panel
(1) (2)
(5)
(3) (4)
(6) (7) (8)
(1) Power Monitor
(2) USB Connector
(3) LAN Connector
(4) GPIB Connector
(5) Main Power Connector Socket
(6) Exhaust Fan
(7) Name Plate
(8) Frame Ground
Figure 3-2. Rear Panel

Polarization Control Unit PCU-110
3-3
3-3 Bottom
(1) Slits
These are slits for ventilation and cooling. It is important that the unit is used
in a location which allows cool air to ow freely into the slits.
(2) Rubber Feet
The rubber feet provide mechanical isolation from external shocks and
vibrations. They also allow an air gap beneath the slits ensuring ventilation
and cooling for the instrument.
Please use without removing the rubber feet.
Figure 3-3. Bottom View
(2)
(1)

3-4
PCU-110 Operation Manual

Polarization Control Unit PCU-110
4-1
Installation
4
・
Dangerous voltages, capable of causing injury or death, are present in this instrument.
Use extreme caution whenever the instrument covers are removed. Do not remove
the covers while the unit is plugged into a live outlet.
・
To avoid electric shock, the power cord protective ground conductor must be
connected to ground.
・
No user serviceable part exists in this instrument. Refer all services to qualied
personnel.
・
Before using this instrument, be sure to read through operation manual and data
sheets to ensure correct operations. Contact SANTEC to obtain service support
and do not install substitute parts or perform any unauthorized modications to this
instrument.
4-1 Warning and Caution
Pay attention to the following guidelines for safe, trouble-free operation.
This product is a high-precision device:
  ・ Do not place in direct sunlight.
  ・ Do not place under high temperature and high humidity.
  ・ Do not place in an environment with dust, dirt, salt, or corrosive gas.
 ・
Do not place in an area subject to large vibrations.
 ・
Do not place in an area subject to noise by electric eld, magnetic eld, etc.
 ・
Do not place in an area where the unit is subject to falling objects landing on it.
 ・
Do not place with possible exposure to water.
 ・
Do not place over a height of 2,000 meter.
Clearance of 5 cm at the rear side of the unit should be allowed for proper ventilation.
The PCU-110 weighs about 3.2 kg. Please ensure that the table or shelf upon which it
is installed has sufcient strength.
4-2 Operating environments

4-2
PCU-110 Operation Manual
4-3 Power supply
This product uses a 3-line power cord and plug with a protective ground line.
Power cord may be attached and detached. Connect it to the power source socket at
the rear panel. Use the power cord supplied with the unit. Power Voltage is between
100 to 240 Volts, and 50 to 60Hz AC Line.
* Use two surge resistant type fuses. T1.6AL /250V (100 - 240V). The size of fuses is
5x20mm (Refer to section “7-3. Replacing Fuses").
CAUTION
This product is grounded by the ground line in the supplied power cable. This
product must be properly grounded to avoid electrical shock and other dangers.
Please make sure that this product is properly grounded to avoid electrical shock.
In addition, please place this product in a location that allows the user to easily
unplug the power cable, in case of any device malfunction.
4-4 Maximum safe input power
The maximum optical input power is +25dBm. Excess power input causes damage of
product.

Polarization Control Unit PCU-110
5-1
Basic Operation
5
PCU-110 is controlled by software working on external computer. PCU-110 supports
GPIB, LAN and USB as means of communication. The setting method, characteristics,
and differences of each method are described below.
PCU-110 can be used with santec PDL Swept Test System. The system software is
provided with attached USB stick.
5-1 GPIB
A communication function based on standards specied in IEEE-488.2.
CAUTION
To prevent equipment failure, be sure to turn off the power before connecting or
disconnecting the communication cable connector.
■5-1-1 Connection
Connect the 24-pin GPIB cable to the GPIB connector on the rear panel.
The total extension of the connected cable shall be 20 m or less. The cable
length between each device must be 2 m or less. At most, 15 devices can be
connected.
The default address setting is “5”. GPIB address can be changed by command.
GPIB connector

5-2
PCU-110 Operation Manual
CAUTION
Do not disconnect or connect a cable from and to devices connected with GPIB
cable, do not short-circuit the connector, and do not turn ON/OFF the devices.
Otherwise, actions may be stopped or errors may occur, causing a failure. In the
event of such failure, reset all the connected devices, and then activate the system
once again.
When conguring a system, remove the unused device or unnecessary cable and
return to the original setup.
■5-1-2 GPIB Function
GPIB has 10 kinds of interface functions, each of which has its grade that is
called its subset. A “0” after the symbol of each function shows that support is
not made, and each numeric value represents grade.
Symbol Function PCU-110 Subset
SH Source handshake SH1: All functions
AH Acceptor handshake AH1: All functions
T Talker T8: Basic talker, listener release by MLA
L Listener L4: Basic listener, talker release by MLA
SR Service request SR1: All functions
RL Remote/Local RL1: Switching remote/local, local lockout
PP Parallel poll PP0: none
DT Device trigger DT0: none
DC Device clear DC1: All functions
C Controller C0: none
Table 5-1. Subset of PCU-110
