SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 1 / 13 www.santos.fr

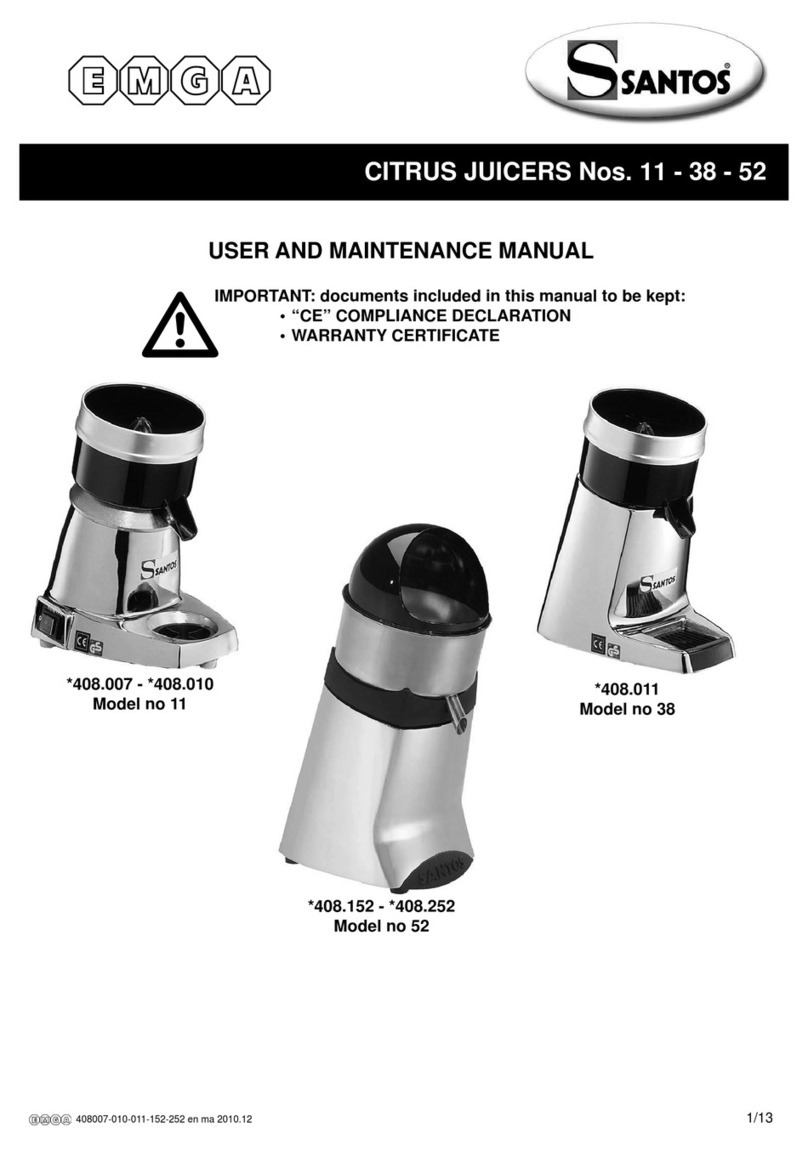

USER AND MAINTENANCE MANUAL
IMPORTANT: documents included in this manual to be kept:
•"CE" COMPLIANCE DECLARATION
•WARRANTY CERTIFICATE
Translation of the original version
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
SANTOS :
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
TÉL. [phone] - FAX [phone] -
TELECOPIE 33 (0) 478 26 58 21
E-Mail :[email protected] www.santos.fr

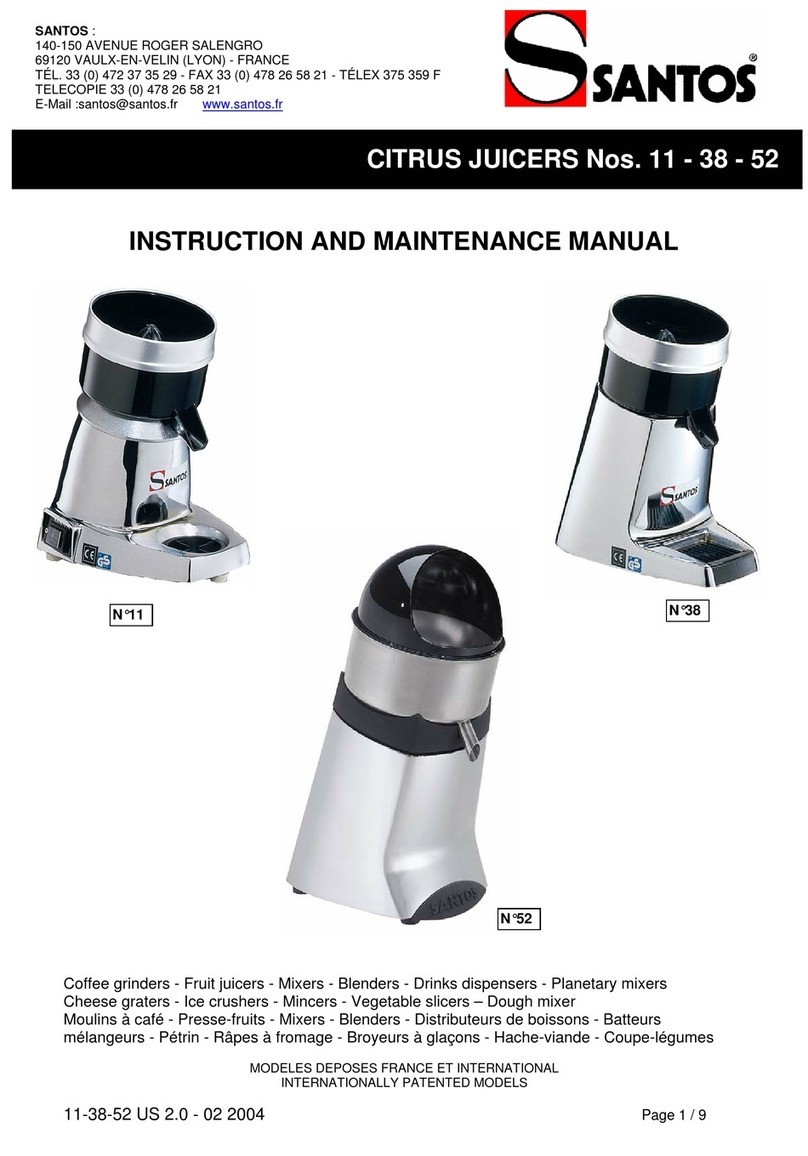

CITRUS JUICERS Nos. 11 - 38 - 52
N°11
N°38
N°52
!

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 2 / 13 www.santos.fr
CONTENTS
“CE” COMPLIANCE DECLARATION..................................................................................3
IMPORTANT SAFEGUARDS..............................................................................................4
IMPROPER USE..............................................................................................................4
ELECTRICAL CONNECTION:.........................................................................................4
USING FOR THE 1st TIME:.............................................................................................5
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE .............................5
YOUR CITRUS JUICER Nos. 11- 38 - 52 ...........................................................................6
Using the CITRUS JUICER .................................................................................................6
USING:.............................................................................................................................6
CLEANING:......................................................................................................................6
MAINTENANCE...............................................................................................................7
Spare parts ......................................................................................................................7
TROUBLESHOOTING.........................................................................................................7
The appliance does not start:.......................................................................................7
The appliance stops due to motor overheating.............................................................7
The appliance stops further to an overload: .................................................................7
TECHNICAL SPECIFICATIONS .........................................................................................8
ELECTRICAL WIRING DIAGRAMS.................................................................................9
Wiring diagram 220-240V 50/60Hz..................................................................................9
Wiring diagram 220-240V 50/60Hz................................................................................10
Wiring diagram 100-120V 50/60Hz................................................................................11
FIGURES.......................................................................................................................12
WARRANTY CERTIFICATE ............................................................................................13
APPLIANCE IDENTIFICATION PLATE ..........................................................................13

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 3 / 13 www.santos.fr
“CE” COMPLIANCE DECLARATION
THE MANUFACTURER:
SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON)
FRANCE
declares that the appliance intended for the professional market described below:
Description: CITRUS JUICERS
Type number: 11, 11C, 38, 38C, 52, 52C
complies with:
•the statutory provisions defined in appendix 1 of the European "machines" directive
n°2006/42/CE and the national legislation transposing it
•the statutory provisions of the following European directives and regulations:
oN° 2006/95/CE (low voltage directive)
oN° 2004/108/CE (EMC directive)
oNo. 2002/95/CE (RoHS directive)
oNo. 2002/96/CE (WEEE directive)
oN° 1935/2004/CE (regulation) relating to materials and articles intended to
come into contact with foodstuffs
Harmonised European standards used to give presumption of conformity with the essential
requirements of the above-mentioned directives:
•NF EN ISO 12100 -1 and 2:2004: Safety of machinery - General principles for
design
•NF EN 60204-1: 2006 : Safety of machinery - Electrical equipment of machines-
General requirements
•NF EN 1672-2: 2005, Food processing machinery – Basic concepts – Hygiene
requirements
•NF EN 60335-1: 2003 : Household and similar electrical appliances. Safety.
•NF EN 60335-2-64 :2004 : Particular requirements for commercial electric kitchen
machines
Drawn up in VAULX-EN-VELIN on: 01/01/2010
Signatory’s position: CHIEF EXECUTIVE OFFICER
Signatory’s name: Aurélien FOUQUET
Signature:

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 4 / 13 www.santos.fr
IMPORTANT SAFEGUARDS
When using, cleaning or maintaining the machine, always follow these instructions:
Read all instructions
IMPROPER USE
1. Do not use this appliance to press any food other than limes, lemons, oranges
and grapefruit.
2. The appliance should neither be cleaned in a jet of water nor with a high
pressure spray.
3. The base (4) must not be immersed in water.
4. For electrocution risk protection reasons, never plunge the base into water or
any other liquid.
5. Unplug the appliance before carrying out any work on it: cleaning, maintenance
or repair.
6. The use of spare parts other than certified SANTOS original parts is prohibited.
7. This appliance is not designed for use by people (including children) whose
physical, sensorial or mental capacities are impaired or by people with no
experience or knowledge, unless they have been supervised or given training in
the use of the appliance beforehand by a person responsible for their safety.
Supervise children to ensure they do not play with the appliance.
ELECTRICAL CONNECTION:
The appliance is available in with a choice of two voltages for the power supply
•220-240V 50/60 Hz single phase
•110-120V 50/60 Hz single phase
Line protection: the appliance should be connected to a standard 2-pole + earth electric
socket. The installation should be fitted with an RCD and a fuse rated at 16A. The
appliance must be earthed
CARE:
•Before connecting the machine, check that the mains electrical voltage is the
same as the voltage for your appliance. Its value is shown:
either on the identification plate under the machine.
or on the identification plate on the last page of this manual.
•If the power cable (10) is damaged, it should be replaced by a special
assembly available from approved SANTOS dealers or from SANTOS.
Note: You will find it easier to understand the next few paragraphs if you refer to
the diagrams at the end of this manual.
!
!

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 5 / 13 www.santos.fr
CARE: Make sure that the on / off switch (6) is on 0 position before plugging the power
cord (7) into the mains supply socket (Fig.A).
USING FOR THE 1st TIME:
Carefully clean all parts of the machine in contact with the food (Fig. A).
•Remove the anti-splash dome (8) {model no 52}.
•Remove the cone (1) by pulling it upwards.
•Remove the bowl (2), the pulp grating (9) {model no 52} and the trim (3) {model nos.
11 and 38}.
•Wash the parts with a standard washing up liquid or in the dishwasher.
RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE
This equipment is marked with the selective sorting symbol relating to
wastes from electrical and electronic equipment. It signifies that this product
should be taken over by a selective collection system conforming to the
Guideline 2002/96/EC (WEEE) – part Professional Equipment – so that it
can be either recycled or dismantled in order to reduce any impact on the
environment.
For more information, please contact your Retailer or the SANTOS.
For eliminating or recycling components of equipment, please contact a specialized
company or contact SANTOS.
The electronic products not undergoing a selective sorting are potentially dangerous for
the environment.
The damaging materials should be eliminated or recycled according to the regulations in
force.

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 6 / 13 www.santos.fr
YOUR CITRUS JUICER Nos. 11- 38 - 52
•Citrus juicers nos. 11 – 38 – 52 are especially designed for bars, cafés, hotels,
restaurants, cocktail bars, institutions, fresh fruit juice bars, etc.
•The appliances nos. 11 and 38 are comprised of an aluminum motor unit, a juice
bowl and 3 engineered plastic pressing cones (2 pressing cones for model N°38).
•The appliance no. 52 is comprised of an aluminum motor unit, a powerful motor for
intensive use, a stainless steel bowl, 3 plastic pressing cones and a plastic anti-
splash dome.
•Citrus juicers nos. 11 – 38 – 52 are designed to press limes, lemons, oranges or
grapefruit.
•They are ideal for preparing: fresh lemon, orange or grapefruit juice or as a basis for
preparing fruit cocktails.
Using the CITRUS JUICER
USING:
Caution: the fruits used must be washed carefully before being pressed.
Assembly and preparation:
1. Place the trim (3) on the bowl (2) {models nos. 11 and 38}.
2. Place the bowl (2) on the base (4).
3. Place the pulp grating (9) in the bowl.
4. Place the cone (1) on the motor shaft (5).
5. Place the anti-splash dome (8) on the bowl (2) {model no 52}.
6. Cut the citrus fruit in two halves.
7. Place a glass level with the spout on the bowl (2).
8. Start the appliance by putting the On / Off switch (6) on "1".
9. Press the citrus fruit halves one after the other.
10.When you have finished using it, stop the appliance by putting the On / Off switch
(6) on "0".
CLEANING:
IMPORTANT :
•In every case, stop the appliance and unplug the appliance’s power cord
(7).
It is recommended to clean the appliance as soon as you have finished using it.
Cleaning will be easier if you do not wait until the pulp has dried in the bowl (2), on the
anti-splash dome (8), the cone (1) or the pulp grating (9).
The base (4) is to be cleaned with a soft damp sponge, then dried.

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 7 / 13 www.santos.fr
MAINTENANCE
Before any servicing of the appliance, it is essential to unplug the appliance from the
mains supply (7).
This machine requires no particular maintenance because the bearings are lubricated for
life.
If servicing is necessary to replace any parts such as the electrical components or any
others, refer to the list of components (see the exploded view at the end of the manual).
Spare parts
IMPORTANT:Use of spare parts other than certified original SANTOS
parts is prohibited
For all spare part orders (see references in the exploded view at the end of the manual),
state:
the type,
the machine serial number and
the electrical specifications (16)
recorded under the machine.
TROUBLESHOOTING
Identifying the cause of appliance stoppage precisely.
The appliance does not start:
•Check: the mains supply, the condition of the power cord (7).
The appliance stops due to motor overheating:(the motor unit is hot)
The motor is protected by a built-in thermal cutout. In the event of overheating, the motor
stops.
•Set the On / Off switch (6) to 0position, disconnect the plug (7).
•Wait until the motor cools down (20 to 45 minutes), reconnect the plug (7) then press
the On / Off switch (6) (position 1).
If the problem persists, switch off the power supply to the appliance (unplug the cord from
the mains socket (7)) and call in the maintenance service or contact a SANTOS-approved
dealer.
The appliance stops further to an overload:
If the motor stalls (due to excessive pressing), it can heat very quickly and stops by
overload protection.
!

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 8 / 13 www.santos.fr
TECHNICAL SPECIFICATIONS
Model
N° 11
N° 38
N° 52
Supply voltage
.(V)
220-240 100-120
220-240 100-120
220-240 100-120
Frequency
(Hz)
50/60 50/60
50/60 50/60
50/60 50/60
Motor: Nominal
Power input
(W)
130 155
130 155
230 260
Speed :
(rpm)
(rpm)
1450 to 50Hz
1700 to 60Hz
1450 to 50Hz
1700 to 60Hz
1450 to 50Hz
1700 to 60Hz
Dimensions : Height
(mm)
350
350
480
Width
(mm)
200
200
230
Depth
(mm)
300
300
300
Clearance height beneath
the spout
(mm)
125
135
200
Weight: Net weight
(kg)
5
5
10
Packaged weight
(kg)
5.6
5.6
11
Noise: (2)
(dBA)
65
65
65
(1) These ratings are provided as a rough guide. The exact electrical specifications can be found
on the rating plate.
(2) Noise level measured in sound pressure appliance in operation 1 m from its axis in accordance
with standard EN 31201.
MARK
Description
1
Pressing cone
2
Bowl
3
Trim
4
Base
5
Motor shaft
6
On / off switch
7
Plug / power supply cord
8
Anti-splash dome
9
Pulp grating

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 9 / 13 www.santos.fr
ELECTRICAL WIRING DIAGRAMS
Models nos. 11 and 38:
Wiring diagram 220-240V 50/60Hz
~
1x240
1x340
Green/Yellow
2
4
5
1
Blue
M
Black
White
Black
White 180
White 180
On / Off
Blue
Brown
Capacitor

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 10 / 13 www.santos.fr
Model no 52:
Wiring diagram 220-240V 50/60Hz
~
2x240
Green/Yellow
2
4
5
1
Yellow
M
Black
White
Grey
White 240
White 240
On / Off
Blue
Brown

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 11 / 13 www.santos.fr
Models nos. 11, 38 and 52:
Wiring diagram 100-120V 50/60Hz
~
2x240
Green/Yellow
2
4
5
1
Yellow
M
Black
White
Red
White 240
White 240
On / Off
White
Black
Capacitor

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 12 / 13 www.santos.fr
FIGURES
Fig. A
8
1
9
2
5
7
4
6
7
1
9
3
2
5
4
6
Model N°52
Model N°11
or
Model N°38
6

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 13 / 13 www.santos.fr
WARRANTY CERTIFICATE
WARRANTY
Since the 01.01.95, all our appliances comply with CE and possess the CE label. Our guarantee is
of 24 months from the manufacturing date mentioned on the descriptive plate, except concerning
the asynchronous motors (consisting of a rotor and a stator) which are warranted for 5 years from
their manufacturing date. Warranty is strictly limited to the free replacement of any part of origin
recognized by us as defective due to a defect or building default and identified as belonging to the
concerned appliance. Warranty does not apply to damages resulting from installation or use non-
complying with our appliance data sheet (user’s manual) or in case of an evident lack of
maintenance or disrespect of elementary security electric rules. It does not apply in case of regular
wear and tear. Any replacement of parts under warranty will be realized after return of the
defective part in our workshops, postage paid, supported by a copy of a conformity statement on
which appears the serial number of the appliance. Every appliance is equipped with a descriptive
plate conforming to the EC recommendations and of which a duplicate exists in the conformity
statement (serial number, manufacturing date, electrical characteristics …). In case of serious
damage judged repairable only in our workshops, and after prior consent from our departments,
any appliance under guarantee is sent by the Distributor, carriage paid. In case of repairs or
reconditioning of appliances not under guarantee, the round trip transport is payable by the
distributor. The parts and workforce are invoiced at the current rate. A preliminary estimate can be
supplied.
Coffee grinder not using SANTOS original burrs are not taken under guarantee. The warranty
conditions, repairs, reconditioning, of the espresso coffee grinder are the object of a specific note.
Our guarantee does not extend to the payment of penalties, the repair of direct or indirect
damages and notably to any loss of income resulting from the nonconformity or the defectiveness
of products, SANTOS's global responsibility being limited to the sale price of the delivered product
and to the possible repair of the defective products.
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a
different written agreement of SANTOS, indicate to his customer to stop any use of the defective
product. Such a use would release SANTOS of any responsibility.
APPLIANCE IDENTIFICATION PLATE
SPECIMEN
For all documents not supplied with
the appliance.
Printed, Faxed and Downloaded
