YCP06SQ Operating Instructions 3
Contents
Contents
1 About this Document........................4
1.1 Validity ................................4
1.2 Accompanying Documents ................4
2 Intended Use ...............................4
3 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Installation.................................6
4.1 Prerequisites for Installation...............6
4.2 Disassembling Components ...............6
4.3 Installing the Pipette Calibration Kit........7
5 Operation ..................................7
5.1 Filling the Moisture Trap..................7
5.2 Pipette Calibration.......................8
5.3 Adjustment and Calibration of the Balance . . 8
6 Cleaning ...................................8
7 Accessories.................................8

4 YCP06SQ Operating Instructions
About this Document
1 About this Document
1.1 Validity
These instructions apply to the device in the following
versions:
Product Model
Pipette calibration kit YCP06SQ
1.2 Accompanying Documents
This manual contains the instructions for operating the
product with the standard equipment intended for this
purpose.
t In addition to these instructions, observe the
following documents:
− The information in the installation and
operating instructions for the Secura®and
Quintix®balances.
2 Intended Use
The pipette calibration kit is designed to calibrate
pipettes in the weighing chamber of the balance.
These instructions are part of the product. The product
is intended exclusively for use in accordance with these
instructions.
Any further use beyond this is considered improper
and is prohibited. These instructions are part of the
product. The product is intended exclusively for use
in accordance with these instructions.

YCP06SQ Operating Instructions 5
Product Description
English
3 Product Description
Product Overview

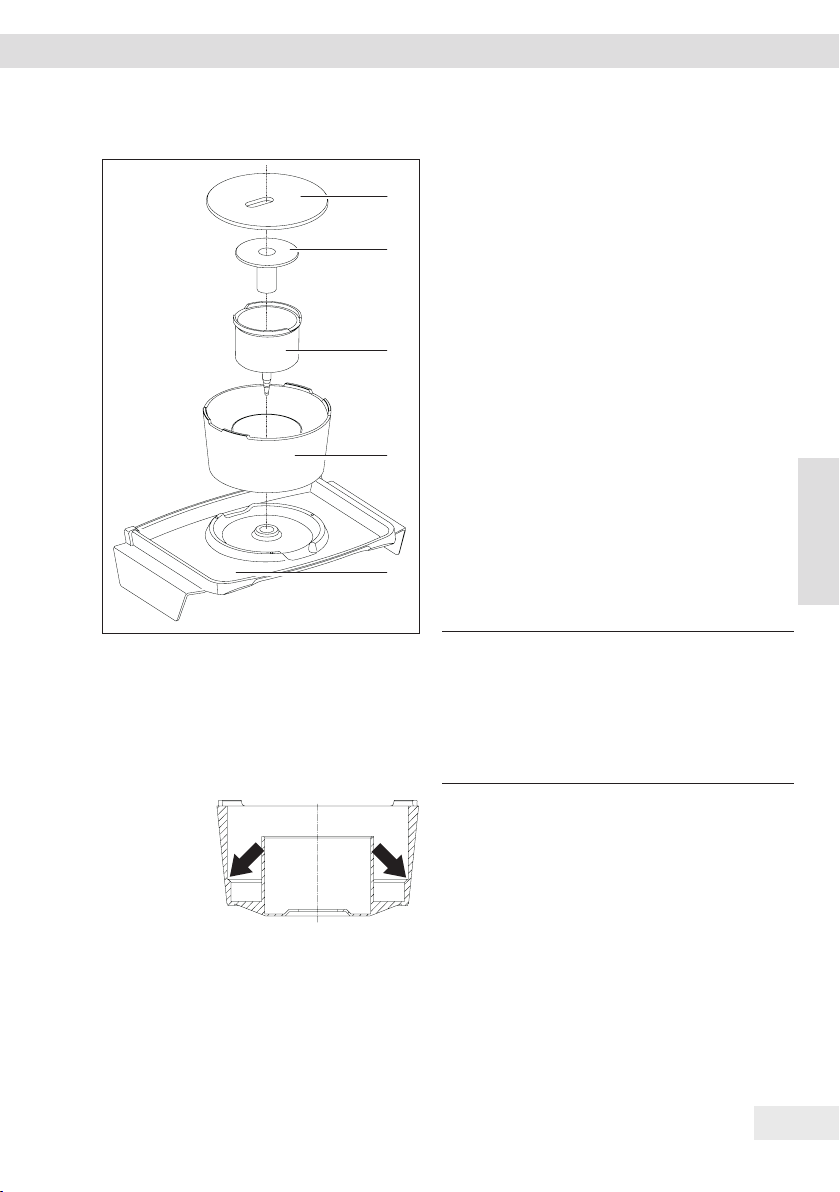

No. Description
1 Glass lid of moisture trap
2 Lid of pipetting vessel
3 Pipetting vessel
4 Moisture trap
5 Weighing chamber base of the pipette
calibration kit
1
2
3
4
5

6 YCP06SQ Operating Instructions
Installation
4 Installation
4.1 Prerequisites for Installation
The pipette calibration kit can be installed in the
weighing chamber of the following models:
− Secura®models 225D-1..., 125-1..., 324-1...
− Quintix®models 125D-1...
Ensure the following conditions have been met:
− The place of installation of the balance must not be
exposed to drafts or vibrations
− No exposure to direct sunlight
− Temperature: 20 – 25 °C
− Constant conditions during measurement: ± 0.5°C
Procedure
t Ensure that the liquid temperatures in the moisture
trap are conditioned to the ambient temperature
(acclimatization takes at least 2 hours).
t Ensure that all parts of the pipette being tested are
at the temperature in the weighing chamber.
t If required: Wait a few minutes.
t Observe the national legal regulations for pipette
calibration.
4.2 Disassembling Components
Procedure
t Remove the following parts from the weighing
chamber:
− Weighing pan
− Weighing chamber base

YCP06SQ Operating Instructions 7
Operation
English
4.3 Installing the Pipette
Calibration Kit
Procedure
t Insert the following components into
the weighing chamber in the order
given:
− Weighing chamber base of pipette
calibration kit (1)
− Moisture trap (2)
− Pipetting vessel (3)
− Lid of pipetting vessel (4)
− Glass lid of moisture trap (5)
5 Operation
5.1 Filling the Moisture Trap
Notice
Equipment damage due to improper
filling!
t Fill the moisture trap outside of the
balance.
Procedure
t Fill the moisture trap with water at
maximum up to the inner edge.
t NOTICE To prevent damage due to
corrosion inside the weighing chamber,
be sure to empty the moisture trap
when not in use. Leave the moisture
trap filled with water only for the time
it takes to prepare for and perform
pipette calibration.
2
3
4
5
1

8 YCP06SQ Operating Instructions
Cleaning
5.2 Pipette Calibration
Prerequisites
Test liquid: Use only de-aerated, bi-distilled water at
room temperature.
Procedure
t Calibration of the pipette: The max. filling quantity
of 50 ml must not be exceeded.
t If necessary, empty the pipetting vessel.
5.3 Adjustment and Calibration of the
Balance
Procedure
t Switch off the “isoCAL” function before pipette
calibration (see operating instructions for the
balance).
t Before starting the adjustment/calibration: Reinstall
any uninstalled parts in the weighing chamber of
the balance along with the weighing pan.
6 Cleaning
Notice
Do not clean the pipette calibration kit in the
dishwasher.
Procedure
t Clean the parts with a mild cleaning agent
(e.g. isopropanol)
t After cleaning, dry the parts with a lint-free cloth.
7 Accessories
Description Order no.
Exhaust pump YCP05-SP01
