Saxby Lighting 78646 Manual

Ground Deck / Ground light
78646, 78647
Instruction leaflet
Care and Safety
• We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage
the finish.
• Always disconnect the product from mains at least 10 minutes allowing to cool down before any maintenance or
This LED's are protected by a plastic lens. The lens part must be replaced immediately should it
become cracked or damaged. This fitting must not be used without the plastic lens in place.
adjustment.
Iss .4 08/11/2018
WWW.saxbylighting.com Saxby lighting. BH23 3PE
• You have correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of the terminals.
Having correctly identified the wiring from your existing light fitting, connect to the approved IP67 (or highter rated)
terminal block in the following way. (recommended terminal block ref. 61515)
Wiring
Check that...

Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory
operation of this product. Please retain these instructions for future reference.
Warning
Technical data
Supply
Bulb Type:
Voltage: 240 V~, 50 Hz
LED (1.3W) 4000K (78646)
LED (1.3W) 3000K (78647)
The light source of this luminaire is not replaceable; when the light source reaches its end of life
the whole luminaire shall be replaced.
Conformity with all relevant EC Directive requirements.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist.Check with your Local Authority or
local store for recycling advice.
Class II product - Double Insulated - No earth required.
This product is not suitable for dimming.
This luminaire is designed for outdoor installation and is rated at IP67.
Installation
Existing fittings must be completely removed before installation of a new product. Before removing the existing
fitting, carefully note the position of each set of wires.
•
•
Used as a deck light. See Fig 1. Carefully pull the product out of plastic housing. Select a mounting location for the
product and prepare a cut out size of D36 x 50mm.
Used as a ground light. This product must be fitted into the supplied housing and then installed into concrete or
paving slab. It must not be installed into soil. See Fig 2. Select a mounting location for the product and prepare
a cut out size of D39 x 90mm.
Ensure that the product is sitting properly in the hole.
Replace fuse or circuit breaker and switch on. Your light is now ready for use.
•
Form a recess to fit the housing into. The dimensions of the housing are 39mm diameter with 90mm minimum
ground void. Ensure that there is adequate drainage below the product.
•
• It is recommended to cut the hole slightly smaller than needed, then file the hole until the recessed unit fits snugly.
We recommend that you use H05RN-F specification cable which is an outdoor grade, rubber sheathed cable.
The mains supply cable must have a minimum cross sectional area of 1.0mm²
•
•
Avoid locating any cables in positions that would cause a hazard. Position cables and junction boxes (not
supplied) away from areas where they may be at risk from being cut, trapped or damaged.
•
IP67
Please read these instructions carefully before
commencing any work.
An appropriate outdoor mains cable must be used to
power this product.
This product is desinged to be fitted horizontally and
vertically in decking,walls, steps, and suitable for
installation dierctly into the ground.
Never cover the product
This system contains non-replaceable parts and
cannot be serviced. If damage occurs the part should
be scrapped.
This product is not suitable for dimming.
This product will require an appropriate outdoor rated
junction box (not supplied).
This product is not suitable for location in or near a
marine environment.
This product is unsuitable for immersion in water.
This unit must be fitted by a competent and qualified
electrician.
Check the pack and make sure you have all of the parts
listed.
To prevent electrocution switch off at mains supply
before installing or maintaining this fitting.
Ensure other persons cannot restore the electrical
supply without your knowledge.
Install in accordance with IEE Wiring regulations and
current Building Regulations.
If replacing an existing fitting, make a careful note of
the connections.
This light fitting should be connected to a circuit with
a 30mA RCD fitted.s.

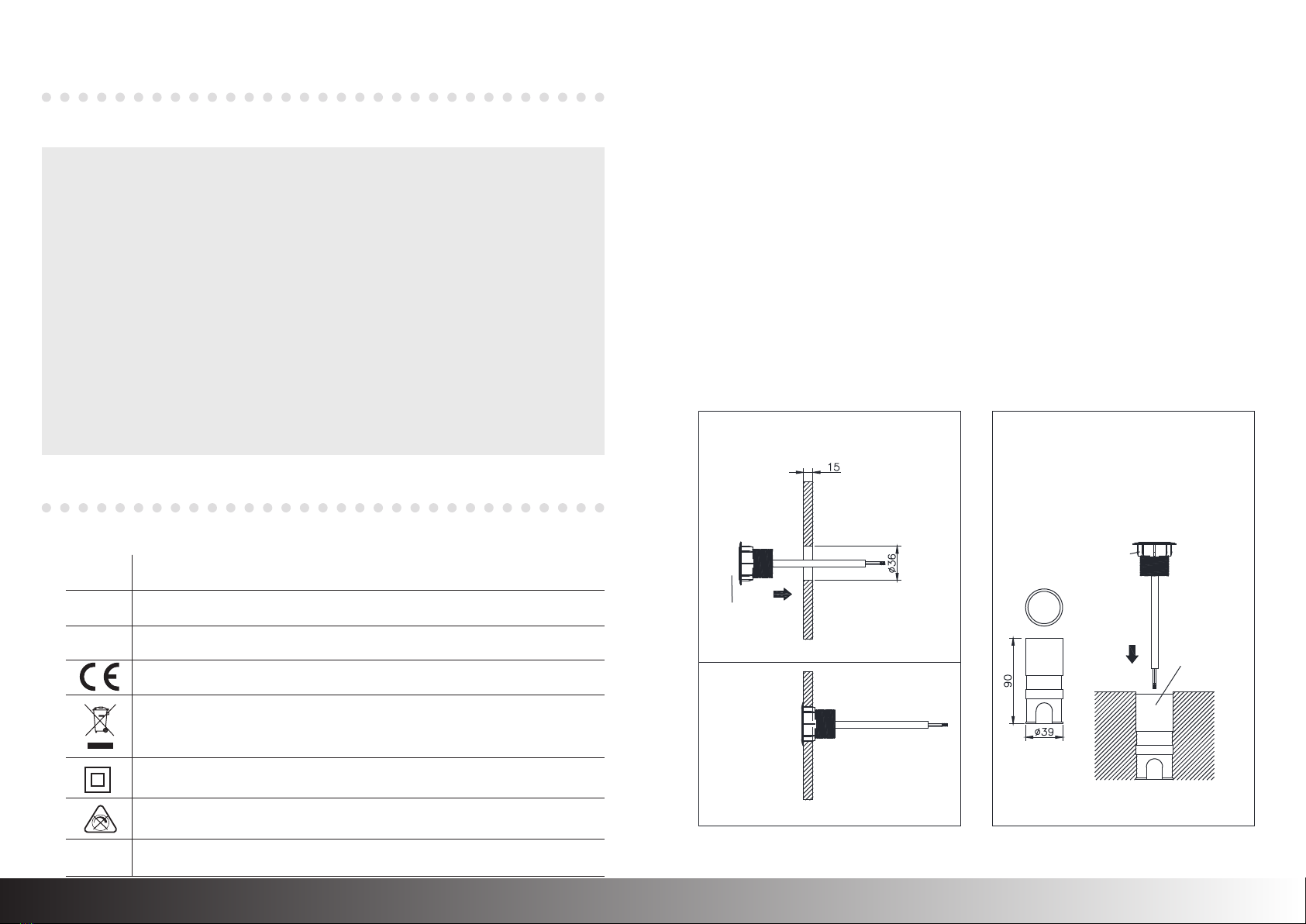

Supplied housing
Deck cut out size:
Dia 39 x 90mm
Deck cut out size: Dia 36mm
Mininium deep: 50mm
Supplied housing
for ground fitting
LED head unit
LED head unit 1.5m
1.5m
Ground fitting
Walkway use only
Deck fitting
Fig 1. Fig 2.
