Instruction manual
79195, 90962
Hoxton Ground Recessed LED
Saxby Lighting. BH17 7BY
V3 17/07/2020
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
Care and Safety
Technical data
240 V~, 50 Hz
Supply
Voltage:
Bulb
Type:
79195---6W LED module (COB), 4000K
90962---6W LED module (COB), 3000K
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
Conformity with all relevant EC Directive requirements.
This product is Class 1, must be connected to earth.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP67.
IP 67
Having correctly identified the wiring from your existing light fitting, pull the mains wire through the hole and connect to the
connection block inside the product in the following way:
Wiring
• You have to correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of the connection block.
Check that...
SUPPLY
NEUTRAL
EARTH (GREEN/YELLOW)
SWITCHED LIVE
LIGHTFITTING
BLUE (N)
BROWN (L)
GREEN/YELLOW
• When completed, ensure that there are no bare or loose
strands of wire exposed, and cover all exposed areas of
the connection block with 2 layers of insulation tape.
This LED's are protected by a plastic lens. The lens part must be replaced immediately should
it become cracked or damaged. This fitting must not be used without the plastic lens in place.
Replace Cracked Shade

Warning
This is a Class 1 product and must be earthed.
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with the IEE Wiring regulations and current Building Regulations.
Check the pack and make sure you have all the parts listed.
To prevent electrocution switch off at the mains supply before installing or maintaining this fitting.
Ensure other persons cannot restore the electrical supply without your knowledge.
This light fitting should be connected to a fused circuit.
If replacing an existing fitting, make a careful note of the connections.
The mains supply cable must have a minimum cross section area of 1.0mm2
Cables must be protected using suitable conduit or plastic trunking.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Take care not to drill into any pipes or mains cables beneath the surface during mounting holes preparation.
This light fitting should be connected to a circuit with a 30mA RCD fitted.
This product is unsuitable for immersion in water.
This product is not suitable for location in or near a marine environment.
The product must be mounted in the supplied housing. The product must not be installed into soil.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your local authority or retailer for recycling advice.
Thank you for purchasing this light fitting. Please read the instruction carefully before use to ensure safe and satisfactory
operation of this product. Please retain these instruction for future reference.
Installation
Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully
note the position of each set of wires.
Note that the power needs to be isolated/switched off at the fuse board.
Ensure that the screws and cable entry points are sealed to maintain the IP rating of the product.
Layout
Plan the desired layout of this fitting carefully, ensuring the cables will reach the distance between the junction box
and the light fitting.
Avoid locating any cables in positions that would cause a hazard. Position cables and connector bloc away from areas where
they may be at risk from being cut, trapped or damaged.
Decide on the position of the luminaire. Depending on the location, an approved outdoor rated plug and socket may be required.
Alternatively an approved outdoor rated external terminal block may be used.
After deciding the layout of the light fittings ensure that the cables are long enough to connect to desired positions.

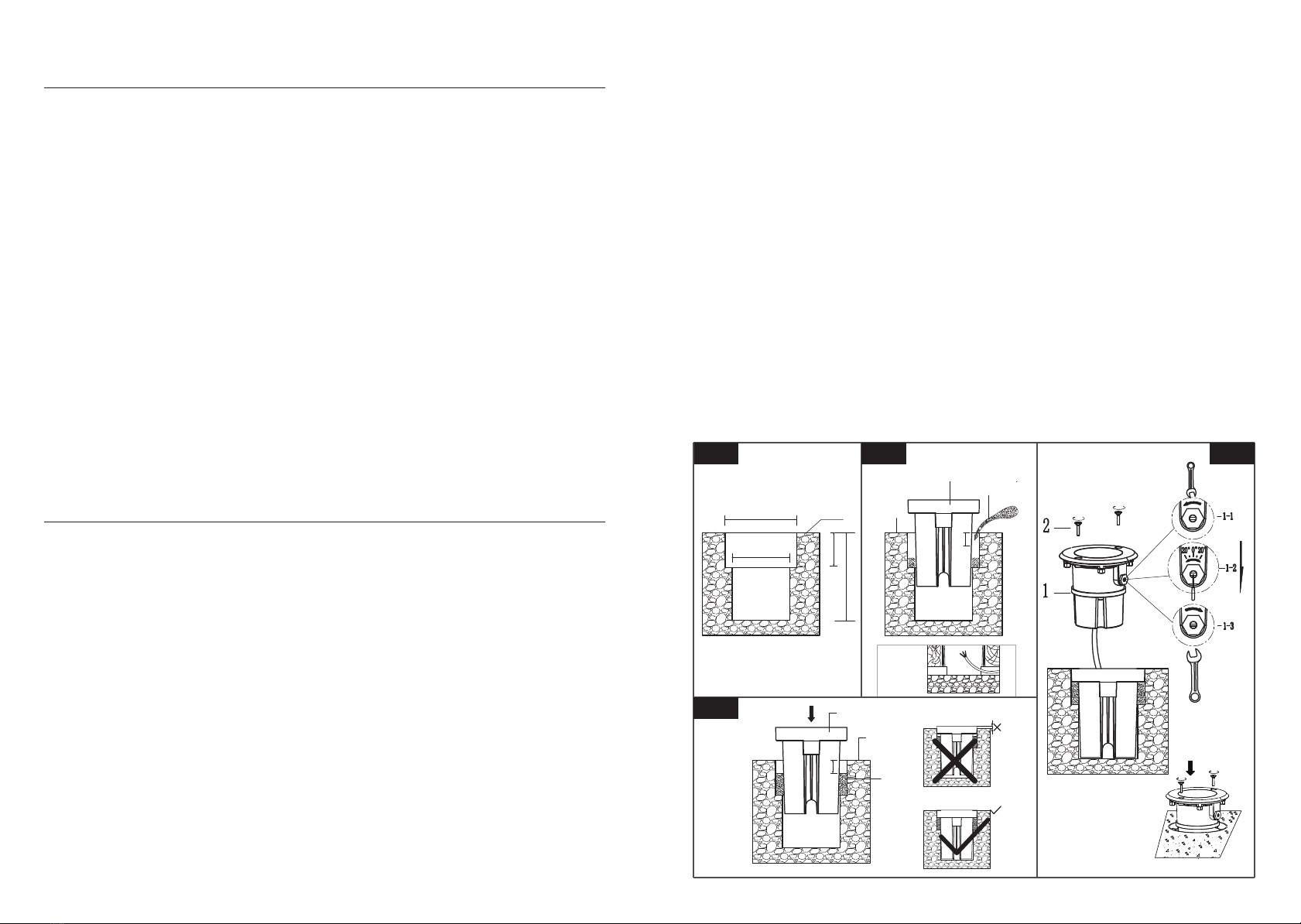

Fig. 2-1
See
Wiring
Diagram
Fig. 1 Fig. 2
Ground
Housing Recessed
Concrete
T shaped cutout
Ground
Ground
Housing Recessed
Concrete
Housing recessed
is higher than the ground
Housing recessed is
leveled with the ground
Fig. 3
Fig. 4
• Fit the housing into the T shaped cutout but not in place so that to pour the concrete. Ref Fig. 2. And position the conduit
or plastic trunking at the grooves in the side of the housing and pull the cable through as shown in Fig. 2-1.
Ensure that the cables are not snaggeed. Finally, pour the concrete into the void, and stay in the 19mm space.
Ø105mm
Ø82mm
125mm
50mm
19mm
19mm
• Form a T shaped cutout to fit the housing into. The dimension of the T shaped cutout are given below in Fig. 1. Ensure that
there is adequate drainage below the product. It is always recommended to cut the hole slightly smaller than the size
specified, and then file the hole until the recessed unit fits snugly. Ensure the minimum deep void depth 125mm is available.
• product to sit properly. Take care not to damage any pipes or cables beneath the mounting surface.
• Ensure that adequate room is left for the cable.
• Fit the housing into the T shaped cutout in place. Ensure that the top of the housing is on the same horizontal plane as the
ground. Ref Fig. 3.
• Refer the step in Fig. 4 to install the light body:
- Use a wrench and screwdriver (not provide) to adjust the light source to the desired angle before installation.
( Angle range: turn left 20° and turn right 20° )
- If the unit is to be used in a submerged location, seal the unit into position using silicone sealant.
- If the unit is to be fitted in decking or similar, then secure with a couple of spots of silicone sealant.
- Push the unit into the hole, and adjust the cable so it does not get snagged.
- Refit the glass shade and bezel in place
• Replace fuse or circuit breaker and switch on. Your light is now ready for use.
