Saxby Lighting Zone Bollard User manual

Zone Bollard
13822
80775
15/03/2019
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could damage the finish.
Do not clean the units with a pressure washer.
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
For your safety, always switch off the supply before changing lightbulbs, or cleaning.
Saxby Lighting Ltd. BH23 3PE
Care and Cleaning
Recycling Advice
Safety Information
The shade must be replaced immediately should the shade become cracked or damaged.This
Fitting / Replacing Bulbs
When changing a bulb, always switch off at the mains and allow the bulb to cool
before handling. Dispose of used bulbs carefully. Use a soft cloth to handle bulbs,
avoid directly touching the bulbs as this will shorten their life.
Do not exceed the wattage stated or use a different shape bulb from that
indicated on the fitting.
You have correctly identified the wires.
The connections are tight.
No loose strands have been left out of the connection block.
Check That
Max. 60W E27
Wiring
Having correctly identified the wiring from your existing light fitting, connect to the connection block inside the
product in the following way:

AB
C

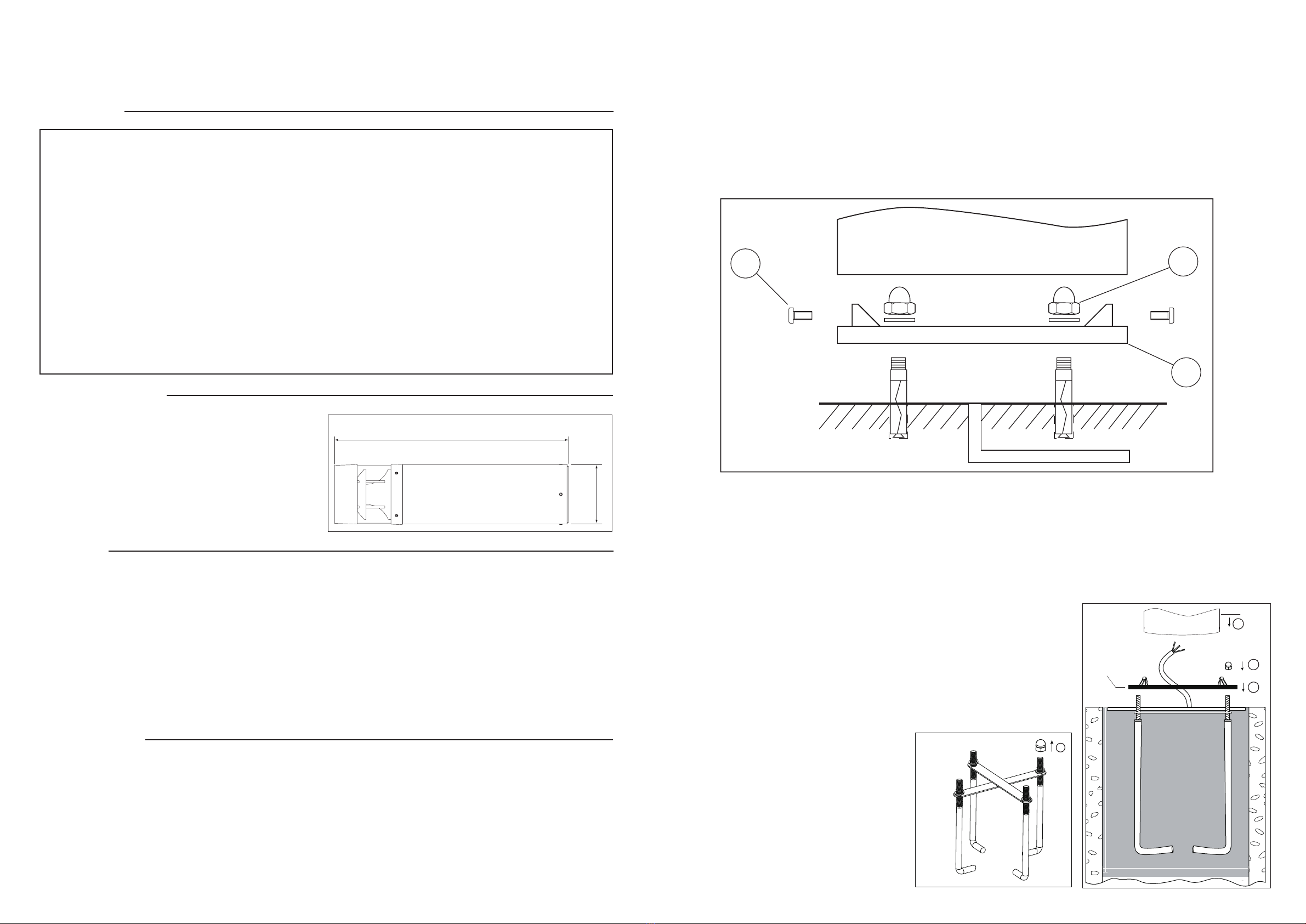

1. If you purchased the root kit 80775, please refer to the following installation steps.
2. Remove the bolts from the root kit and store it for use. See Fig. 1
3. See Figure 2. Prepare the hole for the root kit. The foundation should
be a minimum of 200mm diameter with a minimum depth of 150mm.
4. Pour cement into the hole, ensuring the cement is finished level and smooth.
8. Attach the lamp to the base.
10. The rock hook can be fit on ground
either inword or outword direction.
9. Wire and assemble bollard as per
instructions supplied with the product.
7. After the cement has dried, Use the bolts to secure the 13882 base to
the anchor bolts.
6. See Fig 2 - Insert the anchor bolts into the wet cement. Ensure the top
plate is resting level on top of the cement with the threads exposed.
5. Ensure a suitable amount of supply cable is exposed so the fitting can
be correctly wired after the foundation has been prepared.
6. Double check that the fixings line up with the holes in the base of the fitting Push the fixing bolts into the
mounting holes. Fit the base (C) and secure using the bolts (B).
7. Undo the screws holding the lampholder assembly in place and set aside. Lift off the assembly and remove the
cover from the IP terminal block.
8. Pull the cable through the conduit. Refit the main tube to the base plate.
Thank you for purchasing this light fitting.
Please read the instructions carefully before use to ensure safe and satisfactory operation of this product.
Please retain these instructions for future reference.
Warning
Specification
Layout
This is a Class 1 product and must be earthed.
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with IEE Wiring regulations and current Building Regulations.
To prevent electrocution switch off at mains supply before installing or maintaining this fitting. Ensure other persons
cannot restore the electrical supply without your knowledge. If you are in any doubt, please consult a qualified
electrician.
This light fitting should be connected to a circuit with a 30mA RCD fitted.
If replacing an existing fitting, make a careful note of the connections.
Always use the correct type and wattage bulb. Never exceed the wattage stated.
When changing a bulb, always switch off at the mains and allow the old bulb to cool down before handling.
Dispose of used bulbs carefully and responsibly.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.
This product is rated at IP65.
This product is not suitable for location in or near a marine or sea environment.
The entire unit gets hot whilst on for a period of time.
Voltage: 240V 50Hz a.c.
Lamp: Max.60W E27
IP rating: 65
900mm
170mm Dia
• Plan the desired layout of this fitting carefully, ensuring the cables will reach the distance between the junction
box and the light fitting.
• This product is designed for domestic and light industrial use. It should not be used to support other objects
or used as a replacement for concrete or metal pillars.
• Avoid locating any cables in positions that would cause a hazard. Position cables and outdoor rated junction
boxes (not supplied) away from areas where they may be at risk from being cut, trapped or damaged.
• We recommend that you use H05RN-F specification cable (not supplied) which is an outdoor grade, rubber
sheathed cable.The mains supply cable must have a minimum cross sectional area of 1.0mm²
• Cables must be protected using suitable conduit or plastic trunking.
Installation
Existing fittings must be completely removed before installation of a new product. Before removing the existing
fitting, carefully note the position of each set of wires.
1. Undo the four screws (A) holding the base plate (C) onto the bollard. Set aside.
2. Undo the four secrews holding the shade on. Set the shade and screws aside.
3. The product must be mounted onto a concrete base or paving slab. It should not be directly installed in the
soil. Using base plate as a template, mark the fixing holes onto the mounting surface.
4
5
.
.
Drill holes to the necessary size and depth - taking care not to damage any concealed pipes or wiring below
the mounting surface.
For root kit installation (80775）
base
(13882)
Fig. 2
Fig. 1
Min. Ø200mm
Min. 150mm
13882
A
B
C
D
9. Refit the cover on top of the IP terminal block.
10. Refit the lampholder assembly to the top of the tube. Ensure that the cable does not get snagged.
11. Refit the shade, ensuring that any seals are correctly located in position.
12. Replace fuse or circuit breaker and switch on.Your light is now ready for use.
This product comes complete with expanding bolt type fixings (B) which are suitable for use on most surfaces,
however alternative fixings may be required.
