Scanstrut ROKK Wireless Nano User manual

ROKK WIRELESS - NANO 10W (SC-CW-11F) 10-11-2022 (Issue 2) Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
[phone]
[email protected]
UK & International
[phone]
[email protected]
Technical Information
Input voltage range 10-30V DC
(12/24V system)
Input current max 2A
Output power max 10W (9V, 1.1A)
Standby power draw < 0.2W
Waterproof rating IPX6 front and back
Certications
Qi, CE, UKCA, FCC,
IC, ROHS, UNECE
R10 E24, RCM,
PSE
Part List
ROKK Wireless Nano
Installation
Jig
No 4 x 3/4” (18mm)
Self tapping screwx1 x1 x4
Tools Required
Pozi Screwdriver Option A: 10 mm (0.39”)
Drill bit
Drill bit (for pilot holes)
2mm (5/64”)
2.5mm (3/32”)
Option B: 22mm (0.86”) Hole
saw
130mm
(5.11")




 
ø10mm (0.39") ø22mm (0.86")
4x Pilot Hole
Material No. 4 Screw
Soft Material
E.g plywood
2mm
(5/64”)
Hard Material
E.g Fiberglass
acrylic, hardwood
2.5mm
(3/32”)
Unbox Nano and insert the installation jig.
Ensure there is sufcient clearance top open the
jaws in chosen installation area.
Ensure Nano is Horizontal and installation area is at.
Use drilling template to drill x4 pilot holes (see tools
required table).
Drill Option B
ø22mm (0.86”)
for use with cable
connectors.
Drill Option A
ø10mm (0.39”)
for use with
stripped cables.
1
3
2
4
4a 4b

ROKK WIRELESS - NANO 10W (SC-CW-11F) 10-11-2022 (Issue 2) Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
[phone]
[email protected]
UK & International
[phone]
[email protected]
A B






CARE:
Wash down carefully with fresh water.
- Feed cable through the hole.
- Apply sealant to x4 screws.
- Screw product in place.
- Remove installation jig.
Connect wires or connectors to 12/24V supply,
ensuring a waterproof connection. Fuse according to
input voltage and current.
USER GUIDE:
Place device centrally within the Nano jaws.
5
6

ROKK WIRELESS - NANO 10W (SC-CW-11F) 10-11-2022 (Issue 2) Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
[phone]
[email protected]
UK & International
[phone]
[email protected]

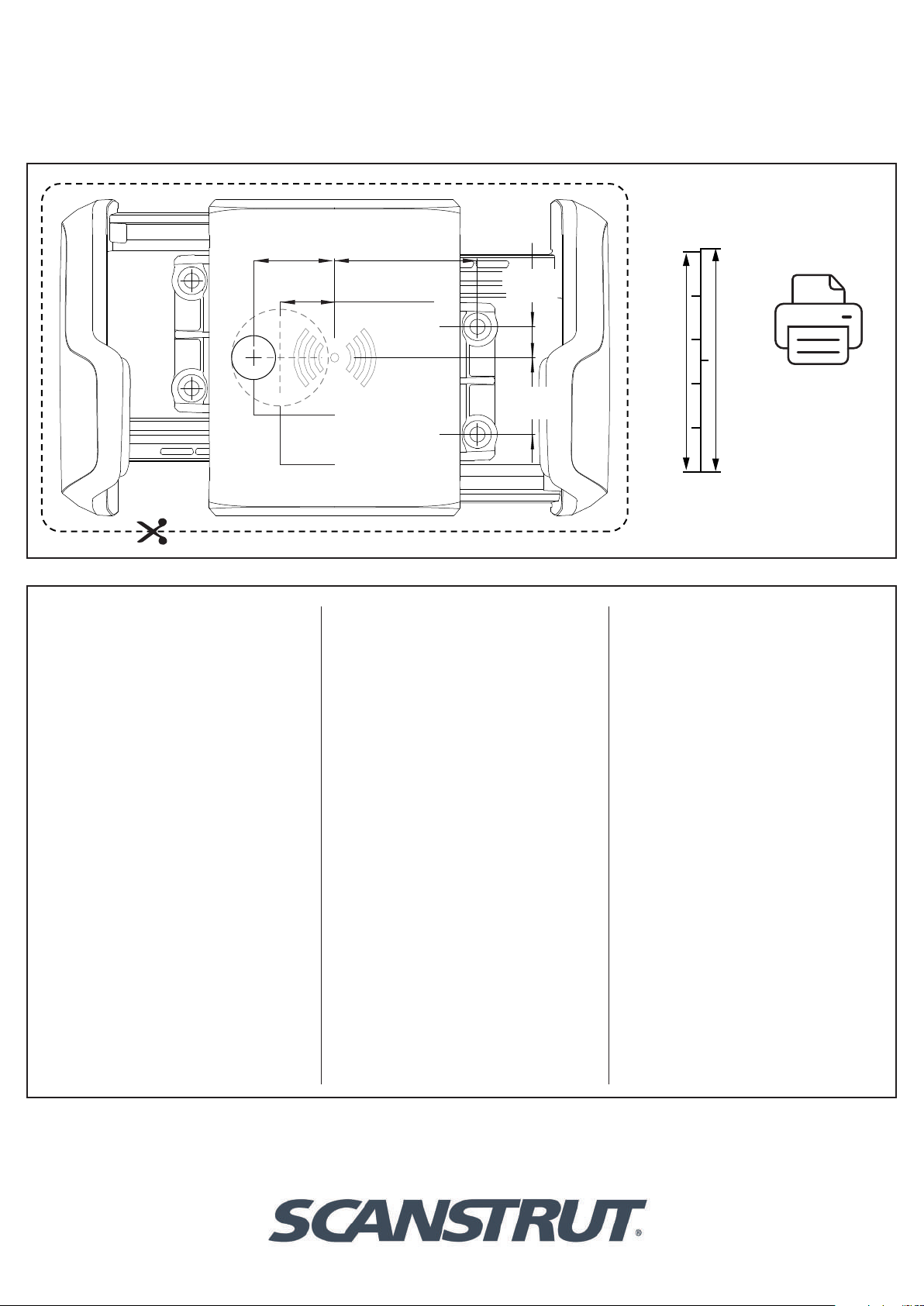

Drill Option A
Ø10 mm (0.39")
Drill Option B
Ø22 mm (0.86")
32.5 mm
(1.27")
18.4 mm
(0.72") 7.0 mm
(0.27")
(0.68")
17.5 mm
12.4 mm
(0.48")
Warning Check Scale
50 mm
2"
Print document
1:1 Scale for
correct cutting
template size
IN EXTREME USAGE ENVIRONMENTS
PERFORMANCE MAY VARY.
This product is designed to securely mount phones under normal
usage conditions. The end-user is entirely responsible for conditions
in which their device is used. See WARRANTY section for further
details.
Scanstrut recommends installation is carried out by a
qualied electrician. No liability is accepted for damage and/
or injury caused by incorrect installation.
WARNING:
This product is to be connected to a 12V DC or 24V DC battery
power source only.
The power supply must be switched off before installation.
An appropriate fuse or circuit breaker must be used between the
battery / power source and this product. Check for correct polarity
of all wiring before switching the power on.
This product may contain high voltages. Do not tamper with the
product.
This product is NOT approved for use in hazardous/ammable
atmospheres. Do NOT install in a hazardous/ammable
atmosphere e.g. engine room.
Before drilling any holes, ensure the area behind the mounting
location is clear of wires, fuel and all other hazardous objects.
Ensure any holes cut will not signicantly weaken the structure of the
mounting surface.
If the product needs to be mounted outside, it must be mounted in
a location safely above the waterline, where it is not at risk of being
submerged.
Full strength not achieved until product is installed
CAUTION:
The product is designed specically for the charging of Qi
compatible devices.
The cable must be retained and not interfere with mechanical
systems.
This product contains no user serviceable components. Do NOT
attempt to repair or alter the product in any way.
This product will charge through non-metallic phone cases up to
~3mm thick. Phone cases may alter overall charge performance.
When used in a very high/low ambient temperature/direct or
prolonged sunlight the product may temporarily shut down, this is a
safety feature of the electronics.
The IP rating is only valid if correctly installed as per these
instructions and on a perfectly at, non-porous, smooth surface.
When selecting a mounting location, avoid places exposed to heat-
radiating appliances and poorly ventilated areas.
EMC INSTALLATION GUIDELINES:
Scanstrut products conform to Electromagnetic Compatibility (EMC)
regulations, to ensure that electromagnetic interference between
equipment is minimised.
Correct installation is required to ensure that electromagnetic
interference is kept to a minimum.
WIRING:
When extending the cable from battery/power source to the
product, ensure there is consistently a minimum of 10V being
provided to the product. A wire gauge of 18AWG (0.82mm2) is
recommended for any length of cable extension.
The electrical schematic is to illustrate how the product should be
connected to a 12V DC or 24V DC battery/power supply.
ENVIRONMENTAL PROTECTION:
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
IMPORTANT:
Scanstrut Ltd. accepts no responsibility for any injuries or
other damages arising from the use of their products in any
circumstances.
WARRANTY:
A 2 year, non-transferable warranty covers this Scanstrut product
only and not any devices that are mounted in it or on it. No warranty
is given for users’ devices and users expose their devices to
hazards, known or unknown, at their own risk.
