Schick Dental QBasic User manual

Original
E
E
Operating Instructions

2
Index Page
1. Safety Instructions..................................
Caution!
2. Range of applications..............................
3. Summary - List of contents.......................
4. Equipment/Optionals...............................
5. Initial start up and installation..................
Switching on / off..............................
6
8. Cleaning and maintenance/.....................
Removing the chuck................................
9.
11. Declaration of conformity.........................
. Tool change on motorhandpiece..............
7. Operation...............................................
Errors.......................................................
10. Technical data..........................................
We are pleased that you decided
to buy a highly developed piece of
equipment from SCHICK and
would like to wish you every
success when working with your
new .
We wrote these operating
instructions to enable you to get
accustomed to your new piece of
equipment and to provide you
with the correct operating and
maintenance instructions.
D
3
3
4
5
5
6
7
7
8
9
9
10

1. Safety Instructions
1.1 Ascertain that your mains supply coincides with the data on the rating plate.
1.2 - units are not suitable for the following applications:
- in areas where there is a risk of explosion
- for medical applications
- for working on moist materials
1.3 Ensure that all regulatory requirements are observed during use
- always wear protective glasses
- provide enough light at the working place
- use dust suction
1.4 Under no circumstances should the motor handpiece be cleaned with compressed air.
1.5 Before putting the handpiece down, always insert a rotary instrument or the pin, supplied
with the unit, into chuck
Caution!
- When using rotary instruments, do not exceed the maximum speeds laid down by
their manufacturer.
- When operation with left-hand rotation, the collet may loosen when there is a high load.
- Repairs and other technical procedures must only be carried out by suitable qualified
personnel, authorized by SCHICK.
- SCHICK do not guarantee the unit should it not have been used in accordance
with the operating instructions.
.
2. Range of applications
The unit is designed for universal use in dental laboratories when trimming crowns and
bridges, respectively acrylic and light chrome cobalt dentures. With its speed range from
1.500 - 40.000 rpm the SCHICK unit allows to work all dental materials.
The motorhandpiece is ergonomical, small shaped and runs smoothly, thus eliminating user-fatigue
and making it economical to use over long periods. The progressive processor controller constantly
monitors the unit for overloading. A second thermal fuse, which is independent of the
computer, provides further protection. Thus the unit offers a maximum of safety.
Conditions of environment:
- interior 5° - 40° C.
- up to 2,000 meter over sea level
Categorie of overvoltage: II
Grade of pollution: 2
WEEE-Reg.-Nr. DE 78620387
3

4

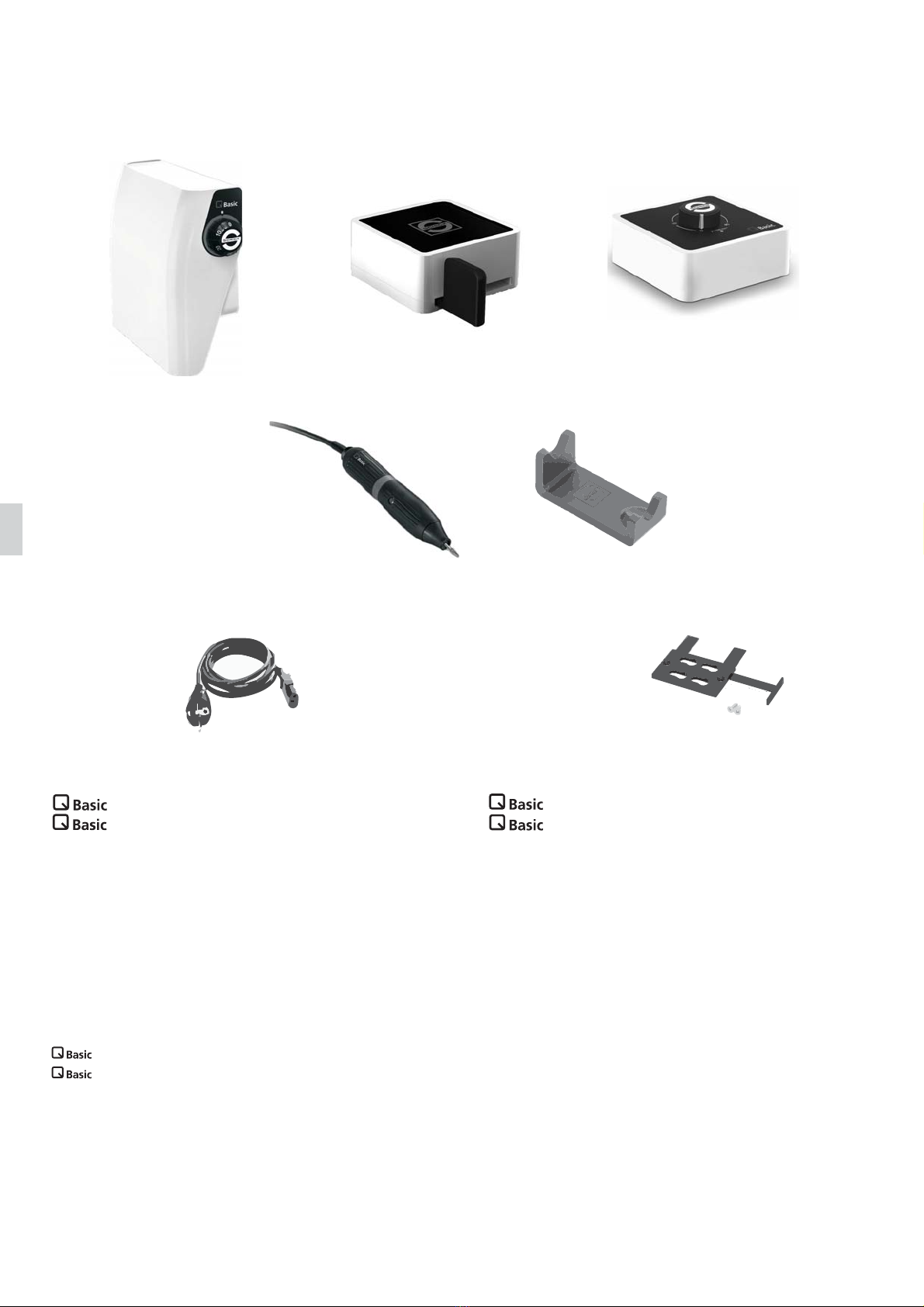

3. Summary - List of contents
(1) (3)
SK complete
knee controller
handpiece rack
with two keys for changing the chuck
mains cable
suspension strip
screws - two pieces-
kneeversion:
motorhandpiece with cable
SF complete
foot controller
motorhandpiece with cable
handpiece rack
with two keys for changing the chuck
mains cable
foot control:
art.no.
9405
9416
9400
9127
9415
9103
3170
art.no.:
9408
9417
9400
9127
9415
(1)
(4)
(5)
(6)
(7)
(8)
(2)
(4)
(5)
(6)
(2)
(4) (5)
(6) (7) (8)
table top version:
ST complete
table top controller
motorhandpiece with cable
handpiece rack
with two keys for changing the chuck
mains cable
art.no.:
9413
9418
9400
9127
9415
(3)
(4)
(5)
(6)

5
4. Equipment/Optionals
chuck Ø 2,35mm
chuck key
counterstay wrench
motorcable complete
6642
4115
6223
9225
1. 2.
1.
2.

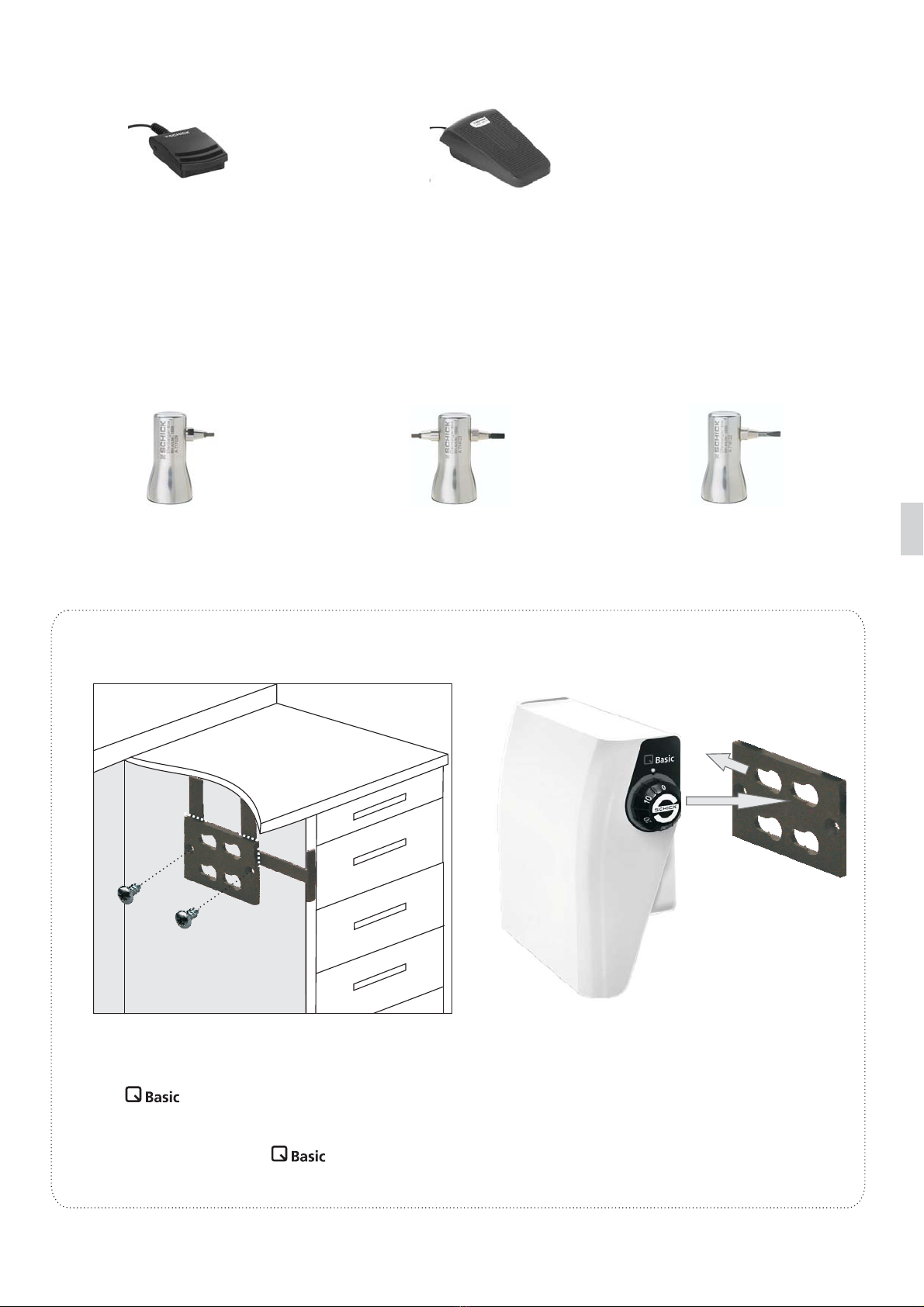

1. The suspension strip (7) is supplied with a template which acts as an aid for correct positioning of
the knee control unit. To do this, the mounting bracket is positioned on the work bench as
shown in figure 1, and secured using the screws supplied (8). After installation, the template can
simply be detached from the bracket.
2. For installation of the knee control unit, the cavity at the rear of the unit is placed on the
bracket andpushed back until it clicks into place (Fig.2).
foot pedal switch (on/off) for
connection to the table top model
art.no. 6370/2
dynamic foot control for
connection to the table top model
art.no. 9440
riveting hammer
art.no. 1850
twin riveting hammer
a 1860rt.no.
riveting hammer with chisel
a 1850/1rt.no.
5. Initial start-up and installation
5.1 Installation of the suspension strip for knee control unit

6
5.2
Connect the motorhandpiece to the ‚motorhandpiece‘ socket.
To switch on the device, the mains switch must be set to ‚ON‘
Plug the power supply to the power supply socket on the control unit. .
Initial start up and installation
.motorhandpiece
power supply
foot switch (table top model)
The control unit is equipped with a mains switch to switch on / off the control mechanism.
Basically, first attach the handpiece before connecting the mains cable and switching the control
mechanism on.
5.4
In order to operate the together with a workplace suction system with automatic
function, the mains cable of the must be connected to the appropriate connector socket
on the workplace suction device.
Possibly some corrections of the input sensitivity of the suction may be required. Suctions
of type ‚Freuding‘ must be set to "Schick CN".
.
5.3 Switching on/off:
control unit
mains cable
mains switch
serviceplug
Connection of the for automatic swichting on of a workplace suction
suction with automatic function

open
close Hold firmly here

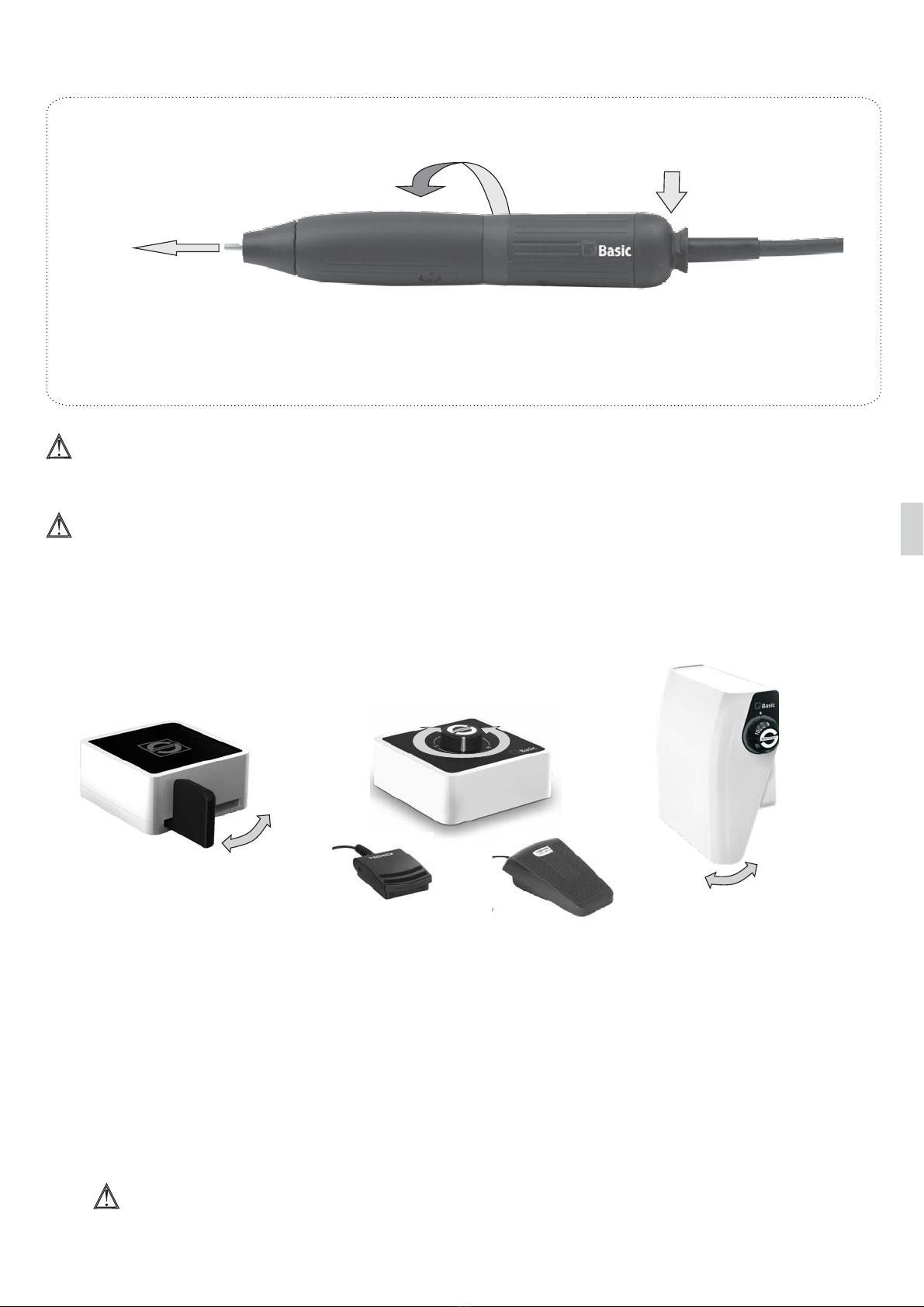

.By turning the gripsleeve on the hand piece, the chuck can be opened or closed
Only carry out a tool change when the motor is switched off! To optimise the precision and durability
of the chuck, the tool or the factory-supplied protective pin must always be in a fixed position,
even when not in use.
Always insert tools as far as possible into the chuck in order to achieve maximum holding power!
6. Tool change on motorhandpiece
7
Please always observe the maximum permitted speed for your tools!!
7. Operation
There is continuously variable speed control of the handpiece up to the maximum preset motor speed using
the respective control unit (see diagram below).
the handpiece up to the maximum
speed of 40.000 1/min can be regulated.
By using the knee lever the speed can now be set
variously up to the preset speed.
1) With the foot controller continuously variable speed control of
3) The knee controller is equipped with an additional potentiometer for setting a speed limit.
Set the potentiometer to the desired maximum speed.
(1) (2) (3)
(2a) (2b)
2) The table top control unit is equipped with a knob with which the connected motor handpiece
can infinitely adjusted to the maximum speed of 40,000 1 / min. If the optional foot
switch (2a) art. no.: 6370/2 is used, the desired speed is selected on the rotary knob and
started with the foot-switch. If the optional dynamic foot control (2b) art. no .: 9440 ,
the speed is controlled infinitely variable by this up to the preset speed.
is used

8
8. Cleaning and maintenance / Removing the chuck
The motor handpiece is designed for maximum durability and therefore, the chuck
and the tip should be removed and cleaned from time to time.
8.1 Removal of chuck on the handpiece
1. Remove tool and unscrew tip of handpiece
2. Remove cap from motor and pull out the plug
3. Place the chuck key (Art. no. 4115) on the open chuck, u
4. Remove the chuck (art.no. 6642) from the shaft
se a number 6223 counterstay wrench to hold
the motor end of the spindle
To optimise the precision and durability of the chuck, a tool or the factory supplied protective pin
must always be fixed, even when not in use.
Never clean the handpiece with compressed air!
The required chuck keys are located in the underside of the handpiece holder.
After thoroughly cleaning the chuck, before replacing, it should be slightly greased on the outer surface
(e.g., with grease art.no. 51/1).
Only fasten the chuck lightly when reinstalling! The chuck will fix itself firmly as part of its normal operation.
8.2.Removing/changing the motor cable (see picture above)
1. Unscrew the cap (2) from the motor
2. Loosen the cable by pulling out the plug-in seal (1)
1. 2.
3. 4. 6642 (2,35mm)
6643 (3,00mm)
9338 9323 4320 9225
4115 6223

9
10. Technical data
The oscillation total value during operation is below 2,5 m/s² (EN 28662)².
9. Errors
releasing foot lever or kne
If an error cannot be removed following the above description, please contact an authorised service partner
or Schick directly.
If the handpiece is overloaded or blocked, the control unit switches off automatically to prevent further
damage. Make sure the tool can rotate freely in the handpiece and after e
lever back to neutral position the unit can continue operation.
dimensions handpiece:
length:
diameter max.:
weight :
dimensions control unit:
knee version foot version table top version
width: 95 mm 155 mm 155 mm
height: 203 mm 75 mm 75 mm
depth: 210 mm 220 mm 155 mm
weight: 1.100 g 1.900 g 670 g
speed range: 1.500 - 40.000 min
torque: max: 6,7 Ncm
: IIprotection class
operating voltage:
Frequency:
output:
158 mm
30 mm
240 g
AC 100 - 240 Volts
50/60 Hz
80 Watt

10
W. Schick
Geschäftsführer
11. Declaration of Conformity
We, the SCHICK GmbH
Lehenkreuzweg 12
D-88433 Schemmerhofen
declare herewith, that the products
- consisting of
- handpiece 9400 in combination with
- control unit 9416, 9417 or 9418
are in conformity with the following provisions of Directive:
2001/95/EG (general product safety)
2006/42/EG (machinery directive)
2006/95/EG (low voltage directive)
2004/108/EG (EMV directive)
Name and adress of
person in charge:
Schemmerhofen, March 2015
Wolfgang Schick
Lehenkreuzweg 12
88433 Schemmerhofen
manufacturer:
This unit complies with the current VDE (German association of electrical technicians)
regulations concerning safety and suppression.
These operating instructions should be readily accessible and are best kept close
to the unit itself.
We would like to take this opportunity to advise you that a proper repair service and
suitable qualified personnel are required for such highly developed technical equipment.
SCHICK guarantees to carry out perfect repairs using original spare parts.
Subject to technical modifications
D21430
03/15 bg
