Schlage A Series User manual

A-Series
Service manual

Contents
5 Introduction
5 Lock Assembly Drawing Index
7 Chassis and Assemblies
8 Passage Lock
9 Exit Lock
10 Patio Lock
11 Bath/Bedroom Privacy Lock
12 Communicating Lock
13 Entrance Lock
14 Classroom Lock
15 Communicating Lock
16 Storeroom Lock
17 Faculty/Restroom Lock
18 Dummy Trim
19 Parts and Accessories

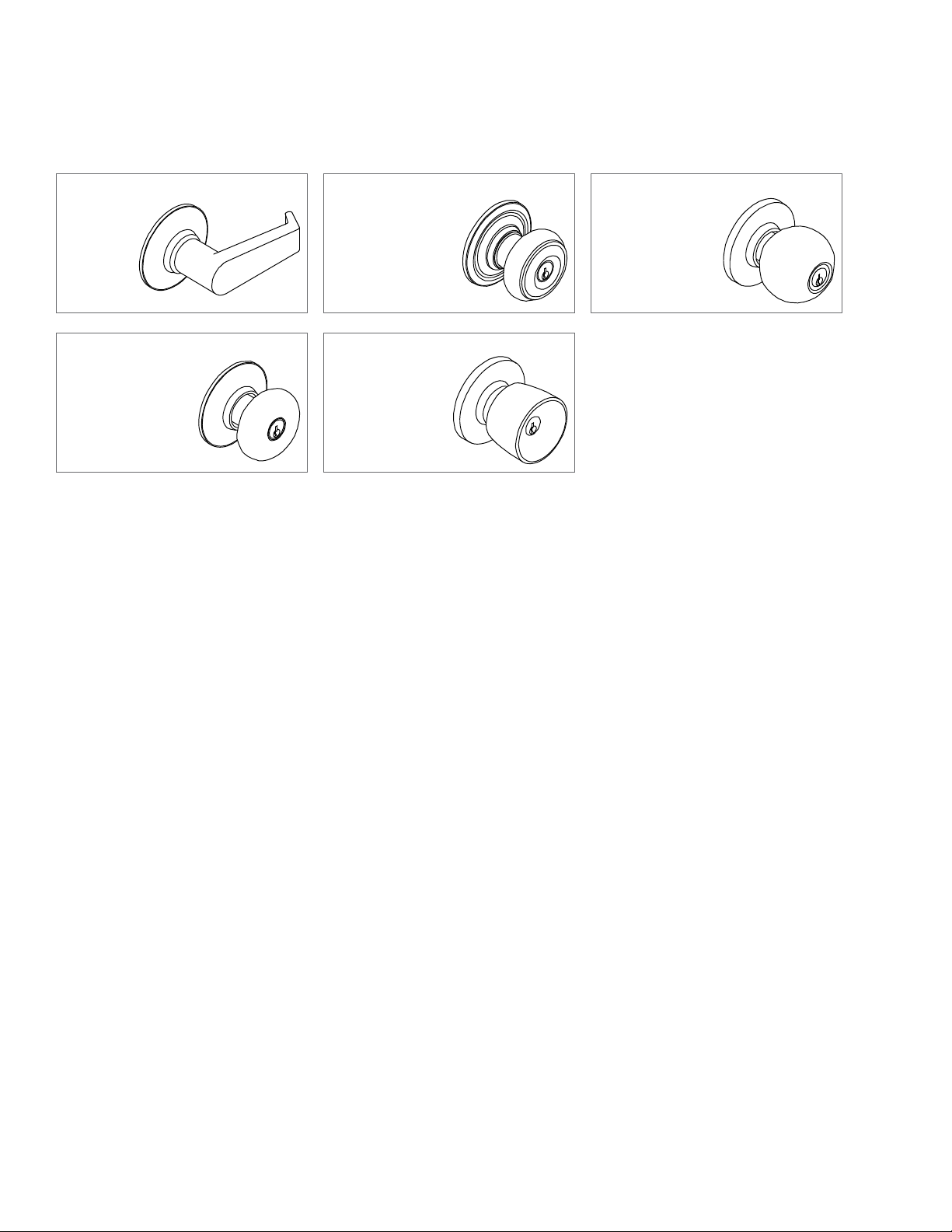

20 Knob and Lever Designs
21 Latches
22 Strikes
23 Finishes
24 Cylinder Units and Parts
26 Interchangeable Cores, Designs, and Parts
28 Lubrication
28 Installation Tools and Kits
29 Long Backsets
29 Reinforcement Kit
30 Keying

Introduction
Schlage • A-Series service manual • 5
Introduction
This manual contains a complete listing of A-Series (Grade 2) cylindrical lock parts and assemblies manufactured by the
Schlage Lock Company. This manual lists components of A-Series locks manufactured aer 1984.
Exploded views of each lock chassis and trim assemblies are provided with an accompanying chart to identify parts for
replacement purposes. In addition, this manual provides lock trim ordering procedures, general cylinder information, and all
auxiliary components of the A-Series cylindrical locks.
Standard Features*
Certifications ANSI A156.2, 2003, Series 4000, Grade 2, UL Listed for 3-hour fire door.
Latchbolt Z\x” throw, brass, chrome plated, deadlocking on keyed and exterior functions.
Strike T-Strike 1Z\,” x 2C\v”, Square corner, box.
Backset 2C\,” standard
Cylinder 6-Pin solid brass, keyed 6-pin, C123 keyway, keyed different (KD)**
Door Range 1C\,” - 1M\,”
Keys Two nickel silver cut keys per lock, 6-pin, C123 section**
* Locks are furnished with standard features unless otherwise specified.
**Items specified in C keyway will be furnished with cylinder keyed 5-pin and with 5-pin keys unless otherwise specified.

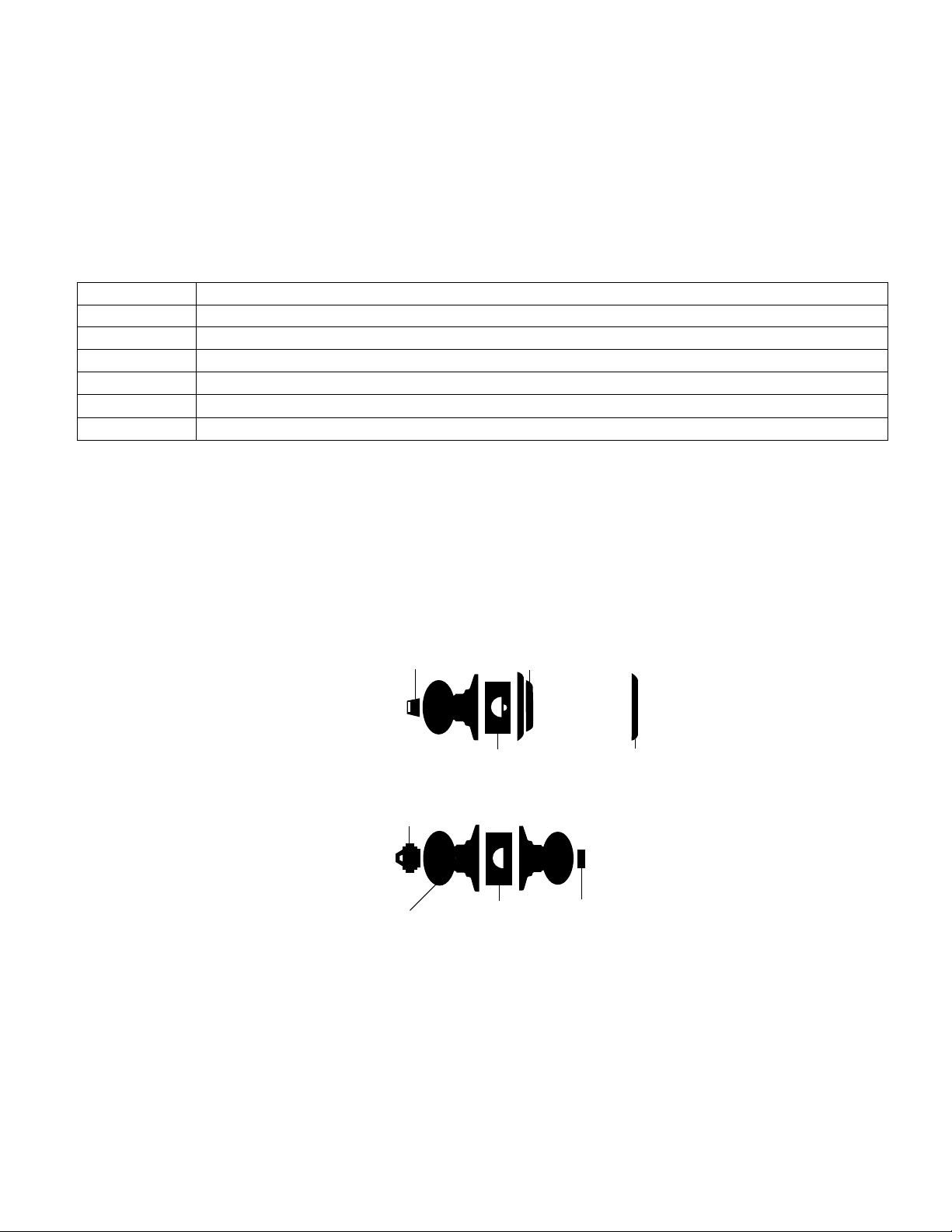

Lock Assembly Drawing Index
The Lock Assembly Drawing Index provides visual representations and textual descriptions of available functions. Page
numbers for full trim and chassis drawings are referenced.
Fixed Knob
or Active Knob
Blank
Plate
Key
Push-button
Turn/Push-button
Deadlatch
Springlatch
Thumbturn
Outside Inside

6 • Schlage • A-Series service manual
Lock Assembly Drawing Index
Function ANSI/BHMA A156.2, 2003, Series 4000, Grade 2 Chassis
and Trim
Page
SCHLAGE ANSI DESCRIPTION OUTSIDE FUNCTION INSIDE FUNCTION
A10S F75 Passage Latch Both knobs always unlocked. 8
A25D Exit Lock Blank plate outside. Inside knob always unlocked. Specify
door thickness, 1C\," or 1C\v".
9
A30D F77 Patio Lock Push-button locking. Turning inside knob
or closing door releases button,
preventing lock-out.
10
A40S F76 Bath/Bedroom
Privacy Lock
Can be opened from outside with small
screwdriver when locked with inside
push-button.
Push-button locking. Turning inside knob
or closing door releases button.
11
A43D F79 Communicating Lock Turn-button in outside knob locks and
unlocks outside knob and inside
thumbturn.
Inside thumbturn locked and unlocked by
outside turn-button.
12
A53PD F109 Entrance Lock Can be opened from outside with small
screwdriver or emergency release tool.
Push-button locks outside lever. Turning
inside lever or closing door releases
button. Inside lever is always free for
immediate egress.
13
A70PD F84 Classroom Lock Outside knob locked and unlocked by
key.
Inside knob is always unlocked. 14
A79PD Communicating Lock Locked or unlocked by key from outside. Inside knob is always unlocked. 15
A80PD F86 Storeroom Lock Outside knob is fixed.
Entrance by key only.
Inside knob is always unlocked. 16
A85PD F93 Faculty/Restroom
Lock (with Indicator
Cylinder)
Outside knob is fixed. Entrance by key
only.
Push-button in inside knob activates
visual occupancy indicator, allowing only
emergency master key to operate.
Turning inside knob or closing door
releases visual occupancy indicator.
Rotation of inside spanner-button
provides lock-out feature by keeping
indicator thrown.
17

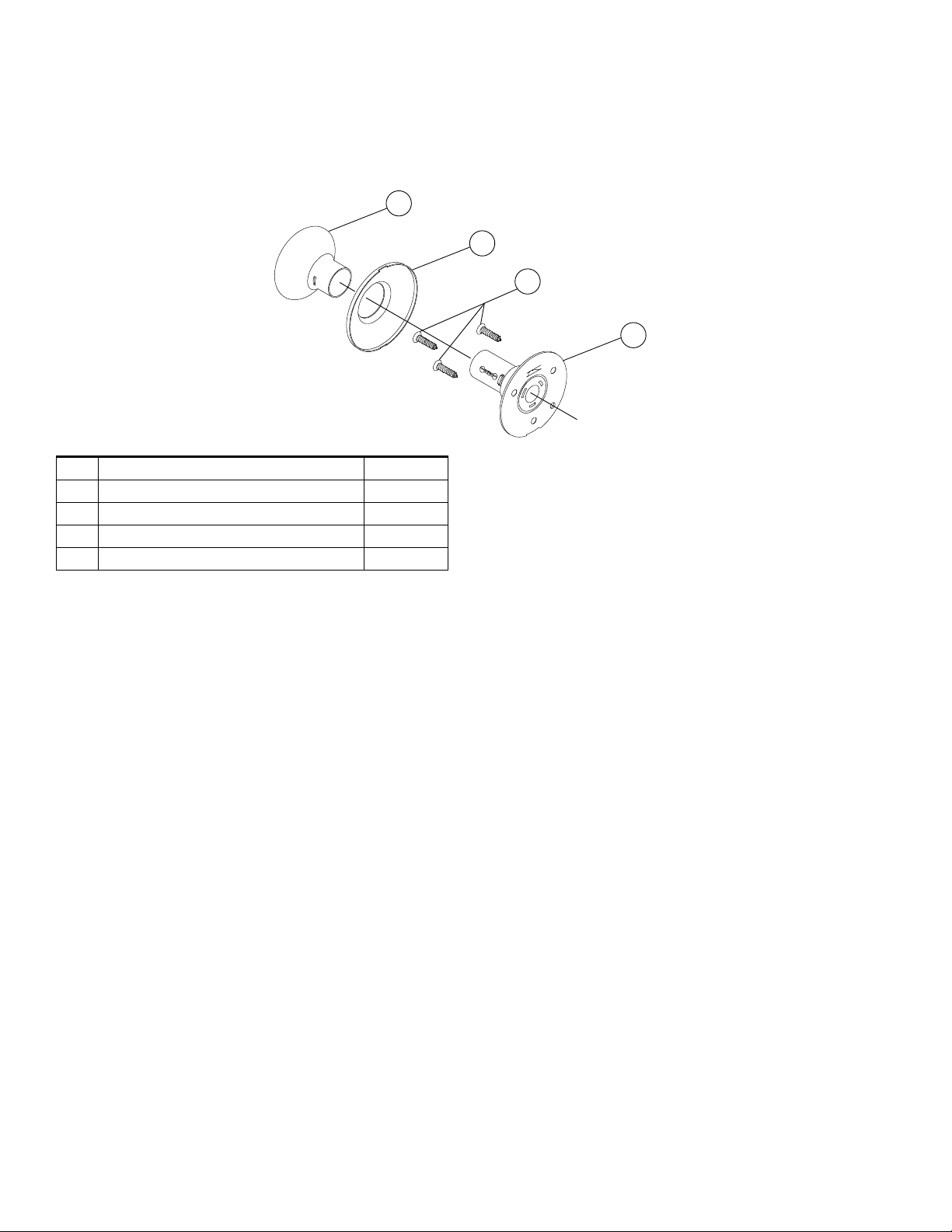

A170 Single Dummy Dummy trim for one side of the door.
Used fo door pull or as matching inactive
trim.
18
Keyed functions available with full size interchangeable core option for Orbit design.

Chassis and Assemblies
8 Passage Lock
9 Exit Lock
10 Patio Lock
11 Bath/Bedroom Privacy Lock
12 Communicating Lock
13 Entrance Lock
14 Classroom Lock
15 Communicating Lock
16 Storeroom Lock
17 Faculty/Restroom Lock
18 Dummy Trim

8 • Schlage • A-Series service manual
Chassis and Assemblies

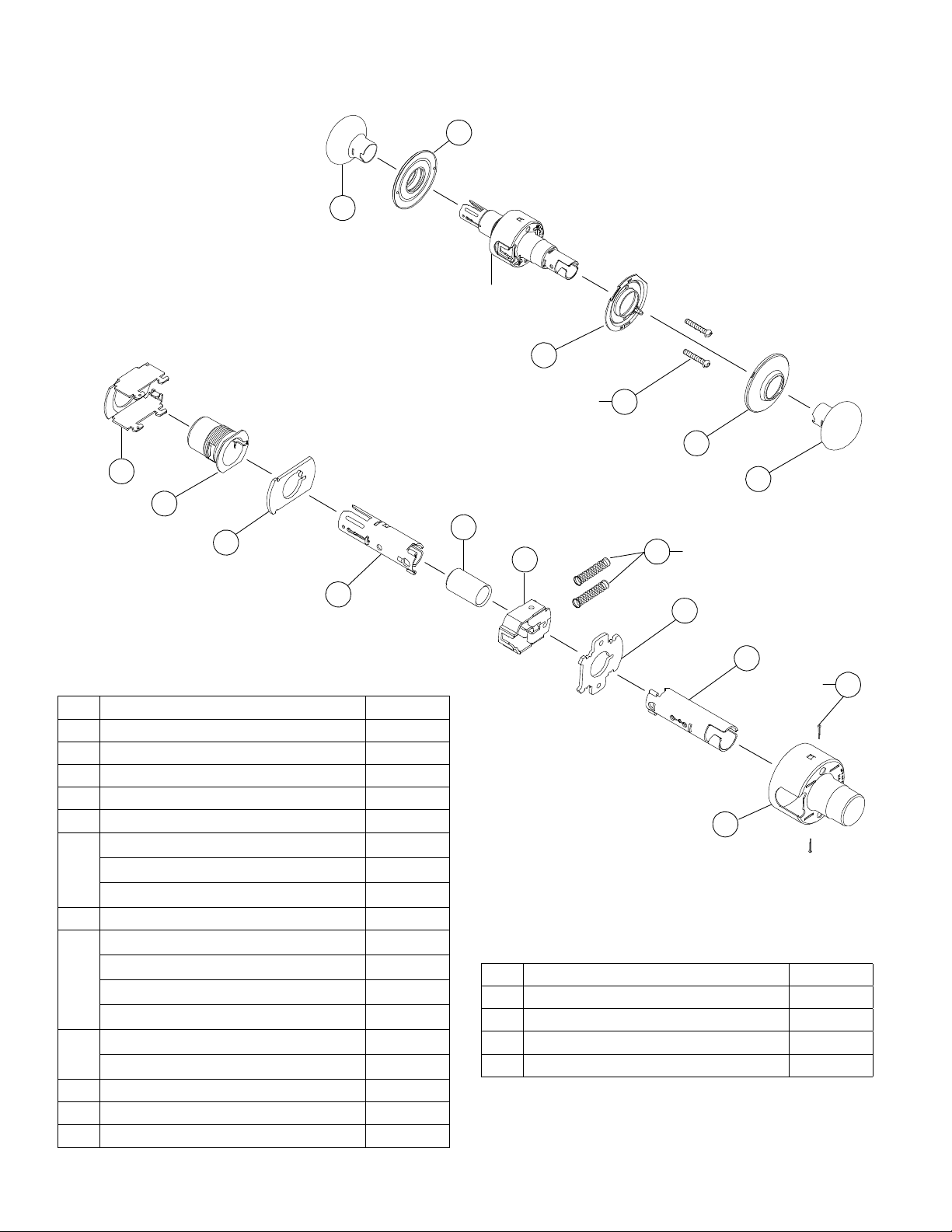

Passage Lock
A10S
Chassis assembly
Trim assembly
Assembled
chassis
1
3
19
36
3
2
66
28
24
58
37
65
67
25
54
56
21
2
2
2
No. Description Part No.
1Rose, Outside 01-001**
2Rose, Inside 01-002**
3Knob/Lever, Closed 01-008**
19 Mounting Plate, Inside A201-377
21 Hub & Cap, Outside A201-406*
24 Spindle & Catch, Inside 1C\, - 1M\," door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
25 Spindle & Catch, Outside A301-387
28 Housing & Cap, 1C\, - 1M\," door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z\, - 1M\," door A301-406*
36 Screw, Mtg. 1C\, - 1M\," door A501-161
Screw, Mtg. 2 -2Z\x" door A501-818
37 Plate, Inside A501-305
54 Plate, Outside A508-399
56 Frame A508-598
No. Description Part No.
58 Spring, Slide, Knob & Lever A508-605
65 Slide, Non-restoring A590-181
66 Cotter Pin C503-008
67 Plug, Spindle G570-232
* Specify finish
** Specify design and finish
Note: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI)
only.

Chassis and Assemblies
Schlage • A-Series service manual • 9
Exit Lock
A25D
Chassis assembly
Trim assembly
Assembled
chassis
56
38
52
65
37
58
24
28
66
22
19
36
2
3
2
2
2
No. Description Part No.
2Rose, Inside 01-002**
3Knob/Lever, Closed 01-008**
19 Mounting Plate, Inside A201-377
22 Rose, Outside A201-558*
24 Spindle & Catch, Inside 1C\, - 1M\," door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
28 Housing & Cap, 1C\, - 1M\," door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z\, - 1M\," door A301-406*
36 Screw, Mtg. 1C\, - 1M\," door A501-161
Screw, Mtg. 2 -2Z\x" door A501-818
37 Plate, Inside A501-305
38 Hub, 1C\, - 1Z\x" door A501-498
Hub, 1B\, -1M\," door A501-499
52 Plate, Outside A501-874
56 Frame A508-598
No. Description Part No.
65 Slide, Non-restoring A590-181
66 Cotter Pin C503-008
* Specify finish
** Specify design and finish
Note: Parts for doors 2 - 2Z\x" thick are for doors extended
inside (EI) only.

10 • Schlage • A-Series service manual
Chassis and Assemblies
Patio Lock
A30D
26
Chassis assembly
Assembled
chassis
Trim assembly
56
20
54
25
55
58
6
24
66
26
62
37
3
1
6
2
19
36
2
4
2
2
No. Description Part No.
1Rose, Outside 01-001**
2Rose, Inside 01-002**
3Knob/Lever, Closed 01-008**
4Knob/Lever, Open 01-009**
6Plunger & Button, Inside 01-055***
19 Mounting Plate, Inside A201-377
20 Hub and Cap, Outside A201-399*
22 Rose, Outside A201-558
24 Spindle & Catch, Inside C\, - 1M\," door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
25 Spindle and Catch, Outside A301-403
28 Housing & Cap, 1C\, - 1M\," door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z\, - 1M\," door A301-406*
37 Plate, Inside A501-305
54 Plate, Outside A508-399
No. Description Part No.
55 Seat Spring, Knob & Lever A508-597
56 Frame A508-598
62 Slide, Restoring A590-158
55 Seat Spring, Knob & Lever A508-597
56 Frame A508-598
62 Slide, Restoring A590-158
* Specify finish
** Specify design and finish
*** Specify dimension and finish
Note: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI)
only.

Chassis and Assemblies
Schlage • A-Series service manual • 11

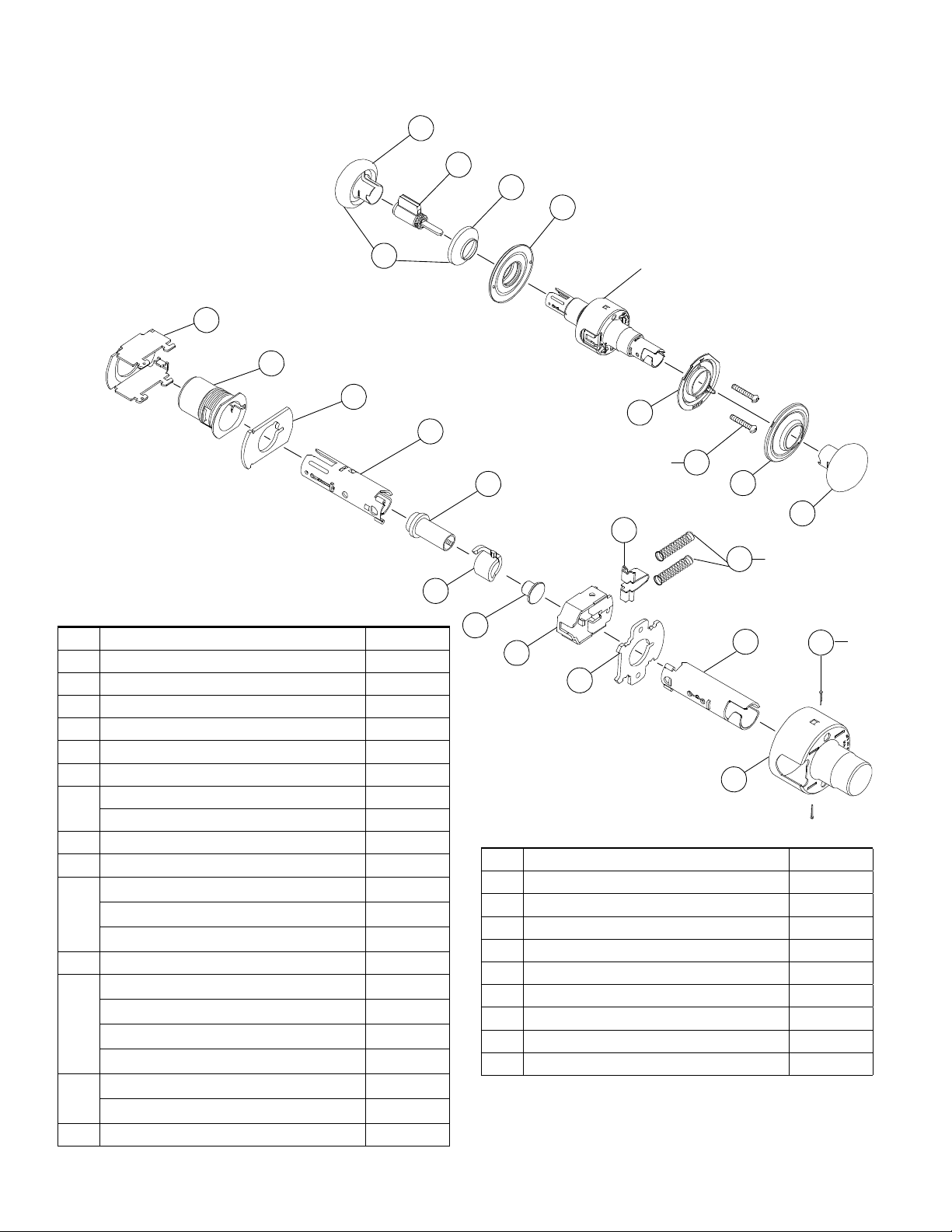

Bath/Bedroom Privacy Lock
A40S
Chassis assembly
Assembled
chassis
Trim assembly
236
4
8
1
7
19
4
2
56
21
54
25
27
64
37
58 2
7
24
28
66 2
No. Description Part No.
1Rose, Outside 01-001**
2Rose, Inside 01-002**
4Knob/Lever, Open 01-009**
7Plunger & Button, Inside 01-056***
8Plunger & Button, Outside 01-057***
19 Mounting Plate, Inside A201-377
21 Hub and Cap, Outside A201-406*
24 Spindle & Catch, Inside 1C\, - 1M\," door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
25 Spindle and Catch, Outside A301-403
27 Cam, Outside A301-402
28 Housing & Cap, 1C\, - 1M\," door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z\, - 1M\," door A301-406*
36 Screw, Mtg. 1C\, - 1M\," door A501-161
Screw, Mtg. 2 - 2Z\x" door A501-818
No. Description Part No.
37 Plate, Inside A501-305
54 Plate, Outside A508-399
56 Frame A508-598
58 Spring Slide, Knob & Lever A508-605
64 Slide, Restoring A590-180
66 Cotter Pin C503-008
* Specify finish
** Specify design and finish
*** Specify dimension and finish
Note: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI)
only.

12 • Schlage • A-Series service manual
Chassis and Assemblies

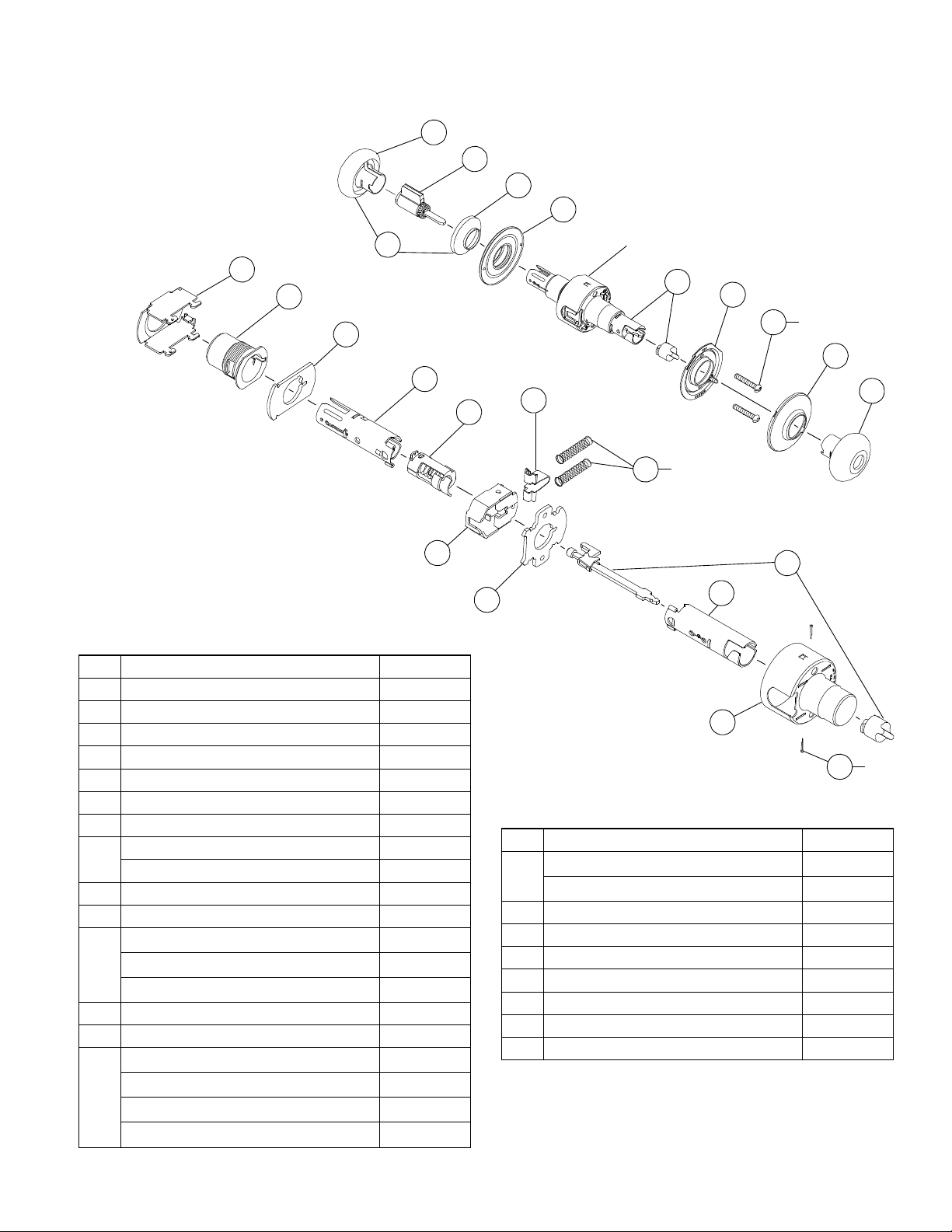

Communicating Lock
A43D
58
Chassis assembly
Assembled
chassis
Trim assembly
56
21
54
23
58
2
60
4
2
59
9
41
57
66
2
37
63
1
68
No. Description Part No.
1Rose, Outside 01-001**
4Knob/Lever, Open 01-009**
9Plunger and Button, Outside 01-058***
21 Hub and Cap, Outside A201-406*
23 Turn and Plate, Inside A201-688*
37 Plate, Inside A501-305
41 Spindle, Inside, 1C\, - 1M\," door A501-633
Spindle, Inside, 2Z\v" door A500-001
Spindle, Inside, 2Z\x" door A500-002
54 Plate, Outside A508-399
56 Frame A508-598
57 Housing A508-600
58 Spring Slide, Knob & Lever A508-605
59 Stop Slide A508-641
No. Description Part No.
60 Screw, Mtg. 1C\, - 1M\," door A508-649*
Screw, Mtg. 2 - 2Z\x" door A508-650*
63 Slide, Non-restoring A590-159
66 Cotter Pin C503-008
68 Tamper Resistant Torx Tool Bit (One per case) M504-426
* Specify finish
** Specify design and finish
*** Specify dimension and finish
Note: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI)
only.

Chassis and Assemblies
Schlage • A-Series service manual • 13

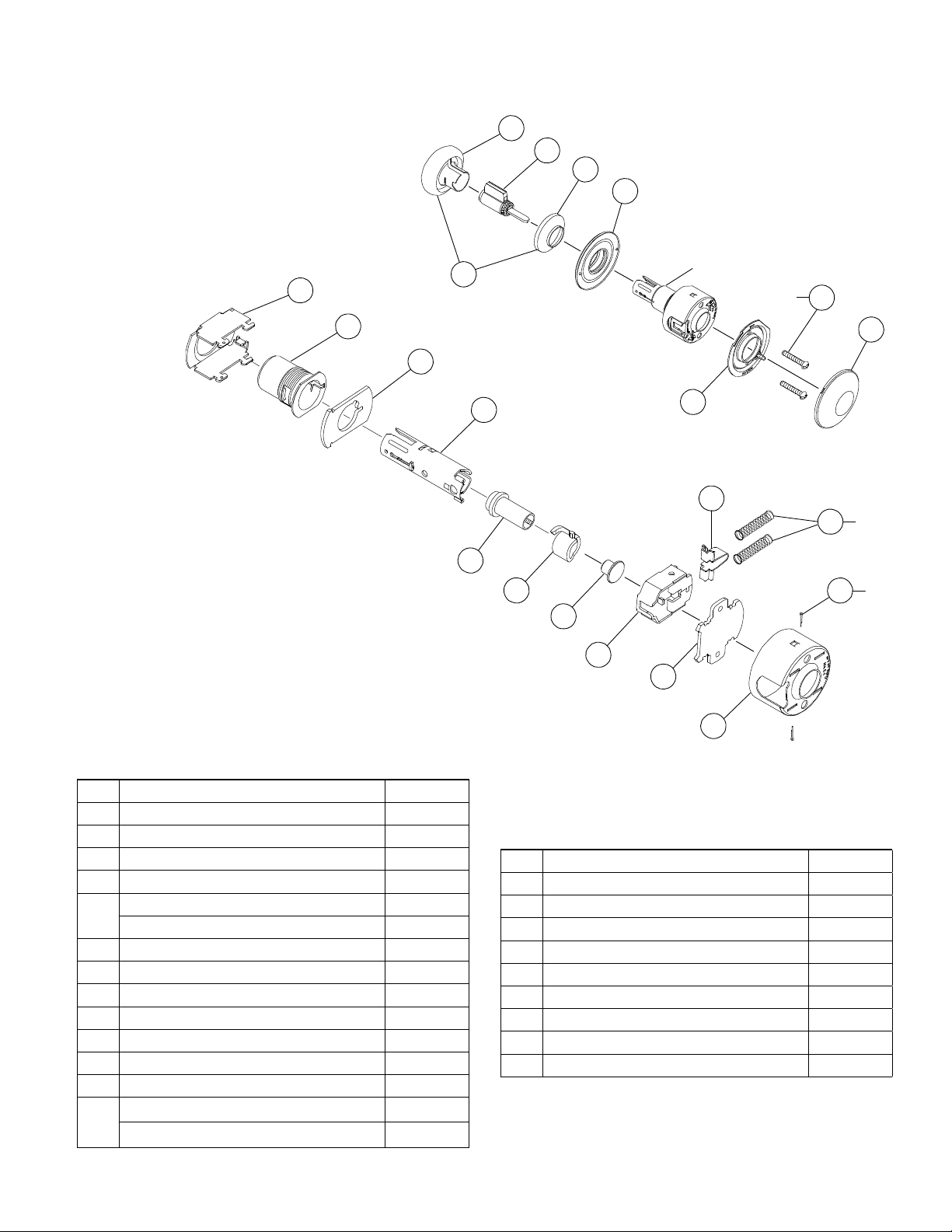

Entrance Lock
A53PD
Chassis assembly
Assembled
chassis
Trim assembly
56
20
54
63
58
4
2
66
37
25
55
27
28
24
10
2
36
19
10
1
13
5
14
12
2
2
No. Description Part No.
1Rose, Outside 01-001**
2Rose, Inside 01-002**
4Knob/Lever, Open 01-009**
5Knob and Sleeve, Cylinder 01-018**
10 Plunger & Button, Inside 01-060***
12 Cylinder Knob (less sleeve) 01-080**
13 Sleeve Knob Cylinder 01-081**
14 Cylinder, 6-Pin 21-002**
Cylinder, 6-Pin, Orbit 21-002-122**
19 Mounting Plate, Inside A201-377
20 Hub and Cap, Outside A201-399
24 Spindle & Catch, Inside 1C\, - 1M\," door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
25 Spindle and Catch, Outside A301-387
27 Cam, Outside A301-402
28 Housing & Cap, 1C\, - 1M\," door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z\, - 1M\," door A301-406*
No. Description Part No.
36 Screw, Mtg. 1C\, - 1M\," door A501-161
Screw, Mtg. 2 - 2Z\v" door A501-818
37 Plate, Inside A501-305
54 Plate, Outside A508-399
55 Seat Spring, Knob and Lever A508-597
56 Frame A508-598
58 Spring Slide, Knob and Lever A508-605
63 Slide, Non-restoring A590-159
66 Cotter Pin C503-008
* Specify finish
** Specify design and finish
*** Specify dimension and finish
Note: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI)
only.

14 • Schlage • A-Series service manual
Chassis and Assemblies
Classroom Lock
A70PD
Assembled
chassis
Chassis assembly
Trim assembly
58
56
20
54
63
2
2
66
37
25
55
28
24
36
19
1
13
14
12
2
2
3
5
43
49
50
No. Description Part No.
1Rose, Outside 01-001**
2Rose, Inside 01-002**
3Knob/Lever, Closed 01-008**
5Knob and Sleeve, Cylinder 01-018**
12 Cylinder Knob (less sleeve) 01-080**
13 Sleeve Knob Cylinder 01-081**
14 Cylinder, 6-Pin 21-002*
Cylinder, 6-Pin, Orbit 21-002-122*
19 Mounting Plate, Inside A201-377
20 Hub and Cap, Outside A201-399*
24 Spindle & Catch, Inside 1C\, - 1M\," door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
25 Spindle and Catch, Outside A301-387
28 Housing & Cap, 1C\, - 1M\," door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z\, - 1M\," door A301-406
36 Screw, Mtg. 1C\, - 1M\," door A501-161
Screw, Mtg. 2 - 2Z\v" door A501-818
37 Plate, Inside A501-305
No. Description Part No.
43 Plug, Cam A501-721
49 Spiral Cam A501-776
50 Spacer Cam A501-791
54 Plate, Outside A508-399
55 Seat Spring, Knob and Lever A508-597
56 Frame A508-598
58 Spring Slide, Knob and Lever A508-605
63 Slide, Non-restoring A590-159
66 Cotter Pin C503-008
* Specify finish
** Specify design and finish
Note: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI)
only.

Chassis and Assemblies
Schlage • A-Series service manual • 15
Communicating Lock
A79PD
Assembled
chassis
Chassis assembly
Trim assembly
47
45
1
13
14
12
2
5
44
58
56
20
54
63
2
66
57
25
55
46
2
43
49
50
No. Description Part No.
1Rose, Outside 01-001**
5Knob and Sleeve, Cylinder 01-018**
12 Cylinder Knob (less sleeve) 01-080**
13 Sleeve Knob Cylinder 01-081**
14 Cylinder, 6-Pin 21-002*
Cylinder, 6-Pin, Orbit 21-002-122*
19 Mounting Plate, Inside A201-377
20 Hub and Cap, Outside A201-399*
25 Spindle and Catch, Outside A301-387
43 Plug, Cam A501-721
44 Rose, Inside A501-766*
45 Plate, Mounting A501-767
46 Plate, Inside A501-768
47 Screw, Mtg. 1C\, - 1M\," door A501-769
Screw, Mtg. 2 - 2Z\v" door A501-770
No. Description Part No.
49 Spiral Cam A501-776
50 Spacer Cam A501-791
54 Plate, Outside A508-399
55 Seat Spring, Knob and Lever A508-597
56 Frame A508-598
57 Housing A508-600
58 Spring Slide, Knob and Lever A508-605
63 Slide, Non-restoring A590-159
66 Cotter Pin C503-008
* Specify finish
** Specify design and finish
Note: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI)
only.

16 • Schlage • A-Series service manual
Chassis and Assemblies
Storeroom Lock
A80PD
Chassis assembly
Assembled
chassis
Trim assembly
56
20
53
63
58 2
66
37
12
55
14
28
24
18
2
25
40
13
1
5
2
3
36
19
2
No. Description Part No.
1Rose, Outside 01-001**
2Rose, Inside 01-002**
3Knob/Lever, Closed 01-005**
5Knob and Sleeve, Cylinder 01-018**
12 Cylinder Knob (less sleeve) 01-080**
13 Sleeve Knob Cylinder 01-081**
14 Cylinder, 6-Pin 21-002*
Cylinder, 6-Pin, Orbit 21-002-122*
18 Cam A201-370
19 Mounting Plate, Inside A201-377
20 Hub and Cap, Outside A201-399*
24 Spindle and Catch, Inside, 1C\, - 1M\," door A301-386
Spindle and Catch, Inside, 2 - 2Z\v" door A301-409
Spindle and Catch, Inside, 2Z\x" door A301-410
25 Spindle and Catch, Outside A301-387
28 Housing & Cap, 1C\, - 1M\," door A301-403
Housing & Cap, 2 - 2Z\v" door A301-404
Housing & Cap, 2Z\x" door A301-405
Housing, Threaded, 1C\, - 1M\," door A301-406
No. Description Part No.
36 Screw, Mtg. 1C\, - 1M\," door A501-161
Screw, Mtg. 2 - 2Z\x" door A501-818
37 Plate, Inside A501-305
40 Wedge A501-615
53 Plate, Outside A501-901
55 Seat Spring, Knob and Lever A508-597
56 Frame A508-598
58 Spring Slide, Knob and Lever A508-605
63 Slide, Non-restoring A590-159
66 Cotter Pin C503-008

Chassis and Assemblies
Schlage • A-Series service manual • 17
Faculty/Restroom Lock
A85PD
Chassis assembly
Assembled
chassis
Trim assembly
56
20
53
62
58 2
66
37
12
55
15
27
24
11
2
25
40
13
1
5
2
4
36
19
2
28
42
11
No. Description Part No.
1Rose, Outside 01-001**
2Rose, Inside 01-002**
4Knob/Lever, Open 01-009**
5Knob and Sleeve, Cylinder 01-018**
11 Plunger and Button, Inside 01-063***
12 Cylinder Knob (less sleeve) 01-080**
13 Sleeve Knob Cylinder 01-081**
15 Indicator Cylinder 21-003*
Indicator Cylinder, Orbit 21-003-168*
19 Mounting Plate, Inside A201-377
20 Hub and Cap, Outside A201-399*
24 Spindle and Catch, Inside, 1C\, - 1M\," door A301-386
Spindle and Catch, Inside, 2 - 2Z\v" door A301-409
Spindle and Catch, Inside, 2Z\x" door A301-410
25 Spindle and Catch, Outside A301-387
27 Cam, Outside A301-402
28 Housing & Cap, 1C\, - 1M\," door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing, Threaded, 1C\, - 1M\," door A301-406*
36 Screw, Mtg. 1C\, - 1M\," door A501-161
Screw, Mtg. 2 - 2Z\x" door A501-818
37 Plate, Inside A501-305
No. Description Part No.
40 Wedge A501-615
42 Sleeve, Swivel A501-710
53 Plate, Outside A501-901
55 Seat Spring, Knob and Lever A508-597
56 Frame A508-598
58 Spring Slide, Knob and Lever A508-605
62 Slide, Restoring A590-158
66 Cotter Pin C503-008
* Specify finish
** Specify design and finish
*** Specify dimension and finish
Notes: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI)
only. Faculty/Restroom function locks are funished 0-bitted with
two 6-pin key unless otherwise specified. Emergency keys must
be ordered separately.

18 • Schlage • A-Series service manual
Chassis and Assemblies
Dummy Trim
A170
3
70
69
2
No. Description Part No.
2Rose, Inside 01-002**
3Knob/Lever, Closed 01-005**
69 Non-Threaded Chassis, Less Knob and Rose A201-330
70 Screws, Mtg. C603-897
* Specify finish
** Specify design and finish
*** Specify dimension and finish
Note: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI) only.

20 Knob and Lever Designs
21 Latches
22 Strikes
23 Finishes
24 Cylinder Units and Parts
26 Interchangeable Cores, Designs, and Parts
28 Lubrication
28 Installation Tools and Kits
29 Long Backsets
29 Reinforcement Kit
30 Keying
Parts and Accessories

20 • Schlage • A-Series service manual
Parts and Accessories
Knob and Lever Designs
Wrought brass, bronze or stainless steel. Lever is zinc based, plated to match BHMA symbols.
Levon (LEV)
Available Finishes:
605, 612, 613,
626
Georgian (GEO)
Available Finishes: 605,
606, 609, 610, 625, 626
Orbit (ORB)
Available Finishes: 605,
606, 609, 610, 611, 612,
613, 616, 625, 626
Plymouth (PLY)
Available Finishes: 605, 606,
609, 610611, 612, 613, 616,
625, 626, 629, 630
Tulip (TUL)
Available Finishes: 605,
606, 609, 610, 625, 626

Parts and Accessories
Schlage • A-Series service manual • 21
Latches
All A-Series latches have adjustable brass or bronze faceplates for flat or beveled doors, Z\x" throw standard.
Deadlatch
11-085
Deadlatch
11-088
Deadlatch
11-104
Springlatch
11-068
Springlatch
11-069
Springlatch
11-110
Rabbeted Latch and Strike Kit*
39-030
Backset Description Deadlatch Springlatch Housing Diameter
2C\,"Square corner, standard 1" x 2Z\v"11-085 11-068 M\,"
Z\v" Radius round corner, 1" x 2Z\v" 11-088 11-069 M\,"
1" Circular drive-in (non-UL) 11-104 11-110 1"
2C\v"Square corner, 1" x 2Z\v"11-091 11-111 M\,"
Square corner, 1Z\," x 2Z\v"11-096 11-116 1"
Z\v" Radius round corner, 1" x 2Z\v"11-092 11-112 M\,"
1" Circular drive-in (non-UL) 11-105 11-113 1"
3C\v"Square corner, 1Z\," x 2Z\v"14-010 14-028 1"
Rabbeted latch and strike kit 39-030* —
* This kit adapts square corner latch and 2C\v" high square corner strike to Z\x" rabbeted door and frame preparations.

22 • Schlage • A-Series service manual
Parts and Accessories
Strikes
10-001 (Standard)
Square Corner
Size: 1Z\," x 2C\v" x C\cx"
Lip Length: 1Z\," ISIdi. 1",
1Z\v", 1Z\x", 1C\v", 2"
Includes C603-623 strike
box
10-004
Z\v" Radius Round Corner
Size: 1Z\," x 2C\v" x C\cx"
Lip Length: 1Z\,"
Includes C603-623 strike
box
10-025
ANSI Prep. A115.2
Size: 1Z\v" x 4M\," x C\cx"
Lip Length: 1C\zn" (Std.) 1C\,"
If required, K510-066 strike
box must be ordered
separately.
10-026
Full Lip, Square Corner
Size: 1B\," x 2Z\v" x C\zn"
Lip Length: 1Z\,"
10-027
Full Lip, Z\v" Radius Round
Corner, No Box
Size: 1Z\," x 2C\v" x C\cx"
Lip Length: 1Z\,"
10-042
Electric Strike
Size: 1Z\v" x 4M\," x C\cx"
Voltage: 24 VAC, 12
VDC
Not designed for
continuous duty and
electrical locking.
606, 626 only
10-058
Circular Adjustable
Size: 1C\v" diameter
Lip Length: 1M\cx"
Optional tamper resistant torx screw packs
Part No. Description
C203-311 (4) Latch and Strike Screws, #8-32 x Z\x" (T-15)
C203-312 (2) Latch Screws, #8-32 x Z\x" (T-15)
(2) ANSI Strike Screws, #12-24 x Z\x" (T-20)
Torx tools
Part No. Description
M504-425 T-15 Torx Tool
M504-426 T-20 Torx Tool
