Schlage S-510 User manual

󾘥󾘥
󾘩󾘥󾘫󾘥󾘥󾘮󾘥󾘫󾘥󾘪
󾘥󾘥󾘥󾘥󾘥󾘥󾘥
Voice guide (operation status, menu selection.) and provide 3 step
volume control system.
󾘥󾘥󾘥󾘥󾘮󾘥󾘥󾘥󾘥
Automatic and manual locking mode set is possible with simple
switch operation from Inside.
󾘥󾘥
If users do not open the door after unlocking the device it will
lock itself automatically.
󾘥󾘥
When double lock function is activated, the door cannot be opened
from the outside, even with the registered card, PIN code or
Fingerprint. Override key can still be used.
󾘥󾘥󾘥
Door will not emit any sound when mute is activated.
󾘥󾘥󾘥󾘥󾘥󾘥󾘥

Easy to check battery status with three step level indicator and
alarm when battery replacement is required.
󾘥󾘥
When the door is opened by force an alarm will sound.
󾘥󾘥󾘥
After multiple incorrect attempted entries an alarm will sound and
all the functions of the lock will be suspended for three minutes. 
The alarm activated after three incorrect PIN/card entries.
󾘥󾘥󾘥
When you enter your home with other people, you may not
want to show PIN code to them. In this case, you may press
any numbers randomly without limitation and then enter your
PIN code at the end.
󾘥󾘮󾘥
Normal mode is ideal for new users or low security environments
Safety mode provides a higher security level via use of a manager
PIN code. Allows individual register and delete function which is not
provided in normal mode.
Notice
Please read this manual before installation and
operation.
Safety precautions Product features
Product composition and components
󾘥󾘥󾘥󾘥󾘥󾘥󾘭
Disassembling the door lock may damage the product. Damages
to the product caused by unauthorized persons may void the
warranty.
󾘥󾘥󾘥󾘥󾘥󾘥󾘥
󾘭
Please remove the batteries immediately from the product, if
you do not take this step immediately, the product may suffer
severe damage.
󾘥󾘥󾘥󾘥󾘥󾘥󾘥󾘥󾘥
󾘭
If the product is exposed to water or liquids, please wipe the
moisture off with a soft cloth. If moisture or foreign materials
penetrate the product, remove the batteries immediately.
󾘥󾘥󾘥󾘥󾘥󾘥󾘥󾘥
󾘮󾘭
If leakage is discovered, please wipe out with a dry cloth and
replace with new batteries. In case of exposure to leakage, wash
affected skin area with soap and water immediately.
󾘥󾘥󾘥󾘥󾘥󾘥󾘥
󾘥󾘥󾘥󾘫󾘥󾘥󾘥󾘭
Such materials may damage the surface of the lock or cause a fire.
󾘥󾘥󾘥󾘥󾘥󾘥󾘥󾘥
󾘥󾘥󾘥󾘥󾘫󾘥󾘥󾘥󾘥
󾘥󾘥󾘫󾘥󾘥󾘥󾘥󾘭
Do not use damaged batteries.
󾘥󾘥󾘥󾘥󾘥󾘥󾘥󾘥
󾘥󾘥󾘥󾘫󾘥󾘥󾘥󾘥󾘥
󾘫󾘥󾘥󾘥󾘥󾘥󾘭󾘥
󾘥󾘥󾘥󾘥󾘥󾘥󾘥󾘥󾘥
󾘥󾘥󾘥󾘭
It may damage the product or cause a malfunction.
󾘥󾘥󾘥󾘥󾘥󾘥󾘥󾘭
It may damage the product or cause a malfunction.
󾘥󾘥󾘥󾘥󾘥󾘥󾘫󾘥󾘥󾘥
󾘥󾘥󾘥󾘭
The battery life is getting shorter and it may cause leaks or
explosion.
󾘥󾘥󾘥󾘥󾘥󾘥󾘥󾘥󾘥
󾘥󾘥󾘥󾘭
Dew condensation; small drops of water that form when warm air
touches a cold surface. Please check the environment of installation
area. Heavy dew condensation may damage the product or cause a
malfunction.
S-510
TOUCHPAD DIGITAL
DOOR LOCK
WITH FINGERPRINT READER
USER MANUAL
Name product speci󽗉cation remark
① Front Ass`y
74mm(W) X 184mm(H) X 20.7mm(D)
Including rubber pad
② Back Ass`y 160mm(W) X 93mm(H) X 37mm(D)
③ Back bracket
164mm(W) X 97mm(H) X 4.5mm(D)
④ Strike
30.1mm(W) X 124mm(H) X 28mm(D)
⑤ Strike housing
30mm(W) X 124mm(H) X 2mm(D) 1 EA
30mm(W) X 124mm(H) X 4.7mm(D) 3 EA
Using for height 
of strike
⑥ Card / Fob ISO card, Tag key, Mobile tag key
⑦ Battery 1.5V 'AA' Size LR6 4 Alkaline (DC 6V)
⑧ Screws 1 EA
⑨ User manual Main User manual
⑩ Installation template Using for making hole at the door
⑪ Communication pack
Communication pack
Optional
⑫ Remote key
Remote key Optional
※
Installation condition Door thickness 40~50mm
(4-1) Dead bolt guider : should remove after 󽗉nishing installation.
①
⑦
④
② ③
⑤
(4-1)
⑧⑥
⑨
⑩
User
manual
Installation
template
Remote key Communication pack
Optional parts
⑪ ⑫
Screws
Name and function of each part
Name Description
① Lock / Unlock lamp Indicate lock/unlock status.
② Status indicator Indicates operation status and checking battery capacit
20% of Battery 50% of Battery 80% of Battery
③
Touch Keypad Touch type Keypad
④ Window icon
: Mute function : Wireless connection indicator(Option)
: Battery replacement indicator lamp
: Trespass alarm function
⑤ Fingerprint sensor Touch the registered fingerprint on the sensor to unlock the
door
⑥
Card / Fob touch plate Touch the registered Card / Fob to unlock the door
⑦ External power supply
When battery does not operate, product may be operated and
unlocked by contacting a 9V battery on terminal located outside.
2. Back Ass`y1. Front Ass`y
button
Name Description
⑧ Thumb turn Open or close manually with thumb turn
⑨ [Open / Close] button Open or Close door with one touch button
⑩ 
Auto / Manual 
mode switch
A : Auto mode (It locks automatically when the door is closed)
M : Manual mode (Does not lock automatically when the door is closed)
⑪ Connection terminal
for communication
pack
Connecting or removing terminal for communication pack
⑫ Communication 
button : Registration or deletion of optional RF communication pack
⑬ [N],[S] button Registration/deletion of PIN code , Card / Fob, Fingerprint in
normal mode or safety mode
⑭ Battery cover Push up to open the battery cover
①
③
⑥
④
⑦
②
⑤
⑧
⑨
⑩
⑪⑫⑬⑭

How to register / delete remote key
REG. Remote key
3"Sec 1C
or
#
or
DEL. All
remote key
3"Sec 2C
or
#
How to lock / unlock using remote key
Unlock Lock
※ Repeat highlighted part for continuous registration.
※ 1 EA battery is equipped.
※ To replace battery, open the back cover.
Wireless communication device installation
Communication pack / Remote key
(optional)
Using the Schlage Base (optional)
※ Communication packs(Mobile Access) must be purchased separately.
Rev.03
Additional function
How to control voice guide volume
Min. volume
#Cor #1
1
Mid. volume 2
Max. volume 3
Guest PIN code (Temporary use)
REG. #Cor #2RC #RC #
How to control operation volume
Vol. up
#Cor #3
9
Vol. down 7
Status checking guide
Voice guide #Cor #4
Check battery capacity
Checking the
battery
#Cor #5
Warning function against Illegal entry or hacking
Operate
Wrong PIN code three times/unregistered card three times/
unregistered 󽗉ngerprint 󽗉ve times
Warning alarm function against trespass by force
PIN code CCard / Fob
How to replace batteries
If battery lamp is blinking RED and alarm sounds, open battery cover and replace all batteries,
6V(1.5V "AA" size LR6 Alkaline)
How to lock from Inside
(Auto lock / Manual lock)
1. In auto lock mode 2. In manual lock mode
After closing door, press [open/close]
button, then door is locked with beep
sound.
How to open or close with [open/close] button
from Inside
(Auto)
Press [open/close] when locked and it will
unlock.
Press [open/close] when unlocked and it will
lock.
When the door is closed, door is locked 
with beep sound automatically.
How to open or close with Thumb turn from
Inside
(Manual)
Turn clockwise for unlocking Turn counterclockwise for locking
♪~BikBik~Biririk ♪~Biririk
How to set double locking function
1. [Double locking] Set up 2. [Double locking] Cancel
While double locking mode is on
Press [open/close] button.
While door is unlocked
Press [open/close] button for 3 second.
1. Open the battery cover on the lock and remove the batteries.
2. Plug in the wireless communication device.
3. Insert the batteries back into the lock.
4. Audible melody will sound if successful.
˙ In double locking mode, from inside, you can release lock by use of thumb turn.
˙ Intrusion alarm function still activate while in double licking mode.
˙ Even in door is open, double lock mode can be activated, When volume is set to “mute”, only the
indicator of double locking mode is blinking with sound.
Note
˙ Please insert the device in the
correct position.
Note
˙ Auto relocking system is di󽗈erent from “auto lock”. If the door is not opened within . 
7 seconds after input PIN code, it will be relocked automatically
Note

Auto lock function / Auto relock function
When the door is closed, it will be locked
automatically.
If the door is not opened within 7 seconds after
input PIN code or card it will be relocked
automatically to protect user's property.
1. Auto lock function 2. Auto relocking system
ㆍ Normal mode : ideal for new users or low security environments
ㆍ Safety mode : higher security level via use of a manager PIN code. Provides individual and
deletion function
ㆍPIN code: 10 entries (6-12 digits) / Card / Fob: 50 entries / 
Fingerprint : 50 entries
: [N] button : [S] button : Card / Fob : Fingerprint
UC : User code MC : Manager code RC :
Registration c ode
How to change from normal mode to safety mode
12345678910
Safety mode
3"Sec UC #MC #MC #
How to change from safety mode to normal mode
Normal mode
3"Sec MC #UC #UC #
Normal mode
12345678910
REG.
PIN code
1 4 RC ㆍㆍㆍ
Card / Fob
1 5 ㆍㆍㆍ
Fingerprint
1 6
DEL.
All 
Card / Fob
2 5
All 
Fingerprint
2 6
※ Repeat highlighted part of diagram above for continuous registration.
Normal mode
How to change Normal mode / Safety mode
Safety mode
Warning : Please do not forget manager PIN code.
If you forget this number, please contact to your local agency.
Keep the door open while you register PIN code / Card to prevent yourself
from accidentally getting locked out.
ㆍPIN code: 10 entries (6-12 digits) / Card / Fob: 50 entries / 
Fingerprint : 50 entries
: [N] button : [S] button : Card / Fob : Fingerprint
UC : User code MC : Manager code RC :
Registration Code
Safety mode
1 2 3 4 5 6 7 8 9 10 11 12
REG.
PIN code
1 4 MC or #RC
Card / Fob
1 5 MC or #
Card
Registration
Number(2digits)
#
Finger
print
1 6 MC or #
Finger print
Registration 
Number(2 digits)
3 times
#
DEL.
All 
Card / Fob
2 5 MC or #
Individual
Card / Fob
3 5 MC or #
Card
Registration
Number(2digits)
#
All 
Fingerprint
2 6 MC or #
Individual
Fingerprint
3 6 MC or #
Finger print
Registration 
Number(2 digits)
#
Safety mode (Manager)
Change Manager
code
8 4 MC or #RC #RC #
REG.
Manager
Card / Fob
8 5 MC or # #
DEL.
All 
manager
Card / Fob
8 6 MC or #5
※ Repeat highlighted part for continuous registration or deletion.
English
3 C or #1
Chinese
3 C or #2
How to select the language
How to register remote key & to unlock or lock
1.5v ‘AAA’ size
alkaline
battery 1 EA
Indication lamp
[Lock] button
[Unlock] button
ㆍRemote key : 5 entries
: [Communication function] button
: Remote unlock : Remote lock
C
: PIN code : Card / Fob
Connecting with the mobile app
Disconnecting the app from the door lock
1. Install the Schlage Base via the APP Store or Google Play.
2. Activate the app (new user must register account first) and press the “ ” icon at
the top of the screen and select a door lock from the list.
3. Connect the door lock by following the guide provided in the app.
󾘥󾘥󾘯󾘥
Press and hold the [ ] button for 3 seconds.
Then, press 1 on the keypad and enter the passcode followed by the [] button.
1. Press and hold the [] button for 3 seconds.
2. Then, press 2 on the keypad and enter the passcode followed by the [] button.

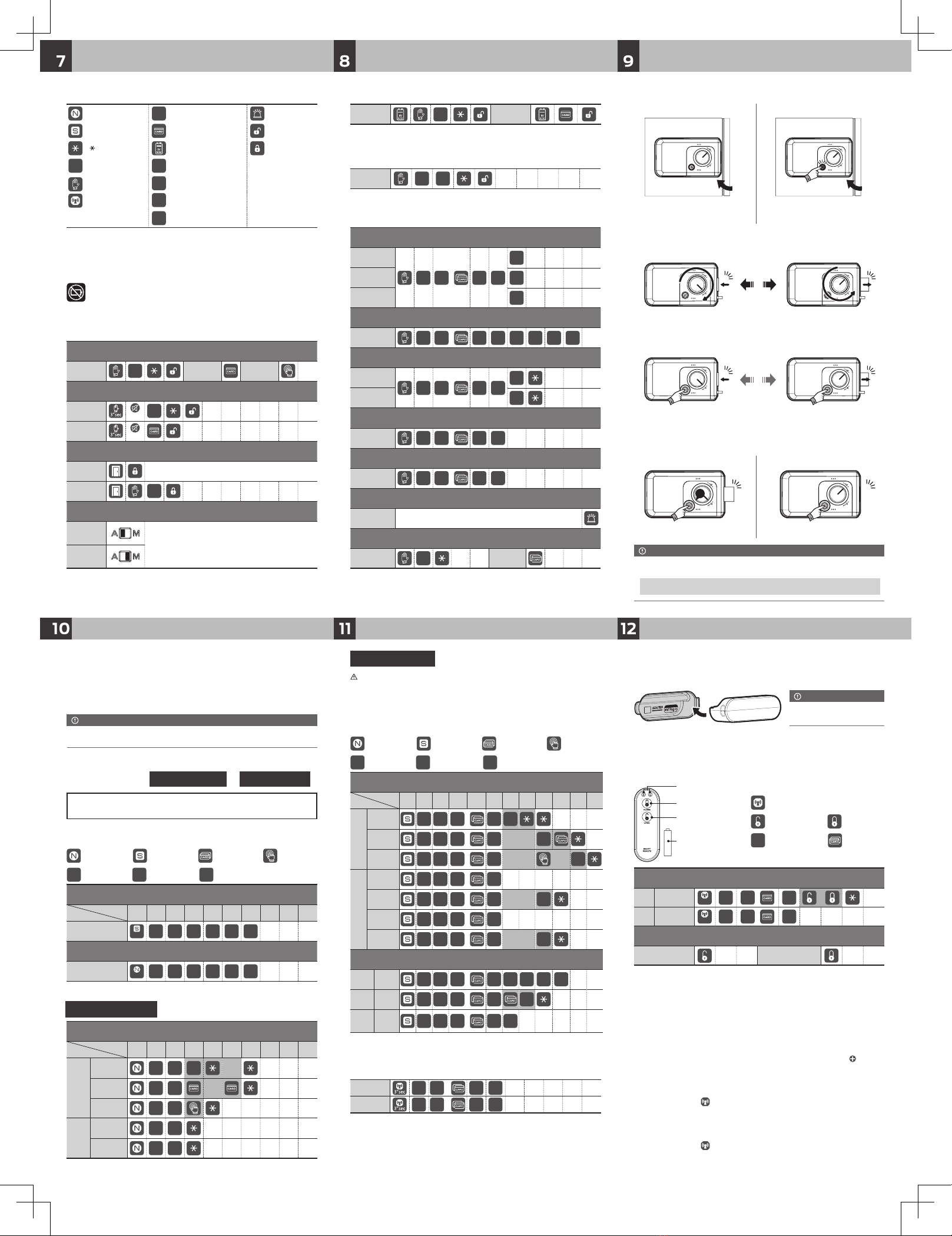

How to unlock / lock from outside
How to unlock from outside
PIN code
C
Card / Fob Fingerprint
How to unlock from outside without disturbing others (Mute function)
PIN code

OFF C
Card / Fob

OFF
How to lock [Auto lock / Manual lock] from outside
Auto lock ※ If the door is not closed correctly, warning sound will go o󽗈. 
Please check and con󽗉rm the door closing status.
Manual lock
0
How to set auto lock / manual lock
Auto lock
In Auto lock mode, door will be locked automatically.
In Manual lock mode, door will be locked pressing manual lock
button.
* As the auto locking function does not work in the manual lock
mode, please make sure to check the door is locked when you
leave.
Manual lock
Description shortcut icons
: [N] button
C
: PIN code : Trespass alarm
: [S] button : Card / Fob : Unlock
: [ ] button : 9V alkaline battery(6LF22) : Lock
#
: [#] button
UC
: User code
: Touch the front pad
MC : Manager code
: [Communication
function] button
RC
: Registration code
RAN
DOM
CODE
: Random code
※ Normal mode : [N] button / Safety mode : [S] button
How to apply external power in the emergency
PIN code
C
Card / Fob
How to use random security coding function
Usage
RAN
DOM
CODE C
