Schlage S-6800 User manual

S-6800
TOUCHPAD DIGITAL
DOOR LOCK
USER MANUAL

Four Way Access Solution
Four entry options: PIN code, fingerprint and smart card/fob. The
unit also has a key override feature.
Random Security Code Function
You may press any numbers randomly without limitation, and then
enter your PIN code as the final sequence. This feature allows
access without revealing your PIN code to others.
Individual Management for Smart Cards/Fobs
You are able to individually register or delete smart cards/fobs.
Panic Release Handle Type
This feature facilitates quick exits, opening the door easily with a
simple lever action.
Highly Reliable Lock Type
The S-6800 features a reliable mechanical mortice lock.
Auto lock/Auto re-lock function
When the door is closed, the lock engages automatically. If users
do not open the door after unlocking it, the lock will re-engage
automatically.
Privacy function
When privacy function is activated, the door cannot be opened
from outside, even with the registered card/fob or entry code.
Excessive force alarm
If excessive force is used to try to bypass the lock, the lock function
is supended and an alarm will sound.
Preventing illegal entry and hacking
If an incorrect entry code is used 3 times, the door lock function is
suspended and an alarm will sound.
Battery level indicator
Replace batteries when low battery indicator light shows and alarm
sounds.
Product Features

Safety Precautions
Do not disassemble or alter the lock. Disassembling the door
lock may damage the product. Damage to the product caused by
unauthorised persons may void the warranty.
Please keep the product away from water or any liquids. If the
product is exposed to water or liquids, please wipe the moisture
off with a soft cloth. If moisture or foreign materials penetrate the
product, remove the batteries immediately.
Please check the batteries every 6 months for leaks/cleanliness. If
leakage is discovered, please wipe out with a dry cloth and replace
with new batteries. In case of exposure to leakage, wash affected
skin area with soap and water immediately.
Do not clean the product with flammable materials such as alcohol,
benzene or thinners. Such materials may damage the surface of the
lock or cause a fire.
Batteries should not be exposed directly to heat sources or
submerged in water, because they may leak or explode, resulting in
severe damage. Do not use damaged batteries.
Do not allow the battery electrodes to make contact with metals
such as keys, as the battery may overheat, causing an explosion or
severe damage.
Please do not close the door with the deadbolt in the locked
position. It may damage the product or cause a malfunction.
Do not mix old and new batteries, or use different types of
batteries. Ensure the + and - ends of the batteries are positioned
correctly. Incorrect positioning may cause leaks and/or an explosion.

Introduction & Basic Functions
Product components 4
Front of lock 5
Back of lock 6
Checking battery status 7
Replacing batteries 7
Emergency power 8
Manual override 8
Random security coding 9
Auto/manual locking system 9
Opening door from outside 10
Locking door from outside 11
Opening door from inside 12
Locking door from inside 12
Applications
Privacy function 13
Auto locking function 14
Auto-relocking function 14
Alarm & warning functions 15
System reset 16
Setting volume level 17
User Manual Index
About Modes | Changing modes
Normal mode > safety mode
(creating system manager) 18
Safety mode > normal mode 19
NORMAL MODE
Registering entry PINs 20
Registering cards/fobs 21
Deleting cards/fobs 21
Registering fingerprints 22
Deleting all fingerprint data 22
Registering fingerprint without
fingerprint cover in place 23
SAFETY MODE
Registering entry PINs 24
Registering cards/fobs 25
Deleting all card/fob data 26
Deleting individual cards/fobs 26
Registering fingerprints 27
Deleting all fingerprint data 28
Deleting individual fingerprints 28
Creating temporary user PINs 29
Changing manager’s PIN 30
Changing manager’s card/fob 30

4.

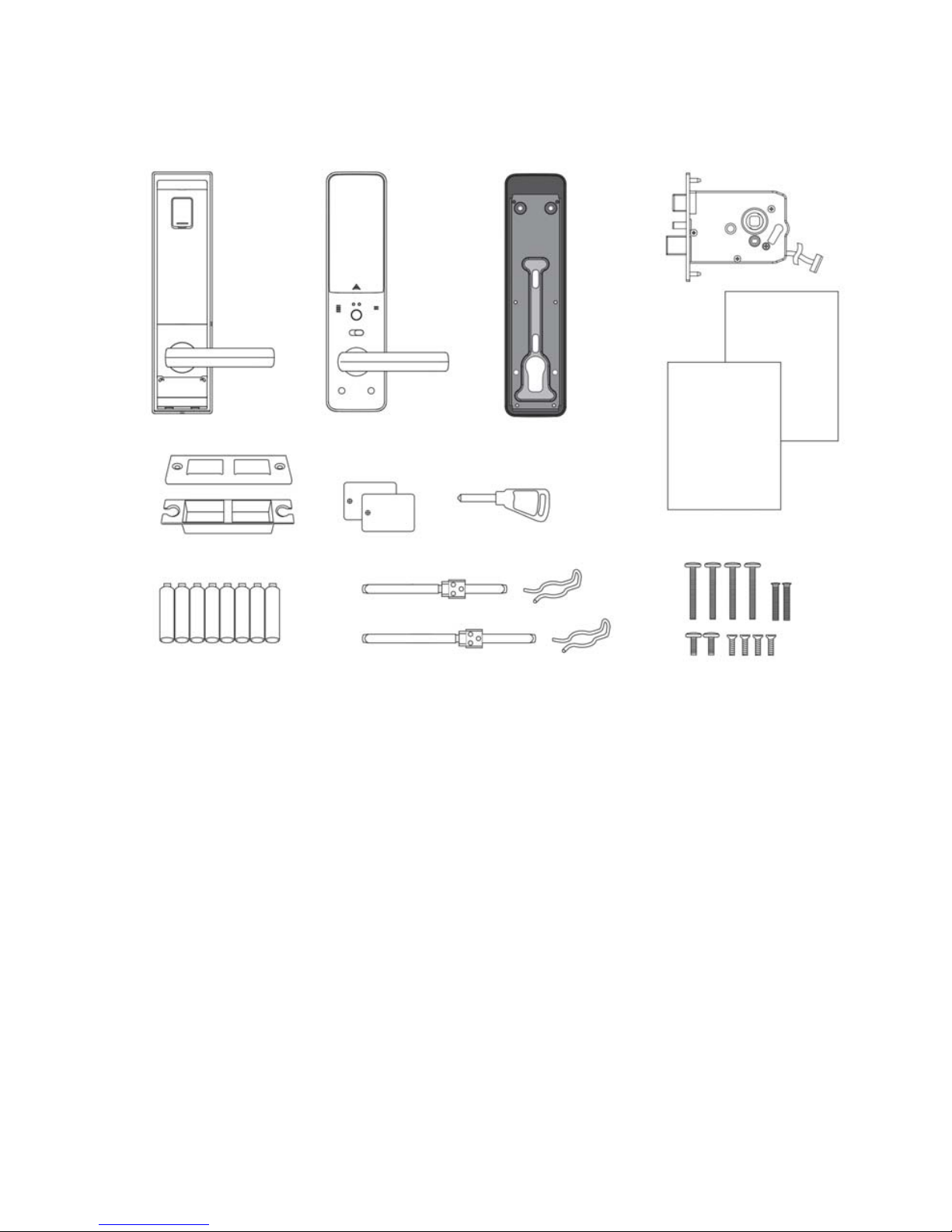

Product Components
Name Specification/Detail
Front assembly 76mm (W) x306mm (H) x28mm (D)
Back assembly 71mm (W) x298.6mm (H) x30.7mm (D)
Back cover 76mm (W) x303.6mm (H) x7.9mm (D)
Mortice Lock 123mm (W) x 109.5mm (H) x 24.5mm (D)
Strike plate 36mm (W) x 106mm (H) x 1.5mm (D)
Strike housing 24mm (W) x 102mm (H) x 18mm (D)
Card/fob 2x card, 2x fob, 2x patch
Key 3x
User manual Includes warranty form
Installation template For door preparation
Batteries 8 pieces (1.5v, AA, LR6 alkaline)
Handle shaft (40-50mm thick door) 89(W) X 12(H) X 12(D)mm + stop-ring
Handle shaft (50-90mm thick door) 126.9(W) X 12(H) X 12(D)mm + stop-ring
Screws 5 x 30mm - 4 of each for back cover
5 x 24mm - 2 of each for inner lower part
5 x 8mm - 2 of each for inner upper part
3/16” x 1/2” - 4ea. for mortice and strike
4 x 19mm - 4ea. for front/back plate
1. 2. 4.3.
5.
6. 7. 8.
10.
9.
11. 12. 14.
13.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

5.
Front of Lock
Fingerprint cover
Fingerprint sensor
Fingerprint sensor lamp
Status indicator
Touch type numeric pad
- enter PIN to operate lock
Door handle
Mechanical key override
Battery replacement indicator
- replace batteries when this
lamp begins to flicker
Card/fob touch plate
External power supply

6.

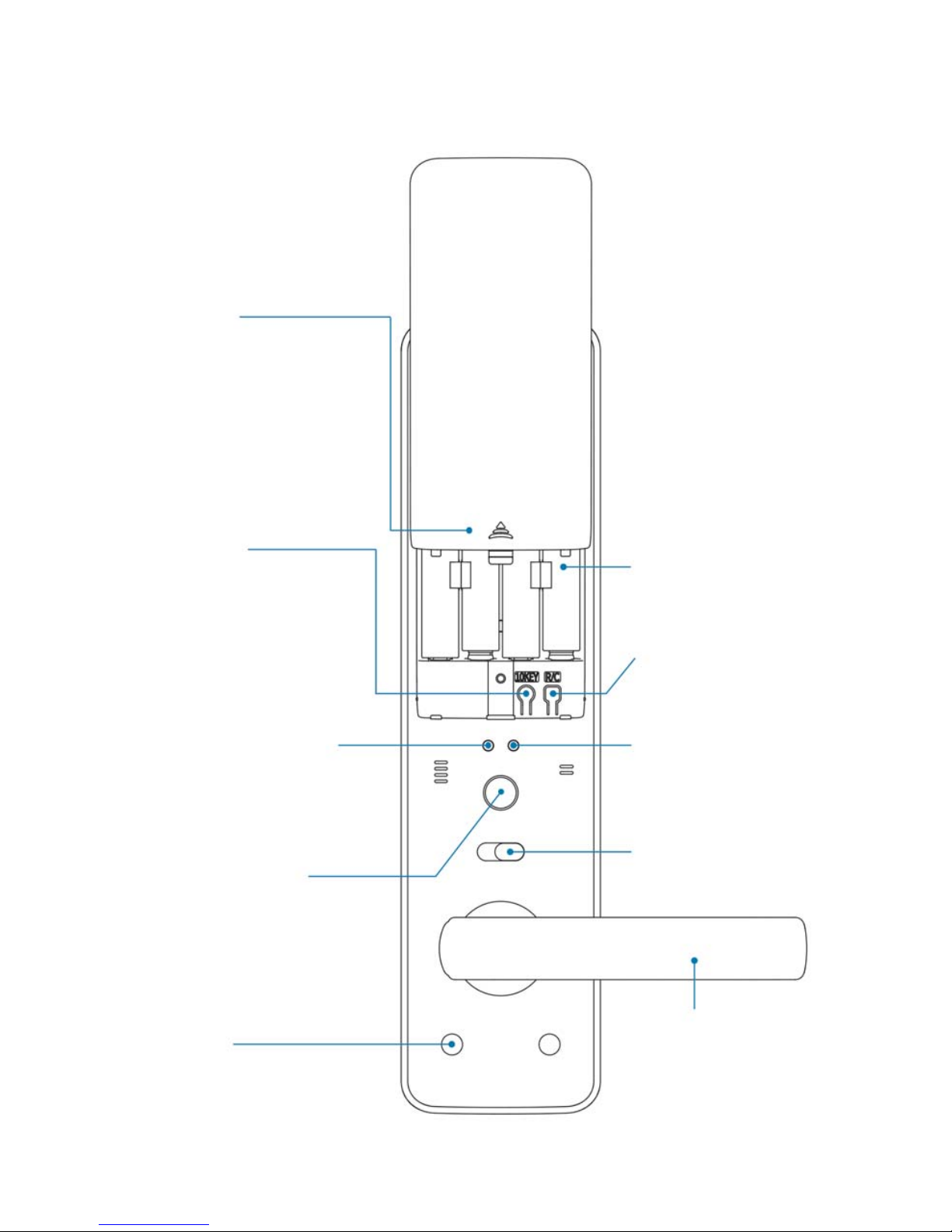

Back of Lock
Battery cover
10 key button
- used to set normal mode
- registration of PIN,
card/fob, fingerprint
LED indicator (locking status)
- flickering (locked correctly)
- flickering with alarm sound
(abnormal locking status)
Manual locking button
- locks the door manually in
manual locking mode
Fixing screw
Door handle
- panic release type
- can be used at any time
Privacy switch
- to set privacy mode
Low voltage indicator
- when the lamp flickers
and alarm sounds batteries
should be replaced
R/C button
- used to set safety mode
- registration of PIN,
card/fob, fingerprint
Batteries
- 8 pieces
- 1.5v, AA, LR6 alkaline

7.
Battery Status & Replacement

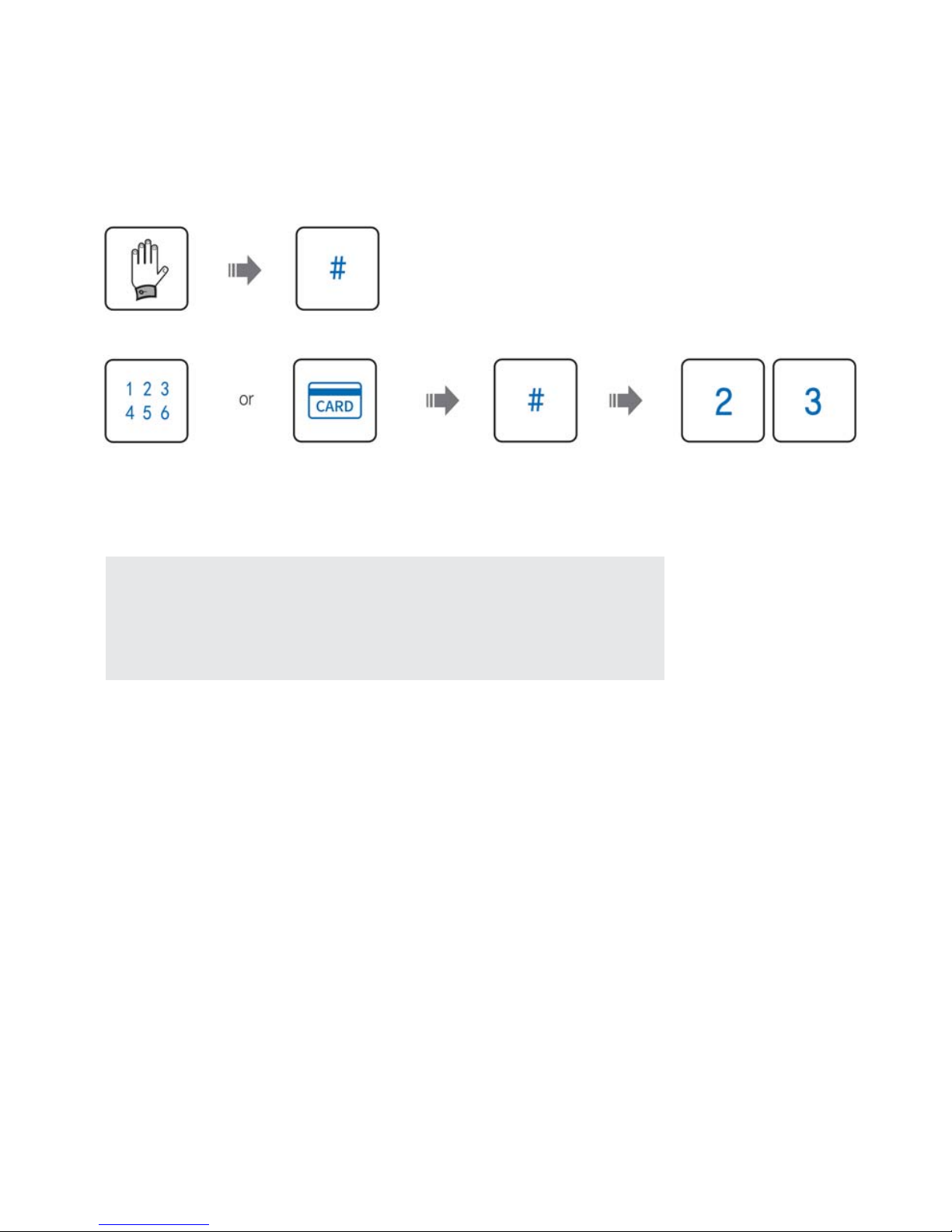

Check battery status (door must be closed)
Battery replacement
Battery Status
OK
Replace soon
Replace now
Touch front pad
to illuminate
screen
Press 9 Press # and check
battery indicator
lamp
If battery lamp is
flickering and alarm
sounding
Push battery cover
gently upwards
to access battery
compartment
Replace old batteries
with brand new 1.5v,
AA, LR6 alkaline
batteries
NOTE
• The life of batteries is around one year, based on ten entries/exits per day.
• Battery life can vary depending on battery’s manufacturer, production date,
installation environment and usage frequency.
• Second hand batteries and/or the use of batteries other than those specified is
likely to cause a malfunction.
• Do not use rechargeable batteries as battery leakage may occur.
• Check batteries at least every 6 months and if there is any leakage, replace with
new batteries.

8.
Emergency Power & Manual Override
How to apply external power if batteries run out
How to use mechanical override key
When the batteries are entirely exhausted, a 9V battery can be used on the emergency
power terminals to allow access. Once the door lock has been reactivated by the 9V
battery, access can be gained via PIN, card/fob or fingerprint. The batteries in the back of
the lock can then be replaced (see p.7).
Front pad will not
illuminate when
batteries are
exhausted
Open cover
directly beneath
front door handle
Touch terminals
with 9V battery
(place + and - on
either terminal)
Access via
PIN, card/fob
or fingerprint
Open cover
directly beneath
front door handle
Insert manual
override key and
rotate
Door handle can
now be rotated
for access
NOTE
• Please keep manual override key in a safe, separate place for use in emergencies.

9.
Random Security Coding
Enter in any
random sequence
of numbers you
desire e.g 1389
After the
sequence of
random numbers
is entered,
enter your PIN
to access e.g
123456
When you enter your home with other people present, you may not wish to show
them your PIN code. If this is the case, you may press any numbers randomly without
limitation, and then enter your PIN code as the final sequence. This will prevent others
from seeing your PIN code.
Press * to enter

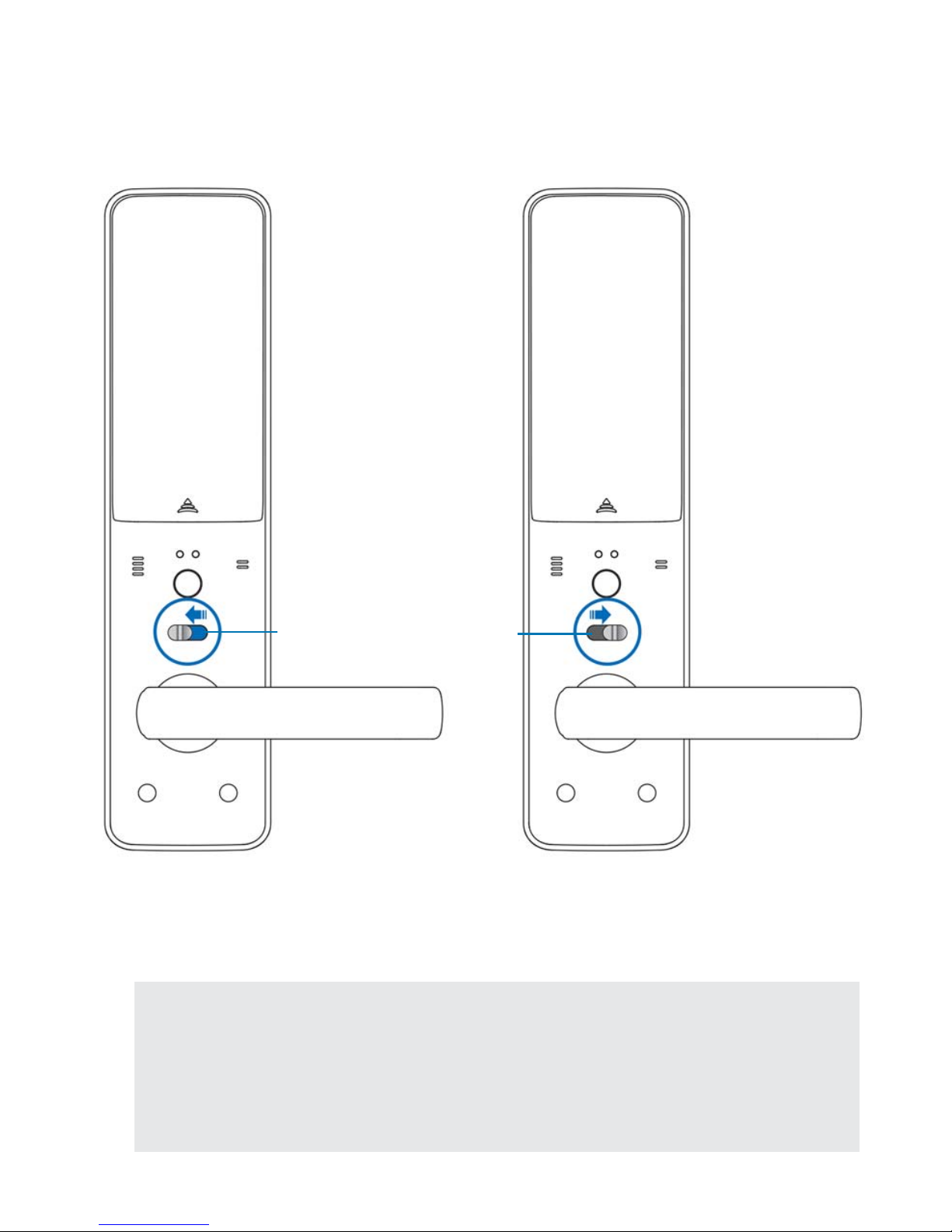

Auto/Manual Locking
How to set auto/manual locking system
• In auto-locking mode, door will be locked automatically after it is closed.
• In manual locking mode, the door is locked by pressing the manual lock button after
the door is closed.
Touch the
front pad
Press #
Input user PIN Touch card/fob Press # Press 5 for auto-locking
mode
Press 6 for manual
locking mode
NOTE
• Once mode has been set, pull down handle and close door.
• In manual locking mode, door can be unlocked by PIN,
card/fob or by using inside handle.

10.

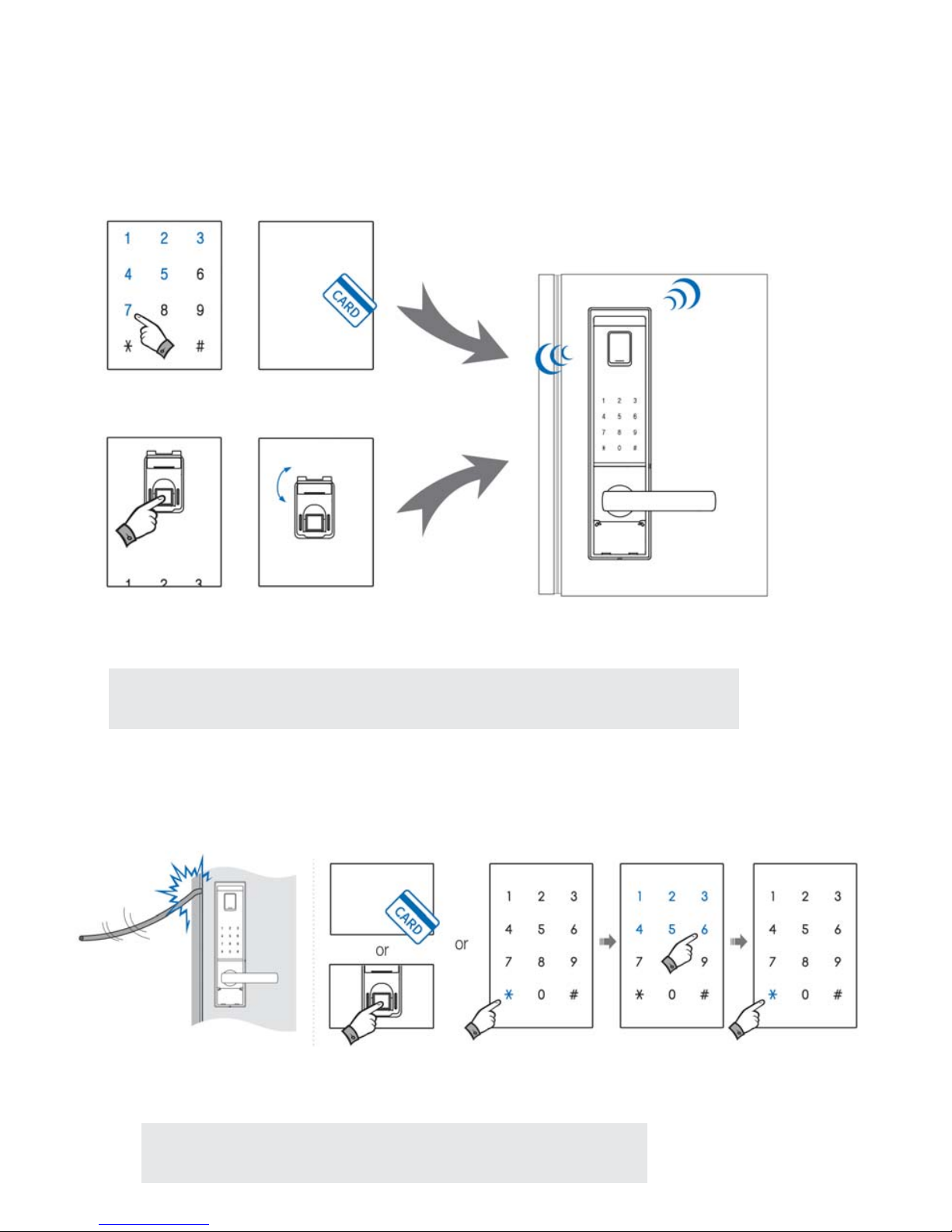

Opening the Door From the Outside
Opening the door using a PIN
NOTE
• Mute mode is sustained for 10 seconds.
• If the door handle is not used after applying one of the entry methods listed
above, the unit will emit a sound and automatically re-lock after 7 seconds. This
feature cannot be de-activated.
Touch the
front pad
Enter PIN code
e.g. 123456
Press * Pull down the
handle and open
Opening the door using card/fob
1. Touch the registered
card/fob to contact point
in centre of keypad
2. Pull down the handle
and open the door
Opening the door using the fingerprint
1. Open the fingerprint
cover and place your
finger on the sensor
(fingerprint must be
registered first see
p.22)
2. Pull down the handle
and open the door
Open the door with the sound muted
Press the
front pad with
finger tip for 3
seconds
The keypad will
illuminate
Enter PIN code
e.g. 123456.
Card/fob or
fingerprint can
also be used
Press * and the
door will unlock.
Pull down the
handle and open
the door

11.

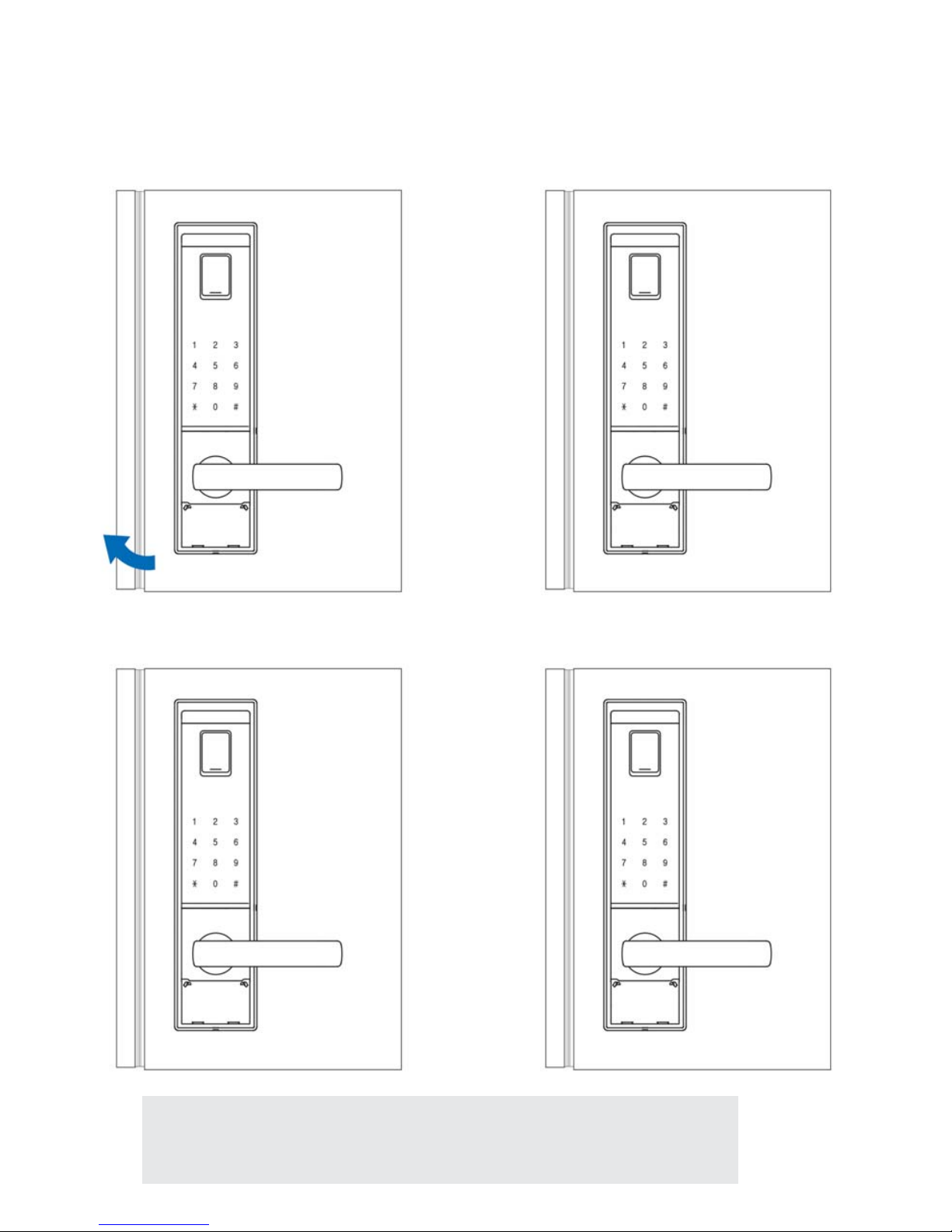

Locking the Door From the Outside
Locking the door in auto-locking mode
When the door is closed it is locked
automatically and the unit will emit a sound to
confirm the door has been locked.
If the door is not closed correctly, it will not
be able to lock, and an alarm will sound. If the
alarm sounds, please ensure that the door is
closed correctly.
Locking the door in manual locking mode
Close the door and touch the front pad Press 0 and the door will lock
NOTE
• In manual locking mode, door will not lock automatically.
• Confirm the the door is closed/locked by pull down the handle.

12.

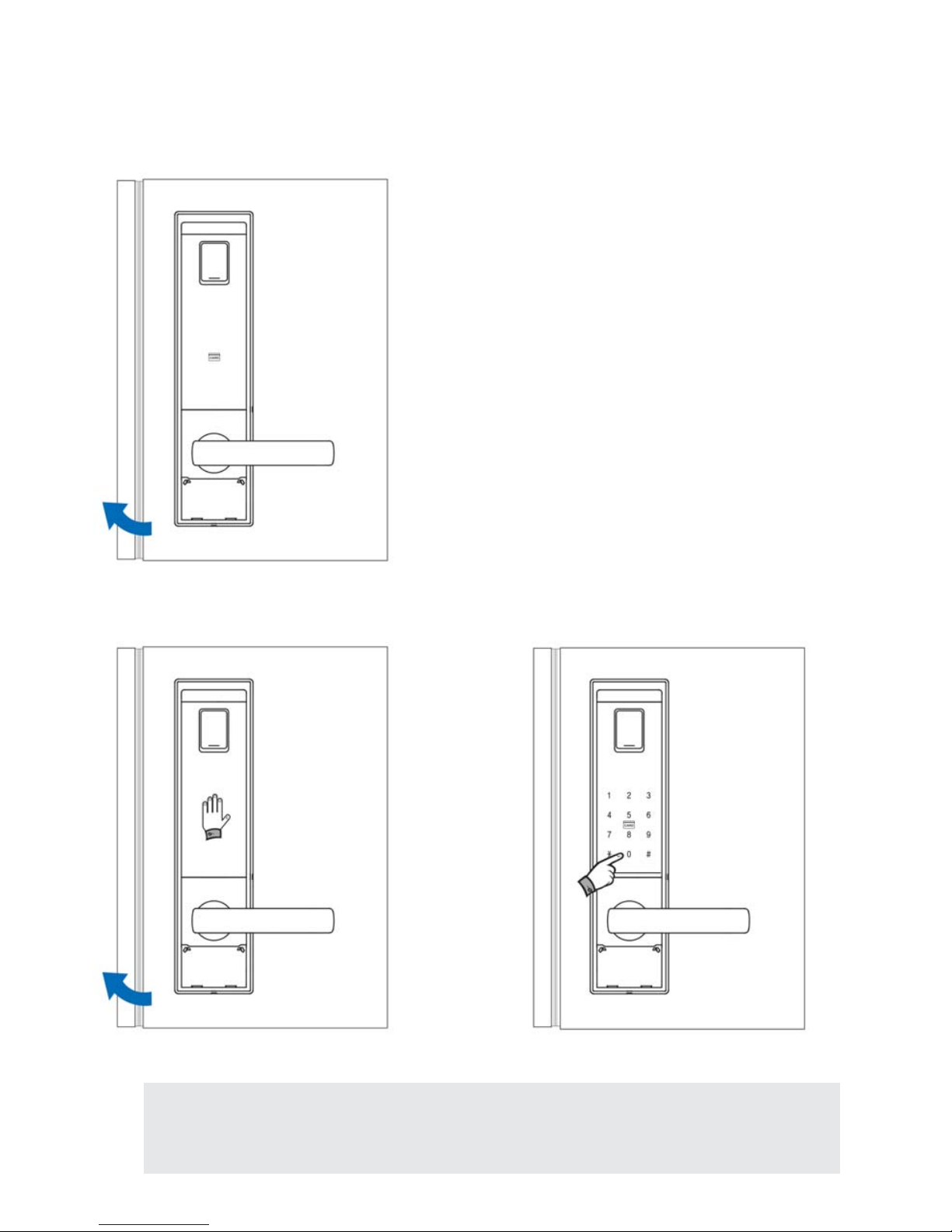

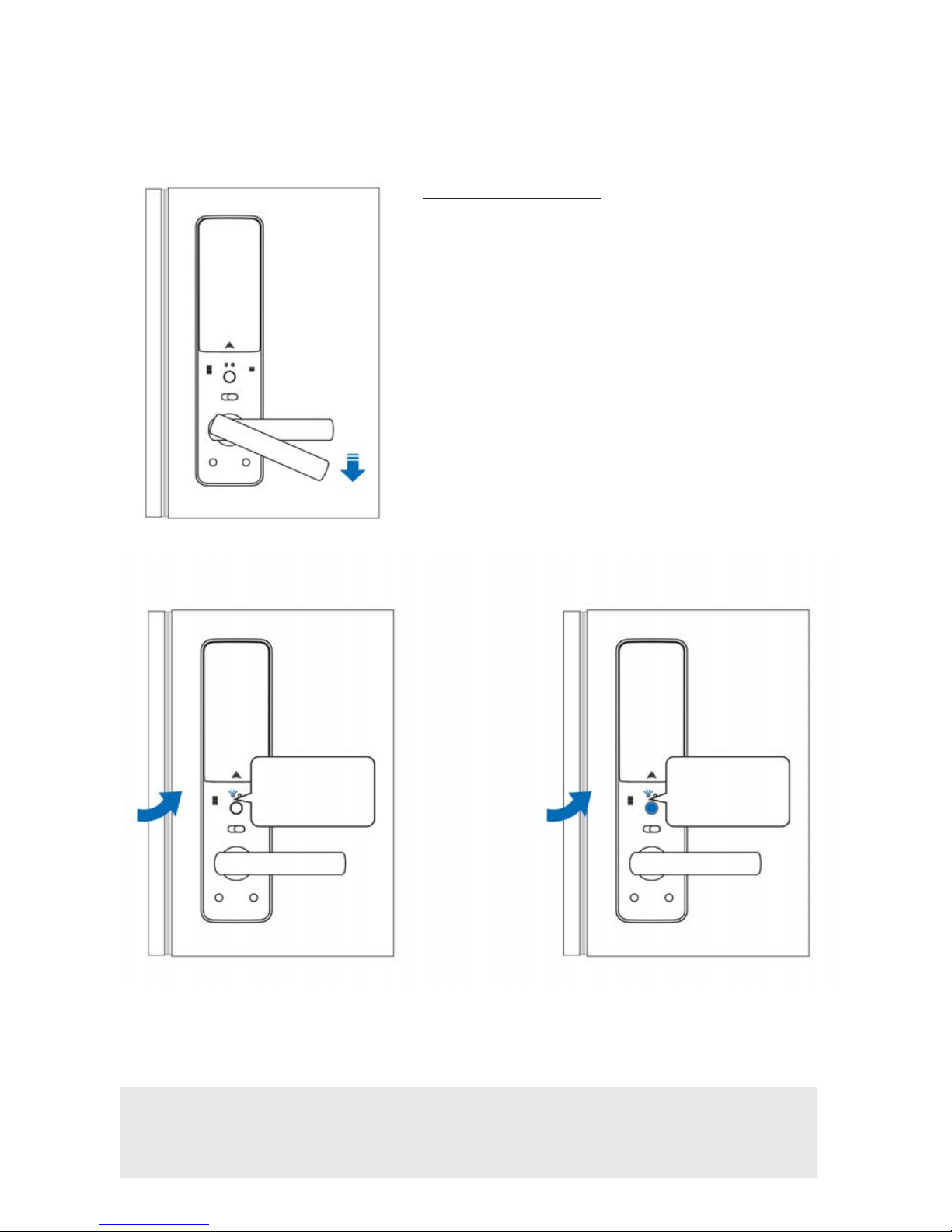

Opening/Locking Door From the Inside
Opening the door from the inside
Panic Release Feature
The door can be opened from the inside at any
time by simply pulling down the handle.
This feature allows easy escape in case of an
emergency.
Locking the door from the inside
Auto-locking mode Manual locking mode
When the door is closed, the door will
lock and the unit will emit a sound
After closing the door, press manual
lock button and the door will lock.
The lock will emit a sound
Flickering blue
lamp shows lock
is activated
Flickering blue
lamp shows lock
is activated
NOTE
• Before closing the door, make sure that the deadbolt is not extended.
• If the door is not closed/locked correctly, a warning sound will be emitted.

13.
Privacy Function
Activating privacy mode so lock cannot be unlocked from the outside
NOTE
• Privacy mode can only be activated when the door is locked.
• Even in privacy mode the door handle is still able to be used from the inside.
When the door handle is used from the inside, privacy mode is deactivated.
• The lock can be unlocked from the outside with the mechanical key, even when
privacy mode is on.
Privacy mode ON Privacy mode OFF
Door cannot be unlocked
from the outside
Normal operation. Door
can be unlocked from the
outside
Red Green

14.
Auto Locking Function
Auto locking system
When door
is closed the
unit will emit a
noise
When door
is locked the
unit will emit a
noise
Auto re-locking system
Door is
unlocked but
the door is not
opened
After 7
seconds the
door will be
re-locked to
protect the
property
NOTE
• The auto-relocking system cannot be deactivated.

15. NOTE Manual lock button will stop the alarm sounding.
Alarm & Warning Functions
Preventing illegal entry and hacking
The unit will emit a strong alarm sound for three minutes in the following situations:
3 incorrect
PIN entries
3 unregistered
card/fob swipes
5 unregistered
fingerprint
applications
10 fingerprint
cover
movements
Alarm will cease to sound after
three minutes
Preventing forced entry
If an attempt is made to force the door or lock open, the unit will emit a strong alarm
sound for three minutes. Follow the instructions below to stop the alarm sounding:
1. Touch card/fob
2. Apply fingerprint
3. Enter PIN
Press * Enter PIN code
e.g. 123456
Press *
NOTE Fingerprint(s) must be registered for fingerprint alarms to sound.

16.
System Reset
The unit can be reset to its factory settings by following these steps
Open battery
cover
Remove batteries
1 and 2
Press open button to
remove remaining charge
While holding down
both the 10KEY and R/C
buttons, insert battery 1,
followed by battery 2
Input manager code e.g. 456789, or touch manager card
Press #
Factory settings
Manager code Deleted
Manager card/fob Deleted
PIN codes Deleted
Cards/fobs Deleted
Fingerprints Deleted
Sound volume 7
Auto/manual locking Manual
Suspend code/card/fingerprint Released
NOTE
To reset the system, the unit must be in safety mode (see p.18).

17.
Setting Volume
How to control volume level
There are eight sound volume levels to choose from, ranging from mute to maximum
Touch the
front pad
Press #
Input user PIN Touch card/fob Press # Press 2 - Volume down
Press 3 - Volume up
Press 1 - Max. volume
Press 0 - Mute
NOTE
• In mute status, keypad lamp will flicker when PIN is entered.
• Once volume has been set, pull down handle and close the
door.

18.
Changing Modes
Normal Mode > Safety Mode
Open the battery
cover, and press
the R/C button for
approx. 5 seconds
Enter PIN code
Press #
Enter new manager
code e.g. 456789
Press # Press #
Enter new manager
code again
About Modes
NORMAL MODE
SAFETY MODE
Normal Mode is quick and easy to use, and is the standard setting for the lock when new.
Instructions for setting up codes, cards, fobs and fingerprints in Normal Mode are on
pages 20-23.
Safety Mode has been designed to provide additional security by limiting access to the
programming functions of the lock, so that no changes can be made without entering a
‘Manager Code’. Instructions for setting up codes, cards, fobs and fingerprints in Safety
Mode are on pages 24-30.
NOTE
Please ensure that you can
recall the manager code, as
you will need it to manage
the device once it is in
Safety Mode.

19.
NOTE
• Manager code and manager card should be controlled by authorised persons only
for security reasons.
• Existing PIN, card/fob and fingerprint data is deleted automatically after
registration of new manager code.
• Only one manager code can be registered, using 6 - 12 digits.
• After the manager code which was used in safety mode is entered and # is
pressed, all existing PIN code/card/fingerprint data will be deleted. The newly
registered code is for use in normal mode.
• To register multiple codes, input new user codes and press * successively.
• Make mode changes and the set-up of new codes when the door is open to
prevent unintentional locking.
• After changing an entry code, verify it by unlocking the door with the new entry
code.
Safety Mode > Normal Mode
Open the battery
cover, and press the
10KEY button for
approx. 5 seconds
Enter manager
code
Press #
Enter new PIN
code
Press # Press #
Enter new PIN
code again
