USER’S GUIDE
Lock with Built-in
Alarm
24043309
Para el idioma español,
consulte la página 15.
Pour la version française,
consultez la page 29.

Security You Hear Instantly
When you choose Schlage, you choose
a product backed by nearly a century of
total dedication to security, quality and
innovation. And, today, products like the
Lock with Built-in Alarm offer you
another key advantage: convenience and
control.
The Lock with Built-in Alarm combines
proven Schlage security with the added
safeguard of a sensor alarm. Specically
engineered to detect vibration and
motion, it sounds an alarm—based on the
alert setting you choose—to alert you to
activity at the door on rst contact with
the door or handle. Best of all, the alarm
is easily adjusted as your needs change—
either day to day or over the years.
DID YOU KNOW?
Schlage is the most preferred
residential door lock brand by
consumers* and most used by
builders.**
* Nooro Research Report, independent
research funded by Ingersoll Rand Co., 2011.
** Builder Magazine, April 2011
»
2

Security
• Tested and rated to meet ANSI lock security
and durability standards
• Only audible residential alarm lock to alert
you to activity upon rst contact at lock
handle—not just when door is opened
Quality
• Rugged, all-metal construction
• Lifetime limited warranty on mechanical
components and nish
• One-year electronics warranty
Convenience
• Easy to use—press Schlage button
to program
• Various mode and sensitivity level options
to meet different needs
• Installed with just a screwdriver in minutes
• Uses two AAA batteries—
3-year battery life with low battery indicator
ENGLISH
DID YOU KNOW?
Lock with Built-in Alarm has a faster
response mechanism than a standard home
security system because it senses activity
at the lock handle before a door is even
open. While it is not designed to connect
with your home security system, it can
complement it, if you choose.
»
3

The Lock with Built-in Alarm was
designed with you in mind. It provides
a more sophisticated security option
to the standard lockset—but without
the complexity that often accompanies
electronic alarm systems.
This owner’s guide provides easy
step-by-step instructions.
If you have other questions, we’re simply
a call—or a live chat—away.
Toll-Free: 1.888.805.9837
Live Chat: schlage.com
INSTRUCTIONS
ENGLISH
IMPORTANT!
If you have questions about
installation or programming,
don’t return the Lock with
Built-in Alarm to the store,
contact Schlage Customer
Service at 1.888.805.9837.
»
To learn more about this
product scan the code with
your smartphone.
Download the app at scanlife.com
4

Powering On the Alarm
To turn on the alarm:
• Insert two AAA batteries
• Push the Schlage button for 5 seconds
The alarm is activated when a light ashes
around the Schlage button.
Important: The alarm has been pre-set
to the Forced Entry setting and is ready to
use. If you wish to switch to another alert
setting (three options: Activity, Tamper
and Forced Entry), turn to page four for
instructions. The different alert settings
are explained on pages 6-8.
Powering Off the Alarm
To turn the product completely off:
• Push the Schlage button until you see the
second LED ash – then let go
• The alarm functionality is now completely
turned off. You can verify this by quickly
pushing the Schlage button – there should
be no light or beep when you push the
button.
TIP: Not sure your alarm is activated?
Simply press the Schlage button and it will
beep and light up to conrm it is activated.
If it does not, conrm new batteries are
installed properly. Then press the Schlage
button for 5 seconds (until it beeps) to power
on the alarm.
5

INSTRUCTIONS
Programming Your Alert Setting
The alarm comes pre-set to the Forced
Entry setting and is ready to use. If you
want to change it from Forced Entry
to another alert setting, follow these
simple steps:
1. Press the Schlage button for 2 seconds until
it ashes. After you let go, the alarm will beep.
(When the alarm rst turns on, the light on
the right side of the LED track will ash to
indicate it is in the Forced Entry Alert.)
2. Continue tabbing the Schlage button to
cycle through the different alert settings:

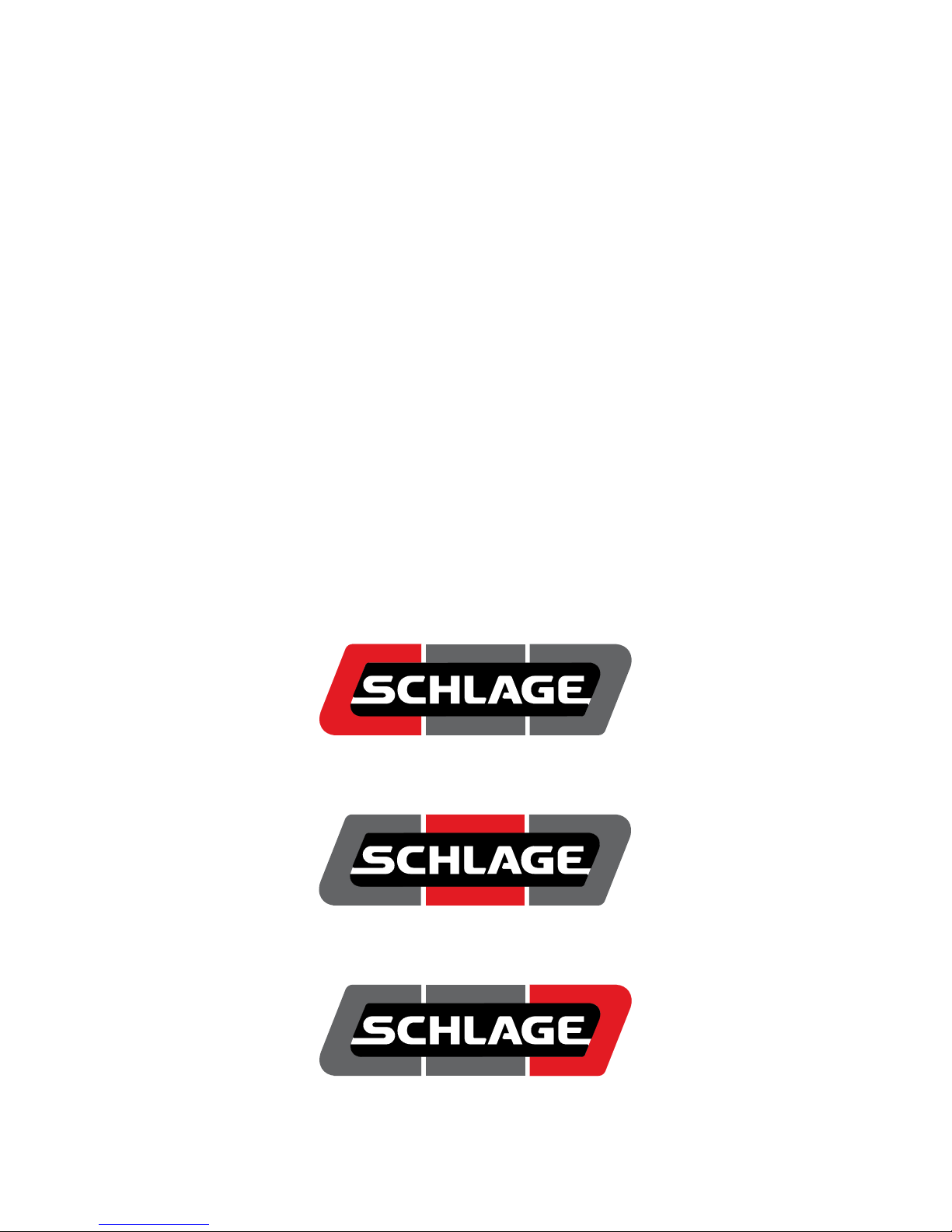

LEFT LED LIGHT: Activity Alert
MIDDLE LED LIGHT: Tamper Alert
RIGHT LED LIGHT: Forced Entry Alert
6

3. When the light ashes on the setting
you prefer, stop tabbing. The alarm will
automatically program to that alert setting.
Remember: The control pad for the alarm
is located on the inside of your door.
TIP: If you want to check which alert setting
the alarm is currently activated to, lightly press
the Schlage button and release. The alarm will
light up on the left, middle or right of the LED
track to indicate the alert setting.
DID YOU KNOW?
70% of home break-ins
are kick-ins to a door—
which is why the factory
settings default to the
forced entry mode.
»
7

INSTRUCTIONS
Choosing Your Alert Setting
Activity Alert
Your little one is
now able to reach
door handles and
loves to explore…
you’re caring for
an elderly parent
or a child with
special needs…
or maybe you simply feel more secure
knowing every time there’s activity at your
door. Whatever your reason or season of
life, the Activity Alert setting is perfect for
monitoring doors while you’re at home.
• Alarm beeps twice every time a door opens
or closes
• Middle LED light ashes
• Functions in both lock and unlocked mode
• Sound: Two short beeps
TIP: When door opens or closes, there is a
built-in 3 second delay for it to reset.
8

Tamper Alert
If you’re home
alone during the
day or evening, or
want to monitor
a secondary entry
door, the Tamper
Alert is the ideal
setting. As the
most sensitive alert setting, the Tamper
Alert senses even subtle activity at the
lock handle – not just when the door
opens – notifying you immediately of any
tampering.
• Alarm sounds for about 15 seconds when
the door knob/lever is disturbed
• Left and right LED lights ash alternately
• Functions in both lock and unlocked mode
• Built-in 60-second delay before device
alarms to allow you to exit and lock the
door
• Sound: Longer alarm sound
(90 dB = the sound of your smoke alarm)
TIP: If the alarm sounds, you can silence it
early by pressing down on the Schlage button
until the alarm sound stops.
9

INSTRUCTIONS
Choosing Your Alert Setting (continued)
Forced Entry Alert
Daily opening and
closing of doors
may no longer be
a worry for you…
but you may be
concerned about
protecting against
break-ins. The
Forced Entry Alert is perfect for nighttime
or when you’re away from home.
• Three-minute alarm sounds when signicant
force pushes against the door—like when
someone tries to kick it in
• Acts as an effective deterrent by instantly
alerting you – and others nearby – at rst
impact against your door
• Least sensitive mode – many choose to
program this alert setting all the time
• All lights on the LED track ash
• Functions in both lock and unlocked mode
• Sound: Shrill, steady siren
(90 dB=the sound of your smoke alarm)
TIP: If the alarm sounds, you can silence it
early by pressing down on the Schlage button
until the alarm sound stops.
10

PROBLEM
Alarm sounds
too frequently
or experiencing
false alarms
RESOLUTION
Your sensitivity level is too
high (at 1 or 2) and needs
adjusted to a less sensitive
level (3, 4 or 5).
Call customer service at
1.888.805.9837 for assistance
or
Reset yourself by:
1. Pressing and holding the
Schlage button until the
third LED ash. This will
take about 10 seconds.
2. Tabbing the Schlage button
to cycle through the ve
sensitivity levels.
3. Selecting the sensitivity
level you prefer.
The Lock with Built-in Alarm comes pre-set to
Sensitivity Level 3. The sensitivity level indicates
the level of touch or activity needed to set off
the alarm.
Important: As you cycle through the ve levels,
the alarm will beep the same number of times as
each setting level.
LOW • • • • • • • • • Sensitivity • • • • • • • • • HIGH
Level/Beeps
1
2
3
4
5
Troubleshooting
11

INSTRUCTIONS
Need Help?
If you have questions about any part
of installation or programming, don’t
return the Lock with Built-in Alarm to
the store. Our Schlage Customer Service
representatives are ready to help.
Toll-Free: 1.888.805.9837
Live Chat: schlage.com
PROBLEM
The 2 outside
LEDs are blinking
periodically
RESOLUTION
It’s time to change the
batteries! For the average
user, the life of the batteries
will last approximately three
years. If the 2 outside LEDs
start blinking twice every
minute, this is an indication
that the battery is low and
only has about 30 days of
life left.
To change batteries:
1. Remove the interior trim
from the door.
2. Replace the batteries in
the Keyed Entry with Built-
In Alarm with two new
AAA batteries.
3. Reinstall the trim.
Troubleshooting (continued)
12

PROBLEM
Difculty
changing alert
settings
RESOLUTION
First you need to decide
which alert setting you
want. (See pages 6-8 for
explanations of each alert
setting.)
Then, call customer service
at 1.888.805.9837 for
assistance
or
Program your setting by:
1. Pressing and holding
the Schlage button for 2
seconds until it ashes.
After you let go, the alarm
will beep.
2. Tabbing the Schlage button
to cycle through the
different alert settings:
• Left LED Light:
Activity Alert
• Middle LED Light:
Tamper Alert
• Right LED Light:
Forced Entry Alert
3. Releasing the button after
the light ashes on the
setting you prefer. The alarm
will automatically program
to that alert setting.
Troubleshooting (continued)
13

Ingersoll Rand Residential Solutions, a business comprised of well-known
brands like Schlage®and Trane®, delivers safety, comfort and efciency to
homeowners throughout North America. Our quality products, services
and solutions include mechanical and electronic locks, heating and air
conditioning systems, indoor air quality solutions, advanced controls,
portable security systems and remote home management.
800-847-1864
www.ingersollrand.com
www.schlage.com
www.trane.com
If you have questions about any part of
installation or programming, don’t return the
Lock with Built-in Alarm to the store. Our
Schlage Customer Service representatives are
ready to help.
Toll-Free: 1.888.805.9837
Live Chat: schlage.com
14

GUÍA DEL USUARIO
Cerradura con
alarma incorporada
15

Seguridad que se
oye al instante
Cuando elige Schlage, elige un producto
respaldado por casi un siglo de dedicación
completa a la seguridad, la calidad y la
innovación. Y hoy, los productos como la
cerradura con alarma incorporada le
ofrecen otras ventajas clave: comodidad
y control.
La cerradura con alarma incorporada
combina la seguridad comprobada de Schlage
con la protección adicional de una alarma de
sensor. Especialmente diseñada para detectar
vibraciones y movimiento, hace sonar una
alarma, de acuerdo con la conguración de
alerta que usted elija, para advertirlo sobre
cualquier actividad en la puerta al primer
contacto con la puerta o la manija. Y lo mejor
de todo es que la alarma se puede ajustar
fácilmente según cambien sus necesidades,
de un día a otro o con los años.
¿SABÍA QUE...?
Schlage es la marca de cerraduras para el
hogar más elegida por los clientes* y la
más usada por los constructores**.
* Informe de Nooro Research basado en una investigación
independiente nanciada por Ingersoll Rand Co., 2011.
** Builder Magazine, abril de 2011
»
16

Seguridad
• Probado y clasicado para cumplir con los
estándares ANSI de seguridad y durabilidad
• Única cerradura para el hogar con alarma
audible que lo advierte sobre cualquier
actividad al primer contacto con la cerradura
o la manija, no solo cuando se abre la puerta
Calidad
• Resistente, construida 100 % de metal
• Garantía limitada de por vida en
componentes mecánicos y acabado
• Garantía de un año en componentes
electrónicos
Comodidad
• Fácil de usar: presione el botón Schlage
para programarla
• Diferentes modos y opciones de nivel de
sensibilidad para satisfacer diferentes
necesidades
• Se instala solo con un destornillador y en
cuestión de minutos
• Usa dos baterías AAA: 3 años de vida útil de
las baterías con indicador de poca batería
ESPAÑOL
17

La cerradura con alarma incorporada fue
diseñada pensando en usted. Ofrece una
opción de seguridad más sosticada que el
mecanismo de cerradura estándar: pero sin la
complejidad que a menudo tienen los sistemas
de alarma electrónica.
Esta guía del propietario ofrece instrucciones
simples paso por paso.
Si tiene alguna duda, estamos a tan solo una
llamada, o chat en vivo, de distancia.
Línea gratuita: 1.888.805.9837
Chat en vivo: schlage.com
INSTRUCCIONES
ESPAÑOL
¡IMPORTANTE!
Si tiene alguna duda sobre la instalación
o la programación, no devuelva la
cerradura con alarma incorporada a la
tienda; comuníquese con el Departamento
de servicio a clientes de Schlage al
1.888.805.9837.
»
Para obtener más información
sobre este producto, escanee
el código con su teléfono
inteligente.
Descargue la aplicación en
scanlife.com.
18

Cómo encender la alarma
Para encender la alarma:
• Coloque las dos baterías AAA.
• Presione el botón Schlage durante 5 segundos.
La alarma se activa cuando hay una luz que
parpadea alrededor del botón Schlage.
Importante: La alarma viene precongurada
en el ajuste de Entrada a la fuerza y está lista
para usar. Si desea cambiar a otro ajuste de alerta
(tres opciones: Actividad, Sabotaje y Entrada a
la fuerza), vaya a la página cuatro para obtener
instrucciones. Los diferentes ajustes de alerta se
explican en las páginas 20 a 22.
CONSEJO: ¿No está seguro de si su alarma
está activada? Solo presione el botón
Schlage, y emitirá un pitido y se iluminará
para conrmar que está activada. Si no lo
hace, verique que las baterías nuevas estén
correctamente instaladas. Y presione el botón
Schlage hasta que emita un pitido.
Cómo apagar la alarma
Para apagar por completo el producto:
• Oprima el botón Schlage hasta que vea que
destella el segundo LED y, a continuación,
suéltelo
• La funcionalidad de la alarma ahora se
encuentra completamente apagada. Puede
vericarlo presionando rápidamente el
botón Schlage: al oprimir el botón, no debe
encenderse ninguna luz ni alarma sonora.
19

INSTRUCCIONES
Cómo programar su ajuste de alerta
La alarma viene precongurada en el ajuste
de Entrada a la fuerza y está lista para usar. Si
desea cambiar de Entrada a la fuerza a otro
ajuste de alerta, siga estos simples pasos:
1. Presione el botón Schlage durante 2
segundos hasta que parpadee. Cuando deja
de presionar, la alarma emitirá un pitido.
(Cuando se enciende por primera vez la
alarma, la luz que está a la derecha de las
luces LED parpadeará para indicar que está
en el ajuste de alerta de Entrada a la fuerza).
2. Siga pulsando el botón Schlage para pasar
por los diferentes ajustes de alerta:
LUZ LED IZQUIERDA: Alerta de actividad
LUZ LED CENTRAL: Alerta de sabotaje
LUZ LED DERECHA: Alerta de entrada a la fuerzav
20
