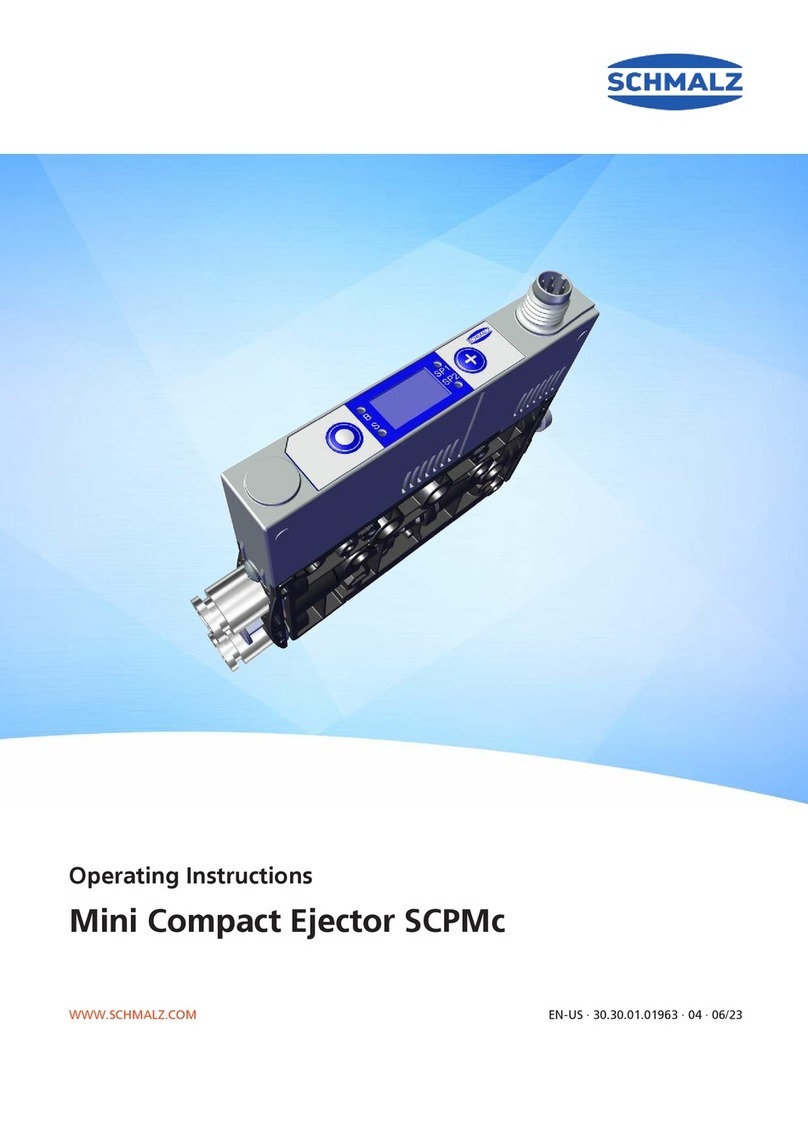

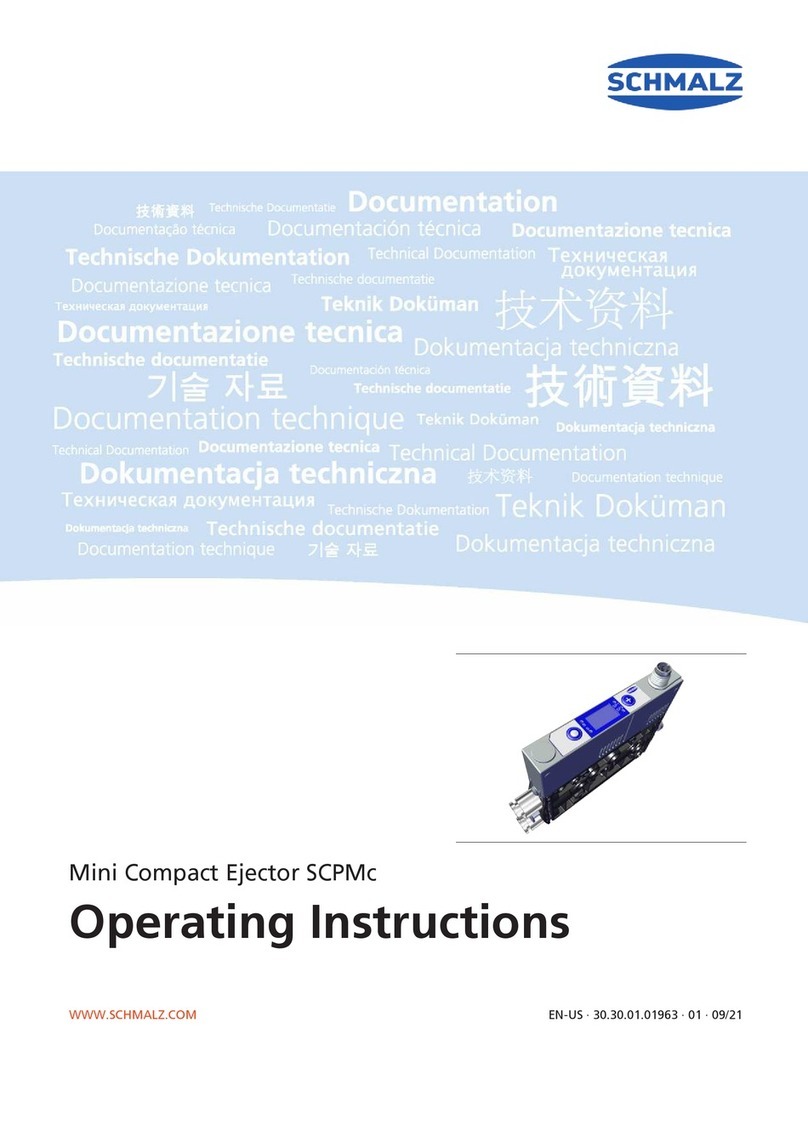

Schmalz Mini Compact Ejector SCPMc User manual

Operating Instructions
Mini Compact Ejector SCPMc
WWW.SCHMALZ.COM EN-US · 30.30.01.01963 · 03 · 10/22

Note
The Operating instructions were originally written in German. Store in a safe place for future reference.
Subject to technical changes without notice. No responsibility is taken for printing or other types of er-
rors.
Published by
© J.SchmalzGmbH, 10/22
This document is protected by copyright. J.SchmalzGmbH retains the rights established thereby. Repro-
duction of the contents, in full or in part, is only permitted within the limits of the legal provisions of
copyright law. Any modifications to or abridgments of the document are prohibited without explicit writ-
ten agreement from J.SchmalzGmbH.
Contact
J. Schmalz GmbH
Johannes-Schmalz-Str. 1
72293 Glatten, Germany
T: [phone]
[email protected]
www.schmalz.com
Contact information for Schmalz companies and trade partners worldwide can be found at:
www.schmalz.com/salesnetwork
2 / 52 EN-US · 30.30.01.01963 · 03 · 10/22

Contents
EN-US · 30.30.01.01963 · 03 · 10/22 3 / 52
Contents
1Important Information ...................................................................................................................................5
1.1 Note on Using this Document.............................................................................................................5
1.2 The technical documentation is part of the product ........................................................................5
1.3 Type Plate.............................................................................................................................................5
1.4 Symbol .................................................................................................................................................. 6
2Fundamental Safety Instructions...................................................................................................................7
2.1 Intended Use ........................................................................................................................................ 7
2.2 Non-Intended Use................................................................................................................................7
2.3 Personnel Qualifications......................................................................................................................7
2.4 Warnings in This Document ................................................................................................................ 7
2.5 Residual Risks .......................................................................................................................................8
2.6 Modifications to the Product .............................................................................................................. 9
3Product Description ...................................................................................................................................... 10
3.1 Product Name ....................................................................................................................................10
3.2 Product Design...................................................................................................................................10
4Technical Data...............................................................................................................................................13
4.1 Display Parameters ............................................................................................................................13
4.2 General parameters ........................................................................................................................... 13
4.3 Electrical Parameters .........................................................................................................................13
4.4 Mechanical Data ................................................................................................................................14
5Operating and Menu Concept ..................................................................................................................... 17
5.1 Button Assignments in Display Mode...............................................................................................17
5.2 Main Menu.........................................................................................................................................18
5.3 Extended Functions menu (EF)..........................................................................................................19
5.4 Info menu [INF] .................................................................................................................................. 20
6Description of Functions ..............................................................................................................................22
6.1 Overview of Functions.......................................................................................................................22
6.2 Applying Suction to the Workpiece/Part (Vacuum Generation)..................................................... 22
6.3 Depositing the Workpiece/Part (Blowing Off)................................................................................. 23
6.4 Operating Modes...............................................................................................................................23
6.5 Monitoring the system vacuum and defining limit values.............................................................. 25
6.6 Calibrating the sensor ....................................................................................................................... 25
6.7 Control functions ............................................................................................................................... 26
6.8 Blow off modes..................................................................................................................................26
6.8.1 Externally Controlled Blow-Off ............................................................................................26
6.9 Selecting the display unit .................................................................................................................. 26
6.10 Reset to factory settings....................................................................................................................27
6.11 Counters .............................................................................................................................................27
6.12 Displaying the part number .............................................................................................................. 28
6.13 Displaying the serial number ............................................................................................................29
6.14 Condition Monitoring (CM) ..............................................................................................................29
7Checking the Delivery ..................................................................................................................................31

Contents
4 / 52 EN-US · 30.30.01.01963 · 03 · 10/22
8Installation ....................................................................................................................................................32
8.1 Installation Instructions ..................................................................................................................... 32
8.2 Mounting ...........................................................................................................................................32
8.2.2 Mounting on a DIN Rail (Optional) ......................................................................................33
8.3 Pneumatic Connection ......................................................................................................................34
8.4 Electrical Connection ......................................................................................................................... 37
9Operation ......................................................................................................................................................39
9.1 General Preparations.........................................................................................................................39
9.2 Changing the Blow-Off Flow Rate on the Ejector ...........................................................................39
10 Troubleshooting ...........................................................................................................................................40
10.1 Help with Malfunctions.....................................................................................................................40
10.2 Error messages ...................................................................................................................................41
11 Maintenance .................................................................................................................................................42
11.1 Safety..................................................................................................................................................42
11.2 Cleaning the Ejector ..........................................................................................................................42
11.3 Replacing the Silencer Insert.............................................................................................................43
12 Warranty .......................................................................................................................................................45
13 Spare and Wearing Parts..............................................................................................................................46
14 Accessories ....................................................................................................................................................47
15 Decommissioning and Recycling .................................................................................................................48
15.1 Disposing of the Product...................................................................................................................48
15.2 Materials Used ...................................................................................................................................48
16 Attachment ...................................................................................................................................................49
16.1 Overview of Display Codes................................................................................................................49
16.2 Declarations of Conformity...............................................................................................................50
16.2.1 EU Declaration of Conformity ..............................................................................................50
16.2.2 UKCA Conformity ..................................................................................................................51

1 Important Information
EN-US · 30.30.01.01963 · 03 · 10/22 5 / 52
1Important Information
1.1Note on Using this Document
J.SchmalzGmbH is generally referred to as Schmalz in this document.
The document contains important notes and information about the different
operating phases of the product:
• Transport, storage, start of operations and decommissioning
• Safe operation, required maintenance, rectification of any faults
The document describes the product at the time of delivery by Schmalz and is aimed at:
• Installers who are trained in handling the product and can operate and in-
stall it
• Technically trained service personnel performing the maintenance work
• Technically trained persons who work on electrical equipment
1.2The technical documentation is part of the product
1. For problem-free and safe operation, follow the instructions in the documents.
2. Keep the technical documentation in close proximity to the product. The documentation must be ac-
cessible to personnel at all times.
3. Pass on the technical documentation to subsequent users.
ðFailure to follow the instructions in these Operating instructions may result in injuries!
ðSchmalz is not liable for damage or malfunctions that result from failure to heed these instructions.
If you still have questions after reading the technical documentation, contact Schmalz Service at:
www.schmalz.com/services
1.3Type Plate
The type plate is permanently attached to the product and must always be clearly legible.
It contains product identification data and important technical information.
4For spare parts orders, warranty claims or other inquiries, have the information on the type plate to
hand.
The type plate (1) contains the following data:
• Name, including individual configuration code
“AAA”
• Part sales designation/type
• Part number
• Permitted pressure range
• Coded date of manufacture
• QR code
• Serial number
• Pneumatic symbol
1

1 Important Information
6 / 52 EN-US · 30.30.01.01963 · 03 · 10/22
1.4Symbol
This symbol indicates useful and important information.
üThis symbol represents a prerequisite that must be met prior to an operational step.
4This symbol represents an action to be performed.
ðThis symbol represents the result of an action.
Actions that consist of more than one step are numbered:
1. First action to be performed.
2. Second action to be performed.

2 Fundamental Safety Instructions
EN-US · 30.30.01.01963 · 03 · 10/22 7 / 52
2Fundamental Safety Instructions
2.1Intended Use
The Ejector is designed to generate a vacuum for gripping and transporting objects when used in conjunc-
tion with suction cups.
The ejector is operated using discrete control signals.
Neutral gases are approved as evacuation media. Neutral gases include air, nitrogen and inert gases (e.g.
argon, xenon and neon).
The product is built in accordance with the latest standards of technology and is delivered in a safe oper-
ating condition; however, hazards may arise during use.
The product is intended for industrial use.
Intended use includes observing the technical data and the installation and operating instructions in this
manual.
2.2Non-Intended Use
Schmalz accepts no liability for damage resulting from non-intended use of the mini valve terminal.
In particular, the following types of use are considered non-intended use:
• Use in potentially explosive atmospheres
• Use in medical applications
• Lifting people or animals
• Evacuation of objects that are in danger of imploding
2.3Personnel Qualifications
Unqualified personnel cannot recognize dangers and are therefore exposed to higher risks!
1. Task only qualified personnel to perform the tasks described in these Operating instructions.
2. The product must be operated only by persons who have undergone appropriate training.
These Operating instructions are intended for fitters who are trained in handling the product and who
can operate and install it.
2.4Warnings in This Document
Warnings warn against hazards that may occur when handling the product. The signal word indicates the
level of danger.
Signal word Meaning
WARNING
Indicates a medium-risk hazard that could result in death or serious injury if
not avoided.
CAUTION
Indicates a low-risk hazard that could result in minor or moderate injury if
not avoided.
NOTE
Indicates a danger that leads to property damage.

2 Fundamental Safety Instructions
8 / 52 EN-US · 30.30.01.01963 · 03 · 10/22
2.5Residual Risks
WARNING
Noise pollution due to the escape of compressed air
Hearing damage!
4Wear ear protectors.
4The ejector must only be operated with a silencer.
WARNING
Extraction of hazardous media, liquids or bulk material
Personal injury or damage to property!
4Do not extract harmful media such as dust, oil mists, vapors, aerosols etc.
4Do not extract aggressive gases or media such as acids, acid fumes, bases, biocides, dis-
infectants or detergents.
4Do not extract liquids or bulk materials, e.g. granulates.
WARNING
Uncontrolled movements of system components or falling objects caused by incor-
rect activation and switching of the Ejector while persons are in the plant (safety
door opened and actuator circuit switched off)
Serious injury
4Ensure that the components are enabled via the actuator voltage by installing a poten-
tial separation between the sensor and actuator voltage.
4Wear the required personal protective equipment (PPE) when working in the danger
zone.
CAUTION
Depending on the purity of the ambient air, the exhaust air can contain particles,
which escape from the exhaust air outlet at high speed.
Eye injuries!
4Do not look into the exhaust air flow.
4Wear eye protection.
CAUTION
Vacuum close to the eye
Severe eye injury!
4Wear eye protection.
4Do not look into vacuum openings such as suction lines and hoses.

2 Fundamental Safety Instructions
EN-US · 30.30.01.01963 · 03 · 10/22 9 / 52
2.6Modifications to the Product
Schmalz assumes no liability for consequences of modifications over which it has no control:
1. The product must be operated only in its original condition as delivered.
2. Use only original spare parts from Schmalz.
3. The product must be operated only in perfect condition.

3 Product Description
10 / 52 EN-US · 30.30.01.01963 · 03 · 10/22
3Product Description
3.1Product Name
The breakdown of the item designation (e.g. SCPMc 10 S04 NC M8-6 PNP BLT) is as follows:
Property Variants
Type SCPM (mini compact ejector)
Version Basic: b
Controlled: c
Intelligent: i
Nozzle size 0.3, 0.5, 0.7, 1.0 and 1.2mm, and EV for External Vacuum
Fluid connector S01 (push-in, 4/2 2x) G01 (M5 female 2x)
S04 (push-in, 6/4 2x) G06 (M7 female 2x)
S07 (push-in, 4/2 3x) G07 (M5 female 3x)
S08 (push-in, 6/4 2x, 4/2) G08 (M7 female 2x, M5 female)
S09 (push-in, 4/2, 6/4 2x) G09 (M5 female, M7 female 2x)
Suction valve control NO (normally open), sucks when no voltage is applied
NC (normally closed), does not suck when no voltage is applied
Electrical connection M8 plug, 6-pole
JST plug, 5-pole
Switch function PNP (switches to plus)
NPN (switches to minus)
Individual configuration
code
The 3-digit code “AAA” uniquely describes an ejector disk.
3.2Product Design
8
1
2
34
6
7
5
1 Compressed air connector (marking 1) 5 Optional: Compressed air connector for
separate blow-off (EB) (marking 1A)
2 Vacuum connection (marking 2) 6 Silencer (marking 3)
3 Operating and display elements 7 Valve screw for blow off flow rate
4 M8 electrical connection, 6-pole 8 2x mounting hole

3 Product Description
EN-US · 30.30.01.01963 · 03 · 10/22 11 / 52
3.3Controls and Displays in Detail
The mini compact ejector is fitted with the following elements to ensure simple operation:
• Two buttons on the foil keypad
• The three-digit display
• Four light-emitting diodes (LEDs) as status indicators
1 2 3 4 5
76
1MENU BUTTON 5PLUS BUTTON
2 LED B for blow off state 6 LED for switching point limit value SP2
3 Display 7 LED S for suction state
4 LED for switching point limit value SP1 — —
Definition of the LED indicators
The “suction” and “blow off” process states are each assigned an LED.
Item Meaning Status Description
2 Blow off LED B
OFF
Mini compact ejector not blowing
off
lit up
Mini compact ejector blowing off
7 Suction LED S
OFF
Mini compact ejector not sucking
lit up
Mini compact ejector sucking
The LEDs for the switching points SP1 and SP2 (limit values) indicate the current level of the system vac-
uum relative to the limit values set for the parameters:
• SP1 —> switching point 1
• SP2 —> switching point 2
• rP1 —> reset point 1
• rP2 —> reset point 2

3 Product Description
12 / 52 EN-US · 30.30.01.01963 · 03 · 10/22
The display is independent of the switching function and the assignment of the output.
The table below explains the meanings of the LEDs:
Item Limit value LEDs Status
4 and 6 LEDs are both off Rising vacuum: Vacuum < SP2
Falling vacuum: Vacuum < rP2
4 and 6 SP2 LED lights up
continuously
Rising vacuum: vacuum > SP2 and < SP1
Falling vacuum: vacuum > rP2 and < rP1
4 and 6 Both LEDs continu-
ously lit
Rising vacuum: Vacuum > SP1
Falling vacuum: Vacuum > rP1

4 Technical Data
EN-US · 30.30.01.01963 · 03 · 10/22 13 / 52
4Technical Data
4.1Display Parameters
Parameter Value Comment
Display 3-digit Red 7-segment LED display
Resolution ±1mbar —
Accuracy ±3% FS Tamb= 25°C, based on FS (full-scale) final value
Display refresh rate 51/s Only affects the 7-segment display
Idle time before the menu is ex-
ited
1min The display mode is accessed automatically when no
settings are made in a menu.
4.2General parameters
Parameter Version Symbol Limit value Comment
min. optimal max.
Working tempera-
ture
Tamb 0°C — +50°C —
Storage tempera-
ture
TSto -10°C — 60°C —
Humidity Hrel 10% r.h. — 85%
r.h.
Free from condensation
Degree of protec-
tion
— — — IP40 —
Operating pres-
sure (flow pres-
sure)
03 P 2bar 4bar 6bar —
05 P 3.5bar 4bar 6bar —
07 P 3.5bar 4bar 6bar —
10 P 3.5bar 4.5bar 6bar —
12 P 3.5bar 4.5bar 6bar —
Operating
medium
Air or neutral gas, filtered to 5µm, without oil, class 3-3-3 compressed air quality
in acc. with ISO8573-1
4.3Electrical Parameters
Supply voltage DC24V ± 10% (PELV1))
Polarity reversal protec-
tion
Yes
Current consumption
(at 24 V)
— Typical current consump-
tion
Max. current consump-
tion
SCPMc – xx – NC 50mA 70mA
SCPMc – xx – NO 75mA 115mA
1) The power supply must correspond to the regulations in accordance with EN60204 (protected extra-low
voltage).

4 Technical Data
14 / 52 EN-US · 30.30.01.01963 · 03 · 10/22
4.4Mechanical Data
4.4.1Performance Data
Type Nozzle 03 Nozzle 05 Nozzle 07 Nozzle 10 Nozzle 12
Nozzle size [mm] 0.3 0.5 0.7 1.0 1.2
Degree of evacuation [%] 87 92
Max. suction rate [l/min] 1) 2.2 7.5 15 28 30
Air consumption for suction [l/min] 3.5 9 22 45 51
Air consumption for blow off [l/min] 10
Sound pressure level, unobstructed
suction [dB(A)] 1)
51 66 70 71 76
Sound pressure level, suction [dB(A)] 42 55 70 72 75
Pressure range [bar] 2 to 6 3.5 to 6
Rec. diameter of compressed air hose
[mm] 2)
2 4
Rec. diameter of vacuum hose [mm]
2)
2 4
Weight [g] 80
1) At optimum operating pressure (SCPM...03/05/07: 4 bar; SCPM...10/12: 4,5 bar) 2) For max. length of 2 m
4.4.2Dimensions
G3 L B H L2 L3 X1 H1 H2 H3 d4
M8x1
male
thread
76.5 12 65.3 11.4 20.5 36 73.9 24.95 7.5 4.3

4 Technical Data
EN-US · 30.30.01.01963 · 03 · 10/22 15 / 52
H4 H5 H6 d1 d2 L1 D d3 B1
30 7.5 17.5 Depends on the specific ejector, (> See ch. 3.1
Product Name,p. 10)
9 12.5
All specifications are in mm
4.4.3Maximum Torque
Connection Max. torque
Mounting hole d4 1Nm
Electrical connector G3 Hand-tight
4.4.4Factory Settings
Code Parameter Value of the factory setting
5P1 Switching point SP1 750mbar
rP1 Reset point rP1 600mbar
5P2 Switching point SP2 550mbar
rP2 Reset point rP2 540mbar
tbL Blow off time 0s
ctr Control Activated = on
t-1 Evacuation time 0s
-L- Leakage value 0mbar/s
uni Vacuum unit Vacuum unit in mbar = bar
4.4.5Pneumatic circuit plans
Legend:
NC Normally closed
NO Normally open
1 Compressed air connection
2 Vacuum connection
3 Exhaust outlet
1A “Separate blow off” compressed air connec-
tion

4 Technical Data
16 / 52 EN-US · 30.30.01.01963 · 03 · 10/22
NC NO
NC-EB NO-EB

5 Operating and Menu Concept
EN-US · 30.30.01.01963 · 03 · 10/22 17 / 52
5Operating and Menu Concept
The mini compact ejector is operated using two buttons on the foil keypad:
MENU BUTTON PLUS BUTTON
The following information can be shown on the display:
• The current vacuum measurement value
• The selected menu item
• The settings
• Error messages in the form of error codes
The operating menu’s home screen shows the currently measured vacuum level in the selected display
unit. Millibar is fixed as the unit. The measured value is displayed as positive compared to the ambient air
pressure.
5.1Button Assignments in Display Mode
Displaying the Software Version
The software version indicates the software currently running on the internal controller.
üThe mini compact valve is in display mode
4Press the MENU button
ðThe software ID is displayed.
4To exit the function, press the MENU button.
The PLUS button has no function (the display shows [loc]).
5.1.1Opening the Menu
Press the PLUS BUTTON to open the following menus:
4Press the PLUS button briefly.
ðThe main menu opens with the first parameter [5P1].
Opening the EF menu for extended functions:
1. Press the PLUS button several times until the parameter EF appears on the display.
2. Press the MENU button to switch to the EF submenu for extended functions.
ðThe EF menu opens with the first parameter [ctr].
Opening the INF menu:
1. Press the PLUS button several times until the parameter 1mF appears on the display.
2. Press the MENU button to switch to the INF submenu for information.
ðThe INF menu opens with the first parameter [cc1].

5 Operating and Menu Concept
18 / 52 EN-US · 30.30.01.01963 · 03 · 10/22
5.1.2Displaying the Basic Settings (Slide Show)
When you press the MENU button from the home screen, the following parameters are automatically
shown one after the other on the display (slide show):
• The vacuum unit
• The value of switching point SP1
• The value of reset point rP1
• The value of switching point SP2
• The supply voltage US
The display cycle returns to the vacuum display after a complete cycle or can be canceled at any time by
pressing any button.
5.1.3Locking the Keypad
The keypad lock function requires that the ejector is not in any menu.
Activating the keypad lock:
4Hold down the PLUS button for 3 seconds.
ðLoC appears on the display.
ðThe keypad lock is activated.
Deactivating the keypad lock:
4Hold down the PLUS button for 3 seconds.
ðVNC appears on the display.
ðThe keypad lock is deactivated.
The slideshow operates even when the keypad lock is activated.
5.2Main Menu
All settings for standard applications can be accessed and configured using the main menu.
5.2.1Functions in the Main Menu
The following table shows an overview of the display codes and parameters in the main menu:
Display
code
Parameter Explanation
5P1 Switching point 1 Value at which the control function deactivates
(only active if [ctr] = [on])
rP1 Reset point 1 Reset value 1 for the control function
5P2 Switching point 2 Switching value for the “Parts control” signal
rP2 Reset point 2 Reset value 2 for the “Parts control” signal
tbL Blow off time Blow off time setting for time-controlled blow off (only active if
value >0)
CAL Zero-point adjust-
ment (calibration)
Calibrate vacuum sensor, zero point = ambient pressure
EF Extended functions Open the “Extended Functions” submenu
1mF Information Open the “Information” submenu
1nc Incorrect The entered value is not within the permissible value range.
This is an informational message that appears if incorrect informa-
tion is entered.

5 Operating and Menu Concept
EN-US · 30.30.01.01963 · 03 · 10/22 19 / 52
5.2.2Changing the Parameters of the Main menu
If you wish to change values, e.g. the switching points, you have to enter the new value digit by digit.
1. Use the PLUS button to select the desired parameter.
2. Confirm using the MENU button.
ðThe value that is currently set is displayed and the first digit flashes.
3. Use the PLUS button to change the value. The value increases by 1 each time that the button is
pressed. After 9, the counter goes back to 0 when the PLUS button is pressed.
4. Press the MENU button to save the changed value.
ðThe first digit is accepted and the second digit flashes.
5. You can use the PLUS button to set the second digit.
6. Press the MENU button to save the changed value.
ðThe second digit is accepted and the third digit flashes.
7. You can use the PLUS button to set the third digit.
8. Press the MENU button to save the changed value.
ðIf the entered value is within the permissible value range, it is accepted and the modified parameter
is displayed.
ðIf the entered value is not within the permissible value range, this is briefly indicated on the display
[1nc] and the new value is not accepted.
If input is interrupted for longer than 1 minute or if no input is made, the measurement screen is auto-
matically displayed.
5.3Extended Functions menu (EF)
An “Extended Functions” menu (EF) is available for applications with special requirements.
5.3.1Functions in the Extended Functions menu (EF)
The following table shows an overview of the display codes and parameters in the “Extended Functions”
menu:
Display
code
Parameter Possible settings Explanation
ctr Energy-saving
function
oFF
on
Control function off
Control active
-L- Max. permissi-
ble leakage
Values config-
urable between 0
and 999
Permitted leakage
Unit: millibar per second
t-1 Max. permissi-
ble evacuation
time
configurable be-
tween 0.01 and
9.99seconds in
steps of 0.01
off
Permitted evacuation time
No monitoring
uni Vacuum unit
bAr
kPA
iX9
P5i
Define the displayed vacuum unit
Vacuum level in millibar [mbar]
Vacuum level in kilopascal [kPa]
Vacuum value in inch of mercury [inHg]
Vacuum value in pound-force per square inch [psi]
rE5 Reset No
YE5
The values remain unchanged
Reset parameter values to factory settings

5 Operating and Menu Concept
20 / 52 EN-US · 30.30.01.01963 · 03 · 10/22
5.3.2Changing parameters in the Extended Functions menu
Depending on the parameter, there are two different methods for entering values in the EF menu.
When entering numerical values, you enter them digit by digit as in the main menu:
1. Use the PLUS button to select the desired parameter.
2. Confirm using the MENU button.
ðThe value that is currently set is displayed and the first digit flashes.
3. Use the PLUS button to change the value. The value increases by 1 each time that the button is
pressed. After 9, the counter goes back to 0 when the PLUS button is pressed.
4. Press the MENU button to save the changed value.
ðThe first digit is accepted and the second digit flashes.
5. You can use the PLUS button to set the second digit.
6. Press the MENU button to save the changed value.
ðThe second digit is accepted and the third digit flashes.
7. You can use the PLUS button to set the third digit.
8. Press the MENU button to save the changed value.
ðThe value is accepted and the modified parameter is displayed.
If input is interrupted for longer than 1 minute or if no input is made, the measurement screen is auto-
matically displayed.
For other parameters, you can select from predefined settings:
1. Use the PLUS button to select the desired parameter.
2. Confirm using the MENU button.
ðThe current setting is displayed and flashes.
3. Use the PLUS button to switch to the next setting.
4. Press the MENU button to save the desired setting.
ðThe selected setting is briefly shown on the display.
ðThe display then automatically jumps to the parameter that was just set.
5.4Info menu [INF]
The “Info” [INF] menu is available for reading out system data such as counters, the software version, part
numbers and serial numbers.
5.4.1Functions in the Info menu
The following table shows an overview of the display codes and parameters in the Info menu:
Display code Parameter Explanation
cc1 Counter 1 Counter for suction cycles (suction signal input)
cc2 Counter 2 Counter for valve switching cycles
5oC Software Display firmware revision
Art Part number Display the part number
5nr Serial number Display the serial number
Information about the production period
