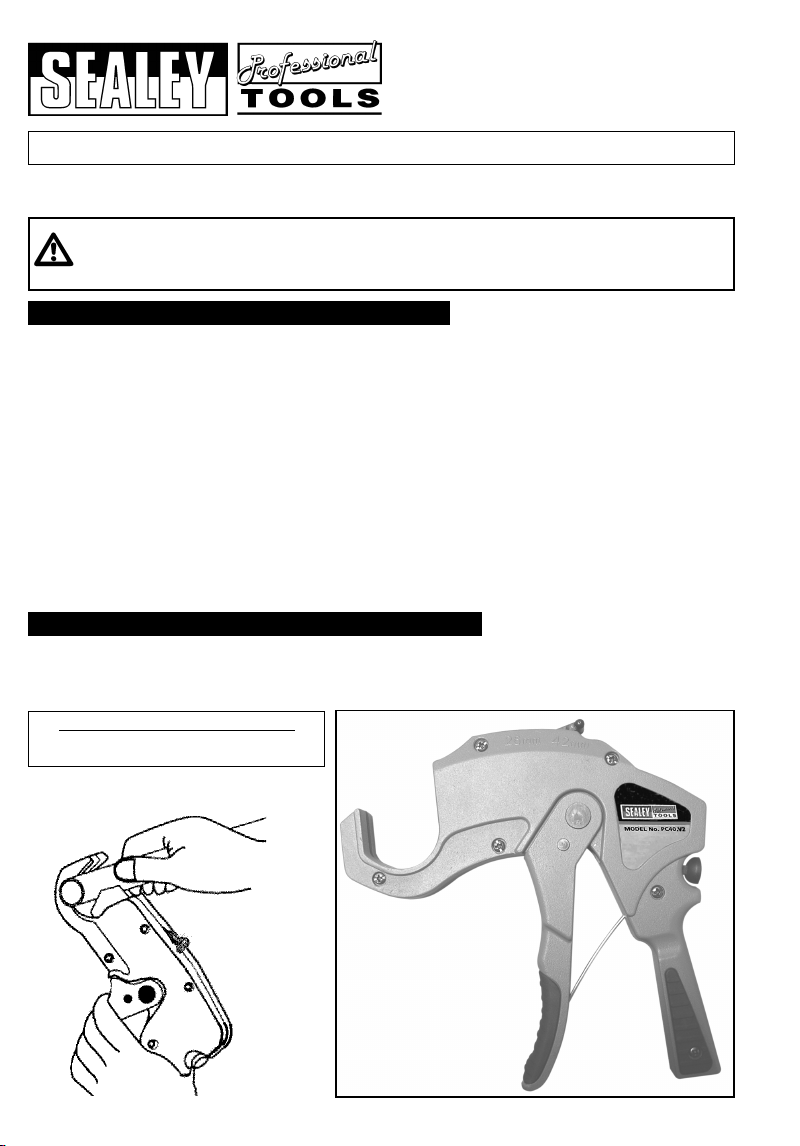

INSTRUCTION MANUAL FOR:
MODEL: PC40.V2
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT:PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLYAND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAYCAUSE DAMAGE AND/OR PERSONAL INJURYAND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
pWARNING! The blade used by this cutter is razor sharp and should be treated with due caution.
3Store the cutter in a safe childproof place when not in use.
3Use in a suitable, clean and tidy work area, free from unrelated materials. Ensure there is adequate lighting.
3Use the cutter for rubber and soft vinyl pipes only.
7DO NOT use cutter on hard reinforced pipe. If the blade does not penetrate the pipe, then the material
used to make the pipe is too hard. Applying excessive pressure may cause the pipe to shatter.
7DO NOT continue to attempt cutting any pipe that withstands penetration.
7DO NOT insert a finger into the cutting area at any time.
7DO NOT turn the pipe whilst cutting.
7DO NOT allow untrained people to use the cutter.
7DO NOT allow children to use or play with the cutter.
7DO NOT use the cutter for tasks it is not designed to perform.
7DO NOT operate cutter if any parts are damaged or missing as this may cause failure and/or personal injury.
7DO NOT operate the cutter when you are tired or under the influence of alcohol, drugs or intoxicating medication.
PC40.V2 - 1 - 051005
2. INTRODUCTION
Pistol-type, ratchet action, die-cast aluminium alloy body with heat treated AUS-8 stainless steel blade honed and
shaped for smooth cutting action. Ratchet cutting action avoids crushing pipe. Long-life blade suitable for cutting
extrusions and pipes. Textured grip with rubber inlay gives added comfort and control.
Cutting capacity
6 - 42mm OD
PLASTIC PIPE AND EXTRUSION CUTTER
PARTNUMBER FOR SPARE BLADE
PC40/B
INSTRUCTION MANUAL FOR:
MODEL: PC40.V2
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT:PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLYAND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAYCAUSE DAMAGE AND/OR PERSONAL INJURYAND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
pWARNING! The blade used by this cutter is razor sharp and should be treated with due caution.
3Store the cutter in a safe childproof place when not in use.
3Use in a suitable, clean and tidy work area, free from unrelated materials. Ensure there is adequate lighting.
3Use the cutter for rubber and soft vinyl pipes only.
7DO NOT use cutter on hard reinforced pipe. If the blade does not penetrate the pipe, then the material
used to make the pipe is too hard. Applying excessive pressure may cause the pipe to shatter.
7DO NOT continue to attempt cutting any pipe that withstands penetration.
7DO NOT insert a finger into the cutting area at any time.
7DO NOT turn the pipe whilst cutting.
7DO NOT allow untrained people to use the cutter.
7DO NOT allow children to use or play with the cutter.
7DO NOT use the cutter for tasks it is not designed to perform.
7DO NOT operate cutter if any parts are damaged or missing as this may cause failure and/or personal injury.
7DO NOT operate the cutter when you are tired or under the influence of alcohol, drugs or intoxicating medication.
PC40.V2 - 1 - 051005
2. INTRODUCTION
Pistol-type, ratchet action, die-cast aluminium alloy body with heat treated AUS-8 stainless steel blade honed and
shaped for smooth cutting action. Ratchet cutting action avoids crushing pipe. Long-life blade suitable for cutting
extrusions and pipes. Textured grip with rubber inlay gives added comfort and control.
Cutting capacity
6 - 42mm OD
PLASTIC PIPE AND EXTRUSION CUTTER
PARTNUMBER FOR SPARE BLADE
PC40/B

3. OPERATION
fig. 1
3.1. ADJUSTING PC40.V2 TO CUT SMALLER PIPE
SIZES UNDER 26MM
3.1.1 The PC40 has a switch on its top surface which
adjusts the starting position of the blade to more
conveniently cut pipe sizes of 26mm or less.
3.1.2 To select the 26mm position first retract the blade by
pressing the retraction button (See fig.1-R).
3.1.3 Now squeeze the handle/trigger fully six times, then
move the switch to the 26mm position. The blade will
only now retract sufficiently to allow a 26mm tube to
be inserted.
3.1.4 To return to the 42mm position first press the
retraction button which will partially retract the blade.
3.1.5 Now squeeze the handle/trigger fully three times,
then move the switch to the 42mm position. The
blade will now fully retract when the retraction button
is pressed.
PC40.V2 - 1 - 051005
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component
parts without prior notice. IMPORTANT
: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12
months from purchase date, proof of which will be required for any claim. INFORMATION: For a copy of our latest catalogue and
promotions call us on 01284 757525 and leave your full name and address, including postcode.
01284 757500
01284 703534
E-mail: [e-mail]
Sole UK Distributor
Sealey Group,
Bury St. Edmunds, Suffolk.
Web address: www.sealey.co.uk
