Sealey GSC86335SP User manual

INSTRUCTIONS FOR:
GALVANIZED STEEL FLOOR CABINET
5 SHELF wITH FREE STANDING STORAGE
MODEL No: GSC86335SP
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
1. SAFETY INSTRUCTIONS
1. SAFETY INSTRUCTIONS
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, wARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND wITH CARE FOR THE PURPOSE FOR wHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND wILL INVALIDATE THE wARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
2. INTRODUCTION
3. CONTENTS
1.1. GENERAL SAFETY
wARNING! Ensure Health & Safety, local authority, and
general workshop practice regulations are adhered to when
using this cabinet.
Locate cabinet in a suitable work area.
Keep the work area clean, uncluttered and ensure there is
adequate lighting.
wARNING! Use cabinet on level and solid ground,
preferably concrete.
Keep the cabinet clean and tidy in accordance with good
workshop practice.
Keep children and unauthorised persons away from the work
area.
DO NOT use the cabinet for any purpose other than that
for which it is designed.
DO NOT use the cabinet outdoors.
DO NOT place the cabinet in a damp or wet location or an
area where there is condensation.
DO NOT clean the cabinet with any solvents which may
damage the surfaces or the protective coating.
 DO NOT move the cabinet when there are items placed
inside.
 DO NOT step on the shelves.
 DO NOToverload the cabinet.
Floor standing galvanized steel cabinet with lockable
double doors. Right side includes an open space for
taller items such as brooms, mops and ladders. Left
side features ve shelves, four of which are adjustable.
Supplied with two keys. Ideal for factory, workshop or
home use.
Dimensions:
Width: 860mm, Depth: 330mm, Height: 1810mm.
Shelf size: 445 x 328 x 50mm.

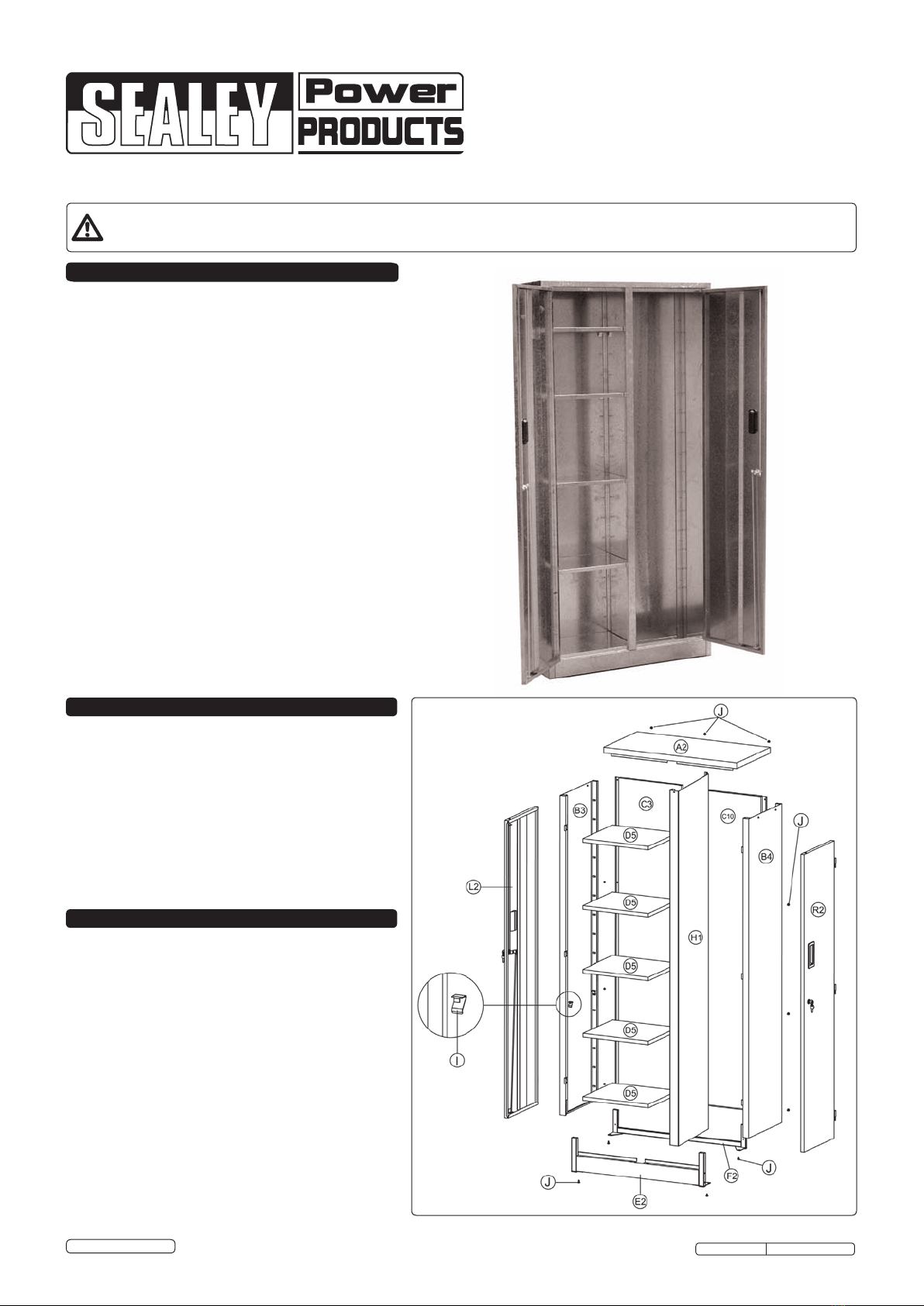

Part No. Part Name No.
GSCSP.A2 Top Panel 1
GSCSP.B3 Left Side Panel 1
GSCSP.B4 Right Side Panel 1
GSCSP.C3 Left Back Panel 1
GSCSP.C10 Right Back Panel 1
GSCSP.D5 Shelf 5
GSCSP.E2 Front Base Bracket 1
GSCSP.F2 Back Base Bracket 1
GSCSP.H1 Middle Panel 1
GSCSP.L2 Left Door 1
GSCSP.R2 Right Door 1
GSC86335SP.I Shelf Support 20
GSC86335SP.J Self Tapping Screw 21
Unpack the contents of the box and check against the
parts list/diagram. If there are any parts missing,
contact your local Sealey dealer.
Original Language Version GSC86335SP Issue: 1 - 16/07/12
© Jack Sealey Limited

4.1. Assemble the cabinet, using the following diagrams and referencing the parts list/diagram overleaf.
4.2. Insert and slide E2 front base bracket and F2 back base bracket into the bottom of B3 left side panel and B4 right side
panel. Attach with 1 screw J into each of the four corners. Use a trestle table or a workbench for convenience (fig.1).
4. ASSEMBLY
4.3. Acquire the help of a second person for this stage. Stand unit upright and insert H1 middle panel into the hole in E2
front base bracket. Fix it in place using 1 J self tapping screw from the rear. Install C3 left back panel, and then C10
right back panel over the top of panel C3. Use self tapping screws J to attach panels (fig.2) (NOTE - don't fix screws to
the top corners at this stage).
Fig.1
Fig.2
Original Language Version GSC86335SP Issue: 1 - 16/07/12
© Jack Sealey Limited

NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
wARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
01284 757500
01284 703534
[e-mail]
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business
Park, Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Web
email
4.5. Install R2 right door and L2 left door by positioning the lift-off hinges over their locators and dropping into position (fig.4).
If any dismantling is required, use a flat headed screwdriver to release the clip on the top panel as shown in fig.4.
4.4. Install A2 top panel and fix in place using J self tapping screws. Place I shelf supports in the four corners for each
required shelf location. Locate shelves on the shelf supports (fig.3).
Fig.4
Fig.3
Original Language Version GSC86335SP Issue: 1 - 16/07/12
