Sealey HVLP740 User manual

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained,
give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY
AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
Familiarise yourself with the application, limitations and potential hazards peculiar to the spray gun.
WARNING! Disconnect the spray gun from the air supply before changing accessories, servicing or performing any maintenance.
Maintain the spray gun in good condition (use an authorised service agent).
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
Keep the spray gun clean for best and safest performance.
Ensure that the compressed air system can supply the spray gun air consumption (16cfm).
Wear approved safety respiratory protection and safety eye goggles.
If spraying isocynate based finisher, wear approved respirator/clean air breathing apparatus and cover exposed skin with latex gloves and
an impervious hooded coverall.
Remove ill-fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
Locate the spray gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is adequate
ventilation and lighting.
Keep children and unauthorised persons away from the work area.
When not in use, ensure that the air supply is turned off.
Avoid unintentional operation of spray gun.
DO NOT point spray gun at yourself, other persons or animals.
DO NOT direct air from the air hose at yourself, other persons or animals.
DO NOT carry the spray gun by the hose, or yank the hose from the air supply.
DO NOT exceed the maximum air pressure of 43psi.
DO NOT use the spray gun for any purpose other than that for which it is designed.
DO NOT allow untrained persons to operate the spray gun.
DO NOT get the spray gun wet or use in damp or wet locations or in areas where there is condensation.
DO NOT operate the spray gun if any parts are missing or damaged as this may cause failure and/or personal injury.
When not in use, disconnect the spray gun from the air supply, clean thoroughly and store safely.
Model HVLP-750.V3 Suction Feed
Standard set-up ......................1.7mm
Available set-ups ..........1.2, 1.3, 1.4, 2.0mm
Air pressure ..........................43psi
Air consumption ...................... 16cfm
Round/at fan control allows spray pattern to be adjusted for any job. Anodized spray gun body resists corrosion and makes for easier cleaning.
Brass air cap with stainless steel needle and nozzle make this HVLP gun suitable for waterborne paint. Supplied with 1.7mm set-up, 1.2, 1.3, 1.4 and
2.0mm set-ups available separately.
INSTRUCTIONS FOR:
WORKSHOP SERIES SUCTION FEED HVLP
SPRAY GUN 1.7MM SET UP
MODEL NO: HVLP740
Wear eye protection Wear resriratory protectionRead the instruction manual
1. SAFETY
2. INTRODUCTION
3. SPECIFICATION
4. CONTENTS
Original Language Version HVLP740 Issue: 3(L) - 28/10/15
© Jack Sealey Limited

5.3. Operating the spray gun
5.3.1. Take the filter (see Contents) and slide onto the end of the paint pickup tube.
5.3.2. For best results, the gun should be held perpendicular to the surface being sprayed and moved parallel to it. Start the stroke before
squeezing the trigger and release the trigger before finishing the stroke. This will enable you to accurately control the gun and material (fig.3).
5.3.3. Spray from a distance of about 150mm to 250mm depending on the material and the atomizing pressure. The material deposited should
always be even and wet. Each stroke must overlap the preceding stroke to obtain a uniform finish. To reduce over-spray and obtain
maximum efficiency, spray with the lowest possible atomizing air pressure.
5.3.4. Controlling the fan spray and the fluid.
a) Use the needle (paint) adjustment knob (fig.4.2) to increase or decrease the amount of paint flow.
b) The atomizing air flow is controlled by knob (4.1). The volume of air input is controlled by knob (4.3).
c) As width of spray is increased more material must pass through the gun to obtain the same coverage on the increased area.
d) Turn the air nozzle (4.4) to achieve a horizontal or vertical fan spray. Lock the nozzle with retaining ring (5).
The spray pattern of the gun is variable from round to flat with all patterns in between. In normal operation, the wings on the
nozzle are horizontal as fig.5. This provides a vertical fan-shaped pattern which gives maximum uniform and even coverage when
moving the gun back and forth, parallel to the work surface fig.6.
fig.3 fig.6
fig.5
fig.4
fig.1 fig.2
5.2. Couplings
Vibration may cause failure if a quick change coupling is connected directly to the spray gun. To overcome this, connect a leader hose to
the spray gun. A quick change coupling may then be used to connect the leader hose to the air line recoil hose. See fig.1 & 2.

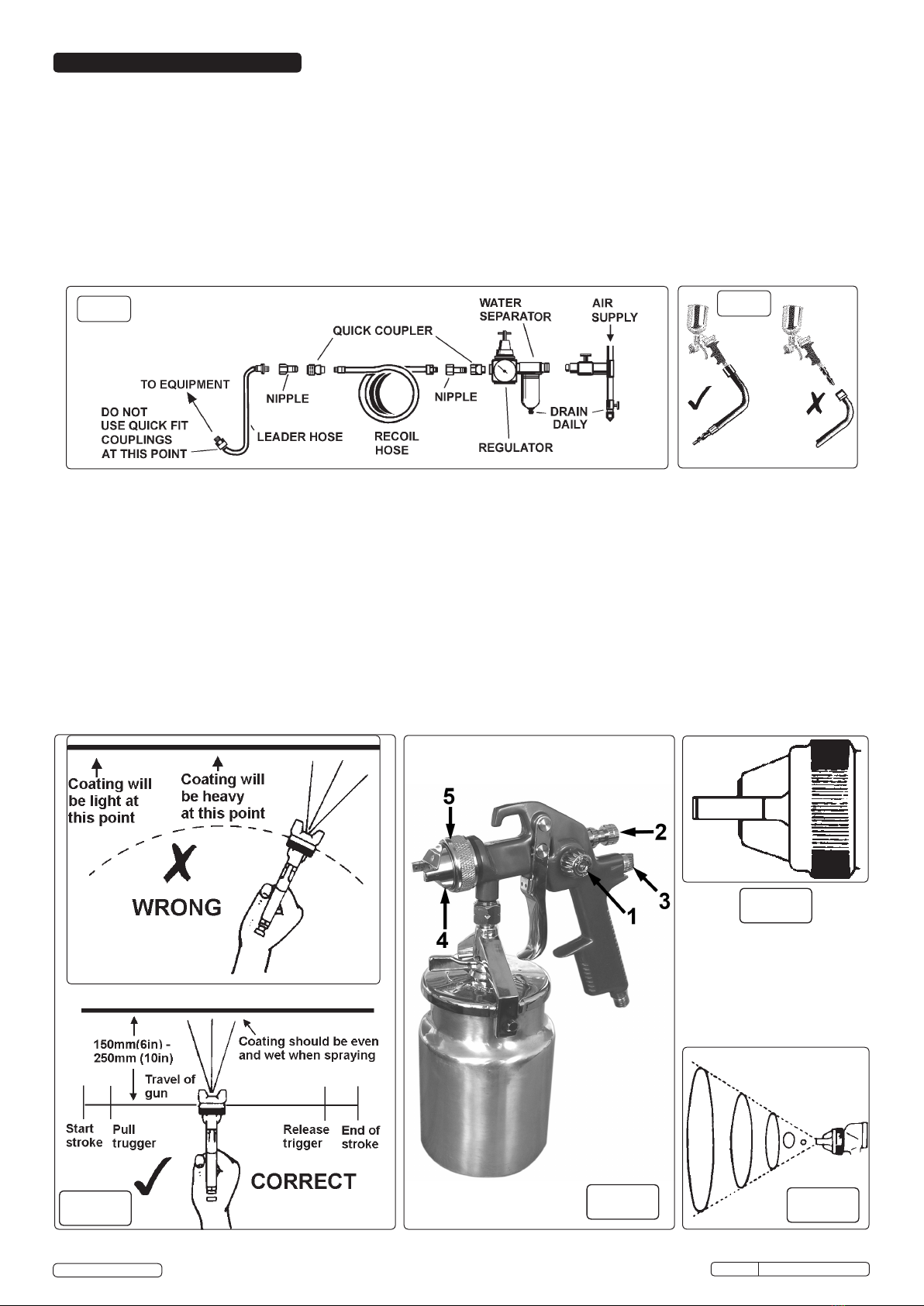

5.1. Air Supply (Recommended hook-up procedure is shown in fig.1).
5.1.1. Ensure spray gun air valve (or trigger) is in the off position before connecting to the air supply.
5.1.2. You will require an air pressure of 43psi, and an air flow according to specification.
5.1.3. WARNING! Ensure the air supply is clean and does not exceed 43psi while operating the spray gun. Too high an air pressure and/or
unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
5.1.4. Drain the air tank daily. Water in the air line will ruin the paint finish and damage the spray gun.
5.1.5. Clean air inlet filter weekly.
5.1.6. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4” I.D. and fittings must have the same inside dimensions.
5.1.7. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
5. OPERATION
Original Language Version HVLP740 Issue: 3(L) - 28/10/15
© Jack Sealey Limited

VIEW OF PROBLEM POSSIBLE REASON FOR PROBLEM SOLUTION
Dried material in a dirty side port restricts passage of air.
Greater flow of air from the cleaner side port forces a fan
pattern in the direction of the clogged side.
Dissolve material in the side ports with solvent, then
blow the gun clean. Do not poke into the opening with
metal instruments.
Dried material around the outside of the fluid nozzle tip
restricts the passage of atomizing air at one point
through the centre opening of the air nozzle and results
in the pattern shown. This pattern can also be caused
by a loose air nozzle.
Remove the air nozzle and wipe off fluid tip using a rag
dampened with solvent. Tighten the air nozzle.
Material too thin or atomization air pressure too high. Regulate material viscosity or reduce air pressure.
Dirt between the fluid nozzle seat and body or loosely
installed fluid nozzle will cause the gun to spit.
Remove the fluid nozzle, clean the back of the nozzle
and the nozzle seat in the gun body using a rag damp-
ened with thinner. Replace the nozzle and secure it
tightly against the body.
Atomised air flowing through the paint channel to pot.
The paint nozzle is not tight enough. Air nozzle is not
completely screwed in.
Tighten, clean or replace parts accordingly.
A faulty spray is usually caused by improper cleaning or dried material around the fluid nozzle tip or in the air nozzle. Soak these parts in a solvent
that will soften the dried material and remove with a brush or a cloth. Never use metal instruments to clean the air or fluid nozzles. These parts are
carefully machined and any damage to them will cause a faulty spray. If either the air nozzle or fluid nozzle is damaged, the part must be replaced
before a perfect spray can be obtained.
Material bubbles or in paint cup.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
01284 757500
01284 703534
[e-mail]
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
email
Original Language Version HVLP740 Issue: 3(L) - 28/10/15
6.2. Airnozzle,uidnozzleandneedleassembly
6.2.1. To clean the nozzles, soak them in solvent to dissolve any dried material, then blow them with compressed air. Handle all nozzles carefully
and DO NOT make any alterations in the gun.
6.2.2. If you need to probe the holes in the nozzles, be sure to use a tool that is softer than brass; DO NOT use steel instruments.
6.2.3. Adjust the uid needle valve so that when the gun is triggered, air ow occurs before uid ow.
6.3. Maintenance
6.3.1. Disassemble using the supplied spanner and socket (see Contents).
6.3.2. Take care when reassembling. Firstly screw parts hand tight only to avoid cross threading, then tighten with a spanner. If a part cannot be
easily turned by hand, check that you have the correct part, or unscrew, realign and try again. DO NOT use excessive force when
reassembling.
6.3.3. Lubricate the gun daily with a light machine oil.
6.3.4. If you change the nozzle size, ensure the complete nozzle set is exchanged. Insert the paint nozzle before putting the paint needle in
fig.7
FOR OPTIMUM PERFORMANCE IT IS VERY IMPORTANT TO ENSURE THE GUN IS CORRECTLY CLEANED AFTER EACH USE.
6.1. Cleaning the gun
6.1.1. Disconnect from the air supply before attempting any cleaning or maintenance.
6.1.2. Immerse the front end of the gun only in solvent. The solvent should just cover the fluid connection. (fig.7).
6.1.3. Use the bristle brush (see Contents) and solvent to wash off accumulated paint.
6.1.4. DO NOT immerse the entire gun in solvent as this will cause lubricants on the rubber seals to dissolve. Dirty solvent may also clog narrow
passages in the gun.
6.1.5. Flush the gun through with clean solvent.
6.1.6. Wipe the outside of the gun with a solvent dampened rag.
6. MAINTENANCE
DO NOT immerse
the entire gun (6.1.4.)
© Jack Sealey Limited
Web
7. TROUBLESHOOTING
EnvironmentalProtection
Recycleunwantedmaterialsinsteadofdisposingofthemaswaste.Alltools,accessoriesandpackagingshouldbe
sorted,takentoarecyclingcentreanddisposedofinamannerwhichiscompatiblewiththeenvironment.
