Sealey PC3455.V2 User manual

1.2. GENERAL SAFETY
WARNING! Water and electricity are dangerous partners. Be extremely cautious and always be aware that this device uses an
electric motor. Always plug into a RCD (See electrical safety above). Unplug from mains before changing accessories or servicing.
WARNING! DO NOT USE the washer if any part of the unit, gun, nozzle, detergent tank, hose or cables is damaged. Replace or
repair using genuine parts only. Unauthorised parts may be dangerous and will invalidate your warranty. Always check connections
are correctly secured and not cracked or damaged in any way before using the machine.
WARNING! Use washer on a flat, levelled surface, in an upright position. Failure to do so will invalidate your warranty.
NEVER lay the washer down during use.
Ensue you comply with all local water supply regulations. Power washers may only be connected to mains drinking water supply if a
back flow preventer valve is installed in the supply hose, or at the tap outlet.
The supply hose must be reinforced, and have an internal diameter of ½”. The water supply must be at least equal to the cleaner
capacity. The water temperature must NOT exceed 122°F (50°C). The water supply pressure must NOT exceed 6 bar.
Always be aware of the hazards that may occur during use. Study all applications and limitations of the washer before use.
Use where air can freely circulate around the washer to avoid the machine overheating.
Keep the washer in good condition. Use an authorised service agent to service the unit.
Wear adequate protective clothing, goggles and anti-slip rubber soled footwear.
Position the washer as near to the water supply as possible.
WARNING! Ensure all persons and animals keep at a minimum distance of 16 yards (15mtr) from the washer when in use.
WARNING! The pressure washer must only be used with clean water. Unfiltered water or corrosive chemicals must not be used as
these will damage the cleaner.
Ensure the nozzle is aimed correctly at the work surface before switching on the machine.
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
INSTRUCTIONS FOR:
PRESSURE WASHER
MODEL No: PC3455.V2
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.1. ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices. A
Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a Residual Current
Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is not protected
by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity at Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1. and 1.1.2.
and use a Portable Appliance Tester.
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that none is loose.
1.1.6. Important: Ensure that the voltage marked on the appliance matches the power supply
to be used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.7. DO NOT pull or carry the appliance by the power cable.
1.1.8. DO NOT pull the plug from the socket by the cable.
1.1.9. DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty
item repaired or replaced by a qualified electrician. When an ASTA/BS approved UK
3 pin plug is damaged, cut the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
d) After wiring, check that there are no bare wires, that all wires have been correctly
connected, that the cable outer insulation extends beyond the cable restraint and that the restraint is tight.
Double insulated products, which are always marked with this symbol , are fitted with live (brown) and neutral (blue) wires only.
To rewire, connect the wires as indicated above - DO NOT connect either wire to the earth terminal.
1.1.10. Products which require more than 13 amps are supplied without a plug. In this case you must contact a qualified electrician to ensure
that a 30 amp supply is available. We recommend that you discuss the installation of an industrial round pin plug and socket with your
electrician.
1.1.11. If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance
plugged into it will be protected. The cable core section is important and should be at least 1.5mm², but to be absolutely sure that the
capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the use
of 2.5mm² section cable.
1. SAFETY INSTRUCTIONS
FUSE RATING 13 AMP
Blue
Neutral
Wire
Yellow & Green
Earth Wire
Cable
Restraint
Brown
Live
Wire
Original Language Version PC3455 Issue No.2 19/08/10

Before activating the trigger, GRIP the gun firmly to counteract the recoil from the high pressure water jet.
WARNING! Avoid sudden bursts of water as these will cause water pressure to drop and put extreme pressure on hoses and
connectors.
If, during operation, power failure occurs turn the electricity and water off for safety reasons, (See Note ‘c’ at end of Section 4).
WARNING! The high pressure jet will cause loose particles to be propelled at high speed, which may cause serious injury.
WARNING! DO NOT operate the machine without a water supply. Dry running can seriously damage the unit.
WARNING! DO NOT leave the washer switched on for more than 15 minutes without operating the trigger.
DO NOT obstruct ventilation grills during operation.
DO NOT use the washer with flammable or toxic liquids or any other product. Use only recommended detergent. Unapproved
detergents may corrode the machine cover and accessories.
DO NOT jam the trigger in the operating position.
DO NOT adjust any internal control valves, as they have been factory set.
DO NOT connect other appliances to the machine inlet or outlet.
DO NOT use in damp or wet weather conditions.
DO NOT move the unit by pulling the hoses or electrical cables. Use the handle.
DO NOT touch plug with wet hands. To avoid the risk of electrocution keep all connections dry and off the ground.
DO NOT direct jet against yourself, other persons, animals, electrical equipment or the machine itself.
DO NOT use washer if you are tired or under the influence of alcohol, drugs or intoxicating medication.
DO NOT allow children or untrained persons to operate the washer.
WARNING! Discharge residual pressure before disconnecting the washer hose. Pressure left in unit may cause injury.
After use, disconnect washer from electrical mains and water supply and store in a safe, dry, childproof area.

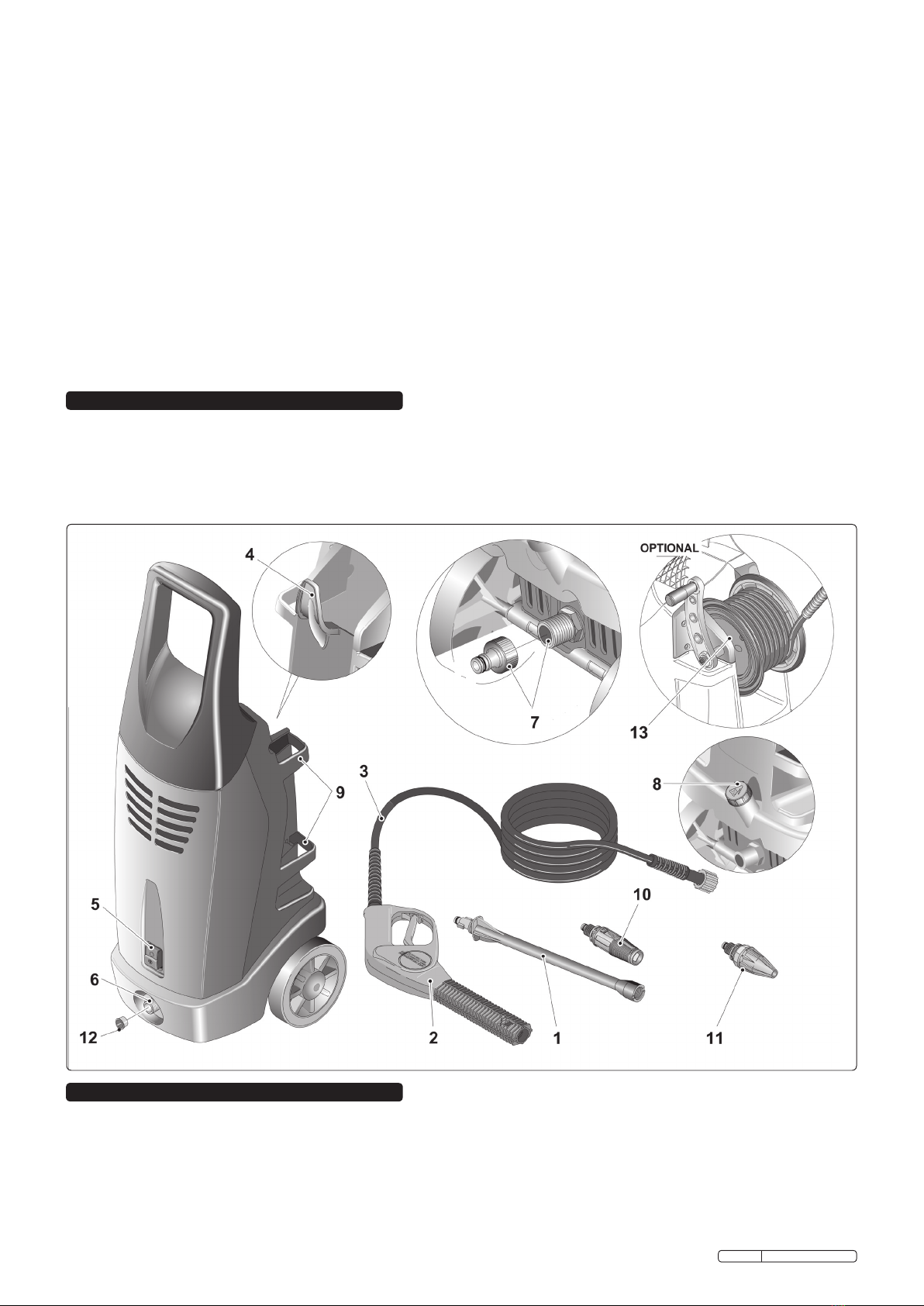

3 . CONTENTS &SPECIFICATION
1 Lance
2 Gun
3 High pressure hose
4 Holder
5 ON/OFF Switch
6 High pressure hose connector
7 Water inlet
8 Detergent reservoir plug
9 Accessory holder
10 Variable nozzle head
11 Rotorblast nozzle head 
12 Water plug
13 Optional hose reel kit
Unpack the product and check contents against the list below. Also check that the machine has an identification plate or label. If label or
parts are damaged or missing contact your supplier immediately.
By rotating the stream of water at high speed, it is possible to increase the effective cleaning pressure of washer. We quote the pressure at
which the water leaves the pump as ‘Manifold Pressure’ and express the cleaning power of the washer as the ‘Effective Cleaning Pressure’.
This heavy duty unit produces enough power to pump 450 litres of water every hour. The unit is powered by high quality electric induction
motor. The pump unit is fitted with a high pressure by-pass to preserve pump life. Features Automatic Total Stop system which switches the
motor on and off when the lance trigger is operated, prolonging the motor life. Supplied with hose, trigger and Rotablast cleaning nozzle which
helps develop the same Effective Cleaning Power (ECP) as a 3450psi washer. Includes foam applicator for pre-wash. Suitable for a wide
range of automotive, industrial, agricultural, marine and domestic applications. PC3455 features in addition to the integral detergent tank,
various optional extras including Hose reel kit, Model No. PCHOSE, Rotary brush for patio cleaning, Model No. PCPATIO, Drain kit, Model
No.AK127/F, Sand blasting kit, Model No. AK128/F and Rotary brush, Model No. AK125/F.
2. INTRODUCTION
Original Language Version PC3455 Issue No.2 19/08/10

4. SET-UP
Model No. .....................PC3455
Manifold Pressure ...............2000psi
Pressure at Nozzle . . . . . . . . . . . . . . 3450psi
Water Flow ....................450ltr/hr
Motor Power . . . . . . . . . . . . . . . . . . . .2400W
Input Voltage/Current . . . . . . . . . . .230V/10A
Rec. Power Supply . . . . . . . . . . . . . . . . . 13A
Motor Speed . . . . . . . . . . . . . . . . . . 2800rpm
Max. Inlet Temp. . . . . . . . . . . . . . . . . . . 50°C
Hose Length . . . . . . . . . . . . . . . . . . . . 5.5mtr
Weight .......................... 18kg
Trolley Included .................... Yes
3.1. SPECIFICATION
4.1. Connecting the water supply. Use a reinforced hose pipe with an internal diameter of 1/2” and connect to the mains water supply as
indicated in fig.1. Screw a push fit hose connector ( fig.2-1) to the water inlet on the machine ( see fig.2-2). The water supply should
have a minimum pressure of 1.5 bar and a maximum pressure of 6 bar, with a minimum flow rate of 7ltr/min,
4.2. Connecting the high pressure hose. Remove and discard the transit plug from the water ‘out’ connector on the lower front of the
machine (See fig.3). Attach the high pressure hose as indicated in fig.4 ensuring that the connector is tight. Turn on the water supply.
4.3. Assembling the lance and nozzle. Push the gun onto the lance as shown in fig.5. There is a spring within the mouth of the gun.
Push the lance against the spring and turn through 90° until it clicks into place. Insert the nozzle required into the end of the lance as
shown in fig.6 and screw it down. When the nozzle is seated give it a final twist so that it clicks into place. Item 6 is the standard
nozzle with adjustable spray pattern. Item 7 is the rotorblast nozzle.
Original Language Version PC3455 Issue No.2 19/08/10

Important! The washer motor will stop as soon as the gun trigger is released and will restart when the trigger is squeezed.
Always allow at least 5 seconds between releasing the trigger and restarting.
5.1. Primary checks. Check that the inlet filter is clean; pump delivery and pressure will be reduced if blocked. Never use the machine
without a filter ( which is fitted inside the hose connector, see fig.2-1). Ensure that the water supply, high pressure hose and gun are
correctly connected, and that air can freely circulate around the washer.
5.2. Operation of safety catch. To prevent inadvertent operation of the unit the safety catch should always be engaged when the gun is
not in use. Swing the catch into position over the end of the trigger as shown in fig.8-3. To release the catch press it above the trigger
as indicated in fig.8-1.
5.3. Operating the machine. Hold the spray gun firmly to counteract the recoil caused by the high pressure of the water. Before switching
on ensure that the lance is not directed at people, objects or animals prior to being directed at the object to be cleaned.
It is recommended that the trigger is depressed before switching on the unit before every use. This reduces the back pressure and
amperage draw which prevents fuses blowing. Switch the machine on by pressing the button marked ‘I’ as shown in fig.7 above.
Release the safety catch (see fig.8-1). Point the lance at the object to be cleaned and fully depress the trigger. (When the trigger is
released the motor will automatically switch off).
5. OPERATION
 WARNING! Ensure you read, understand and apply Section 1 safety instructions.
 WARNING! Dry running can seriously damage the unit.
 WARNING! DO NOT leave washer switched on for more than 15 minutes without operating trigger.
Original Language Version PC3455 Issue No.2 19/08/10

5.4. Adjusting spray pattern and pressure. (Variable Nozzle, see contents, item 10) The spray pattern can be continuously varied from
a fine jet to a fan pattern by rotating the body of the nozzle as indicated in fig.9. Furthermore the pressure can be switched between
high and low by pushing or pulling the nozzle along the axis of the lance. Shifting the nozzle forwards selects low pressure as shown
in fig.10. Shifting the nozzle backwards selects high pressure as shown in fig.11.
5.5. Using detergent. (Variable Nozzle, see contents, item 10) Use only detergents approved for use in pressure washers. (See fig.12)
For soap application use the low pressure setting on the lance. (If the high pressure setting is selected detergent solution will not be
discharged.) Remove the plug from the detergent reservoir situated at the back of the machine and fill it with a suitable cleaning
solution. Select the low pressure setting on the nozzle. The chemical will be automatically mixed with the water and discharged
through the nozzle.
5.5.1. Dirt is dissolved by applying detergent to the dry surface.On vertical surfaces, work from the bottom upwards.
5.5.2. Leave the detergent to act for 1 - 2 minutes, but DO NOT allow the surface to dry out.
5.5.3. To wash down select the high pressure setting on the lance.
5.5.4. The rotary nozzle (see contents, Item 11) gives a high torque cleaning effect on larger areas (ideal for vehicle washing and
removing grime from patio surfaces). Apply the high pressure jet keeping the end of the nozzle approximately 25cm (10”) from
the surface.
5.6. When washing is completed.
5.6.1. Switch the power supply off by pressing the button marked ‘O’ as indicated in fig.7.
5.6.2. Turn off the water supply tap.
5.6.3. Switch the motor back on to discharge residual pressure by pressing the trigger until no more water comes out of the nozzle.
5.6.4. Switch the motor off, engage the trigger safety catch and unplug the machine from the electrical mains power supply.
5.6.5 Wipe the machine clean and dry and store in a clean, safe, dry, childproof location.
NOTE: a) DO NOT leave motor switched on for more than 15 minutes without operating trigger.
b) If the water pressure drops (i.e. someone else using the same water supply), the washer will not operate correctly. Immediately
switch off the motor and wait until the pressure is restored.
c) Should the motor stop and fail to restart, the built in thermal cut-out may have tripped. Check to ensure that the washer is
connected correctly to electrical and water supplies (also see Section 6 Troubleshooting). Wait 5 minutes for the cut-out to reset
and re-start the motor. If the motor continues to cut out contact your authorised service agent.
d) If storing the washer for a long period during winter, operate the washer with a non-corrosive, non-toxic anti-freeze before storage.
Store detergents according to instructions on the container label.
 WARNING! Ensure the pressure washer is switched off and unplugged from the mains electrical power supply and turned off at the
mains water tap before performing any maintenance tasks.
7.2. Check, clean or renew the inlet filter ( which is fitted inside the hose connector, see fig.2-1) after every 50 hours of use.
7. MAINTENANCE
6. TROUBLESHOOTING GUIDE
SYMPTOMS REASON REMEDY
Pump does not reach required pressure. Nozzle incorrect or worn. Replace the nozzle.
Dirty filter. Clean or replace filter.
Air being sucked into system. Check that hoses and fittings are air tight.
Water pressure low. Check that hoses/fittings are water tight and tap is fully open.
Worn seals. Contact Authorised Service Agent.
Fluctuating pressure. Nozzle worn or blocked. Replace the nozzle.
Water too hot. Reduce temperature.
Pump sucking air. Check that hoses and fittings are air tight.
Water or oil leaks. Seals worn. Contact Authorised Service Agent.
Motor does not start when switched on. No electrical power. Check plug connections and mains power supply is active.
Automatic cut-off system fault. Contact Authorised Service Agent.
Motor hums but does not start Unsuitable mains voltage. Check for adequate power supply and cable condition.
when switched on. Motor/pump jammed. Contact Authorised Service Agent.
Pump frozen. Leave unit to thaw naturally. The pressure washer should be
protected from the threat of freezing. Extensive pump damage
could otherwise occur (see end of Section 4).
Incorrect extension cable. Use a suitable extension cable. See Section 1 Elect. Safety.
The motor stops. Tripped thermal cut-out due to Check that the mains voltage matches the specifications.
overheating. Switch off the motor and let machine cool for 5 minutes.
No detergent. Detergent container is empty. Refill detergent container.
Detergent pick up body clogged Clear blockage.
Injector clogged. Clean injector.
Nozzle not set to low pressure Move nozzle to low pressure position.
Incorrect nozzle fitted. Fit correct nozzle ( see contents, item 10 ).
Jet is ineffective, ragged or unsteady. High pressure nozzle clogged. Clean high pressure nozzle.
Selector sleeve for type of jet Adjust selector sleeve.
wrongly set.
Fuse blows in plug. Back pressure build up of water Depress trigger before switching on the machine.
causes machine to draw
high amperage.
Original Language Version PC3455 Issue No.2 19/08/10

7.3. Ensure that both nozzles are kept clean and free of debris.
7.4. Check unit, gun, nozzle, hose, connections and cables for damage. Immediately replace or repair with genuine parts.
7.2 Storage. Do not store the unit in premises subject to freezing conditions. If this cannot be guaranteed then the unit should have a
glycol based antifreeze run through it. Immerse the water supply pipe into a container of antifreeze. Immerse the gun/lance into the
same container (without the nozzle attached). Hold the gun trigger open and start the unit. The antifreeze will be drawn into the unit by
suction. When an even, bubble free flow is obtained switch the unit off.
7.3. Starting the unit after a long period of storage. Scale deposits may form in the pump when it has not been used for some time.
This may cause the motor to run stiffly or it may not start up at all. In these circumstances it will be necessary to turn the motor by
hand. To do this it will be necessary to open the casing as indicated above. This is the only user service operation recommended
where the casing is opened. Any other servicing required to internal parts should be carried out by a recommended service
dealer.
7.3.1. Unplug the unit from the power supply.

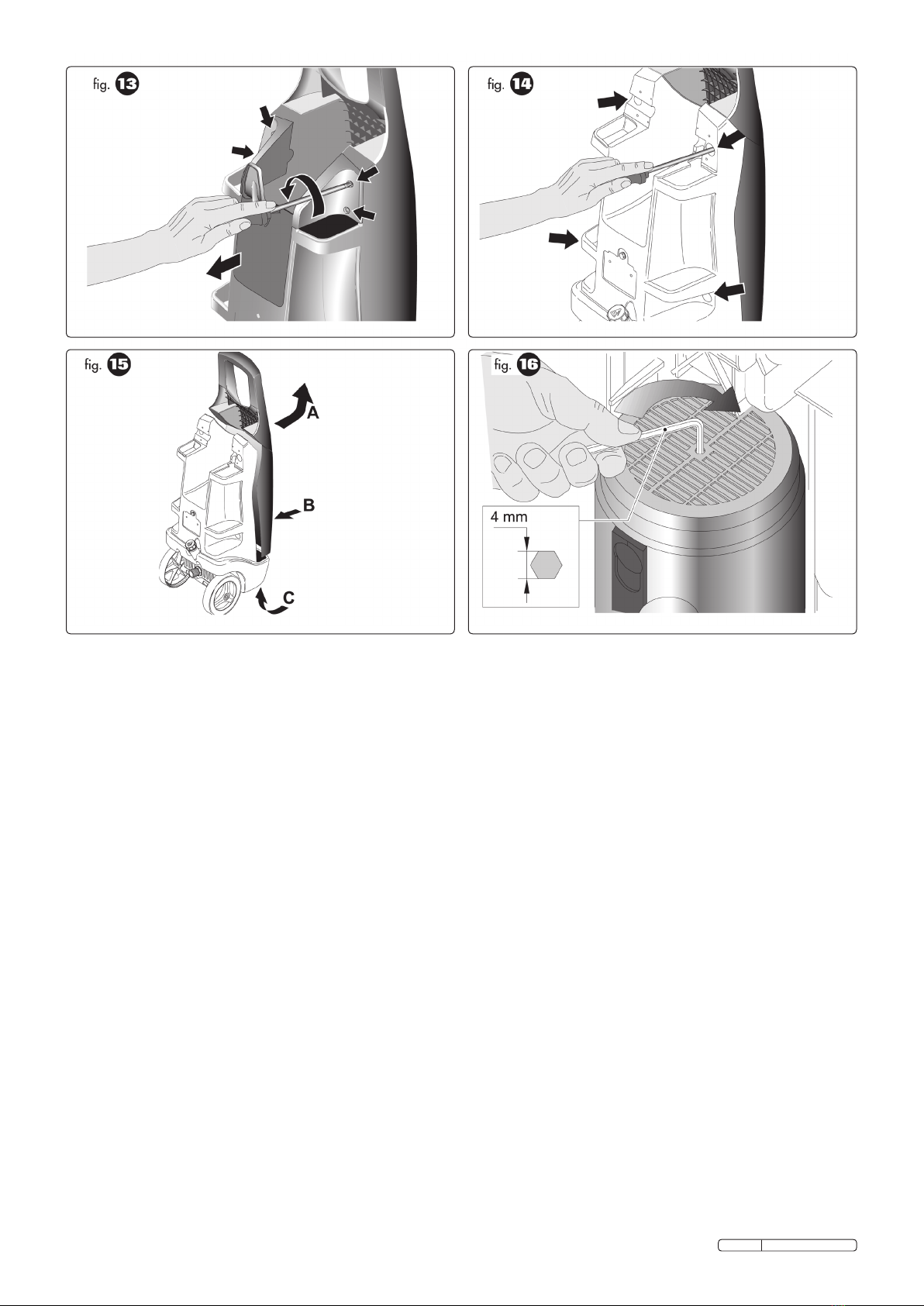

7.3.2. Unscrew the four screws holding the rear cover panel in place using a T20 TRX screwdriver or bit. (See fig.13). If the hose reel kit is
installed, unscrew the same screws which are used to hold the reel supports in place.
7.3.3. By means of a suitable screwdriver having a pozidrive No2 tip unscrew the four screws holding the handle and front cover in place.
The upper fixing screw positions will be revealed when the rear cover has been removed. (See fig.14).
7.3.4. Remove the handle and front cover assembly by moving it forwards first and then upwards as indicated by arrow ‘A’ in fig.15. Ensure
that the cover is detached from the ON/OFF switch before lifting the cover off. (See ‘B’ in fig.15). At the bottom of the front cover there
are two long plastic legs which hook inside the frame of the detergent tank. It may be necessary to reach under the lower front edge of
the tank to release the legs from their notches in the frame. (See fig.15-C).
7.3.5. Insert a 4mm hexagon key through the middle opening in the fan cover and into the hexagon socket in the end of the motor shaft.
Turn the motor shaft clockwise by hand several times. (See fig.16).
7.3.6. Remove the hexagon key.
7.3.7. Refit front cover and rear cover.
7.3.8. Connect the water supply, high pressure hose and gun and plug into the mains power supply.
7.3.9. Test the unit by starting the machine with the spray gun trigger held open.
Original Language Version PC3455 Issue No.2 19/08/10

8. OPTIONAL HOSE REEL KIT - PCHOSE
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts
without prior notice.
IMPORTANT: No responsibility is accepted for incorrect use of this equipment.
WARRANTY: Guarantee is 12 months from purchase, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including
postcode.
8.1. Fitting the hose reel kit. To fit the hose reel kit undo the four screws holding the rear cover panel in place and remove the panel.
(See fig.13).
8.2. Place the hose reel assembly with its supports onto the main casing as shown in fig.20. Use the same four screws to retain the
hose reel on the same fixing points as the rear cover.
8.3. Attach the end of the gun hose to the fitting within the reel (See fig.20) then wind the handle in the direction shown whilst guiding
the hose neatly onto the reel.
8.4. Connect the feeder hose from the centre of the reel (opposite the handle) to the outlet fitting at the base of the unit as shown in
fig.21.
8.0. Optional extras include the following:-
Hose reel kit, ....................... Model No. PCHOSE,
Rotary brush for patio cleaning, ......... Model No. PCPATIO,
Drain kit, ........................... Model No. AK127/F,
Rotary brush, ....................... Model No. AK125/F.
01284 757500
01284 703534
Sole UK Distributor
Sealey Group,
Bury St. Edmunds, Suffolk.
www.sealey.co.uk
Web
[e-mail]
email
Original Language Version PC3455 Issue No.2 19/08/10
