Sealite Radio Controller System User manual

Version 1.1
Radio Controller System
Installation & Operation Manual

Latest products and information available at www.sealite.com
Version No. Description Date Author Approved
1.0 Manual launch April 2016 J. Dore M.Nicholson
1.1 Flash Code Update April 2017 A.Dixon M.Nicholson

Latest products and information available at www.sealite.com
3
Radio Controller
Introduction..................................................................................................................4
Operating Principle ..................................................................................................... 4
Sealite Radio Controller..............................................................................................5
Assembly & Installation of Radio Controller ............................................................6
Unpacking instructions .....................................................................................................................................6
Initial inspection................................................................................................................................................6
Assembly & Charging.......................................................................................................................................6
Turning the unit On...........................................................................................................................................6
Charging the Remote Controller.......................................................................................................................6
Radio Controller Menu................................................................................................7
Modes of Operation..........................................................................................................................................7
Light Group.......................................................................................................................................................7
Flash Code.......................................................................................................................................................7
LED Intensity....................................................................................................................................................7
Timeout Mode...................................................................................................................................................8
Timeout Duration..............................................................................................................................................8
LED Banks (Optional).......................................................................................................................................8
Flare Path Setup...............................................................................................................................................8
Light Sensor .....................................................................................................................................................9
External Input ...................................................................................................................................................9

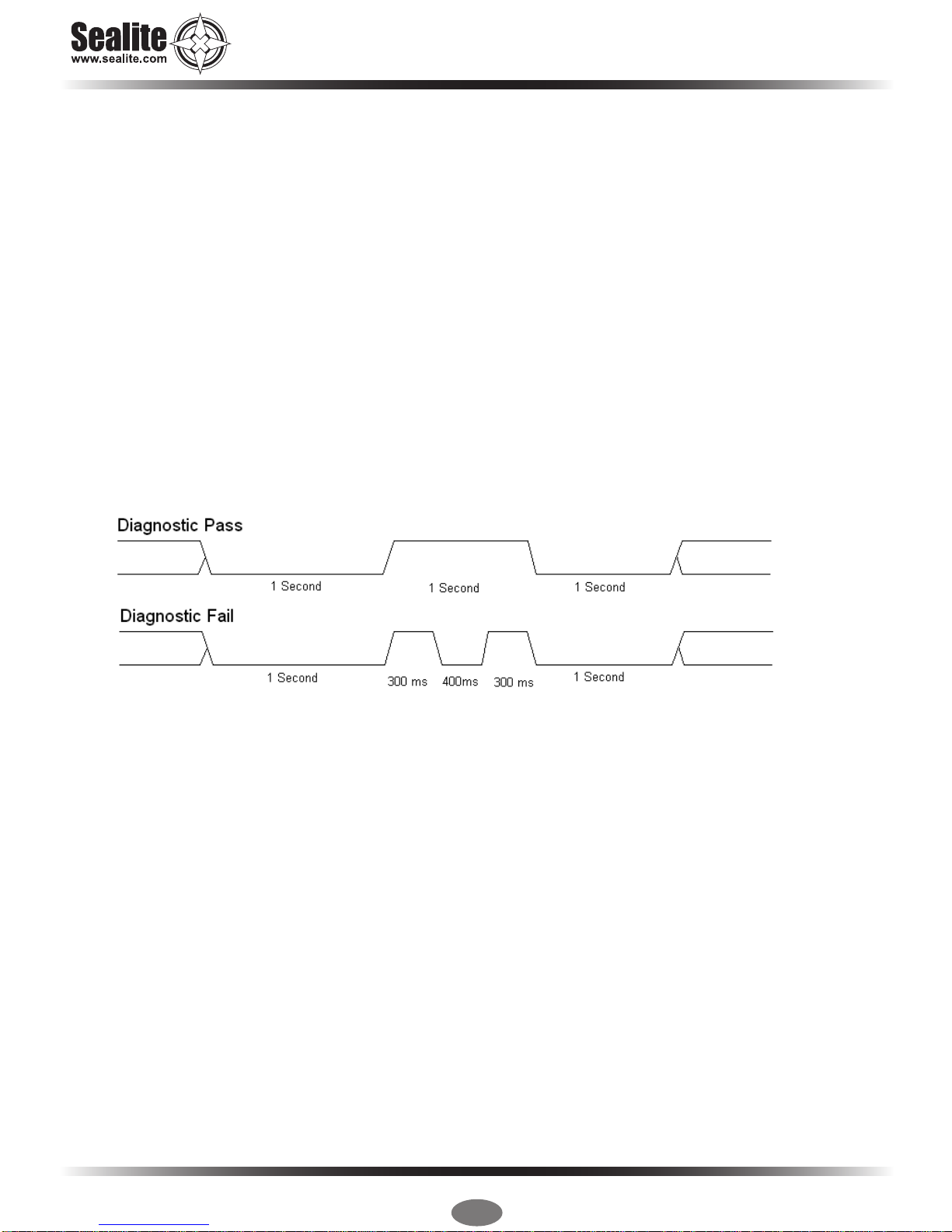

Battery Diagnostic ............................................................................................................................................9
Controller Battery Voltage.................................................................................................................................9
Sending Commands.........................................................................................................................................9
Using the Radio Control to activate the Radio Controlled System ...................... 10
Turn all the lights ON......................................................................................................................................10
Setup the lights to operate in DUSK till DAWN mode. ...................................................................................10
Channel B only is to be HIGH Intensity, but Channel A will remain in current conguration. .........................10
Channel is to be set as a Flare Path using Flash Code F,0 and High Intensity..............................................11
Flash Codes...............................................................................................................12
Symbols..........................................................................................................................................................12
Recommended Rhythm for Flashing Light - IALA Regions A and B...............................................................12
Trouble Shooting.......................................................................................................17
Sealite LED Light Warranty ......................................................................................18
Table of Contents

Latest products and information available at www.sealite.com
4
Radio Controller
Introduction
Congratulations! By choosing to purchase a Radio Controlled Sealite Lantern you
have become the owner of one of the most advanced LED marine lanterns in the
world.
Sealite Pty Ltd has been manufacturing lanterns for over 25 years, and particular care has been taken
to ensure your lantern gives years of service.
As a commitment to producing the highest quality products for our customers, Sealite has been
independently certied as complying with the requirements of ISO 9001:2008 quality management
system.
Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids
To Navigation.
By taking a few moments to browse through this booklet, you will become familiar with the versatility of
your lantern, and be able to maximise its operating function.
Operating Principle
The solar module of the lantern converts sunlight to an electrical current that is used to charge the
battery. The battery provides power to operate the lantern at night.
The asher unit has very low current requirements. A microprocessor drives an array of ultra bright
LED’s through a DC/DC converter, which enables the LED’s to operate within the manufacturer’s
specications. The battery is protected from over-charging within the circuit to ensure maximum
battery life.
On darkness, the microprocessor will initiate a program check and after approximately 1 minute begin
ashing to the set code.
The Sealite Radio Controlled Lighting System works by using a hand held radio controller to activate
and setup an entire port, harbour or channel. The system utilises an embedded RF module operating
in the 2.4Ghz ISM Band.
The lights can be congured for up to 15 different light groups. This allows the Harbour Master to
independently control different areas, such as multiple channels.
Due to the handheld nature of the Radio Controller, it can be used from any position in the port or
harbour. This can allow for easy and efcient inspection or activation of different light groups without
affecting other lights.
The standard radio controller broadcasts a command message to all lights within range. This range is
approximately 1.4km (0.7 nautical miles). If a higher gain antenna is used the range can be extended.
Each light within range will receive, decode and re-send the message to all surrounding lights. Each
light also has an operational range of 1.4km.
For distances, greater than 1.4km there may be a delay in those lights receiving the command. The
further away the lights are from the controller the longer it will take the command to propagate to all
lights.

Latest products and information available at www.sealite.com
5
Radio Controller
Sealite Radio Controller
The Sealite Radio Controller is a compact handheld unit that allows complete control of the
Navigational lighting system. The unit allows you to roam around the port for easy activation,
inspection and testing of the marine lights. The Sealite Radio Controller works on the 2.4GHz
ISM Band using a low power RF module. The backlit, LCD can be seen during day or night. The
straightforward menu makes it easy to operate.
The Sealite Radio Controller comes standard with an IP68 rated charging plug, omni-directional
antenna and ON/OFF switch. It can also be optioned with an RS232 input.
The Radio Controller and charger come in an IP68 ‘Pelican’ Case to protect it from the harsh
environment, to which, it may be subjected.

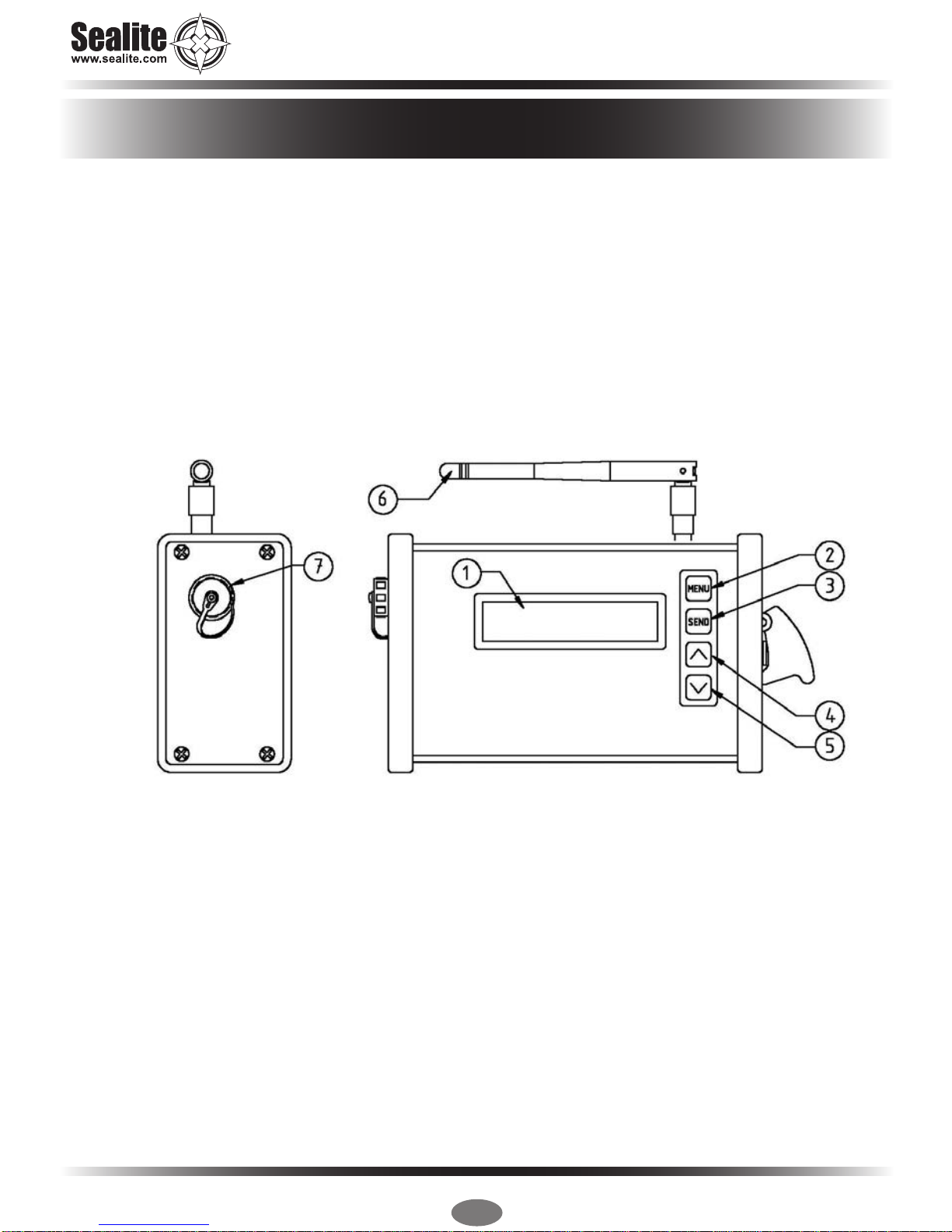

Fig 8 Radio Controller Side View Fig 9 Radio Controller Front View
1 LCD Screen
2 MENU Button
3 SEND Button
4 UP Button
5 DOWN Button
6 Antenna
7 Charging Port – IP68 sealed plug. (Charger not shown)

Latest products and information available at www.sealite.com
6
Radio Controller
Assembly & Installation of Radio Controller
The installation of the Radio Controller includes the following steps:-
• Unpacking
• Initial Inspection
• Assembling & Charging the Radio Controller
• Using the Radio Controller
Unpacking instructions
Unpack all hardware and verify container contents in accordance with Fig. 8 & 9 on page 8. Please
contact your Sealite ofce if there is any hardware missing.
Initial inspection
Inspect the Radio Controller for damage. If there is any damage, please contact your Sealite Ofce.
Retain original packing material for possible future use.
Assembly & Charging
The Radio Controller can be activated after raising the aerial into the upright position
It may be necessary to charge the Radio Controller before use.
Turning the unit On
To turn the unit on, lift the red missile cover and ick the switch.
The radio controller will take 5 seconds to start up and it may take up to 30 seconds for the imbedded
RF Module to be congured, before a command can be sent.
Charging the Radio Controller
a. Unscrew the protective cap from the charging port, on the left side of the Radio Controller.
b. Insert the charging terminal into the Radio Controller.
c. Plug the charger into a wall socket and turn the charger on.
d. The light on the charger will ash Green, Orange, Red then back to Orange.
e. The charger has a LED to indicate the charge sequence.
i. Green – Unit is fully charged. The Radio Controller can be left connected in state.
ii. Orange – Unit is charging. The unit will charge for a maximum of 8 hours before automatically
shutting down.
iii. Red – A fault is occurring, please contact Sealite Ofce.

Latest products and information available at www.sealite.com
7
Radio Controller
Radio Controller Menu
This section of the document will provide a short explanation of all the menu screens on the control unit.
Modes of Operation
The operational Mode denes how the light will respond to different environmental conditions & user inputs.
There are three operational modes, that can be selected via the controller:
ON, STANDBY & DUSK till DAWN.
ALWAYS ON Operational Mode
The light will be lit both day & night. While the light is in this mode it will only turn off when the battery
drops below the Flat Battery Voltage level.
STANDBY Operational Mode
The light is Always Off. While the light is in this mode it will still respond to and pass on commands,
sent by the controller. This mode should be used if the lights have been installed outside but are not
currently required.
Note: The light is not completely powered down in a manner suitable for storage. If the light is to be
stored in a warehouse or other dark environment the ON/OFF switch should be turned off.
DUSK till DAWN Operational Mode
The light is turned on and off based on the light sensor internal to each light. If the light is in the
darkness, it will turn on. If the light is in daylight, it will turn off.
Light Group
This menu is used to select the current light group. The light group of each light is selected via rotary switch
A found on the bottom of the circuit board, in the Light Head. The controller can select any one of the 15
individual light groups
( 0 -> 9, A -> E ) or select all radio lights at once.
Note: all units are set with a light group of 0 in the factory.
Flash Code
This menu is used to select any of the 256 preset ash codes in the lights, for a full list please see pages
15-19.
Note: Flash Code ‘00’ is steady on.
LED Intensity
This menu is used to select the intensity of the LEDs on the light. The options include Low, Medium & High.
a. HARDWARE – the intensity is set on the Light circuit board using the DIP Switches.
b. Low – LED intensity is set to low setting
c. Medium - LED intensity is set to medium intensity (approx 50%).
d. High - LED intensity is set to high intensity (approx 100%)
Note: this menu will not be enabled if the selected operational mode is STANDBY

Latest products and information available at www.sealite.com
8
Radio Controller
Timeout Mode
Default = Enabled, LOW
This menu is used to setup the LED high intensity timeout feature found in each light.
The options include Enabled LOW, Disable.
a. Enabled LOW – The immediate LED intensity is selected via the LED Intensity menu, after Timer
Duration the LED Intensity will revert back to the LOW setting
b. Disable – The high intensity LED timeout is disabled. The LED intensity will be selected via the LED
intensity menu.
Note: this menu will not be enabled if the selected operational mode is STANDBY
Timeout Duration
Default = 15 Minutes
This menu is only visible when the timeout Mode is enabled. This menu is used to select the timeout
duration, the time before the LED intensity reverts back to its LOW intensity state. The timeout duration
can be set from 1 minute to 60 minutes.
LED Banks (Optional)
Sealite radio controlled lights can have the option of having multiple colours, in different LED banks.
This menu is used to select which LEDs on the light should be used to ash the selected ash code. The
options include; All LED Banks, LED Bank 1 Only, LED Bank 2 Only, LED Bank 3 Only,
LED Bank 4 Only, Alternating 1, 2 & Cycle 1, 2, 3, 4.
a. ALL LED Banks – All LED Banks are used when on.
b. LED Bank 1 Only – LED bank 1 only is used when on. LED banks 2, 3 & 4 are always off.
c. LED Bank 2 Only – LED bank 2 only is used when on. LED banks 1, 3 & 4 are always off.
d. LED Bank 3 Only – LED bank 3 only is used when on. LED banks 1, 2 & 4 are always off.
e. LED Bank 4 Only – LED bank 4 only is used when on. LED banks 1, 2 & 3 are always off.
f. Alternating 1, 2 – LED bank 1 & 2 will alternate at the end of each ash sequence. The light will start
by ashing using LED bank 1, then it will ash an entire sequence using LED bank 2, then LED bank
1, and so on....
g. Cycle 1, 2, 3, 4 – LED bank 1, 2, 3 & 4 will alternate at the end of each ash sequence. The light will
start by ashing using LED bank 1, then it will ash an entire sequence using LED bank 2, then LED
bank 3, then LED bank 4, then LED bank 1 and so on....
Note: this menu will not be enabled if the selected operational mode is STANDBY
Flare Path Setup
This menu is used when the lights are required to ash sequentially, in either direction in a channel.
To use this setting each light in the group will need to set sequentially using Rotary Switch B.
• On each light set the rotary switch to A=0 B=Set the rst pair of lights = 0, next set of lights = 1, etc...
If you have, more than 16 sets along the runway just continue the setting, e.g. D, E, F, 0, 1 this will
allow all lights to continue the are path
FORWARD Flare Path
Each set of lights will sequence from 0 to F.
REVERSE Flare Path
Each set of lights will sequence from F to 0.
SYNCHRONISATION OVERRIDE Flare Path
Rotary Switch B will be ignored and all lights with the same ash code will syncronise.

Latest products and information available at www.sealite.com
9
Radio Controller
Light Sensor
Used to enable or disable the light sensor internal to each Light.
Note: this menu will only be enabled if the selected Operational Mode is DUSK till DAWN.
External Input
Used to enable or disable the external input line to the control unit.
Note: this menu will only be enabled if the selected operational mode is DUSK till DAWN
Battery Diagnostic
Default = Disable
This feature can be used to check the battery voltage in every light in the system. The command can
be sent any time and it will not affect the current state of the light. If the light is in STANDBY mode
the light will turn on as shown below and revert to STANDBY mode after the diagnostic has been
completed.
• If the battery voltage is within operational range the light will turn off for 1 second, ash once, then
turn off for 1 second.
• If the battery voltage is low the light with turn off for 1 second, ash twice, then turn off for 1
second.
Controller Battery Voltage
This menu displays the current battery voltage of the controller unit.
Any voltage above 7.2V is within operational range.
If the voltage is below 7V the controller should be charged immediately. See Step Page 15, Charging
the Radio Controller
The Radio Controller can be left, permanently plugged into the charger, if required.
Note: The Radio Controller can still be used while it is charging.
Sending Commands
Every time the SEND button is pressed a command is sent containing all the current settings in the
Radio Controller.
The SEND button can be used after changing one setting or after changing multiple settings.

Latest products and information available at www.sealite.com
10
Radio Controller
Using the Radio Control to Activate
the Radio Controlled System
The Radio Controller is very easy to use and by reading through the How To section below all of the
advanced features will be well within your grasp.
Make sure that all the lights in the same Light Group have had the rotary switches set correctly, see
page 7 for details.
Turn all the lights ON
• Turn the Radio Controller On
• Use the arrow keys to adjust the Operational Mode to Always ON
• Press MENU button once to reach Light Group
• Use the arrow keys to set the Light Group to ALL
• Press SEND button
• Every radio light within range of the control unit will now turn on.
Setup the lights to operate in DUSK till DAWN mode.
• Turn the Radio Controller unit On
• Use the arrow keys to adjust the operational Mode to Dusk till Dawn
• Press MENU button once to reach Light Group
• Set the Light Group to ALL
• Press MENU button until you reach Light Sensor
• Use the arrow keys to adjust the Light Sensor to Enable
• Press SEND button
• Every radio light within range of the control unit will now turn on at night, during the day the lights
will turn off automatically.
Note: if the lights were already in Always ON mode they will stay on for up to 60 seconds while the
light sensor activates.
Channel B only is to be HIGH Intensity, but Channel A will remain in current
conguration.
• On Channel A, set the rotary switches to A=0 B=0 inside the light head.
• On Channel B, set the rotary switches to A=1 B=0 inside the light head.
Rotary Switch A can be set to any value that is different from Channel A.
• Turn the Control unit On
• Use the arrow keys to adjust the operational Mode to Always On
• Press MENU button once to reach Light Group
• Set the Light Group to 1
• Press MENU button once to reach LED Intensity
• Use the arrow keys to adjust the LED Intensity to HIGH
• Press MENU button until you reach LED Bank Setup
• Use the arrow keys to adjust the LED Bank to Visible
• Press SEND button
- Channel A will not change state.
- Channel B will now be High Intensity.

Latest products and information available at www.sealite.com
11
Radio Controller
Channel is to be set as a Flare Path using Flash Code F,0 and High Intensity.
The channel will be tested in Always On mode then change to Dusk till Dawn.
• On each light set the rotary switch to A=0 B=Set the rst pair of lights = 0, next set of lights = 1,
next set of lights = 2, etc... If you have, more than 16 sets along the channel just continue the
setting, e.g. D, E, F, 0, 1, 2, 3, this will allow all lights to continue the are path.
• Turn the Control unit On
• Use the arrow keys to adjust the Operational Mode to Always On
• Press MENU button once to reach Light Group
• Set the Light Group to 0 (or whichever number matches Rotary Switch A)
• Press MENU button to Flash Code
• Set the Flash Code to F,0 (This ash code can be set to any of the 256 listed on p???)
• Press MENU button to reach LED Intensity
• Use the arrow keys to adjust the LED Intensity to HIGH
• Press MENU button to reach Flare Path Direction
• Use the arrow keys to adjust the Flare Path Direction to FORWARD
• Press SEND button
- The Channel will now start a Flare Path set in the desired Flash Code. It is in Always ON Mode.
• Press MENU button to reach Operational Mode
• Use the arrow keys to adjust the Operational Mode to Dusk till Dawn.
• Press SEND button
- The Channel will now be set to operate automatically in Dusk till Dawn mode.

Latest products and information available at www.sealite.com
12
Radio Controller
Flash Codes
Sealite marine lanterns may be set to any of IALA recommended flash settings. These can be set via
rotary switches inside the lantern or the IR remote or via the Sealite Configuration Tool.
Symbols
SEALITE® code reference is listed by number of flashes
For the latest version of this document visit www.sealite.com
or email [email protected]
FL Flash followed by number Eg. FL 1 S, one flash every second
F Fixed
Q Quick flash
VQ Very quick flash
OC Occulting; greater period on than off
ISO Isophase; equal period on and off
LFL Long flash long
MO Morse code ( ) containsletter
For example, VQ (6) + LFL 10 S means 6 very quick flashes followed by a long flash, during a
10-second interval.
The amount of power your lantern draws through the night depends on the duty cycle, i.e. the amount of
time on as a proportion to the timing cycle. For example, 0.5 seconds on and 4.5 seconds off equals a
10% duty cycle.
It is best to operate at the lowest duty cycle appropriate to the actual needs of the application.
Recommended Rhythm for Flashing Light - IALA Regions A and B
MARK DESCRIPTION
RHYTHM
Port Hand & Starboard Marks:
Any, other than Composite Group Flashing (2+1)
Preferred Channel Starboard:
Composite Group Flashing (2+1)
Preferred Channel Port:
Composite Group Flashing (2+1)
North Cardinal Mark:
Very quick or quick
East Cardinal Mark:
Very quick (3) every 5 seconds or quick (3) every 10 seconds
South Cardinal Mark:
Very quick (6) + long flash every 10 seconds or quick (6) + long flash every 15 seconds
West Cardinal Mark:
Very quick (9) every 10 seconds or quick (9) every 15 seconds
Isolated Danger Mark:
Group flashing (2)
Safe Water Mark:
Isophase, occulting, one long flash every 10 seconds or Morse Code “A”
Special Marks:
Any, other than those described for Cardinal, Isolated Danger or Safe Water Marks

Latest products and information available at www.sealite.com
13
SWITCH
IR
Controller
FLASH CODE
ON
OFF
SWITCH
IR
Controller
FLASH CODE
ON
OFF
A
B
A
B
0
0
00
F (Steady light)
4
2
66
ISO 5 S
2.5
2.5
D
3
211
VQ 0.5 S
0.2
0.3
8
2
130
LFL 5 S
2.0
3.0
-
-
274
VQ 0.5 S
0.25
0.25
0
3
03
OC 5 S
3.0
2.0
E
3
227
VQ 0.6 S
0.2
0.4
1
3
19
OC 5 S
4.0
1.0
F
3
243
VQ 0.6 S
0.3
0.3
2
3
35
OC 5 S
4.5
0.5
7
3
115
Q 1 S
0.2
0.8
C
6
198
FL 6 S
0.2
5.8
8
3
131
Q 1 S
0.3
0.7
B
5
181
FL 6 S
0.3
5.7
9
3
147
Q 1 S
0.4
0.6
C
5
197
FL 6 S
0.4
5.6
A
3
163
Q 1 S
0.5
0.5
8
1
129
FL 6 S
0.5
5.5
8
4
132
Q 1 S
0.8
0.2
9
1
145
FL 6 S
0.6
5.4
B
3
179
Q 1.2 S
0.3
0.9
A
1
161
FL 6 S
1.0
5.0
-
-
293
FL 1.2 S
0.4
0.8
7
5
117
FL 6 S
1.2
4.8
9
4
148
Q 1.2 S
0.5
0.7
B
1
177
FL 6 S
1.5
4.5
C
3
195
Q 1.2 S
0.6
0.6
5
2
82
ISO 6 S
3.0
3.0
F
4
244
FL 1.5 S
0.2
1.3
9
2
146
LFL 6 S
2.0
4.0
1
0
16
FL 1.5 S
0.3
1.2
6
4
100
OC 6 S
4.0
2.0
0
5
05
FL 1.5 S
0.4
1.1
3
3
51
OC 6 S
4.5
1.5
0
4
04
FL 1.5 S
0.5
1.0
4
3
67
OC 6 S
5.0
1.0
2
0
32
FL 2 S
0.2
1.8
-
-
280
FL 7 S
0.4
6.6
3
0
48
FL 2 S
0.3
1.7
A
4
164
FL 7 S
1.0
6.0
4
0
64
FL 2 S
0.4
1.6
9
6
150
FL 7 S
2.0
5.0
5
0
80
FL 2 S
0.5
1.5
5
6
86
OC 7 S
4.5
2.5
6
0
96
FL 2 S
0.7
1.3
D
5
213
FL 7.5 S
0.5
7.0
7
0
112
FL 2 S
0.8
1.2
C
1
193
FL 7.5 S
0.8
6.7
1
2
18
ISO 2 S
1.0
1.0
E
5
229
FL 8 S
0.5
7.5
8
0
128
FL 2.5 S
0.3
2.2
B
4
180
FL 8 S
1.0
7.0
9
0
144
FL 2.5 S
0.5
2.0
6
2
98
ISO 8 S
4.0
4.0
D
6
214
FL 2.5 S
1.0
1.5
A
2
162
LFL 8 S
2.0
6.0
1
5
21
FL 3 S
0.2
2.8
6
6
102
OC 8 S
5.0
3.0
A
0
160
FL 3 S
0.3
2.7
-
-
294
OC 8 S
6.0
2.0
2
5
37
FL 3 S
0.4
2.6
B
2
178
LFL 8 S
3.0
5.0
B
0
176
FL 3 S
0.5
2.5
F
5
245
FL 9 S
0.9
8.1
3
5
53
FL 3 S
0.6
2.4
C
4
196
FL 9 S
1.0
8.0
C
0
192
FL 3 S
0.7
2.3
7
6
118
OC 9 S
6.0
3.0
D
0
208
FL 3 S
1.0
2.0
0
6
06
FL 10 S
0.2
9.8
2
2
34
ISO 3 S
1.5
1.5
1
6
22
FL 10 S
0.3
9.7
5
4
84
OC 3 S
2.0
1.0
-
-
281
FL 10 S
0.4
9.6
E
2
226
OC 3 S
2.5
0.5
D
1
209
FL 10 S
0.5
9.5
4
6
70
OC 3.5 S
2.5
1.0
2
6
38
FL 10 S
0.8
9.2
4
5
69
FL 4 S
0.2
3.8
E
1
225
FL 10 S
1.0
9.0
5
5
85
FL 4 S
0.3
3.7
1
4
20
FL 10 S
1.5
8.5
E
0
224
FL 4 S
0.4
3.6
C
2
194
LFL 10 S
2.0
8.0
F
0
240
FL 4 S
0.5
3.5
D
2
210
LFL 10 S
3.0
7.0
6
5
101
FL 4 S
0.6
3.4
7
2
114
ISO 10 S
5.0
5.0
0
1
01
FL 4 S
0.8
3.2
2
4
36
LFL 10 S
4.0
6.0
1
1
17
FL 4 S
1.0
3.0
8
6
134
OC 10 S
6.0
4.0
2
1
33
FL 4 S
1.5
2.5
5
3
83
OC 10 S
7.0
3.0
3
2
50
ISO 4 S
2.0
2.0
6
3
99
OC 10 S
7.5
2.5
3
6
54
OC 4 S
2.5
1.5
-
-
303
FL 11 S
1.0
10.0
F
2
242
OC 4 S
3.0
1.0
-
-
302
FL 12 S
1.0
11.0
3
1
49
FL 4.3 S
1.3
3.0
F
1
241
FL 12 S
1.2
10.8
8
5
133
FL 5 S
0.2
4.8
D
4
212
FL 12 S
2.5
9.5
4
1
65
FL 5 S
0.3
4.7
3
4
52
LFL 12 S
2.0
10.0
-
-
279
FL 5 S
0.4
4.6
0
2
02
FL 15 S
1.0
14.0
5
1
81
FL 5 S
0.5
4.5
4
4
68
LFL 15 S
4.0
11.0
9
5
149
FL 5 S
0.9
4.1
7
4
116
OC 15 S
10
5.0
6
1
97
FL 5 S
1.0
4.0
A
6
166
LFL 20 S
2.0
18.0
7
1
113
FL 5 S
1.5
3.5
E
4
228
FL 26 S
1.0
25.0

Latest products and information available at www.sealite.com
14
Radio Controller
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
A
B
0
A
10
FL (2) 4 S
0.5
1.0
0.5
2.0
E
B
235
VQ (2) 4 S
0.2
1.0
0.2
2.6
1
A
26
FL (2) 4.5 S
0.3
1.0
0.3
2.9
2
A
42
FL (2) 4.5 S
0.4
1.0
0.4
2.7
3
A
58
FL (2) 4.5 S
0.5
1.0
0.5
2.5
-
-
277
FL (2) 4.6 S
0.3
0.3
0.3
3.7
F
9
249
FL (2) 5 S
0.2
0.8
0.2
3.8
2
C
44
FL (2) 5 S
0.2
1.2
0.2
3.4
4
A
74
FL (2) 5 S
0.4
0.6
0.4
3.6
-
-
282
FL (2) 5 S
0.4
1.1
0.4
3.1
0
7
07
FL (2) 5 S
0.5
1.0
0.5
3.0
1
7
23
FL (2) 5 S
1.0
1.0
1.0
2.0
-
-
257
FL (2) 5 S
0.3
1.0
0.3
3.4
9
B
155
Q (2) 5 S
0.3
0.7
0.3
3.7
2
9
41
Q (2) 5 S
0.5
0.5
0.5
3.5
-
-
305
FL (2) 5 S
0.5
0.7
0.5
3.3
5
A
90
FL (2) 5.5 S
0.4
1.4
0.4
3.3
7
8
120
FL (2) 6 S
0.3
0.6
1.0
4.1
A
A
170
FL (2) 6 S
0.3
0.9
0.3
4.5
6
A
106
FL (2) 6 S
0.3
1.0
0.3
4.4
7
A
122
FL (2) 6 S
0.4
1.0
0.4
4.2
-
-
283
FL (2) 6S
0.4
1.2
0.4
4.0
9
9
153
FL (2) 6 S
0.5
1.0
0.5
4.0
2
8
40
FL (2) 6 S
0.8
1.2
0.8
3.2
-
-
256
FL (2) 6 S
0.8
0.8
0.8
3.6
3
7
55
FL (2) 6 S
1.0
1.0
1.0
3.0
3
9
57
Q (2) 6 S
0.3
0.7
0.3
4.7
-
-
295
LFL + FL 6 S
3.0
1.0
1.0
1.0
-
-
273
FL (2) 6.5 S
0.5
1.0
0.5
4.5
-
-
283
FL (2) 7S
0.4
1.2
0.4
5.0
-
-
311
FL (2) 7S
0.5
1.5
0.5
4.5
A
9
169
FL (2) 7 S
1.0
1.0
1.0
4.0
7
B
123
FL (2) 8 S
0.4
0.6
2.0
5.0
8
A
138
FL (2) 8 S
0.4
1.0
0.4
6.2
-
-
285
FL (2) 8 S
0.4
1.7
0.4
5.5
4
7
71
FL (2) 8 S
0.5
1.0
0.5
6.0
-
-
297
FL (2) 8 S
0.5
0.5
1.5
5.5
8
8
136
FL (2) 8 S
0.8
1.2
2.4
3.6
5
7
87
FL (2) 8 S
1.0
1.0
1.0
5.0
4
C
76
OC (2) 8 S
3.0
2.0
1.0
2.0
5
C
92
OC (2) 8 S
5.0
1.0
1.0
1.0
F
B
251
VQ (2) 8 S
0.2
1.0
0.2
6.6
-
-
286
FL (2) 9S
0.4
1.7
0.4
6.5
9
A
154
FL (2) 10 S
0.4
1.6
0.4
7.6
-
-
287
FL (2) 10 S
0.4
2.2
0.4
7.0
6
7
103
FL (2) 10 S
0.5
1.0
0.5
8.0
7
7
119
FL (2) 10 S
0.5
1.5
0.5
7.5
6
9
105
FL (2) 10 S
0.5
2.0
0.5
7.0
-
-
298
FL (2) 10 S
0.5
0.5
1.5
7.5
8
7
135
FL (2) 10 S
0.8
1.2
0.8
7.2
B
9
185
FL (2) 10 S
1.0
1.0
1.0
7.0
9
7
151
FL (2) 10 S
1.0
1.5
1.0
6.5
4
9
73
Q (2) 10 S
0.6
0.4
0.6
8.4
B
A
186
FL (2) 12 S
0.4
1.0
0.4
10.2
C
9
201
FL (2) 12 S
0.5
1.0
0.5
10.0
D
9
217
FL (2) 12 S
1.5
2.0
1.5
7.0
A
8
168
FL (2) 15 S
0.5
1.5
2.0
11.0
A
7
167
FL (2) 15 S
1.0
2.0
1.0
11.0
8
B
139
Q (2) 15 S
0.2
0.8
0.2
13.8
C
A
202
FL (2) 20 S
1.0
3.0
1.0
15.0
D
A
218
FL (2) 25 S
1.0
1.0
1.0
22.0

Latest products and information available at www.sealite.com
15
Radio Controller
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
A
B
7
9
121
Q (3) 5 S
0.5
0.5
0.5
0.5
0.5
2.5
5
9
89
VQ (3) 5 S
0.2
0.3
0.2
0.3
0.2
3.8
0
C
12
VQ (3) 5 S
0.3
0.2
0.3
0.2
0.3
3.7
E
9
233
VQ (3) 5 S
0.3
0.3
0.3
0.3
0.3
3.5
-
-
308
FL (3) 5 S
0.3
0.7
0.3
0.7
0.3
3.7
0.3
3.7
60
FL (3) 6 S
0.5
1.0
0.5
1.0
0.5
2.5
2
B
43
FL (2+1) 6 S
0.3
0.4
0.3
1.2
0.3
3.5
A
B
171
Q (3) 6 S
0.3
0.7
0.3
0.7
0.3
3.7
F
A
250
FL (3) 8 S
0.5
1.0
0.5
1.0
0.5
4.5
-
-
301
FL (3) 8S
1.5
0.5
0.5
0.5
0.5
4.5
-
-
266
Q (3) 9S
0.5
0.5
0.5
1.0
0.5
6.0
0
B
11
FL (3) 9 S
0.3
1.0
0.3
1.0
0.3
6.1
-
-
306
FL (3) 9S
0.5
1.5
0.5
1.5
0.5
4.5
B
7
183
FL (3) 9 S
0.8
1.2
0.8
1.2
0.8
4.2
B
8
184
FL (3) 10 S
0.3
0.7
0.3
0.7
0.9
7.1
C
8
200
FL (3) 10 S
0.4
0.6
0.4
0.6
1.2
6.8
-
-
290
FL (3) 10 S
0.4
0.8
0.4
0.8
0.4
7.2
C
B
203
FL (3) 10 S
0.5
0.5
0.5
0.5
0.5
7.5
C
7
199
FL (3) 10 S
0.5
1.5
0.5
1.5
0.5
5.5
D
B
219
FL (3) 10 S
0.6
0.6
0.6
0.6
0.6
7.0
-
-
278
FL (3) 10 S
0.9
1.1
0.9
1.1
0.9
5.1
D
7
215
FL (3) 10 S
1.0
1.0
1.0
1.0
1.0
5.0
-
-
261
FL (3) 10 S
0.35
0.65
0.35
0.65
0.35
7.65
3
8
56
FL (2+1) 10 S
0.5
0.7
0.5
2.1
0.5
5.7
8
9
137
OC (3) 10 S
5.0
1.0
1.0
1.0
1.0
1.0
B
B
187
Q (3) 10 S
0.3
0.7
0.3
0.7
0.3
7.7
D
8
216
FL (2 + 1) 10 S
0.5
0.5
0.5
0.5
1.5
6.5
-
-
288
FL (3) 12 S
0.4
2.1
0.4
2.1
0.4
6.6
1
B
27
FL (3) 12 S
0.5
1.5
0.5
1.5
0.5
7.5
E
A
234
FL (3) 12 S
0.5
2.0
0.5
2.0
0.5
6.5
E
7
231
FL (3) 12 S
0.8
1.2
0.8
1.2
0.8
7.2
B
6
182
FL (3) 12 S
1.0
1.0
1.0
3.0
1.0
5.0
4
8
72
FL (2+1) 12 S
0.8
1.2
0.8
2.4
0.8
6.0
5
8
88
FL (2+1) 12 S
1.0
1.0
1.0
4.0
1.0
4.0
-
-
272
FL (3) 12.5 S
0.5
1.0
0.5
1.0
0.5
9.0
-
-
289
FL (3) 13 S
0.4
2.1
0.4
2.1
0.4
7.6
-
-
296
LFL + FL(2) 13 S
6.0
1.0
2.0
1.0
2.0
1.0
1
8
24
FL (2+1) 13.5 S
1.0
1.0
1.0
4.0
1.0
5.5
-
-
307
FL (3) 14.5 S
0.5
1.0
1.5
3.0
0.5
9.0
F
7
247
FL (3) 15 S
0.3
1.7
0.3
1.7
0.3
10.7
9
D
157
FL (3) 15 S
0.4
1.0
0.4
1.0
0.4
11.8
0
8
08
FL (3) 15 S
0.5
1.5
0.5
1.5
0.5
10.5
-
-
259
FL (3) 15 S
0.5
2.0
0.5
2.0
0.5
9.5
-
-
260
FL (3) 15 S
1.0
1.0
1.30
1.0
1.0
10.0
F
8
248
FL (2+1) 15 S
0.6
0.3
0.6
0.3
1.4
11.8
0
9
09
FL (2+1) 15 S
0.7
0.5
0.7
0.5
1.9
10.7
1
9
25
FL (2+1) 15 S
0.7
0.7
0.7
0.7
2.1
10.1
6
8
104
FL (2+1) 15 S
1.0
2.0
1.0
5.0
1.0
5.0
-
-
265
FL (2+1) 15 S
1.3
0.7
1.3
0.7
3.3
7.7
-
-
264
FL (2+1) 15.75 S
0.55
0.35
0.55
0.35
1.45
12.5
1
C
28
VQ (3) 15 S
0.1
0.5
0.1
0.5
0.1
13.7
-
-
313
FL (2) + LFL 16 S
2.0
2.0
2.0
2.0
6.0
2.0
4
B
75
FL (3) 20 S
0.5
3.0
0.5
3.0
0.5
12.5
3
B
59
FL (3) 20 S
0.5
1.5
0.5
1.5
0.5
15.5
-
-
263
FL (3) 20 S
0.5
2.0
0.5
2.0
0.5
12.0
5
B
91
FL (3) 20 S
0.8
1.2
0.8
1.2
0.8
15.2
6
B
107
FL (3) 20 S
1.0
1.0
1.0
1.0
1.0
15.0

Latest products and information available at www.sealite.com
16
Radio Controller
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
B
-
-
271
VQ (4) 2 S
0.10
0.13
0.10
0.13
0.10
0.13
0.10
1.21
B
F
191
VQ (4) 4 S
0.3
0.3
0.3
0.3
0.3
0.3
0.3
2.3
B
D
189
Q (4) 6 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
2.7
8
D
141
Q (4) 6 S
0.4
0.6
0.4
0.6
0.4
0.6
0.4
2.6
-
-
299
FL (1+3) 8 S
1.5
0.5
0.5
0.5
0.5
0.5
0.5
3.5
-
-
309
FL (4) 7 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
3.7
1
D
29
FL (4) 10 S
0.5
1.0
0.5
1.0
0.5
1.0
0.5
5.0
2
D
45
FL (4) 10 S
0.8
1.2
0.8
1.2
0.8
1.2
0.8
3.2
F
E
254
Q (4) 10 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
6.7
-
-
300
FL (4) 10 S
1.5
0.5
0.5
0.5
0.5
0.5
0.5
4.5
-
-
312
FL (4) 11 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
4.5
B
E
190
FL (4) 12 S
0.3
1.7
0.3
1.7
0.3
1.7
0.3
5.7
4
F
79
FL (4) 12 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
8.5
C
E
206
FL (4) 12 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
5.5
3
D
61
FL (4) 12 S
0.8
1.2
0.8
1.2
0.8
1.2
0.8
5.2
A
D
173
Q (4) 12 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
8.7
4
D
77
FL (4) 15 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
8.5
8
E
142
FL (4) 15 S
1.0
1.0
1.0
1.0
1.0
1.0
1.0
8.0
7
D
125
FL (4) 15 S
1.5
0.5
0.5
0.5
0.5
0.5
0.5
10.5
D
E
222
FL (4) 16 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
9.5
-
-
314
FL (3+1) 18 S
1.5
1.5
1.5
1.5
1.5
4.5
1.5
4.5
-
-
304
FL (4) 19 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
15.7
C
D
205
FL (4) 20 S
0.3
3.0
0.3
3.0
0.3
3.0
0.3
9.8
5
D
93
FL (4) 20 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
13.5
0
D
13
FL (4) 20 S
0.5
1.5
0.5
1.5
0.5
4.5
0.5
10.5
3
F
63
FL (4) 20 S
1.5
1.5
1.5
1.5
1.5
1.5
1.5
9.5
0
F
15
Q (4) 20 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
16.5
-
-
263
FL (4) 20 S
0.5
2.0
0.5
2.0
0.5
2.0
0.5
12.0
E
E
238
Q (4) 28 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
24.5
6
F
111
FL (4) 30 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
26.5

Latest products and information available at www.sealite.com
17
Radio Controller
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
B
D
D
221
Q (5) 7 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
2.7
-
-
310
Q (5) 9 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
4.5
E
D
237
Q (5) 10 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
5.7
E
8
232
FL (5) 12 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
1.5
0.5
3.5
-
-
276
FL (5) 16 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
1.5
0.5
7.5
5
F
95
FL (5) 20 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
15.5
9
F
159
FL (5) 20 S
0.8
1.2
0.8
1.2
0.8
1.2
0.8
1.2
0.8
11.2
9
E
158
FL (5) 20 S
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
11.0
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
B
F
D
253
Q (6) 10 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
4.7
A
F
175
FL (6) 15 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
9.7
7
F
127
FL (6) 15 S
0.5
1.0
0.5
1.0
0.5
1.0
0.5
1.0
0.5
1.0
0.5
7.0
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
B
6
E
110
VQ (6) + LFL 10 S
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
2.0
5.0
7
E
126
VQ (6) + LFL 10 S
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
2.0
4.4
2
F
47
Q (6) + LFL 15 S
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
2.0
7.0
2
E
46
Q (6) + LFL 15 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
2.0
7.0
3
E
62
Q (6) + LFL 15 S
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
2.0
5.8
-
-
258
FL (6 + 1) 15 S
0.35
0.65
0.35
0.65
0.35
0.65
0.35
0.65
0.35
0.65
0.35
0.65
1.05
7.95
-
-
292
FL (6) + LFL 15 S
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
2.0
5.8
-
-
262
FL (6) + LFL 15 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
2.0
7.0
8
F
143
VQ (6) + LFL 15 S
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
2.0
9.4
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
B
-
-
275
FL (3+5) 12.2 S
0.9
0.3
0.9
1.0
0.9
0.3
0.3
0.3
0.3
1.0
0.3
0.3
0.3
0.3
0.3
4.5
-
-
4
E
78
VQ (9) 10 S
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
5.8
5
E
94
VQ (9) 10 S
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
4.9
1
F
31
Q (9) 15 S
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
6.8
0
E
14
Q (9) 15 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
6.7
-
-
267
Q (9) 15 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
6.5
1
E
30
Q (9) 15 S
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
4.8
-
-
291
FL (9) 32.92 S
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
22.9
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
B
MORSE CODE ( ) INDICATES LETTER
7
8
120
MO (A) 6 S
0.3
0.6
1.0
4.1
7
B
123
MO (A) 8 S
0.4
0.6
2.0
5.0
8
8
136
MO (A) 8 S
0.8
1.2
2.4
3.6
B
8
184
MO (U) 10 S
0.3
0.7
0.3
0.7
0.9
7.1
C
8
200
MO (U) 10 S
0.4
0.6
0.4
0.6
1.2
6.8
D
8
216
MO (U) 10 S
0.5
0.5
0.5
0.5
1.5
6.5
9
8
152
MO (A) 10 S
0.5
0.5
1.5
7.5
8
9
137
MO (D) 10 S
5.0
1.0
1.0
1.0
1.0
1.0
A
8
168
MO (A) 15 S
0.5
1.5
2.0
11.0
F
8
248
MO (U) 15 S
0.6
0.3
0.6
0.3
1.4
11.8
0
9
09
MO (U) 15 S
0.7
0.5
0.7
0.5
1.9
10.7
1
9
25
MO (U) 15 S
0.7
0.7
0.7
0.7
2.1
10.1
7
D
125
MO (B) 15 S
1.5
0.5
0.5
0.5
0.5
0.5
0.5
10.5

Latest products and information available at www.sealite.com
18
Radio Controller
Trouble Shooting
Problem Remedy
Lantern will not activate. • Ensure internal toggle switch is set to the ‘ON position.
• Ensure lantern is in darkness.
• Wait at least 60 seconds for the program to initialise in darkness.
• Ensure battery terminals are properly connected.
• Ensure battery voltage is above 3.6volts.
Flash codes will not change. • This is a Radio Controlled light and any command must be sent from the
Controller.
Lantern will not operate for the
entire night. • Expose lantern to direct sunlight and monitor operation for several days.
Sealite products typically require 1.5 hours of direct sunlight per day to
retain full autonomy. From a discharged state, the lantern may require
several days of operational conditions to ‘cycle’ up to full autonomy.
• Reducing the light output intensity or duty cycle (ash code) will reduce
current draw on the battery.
• Ensure solar module is clean and not covered by shading during the day.
Lanterns are constantly on
during the day. • Ensure the Rotary Switches are not set to F F. This ash code is for testing purposes only and will be steady on for 24 hours a day.
• Ensure the lights are not set to “Always ON” through the Radio
Controller. Set this to Dusk till Dawn for operation during night time only.
Lanterns are not
synchronizing together. • The lanterns will take up to 5 minutes to synchronize with the
surrounding lanterns.
• If you have a large number of lanterns, they may start ‘syncing’ in
groups. It may up to take 20 minutes for all lights to achieve full
synchronization. This is dependent on the distance between the entire
set of lanterns, the closer the lanterns, the quicker full synchronization
will occur.
• Ensure every light is set to the same ash code. Lanterns will only
synchronize to lanterns using the same ash code.
• Ensure the line of sight between 2 lanterns is clear of any obstruction.
Trees, buildings, other structures or vessels will affect the lanterns ability
to synchronize.
• Ensure the lanterns are no more than 1.4km apart over water.

Latest products and information available at www.sealite.com
19
Radio Controller
Activating the Warranty
Upon purchase, the Sealite Pty Ltd warranty must be activated for recognition of future claims. To do this you
need to register on-line. Please complete the Online Registration Form at:
www.sealite.com
Sealite Pty Ltd will repair or replace your LED light in the event of electronic failure for a period of up
to three years from the date of purchase, as per the terms & conditions below.
Sealite Pty Ltd will repair or replace any ancillary or accessory products in the event of failure for a
period of up to one year from the date of purchase, as per the terms & conditions below.
The unit(s) must be returned to Sealite freight prepaid.
Warranty Terms
1. Sealite Pty Ltd warrants that any Sealite marine products tted with telemetry equipment including but
not limited to AIS, GSM, GPS or RF (“Telemetry Products”) will be free from defective materials and
workmanship under normal and intended use, subject to the conditions hereinafter set forth, for a period of
twelve (12) months from the date of purchase by the original purchaser.
2. Sealite Pty Ltd warrants that any BargeSafe™ Series of LED barge light products (“BargeSafe™
Products”) will be free from defective materials and workmanship under normal and intended use, subject
to the conditions hereinafter set forth, for a period of twelve (12) months from the date of purchase by the
original purchaser.
3. Sealite Pty Ltd warrants that any LED area lighting products (“Area Lighting Products”) but not including
sign lighting products will be free from defective materials and workmanship under normal and intended
use, subject to the conditions hereinafter set forth, for a period of twelve (12) months from the date of
purchase by the original purchaser.
4. Sealite Pty Ltd warrants that any ancillary products and accessories, not mentioned in other clauses in this
section, will be free from defective materials and workmanship under normal and intended use, subject
to the conditions hereinafter set forth, for a period of twelve (12) months from the date of purchase by the
original purchaser.
5. Sealite Pty Ltd warrants that any LED sign lighting products (“Sign Lighting Products”) will be free from
defective materials and workmanship under normal and intended use, subject to the conditions hereinafter
set forth, for a period of three (3) years from the date of purchase by the original purchaser.
6. Sealite Pty Ltd warrants that any Sealite marine lighting products other than the Telemetry Products,
BargeSafe™ Products, and Area Lighting Products (“Sealite Products”) will be free from defective
materials and workmanship under normal and intended use, subject to the conditions hereinafter set forth,
for a period of three (3) years from the date of purchase by the original purchaser.
7. Sealite Pty Ltd will repair or replace, at Sealite’s sole discretion, any Telemetry Products, BargeSafe™
Products, Area Lighting Products or Sealite Products found to be defective in material and workmanship in
the relevant warranty period so long as the Warranty Conditions (set out below) are satised.
8. If any Telemetry Products, BargeSafe™ Products, Area Lighting Products or Sealite Products are tted
with a rechargeable battery, Sealite Pty Ltd warrants the battery will be free from defect for a period of one
(1) year when used within original manufacturer’s specications and instructions.
9. Buoy products are covered by a separate ‘Sealite Buoy Warranty’.
Warranty Conditions
This Warranty is subject to the following conditions and limitations;
1. The warranty is applicable to lanterns manufactured from 1/1/2009.
2. The warranty is void and inapplicable if:
a. the product has been used or handled other than in accordance with the instructions in the owner’s
manual and any other information or instructions provided to the customer by Sealite;
b. the product has been deliberately abused, or misused, damaged by accident or neglect or in being
transported; or
c. the defect is due to the product being repaired or tampered with by anyone other than Sealite or
Sealite LED Light Warranty V2.2

Latest products and information available at www.sealite.com
20
Radio Controller
Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor.
Sealite products are subject to certain Australian and worldwide patent applications.
authorised Sealite repair personnel.
3. The customer must give Sealite Pty Ltd notice of any defect with the product within 30 days of the
customer becoming aware of the defect.
4. Rechargeable batteries have a limited number of charge cycles and may eventually need to be replaced.
Typical battery replacement period is 3-4 years. Long term exposure to high temperatures will shorten the
battery life. Batteries used or stored in a manner inconsistent with the manufacturer’s specications and
instructions shall not be covered by this warranty.
5. No modications to the original specications determined by Sealite shall be made without written
approval of Sealite Pty Ltd.
6. Sealite lights can be tted with 3rd party power supplies and accessories but are covered by the 3rd party
warranty terms and conditions.
7. The product must be packed and returned to Sealite Pty Ltd by the customer at his or her sole expense.
Sealite Pty Ltd will pay return freight of its choice. A returned product must be accompanied by a written
description of the defect and a photocopy of the original purchase receipt. This receipt must clearly list
model and serial number, the date of purchase, the name and address of the purchaser and authorised
dealer and the price paid by the purchaser. On receipt of the product, Sealite Pty Ltd will assess the
product and advise the customer as to whether the claimed defect is covered by this warranty.
8. Sealite Pty Ltd reserves the right to modify the design of any product without obligation to purchasers of
previously manufactured products and to change the prices or specications of any product without notice
or obligation to any person.
9. Input voltage shall not exceed those recommended for the product.
10. Warranty does not cover damage caused by the incorrect replacement of battery in solar lantern models.
11. This warranty does not cover any damage or defect caused to any product as a result of water ooding or
any other acts of nature.
12. There are no representations or warranties of any kind by Sealite or any other person who is an agent,
employee, or other representative or afliate of Sealite, express or implied, with respect to condition of
performance of any product, their merchantability, or tness for a particular purpose, or with respect to any
other matter relating to any products.
Limitation of Liability
To the extent permitted by acts and regulations applicable in the country of manufacture, the liability of Sealite
Pty Ltd under this Warranty will be, at the option of Sealite Pty Ltd, limited to either the replacement or repair of
any defective product covered by this Warranty. Sealite will not be liable to Buyer for consequential damages
resulting from any defect or deciencies.
Limited to Original Purchaser
This Warranty is for the sole benet of the original purchaser of the covered product and shall not extend to
any subsequent purchaser of the product.
Miscellaneous
Apart from the specic warranties provided under this warranty, all other express or implied warranties relating
to the above product is hereby excluded to the fullest extent allowable under law. The warranty does not
extend to any lost prots, loss of good will or any indirect, incidental or consequential costs or damages or
losses incurred by the purchaser as a result of any defect with the covered product.
Warrantor
Sealite Pty Ltd has authorised distribution in many countries of the world. In each country, the authorised
importing distributor has accepted the responsibility for warranty of products sold by distributor. Warranty
service should normally be obtained from the importing distributor from whom you purchased your product. In
the event of service required beyond the capability of the importer, Sealite Pty Ltd will full the conditions of
the warranty. Such product must be returned at the owner’s expense to the Sealite Pty Ltd factory, together
with a photocopy of the bill of sale for that product, a detailed description of the problem, and any information
necessary for return shipment.
