Secura QSF210 User manual

QSF 210 INSTRUCTION MANUAL
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520 We’re ready to help!
Scan for easy install video
san.us/1142

2
Wood Stud Install
Concrete Install
Tape
Measure Pencil Level Screw driver
Electric
Drill
Socket
Wrench
Stud
Finder Awl Wood Drill Bit
Masonry
Drill Bit Hammer
3/8 in.
(10 mm)
1/2 in.
(13 mm) 7/32 in.
(5.5 mm)

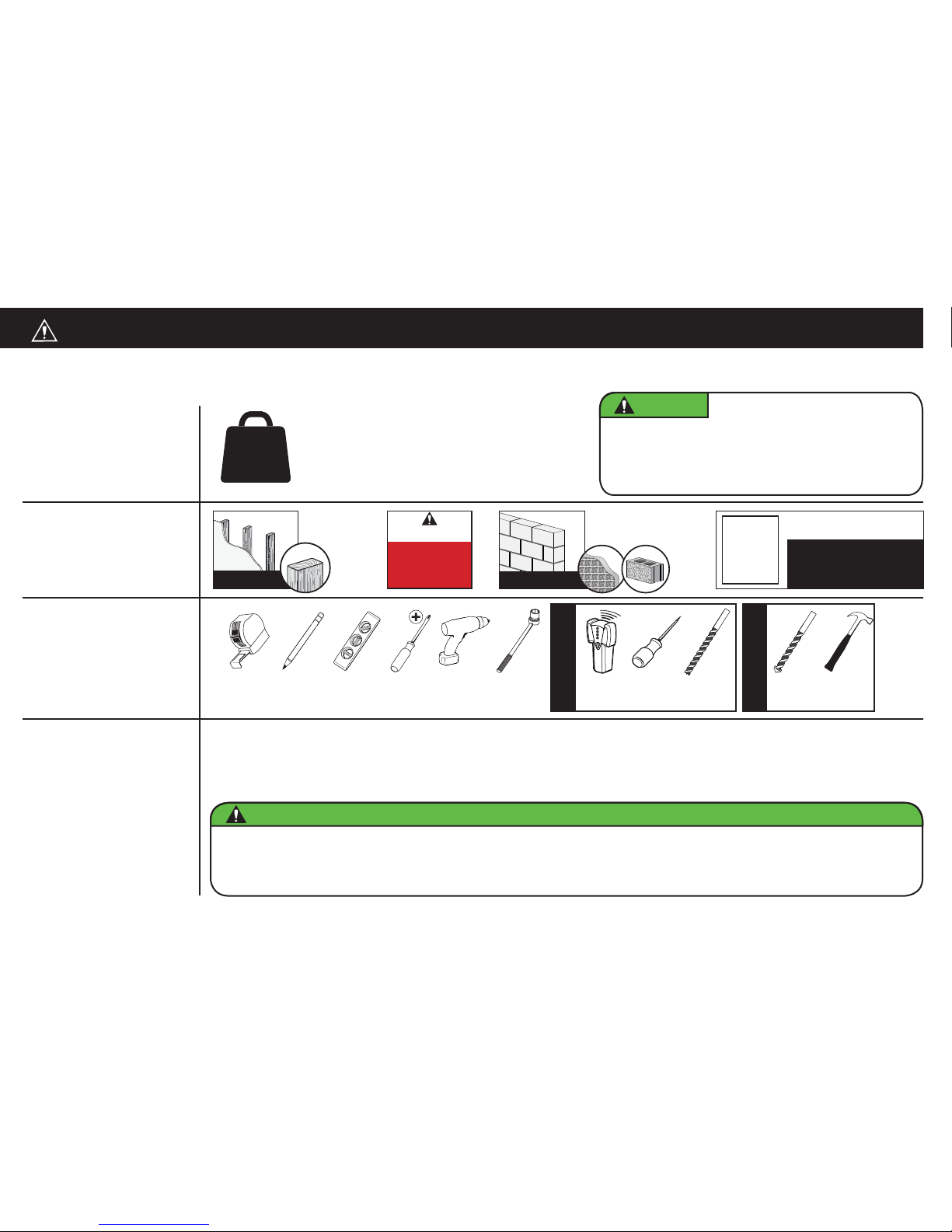

CAUTION: IMPORTANT SAFETY INSTRUCTIONS —PLEASE READ ENTIRE MANUAL PRIOR TO USE —SAVE THESE INSTRUCTIONS
Before getting started, let’s make sure this mount is perfect for you!
No?Perfect – you may continue.
Yes?This mount is NOT compatible.
Visit secura-av.com or call 1-800-359-5520
(UK: 0800 056 2853) to find a compatible mount.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at 1-800-359-5520 (UK: 0800 056 2853).
Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of?
Ready to begin?
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Solid concrete or
concrete block?
Perfect!
Drywall with
wood studs?
Perfect!
CAUTION:
DO NOT
install into
drywall alone
Unsure?
Call Customer Service:
1-800-359-5520
(UK: 0800 056 2853)
?
25 lbs.
(11.3 kg)
Does your TV
(including accessories)
weigh MORE than
25 lbs. (11.3 kg)?
CAUTION: Avoid potential personal injury or property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

3
3.94in
100mm
7.87in
200mm
7.87in
200mm
.35in
8.8mm
8.15in
207.1mm
2.80in
71mm
6.40in
162.6mm
30deg 30deg
10.47in
265.9mm
16deg DOWN TILT
4deg UP TILT
8.80in
223.6mm
8.80in
223.6mm
10.26in
260.5mm
3.20in
81.4mm
.86in
21.9mm
30° SWIVEL LEFT AND RIGHT WITH AN APPROXIMATE 32" TV
TV INTERFACE
WALL PLATE
FULLY ASSEMBLED MOUNT
TOP VIEW - EXTENDED
TOP VIEW - RETRACTED
SIDE VIEW - EXTENDED
SIDE VIEW - RETRACTED
3-D
in.
[mm]

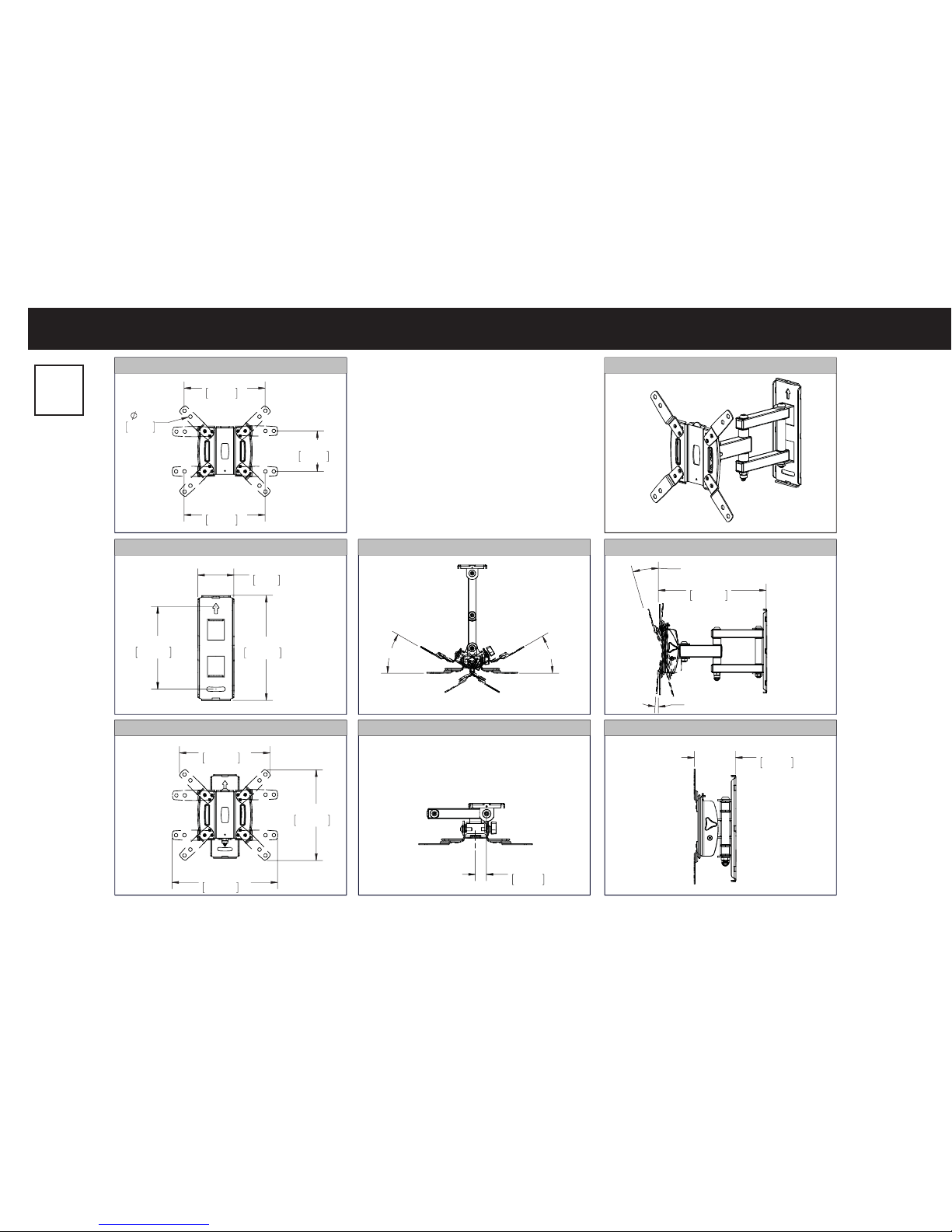

Dimensions

4
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!
Supplied Parts and Hardware
M4 x 8mm
M4 x 12mm
M6 x 12mm
M4 x 35mm
M6 x 35mm M4 M6/M8
M8 x 16mm M8 x 35mm
M8 x 20mm
STEP 1 Parts and Hardware TV Screws
Washers
Spacers
TV Bracket
Extenders
TV Bracket
TV Bracket Screws
(TV Bracket extenders)
22mm
01 x1
02 x4 03 x8
04 x4 08 x4
09 x4
10 x4
11 x4 12 x4
13 x4
05 x4
06 x4
07 x4

5
5/16 x 2¾ in.
5/16 in.
Fischer UX 10 x 60R
Concrete Anchors
For concrete installations ONLY
CAUTION: Do not use in drywall or wood

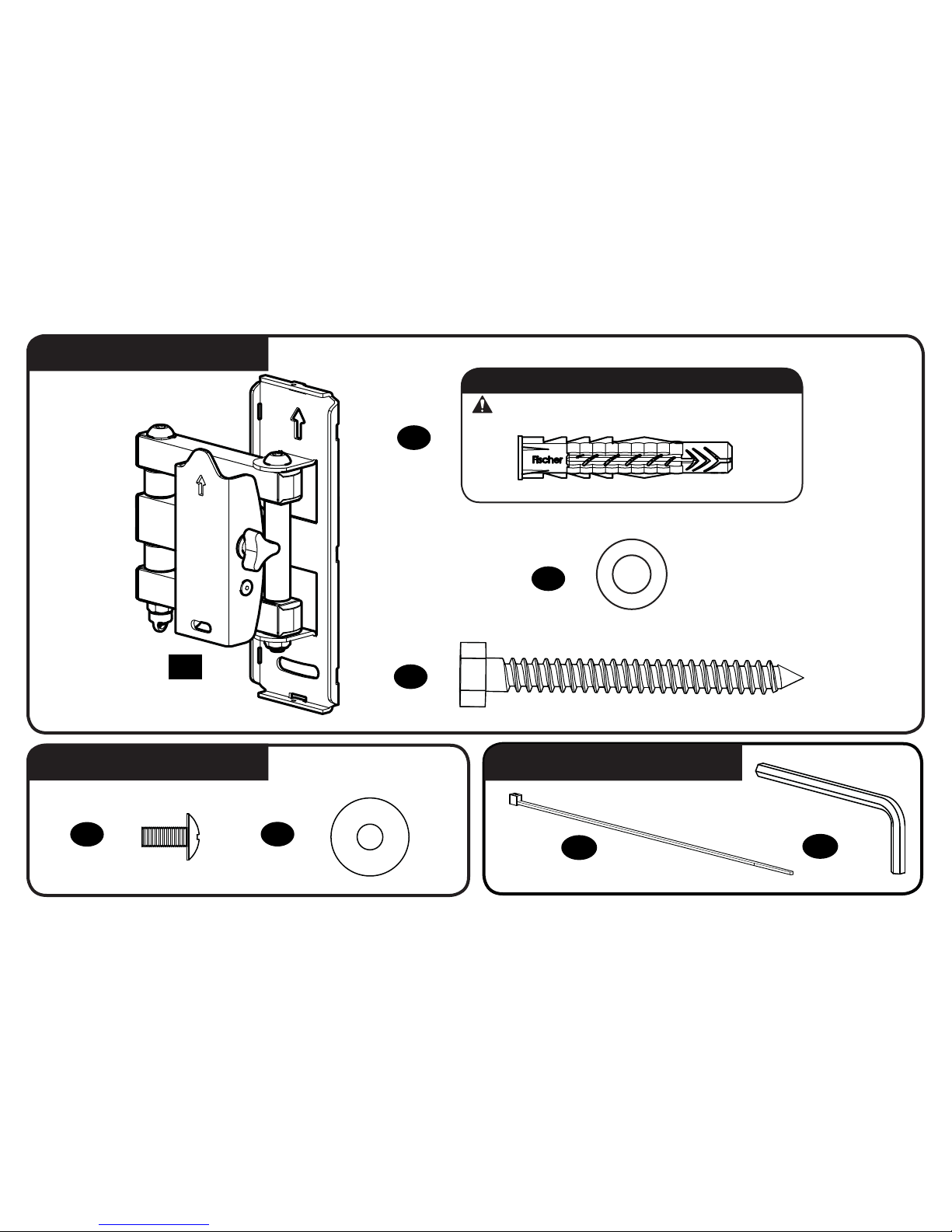

STEP 2 Parts and Hardware
STEP 3 Parts and Hardware Additional Parts and Hardware
Wall Plate Assembly
Lag Bolts
Lag Bolt Washers
Securement Washer
Securement Screw
7/32 in.
Allen Key
Cable Ties
x1
21
x3
20
14 x1
15 x2
16 x2
17 x2
18 x1 19 x1

6
x
8mm
STEP 1 Attach TV Bracket to TV
These smaller hole patterns only use TV bracket 01 .
Do not use the four TV bracket extenders 02 and eight screws 03 .
01
10.0
7.5
10.0
7.5

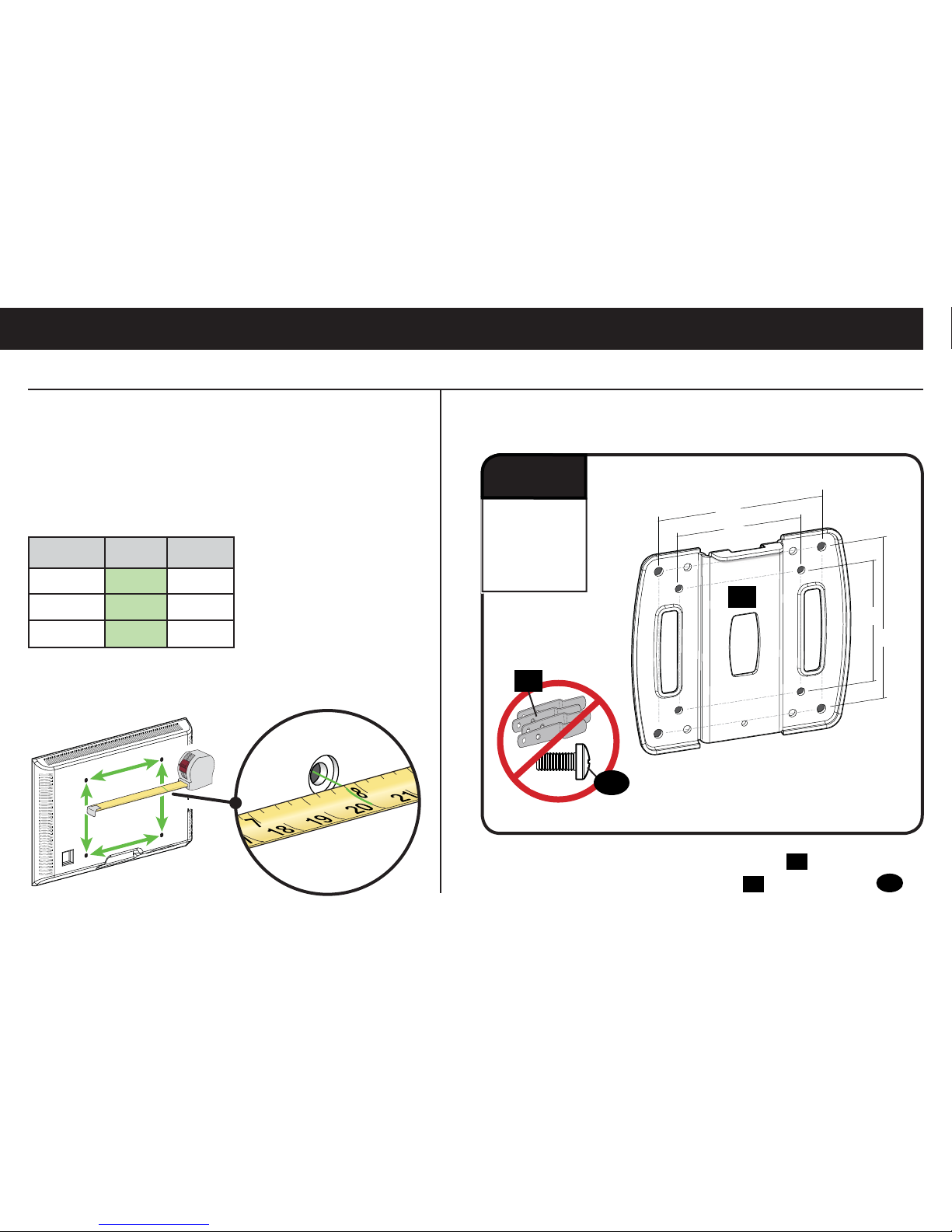

1.1 Measure Your TV Hole Pattern 1.2 Assemble Your TV Bracket
Measure the width and height of your TV hole pattern in cm.
Record your measurements:
Determine which TV bracket configuration to use, A, B, or C
based on your TV hole pattern measurements.
cm
inches
Width ______cm x Height ______cm
02
03
inch dimensions are approximate
inches cm mm
3 7.5 75
4 10 100
7 ⅞ 20 200
W
H
A
7.5 x 7.5
10.0 x 10.0
Dimensions in cm
TV Hole Pattern
Measurement

7
Assemble TV bracket extenders 02 onto TV bracket 01 as illustrated.
Secure using eight screws 03 in the corner holes shown.
Assemble TV bracket extenders 02 onto TV bracket 01 as illustrated.
Secure using eight screws 03 in the corner holes shown.
01
20.0
20.0
20.0
10.0
01
02
02
02
02
02
02
02
02
03
03
20.0 x 20.0
B
Dimensions in cm
TV Hole Pattern
Measurement
20.0 x 10.0
C
Dimensions in cm
TV Hole Pattern
Measurement

8
M6 M8
FLAT BACK ROUND BACK CABLESINSET HOLES
M4
1.3 Select TV Screw Diameter 1.4 Select TV Screw Length
If your TV has a flat back, use the shorter screws.
Spacers and longer screws are supplied to accommodate:
●irregular / round back TVs
●TVs with inset mounting holes
●extra space needed for cables
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M4, M6 or M8) to use.
Too Short
Too Long
CAUTION:
Verify adequate thread
engagement with your screw/
washer/spacer combination AND
TV bracket. (STEP 1.5)
-Too short will not hold the TV.
-Too long will damage the TV.
Correct
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection,
contact Customer Service
at 1-800-359-5520.

9
Flat Back
Round Back / Extra Space
1.5 Attach TV Bracket
02
01
01
NOTE: For 200 x 200 or
200 x 100 hole patterns, you may
need to loosen the screws 03 to
align the bracket extenders 02 .
After bracket extenders 02 are
secured to the back of your TV,
re-tighten screws 03 .
TV Bracket Configurations Band C
(from page 7)
Configuration B Illustrated, with spacers
TV Bracket Configuration A
(from page 6)
Illustrated with spacers
04 05 06 07
11 12
13
08 09 10
11 12

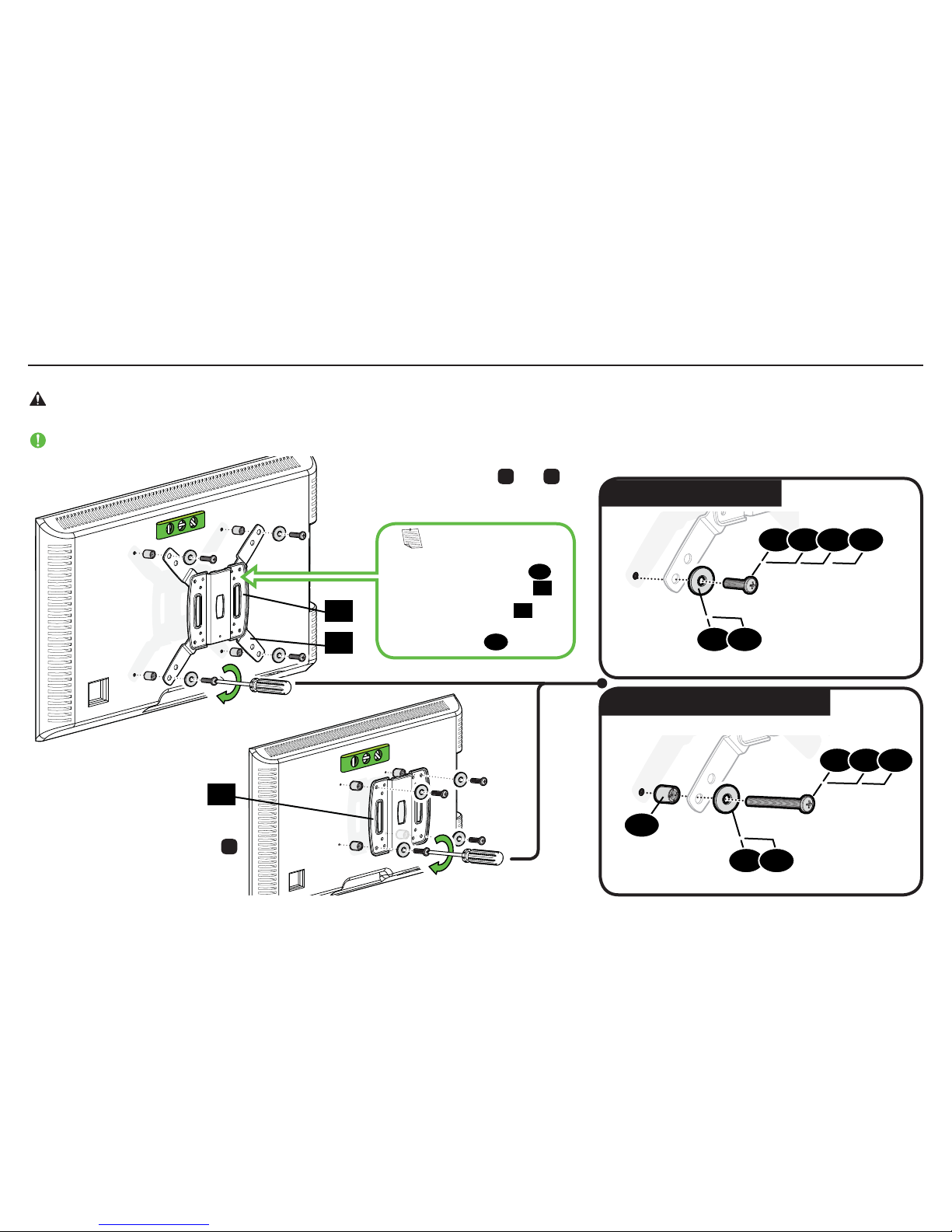

Position your TV bracket configuration (A, B, or C) over your TV hole pattern - making sure the bracket is centered over the TV hole pattern and level.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough to secure the TV
bracket to the TV. DO NOT overtighten the screws.
IMPORTANT:Ensure TV bracket is securely fastened before moving on to the next step.

10
2 3
14
1
1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the wall plate assembly 14 at your desired height and line up the holes with your stud center line. Level the wall plate assembly 14
and mark the hole locations.
3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2 ¾ in. (70 mm). Be sure to drill into the center of the stud.
CAUTION: Avoid potential personal injury or property damage!
●Drywall covering the wall, must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
●Stud center must be verified
7/32 in.
(5.5 mm)
2 ¾ in. (70 mm)
Max. 5/8 in.
(16 mm)
STEP 2A Attach Wall Plate to Wall Wood Stud Option

11
4

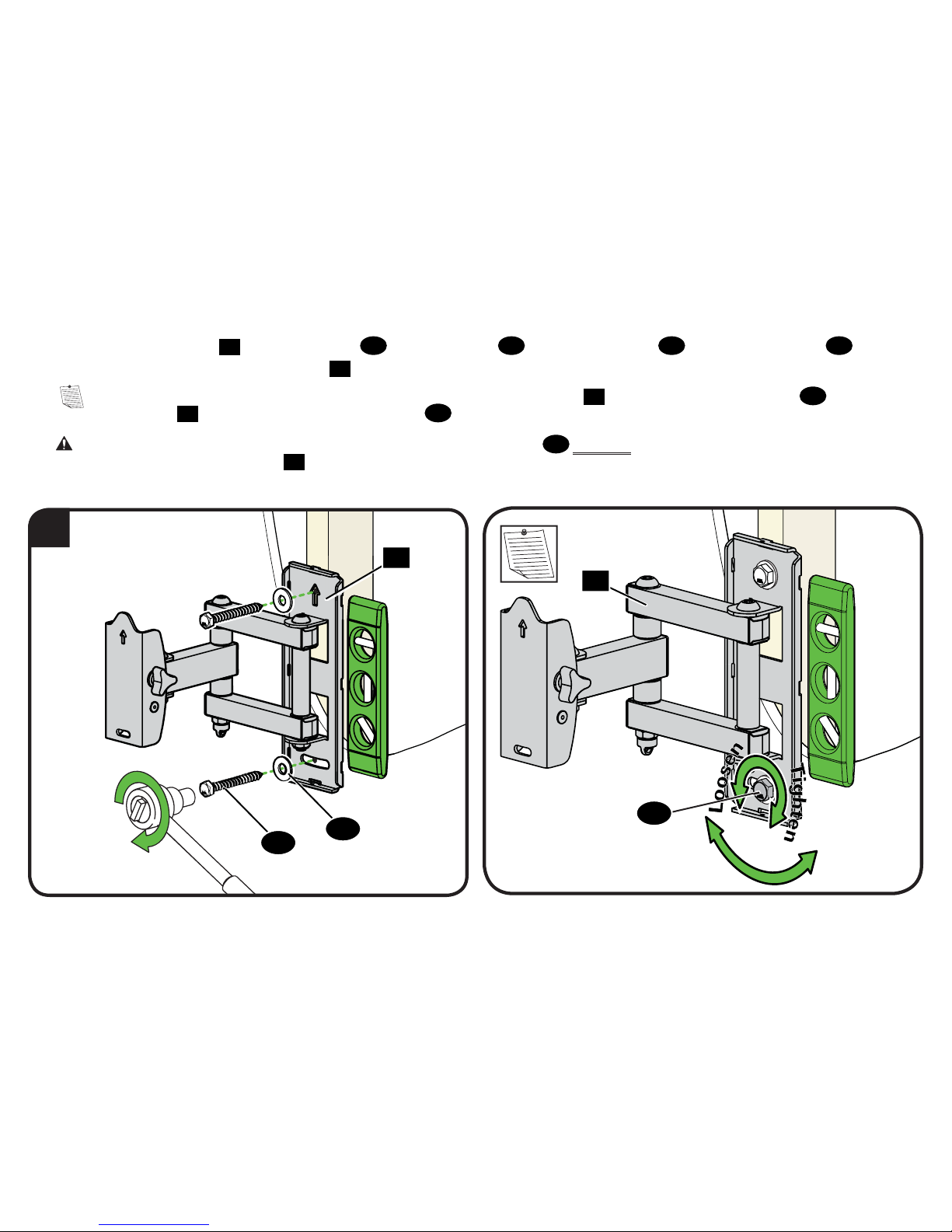

4. Install wall plate assembly 14 using two lag bolts 17 and two washers 16 . Tighten the lag bolts 17 only until the washers 16 are
pulled firmly against the wall plate assembly 14 .
NOTE:If needed, you can make small level adjustments to the wall plate assembly 14 by loosening the bottom lag bolt 17 and shifting the
wall plate assembly 14 until level. Tighten the bottom lag bolt 17 when adjustments are complete.
CAUTION: Avoid potential personal injury or property damage! All lag bolts 17 MUST BE firmly tightened to prevent unwanted
movement of the wall plate assembly 14 .Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.
Go to STEP 3 on PAGE 14.
17 16
14
17
14

12
1. Position the wall plate assembly 14 on the wall at your desired height. Level the wall plate assembly 14 and mark the hole locations.
2. Drill two pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
2
1
CAUTION: Avoid potential personal injury or property damage!
●Mount the wall plate assembly 14 directly onto the concrete surface.
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)
14
STEP 2B Attach Wall Plate to Wall Solid Concrete or Concrete Block Option
3/8 in.
(10 mm)
3 in. (75 mm)

13
43
3. Insert two anchors 15 .
CAUTION: Be sure the anchors 15 are seated flush with the concrete surface.
4. Install wall plate assembly 14 using two lag bolts 17 and two washers 16 . Tighten the lag bolts 17 only until the washers 16 are
pulled firmly against the wall plate assembly 14 .
CAUTION: Improper use could reduce the holding power of the lag bolt 17 . DO NOT over-tighten the lag bolts.
NOTE: If needed, you can make small level adjustments to the wall plate assembly 14 by loosening the bottom lag bolt 17 and shifting the wall
plate assembly 14 until level. Tighten the bottom lag bolt 17 when adjustments are complete (see page 11).
14
17 16
15

14
3
2
1
HEAVY! You may need assistance with this step.
STEP 3 Hang TV onto Wall Plate
1. Position the arm of wall plate assembly 14 so the elbow is bent 90 degrees and pressed against the wall.
2. Hang the TV onto the arm of wall plate assembly 14 by first hooking the top support, then resting the TV into place.
3. Lock the TV to the wall plate assembly 14 with securement screw 18 and securement washer 19 .
CAUTION: Avoid potential personal injuries and property damage! This securement screw 18 must be installed to secure the TV
onto the wall plate assembly 14 .
14
14
18
19
14
Top Support

15
Manage Cables

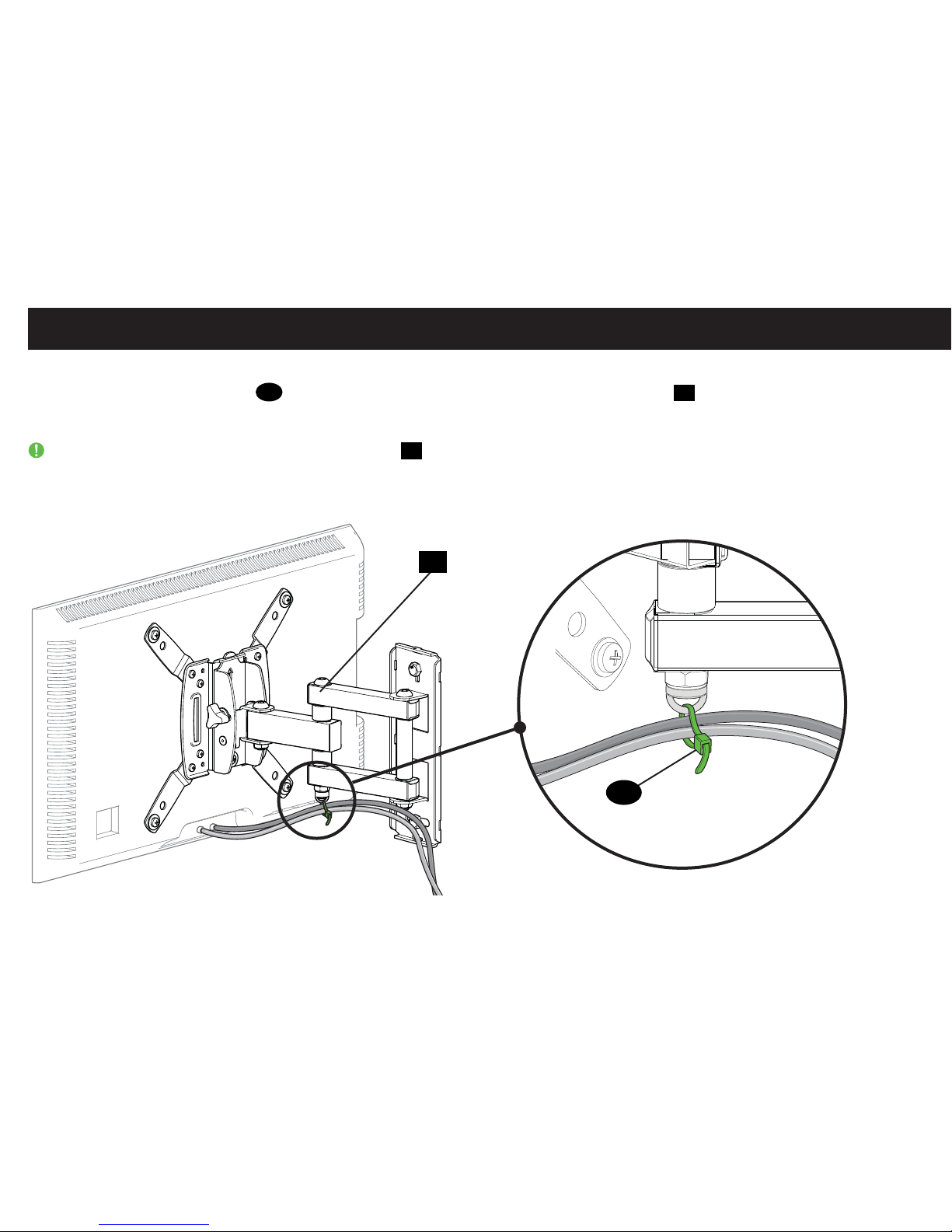

If desired, thread a supplied cable tie 20 through the loop provided on the arm of the wall plate assembly 14 , and secure your TV cables
along the arm for a clean look.
IMPORTANT: Fully extend the arm of wall plate assembly 14 to ensure you have enough slack in the cables for full TV movement.
20
14

16

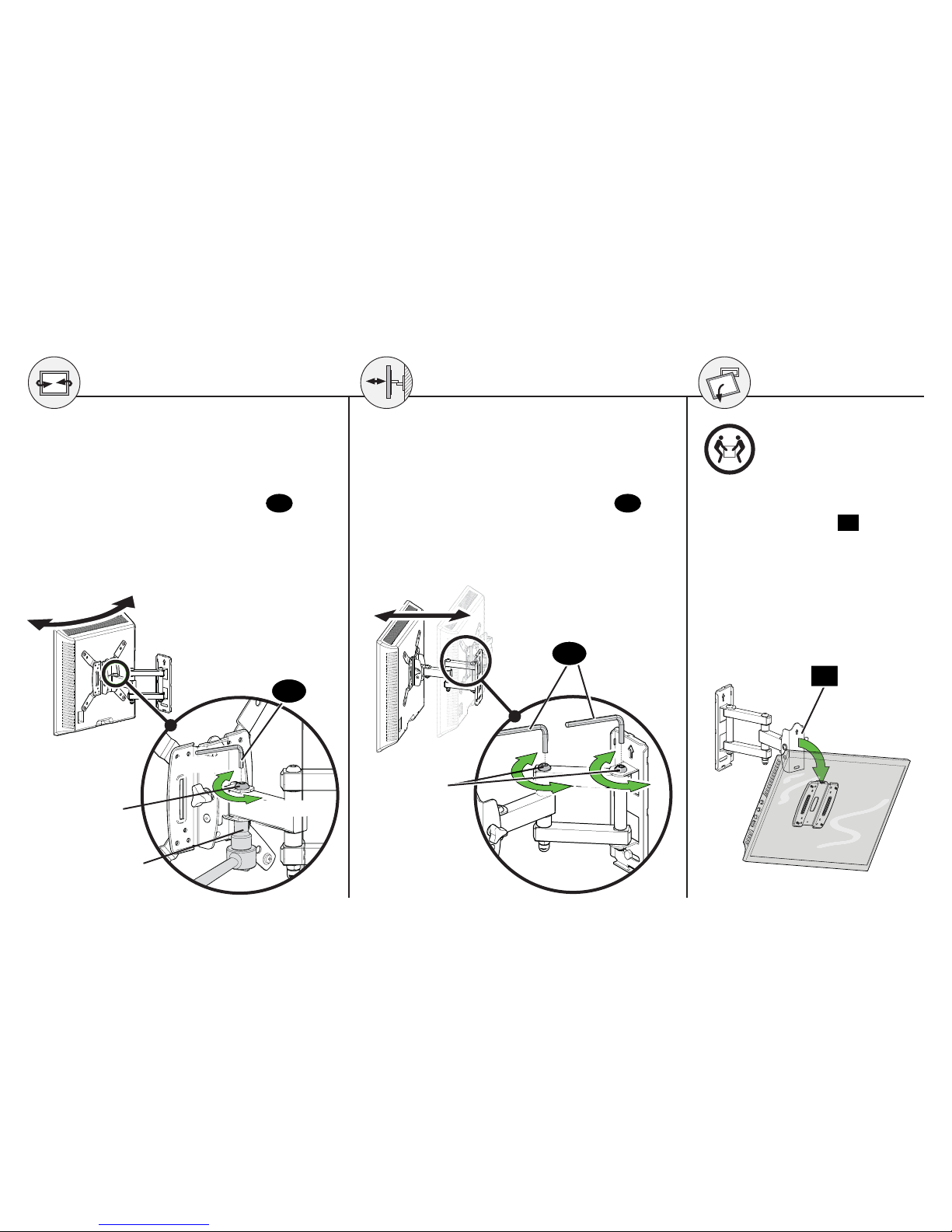

TV Adjustments
TILT ADJUSTMENT
Your TV should adjust easily when moved, then stay in place.
If your TV is too loose or too tight, adjust the tilt tension
knob by hand.
NOTE: Once your TV is in place, tighten the tilt tension
knob to prevent unwanted movement.
LEVEL ADJUSTMENT
To adjust the leveling of your TV, loosen the securement screw 18 ,
level your TV, then tighten securement screw 18 .
IMPORTANT: This securement screw 18 must be installed to
secure the TV onto the wall plate assembly 14 .
Tighten
Loosen 18
Tilt Tension Knob
Tighten
Loosen

17
Arm Tension
Screw
14 mm (9/16 in.)
socket
REMOVING THE TV
To remove your TV from the
wall plate assembly 14 ,
disconnect all cables and then
reverse the
procedures in STEP 3.
SWIVEL ADJUSTMENT
Your TV should adjust easily when moved,
then stay in place.
If your TV is too loose or too tight, adjust
the arm tension screws using hex key 21
and a 14 mm (9/16 in.) socket.
EXTENSION/RETRACTION ADJUSTMENT
Your TV should adjust easily when moved,
then stay in place.
If your TV is too loose or too tight, adjust
the arm tension screws using hex key 21 .
14
21
Arm Tension
Screw
21
Loosen Loosen
Tighten
Tighten
HEAVY! You may need
assistance with this step.

18

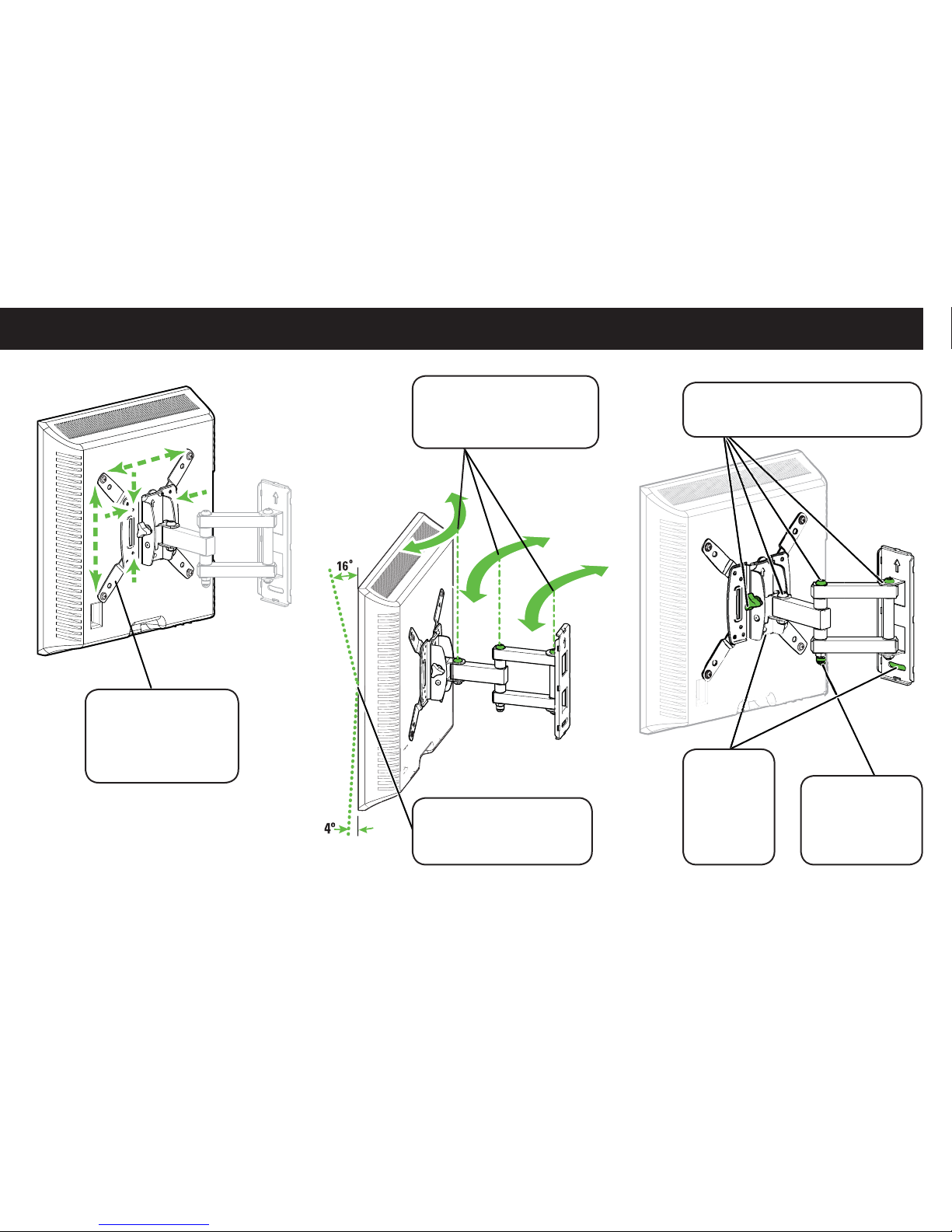

Features
Fully articulating arm with 3
pivot points creates optimal
viewing positions
TV tilts up or down for the
perfect viewing angle
Level
adjustments
create a
worry-free
installation
Adjustments allow fingertip control
of TV or restriction of TV movement
TV bracket expands
to fit TV hole patterns
from 75 x 75 mm up to
200 x 200 mm
Cable tie hook
holds cables
along mount arm
for a clean look

19

Milestone AV Technologies and its aliated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However,
Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in
connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind.
Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy,
completeness or suciency of the information contained in this document.
©2016 Milestone AV Technologies. All rights reserved. Secura is a brand of Milestone.
All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
Milestone AV Technologies • 6436 City West Parkway • Eden Prairie, MN 55344 USA 6901-002597 00
Thank you for choosing Secura! Please take a moment to let us know how we did:
Call us: 1-800-359-5520
UK: 0800 056 2853
Email us: [e-mail]
