Secura Qlf214 User manual

QLF

214

INSTRUCTION MANUAL

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520 We’re ready to help!

Scan for easy install video

san.us/1145

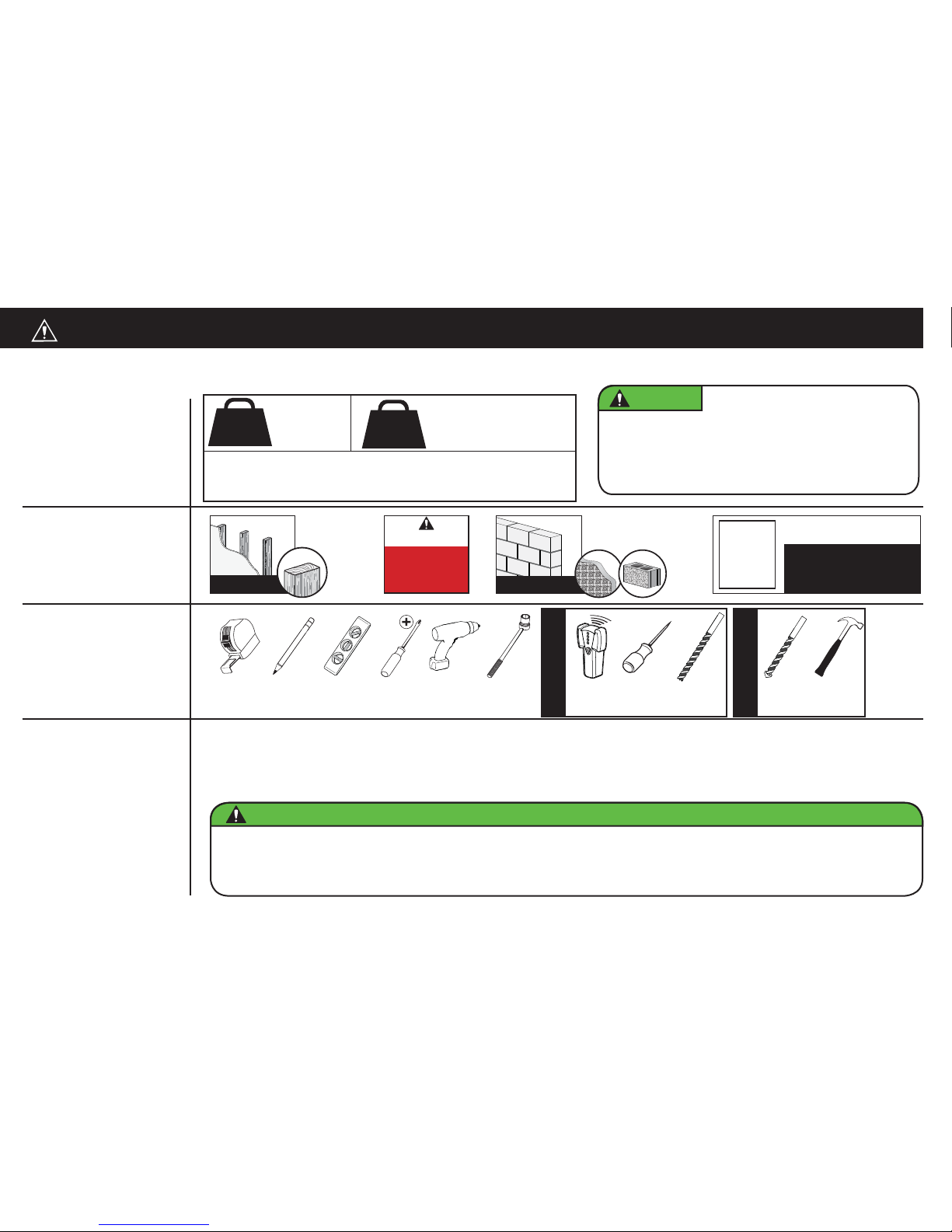

Before getting started, let’s make sure this mount is perfect for you!

Wood Stud Install

Concrete Install

Tape

Measure Pencil Level Screw

driver

Electric

Drill

Socket

Wrench

Stud

Finder Awl Wood

Drill Bit

Masonry

Drill Bit Hammer

3/8 in.

(10 mm)

1/2 in.

(13 mm) 7/32 in.

(5.5 mm)

Does your TV

(including accessories)

weigh MORE than?

100 lbs.

(45.3 kg) 80 lbs.

(36.2 kg)

For solid concrete

or concrete block walls.

For walls

with wood

studs.

No?Perfect – you may continue.

Yes?This mount is NOT compatible. Visit secura-av.com or call

1-800-359-5520 (UK: 0800 056 2853) to ﬁnd a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use

of this product, contact Customer Service at 1-800-359-5520 (UK: 0800 056 2853).

Do you have

all the tools

needed?

What is your

wall made of?

Ready to begin?

CAUTION: DO NOT exceed the maximum weight

indicated for your wall structure. This mounting system is

intended for use only with the maximum weights indicated.

Use with products heavier than the maximum weights

indicated may result in collapse of the mount and its

accessories, causing possible injury.

Solid concrete or

concrete block?

Perfect!

Drywall with

wood studs?

Perfect!

CAUTION:

DO NOT

install into

drywall alone

Unsure?

Call Customer Service:

1-800-359-5520

(UK: 0800 056 2853)

CAUTION: IMPORTANT SAFETY INSTRUCTIONS —PLEASE READ ENTIRE MANUAL PRIOR TO USE —SAVE THESE INSTRUCTIONS

CAUTION: Avoid potential personal injury or property damage!

●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone

●The wall must be capable of supporting ﬁve times the weight of the TV and mount combined

●Do not use this product for any purpose not explicitly speciﬁed by manufacturer

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

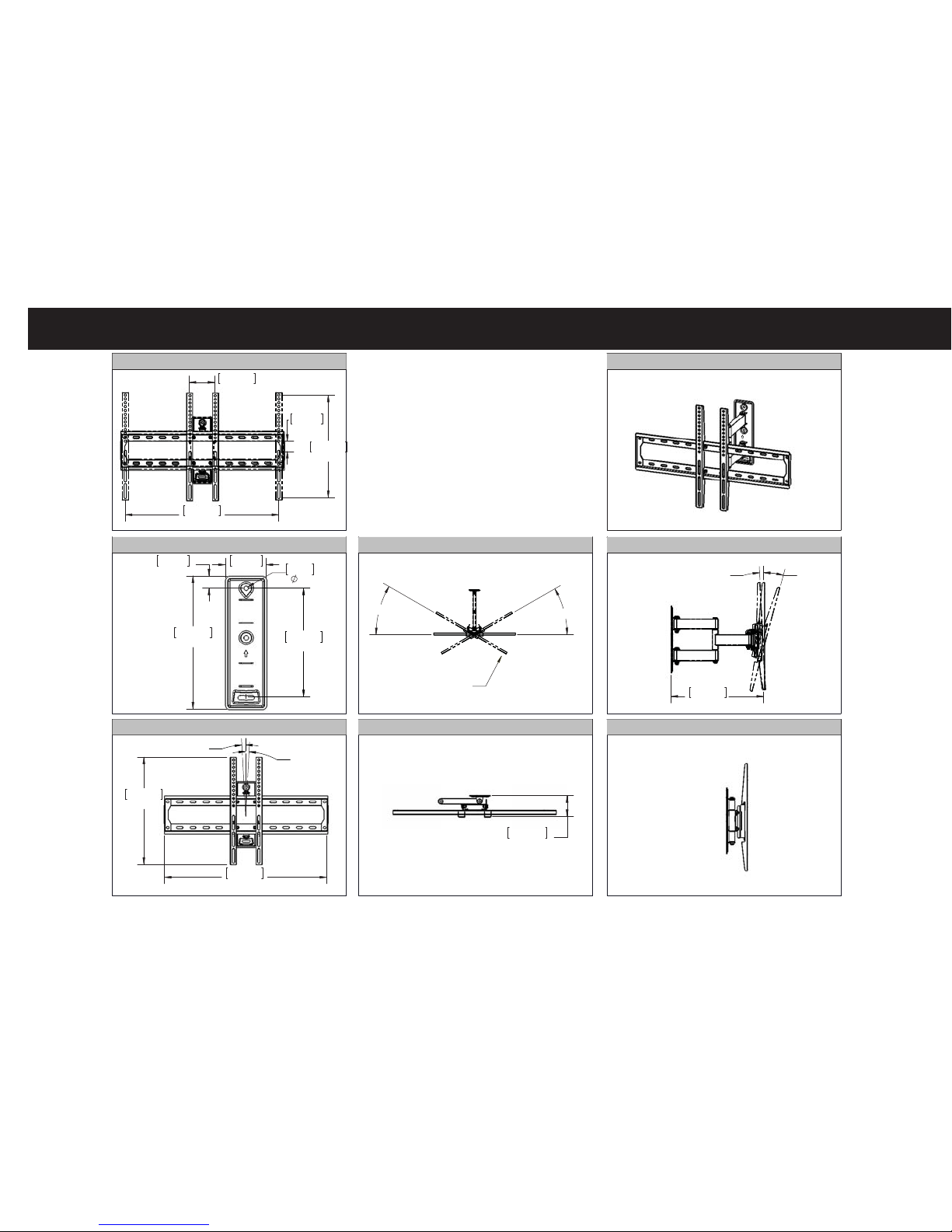

Dimensions

40mm

1.57in

400mm

15.75in

100mm

3.94in

600mm

23.62in

262mm

10.31in

80mm

3.15in

25mm

.98in

9mm

.35in

212mm

8.35in

420mm

16.53in

635mm

25.00in

3deg

ESTIMATED 55" TV

30deg 30deg

84mm

3.30in

5deg

15deg

364mm

14.33in

TV INTERFACE

WALL PLATE

FULLY ASSEMBLED MOUNT

TOP VIEW - EXTENDED

TOP VIEW - RETRACTED

SIDE VIEW - EXTENDED

SIDE VIEW - RETRACTED

3-D

M6 x 12mm M6 x 35mm

M8 x 16mm M8 x 35mm

M8 x 20mm

M6 / M8

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to

your dealer; contact Customer Service. Never use damaged parts!

Supplied Parts and Hardware

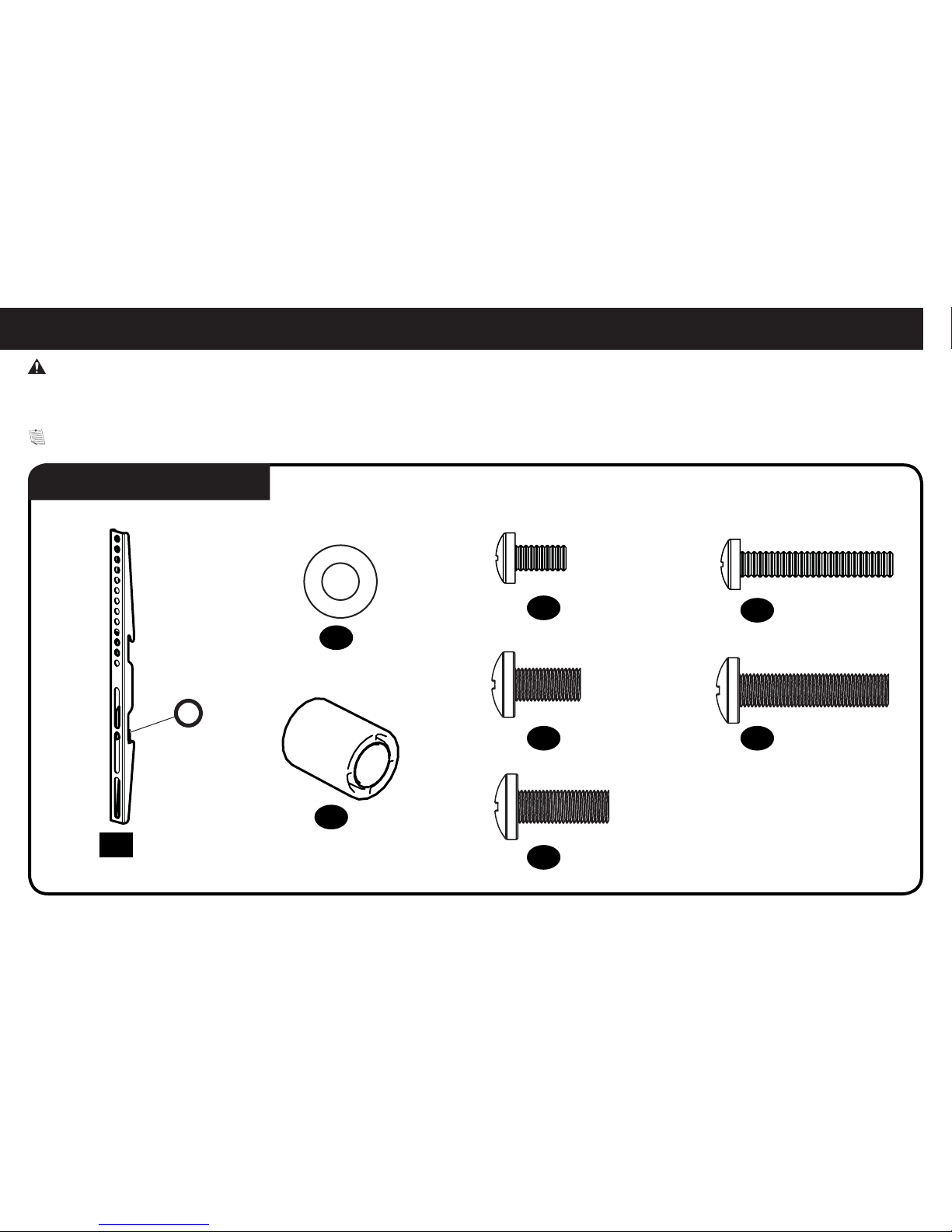

STEP 1 Parts and Hardware

TV Bracket TV Screws

Washers

Spacers

Locking Screw

(Attached to TV Brackets)

22mm

02 x4

03 x4

07 x4

04 x4

05 x4 08 x4

06 x4

01 x2

5/16 x 2¾ in.

5/16 in.

Fischer UX 10 x 60R

Adjustments

Concrete Anchors

For concrete installations ONLY

CAUTION: Do not use in drywall or wood

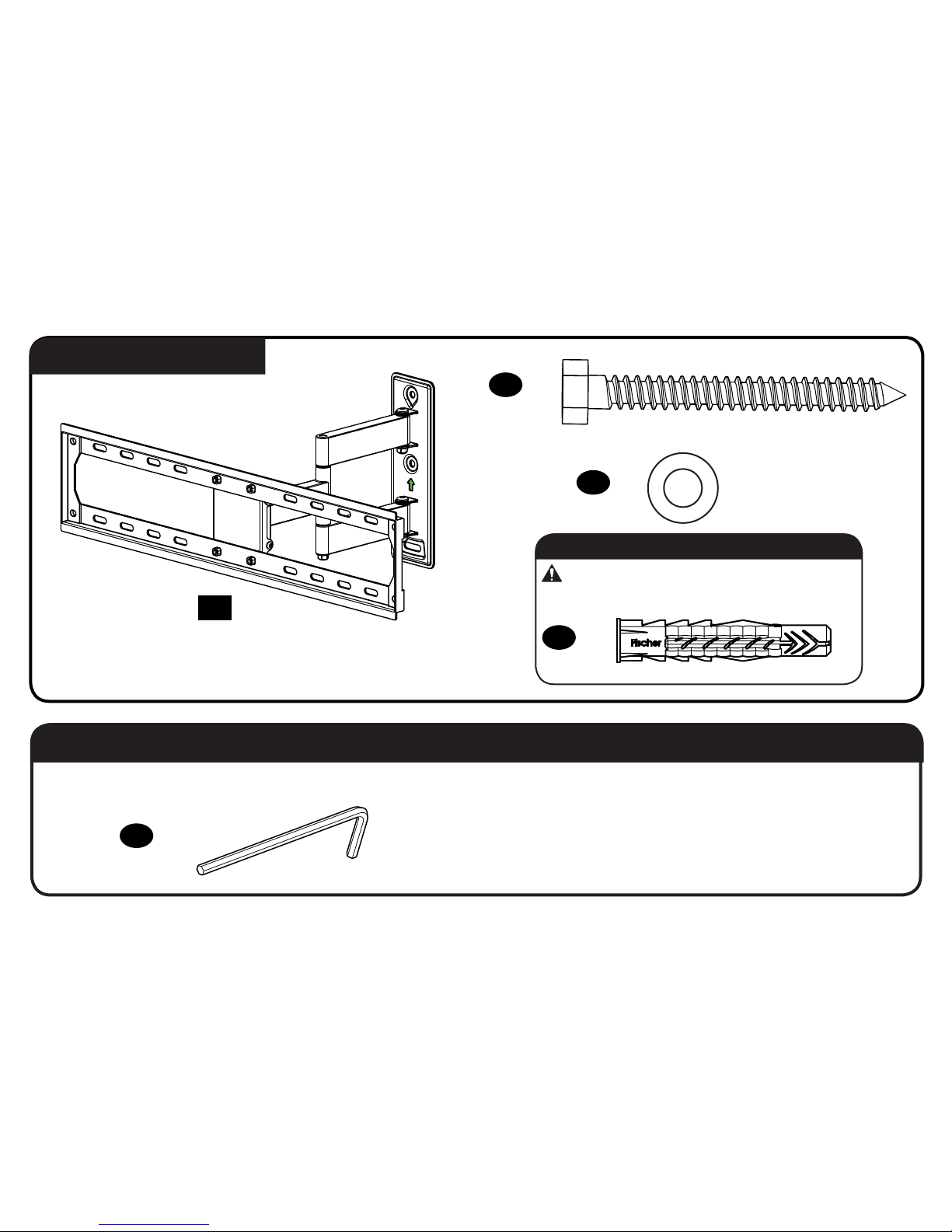

STEP 2 Parts and Hardware

Hex Key

4 mm

Wall Plate Assembly

Lag Bolts

Washers (Lag Bolt)

10 x3

11 x3

12 x3

09 x1

13 x1

STEP 1 Attach Brackets to TV

M6 M8

FLAT BACK ROUND BACK CABLESINSET HOLES

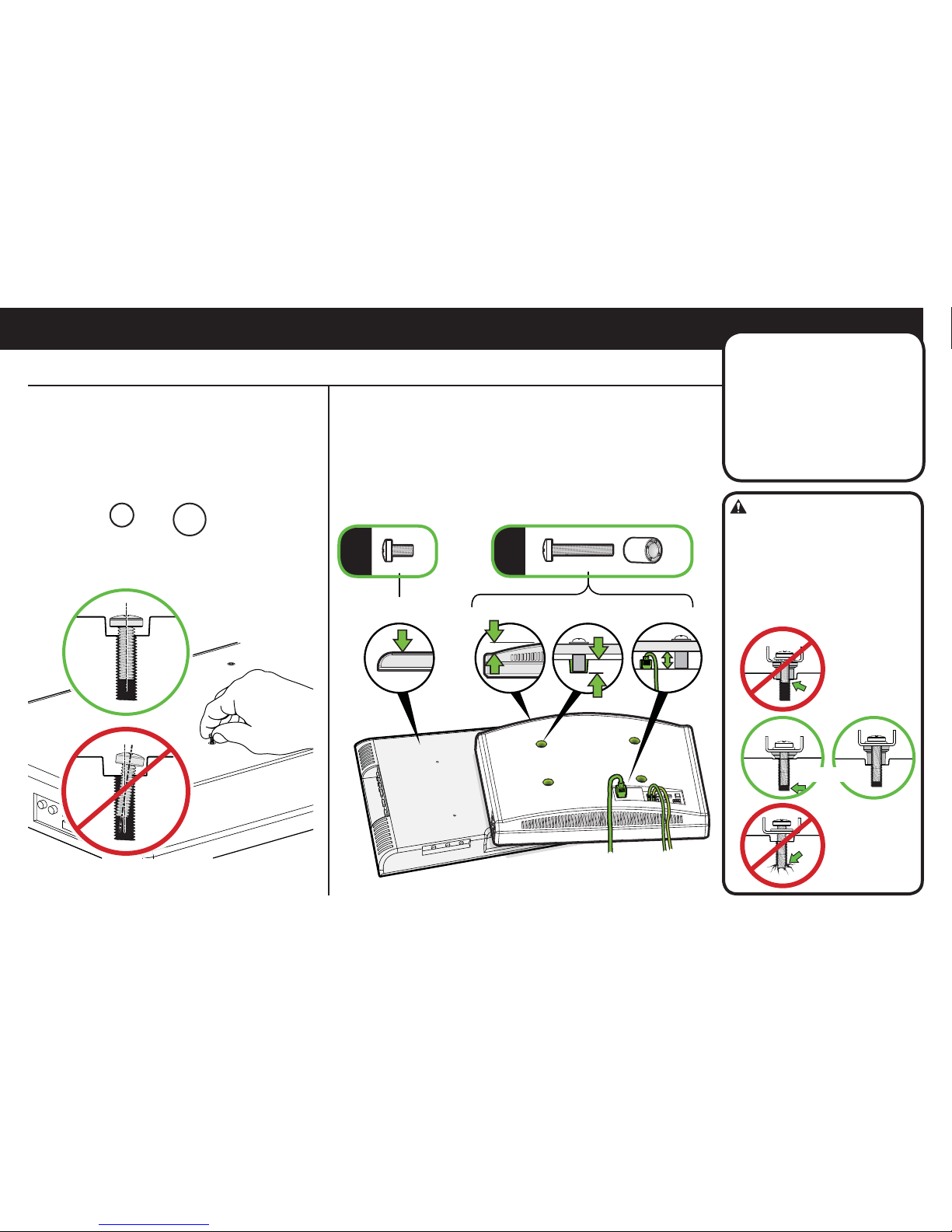

1-1 Select TV

Screw Diameter

1-2 Select TV

Screw Length

Hand thread screws into the threaded inserts

on the back of your TV to determine which

screw diameter (M6, or M8) to use.

If your TV has a flat back AND you want your TV closer to

the wall, use the shorter screws (a).

Use the spacers and longer screws (b) to accommodate:

●Round/irregular back TVs

●TVs with inset mounting holes

●Extra space needed for cables

Too Short

Too Long

Correct

Standard configurations

are shown. For special

applications, or if you

are uncertain about your

hardware selection, contact

Customer Service at 1-800-

359-5520 (UK: 0800 056 2853).

CAUTION:

Verify adequate thread

engagement with your screw/

washer/spacer combination AND

TV bracket.

-Too short will not hold the TV.

-Too long will damage the TV.

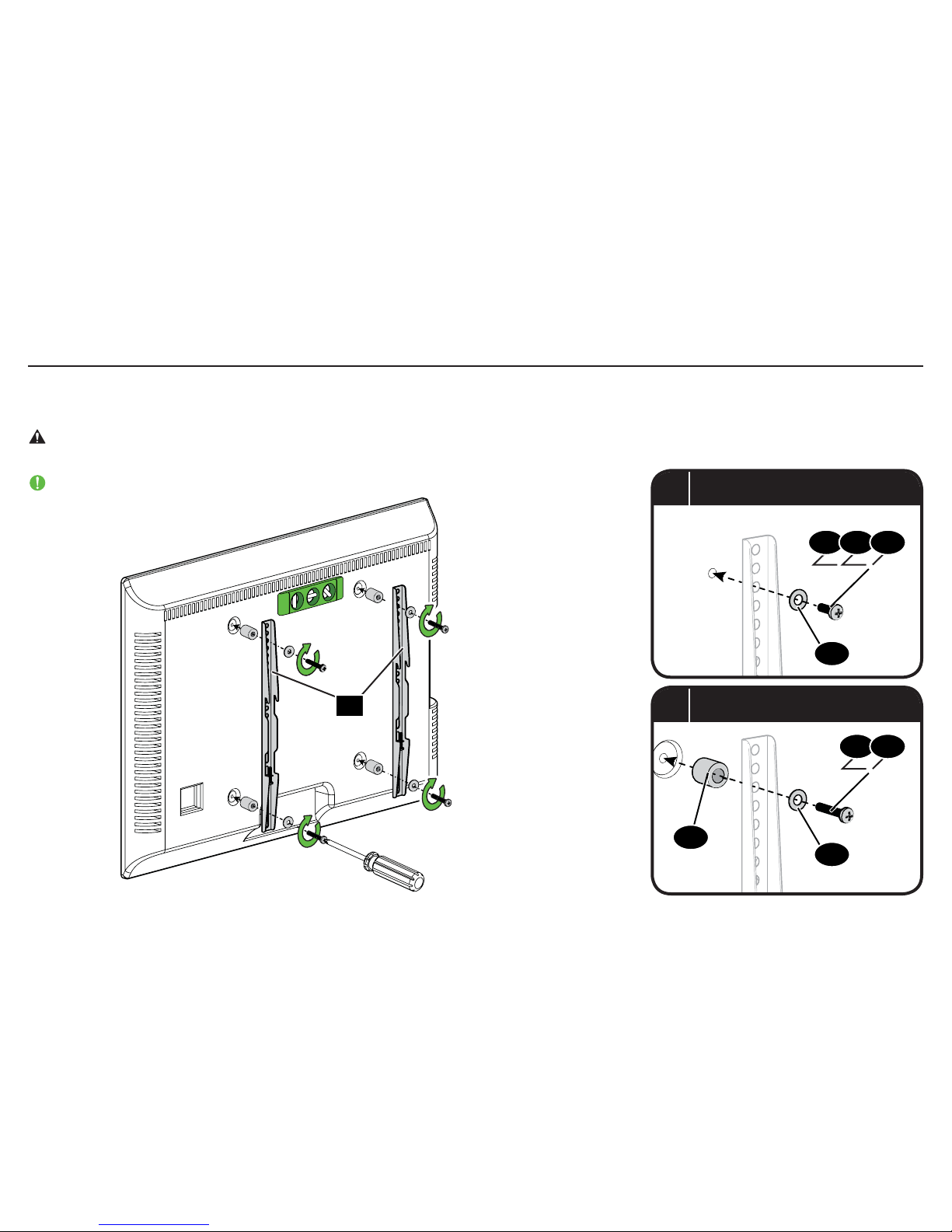

1-3 Attach TV Brackets

Ensure that your brackets are level and centered on the back of the TV.

Install using the TV screw/washer/spacer conﬁguration you selected for your TV.

CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough

to secure the TV bracket to the TV. DO NOT overtighten the screws.

IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step. aFlat Back

bRound Back / Extra Space

04 05

1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.

2. Position the wall plate assembly 09 at your desired height and line up the holes with your stud center line. Level the wall plate assembly 09

and mark the top and bottom hole locations.

CAUTION: Avoid potential personal injury or property damage!

●Drywall covering the wall, must not exceed 5/8 in. (16 mm)

●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

●Stud center must be verified

STEP 2A Attach Wall Plate Wood Stud Installation

Max. 5/8 in.

(16 mm)

3. Drill the two pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. Be sure to drill into the center of the studs.

IMPORTANT: Pilot holes must be drilled to a depth of 2¾ in. (705 mm).

4. Install wall plate assembly 09 . Tighten lag bolts 10 only until the washers 11 are pulled firmly against the wall plate assembly 09 .

CAUTION: Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage Do not over-

tighten the lag bolts

10 .

Go to STEP 3 on PAGE 12.

3 4

7/32 in.

(5.5 mm)

2¾in. (70 mm)

10 11

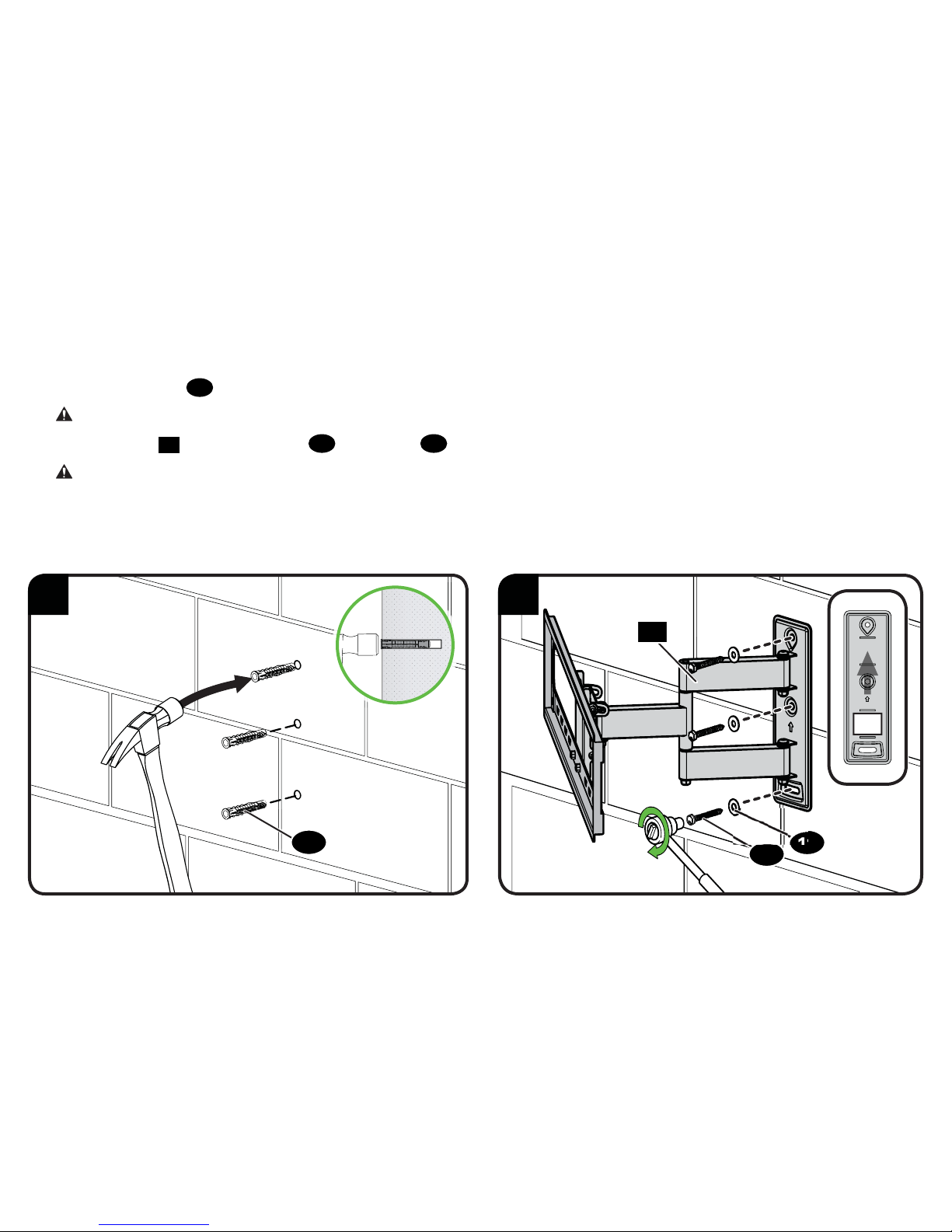

1. Position the wall plate 09 on the wall at your desired height. Level the wall plate 09 and mark the hole locations.

IMPORTANT: Be certain you level the wall plate. THE WALL PLATE IS NOT ADJUSTABLE AFTER INSTALLATION.

2. Drill three pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.

1 2

3/8 in.

(10 mm)

3 in. (75 mm)

CAUTION: Avoid potential personal injury or property damage!

●Mount the wall plate assembly 09 directly onto the concrete surface.

●Minimum solid concrete thickness: 8 in. (203 mm)

●Minimum concrete block size: 8 x 8x 16 in. (203 x 203 x 406 mm)

STEP 2B Attach Wall Plate

Solid Concrete or Concrete Block Option

3. Insert three anchors 12 .

CAUTION: Be sure the anchors are seated flush with the concrete surface.

4. Install wall plate 09 using three lag bolts 10 and washers 11 . Tighten the lag bolts only until they are pulled firmly against the wall plate.

CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.

3 4

HEAVY! You may need assistance with this step.

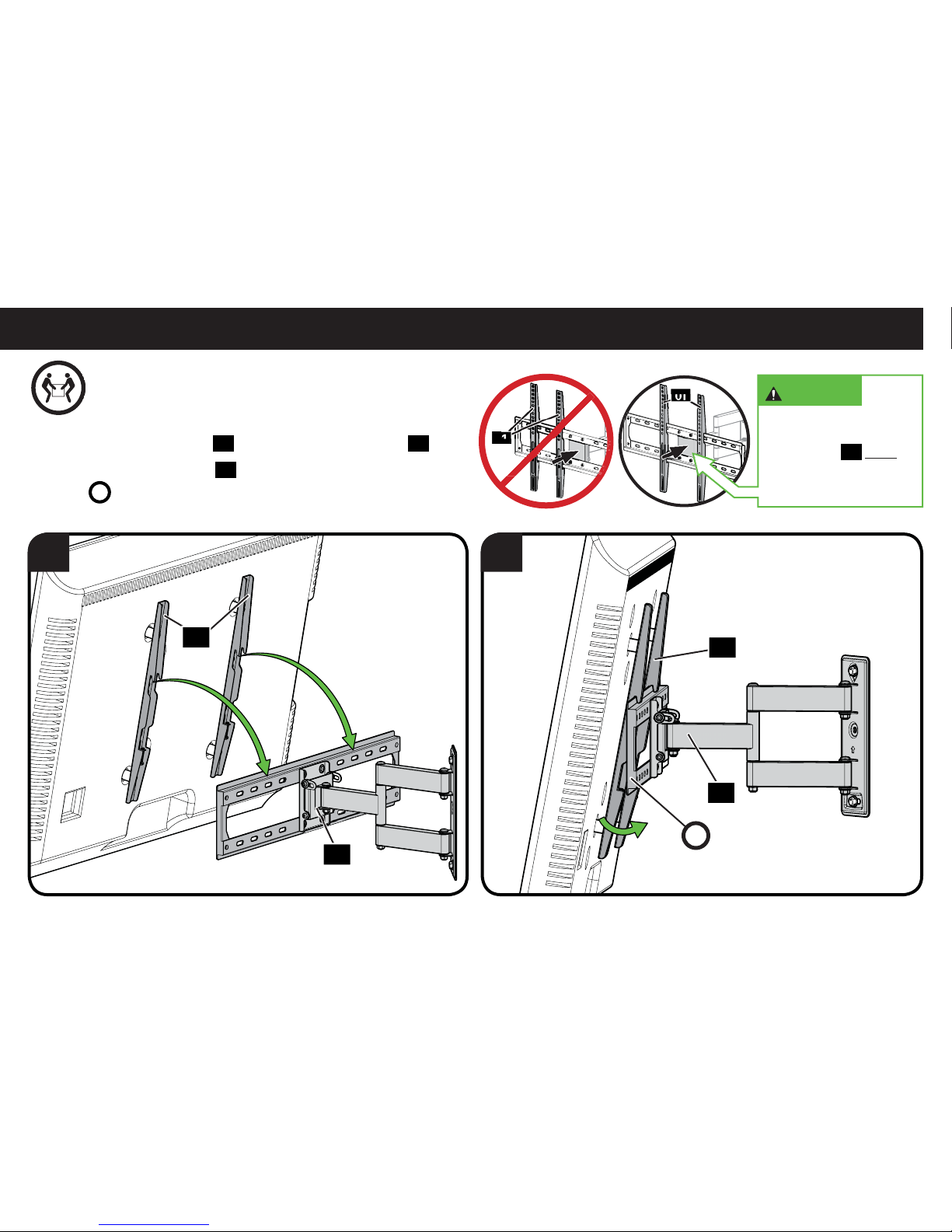

1. Hang the TV / TV brackets

onto the wall plate assembly

2. Allow the TV / TV brackets

to rest against the arm assembly

plate

1 2

01 CAUTION: Avoid

potential personal injuries

and property damage!

TV brackets

must

centered AND span the

faceplate of the arm.

01 01

STEP 3 Attach TV to Wall Plate

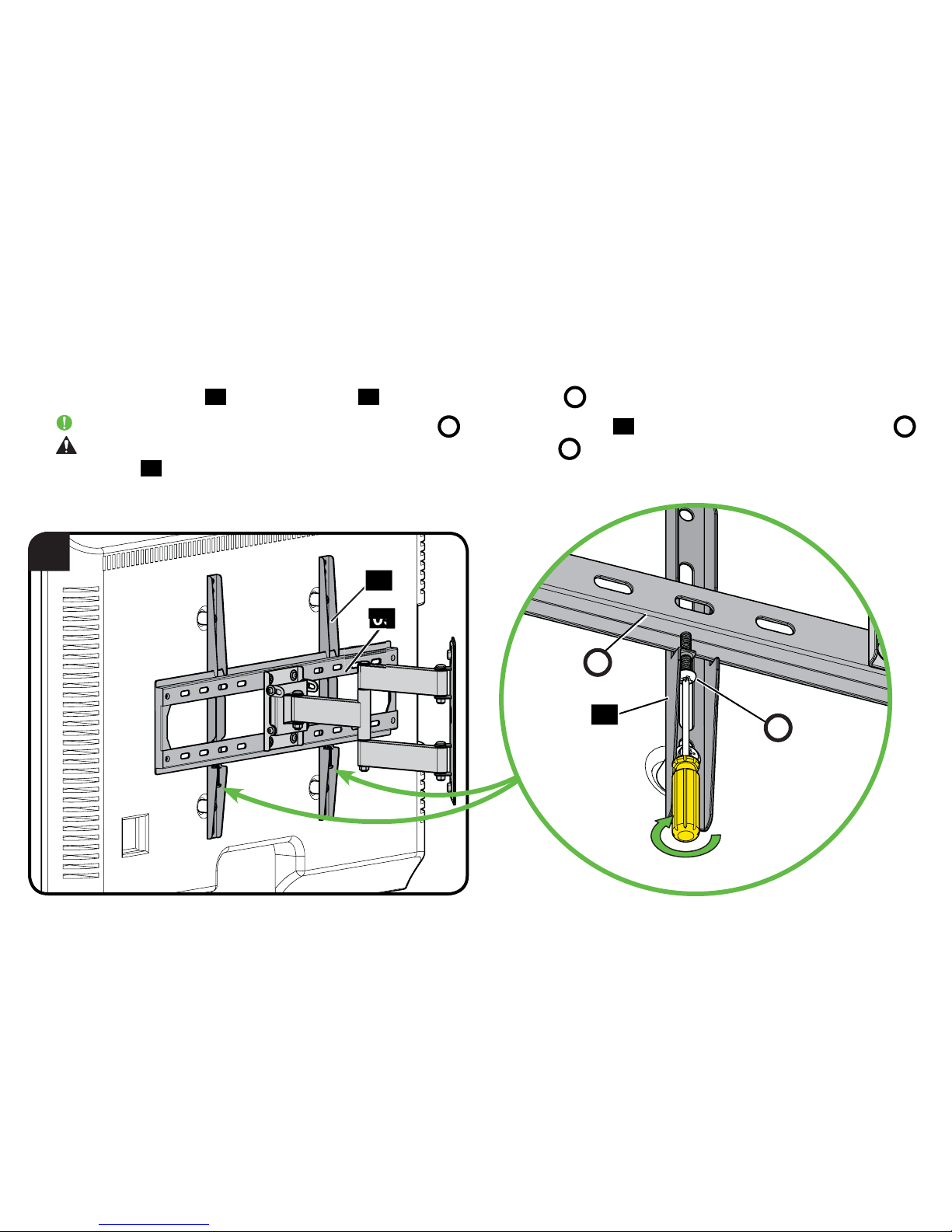

3. Secure the TV brackets 01 to the arm assembly 09 by tightening locking screws S.

IMPORTANT: You may need to back out the locking screws Sto allow the TV brackets 01 to rest flat against the arm assembly plate P.

CAUTION: Avoid potential personal injury or property damage! Locking screws Smust be tightened to secure the TV to the

arm assembly 09 .

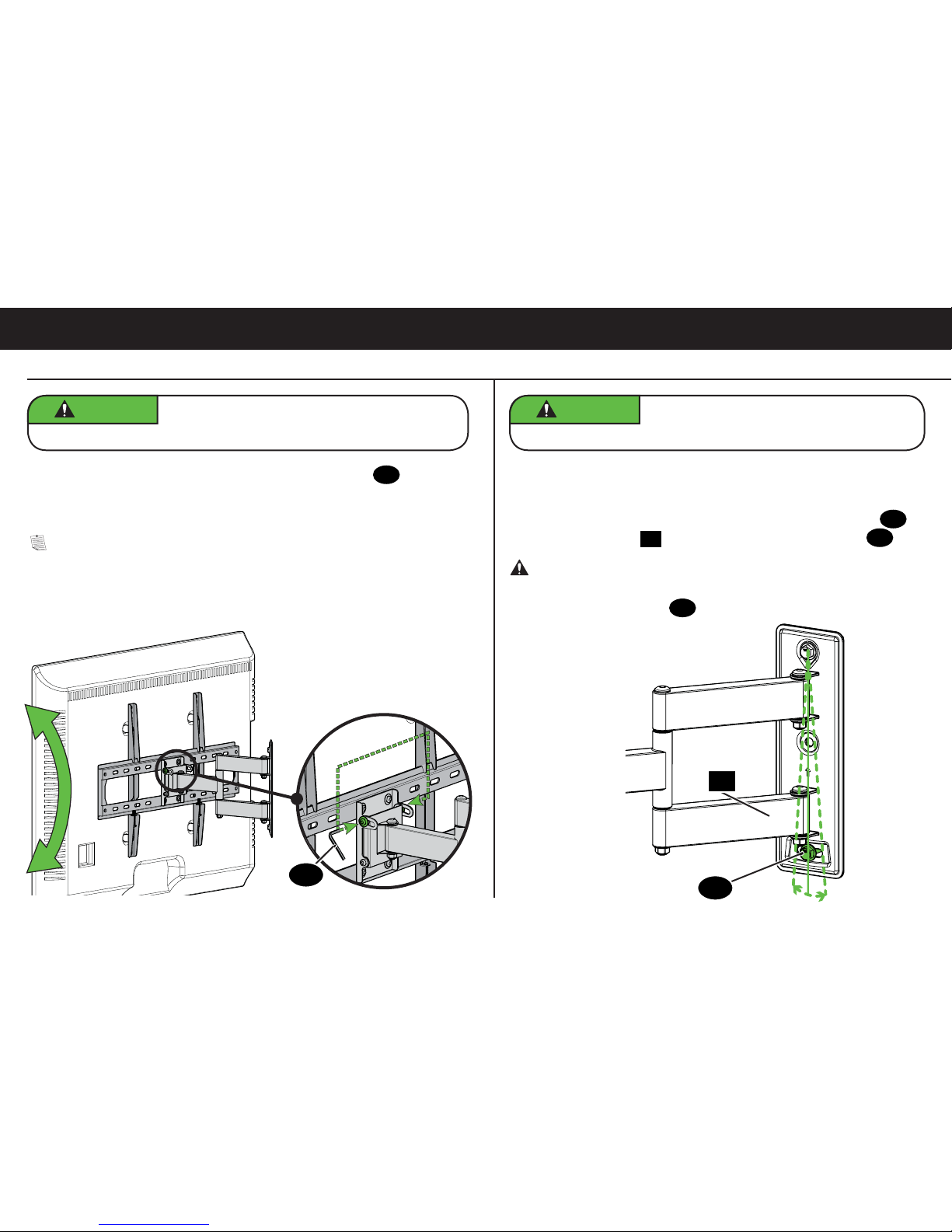

TV Adjustments

TILT ADJUSTMENT

To adjust the tilt level of your TV, using the 4 mm hex key 13 , loosen

the tilt adjustment screws on both sides of the arm assembly, adjust the

TV to the desired tilt angle and retighten the tilt adjustment screws.

NOTE: Once your TV is in place, tighten the tilt adjustment screws

to prevent unwanted movement.

LEVEL ADJUSTMENT

For wood stud installations:

Remove the TV before adjusting.

To adjust the leveling of your TV, loosen the bottom lag bolt 10 ,

adjust arm assembly 09 , then tighten the bottom lag bolt 10 .

CAUTION: Improper use could reduce the holding power of

the lag bolt. To avoid potential injuries or property damage Do not

over-tighten the lag bolts 10 .

CAUTION: DO NOT adjust the level for solid concrete

or concrete block installations.

CAUTION: DO NOT REMOVE the tilt adjustment screws.

ONLY loosen enough to make adjustments.

REMOVING THE TV

To remove your TV from the arm assembly

09 , disconnect all cables and then reverse

the procedures in STEP 3.

HEAVY! You may need

assistance with this step.

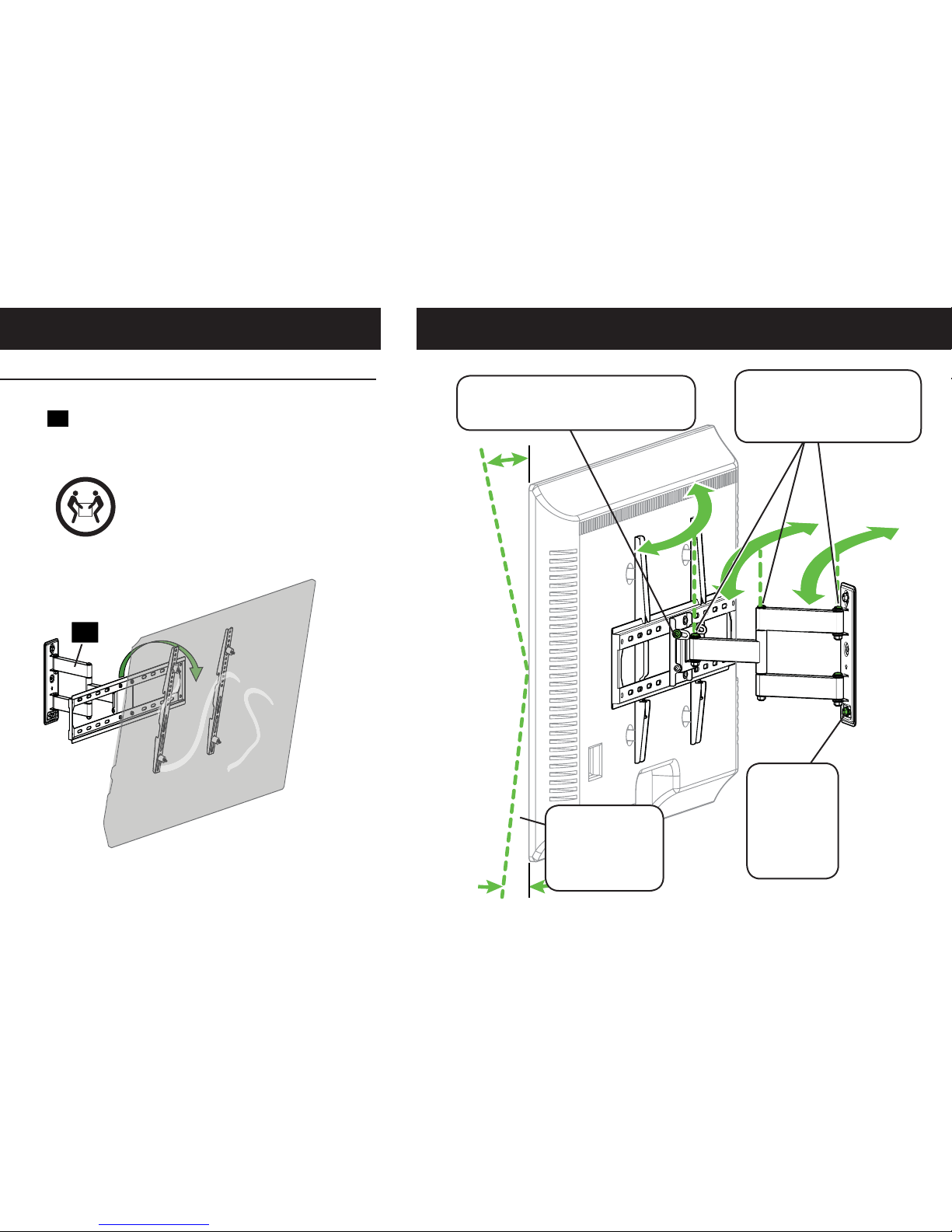

Features

15º

5º

Fully articulating arm, with

3 pivot points, creates

optimal viewing positions

TV tilts up or

down for the

perfect viewing

angle

Level

adjustments

create a

worry-free

installation

Adjustments allow tilt control of TV

and restriction of TV movement
