Secura QLF418-B2 User manual

Texto en español, página 24 Deutscher Text Seiten 30 Svensk text sida 36
中文文字说明请参见第 42 页
Texte français page 27 Nederlandse tekst op pagina 33
Русский текст: стр. 39 日本語は 45 ページ
QLF418-B2
Full-Motion
TV Wall Mount
INSTRUCTION MANUAL
WE’RE HERE TO HELP
Our install experts are
standing by to help.
Call us at:
US: [phone]
EMEA: [phone]
UK: [phone]
Get it right the first time.
HeightFinder™ shows
you where to drill.
Check it out at:
san.us/3021
Want to watch a video
that shows how easy this
DIY project will be?
Watch it now at:
san.us/3019

2
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

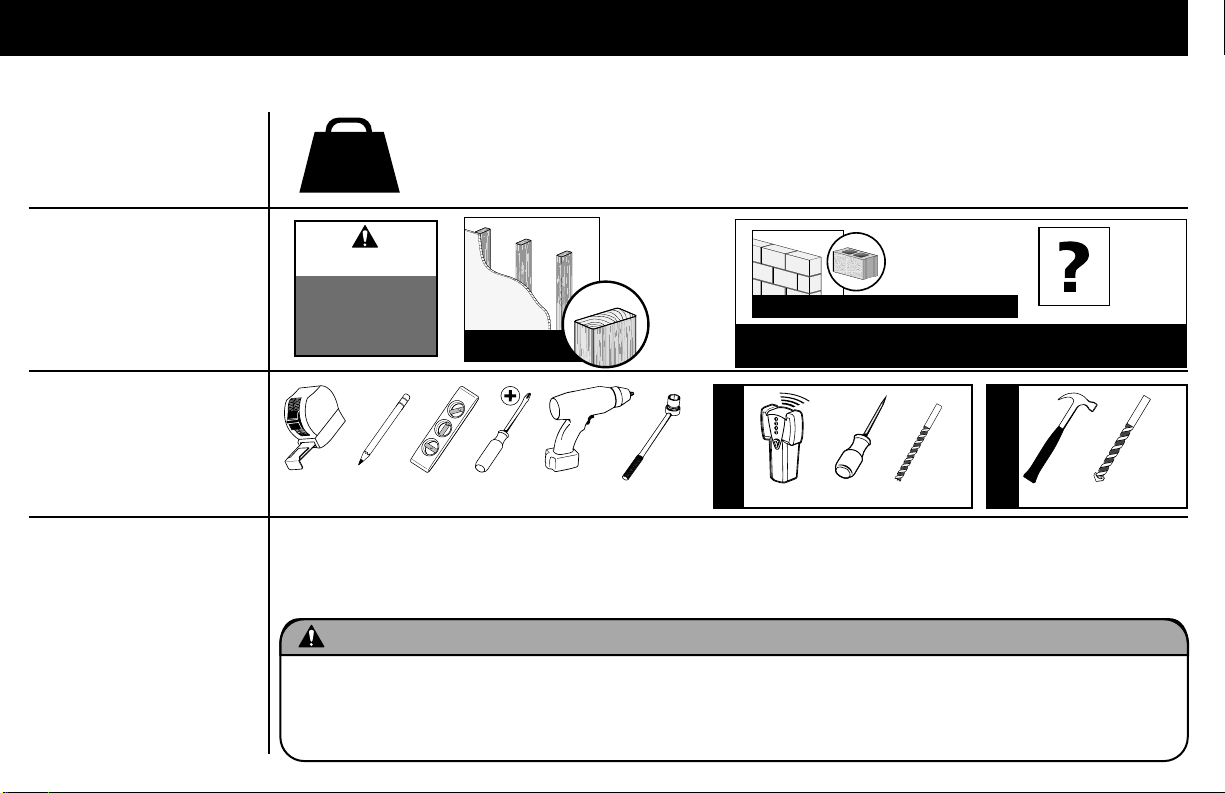

Before getting started, let’s make sure this mount is perfect for you!
No — Perfect!
Yes
— This mount is NOT compatible. Visit Secura-av.comor call
US: [phone] | EMEA: [phone] | UK: [phone] to find a compatible mount.
Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of?
110 lb
(49.8 kg)
Ready to begin?
Does your TV
(including accessories)
weigh more than
110 lb (49.8 kg)?
Drywall with
wood studs?
Solid concrete or
concrete block?
Perfect!
Wood Stud Install
Concrete Install
Awl
Pencil Level Stud Finder Screwdriver
Tape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric Drill Hammer
1/2 in.
(13 mm)
Socket
Wrench Drill Bit
3/8 in.
(10 mm)
Concrete
Unsure?
Call Customer Service: US: [phone] |
EMEA: [phone] | UK: [phone]
CAUTION:
DO NOT install
into drywall
alone
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service at US: [phone] | EMEA: [phone] | UK: [phone].
CAUTION: Avoid potential personal injury or property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Concrete kit CMK1 (not included)

3
22.59
573.9
21.65
549.9
15.75
400.0
0.34
8.7
23.62
600.0
7.87
200.0
7.87
200.0
15.75
400.0
23.62
600.0
6.12
155.5
4.74
120.5
19.73
501.2
0.33
8.4
16.00
406.4
18.32
465.2
EXTENDED
5°
12°
21° - 35° 21° - 35°
10.24
260.0
LATERAL SHIFT
AT 400 VESA
TV INTERFACE
WALL PLATE
FULLY ASSEMBLED MOUNT
TOP VIEW - EXTENDED
LATERAL SHIFT
SIDE VIEW - EXTENDED
SIDE VIEW - RETRACTED
3-D
3.13
79.5
9.79
248.7

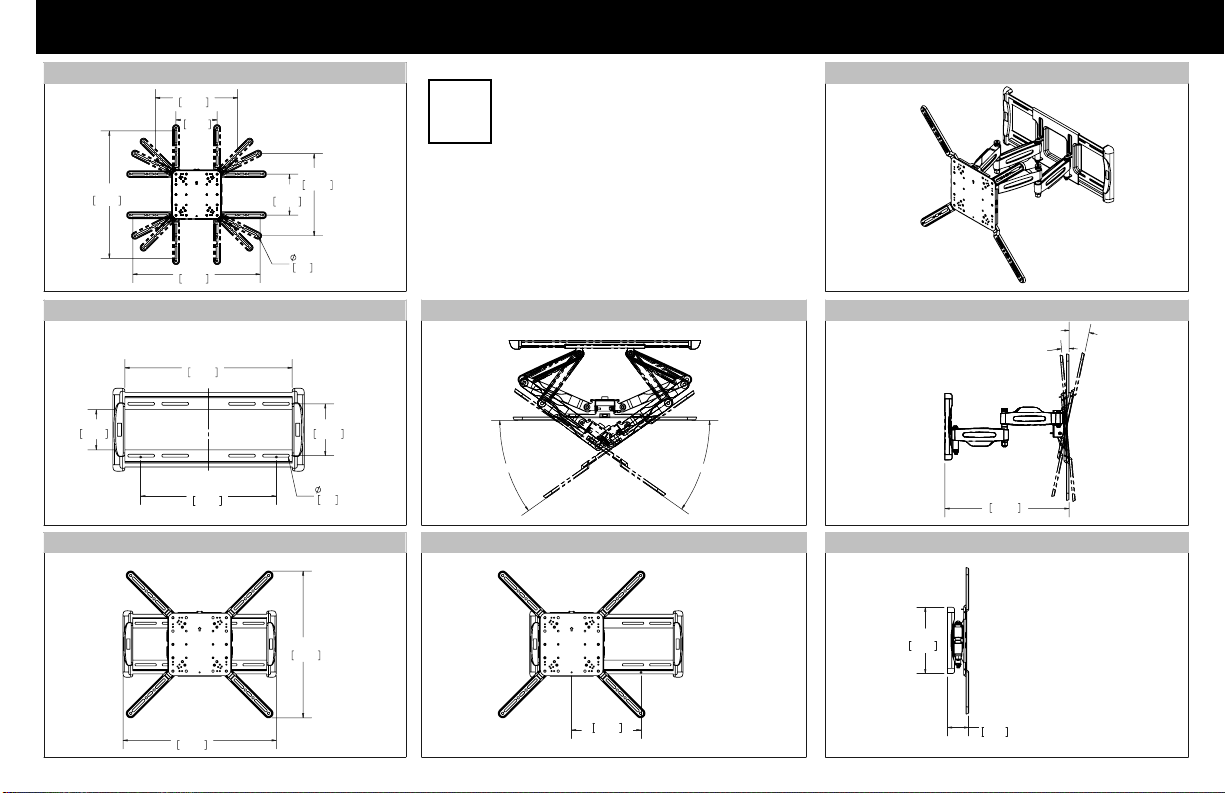

Dimensions
in.
[mm]
Before getting started, let’s make sure this mount is perfect for you!
No — Perfect!
Yes
— This mount is NOT compatible. Visit Secura-av.comor call
US: [phone] | EMEA: [phone] | UK: [phone] to find a compatible mount.

4
5/16 in. x 2¾ in.
5/16 in. x 2¾ in.
5/16 in.
5/16 in.
M8 x 12mm
M8 x 30mm
M8 x 20mm
2.5mm
22mm
M6 x 12mm M6 x 20mm M6 x 35mm
5mm
M6/M8
M8 x 50mm
M8 x 40mm
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!
STEP 1 Parts and Hardware
TV Bracket
TV Bracket
Extender
TV Screws (qty. 4 each)
[Only one size fits your TV]
M6
Washer
(qty. 4)
Spacers
(qty. 4 each)
[If necessary]
03
02
01 04
05
06
qty. 1
qty. 4
qty. 8
M8
M8 Screw
(TV Bracket Extenders)
STEP 1 Attach TV Bracket to TV

5
cm
inches

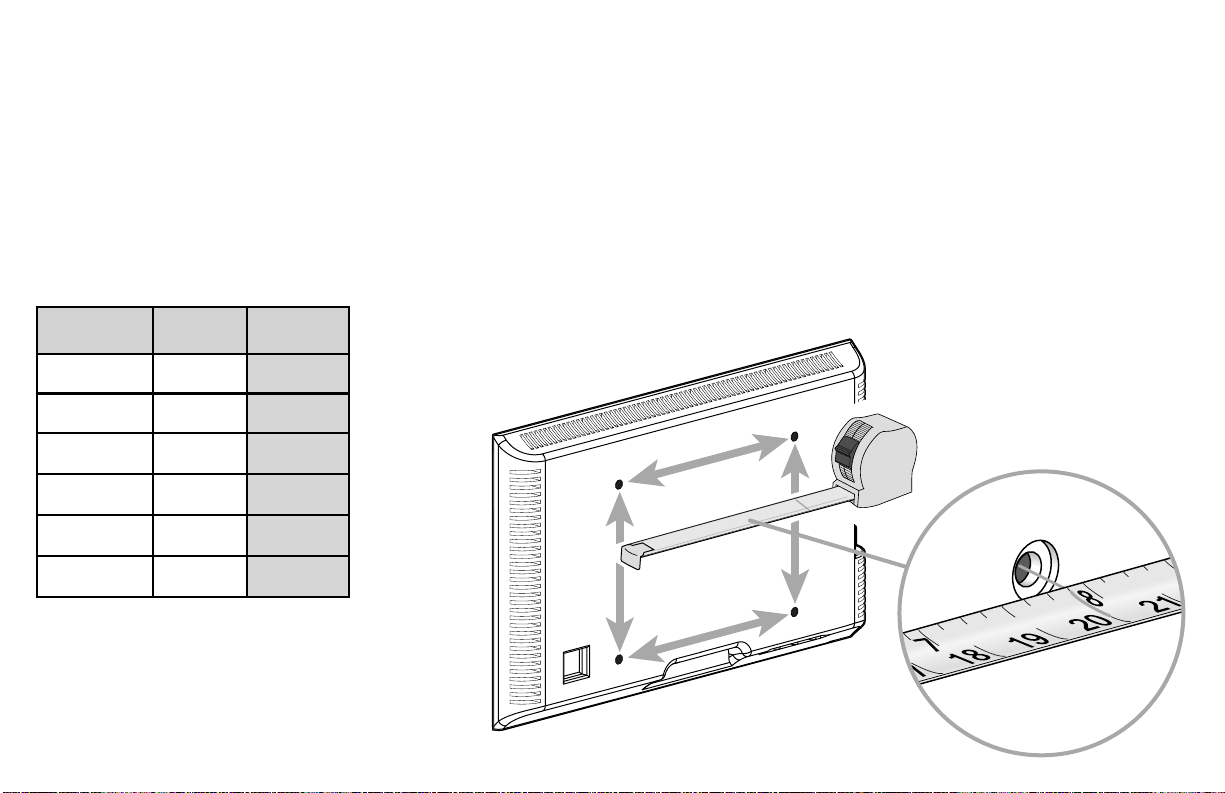

1.1 Measure Your TV Hole Pattern
cm
inches
Measure the width and height of your TV hole pattern in mm.
Record your measurements:
Width _________mm x Height _________mm
inch dimensions are approximate
inches cm mm
3 7.5 75
4 10 100
7 ⅞ 20 200
11 ¾ 30 300
15 ¾ 40 400
23 ⅝ 60 600
Width
Height

6
300 x 300
400 x 400
For TV Hole Pattern
Measurements
Dimensions in mm
B
A

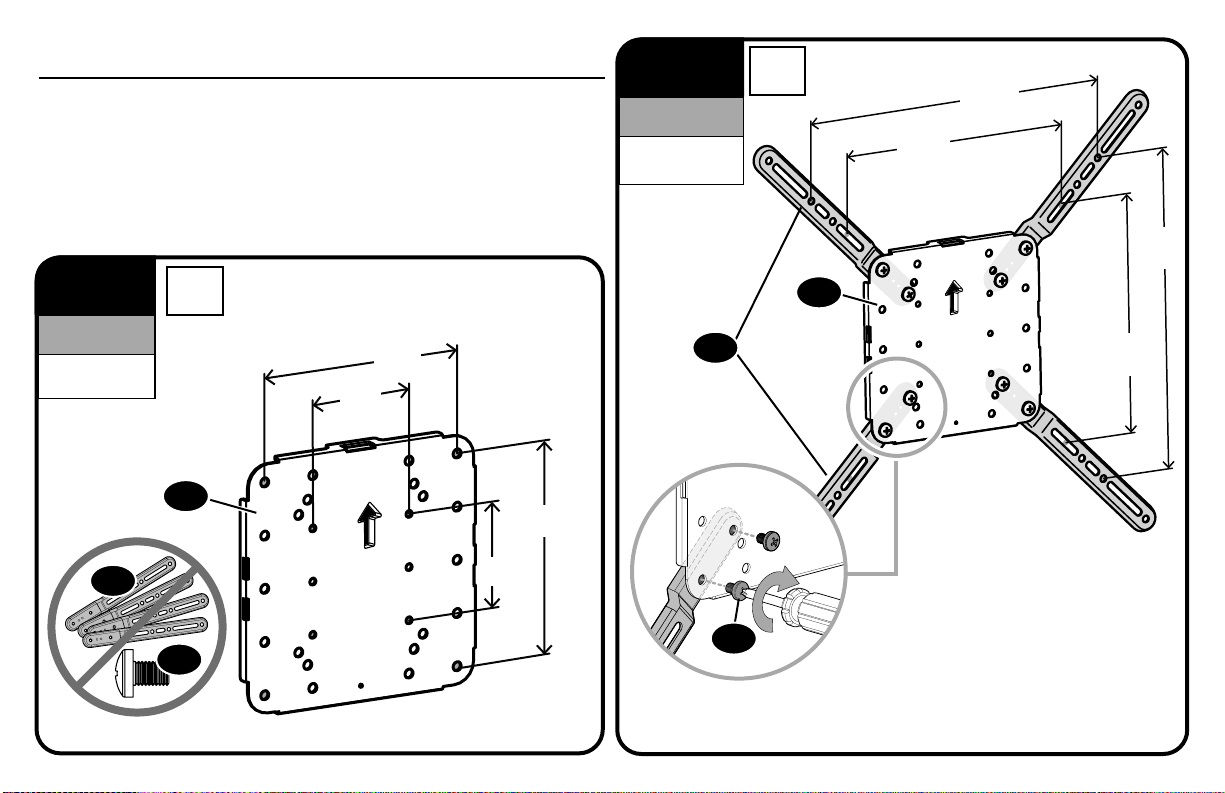

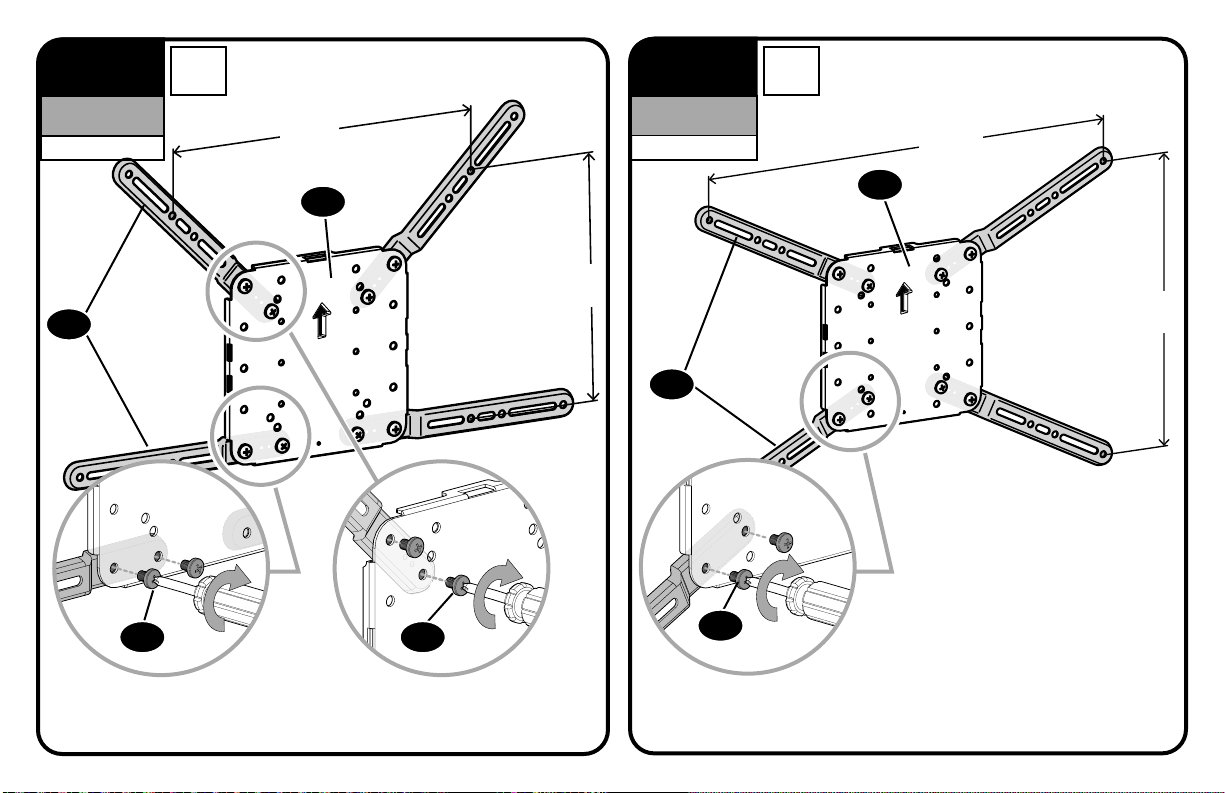

1.2 Assemble Your TV Bracket
Based on your TV hole pattern measurements, determine which
TV bracket configuration to use, A, B, C, D, E or F.
mm
[in.]
mm
[in.]
06
04
100 x 100
200 x 100
For TV Hole Pattern
Measurements
Dimensions in mm
300
[11.81]
300
[11.81]
400
[15.75]
400
[15.75]
200
[ 7. 87 in.]
200
[ 7. 87 in.]
100
[3.94 in.]
100
[3.94 in.]
04
06
05
05

7
D
Cmm
[in.]
mm
[in.]
0606 06
04 04
400 x 300
For TV Hole Pattern
Measurements
Dimensions in mm 600 x 400
For TV Hole Pattern
Measurements
Dimensions in mm
300
[11.81]
600
[23.62]
400
[15.75]
400
[15.75]
05
05

8

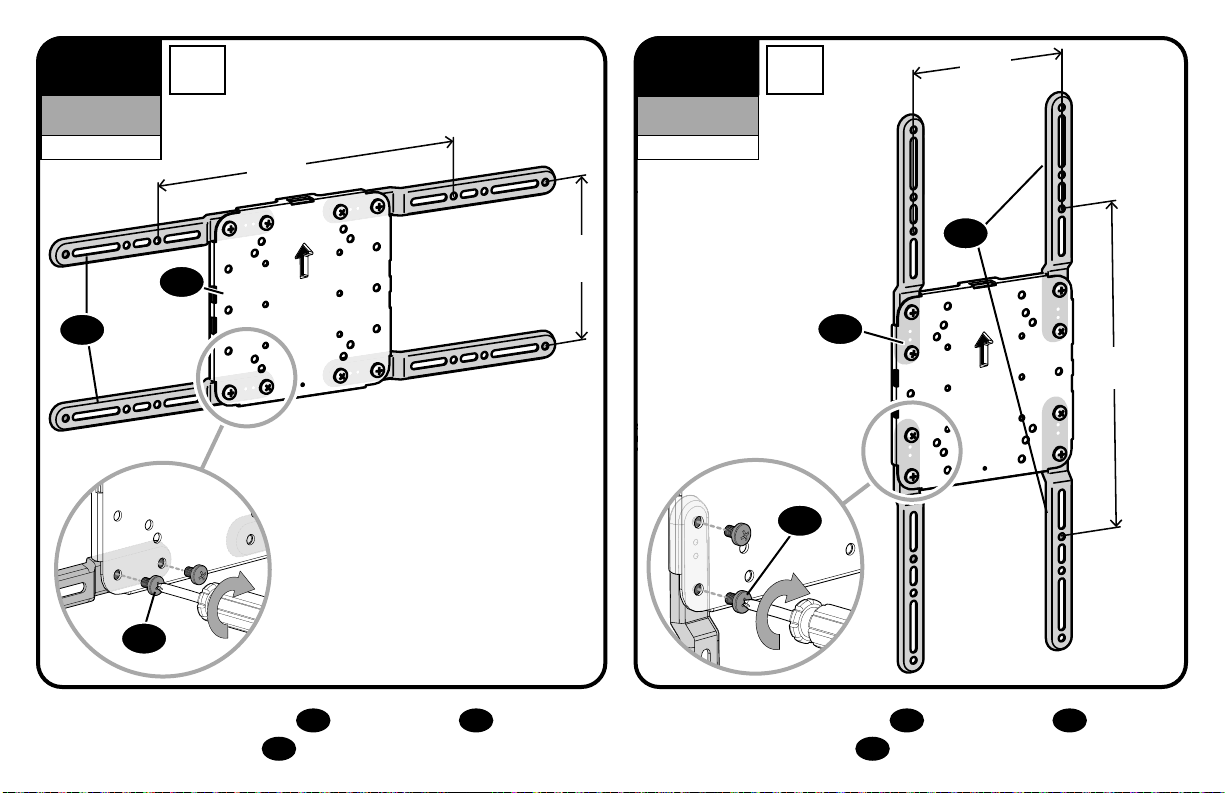

E F
mm
[in.]
mm
[in.]
Assemble TV bracket extenders 05 onto TV bracket 04 as illustrated.
Secure using eight screws 06 in the corner holes shown.
Assemble TV bracket extenders 05 onto TV bracket 04 as illustrated.
Secure using eight screws 06 in the corner holes shown.
06
06
04
04
05
05
400 x 200
For TV Hole Pattern
Measurements
Dimensions in mm
200 x 400
For TV Hole Pattern
Measurements
Dimensions in mm
200
[ 7.87 ]
200
[ 7.87 ]
400
[15.75]
400
[15.75]

9
Too Long
Too Short
Correct
1.3 Select TV Screw Diameter 1.4 Select TV Screw Length Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection, contact
Customer Service.
CAUTION:
Verify adequate thread
engagement with your screw/
washer/spacer combination
AND TV bracket.
–Too short will not hold the TV.
–Too long will damage the TV.
M6
M8
ab
a:For flat-back TVs,
no spacers 03
required.
b:Spacers 03 supplied for:
●Round (irregular) back TVs
●Extra space needed (for cables
or inset mounting holes)
FLAT BACK ROUND BACK CABLES INSET HOLES
Test the TV screw diameters (M6, and
M8) in the threaded inserts on the back
of your TV to determine which screw
diameter fits your TV.
03

10
1.5 Attach TV Bracket
TV Bracket Configuration B
Illustrated (with spacers)
a: Flat Back
TV Bracket Configuration A
Illustrated (with spacers)
Position your TV bracket configuration (A, B, C, D, E or F) onto your TV, making sure the bracket is both centered and level over your TV hole pattern.
NOTE: The hanging tab Hon faceplate 04 must be oriented toward the top of the TV.
Secure the TV bracket using your selection: (a) screw/washer or (b) screw/washer/spacer.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step.
Tighten the screws only enough to secure the TV bracket to the TV. DO NOT overtighten the screws.
04
04
05
H
04
b: Round Back / Extra Space
03 02
01
01
02

11
5/16 in. x 2¾ in.
5/16 in. x 2¾ in.
5/16 in.
5/16 in.
M8 x 12mm
M8 x 30mm
M8 x 20mm
2.5mm
22mm
M6 x 12mm M6 x 20mm M6 x 35mm
5mm
M6/M8
M8 x 50mm
M8 x 40mm
STEP 2 Parts and Hardware
Concrete Installation Kit CMK1 is NOT INCLUDED
Contact Customer Service to inquire about the
additional hardware.
STEP 2 Attach Wall Plate to Wall
Concrete Anchor
For concrete installations ONLY
CAUTION: Do not use in drywall or wood
C1 x4
C2 x4
Fischer UX10 x 60R Anchor
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!
Wall Plate
Wall Plate Template
Lag Screw Washer
Lag Bolt
Lag Bolt Washer
C3
x4
07
08
09 10
qty. 1
qty. 1
qty. 4 qty. 4

12
1 2
≤ 5/8 in.
(16 mm)

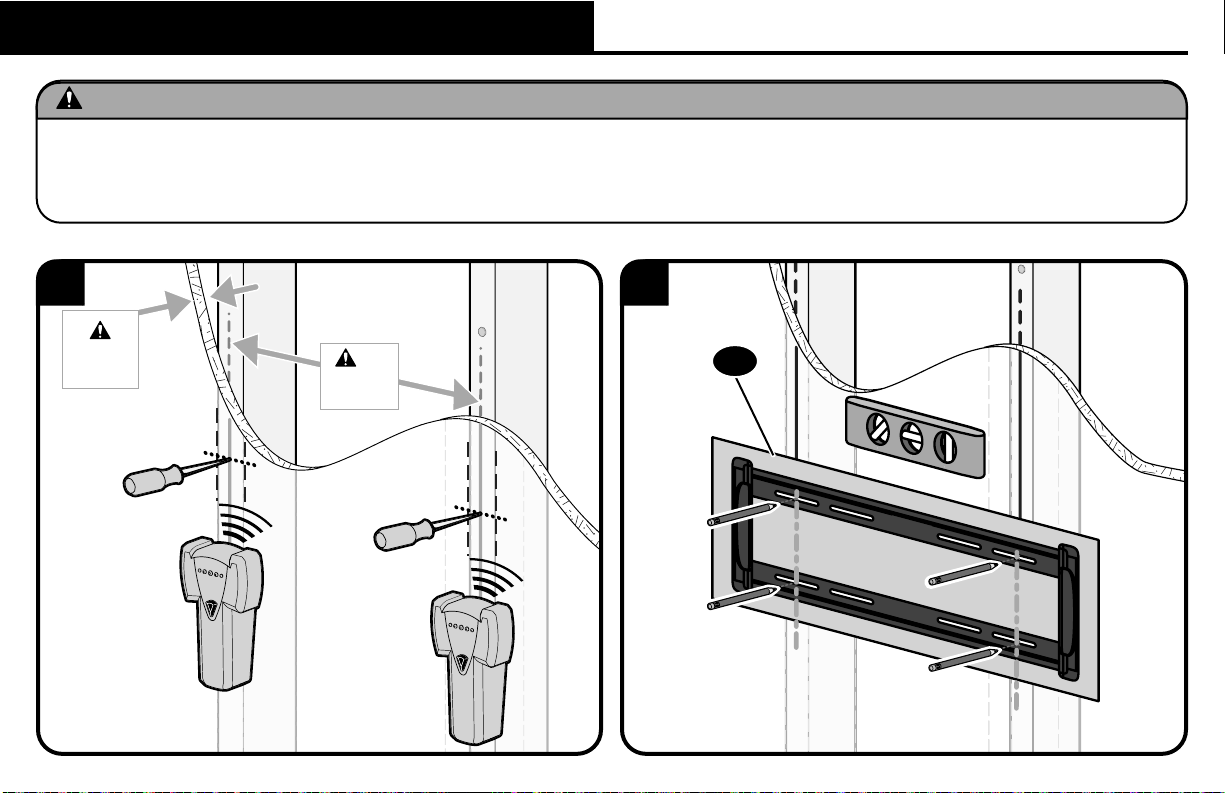

STEP 2A Attach Wall Plate to Wall Wood Stud Option
CAUTION: Avoid potential personal injury or property damage!
●Drywall covering the wall must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1 ½x 3 ½in. (38 x 89 mm)
●Minimum horizontal space between lag bolts: 16 in. (406 mm)
●Stud center must be verified
07
Min.
16 in.
(406 mm)

13
34
2 ¾ in. (70 mm)
7/32 in.
(5.5 mm)
09
08
10
07
CAUTION: Avoid potential personal injury or property damage!
Improper use could reduce the holding power of the lag bolt 09 .
Tighten the lag bolts 09 only until the washers 10 are pulled FIRMLY against
the wall plate 08 .
DO NOT over-tighten the lag bolts 09 .
Go to STEP 3 on PAGE 16.

14
21
STEP 2B Attach Wall Plate to Wall Solid Concrete or Concrete Block Option
Concrete Installation Kit CMK1 is not included
Contact Customer Service to inquire about
the additional hardware.
CAUTION: Avoid potential personal injury or property damage!
●Mount wall plate 08 directly onto concrete surface (no wall covering)
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
●Minimum horizontal space between fasteners: 16 in. (406 mm)
3/8 in.
(10 mm)
3 in. (75 mm)
07
07
Min.
16 in.
(406 mm)

15
Fischer UX10 x 60R C3 - included in the Concrete Installation Kit CMK1).
4
3
08
C1
C2
C3
CAUTION: Avoid potential personal injury or property damage!
Improper use could reduce the holding power of the lag bolt C1 .
Tighten the lag bolts C1 only until the washers C2 are pulled FIRMLY against
the wall plate 08 .
DO NOT over-tighten the lag bolts C1 .

16

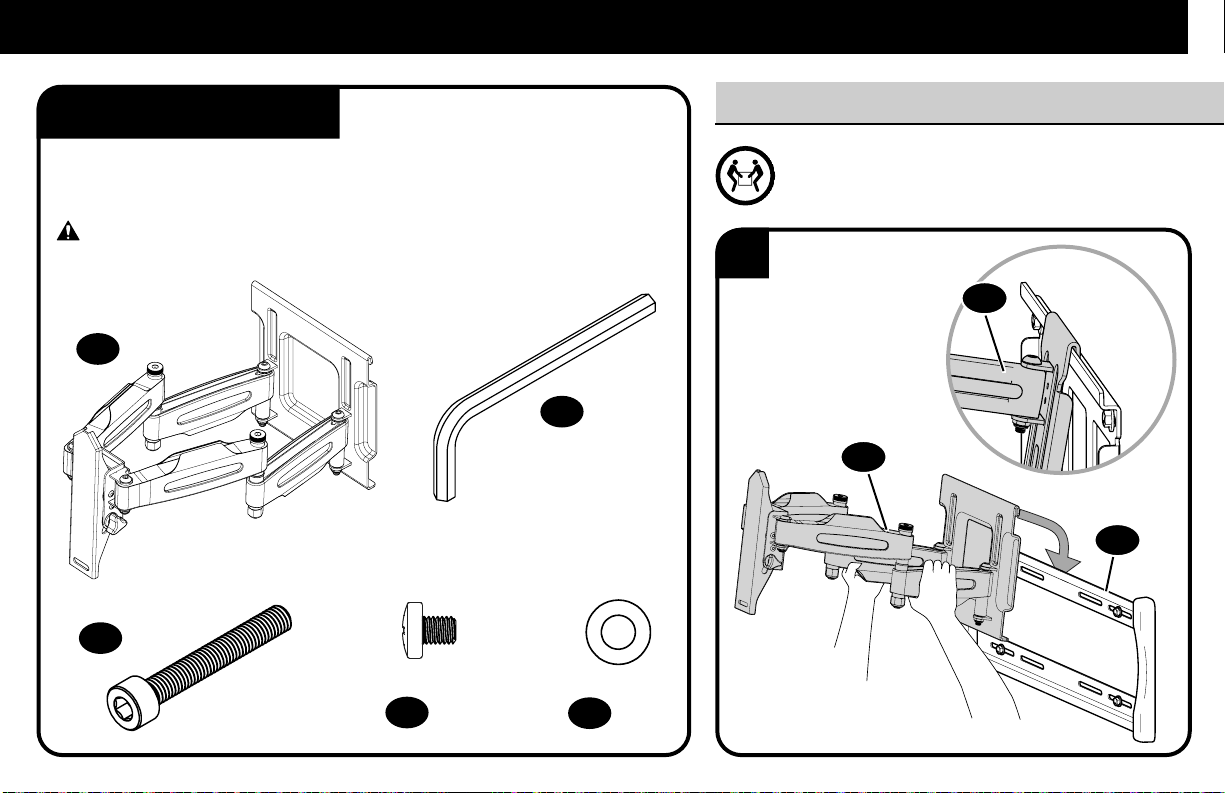

STEP 3 Parts and Hardware
WARNING: This product contains small items that could be a choking hazard
if swallowed.
STEP 3 Hang Your TV
HEAVY! You may need assistance with this step.
1
Before starting assembly, verify all parts are included and undamaged. If any parts are
missing or damaged, do not return the damaged item to your dealer; contact Customer
Service. Never use damaged parts!

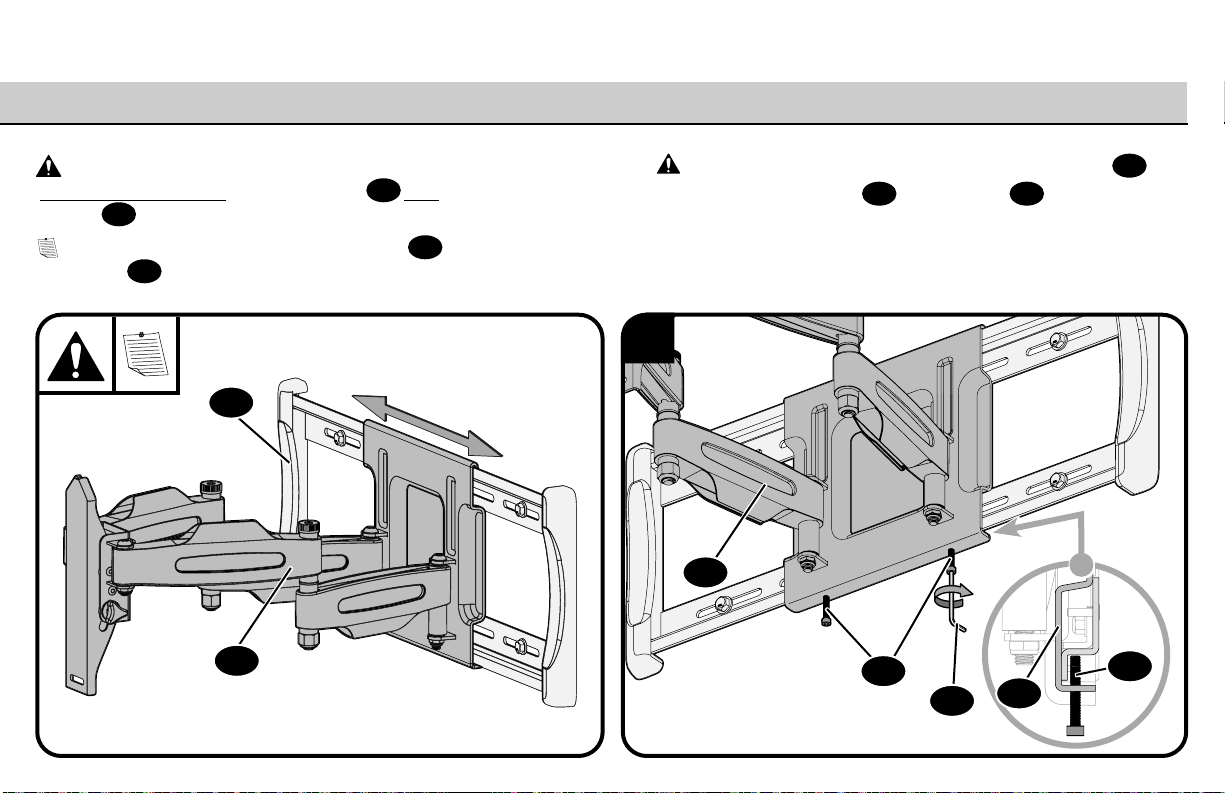

3.1 Attach Arm to Wall Plate
M5
Arm
M5 Wall Plate Screw
Hex Key
4 mm
M5 x 35mm
M5 x 6mm M5
08
11
11
11
12
13
qty. 1
qty. 2
qty. 1
M5 TV Interface Screw Washer
14 15
qty. 1 qty. 1
M5 x 6 mm

17
CAUTION: Avoid potential injury or property damage!
For concrete applications, the base of the a rm 11 must remain centered in the
wall plate 08 .
NOTE: When mounting to wood stud walls, the arm 11 can be adjusted within
the wall plate 08 for optimal positioning.
2
CAUTION: Avoid potential injury or property damage! S crews
12 must
be installed to secure the arm 11 to the wall plate 08 .
3.1 Attach Arm to Wall Plate
12
08
11
11
13
12
08

18
1
T
i
g
h
t
e
n
2
HEAVY! You may need assistance with this step. CAUTION! Avoid potential injury or property damage!
This screw 14 and washer 15 must be installed to secure the TV onto
arm 11 .

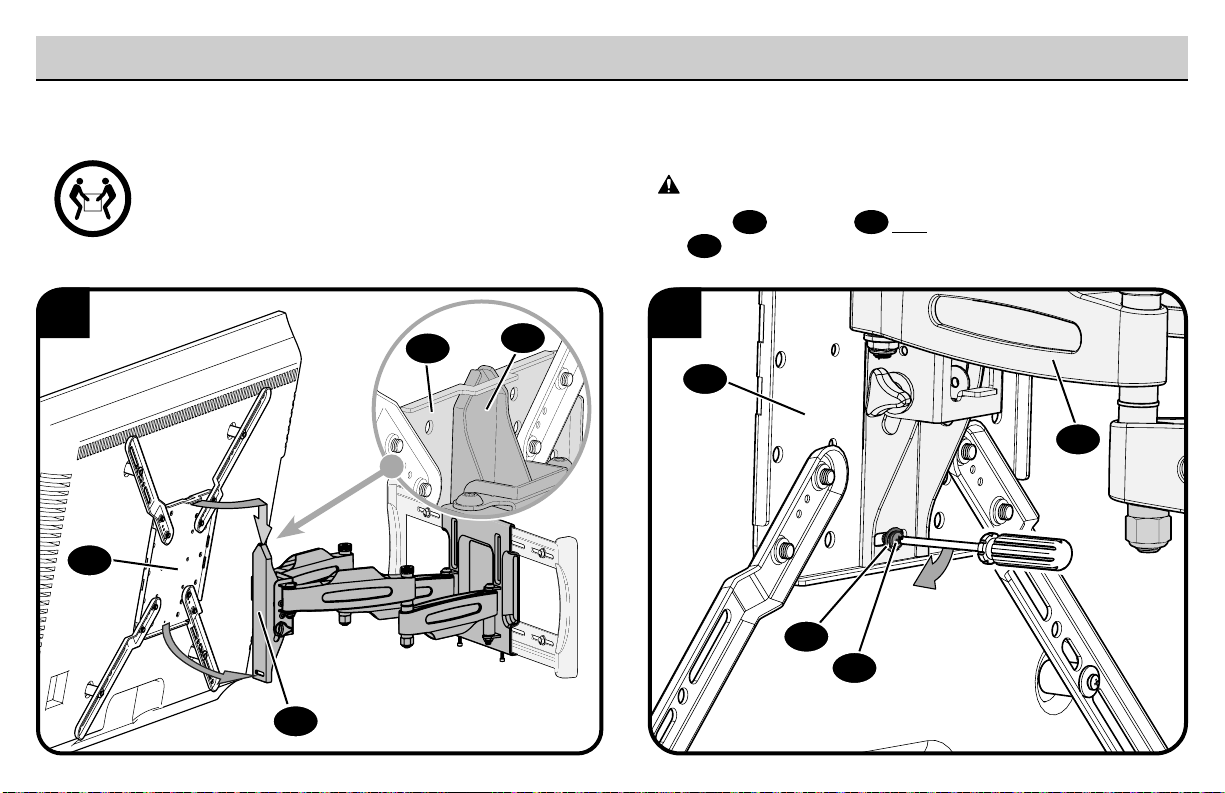

3.2 Hang TV onto Arm
14
04
11
15
11
04
11
04

19
Manage Cables
IMPORTANT: Fully extend arm assembly 11 to ensure you have enough slack in the cables to prevent binding.
11
TOP VIEW
11

20
TILT ADJUSTMENT
Your TV should adjust easily when moved, then stay in place.
If your TV is too loose or too tight, adjust the tilt tension knob T.
NOTE: Once your TV is in place, tighten the tilt tension knob Tto prevent unwanted movement.
TV Adjustments
T
